> Converting to 911 Steering Column ...
SirAndy
post Mar 20 2008, 01:35 PM
Post #1


Resident German
*************************

Group: Admin
Posts: 42,036
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
I went ahead and ordered all the parts needed to convert my currently trashed steering column to a 911 unit with the 911 keyswitch and column lock ...

i should have all the parts early next week. i'll post pictures of the install as i go along ...
(IMG:style_emoticons/default/piratenanner.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
MrKona
post Mar 20 2008, 02:00 PM
Post #2


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None
Andy,

Glad to see you're "taking back" your 914. May be a dumb question - but is there a benefit of the 911 column over the 914? Bolt in application?

- Bryan
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Mar 20 2008, 02:06 PM
Post #3


Resident German
*************************

Group: Admin
Posts: 42,036
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(MrKona @ Mar 20 2008, 12:00 PM) *

is there a benefit of the 911 column over the 914? Bolt in application?


well, porsche once used the tagline "a real porsche has the ignition key on the left side" ... (IMG:style_emoticons/default/rolleyes.gif)

my column is busted (dam thieves (IMG:style_emoticons/default/dry.gif) ) so i need a replacement anyways so why not use the 911 column to up the cool factor of the car at the same time?

the column needs some minor welding (adding a 914 mount) and you have to adapt the wiring, but 911 parts are readily available and it's really not that much work ...
(IMG:style_emoticons/default/bye1.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Todd Enlund
post Mar 20 2008, 02:43 PM
Post #4


Resident Photoshop Guru
****

Group: Members
Posts: 3,251
Joined: 24-August 07
From: Laurelhurst (Portland), Oregon
Member No.: 8,032
Region Association: Pacific Northwest
QUOTE(SirAndy @ Mar 20 2008, 12:35 PM) *

i'll post pictures of the install as i go along ...

Cool, because

(IMG:style_emoticons/default/thisthreadisworthlesswithoutpics.gif)

I bought a nice Momo wheel, only to find that nobody makes an adapter for a '70-72 /4. I've been thinking about the 911 column conversion. Looking forward to seeing how your conversion goes.

(IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Mar 20 2008, 03:10 PM
Post #5


Resident German
*************************

Group: Admin
Posts: 42,036
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Todd Enlund @ Mar 20 2008, 12:43 PM) *

I bought a nice Momo wheel, only to find that nobody makes an adapter for a '70-72 /4.


huh? (IMG:style_emoticons/default/confused24.gif)

i had a Momo Prototypo on my '70 when i bought it. i later upgraded to a '74 steering column and used the same adapter to run my new Momo steering wheel ...

works fine including horn and turn signal cancel ...
(IMG:style_emoticons/default/shades.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Mar 20 2008, 04:02 PM
Post #6


PMB Performance
***************

Group: Admin
Posts: 19,291
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
QUOTE
my column is busted (dam thieves (IMG:style_emoticons/default/dry.gif) ) so i need a replacement anyways so why not use the 911 column to up the cool factor of the car at the same time?


I kinda get a kick outta that. Imagine those assholes banging the column and trying to "fire her up" with a f*^%ing screwdriver! LOL

Happy you got it back and the lefty will be cool.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Todd Enlund
post Mar 20 2008, 05:35 PM
Post #7


Resident Photoshop Guru
****

Group: Members
Posts: 3,251
Joined: 24-August 07
From: Laurelhurst (Portland), Oregon
Member No.: 8,032
Region Association: Pacific Northwest
QUOTE(SirAndy @ Mar 20 2008, 02:10 PM) *

QUOTE(Todd Enlund @ Mar 20 2008, 12:43 PM) *

I bought a nice Momo wheel, only to find that nobody makes an adapter for a '70-72 /4.


huh? (IMG:style_emoticons/default/confused24.gif)

i had a Momo Prototypo on my '70 when i bought it. i later upgraded to a '74 steering column and used the same adapter to run my new Momo steering wheel ...

works fine including horn and turn signal cancel ...
(IMG:style_emoticons/default/shades.gif) Andy


Apparently, Momo used to make an adapter for a '70-'71 /4, but now they only list one for '72-'76. If you swapped one from an early car to a late car, that gives me hope... I have a /6 and early 911 adapter now that was represented to me as what I need for my car, but it is not. I'll look for a deal on a late 914 adapter and give it a try...

Still interested in your column swap, though...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Mar 20 2008, 06:54 PM
Post #8


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
Definitely intersted in this also, as I am planning on the same thing whenever I get around to my car. Already got the column (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
So.Cal.914
post Mar 20 2008, 06:57 PM
Post #9


"...And it has a front trunk too."
*****

Group: Members
Posts: 6,588
Joined: 15-February 04
From: Low Desert, CA./ Hills of N.J.
Member No.: 1,658
Region Association: None
What year column are you going to use? Would one be better than another?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Mar 21 2008, 07:12 AM
Post #10


Life's been good to me so far.....
***************

Group: Admin
Posts: 16,062
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
You do realize that I did this already? (IMG:style_emoticons/default/biggrin.gif)


the mounting plate on a real 914/6 column will not fit a later car. You have to cut the mounting plate off a 4 cylinder column and weld it to the 911 column.

You need the metal area in the dash for the ignition lock surround, because the 911 column is flat to the dash, and the 914 column tilts upward slightly. You also have to trim the top of the clamshells to clear the tach, and you have to make a trip piece for the lock, as the factory one is NLA.

I have pictures on my computer at home.

If you run into problems, give me a call.


User is online!Profile CardPM
Go to the top of the page
+Quote Post
TeenerTim
post Mar 21 2008, 09:37 AM
Post #11


Senior Member
***

Group: Members
Posts: 597
Joined: 22-October 07
From: Norfolk,VA
Member No.: 8,253
Region Association: MidAtlantic Region
QUOTE(SirAndy @ Mar 20 2008, 03:35 PM) *

I went ahead and ordered all the parts needed to convert my currently trashed steering column to a 911 unit with the 911 keyswitch and column lock ...

i should have all the parts early next week. i'll post pictures of the install as i go along ...
(IMG:style_emoticons/default/piratenanner.gif) Andy

Of course this means you'll have to do the 911 dash swap as well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
So.Cal.914
post Mar 21 2008, 09:57 AM
Post #12


"...And it has a front trunk too."
*****

Group: Members
Posts: 6,588
Joined: 15-February 04
From: Low Desert, CA./ Hills of N.J.
Member No.: 1,658
Region Association: None
QUOTE(TeenerTim @ Mar 21 2008, 08:37 AM) *

QUOTE(SirAndy @ Mar 20 2008, 03:35 PM) *

I went ahead and ordered all the parts needed to convert my currently trashed steering column to a 911 unit with the 911 keyswitch and column lock ...

i should have all the parts early next week. i'll post pictures of the install as i go along ...
(IMG:style_emoticons/default/piratenanner.gif) Andy

Of course this means you'll have to do the 911 dash swap as well.


He's already done it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
type47fan
post Mar 21 2008, 10:13 PM
Post #13


It Looks Better In Person. . .
***

Group: Members
Posts: 860
Joined: 17-September 03
From: Carlsbad, CA
Member No.: 1,170
Region Association: Southern California
. . . . examples of the real thing . . . .


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Mar 21 2008, 10:31 PM
Post #14


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest
QUOTE(type47fan @ Mar 21 2008, 09:13 PM) *

examples. . . .

Would you happen to want to sell that?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Apr 20 2008, 03:22 PM
Post #15


Resident German
*************************

Group: Admin
Posts: 42,036
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
finally made some progress with this ...

the column itself is from a '73 911, i also got the correct year momo steering wheel adapter, a '74 ignition switch assembly (supposed to be better than the pre '74) and the sheetmetal from the 911 dash with the mounting recess ...

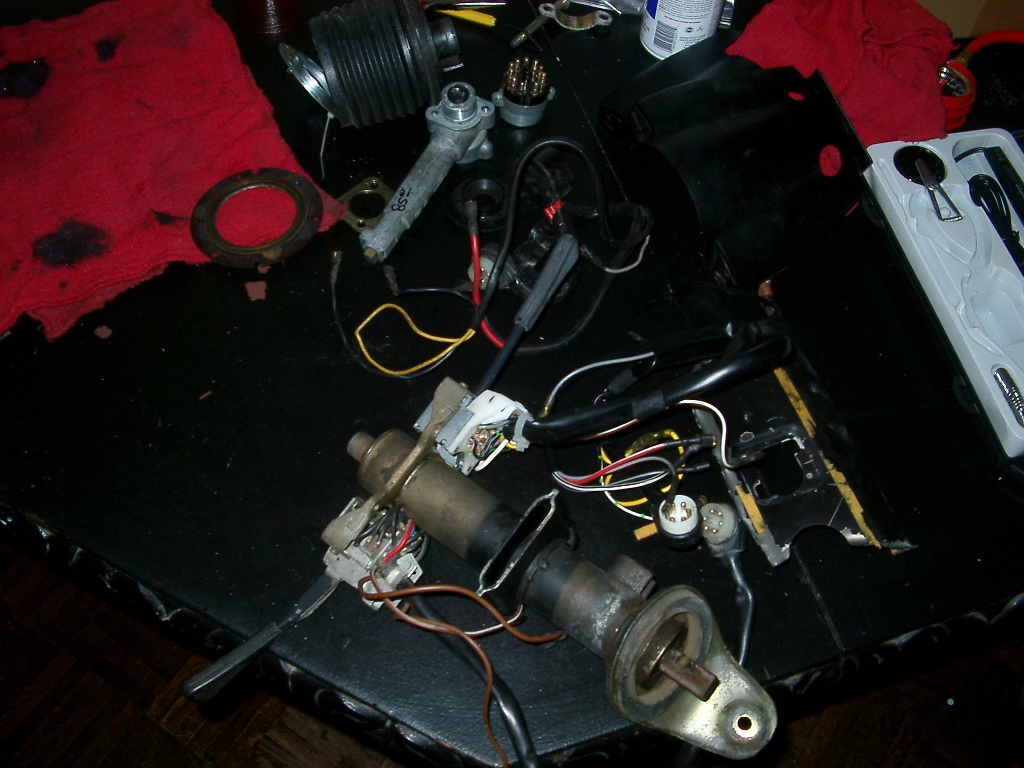

here's a picture of the lot:

Attached Image


first order of business, rekeying the ignition lock. this is a major pain in the butt as the lock can only be removed by drilling out a rollpin. (IMG:style_emoticons/default/headbang.gif)

there's a good tech article on pelican on how to do this:
http://forums.pelicanparts.com/showthread.php?t=348306


i've finished the ignition rekeying and now i'll be spending the rest of the day cleaning off the 35 year old grime off all the parts
(IMG:style_emoticons/default/piratenanner.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Oct 11 2009, 12:39 PM
Post #16


Resident German
*************************

Group: Admin
Posts: 42,036
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
Alright, let's finish this thread off with some more pix! (IMG:style_emoticons/default/biggrin.gif)



911 Ignition Switch #911.613.011.0

Attached Image

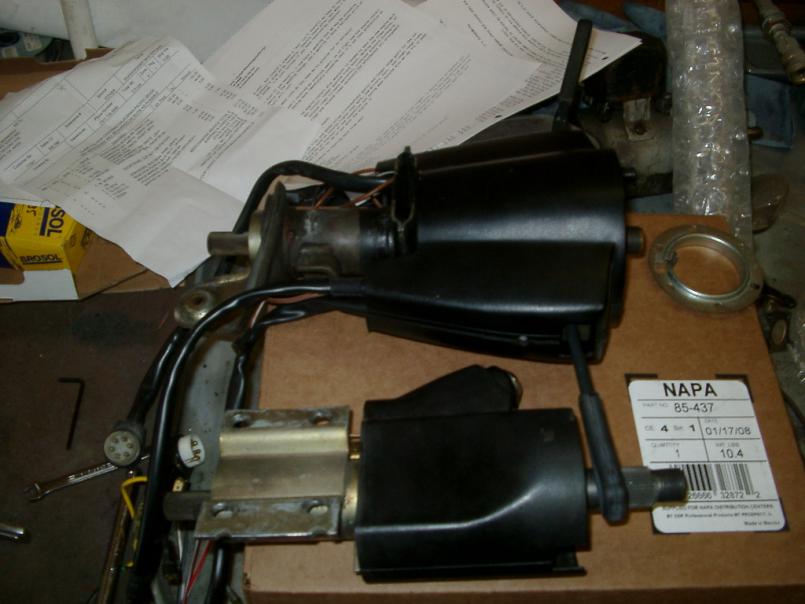

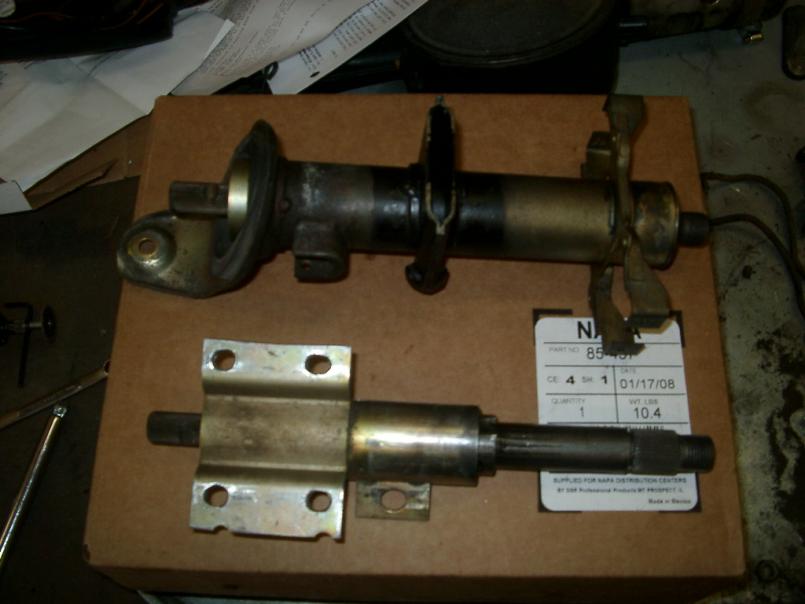

911 column and 914/4 column side by side:

Attached Image

Attached Image

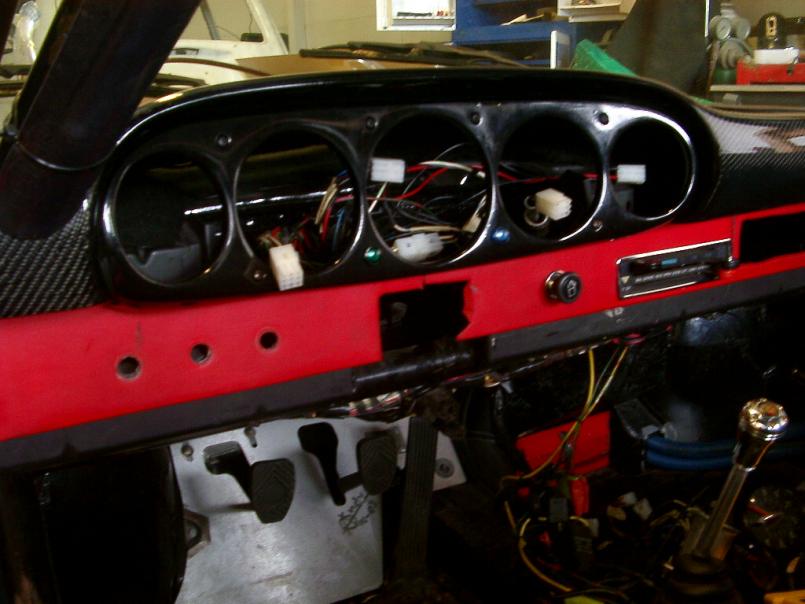

My dash before the operation:

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Oct 11 2009, 12:44 PM
Post #17


Resident German
*************************

Group: Admin
Posts: 42,036
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
We then removed the original mount and the end bracket from the 911 column and added our own mounting tabs.

The location of the mounting tabs was determined by aligning the 911 column and switch with the dash and then marking the spots on the column.

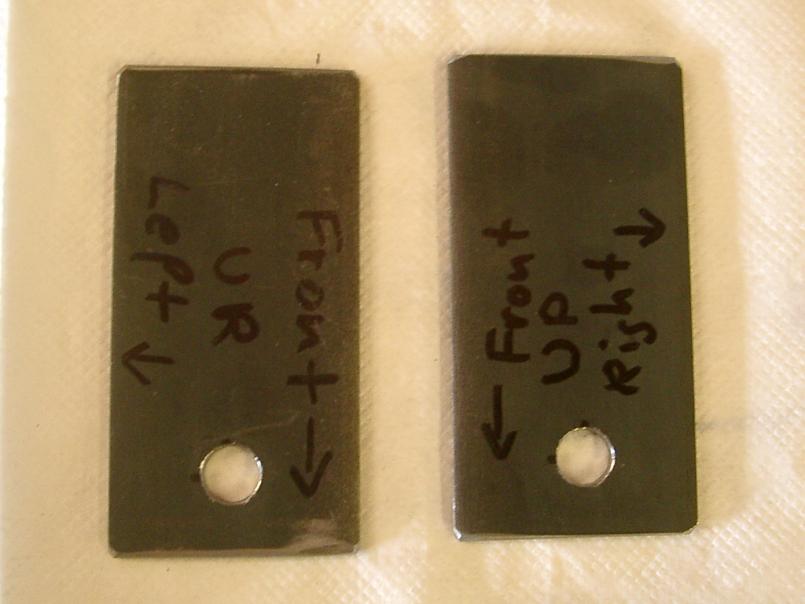

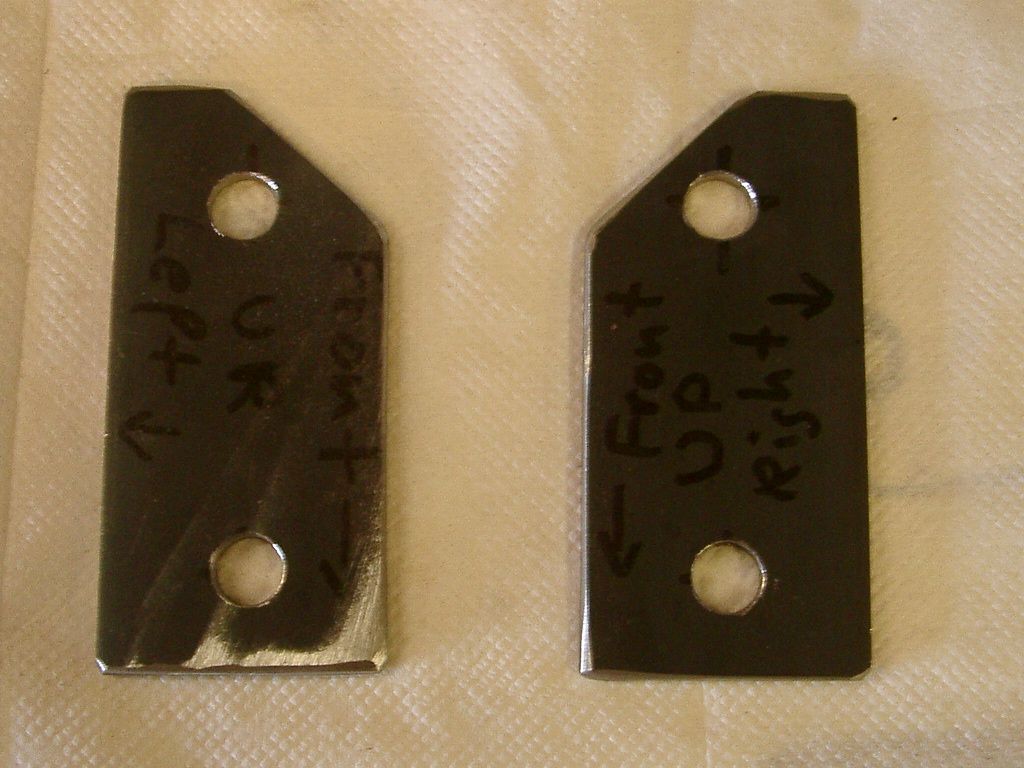

Mounting Tabs before and after fitting:

Attached Image

Attached Image

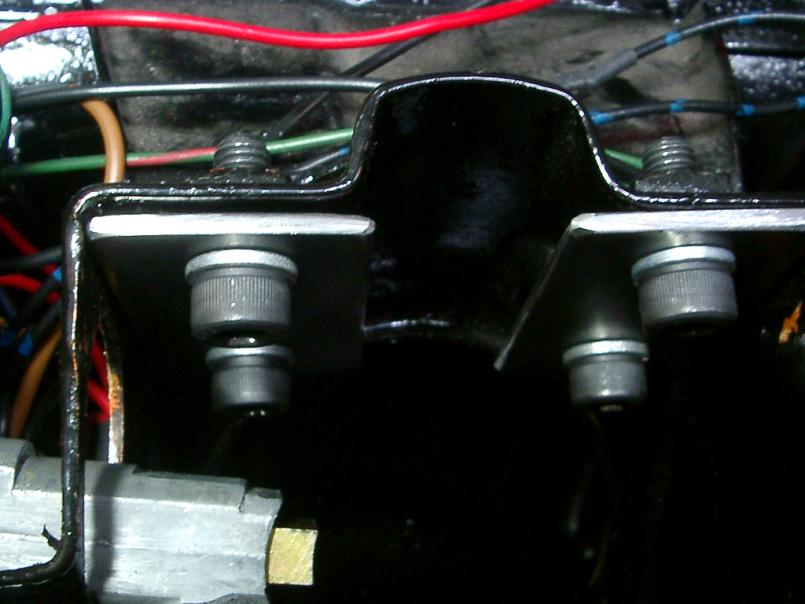

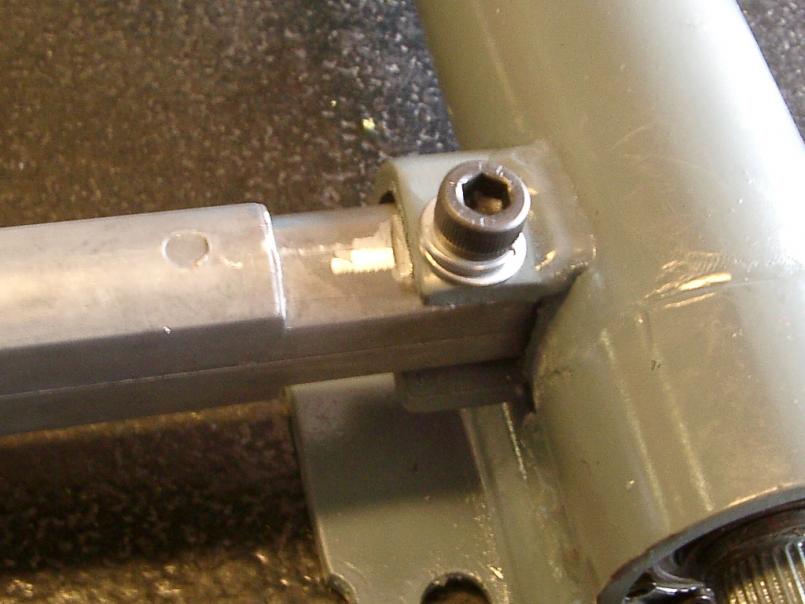

Testfitting the tabs:

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Oct 11 2009, 12:50 PM
Post #18


Resident German
*************************

Group: Admin
Posts: 42,036
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California

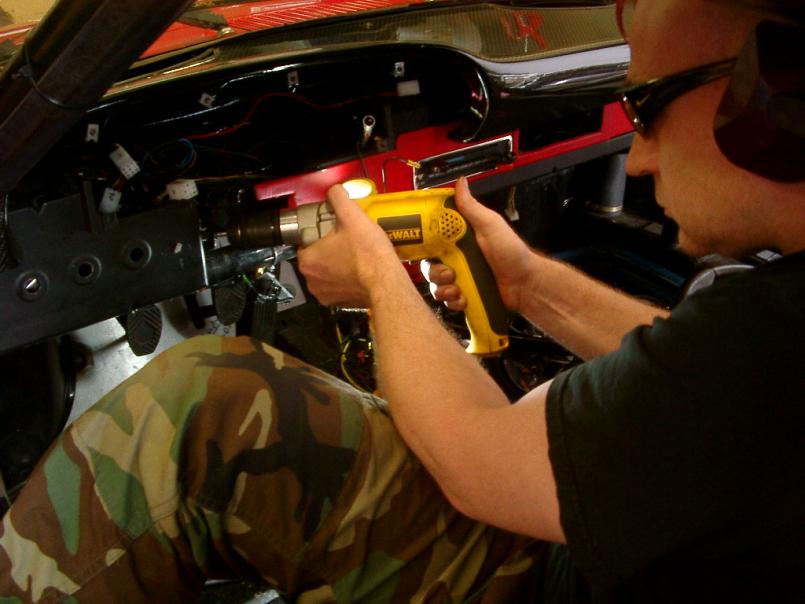

The hole where the 911 switch passes through to meet with the column had to be enlarged a bit as i'm using a later model switch on an early column.

Attached Image

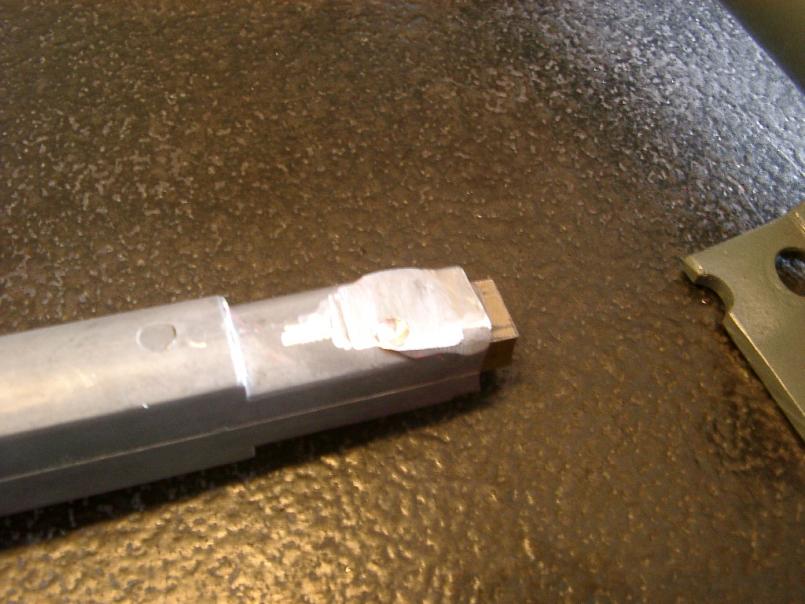

For the same reason, the lock part of the switch needed a little "adjusting" to work correctly with the column.

Attached Image

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Oct 11 2009, 12:53 PM
Post #19


Resident German
*************************

Group: Admin
Posts: 42,036
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California

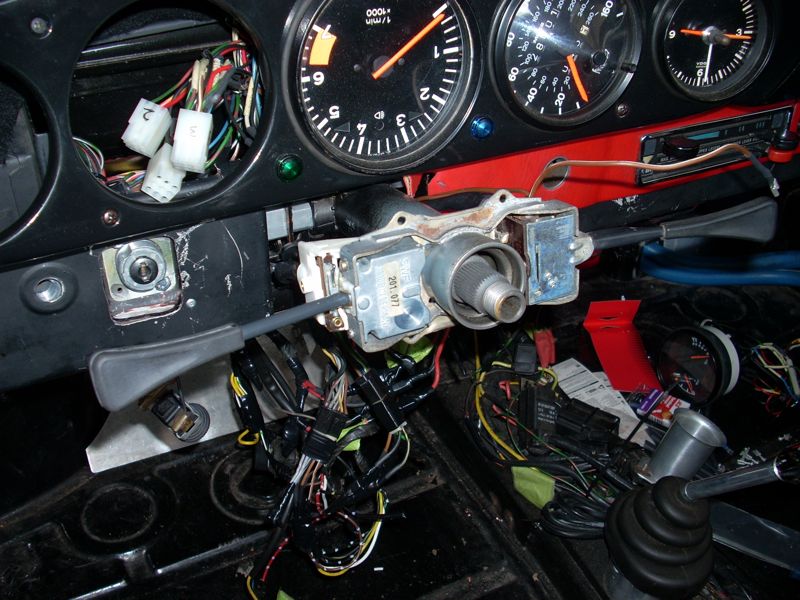

Testfitting the assembly:

Note that i used a piece of the original 911 dash to fab a mount for the 911 switch where it meets the 914 dash face.
I riveted the sheetmetal mount to the 914 dash and secured the switch with two bolts. Worked great.



Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Oct 11 2009, 12:56 PM
Post #20


Resident German
*************************

Group: Admin
Posts: 42,036
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
And finally putting it all back together.
The key lock actually is almost dead on in the same spot as the factory hole for the foglight switch!

Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


2 Pages V  1 2 >
Reply to this topicStart new topic
2 User(s) are reading this topic (2 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 5th February 2025 - 10:54 AM
Invision Power Board v9.1.4 © 2025  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
