> Anyone ever break a head stud?, Looking for ideas, tools success stories, horror stories, what cha got
rick 918-S
post Apr 27 2008, 04:56 PM
Post #1


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
I'm building a 928 hybrid engine which is comprised of a 5.0L 32 valve short block with 16 valve euro spec "S" heads, spyder and CIS from the 4.7L "S" engine.

I stole some time from my busy work schedule to prep my 928 block for the machine shop. The head studs need to be removed for the boring process.

Now I've pulled studs before without incedent. But as Murphy would have it, this time I broke one of the studs flush at the start of the threads.

So I have the threaded section ( 1 1/4"long ) hardened head bolt stuck in the block. Normally this wouldn't be a problem, but the stud is free standing in a 3 1/2" deep hole in the block!

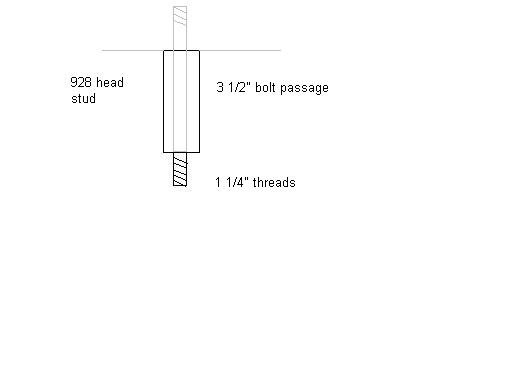

Here's a crude drawing of the problem I'm faced with.

Attached Image

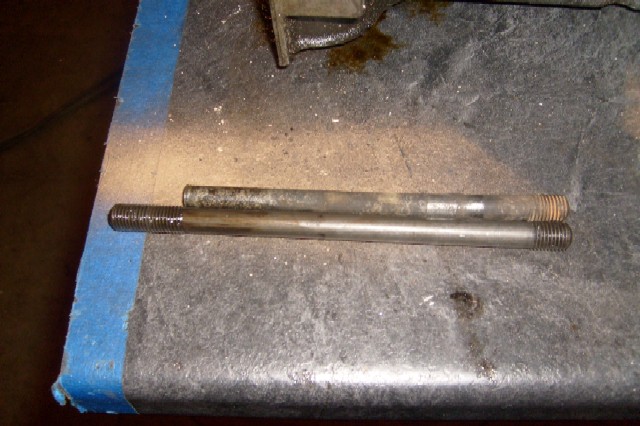

Here's the stud.

Attached Image

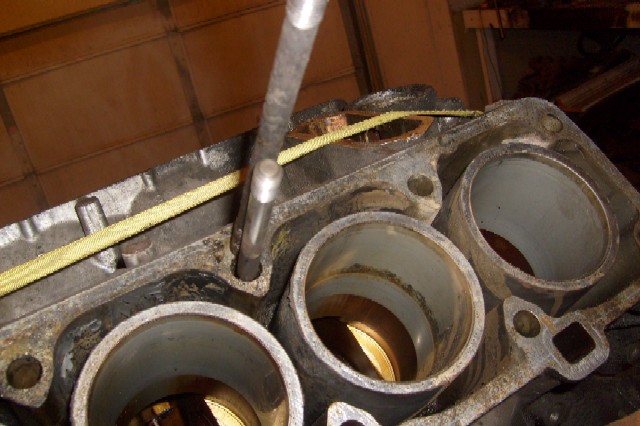

Here's the stark reality of the stud in and out of the block. The stud slides down a 3 1/2" deep hole in the block before it starts to thread in.

Attached Image


I'm going to make a drill collet as a guide for a pilot bit. The problem is I need a long, reverse twist drill bit.

Most drill bits are approx 5" long. the hole is 3 1/2", the threaded section is 1 1/4" for a total of 4 3/4". See the problem?

Then, what the #$!! do you drill a hardened bolt with?

Anyone know of a good tool source? This is beyond most Mac and Snap on stuff I would think.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Apr 27 2008, 05:49 PM
Post #2


En Garde!
**********

Group: Admin
Posts: 13,589
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
Let your machinist deal with it?

Probably end up drilling it out on a press, and then putting in an insert.

Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SGB
post Apr 27 2008, 05:52 PM
Post #3


just visiting
****

Group: Members
Posts: 4,086
Joined: 8-March 03
From: Huntsville, AL
Member No.: 404
Region Association: South East States
Looks like a "major malfunction".

What a bizzar manufactoring method....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty b
post Apr 27 2008, 05:59 PM
Post #4


rust free you say ?
***************

Group: Members
Posts: 16,375
Joined: 7-January 05
From: richmond, Va.
Member No.: 3,419
Region Association: None
Rick the guy I started out working for had the EXACT same thing happen while torqueing a head. His solution was to holler F*CK, throw his torque wrench on the floor, tell the engine what a M+%*$( %)@_%*%^@!(#)% piece of $#&$(^(#&@#*^(#!@$&^@#$% it was, and let the mahinist fix it. IIRC he clamped it in the mill and basically ate the stud away then put a time cert in the block. Sorry to hear. Sux big time (IMG:style_emoticons/default/sad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
spare time toys
post Apr 28 2008, 03:02 AM
Post #5


hooked on grilling food.
****

Group: Members
Posts: 4,059
Joined: 3-April 04
From: West Plano Tx
Member No.: 1,884
Region Association: Southwest Region
Could always use that spare block that came from California by way of Texas couldnt you (IMG:style_emoticons/default/shades.gif) Since your doing the hybrid thing and all (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Richard Casto
post Apr 28 2008, 08:14 AM
Post #6


Blue Sky Motorsports, LLC
***

Group: Members
Posts: 1,465
Joined: 2-August 05
From: Durham, NC
Member No.: 4,523
Region Association: South East States
I have no idea what the cost of this is, but EDM (Electrical Discharge Machining) aka Spark Erosion may be the right tool for the job.

Maybe you can find someone local to you like this guy (found via Google search)...

http://www.brokentap.com/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Richard Casto
post Apr 28 2008, 08:21 AM
Post #7


Blue Sky Motorsports, LLC
***

Group: Members
Posts: 1,465
Joined: 2-August 05
From: Durham, NC
Member No.: 4,523
Region Association: South East States
QUOTE(Richard Casto @ Apr 28 2008, 10:14 AM) *

I have no idea what the cost of this is, but EDM (Electrical Discharge Machining) aka Spark Erosion may be the right tool for the job.

Maybe you can find someone local to you like this guy (found via Google search)...

http://www.brokentap.com/


Another Google search for EDM services, but this time for someone in MN...

http://www.twincityedm.com/

Good luck on getting the stud removed! (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Apr 28 2008, 08:22 AM
Post #8


Custom Member
***************

Group: Members
Posts: 24,645
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
I believe the correct bit is made from Cobalt.
These or carbide bits.
Look at McMaster Carr, MSC, or Grainger for the correct bit(S)

You will need at least two bits to work up to the right size.
Drill press would be the way to go, but you can also use a hand drill.
Think about buying a long section of bronze to make a collar that keeps you straight.

The tap will be from the same industrial hardware guys also...it needs to be long.

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bartlett 914
post Apr 28 2008, 08:22 AM
Post #9


Advanced Member
****

Group: Members
Posts: 2,216
Joined: 30-August 05
From: South Elgin IL
Member No.: 4,707
Region Association: Upper MidWest
QUOTE(Richard Casto @ Apr 28 2008, 06:14 AM) *

I have no idea what the cost of this is, but EDM (Electrical Discharge Machining) aka Spark Erosion may be the right tool for the job.

Maybe you can find someone local to you like this guy (found via Google search)...

http://www.brokentap.com/

(IMG:style_emoticons/default/agree.gif)
Totally!

The drill guide should also work. The biggest problem is getting the drill to start in the center of the stud and not wander off center. Then you are drilling the case and not the stud. A properly setup EDM should be able to remove all the stud except the threads which may still be tricky to get out because of how deep the stud is in the block. Take the block to someone with equipment like EDM and / or a mill. Lots of luck Rick.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Apr 28 2008, 08:52 AM
Post #10


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Larry, I broke that CA. block when I had a valve fail.

I found a EDM place. Their 180 miles away. Not the worse thing, at least there's one in the state.

http://www.twincityedm.com/contactus.htm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rudedude
post Apr 28 2008, 09:04 AM
Post #11


Senior Member
***

Group: Members
Posts: 517
Joined: 1-January 05
From: minneapolis, mn
Member No.: 3,387
Region Association: Upper MidWest
Rick,

There is a tool dealer in st paul, Norseman drill & tool, 651-227-8911 or 800-328 -4655 that has wonderful drills and cutters.

They have made mill tools to spec for me and might be able to help you.
Good luck!

Jule
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Richard Casto
post Apr 28 2008, 09:52 AM
Post #12


Blue Sky Motorsports, LLC
***

Group: Members
Posts: 1,465
Joined: 2-August 05
From: Durham, NC
Member No.: 4,523
Region Association: South East States
Rick,

If you go the EDM route, I would be curious to hear what they charge for that type of work. Just for future reference. I think something like this is pretty much in the future of anyone who does their own engine work.

Richard
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Apr 28 2008, 10:23 AM
Post #13


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
I contacted the EDM guy. He didn't think he could work 3 1/2" deep inside a 5/8" inside hole.

It's up to me. Thanks for the lead for the drill source in St. Paul.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Apr 28 2008, 10:49 AM
Post #14


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE(rudedude @ Apr 28 2008, 07:04 AM) *

Rick,

There is a tool dealer in st paul, Norseman drill & tool, 651-227-8911 or 800-328 -4655 that has wonderful drills and cutters.

They have made mill tools to spec for me and might be able to help you.
Good luck!

Jule


I called them. They only have left hand bits in jobber length, (3/8"=5" long) and only sell to jobbers like the Tool Crib, etc.

Still looking. I need left hand drill bits approximatly 7" long. And a thread extractor as long
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Apr 28 2008, 10:57 AM
Post #15


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
BTW: My machine shop offered to drill it out and install a time sert (sp) then remembered the threaded part is 3 1/2" in the block... Maybe not. (IMG:style_emoticons/default/dry.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Apr 28 2008, 11:32 AM
Post #16


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California
A good EDM guy can probably do it. I have a number for one, but he's in LA, CA. He does work for many of the bug Top Fuel guys, including Johnson Racing here in Santa Maria.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Katmanken
post Apr 28 2008, 06:58 PM
Post #17


You haven't seen me if anybody asks...
****

Group: Members
Posts: 4,738
Joined: 14-June 03
From: USA
Member No.: 819
Region Association: Upper MidWest
Aircraft work sometimes requires extra long drill bits- say 12 inches or so......

These are not reverse twist but they might be a workaround and the prices aren't too bad.....

Aircraft 12 inch long drills linky link

I do like the guide pilot idea if the bore isn't tapered.

Ken
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Apr 28 2008, 08:58 PM
Post #18


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,785
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
OK, I did some deep thinking about this today. Unfortunately, I didn't have the light bulb moment until most places closed for the day.

Here's how I'm going to fix this. If it works I'll post pics.

I located left hand drill bits on http://www.mcmaster.com/

They also have left hand taps and bolts!

I'm going to machine a drill bushing that doubles as a chuck for a (short) left had drill bit. Sometimes during the drilling the threads will back out. If it doesn't,,,,,

I am going to use the left hand tap to cut threads in the pilot hole.

This sometimes will cause the threaded section to back out. If it doesn't,,,,

I am going to thread in a left hand grade 8 bolt. This will repair the broken bolt and give me a positive bite on the threaded section. If the bolt breaks I can just drill it again.

If I used an extractor and it breaks, I toss the block in the scrap pile.

Extractors = bad.... (IMG:style_emoticons/default/dry.gif) bolt = good... (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Apr 29 2008, 11:02 AM
Post #19


Custom Member
***************

Group: Members
Posts: 24,645
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
I bet you could get a new block for cheap....seriously.
There was a 928 motor at Hershey for short money...

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Apr 29 2008, 11:03 AM
Post #20


Custom Member
***************

Group: Members
Posts: 24,645
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Have you called 928 international??? Maybe they have a cure for this???
Or Pevec (SP) the guy who hot rods these motors???

I am sure someone has dealt with this in the 928 community before.

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


2 Pages V  1 2 >
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 23rd November 2024 - 08:27 PM
Invision Power Board v9.1.4 © 2024  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
