> original 6 re-build thread.
Project 6
post Jul 8 2008, 08:38 PM
Post #1


large member
**

Group: Members
Posts: 359
Joined: 30-December 02
From: Utah
Member No.: 51
Region Association: None
What's wrong with this pic? The Optima was too late for this ride.

This post has been edited by mikez: Aug 28 2008, 03:06 PM


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Project 6
post Jul 8 2008, 08:46 PM
Post #2


large member
**

Group: Members
Posts: 359
Joined: 30-December 02
From: Utah
Member No.: 51
Region Association: None

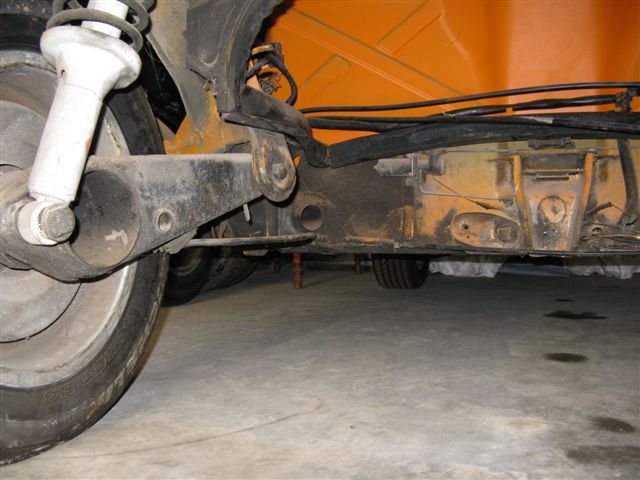

Otherside is good. Kill Yer Backs need to go.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Jul 8 2008, 10:02 PM
Post #3


Custom Member
***************

Group: Members
Posts: 24,656
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
your right, its a total loss.
I will come over and pick it up for you and I will even give you a clean 73 tub with no rust.

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Project 6
post Jul 8 2008, 10:51 PM
Post #4


large member
**

Group: Members
Posts: 359
Joined: 30-December 02
From: Utah
Member No.: 51
Region Association: None
Sorry Mr. Towle, this original six will be repaired. My PDF file is not the best on the suspension area. Anyone have a good exploded view?

I will be ordering parts to do it right as opposed the rather amateurish repair. I have a Cellette availble for the asking.

I assume, suspension console, battery tray and support. I'd like to know what else is needed and order it ahead of time.

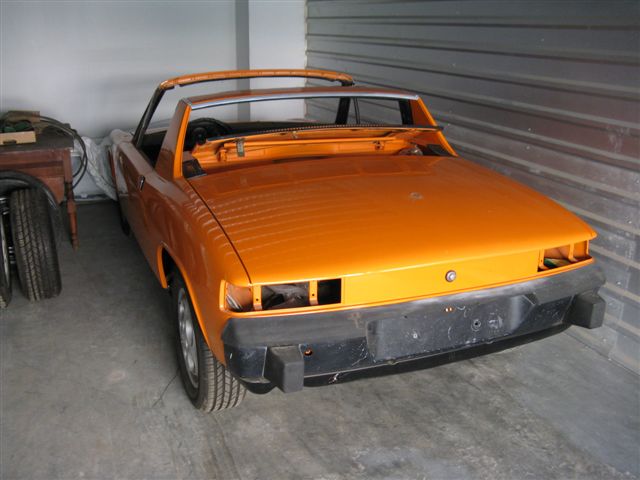

Yes, that is not an original 6 bumper. It will be reunited after the console repair.

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rand
post Jul 8 2008, 11:13 PM
Post #5


Cross Member
*****

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None
Is it just me, or were your engine pics taken in a mirror?

edit.... oops one gone... Never mind. Clearly someone spiked my drink.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jul 8 2008, 11:22 PM
Post #6


Resident German
*************************

Group: Admin
Posts: 41,937
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Project 6 @ Jul 8 2008, 06:38 PM) *

What's wrong with this pic? The Optima was too late for this ride.


outsch! (IMG:style_emoticons/default/unsure.gif)


battery tray, engine shelf and the "ear" are all available.

i'd be digging into the hell hole, with that kind of repair, who knows what they did to "fix" the large rust hole on top of the long.
also look closely on the underside of the long and around the jackpost. the rust likes to go there, after eating through the top.

another one saved!
(IMG:style_emoticons/default/smilie_pokal.gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rand
post Jul 8 2008, 11:26 PM
Post #7


Cross Member
*****

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None
Did they do more than just lay/weld sheet metal over that suspension console/ear? Wonder what's under there.

The rest looks great though? Looking forward to the progress.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Jul 9 2008, 06:22 AM
Post #8


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States
Yep, what Andy said.... I just finished mine, here's a link to the removal and installation of the suspension console.... And here's a link to the engine compartment painted....

Keep up the good work and look forward to your progress thread...

-- rob
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jul 9 2008, 08:29 AM
Post #9


914 Guru
*****

Group: Members
Posts: 8,109
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
Come on! Everyone knows that that is the rare 914-6 gt RACING console!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Project 6
post Jul 9 2008, 08:51 AM
Post #10


large member
**

Group: Members
Posts: 359
Joined: 30-December 02
From: Utah
Member No.: 51
Region Association: None
Mr. Hussey:

Post what I need and availability and I'll place an order.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Jul 9 2008, 09:18 AM
Post #11


Custom Member
***************

Group: Members
Posts: 24,656
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Try searching for "Heaven for the Hell Hole"

All the parts are in the thread and pictures are there.

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Jul 9 2008, 09:34 AM
Post #12


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
(IMG:http://www.914world.com/bbs2/uploads/post-419-1168635274.jpg)

link
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dflesburg
post Jul 9 2008, 09:39 AM
Post #13


Senior Member
***

Group: Members
Posts: 1,722
Joined: 6-April 04
From: Warm and Cheerful Centerville Ohio
Member No.: 1,896
Region Association: None
Glad to see pics like that...

makes me feel like my welding and repair parts ain't too bad...

by the way, mikez your avatar distracts the crap out of me.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jul 9 2008, 11:05 AM
Post #14


914 Guru
*****

Group: Members
Posts: 8,109
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
we are happy that over the years we were able to make, one by one, every piece to perfectly repair the battery area. As the factory has discontinued all of the parts, we would be totally without today, as no one is crazy enough to invest so much in tooling (of course we had invested all of the tooling with Bill only to have it converted!!!!, long very bad story)
But in any event we are making more and more of these various pieces, as I always say "If you have no body you have no car" The recent ones are the em brake stand the two piece outer firewall repair panels, and the 914-6 control unit mounting plate.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Project 6
post Jul 9 2008, 11:52 AM
Post #15


large member
**

Group: Members
Posts: 359
Joined: 30-December 02
From: Utah
Member No.: 51
Region Association: None
Mr. Hussey:

So, can you give me a list of prices, availabilty?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jul 9 2008, 12:45 PM
Post #16


914 Guru
*****

Group: Members
Posts: 8,109
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
QUOTE(Project 6 @ Jul 9 2008, 10:52 AM) *

Mr. Hussey:

So, can you give me a list of prices, availabilty?


Sure! Here is where it starts: http://autoatlanta.com/model/914-0704/rust/914-page062.html
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Project 6
post Jul 9 2008, 03:07 PM
Post #17


large member
**

Group: Members
Posts: 359
Joined: 30-December 02
From: Utah
Member No.: 51
Region Association: None
Thank you, what's the availability of all parts?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Project 6
post Jul 10 2008, 09:06 PM
Post #18


large member
**

Group: Members
Posts: 359
Joined: 30-December 02
From: Utah
Member No.: 51
Region Association: None
So I'm guessing the parts only exist in the catalog?

Fair enough.

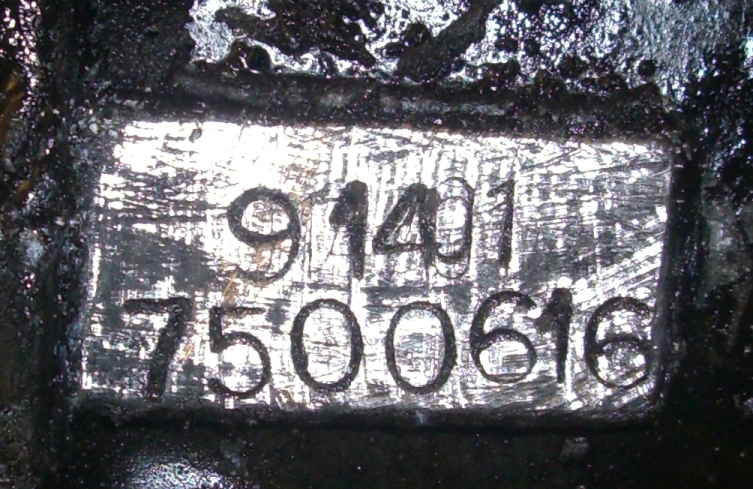

Trans# 914/01 7500616

Attached Image
Attached Image
Attached Image

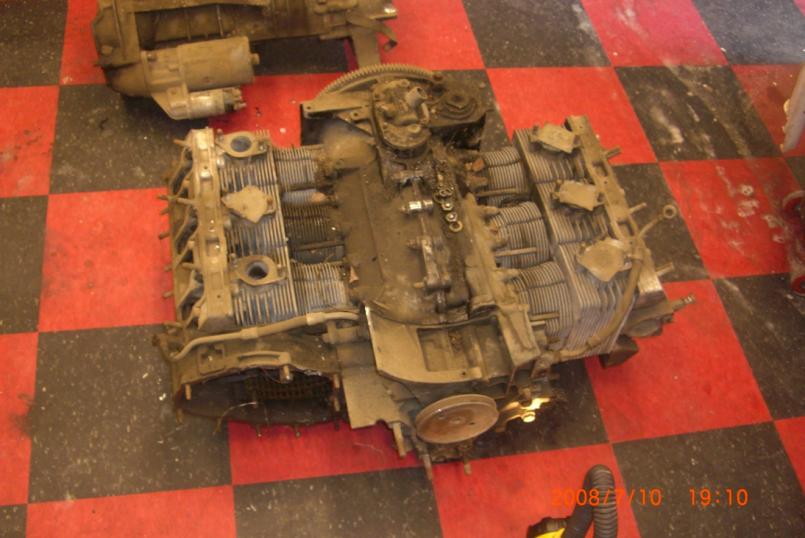

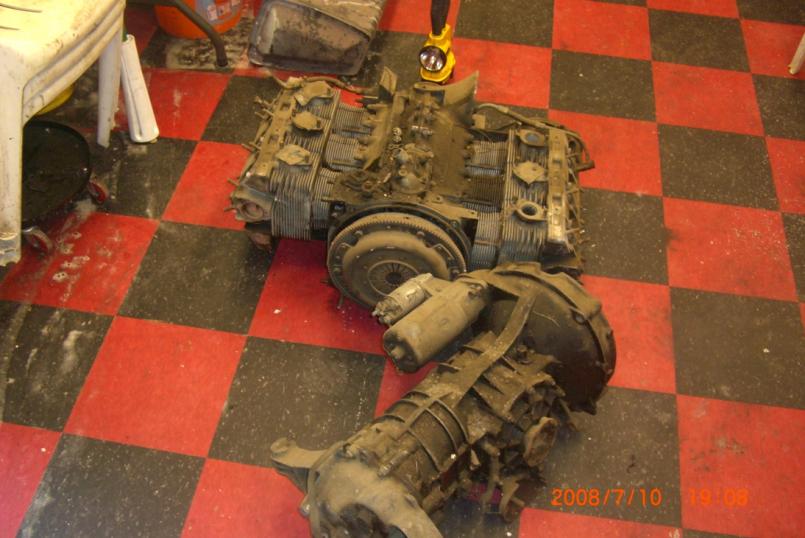

I have some work cut out for me.

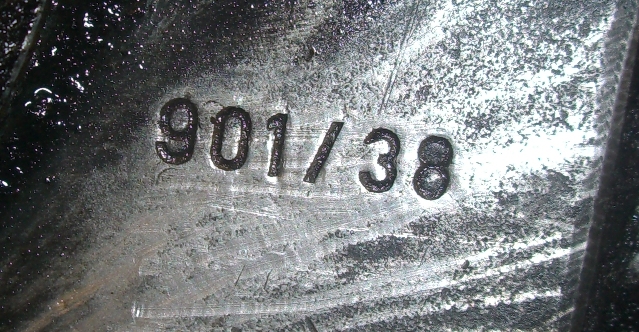

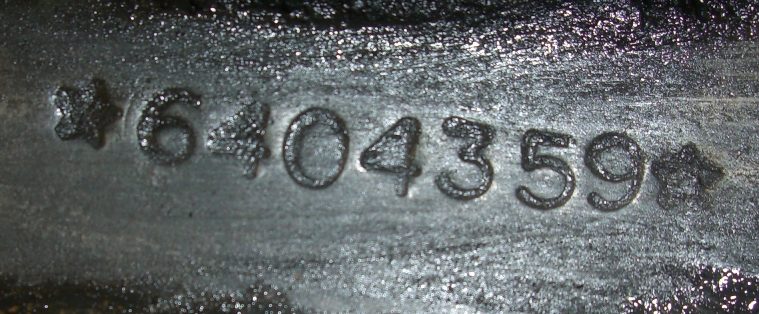

Engine # and serial #
Attached Image
Attached Image

I also learned something today, 914/6 engine and serial numbers aren't where 911 engine numbers are. They are back by the thermostat housing instead of to the right of the of the engine pulley.

One would guess that they do that so they can be seen without having to pull the motor or cut a hole in the firewall.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
carr914
post Jul 11 2008, 11:19 AM
Post #19


Racer from Birth
****************************************************************************************************

Group: Members
Posts: 122,475
Joined: 2-February 04
From: Tampa,FL
Member No.: 1,623
Region Association: South East States
Good Luck on your fixin. I've got #673 & #2190

T.C.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Project 6
post Jul 12 2008, 01:40 PM
Post #20


large member
**

Group: Members
Posts: 359
Joined: 30-December 02
From: Utah
Member No.: 51
Region Association: None

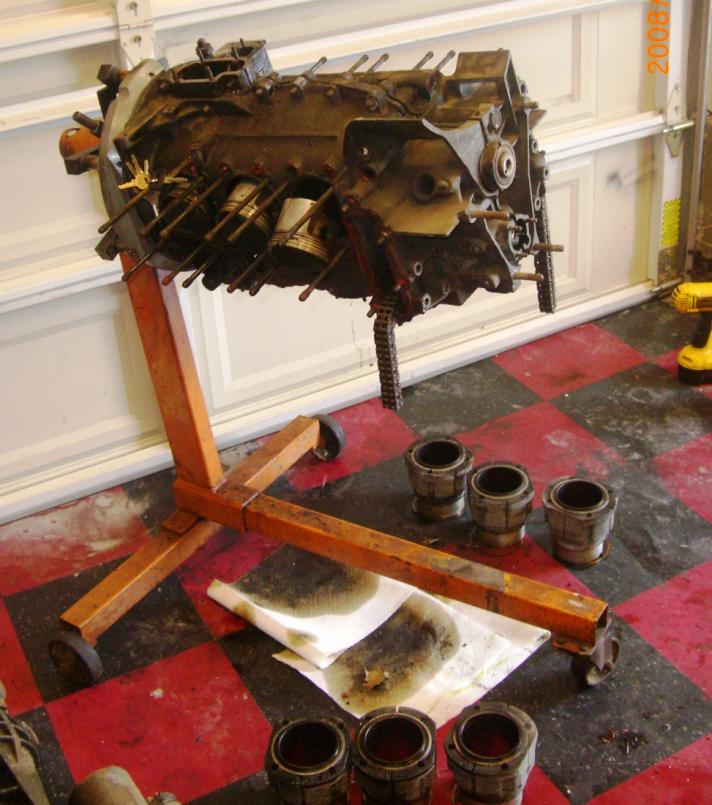

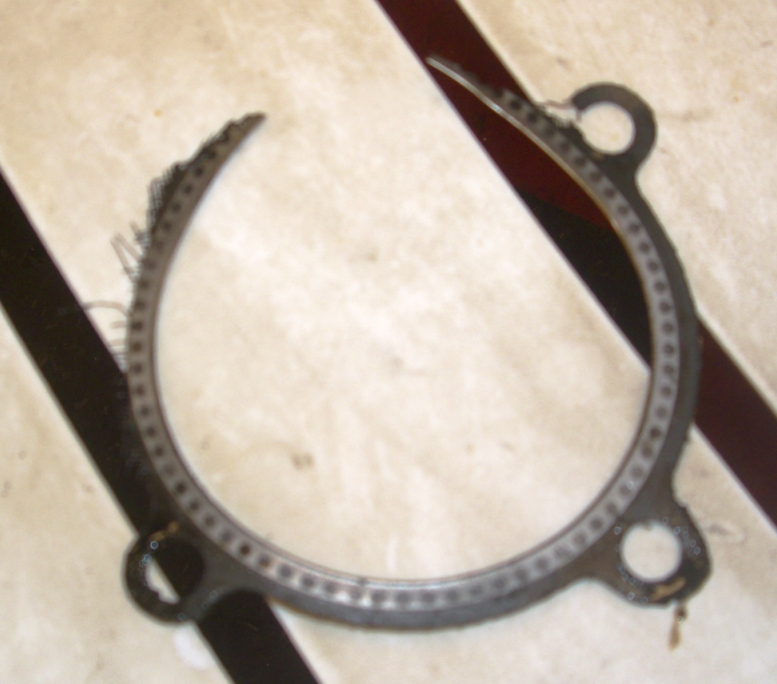

Tear down of engine, gasket is one of three that shows blow by.

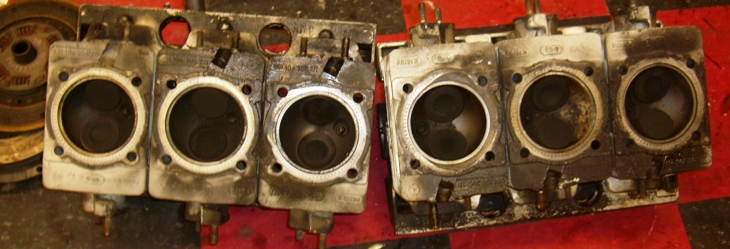

Last rebuilder used Permatex EVERYWHERE. Heads look pretty good. Debating on just stabbing a running 3.0 in it, keep the cleaned up and rebuildable original to the car case or rebuilding this.

110HP just doesn't cut it for me. Now a 180HP 3.0 would be fun. $3500 for a running one, throw on the 40mm Webers, junk the CIS.

That much or more to rebuild this 2.0. What would you guys do?

Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
