 Brake line support bracket locations. |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| jkb944t |
 Mar 29 2011, 06:11 AM
Post
#1
|
|
Member  Group: Members Posts: 464 Joined: 17-January 05 From: Canton, OH Member No.: 3,459 Region Association: None  |
Does anyone have the measurements for where the brake line support brackets go on the front and back wheel wells of the 914. I added 914 GT stiffener plates up by the sway bar and in the rear wheel wells which necessitated removing the brake line support brackets. Now I am ready to weld them back on but I didn’t document their exact location.
Jeff B |
   |

|
  |
Replies(1 - 8)
| Jeffs9146 |
Mar 29 2011, 08:13 AM
Post
#2
|
|
Ski Bum Group: Members Posts: 4,062 Joined: 10-January 03 From: Discovery Bay, Ca Member No.: 128 |
Install the line with the bracket on it, hold it in position and mark the spot!
|
|
|
|
| jkb944t |
Mar 29 2011, 11:21 AM
Post
#3
|
|
Member Group: Members Posts: 464 Joined: 17-January 05 From: Canton, OH Member No.: 3,459 Region Association: None |
The body is on a rotisserie and is completely stripped. I won’t be installing any brake lines until after it is painted. I want to weld the brackets into place before painting therefore I am looking for dimensions from the sway bar hole. Locations for the back brackets would be helpful also.
Jeff B |
|
|
|
| Mike Bellis |
Mar 29 2011, 11:41 AM
Post
#4
|
|
Resident Electrician Group: Members Posts: 8,346 Joined: 22-June 09 From: Midlothian TX Member No.: 10,496 Region Association: None
|
You should mock up the brake lines on your car. There are too many slight variables. You would hate to paint it and not have them line up.
|
|
|
|
| Eric_Shea |
Mar 29 2011, 12:49 PM
Post
#5
|
|
PMB Performance Group: Admin Posts: 19,289 Joined: 3-September 03 From: Salt Lake City, UT Member No.: 1,110 Region Association: Rocky Mountains |
I'll grab some pictures with the digital calipers this afternoon.
|
|
|
|
| Eric_Shea |
Mar 29 2011, 12:51 PM
Post
#6
|
|
PMB Performance Group: Admin Posts: 19,289 Joined: 3-September 03 From: Salt Lake City, UT Member No.: 1,110 Region Association: Rocky Mountains |
Actually, here's one of the rears. Looks like it's along a seam. Take your hard line and tape it where it needs to be and mount it there:
(IMG:http://www.914world.com/bbs2/uploads_offsite/a6.sphotos.ak.fbcdn.net-1110-1301424673.1.jpg) |
|
|
|
| Eric_Shea |
Mar 29 2011, 12:53 PM
Post
#7
|
|
PMB Performance Group: Admin Posts: 19,289 Joined: 3-September 03 From: Salt Lake City, UT Member No.: 1,110 Region Association: Rocky Mountains |
You can just catch a glimpse of the front left here above the rotor. Fairly close to the sway-bar.
(IMG:http://www.914world.com/bbs2/uploads_offsite/a8.sphotos.ak.fbcdn.net-1110-1301424836.1.jpg) I'll get better pics and measurements later. |
|
|
|
| Eric_Shea |
Mar 29 2011, 05:27 PM
Post
#8
|
|
PMB Performance Group: Admin Posts: 19,289 Joined: 3-September 03 From: Salt Lake City, UT Member No.: 1,110 Region Association: Rocky Mountains |
Here ya go:

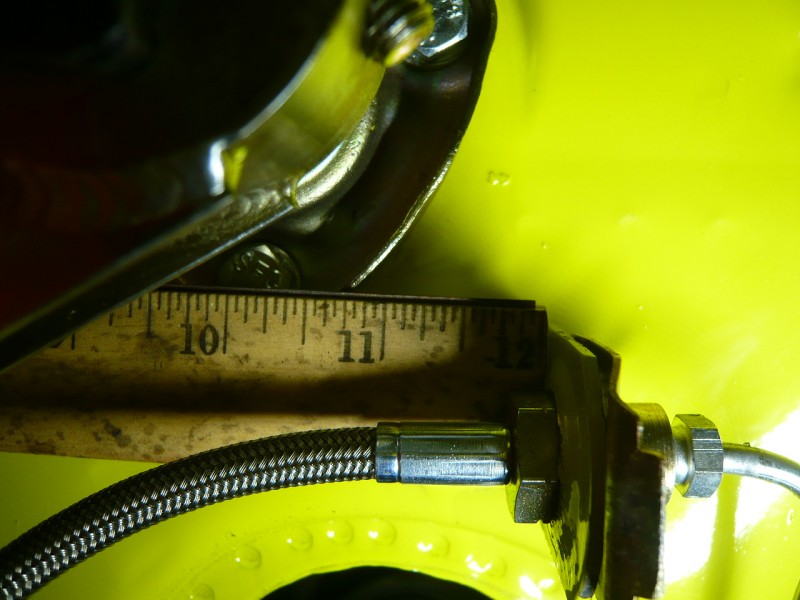

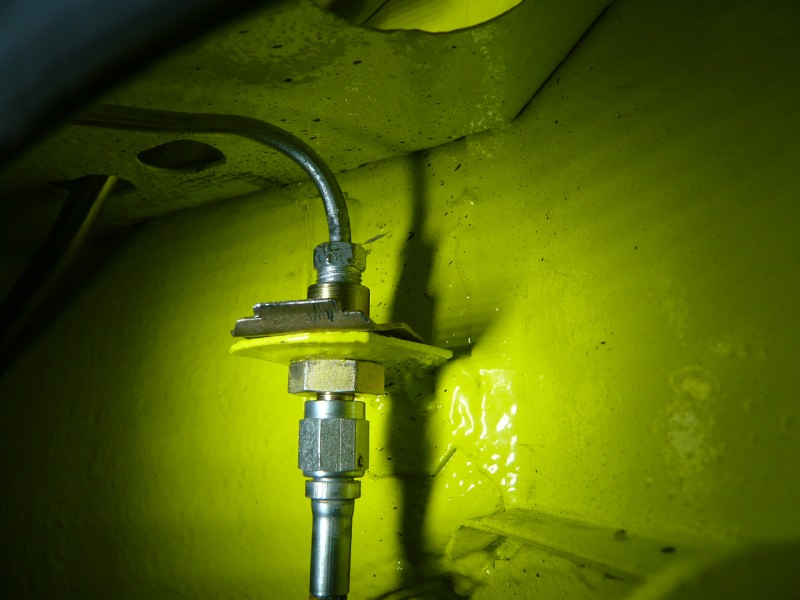

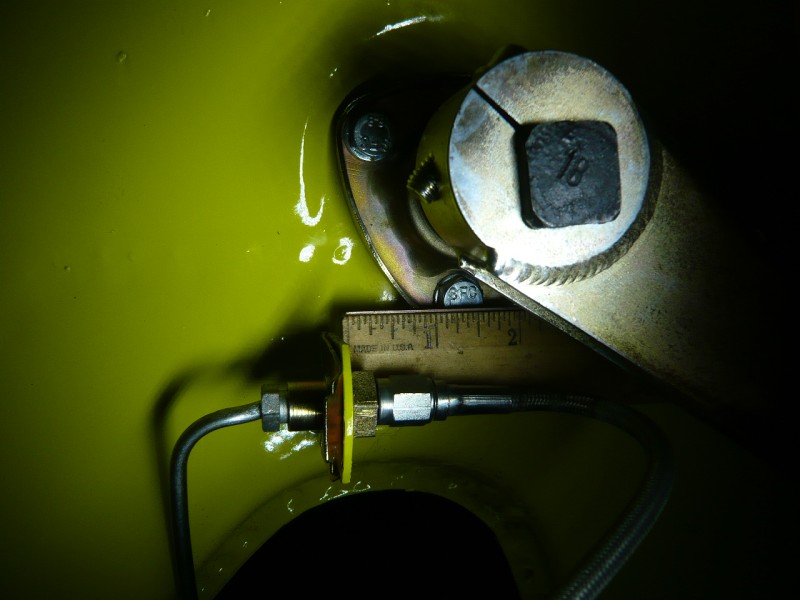

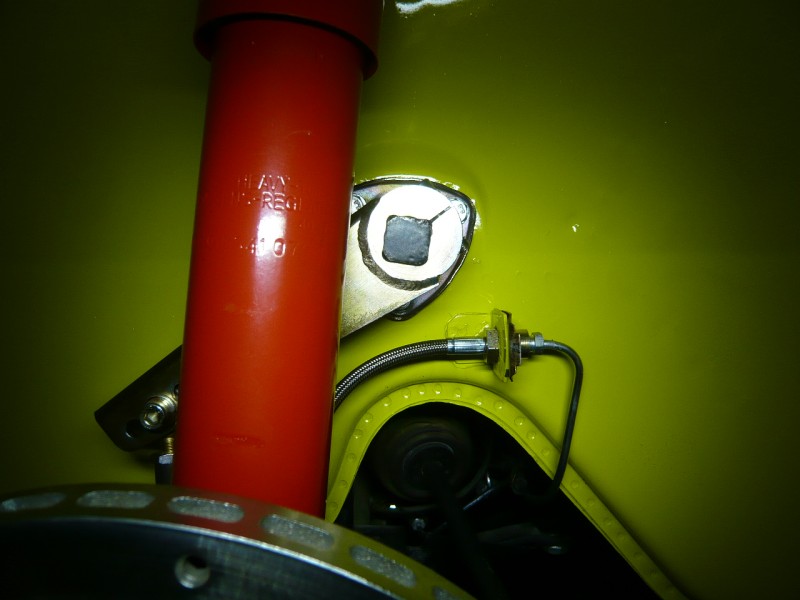

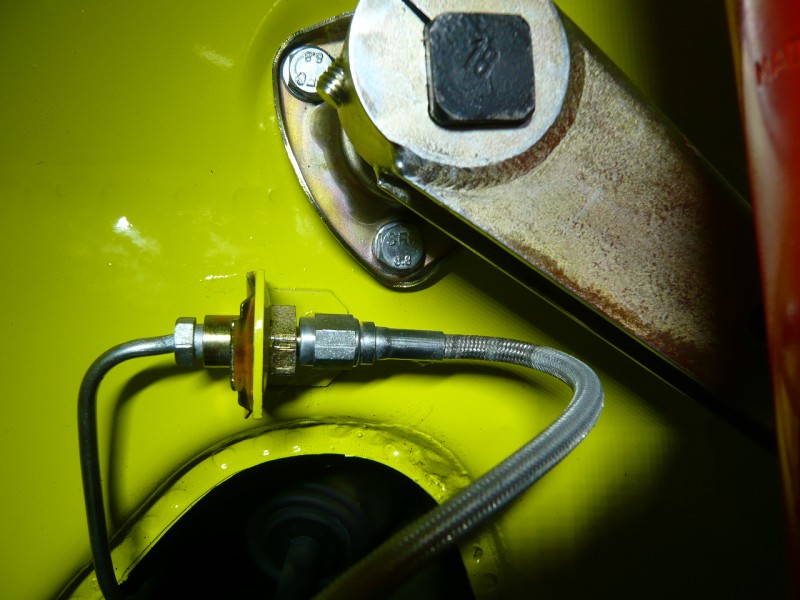

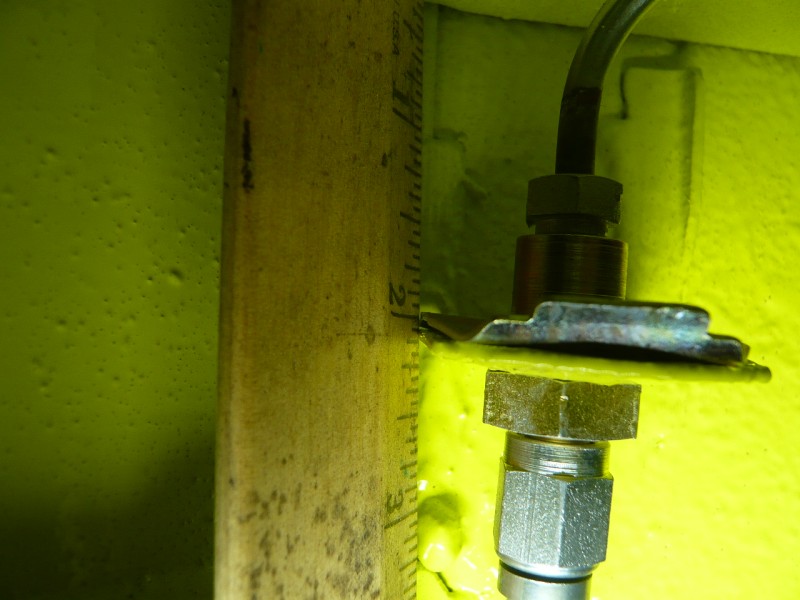

The fronts are "almost" centerlined with the lower sway bar mount bolt (I hope you have a sway bar!) (IMG:style_emoticons/default/biggrin.gif) Left side = 1 7/8" back from centerline on the bolt. You can see from the right side of the ruler that it is down slightly. Maybe 1/4" down from center line:   Right Side = 1 3/8" back from centerline. Same 1/4" down:   Rears are all placed along the seam and 2" down from the bottom of the shelf:   |
|
|
|
| jkb944t |
Mar 30 2011, 05:49 AM
Post
#9
|
|
Member Group: Members Posts: 464 Joined: 17-January 05 From: Canton, OH Member No.: 3,459 Region Association: None |
Thanks Eric, this is exactly what I needed!
|
|
|
|
|
