> 74 Distributor Vacuum Question, How many ports?
74914LE
post Jul 24 2011, 11:44 AM
Post #1


Member
**

Group: Members
Posts: 136
Joined: 6-April 04
From: Fort Worth, TX
Member No.: 1,895
In sorting out the hoses on a 74 2.0, I discovered that the vacuum advance has
two ports coming out of it (Top Side/Bottom Side), however my intake only has
one vacuum port. It is currently hooked up with the line going to the top side
port on the distributor, and the bottom side is open. Question is, should this be
plugged, or does it need to be connected to vacuum, and if so where to hook it
up? Based on the information I was able to find, it looks like I have a early 2.0
distributor, and a later 2.0 intake. Any issue here?

Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 11)
mgphoto
post Jul 24 2011, 12:10 PM
Post #2


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,366
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California
QUOTE(74914LE @ Jul 24 2011, 10:44 AM) *

In sorting out the hoses on a 74 2.0, I discovered that the vacuum advance has
two ports coming out of it (Top Side/Bottom Side), however my intake only has
one vacuum port. It is currently hooked up with the line going to the top side
port on the distributor, and the bottom side is open. Question is, should this be
plugged, or does it need to be connected to vacuum, and if so where to hook it
up? Based on the information I was able to find, it looks like I have a early 2.0
distributor, and a later 2.0 intake. Any issue here?

Thanks!

Hello 74914LE,
I am having some of the same confusion, late '74 engines have only on vac connection to the intake, the Factory Service Manual states the '75 model year USA cars do not connect to the vacuum advance and only connect to the retard section of the vac unit, check my my thread listed below. I am trying to find out if I have the correct vac unit for a late '74 engine, let me know if the vac unit in the photo is the same as yours.
Good luck,
Mike

http://www.914world.com/bbs2/index.php?showtopic=136830
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
74914LE
post Jul 24 2011, 12:32 PM
Post #3


Member
**

Group: Members
Posts: 136
Joined: 6-April 04
From: Fort Worth, TX
Member No.: 1,895
My distributor has a vacuum port for both advance and retard. Is the outside one the advance? Inside retard? If that is the case, then my advance is currently hooked up to the intake.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
reharvey
post Jul 24 2011, 12:48 PM
Post #4


Senior Member
***

Group: Members
Posts: 573
Joined: 16-July 08
From: N. E. Ohio
Member No.: 9,308
Region Association: North East States
My all original 74 2.0 made in 10/73 has two ports on the vacuum advance and only one on the throttle body. The larger hose for the retard side is hooked up but the smaller hose from the advance has a hose on it that's not connected to anything. That's the way it can from the factory--believe it or not.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jul 24 2011, 11:27 PM
Post #5


914 Idiot
***************

Group: Members
Posts: 15,063
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
The advance, the one that does not get connected to anything, is the port on the distributor dashpot that points away from the distributor body.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Jul 25 2011, 10:24 AM
Post #6


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,366
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California
Hello Dave,
Just to find some answers not to hijack.
Is there any 2.0 L distributor that uses a single port looks like advance only?

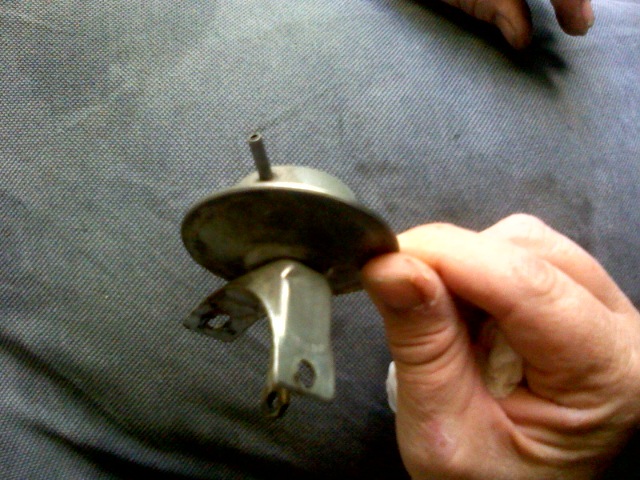

Attached Image

This one came with a 039 905 204 A distributor that I picked up, does not seem right, for my late GA case, retard only.

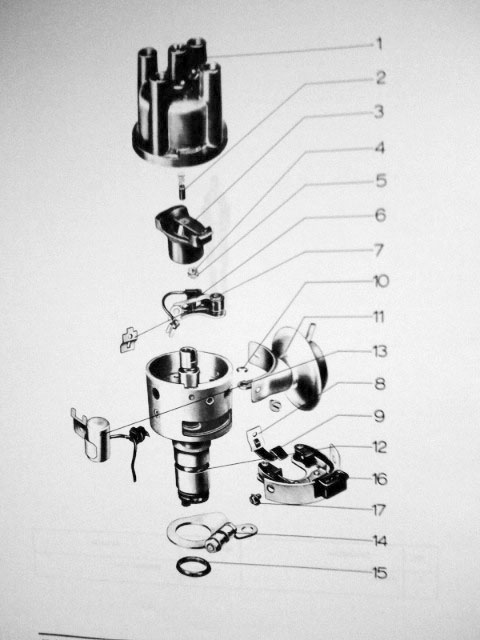

But this image from the Factory Service Manual in the 2.0L section, the dizzy shown is a single vac with the connection for advance only, generic photo?
Attached Image

Any ideas?
Mike
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jul 25 2011, 12:02 PM
Post #7


914 Idiot
***************

Group: Members
Posts: 15,063
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
Unless something is drastically different about the internals of the dashpot you are showing, the fitting on that one is the advance fitting. Points away from the distributor body. I think it probably isn't original, but I definitely haven't seen everything that's out there...

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Jul 25 2011, 12:06 PM
Post #8


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California
No 4 cylinder 914 came with a single vacuum uit. All had one for the advance, one for the retard. Some engines didn't use the advance side, ALL used the retard. Note the ports on the TB are different sizes, as are the ports on the vacuum can. The hoses, when used, are of corresponding sizes.

The Cap'n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Jul 25 2011, 12:08 PM
Post #9


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,366
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California
QUOTE(Dave_Darling @ Jul 25 2011, 11:02 AM) *

Unless something is drastically different about the internals of the dashpot you are showing, the fitting on that one is the advance fitting. Points away from the distributor body. I think it probably isn't original, but I definitely haven't seen everything that's out there...

--DD

Hey Dave,
The factory parts book lists a Calif. model distributor 039 905 204 B, any experience with that version?
Mike
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jul 25 2011, 03:24 PM
Post #10


914 Idiot
***************

Group: Members
Posts: 15,063
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
Yes, but not with certainty that the vacuum unit is original. As the Cap'n said, it had two vacuum fittings on it.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
74914LE
post Jul 25 2011, 07:00 PM
Post #11


Member
**

Group: Members
Posts: 136
Joined: 6-April 04
From: Fort Worth, TX
Member No.: 1,895
Thank you for the great feedback. There are so many variables with certain areas on our cars. To confirm, the advance port (points to drivers side), does
not get connected, and the retard(points to passager side) gets connected. Also,
the size of the port on the intake, and the port on the distributor should be of the
same size when connected?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jul 25 2011, 07:03 PM
Post #12


914 Idiot
***************

Group: Members
Posts: 15,063
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
yes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
