 Pictures please! Of a '76 2.0 engine... |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| Bob L. |
 Mar 17 2013, 02:03 PM
Post
#1
|
|
Senior Member  Group: Members Posts: 848 Joined: 7-August 11 From: Austin TX Member No.: 13,411 Region Association: Southwest Region  |
Hello,
I have been slowly making progress fitting the final vacuum hoses on the engine but none of the diagrams I find match completely. I don't have the anti-flashback valve. Is that normal for a '76? Do I just ignore that circuit? Also, how are the hoses connected for the charcoal canister filter? I know one goes to the air cleaner. I'm not sure where on the fan shroud the other one goes to. Are there fittings to make the connection or should the hose just fit snugly on the nipple? The hoses I have seem to fit loosely or not at all. I would appreciate a few pics of the hose connections and the routing so I can match it up with what I am seeing. BTW the EGR and air injection is gone so that may affect picture selection. Thanks in advance Bob. |
   |

|
  |
Replies(1 - 13)
| TheCabinetmaker |
Mar 17 2013, 03:21 PM
Post
#2
|
|
I drive my car everyday Group: Members Posts: 8,325 Joined: 8-May 03 From: Tulsa, Ok. Member No.: 666 |
The 76's did not have vented heads, so no afb valve.
No hose clamps. Just friction fit. Replace the hoses and they will fit tight. |
|
|
|
| 76-914 |
Mar 17 2013, 03:43 PM
Post
#3
|
|
Repeat Offender & Resident Subaru Antagonist Group: Members Posts: 13,647 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California
|
the carcoal canister connects to the fan housing down low battery side. forget about the advance side of the dizzy if you have a 76 set up, just the retard side gets vac. were you referring to the Decel valve when you said anti flashback. If so, without one you'll get some very mild popping on deceleration when cold.
|
|
|
|
| 914Eric |
Mar 17 2013, 03:58 PM
Post
#4
|
|
Member Group: Members Posts: 316 Joined: 7-November 12 From: Northern Idaho Member No.: 15,125 Region Association: Pacific Northwest |
If I'm not mistaken, there is an entire section or thread in history/originality that has pictures of engines.
|
|
|
|
| Bob L. |
Mar 17 2013, 04:00 PM
Post
#5
|
|
Senior Member Group: Members Posts: 848 Joined: 7-August 11 From: Austin TX Member No.: 13,411 Region Association: Southwest Region |
76-914: The hoses are new so they must be the wrong ones. They came in a kit which doesn't seem completely correct.
The Cabinetmaker: I meant AFV. The decel valve is connected. I already have the vac advance to the dizzy hooked up. Should I remove and plug that one? Why? Thank you for the help. |
|
|
|
| TheCabinetmaker |
Mar 17 2013, 06:43 PM
Post
#6
|
|
I drive my car everyday Group: Members Posts: 8,325 Joined: 8-May 03 From: Tulsa, Ok. Member No.: 666 |
76 posted about the decel valve, i posted about the hoses.
Where do you have the vacuum advance hooked to? There is no connection for it on a late model throttle body. The connection on the rear of the tb is for retard. |
|
|
|
| Mike Bellis |
Mar 17 2013, 07:13 PM
Post
#7
|
|
Resident Electrician Group: Members Posts: 8,346 Joined: 22-June 09 From: Midlothian TX Member No.: 10,496 Region Association: None
|
Does this help? Jeff Bowlsby site...
(IMG:http://www.914world.com/bbs2/uploads_offsite/bowlsby.net-10496-1363569215.1.jpg) http://bowlsby.net/914/Classic/TechNotebook.htm |
|
|
|
| Bob L. |
Mar 17 2013, 07:41 PM
Post
#8
|
|
Senior Member Group: Members Posts: 848 Joined: 7-August 11 From: Austin TX Member No.: 13,411 Region Association: Southwest Region |

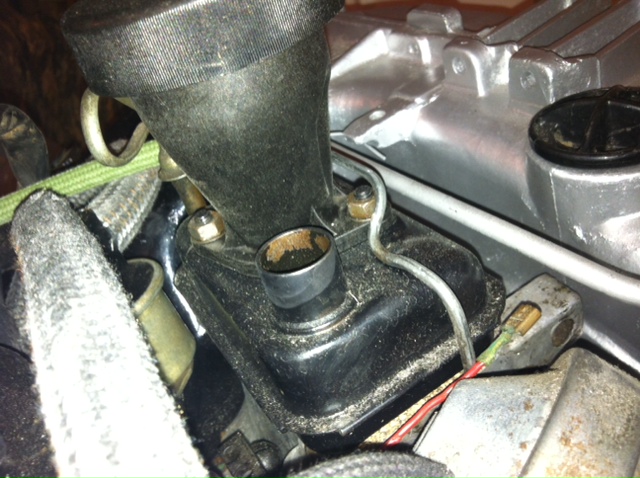

QUOTE(The Cabinetmaker @ Mar 17 2013, 07:43 PM)  Where do you have the vacuum advance hooked to? There is no connection for it on a late model throttle body. The connection on the rear of the tb is for retard. It comes off the plenum as shown on Jeff Bowlsby's "late-1974 2.0 diagram Circled and arrowed in red. I have the retard hose connected as shown.  This is the closest diagram to what I see on my engine. 914Eric: Oh, I have searched! Those and many other pics. I just cant find one or several combined that show what I need to see. I have also never been able to find a pic of the oil tower I have with the adapter for the vacuum hose. Someone said they shoved the hose in the hole but that can't be correct. Here's mine, if anyone can show me what it should look like with the hose attached I would greatly appreciate it.  |
|
|
|
| 76-914 |
Mar 17 2013, 09:00 PM
Post
#9
|
|
Repeat Offender & Resident Subaru Antagonist Group: Members Posts: 13,647 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California
|
send 'em back. my first set was incorrect and sent them back to AA for the correct kit. after a while you end up with your own supply house. (IMG:style_emoticons/default/laugh.gif)
|
|
|
|
| jcd914 |
Mar 17 2013, 10:23 PM
Post
#10
|
|
Advanced Member Group: Members Posts: 2,081 Joined: 7-February 08 From: Sacramento, CA Member No.: 8,684 Region Association: Northern California |
Jeff's diagram is not indicating the vacuum advance should be hook to the intake plenum but is indicating that the hose should be left disconnected but tucked under the plenum. The advance is not used on 75/76 but the advance canister needs to be open to the atmosphere and so a hose is added and tucked down under the intake. This keep moister out of the canister but allows the diaphragm to moved when the retard port get vacuum.
The large port on your oil filler should be connected to a port on the air filter housing the same size, should be on the driver side front corner area of the housing. Without the vent ports on the heads you won't have an Anti Flashback Valve, just the 1 crankcase vent on the oil filler. Jim |
|
|
|
| TheCabinetmaker |
Mar 18 2013, 05:08 AM
Post
#11
|
|
I drive my car everyday Group: Members Posts: 8,325 Joined: 8-May 03 From: Tulsa, Ok. Member No.: 666 |
Jim is correct about the advance hose . If it connects to the plenum, its under constant vacuum. He also echos what I said about the anti flashback valve.
|
|
|
|
| JeffBowlsby |
Mar 18 2013, 08:29 AM
Post
#12
|
|
914 Wiring Harnesses Group: Members Posts: 8,781 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
I dont believe that is a 914 oil filler tower, which holds the PCV for the late 1.7L and all 2.0L. The 1.8L towers have a hose connection on the filler funnel itself. Maybe your tower is a transplant from a bus or VW T3 or? Someone more knowledgeable than me may recognize it.
Attached image(s)
|
 |
|
| 76-914 |
Mar 18 2013, 08:37 AM
Post
#13
|
|
Repeat Offender & Resident Subaru Antagonist Group: Members Posts: 13,647 Joined: 23-January 09 From: Temecula, CA Member No.: 9,964 Region Association: Southern California
|
that is the correct tower. I gave up and ran a 7/8" or 3/4" (can't remember which) heater hose with a rubber step down reducer (aka disposal connector) to connect to the air box. That was 4 yr's ago and it's still working.
|
|
|
|
| Bob L. |
Mar 18 2013, 08:39 AM
Post
#14
|
|
Senior Member Group: Members Posts: 848 Joined: 7-August 11 From: Austin TX Member No.: 13,411 Region Association: Southwest Region |
QUOTE(Jeff Bowlsby @ Mar 18 2013, 09:29 AM) I dont believe that is a 914 oil filler tower, which holds the PCV for the late 1.7L and all 2.0L. The 1.8L towers have a hose connection on the filler funnel itself. Maybe your tower is a transplant from a bus or VW T3 or? Someone more knowledgeable than me may recognize it. That would explain a lot. I have one from a 1.7 with the PCV/hose adapter in it. I'll use that. Thanks. |
|
|
|
|
