> Buyer guide thread
eman 928
post Sep 16 2014, 05:59 PM
Post #1


Newbie
*

Group: Members
Posts: 23
Joined: 10-September 14
From: Oakland, MI
Member No.: 17,885
Region Association: Upper MidWest
Hi, I am going to look at a 914 to purchase this weekend and this will be my first 914. I'm more familiar with 928's and I am wondering if there is a thread somewhere on 914 world that has information on what to look for when buying a 914. Thanks in advance for your help.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 18)
Dave_Darling
post Sep 16 2014, 06:35 PM
Post #2


914 Idiot
***************

Group: Members
Posts: 15,063
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
There is a 914 FAQ on Pelican Parts (see the link in my sig below) that talks about many of the common trouble spots.

I don't know offhand of a thread that has all of the information gathered in one spot, though.

The three main things to check for on a 914:
- Rust
- Rust
- Rust

These cars love to rust almost as much as 1960s Fiats. Common spots include in front of/under the battery (the "hell hole"), around the jack points, and the right-rear suspension mounting points. Also common but less worrisome are the floor pans, especially the floor under the rear window, and the driver's footwell. Plus bubbles around the sail panel and on the cowl.

Fixing rust is time-consuming and if you're paying someone to do the work, quite expensive.

Clutches are frequently out of adjustment, leading to worn synchros and grinds when you shift. Brakes are frequently a bit mushy because some bits of the system can be tough to thoroughly bleed. The fuel injection systems are 40+ years old and cranky, like me. The shift linkage is long and has several connections/joints in it that can each add slop to the shifting action.

Most of the tops leak, at least a little. Most of the dashboard caps have cracked at some point, but replacements are available.

The owners often need tetanus shots due to the RUST, and surgery can be required to remove the immense grin from one's face after driving a nicely-sorted 914 on a twisty road.

They're an addiction. Many of us wind up with multiple examples, and even those who escape 914 ownership seem to get dragged back in at some point.

After your 928, the 914 will feel like it has absolutely zero power, and zero weight. It will change directions at the drop of a hat, and hang onto the road like it was glued on. It will feel almost infinitely less solid. (The 928s I have driven felt like they were build like bank vaults!)

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
turk22
post Sep 16 2014, 06:37 PM
Post #3


Treetop Flyer
***

Group: Members
Posts: 735
Joined: 27-July 12
From: Cincinnati OH
Member No.: 14,725
Region Association: Upper MidWest
try this:

http://www.pelicanparts.com/914/How_to_buy_a_914.htm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Johny Blackstain
post Sep 16 2014, 06:42 PM
Post #4


Walnut Elite Stratocaster player
****

Group: Members
Posts: 3,434
Joined: 5-December 06
From: The Shenandoah River
Member No.: 7,318
Region Association: MidAtlantic Region
(IMG:style_emoticons/default/welcome.png)

I agree with Dave completely & would like to ask why are you interested in 914s? Do you want to restore it, drive it, modify it, etc? They are antiques so it's best to think about this in order to save $ down the road. (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Sep 16 2014, 06:43 PM
Post #5


Resident German
*************************

Group: Admin
Posts: 41,945
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Dave_Darling @ Sep 16 2014, 05:35 PM) *
The three main things to check for on a 914:
- Rust
- Rust
- Rust

(IMG:style_emoticons/default/agree.gif)

That's the best advice one can give you. Buy the best 914 you can afford and make triple sure you check for rust.

Don't be afraid to poke around with a screwdriver. Solid metal will not be harmed by it but you *will* find all the rusty areas.

As a general rule, no matter what the current owner tells you, trust us, there is no such thing as a rust free 914.
They all have rust.

If someone claims their 914 is rust free they're either lying to you or they haven't found the rust yet.
(IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cuda911
post Sep 16 2014, 11:53 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,489
Joined: 20-May 14
From: Oceanside (N. San Diego County), CA
Member No.: 17,376
Region Association: Southern California
Read my 914 hunt thread:

http://www.914world.com/bbs2/index.php?showtopic=236672

It should answer most all of your questions.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
eman 928
post Sep 18 2014, 07:52 AM
Post #7


Newbie
*

Group: Members
Posts: 23
Joined: 10-September 14
From: Oakland, MI
Member No.: 17,885
Region Association: Upper MidWest
Thanks for all of the input so far. I will defintely look for evidence of rust.

I understand the bumpers on this 75-76, other than their looks, are also quite heavy. Is it hard to convert the bumpers on a 75 to a 73-74? Is there a source of where to buy them?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
eman 928
post Sep 18 2014, 08:10 AM
Post #8


Newbie
*

Group: Members
Posts: 23
Joined: 10-September 14
From: Oakland, MI
Member No.: 17,885
Region Association: Upper MidWest

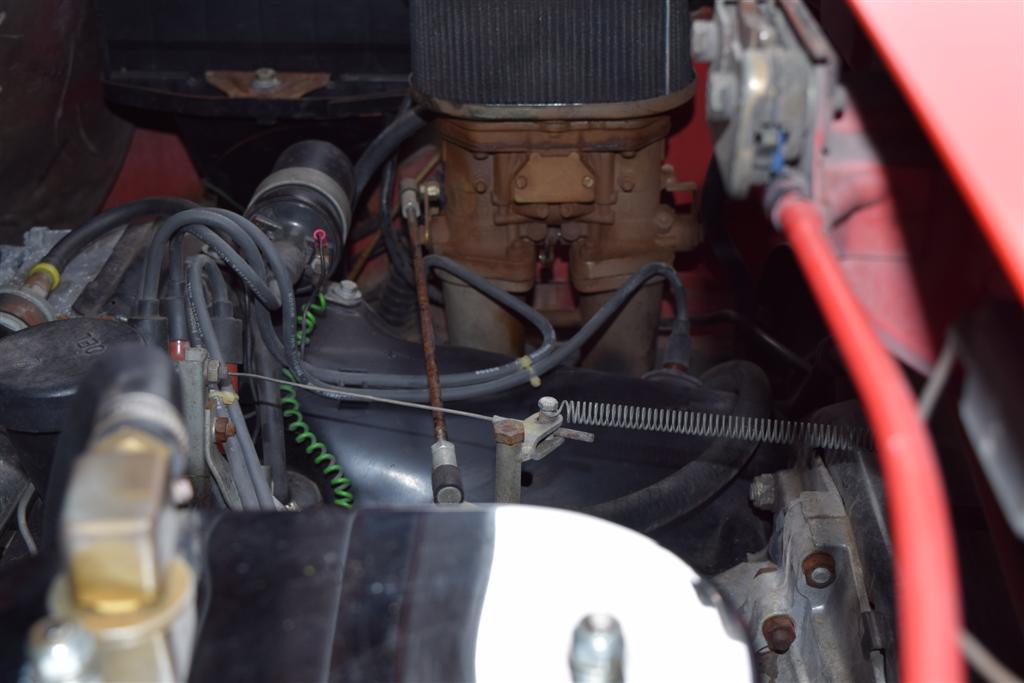

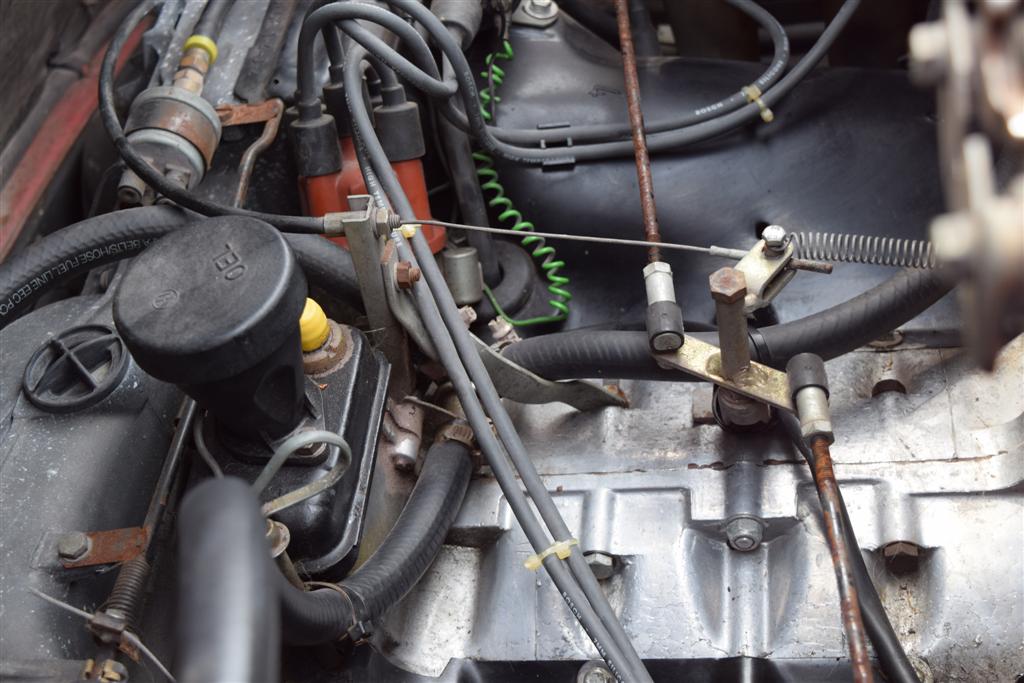

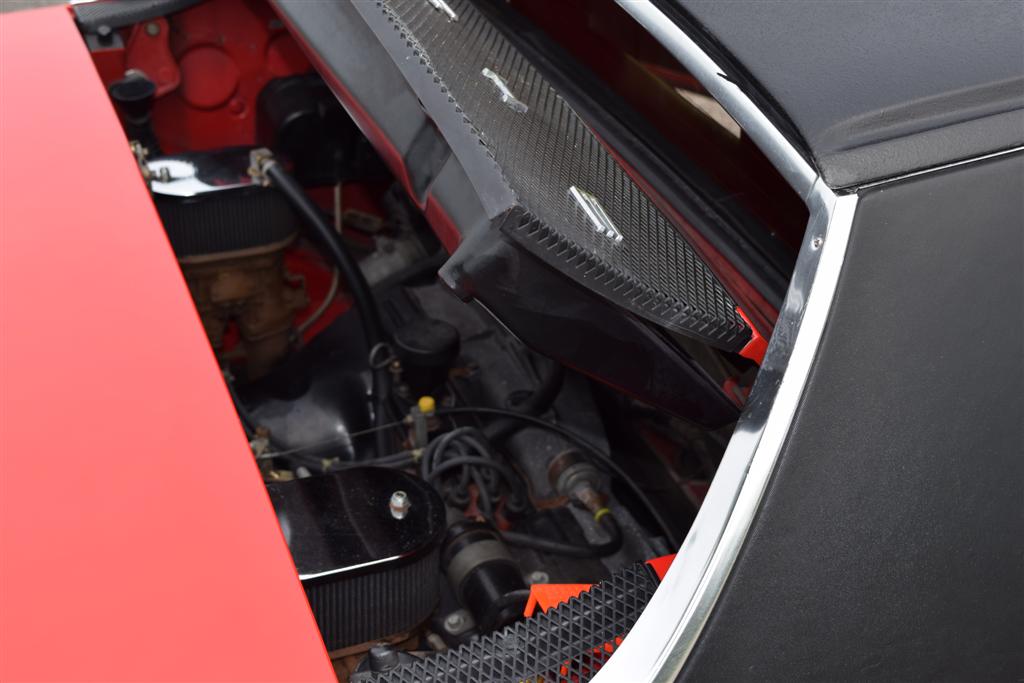

Here are a few pics of the car i'm looking atAttached Image Attached ImageAttached ImageAttached Image[attachmentid=467
399
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
eman 928
post Sep 18 2014, 08:14 AM
Post #9


Newbie
*

Group: Members
Posts: 23
Joined: 10-September 14
From: Oakland, MI
Member No.: 17,885
Region Association: Upper MidWest
One moreAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bandjoey
post Sep 18 2014, 08:15 AM
Post #10


bandjoey
****

Group: Members
Posts: 4,930
Joined: 26-September 07
From: Bedford Tx
Member No.: 8,156
Region Association: Southwest Region
Unless corrected by an expert (i'm not!) The Carbs look like serious gasket gas leakage - brown stains all down the sides. Figure rebuilds into the price.

experts? is it a danger to drive the car with carb gaskets leaking out?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
eman 928
post Sep 18 2014, 09:44 AM
Post #11


Newbie
*

Group: Members
Posts: 23
Joined: 10-September 14
From: Oakland, MI
Member No.: 17,885
Region Association: Upper MidWest
QUOTE(bandjoey @ Sep 18 2014, 10:15 AM) *

Unless corrected by an expert (i'm not!) The Carbs look like serious gasket gas leakage - brown stains all down the sides. Figure rebuilds into the price.

experts? is it a danger to drive the car with carb gaskets leaking out?



Thanks, Bill. I might start a new thread about the carbs just in case the experts don't click on this thread.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Sep 18 2014, 10:27 AM
Post #12


914 Wizard
**********

Group: Members
Posts: 11,824
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
Pull the rockers before buying any car
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CptTripps
post Sep 18 2014, 11:38 AM
Post #13


:: Punch and Pie ::
****

Group: Members
Posts: 3,584
Joined: 26-December 04
From: Mentor, OH
Member No.: 3,342
Region Association: Upper MidWest
(IMG:style_emoticons/default/welcome.png)



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
eman 928
post Sep 18 2014, 12:42 PM
Post #14


Newbie
*

Group: Members
Posts: 23
Joined: 10-September 14
From: Oakland, MI
Member No.: 17,885
Region Association: Upper MidWest
QUOTE(CptTripps @ Sep 18 2014, 01:38 PM) *

(IMG:style_emoticons/default/welcome.png)


Thanks Doug. I am assuming another place to look for rust?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bandjoey
post Sep 18 2014, 02:15 PM
Post #15


bandjoey
****

Group: Members
Posts: 4,930
Joined: 26-September 07
From: Bedford Tx
Member No.: 8,156
Region Association: Southwest Region
He's pointing under the battery tray aka the hell hole.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cn2800
post Sep 18 2014, 04:24 PM
Post #16


Member
**

Group: Members
Posts: 119
Joined: 11-August 14
From: Amarillo, Texas
Member No.: 17,766
Region Association: None
Since I happen to have the engine out for a moment, I can clarify - This photo is taken of the engine compartment from the driver's side, looking right:

Attached Image

You can easily pick out the crusty battery tray. Below it is the inverted square cone of the battery tray support. Just in front of the base of the support (towards the front of the car) you can see a sort of ski slope-looking top of the longitudinal structural member. That's where you need to look. Here it is from above:

Attached Image

You can see how this longitudinal member forms a little pit at the bottom with the attached crossmember. There's a drain hole there, but it is easily blocked with leaves or dirt. You get the triple-whammy of water pooling, dirt to hold the water, and all the battery acid/byproduct shenannegoats. It can be a real mess.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Sep 18 2014, 10:08 PM
Post #17


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
All 914s have rust. Its just a matter of how much and where....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914work
post Sep 19 2014, 08:24 AM
Post #18


Member
**

Group: Members
Posts: 291
Joined: 9-November 11
Member No.: 13,762
Region Association: None
QUOTE(cn2800 @ Sep 18 2014, 03:24 PM) *

Since I happen to have the engine out for a moment, I can clarify - This photo is taken of the engine compartment from the driver's side, looking right:

Attached Image

You can easily pick out the crusty battery tray. Below it is the inverted square cone of the battery tray support. Just in front of the base of the support (towards the front of the car) you can see a sort of ski slope-looking top of the longitudinal structural member. That's where you need to look. Here it is from above:

Attached Image

You can see how this longitudinal member forms a little pit at the bottom with the attached crossmember. There's a drain hole there, but it is easily blocked with leaves or dirt. You get the triple-whammy of water pooling, dirt to hold the water, and all the battery acid/byproduct shenannegoats. It can be a real mess.

Great Pic & description ....AKA "THE HELL HOLE"
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
eman 928
post Sep 19 2014, 11:54 AM
Post #19


Newbie
*

Group: Members
Posts: 23
Joined: 10-September 14
From: Oakland, MI
Member No.: 17,885
Region Association: Upper MidWest

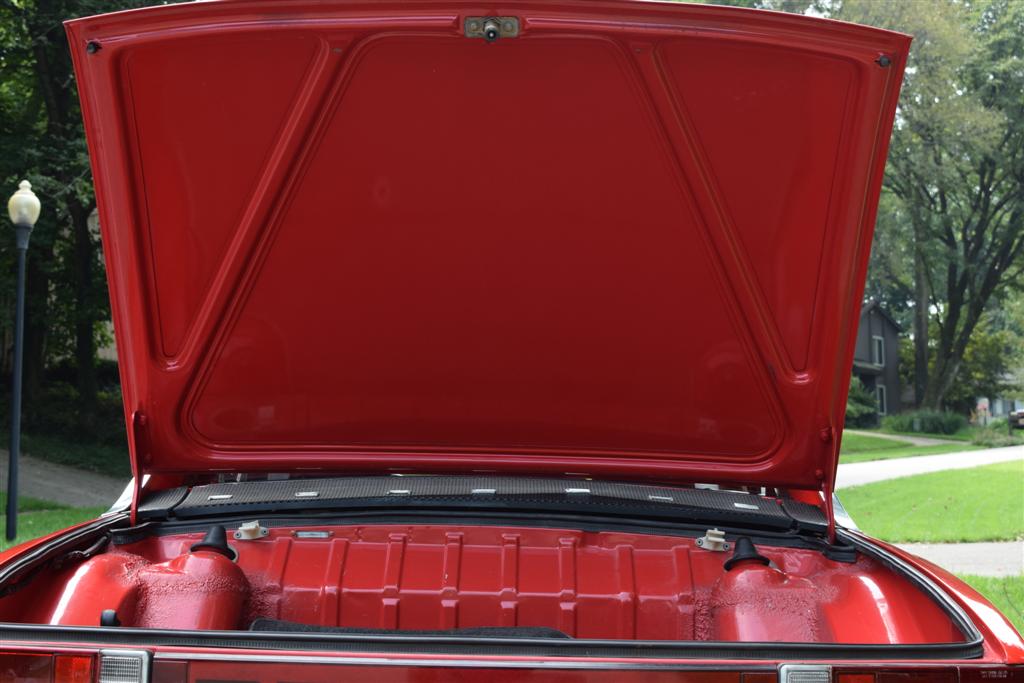

Pics of trunkAttached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
