> Mazda RX7 Oil Cooler Flow, Does It Matter Which Way?
Lucky9146
post Aug 3 2015, 12:17 PM
Post #1


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California

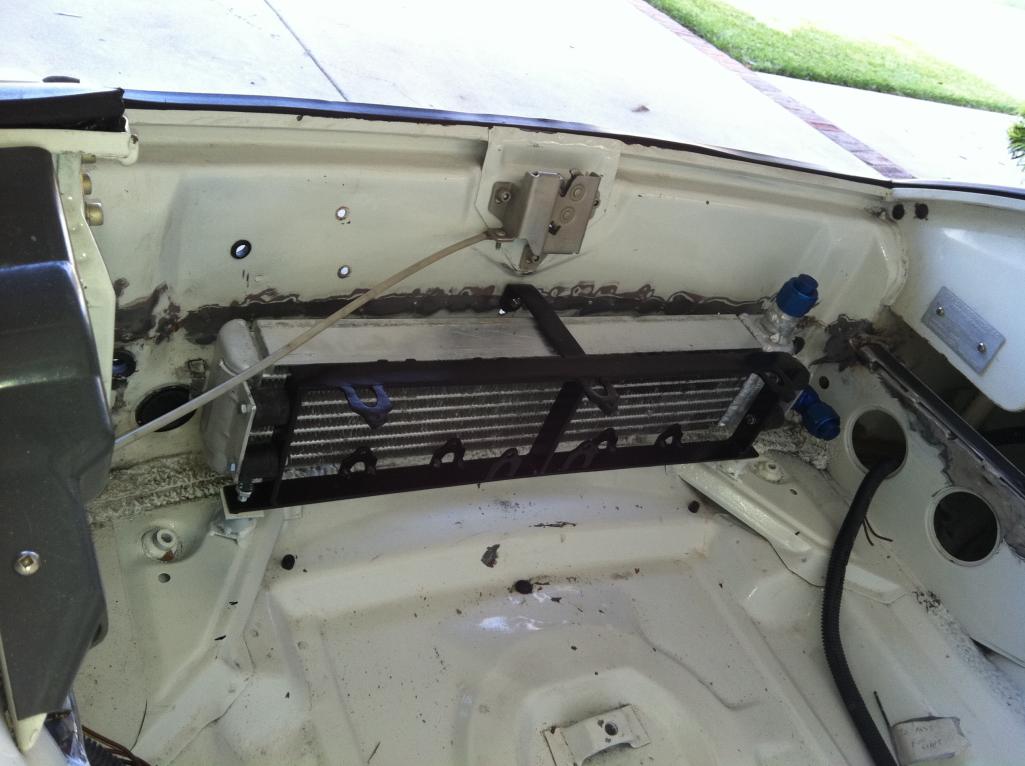

Have a modified RX7 Oil Cooler that came with the car which was in process of a 6 conversion. Hoses are run to the engine bay ready to hook up to thermostat. Does anyone know if it matters if the oil enters from the top of cooler or bottom or does it really matter? Internal Tank thermostat is removed already I am going to run a Mocal. Appreciate the input especially from anyone actually running one. Thanks!


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 17)
screenguy914
post Aug 3 2015, 01:05 PM
Post #2


Member
**

Group: Members
Posts: 249
Joined: 6-July 09
From: So. Cal
Member No.: 10,540
Region Association: Southern California
QUOTE(Lucky9146 @ Aug 3 2015, 11:17 AM) *

Have a modified RX7 Oil Cooler that came with the car which was in process of a 6 conversion. Hoses are run to the engine bay ready to hook up to thermostat. Does anyone know if it matters if the oil enters from the top of cooler or bottom or does it really matter? Internal Tank thermostat is removed already I am going to run a Mocal. Appreciate the input especially from anyone actually running one. Thanks!


Typically, oil should exit from the top most fitting. That way, trapped air can circulate out of the cooler.

Sherwood
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Aug 3 2015, 01:21 PM
Post #3


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
QUOTE(screenguy914 @ Aug 3 2015, 12:05 PM) *

QUOTE(Lucky9146 @ Aug 3 2015, 11:17 AM) *

Have a modified RX7 Oil Cooler that came with the car which was in process of a 6 conversion. Hoses are run to the engine bay ready to hook up to thermostat. Does anyone know if it matters if the oil enters from the top of cooler or bottom or does it really matter? Internal Tank thermostat is removed already I am going to run a Mocal. Appreciate the input especially from anyone actually running one. Thanks!


Typically, oil should exit from the top most fitting. That way, trapped air can circulate out of the cooler.

Sherwood


Thanks Sherwood that makes sense and I hadn't though of that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lonewolfe
post Aug 3 2015, 02:33 PM
Post #4


Senior Member
***

Group: Members
Posts: 819
Joined: 12-September 11
From: Oakland, CA
Member No.: 13,549
Region Association: Northern California
QUOTE(Lucky9146 @ Aug 3 2015, 12:21 PM) *

QUOTE(screenguy914 @ Aug 3 2015, 12:05 PM) *

QUOTE(Lucky9146 @ Aug 3 2015, 11:17 AM) *

Have a modified RX7 Oil Cooler that came with the car which was in process of a 6 conversion. Hoses are run to the engine bay ready to hook up to thermostat. Does anyone know if it matters if the oil enters from the top of cooler or bottom or does it really matter? Internal Tank thermostat is removed already I am going to run a Mocal. Appreciate the input especially from anyone actually running one. Thanks!


Typically, oil should exit from the top most fitting. That way, trapped air can circulate out of the cooler.

Sherwood


Thanks Sherwood that makes sense and I hadn't though of that.


I have this same oil cooler but it's not installed yet. Do you have any more pictures you can post of how it's mounted? Also, are those electric fans mounted on the back side of the cooler?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
'73-914kid
post Aug 3 2015, 03:11 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,473
Joined: 1-November 08
From: Vista, CA
Member No.: 9,714
Region Association: Southern California
I concur. I was always told with oil coolers, "in low, out high" for the same reason Sherwood mentions.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Aug 3 2015, 03:36 PM
Post #6


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
I have this same oil cooler but it's not installed yet. Do you have any more pictures you can post of how it's mounted? Also, are those electric fans mounted on the back side of the cooler?
[/quote]


Yes I have pictures of the fabricated frame and fans that I cannot take credit for making because the PO did it and a good job at that! Trying to post pictures but not working for me this time will try again later. Sorry
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lonewolfe
post Aug 3 2015, 03:40 PM
Post #7


Senior Member
***

Group: Members
Posts: 819
Joined: 12-September 11
From: Oakland, CA
Member No.: 13,549
Region Association: Northern California
[quote name='Lucky9146' date='Aug 3 2015, 02:36 PM' post='2218255']
I have this same oil cooler but it's not installed yet. Do you have any more pictures you can post of how it's mounted? Also, are those electric fans mounted on the back side of the cooler?
[/quote]


Yes I have pictures of the fabricated frame and fans that I cannot take credit for making because the PO did it and a good job at that! Trying to post pictures but not working for me this time will try again later. Sorry
[/quote]

Thanks for the reply! I'll keep an eye out for the pictures later. Does your setup have a shroud that covers the oil cooler and fans inside the trunk?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Aug 3 2015, 03:50 PM
Post #8


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California

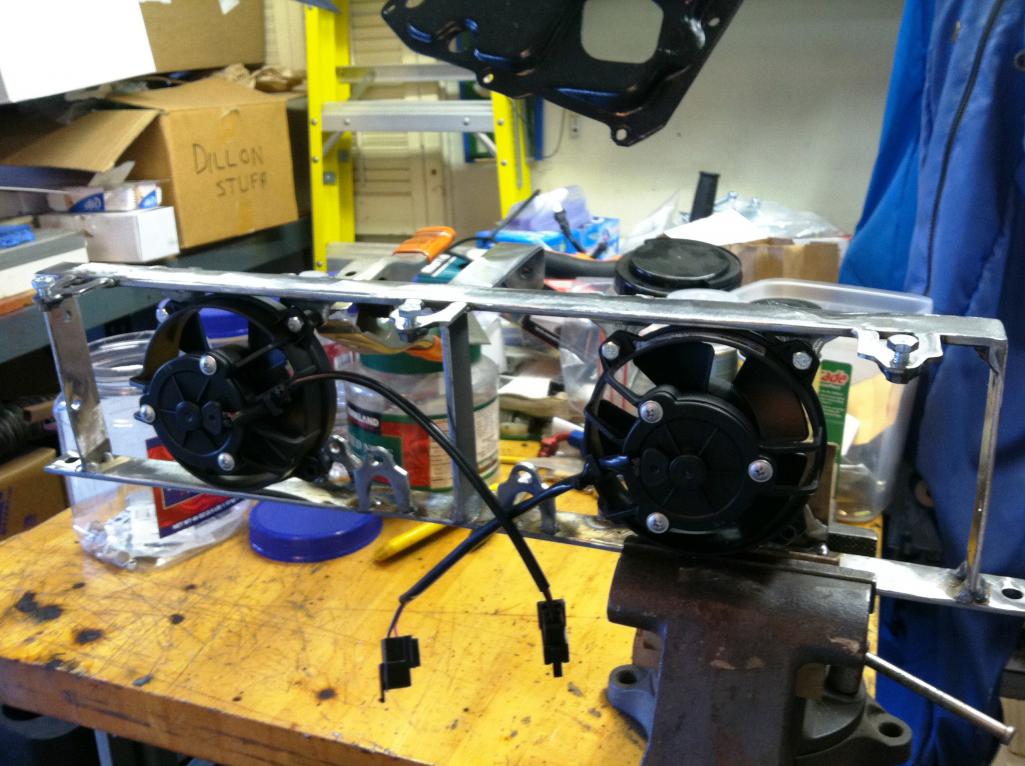

Yes I have pictures of the fabricated frame and fans that I cannot take credit for making because the PO did it and a good job at that! Trying to post pictures but not working for me to well trying

Attached Image


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Aug 3 2015, 06:04 PM
Post #9


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,192
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
You might want to cushion the line where it passes thru the hole. Actually, there is a little flexible plastic circle designed to do just that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Aug 3 2015, 06:26 PM
Post #10


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
QUOTE
You might want to cushion the line where it passes thru the hole. Actually, there is a little flexible plastic circle designed to do just that.


Thanks those are actually old pics from PO that I provided at Lonewolf request to see fans and cooler.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Aug 6 2015, 09:23 AM
Post #11


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
here you go
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Aug 6 2015, 09:26 AM
Post #12


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
If the thermostat has been gutted, you can flow the oil either direction.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcd914
post Aug 6 2015, 10:15 AM
Post #13


Advanced Member
****

Group: Members
Posts: 2,081
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California
If memory serves me, there are 4 rows in one direction and 3 rows the other way.

I would think you would want to flow the hot oil in on the 3 rows and back out on the 4 rows. The oil will cool and thicken some in the first pass and will flow easier and slower thru the 4 rows back out. I'm no engineer but this seem most efficient to me.

I don't have a cooler here to look at and see if that is how Mazda did it or not.

Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Aug 6 2015, 11:31 AM
Post #14


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California
QUOTE(gms @ Aug 6 2015, 08:23 AM) *

here you go
Attached Image


Glen, thanks for the picture of the RX7 oil cooler flow. I looked but apparently not hard enough to find it! That is how I had it and then switched it to the opposite direction because some have told me it should go in the bottom out the top. Now I don't know if I should switch back it because as others have told me it can flow either way! Thanks again maybe others will chime in.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Aug 7 2015, 07:46 AM
Post #15


Advanced Member
****

Group: Members
Posts: 2,706
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
As Mark said, if you removed the thermostat it does not matter.
I did not see that when i posted
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Aug 7 2015, 10:54 AM
Post #16


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE
Typically, oil should exit from the top most fitting. That way, trapped air can circulate out of the cooler.


Although this sounds logical, I doubt it really matters, oil pressure will push any air out PDQ.
If you follow the above schematic the oil flows out the bottom.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post Aug 7 2015, 05:04 PM
Post #17


Advanced Member
****

Group: Members
Posts: 4,652
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None
Thank you Glen for posting the factory diagram.
I have that cooler and was going to use it for a GT project.
By handling it I realized that there was a thermo incorporated in it.
I've since found a better configuration(for me) but I wonder why someone wouldn't use the built-in thermostat ?
Two hoses to the front, built in by-pass, easy peasy ! nothing more needed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lonewolfe
post Aug 7 2015, 05:48 PM
Post #18


Senior Member
***

Group: Members
Posts: 819
Joined: 12-September 11
From: Oakland, CA
Member No.: 13,549
Region Association: Northern California
Perhaps the thermostat temperature setting is in the wrong range for an aircooled motor. Also, it's better to have the thermostat located closer to the engine heat source. That seems to be the majority opinion.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
