 anyone have detailed pics of 74 charcoal canister engine bay mount? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| iankarr |
 Nov 19 2017, 09:18 AM
Post
#1
|
|
The wrencher formerly known as Cuddy_K  Group: Members Posts: 2,526 Joined: 22-May 15 From: Heber City, UT Member No.: 18,749 Region Association: Intermountain Region
 |
Hi Guys,
I want to re-install the charcoal canister in my car (it's a 74 with engine location) but can't seem to find clear pics of exactly where / how it's supposed to be mounted. Thanks! |
   |

|
  |
Replies(1 - 11)
| 74ravenna |
Nov 19 2017, 09:27 AM
Post
#2
|
|
Member Group: Members Posts: 472 Joined: 19-October 14 From: nh Member No.: 18,032 Region Association: North East States
|
You have a 2.0, correct?
I have a 1.8, not sure if its the same set up. |
|
|
|
| Mark Henry |
Nov 19 2017, 09:53 AM
Post
#3
|
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
On a '74 there's a stud right above the #3 intake on the rear (trunk) firewall, right at the top lip. The stud is welded on a boss in the sheet metal. The canister has a simple clamp with a mount bracket.
I had to cut my stud off to fit the rain hat for my /6 conversion. If it's a '73 it would be on top of the fuel tank. |
|
|
|
| Mark Henry |
Nov 19 2017, 10:03 AM
Post
#4
|
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
Search found this, not the best pic but it's in the correct place.

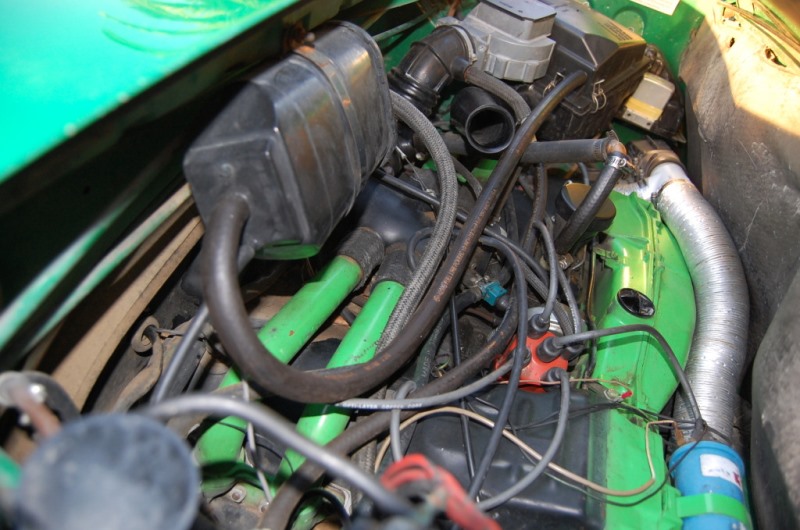

BTW it should be the plastic can as shown in this pic for a 74. (IMG:http://www.914world.com/bbs2/uploads/post-11134-1388782222.jpg) |
|
|
|
| iankarr |
Nov 19 2017, 10:58 AM
Post
#5
|
|
The wrencher formerly known as Cuddy_K Group: Members Posts: 2,526 Joined: 22-May 15 From: Heber City, UT Member No.: 18,749 Region Association: Intermountain Region
|

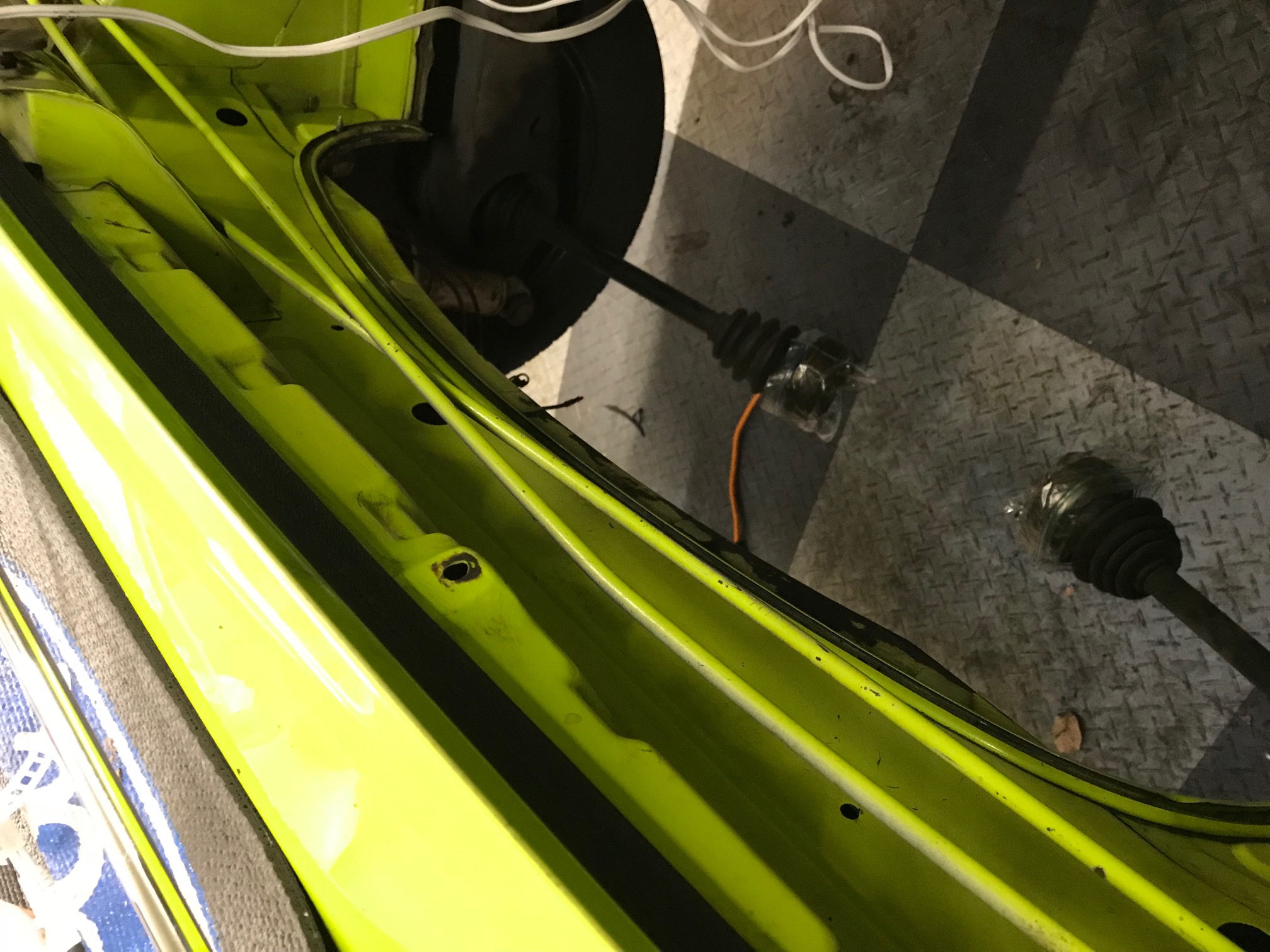

Thanks Mark. Looks like the stud is long gone on my car. But at least I now know where it goes. I have the plastic canister and band/bracket.
 |
|
|
|
| 74ravenna |
Nov 19 2017, 01:58 PM
Post
#6
|
|
Member Group: Members Posts: 472 Joined: 19-October 14 From: nh Member No.: 18,032 Region Association: North East States
|
Wow, that engine bay is clean!
|
|
|
|
| Rob-O |
Nov 19 2017, 02:24 PM
Post
#7
|
|
Senior Member Group: Members Posts: 1,256 Joined: 5-December 03 From: Mansfield, TX Member No.: 1,419 Region Association: Southwest Region
|
I believe it '74 that they also had them hanging off of the battery tray. The clamp is held together with the bolt that is also used with the battery hold down clamp.
Don't have a picture because my car isn't at the house. But could probably find one online... |
|
|
|
| falcor75 |
Nov 20 2017, 04:53 AM
Post
#8
|
|
Senior Member Group: Members Posts: 1,579 Joined: 22-November 12 From: Sweden Member No.: 15,176 Region Association: Scandinavia
|
My car was sold in March 1974 and has the cannister ontop of the fuel tank... (IMG:style_emoticons/default/blink.gif)
anyone know if there's a difference between early and late 74 cars? |
|
|
|
| Shadowfax |
Nov 20 2017, 06:28 AM
Post
#9
|
|
Show us the meaning of haste Group: Members Posts: 509 Joined: 19-January 15 Member No.: 18,340 Region Association: South East States
|
QUOTE(falcor75 @ Nov 20 2017, 04:53 AM)  My car was sold in March 1974 and has the cannister ontop of the fuel tank... (IMG:style_emoticons/default/blink.gif) anyone know if there's a difference between early and late 74 cars? Check this out. Lots of good info from Jeff Bowlsby in this post. 1974 charcoal canister locations |
|
|
|
| AmjadY |
Nov 20 2017, 08:05 AM
Post
#10
|
|
Newbie Group: Members Posts: 29 Joined: 22-September 13 From: Detroit Member No.: 16,417 Region Association: Upper MidWest |
Early 74s had them over the fuel tank. Late ones in the engine compartment. Look on top of your fuel tank for scratch marks on the mounting tabs and you might figure out where yours was mounted. Strange that the stud would be broken off the engine compartment.
|
|
|
|
| 74ravenna |
Nov 20 2017, 11:44 AM
Post
#11
|
|
Member Group: Members Posts: 472 Joined: 19-October 14 From: nh Member No.: 18,032 Region Association: North East States
|
My 74 was built in late March and has the canister on the trunk wall.
Vin is 4742916366. Steve |
|
|
|
| Rob-O |
Nov 20 2017, 12:36 PM
Post
#12
|
|
Senior Member Group: Members Posts: 1,256 Joined: 5-December 03 From: Mansfield, TX Member No.: 1,419 Region Association: Southwest Region
|
I think the change was around March/April. Mine is Ann april car and it was in the engine compartment. If the small vacuum line is still in the car you should be able to tell from that.
|
|
|
|
|
