While working on an unrelated issue, I lost the brake lights.
Fuse on #9 is good, how does the brake pedal switch activate the stop lights ? Need to know where to start…… |
   |

|
  |
Replies(1 - 8)
| jfort |
Oct 5 2024, 06:24 PM
Post
#2
|
|
Senior Member Group: Members Posts: 1,143 Joined: 5-May 03 From: Findlay, OH Member No.: 652 Region Association: Upper MidWest
|

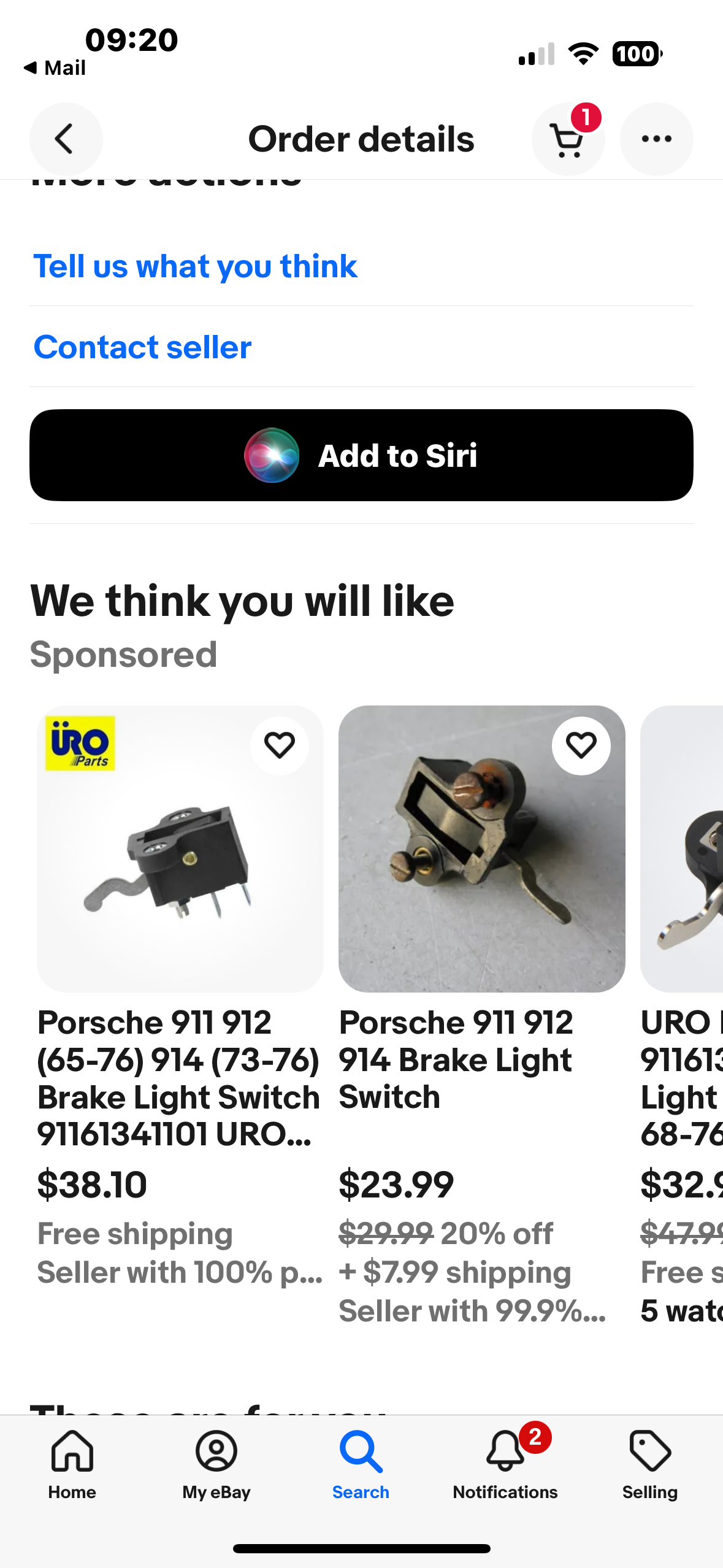

We lost ours on the 914 race car. Switch at the brake pedal.
 |
|
|
|
| jfort |
Oct 5 2024, 06:27 PM
Post
#3
|
|
Senior Member Group: Members Posts: 1,143 Joined: 5-May 03 From: Findlay, OH Member No.: 652 Region Association: Upper MidWest
|
 |
|
|
|
| jim_hoyland |
Oct 5 2024, 06:33 PM
Post
#4
|
|
Get that VIN ? Group: Members Posts: 9,556 Joined: 1-May 03 From: Sunset Beach, CA Member No.: 643 Region Association: Southern California
|
How is the switch wired, I’m looking to see where it goes
|
|
|
|
| worn |
Oct 5 2024, 07:03 PM
Post
#5
|
|
can't remember Group: Members Posts: 3,372 Joined: 3-June 11 From: Madison, WI Member No.: 13,152 Region Association: Upper MidWest
|
QUOTE(jim_hoyland @ Oct 5 2024, 05:33 PM)  How is the switch wired, I’m looking to see where it goes The switch is inside at the pedal cluster. It is normally open, with a lever that rides on the pushrod between the pedal and master. When you step on the pedal a spring closes the switch and current lights up the lights. As indicated, replacements are available and not too overengineered. As in kind of inexpensive. |
|
|
|
| bdstone914 |
Oct 5 2024, 07:47 PM
Post
#6
|
|
bdstone914 Group: Members Posts: 4,731 Joined: 8-November 03 From: Riverside CA Member No.: 1,319 |
@jim_hoyland
' post='3171371' date='Oct 5 2024, 05:33 PM'] How is the switch wired, I’m looking to see where it goes [/quote] They rarely fail. Do you have power at fuse 9 ? What wiring issue were you working on as it sound like it is related. With ignition on, one of the wires at the switch should have power. I would first check for power at the brake light socket then the wire into the housing. I use a stick to depress and hold the pedal down if a helper is not available. If all checks out there then move to the pedals. Attached thumbnail(s)
|
 |
|
| jim_hoyland |
Oct 5 2024, 08:18 PM
Post
#7
|
|
Get that VIN ? Group: Members Posts: 9,556 Joined: 1-May 03 From: Sunset Beach, CA Member No.: 643 Region Association: Southern California
|
Power at Fuse 9
All the connections in the trunk are good. The blue diode is not there any more Attached thumbnail(s)
|
|
|
|
| jim_hoyland |
Oct 6 2024, 02:14 PM
Post
#8
|
|
Get that VIN ? Group: Members Posts: 9,556 Joined: 1-May 03 From: Sunset Beach, CA Member No.: 643 Region Association: Southern California
|
A wire from the pedal cluster to the back of fuse 9 came loose. All fixed now
|
|
|
|
