> Remove dash top, step-by-step
watsonrx13
post Dec 14 2005, 07:34 PM
Post #1


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States
Well, I'm in the process of dismantling one of my parts car and I've decided to document the steps used to remove the dash top.

I began removing the top dash pad by removing the instrument cluster. If you haven't removed the steering wheel and knee pad, do that now. Next, remove the 4 screws that hold the cluster to the dash. Now, just pull the cluster forward, without removing the electrical connections. I have removed the cluster completely from the car because I'm stripping it. You don't have to do this to remove the dash top.

This post has been edited by watsonrx13: Dec 14 2005, 08:08 PM


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
3 Pages V  1 2 3 >
 Reply to this topicStart new topic
Replies(1 - 19)
watsonrx13
post Dec 14 2005, 07:34 PM
Post #2


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States
This shows the steering wheel and instrumentation cluster removed. Again, I did this because I'm stipping the car and to be able to better photograph the location of the nuts/bolts.

This post has been edited by watsonrx13: Dec 14 2005, 08:10 PM


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Dec 14 2005, 07:34 PM
Post #3


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States
Once the cluster is out of the way, you can remove the 2 plastic nuts that are directly behind the instruments on the 'hump' section.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Dec 14 2005, 07:35 PM
Post #4


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States

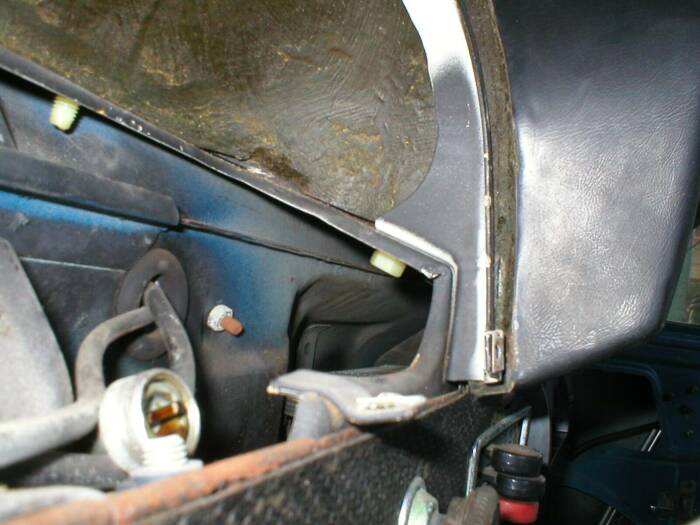

There are 2 nuts that need to be removed from this area. There is one that is directly above this opening, facing towards the front of the car. The next one is just to the right of the opening, facing down.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Dec 14 2005, 07:35 PM
Post #5


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States
The next one is between the 'hump' and the ashtray. This shows the nut looking in from the cluster opening. This one is pointing down.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Dec 14 2005, 07:36 PM
Post #6


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States
Next I removed the ashtray. This isn't necessary, but since I'm stripping the car I just wanted it out of the way. I also removed the radio.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Dec 14 2005, 07:36 PM
Post #7


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States
This shows the next 2 nuts. There is one directly above the radio opening, near the driver's side, pointing forward. The other one is just off center of the radio opening, pointing down. This shot is from underneath the dash. The large dark rectangle is the radio opening.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Dec 14 2005, 07:36 PM
Post #8


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States
Next I removed the glove box. Begin by removing the small nut, facing down. This holds the metal strap that wraps around the box.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Dec 14 2005, 07:37 PM
Post #9


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States
Before removing the glove box, remove the spring, seen here through the vent opening. Finally, move the metal strap out of the way and carefully push the glove box, with its door, towards the front of the car. The box will be removed from underneath the dash.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Dec 14 2005, 07:37 PM
Post #10


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States

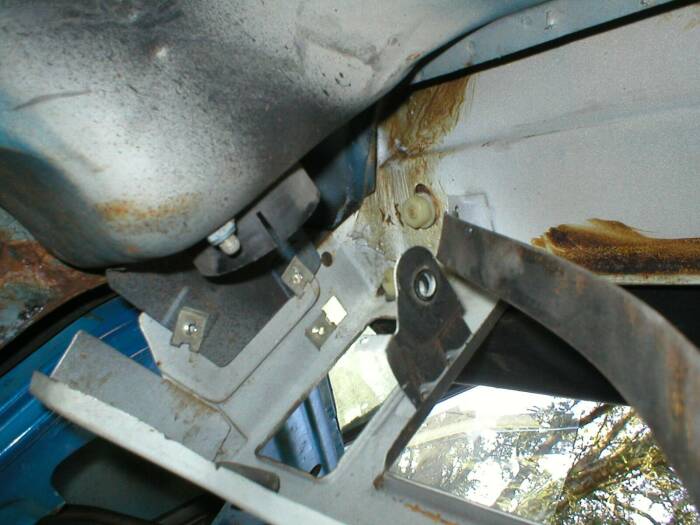

The last 2 nuts can now be removed. Both are directly above the vent opening. One is facing down, the other is facing forward.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Dec 14 2005, 07:38 PM
Post #11


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States

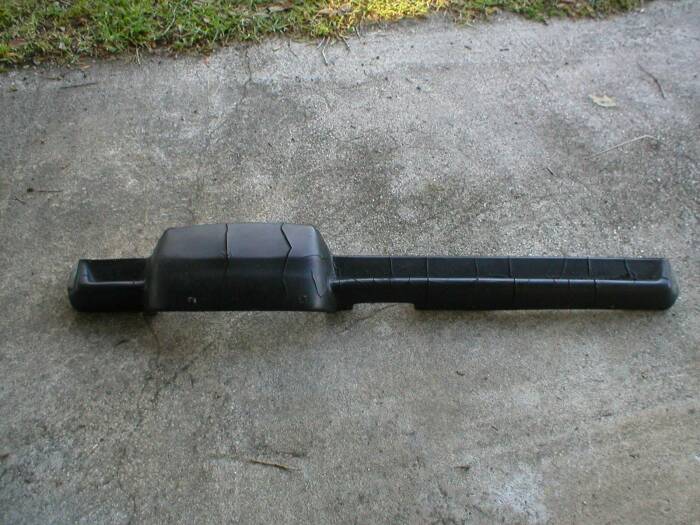

Now, carefully pull the dash top up. There are 9 nuts that need to be removed. If you don't have 9 and there is some resistance, stop and find the ones that are still attached. Here's the dash top removed.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Dec 14 2005, 07:38 PM
Post #12


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States

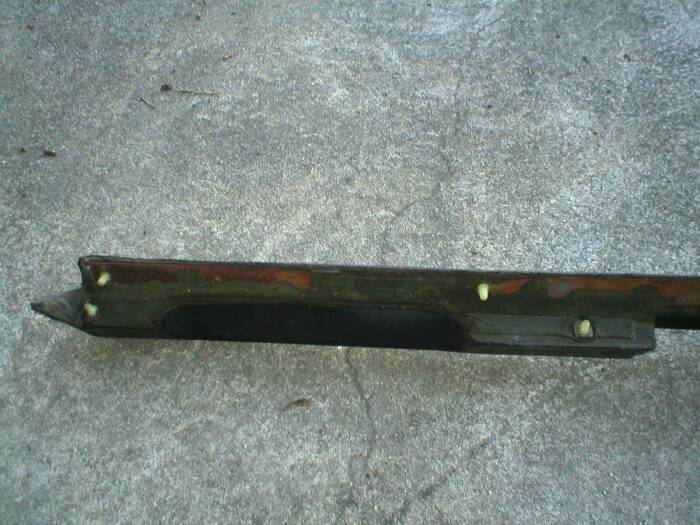

This shows the plastic bolts on the passenger side.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Dec 14 2005, 07:38 PM
Post #13


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States
This shows the bolts around the ash tray.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Dec 14 2005, 07:39 PM
Post #14


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States

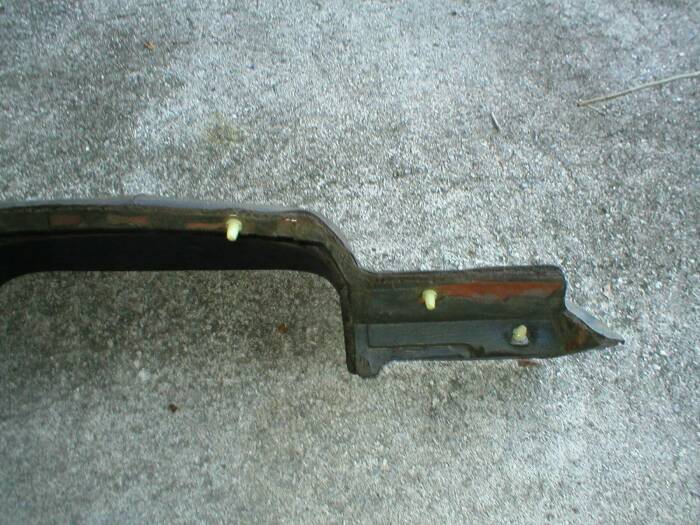

This shows the bolts on the driver's side.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
boxstr
post Dec 14 2005, 07:41 PM
Post #15


MEMBER:PACIFIC NORTHWEST REGION
*****

Group: Members
Posts: 7,522
Joined: 25-December 02
From: OREGON
Member No.: 12
Region Association: Pacific Northwest
Looks like a valiant effort to document the procedure of dash pad removal 101. Let me state a couple of things. I have removed many dash tops but never completely removed the gauge cluster. Just pull out far enough to get the two SOB nuts at the top of the hump.
The removal of the two screws on the side is only needed if you are removing the complete dash assembly.
It would be very benificial for newbies to know the tools you are using for this operation.
Thank you .
CCLINDASHINGTHROUGHTHESNOW
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
grasshopper
post Dec 14 2005, 07:44 PM
Post #16


Advanced Member
****

Group: Members
Posts: 2,613
Joined: 10-December 04
From: Valdosta, GA
Member No.: 3,258
Region Association: None
cool, i needed to know how to take that off! (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
watsonrx13
post Dec 14 2005, 07:48 PM
Post #17


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 18-February 03
From: Plant City, FL
Member No.: 312
Region Association: South East States
QUOTE (boxstr @ Dec 14 2005, 09:41 PM)
Looks like a valiant effort to document the procedure of dash pad removal 101. Let me state a couple of things. I have removed many dash tops but never completely removed the gauge cluster. Just pull out far enough to get the two SOB nuts at the top of the hump.
The removal of the two screws on the side is only needed if you are removing the complete dash assembly.
It would be very benificial for newbies to know the tools you are using for this operation.
Thank you .
CCLINDASHINGTHROUGHTHESNOW

Craig, thanks for pointing several things out. I've modified the post to better reflect a removal only of the dash top. Thanks again for the positive comments.

BTW, the plastic nuts are 13mm....Other than a small socket wrench, I used a small crescent wrench on the glove box nut....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tat2dphreak
post Dec 14 2005, 08:35 PM
Post #18


stoya, stoya, stoya
*****

Group: Benefactors
Posts: 8,797
Joined: 6-June 03
From: Wylie, TX
Member No.: 792
Region Association: Southwest Region
I used a ratchet that can be actuateed by turning the handle... HF has them for under $20... it really saved some coins in the cuss jar...

great procedure, this is a definate classic thread!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 14 2005, 08:41 PM
Post #19


Custom Member
***************

Group: Members
Posts: 24,645
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
ok, great, put it in the tech articles at the top under 914 info...

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
grasshopper
post Dec 14 2005, 09:39 PM
Post #20


Advanced Member
****

Group: Members
Posts: 2,613
Joined: 10-December 04
From: Valdosta, GA
Member No.: 3,258
Region Association: None
QUOTE (r_towle @ Dec 14 2005, 06:41 PM)
ok, great, put it in the tech articles at the top under 914 info...

Rich

(IMG:http://www.914world.com/bbs2/html/emoticons/agree.gif) we need more tech articles... im working on some (IMG:http://www.914world.com/bbs2/html/emoticons/wink.gif)
