> How To: Swivel foot valve adjusters on a 74-76 2.0L?
JeffBowlsby
post Jan 10 2007, 06:10 PM
Post #1


914 Wiring Harnesses
*****

Group: Members
Posts: 8,781
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
So those in the know...how is this conversion done? I don't now the specifics so please tell me. I understand that the stock 74-76 2.0L cars use a larger-diameter adjuster and cannot accept the swivel foot adjusters because they are smaller. The needed parts as I understand it are:

* Rocker arms/shaft assemblies from a 1.7L engine
* Swivel feet valve adjusters (10mm?)
* Shims

Is all the above correct?
What shims do I need and where are they installed?
Is there further machining to do to the rocker arms?

All details please...Thanks in advance (IMG:style_emoticons/default/biggrin.gif)


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
2 Pages V  1 2 >
 Reply to this topicStart new topic
Replies(1 - 19)
Twystd1
post Jan 10 2007, 06:32 PM
Post #2


You don't want to know... really.....
****

Group: Members
Posts: 2,515
Joined: 12-September 04
From: Newport Beach, California
Member No.: 2,743
Yup... You have the right parts.

Now you need to mill or sand off about 60 thou from the UNDERSIDE of the rocker where the swivel foot is threaded in.

REASON.... it gives you 60 thou more of adjustment room.

And you are going to need it. As the swivel foot part of the adjuster is longer than a stocker. Therefore you need the additional room.

You are also going to need an adjustable pushrod and a dial indicator and a degree wheel to set em up right. Plus rocker spacers to get it nats ass correct. Thats all cheap stuff.

Go to Jakes forum and read his 9000 word dissertation on how to do this.

If ya want.... send me the rockers and I will clearance them for you for nothing. it's easy. takes about 30 min to 45 min for all eight.

Now.. Aaron.... Did you beat me too the response...??????????

Ya little shit..

Clayton
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 10 2007, 08:19 PM
Post #3


914 Wiring Harnesses
*****

Group: Members
Posts: 8,781
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Clayton...you are golden...PM me your address and I will get them off to you. I will include some 'appreciation'...for your trouble.

QUOTE(Twystd1 @ Jan 10 2007, 04:32 PM) *

Yup... You have the right parts.

Now you need to mill or sand off about 60 thou from the UNDERSIDE of the rocker where the swivel foot is threaded in.

REASON.... it gives you 60 thou more of adjustment room.

And you are going to need it. As the swivel foot part of the adjuster is longer than a stocker. Therefore you need the additional room.

You are also going to need an adjustable pushrod and a dial indicator and a degree wheel to set em up right. Plus rocker spacers to get it nats ass correct. Thats all cheap stuff.

Go to Jakes forum and read his 9000 word dissertation on how to do this.

If ya want.... send me the rockers and I will clearance them for you for nothing. it's easy. takes about 30 min to 45 min for all eight.

Now.. Aaron.... Did you beat me too the response...??????????

Ya little shit..

Clayton
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Twystd1
post Jan 10 2007, 08:30 PM
Post #4


You don't want to know... really.....
****

Group: Members
Posts: 2,515
Joined: 12-September 04
From: Newport Beach, California
Member No.: 2,743
PMing you now...

C
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gregrobbins
post Jan 10 2007, 08:47 PM
Post #5


Member: Team NARP
***

Group: Members
Posts: 1,515
Joined: 23-March 04
From: Arizona
Member No.: 1,844
Region Association: Southwest Region

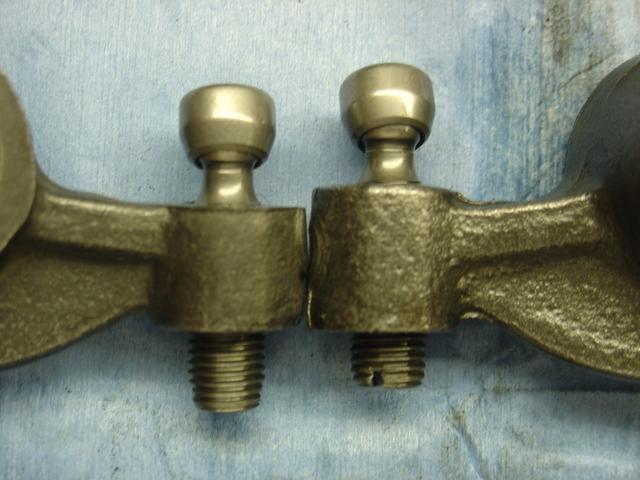

Here's a photo I copied from somewhere.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Twystd1
post Jan 10 2007, 08:52 PM
Post #6


You don't want to know... really.....
****

Group: Members
Posts: 2,515
Joined: 12-September 04
From: Newport Beach, California
Member No.: 2,743
Thats the exact photo I was searching for..... Thanks Greg..!!!!!

Jeff... I hope those are REAL PORSCHE GENUINE swivel feet.

As everything else is sub par. IMHO
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Jan 10 2007, 11:53 PM
Post #7


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
QUOTE(Twystd1 @ Jan 10 2007, 06:52 PM) *

Thats the exact photo I was searching for..... Thanks Greg..!!!!!

Jeff... I hope those are REAL PORSCHE GENUINE swivel feet.

As everything else is sub par. IMHO


word.... clayton did mine too...

to get my geometry gnats ass... i had to use .060" rocker shims to shim the assemblies out....

i also set the rocker adjusters mid way in.... (thus part of the spacer requirement) so i would have ample adjustment either way.

i also bought solid rocker spacers as my engine regularly sees 6000 rpms...

(IMG:http://www.914world.com/bbs2/uploads/thumb_blog-1133498877.jpg)

see my blog H E R E for more complete pics
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
morph
post Jan 11 2007, 12:11 AM
Post #8


quality parts builder
***

Group: Members
Posts: 1,828
Joined: 25-November 03
From: oregon coast
Member No.: 1,389
Region Association: Pacific Northwest
where did you get the spacers to replace the springs?
or where can i find them ?
james
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Twystd1
post Jan 11 2007, 12:19 AM
Post #9


You don't want to know... really.....
****

Group: Members
Posts: 2,515
Joined: 12-September 04
From: Newport Beach, California
Member No.: 2,743
Heee..Heeee

Aaron said his engine sees 6000 rpms.

I have been with him driving... he spins it faster than that getting out of his driveway...

AND his lash hasn't changed much to my knowledge.

That means he did it right.... (Lucky bastard)

Cheers,

Clayton
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
swood
post Jan 11 2007, 12:28 AM
Post #10


Senior Member
***

Group: Members
Posts: 1,839
Joined: 6-February 03
From: Strong Beach
Member No.: 251
Region Association: None
QUOTE(morph @ Jan 10 2007, 10:11 PM) *

where did you get the spacers to replace the springs?
or where can i find them ?
james



I got mine from a later model hydraulic bus engine. Check with a Vdub shop.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Twystd1
post Jan 11 2007, 12:40 AM
Post #11


You don't want to know... really.....
****

Group: Members
Posts: 2,515
Joined: 12-September 04
From: Newport Beach, California
Member No.: 2,743
The Jakester and aircooled.net sells em also..

C
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Jan 11 2007, 01:28 AM
Post #12


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
i got mine off ebay and clearanced em to .004" side to side play
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CHAFF
post Feb 26 2007, 08:35 PM
Post #13


Member
**

Group: Members
Posts: 167
Joined: 13-September 04
From: Regina, SK
Member No.: 2,749
Hi Aaron, Let me get this straight....if you grind the rockers down...do you still need the shims? If so do you have a pic of where the shims go?


-L

QUOTE(Aaron Cox @ Jan 10 2007, 09:53 PM) *

QUOTE(Twystd1 @ Jan 10 2007, 06:52 PM) *

Thats the exact photo I was searching for..... Thanks Greg..!!!!!

Jeff... I hope those are REAL PORSCHE GENUINE swivel feet.

As everything else is sub par. IMHO


word.... clayton did mine too...

to get my geometry gnats ass... i had to use .060" rocker shims to shim the assemblies out....

i also set the rocker adjusters mid way in.... (thus part of the spacer requirement) so i would have ample adjustment either way.

i also bought solid rocker spacers as my engine regularly sees 6000 rpms...

(IMG:http://www.914world.com/bbs2/uploads/thumb_blog-1133498877.jpg)

see my blog H E R E for more complete pics
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Mike
post Feb 26 2007, 08:59 PM
Post #14


Member
**

Group: Members
Posts: 330
Joined: 27-January 03
From: San Jose, CA
Member No.: 198
QUOTE(Aaron Cox @ Jan 10 2007, 11:28 PM) *

i got mine off ebay and clearanced em to .004" side to side play


I just used the Hydro spacers and the shims and spring washers that came with them.

The shims go under the rocker stands to give the swivels enough room, I got mine from Bugformance on Capitol Ave, they're hanging on the carded wall on the right as you go in... (I'm sure Jeff knows where this place is.)

Either way you need to make custom length pushrods to get the geometry right once you put the 50-60 thou shims under the rocker stands. If you don't set it up so that the first half of the lift is pushing up on the valve stem, and the second half pushing it down, you will get premature wear on the valve guides. The stock length pushrods will be pushing mostly up on the valve stems...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CHAFF
post Feb 26 2007, 09:19 PM
Post #15


Member
**

Group: Members
Posts: 167
Joined: 13-September 04
From: Regina, SK
Member No.: 2,749

Could you not just grind the face of the swivel foot down?

-L
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Feb 26 2007, 09:33 PM
Post #16


914 Idiot
***************

Group: Members
Posts: 15,063
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
QUOTE(CHAFF @ Feb 26 2007, 07:19 PM) *

Could you not just grind the face of the swivel foot down?


That would probably go through the hardening on the swivel foot, and get to a part that would wear quickly. It might also weaken the foot so that it breaks after a while...

Decking the rockers is a known quantity; they are more than beefy enough in that area to take it.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CHAFF
post Feb 26 2007, 09:40 PM
Post #17


Member
**

Group: Members
Posts: 167
Joined: 13-September 04
From: Regina, SK
Member No.: 2,749

Man, there sure seems to be alot of misleading information regarding this upgrade. I think I will just stick to the good ol' 8mm stock adjusters.

-L

QUOTE(Dave_Darling @ Feb 26 2007, 07:33 PM) *

QUOTE(CHAFF @ Feb 26 2007, 07:19 PM) *

Could you not just grind the face of the swivel foot down?


That would probably go through the hardening on the swivel foot, and get to a part that would wear quickly. It might also weaken the foot so that it breaks after a while...

Decking the rockers is a known quantity; they are more than beefy enough in that area to take it.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Feb 26 2007, 09:46 PM
Post #18


Its alive
****

Group: Members
Posts: 4,818
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
QUOTE(CHAFF @ Feb 26 2007, 10:40 PM) *

Man, there sure seems to be alot of misleading information regarding this upgrade. I think I will just stick to the good ol' 8mm stock adjusters.

-L

QUOTE(Dave_Darling @ Feb 26 2007, 07:33 PM) *

QUOTE(CHAFF @ Feb 26 2007, 07:19 PM) *

Could you not just grind the face of the swivel foot down?


That would probably go through the hardening on the swivel foot, and get to a part that would wear quickly. It might also weaken the foot so that it breaks after a while...

Decking the rockers is a known quantity; they are more than beefy enough in that area to take it.

--DD



Chaff,

What are you confused about? This is a known good upgrade. (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Feb 26 2007, 10:10 PM
Post #19


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
You need to clearance 60 tho off the rocker face. gives you enough adjustment room without having to use a bazillion shims to get it out that far.

you sometimes have to use shims (NOT always) to get the rocker arm geom. perfect. that is, the rocker adjuster is CO LINEAR with the valve stem (directly in line with) at HALF LIFT.

you will also need to use cut to length pushrods in conjunction with shims to achieve that.

really simple.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CHAFF
post Feb 26 2007, 10:19 PM
Post #20


Member
**

Group: Members
Posts: 167
Joined: 13-September 04
From: Regina, SK
Member No.: 2,749

Ok here is my deal.

I understand that this will require cutting back the rocker....

But here is the question no one wants to answer....you still need to shim up the mounting block? If so then doesn't the old push rod become too short hence you need a new set of longer pushrods?

-L


[/quote]

Chaff,

What are you confused about? This is a known good upgrade. (IMG:style_emoticons/default/smile.gif)
[/quote]
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


2 Pages V  1 2 >
Reply to this topicStart new topic
2 User(s) are reading this topic (2 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Switch to: Standard · Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 26th December 2024 - 09:26 PM
Invision Power Board v9.1.4 © 2024  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
