> Interesting find, Acquired a five lug setup today
MrKona
post Feb 14 2009, 10:05 PM
Post #1


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None

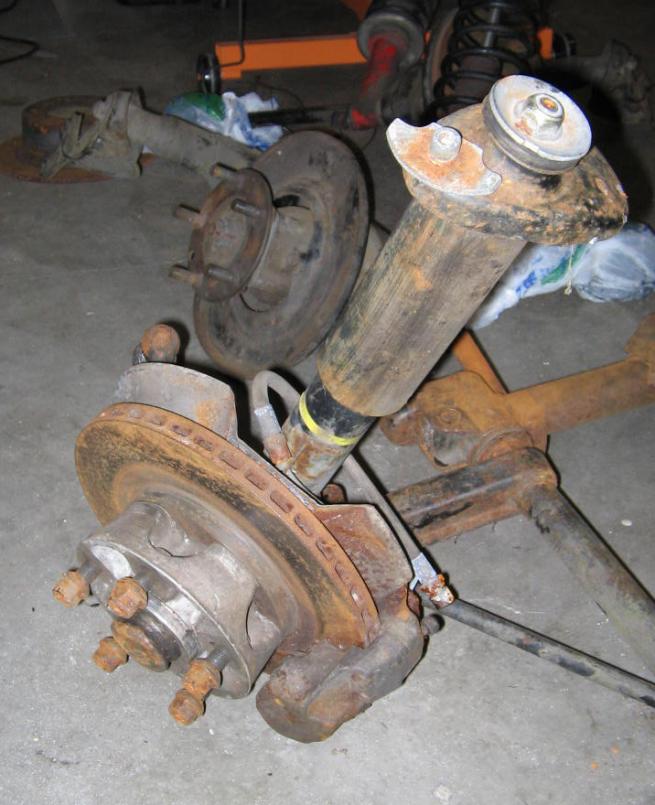

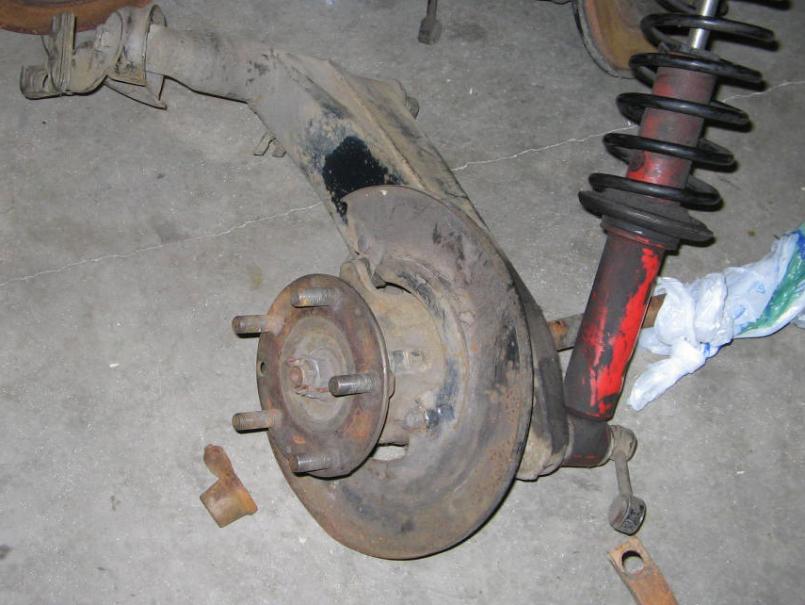

I bought a five lug set up today from a local guy off craigslist. The front is a Boge set up with 3" spacing and M-calipers. I already have a pair so I will most likely be selling these off in the near future.

It's the rears that got my attention. The hubs are originally five lug, not four lug redrilled for five. The guy who sold them to me took them off a 914 he parted out a long time ago and has been storing them ever since for an eventual five lug conversion. He sold them as he has too many projects as is.

Unfortunately, I'm going to be gone for a few days and won't get a chance to dig into these until next weekend. I'm wondering if I may have acquired a set up with 914/6 stub axles. (IMG:style_emoticons/default/drooley.gif)

By the way, anyone have a suggestion on how to remove the big castle nut with the suspension off the car? (IMG:style_emoticons/default/confused24.gif)


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
5 Pages V  1 2 3 > »
 Reply to this topicStart new topic
Replies(1 - 19)
MrKona
post Feb 14 2009, 10:06 PM
Post #2


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None

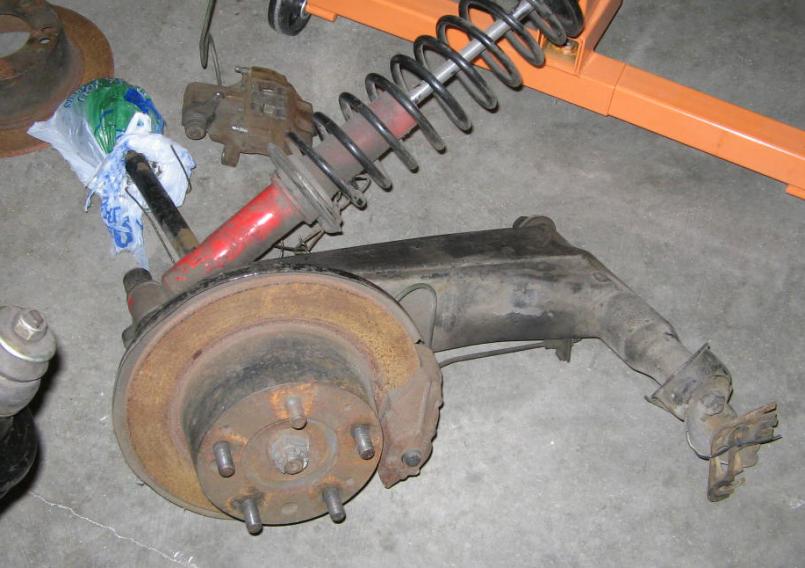

Front...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
boxstr
post Feb 14 2009, 10:33 PM
Post #3


MEMBER:PACIFIC NORTHWEST REGION
*****

Group: Members
Posts: 7,522
Joined: 25-December 02
From: OREGON
Member No.: 12
Region Association: Pacific Northwest
Let me guess, the guy lives in Columbia City, out by St Helens.
I emailed him last night and asked how much he wanted$$. He replied $300.
I said I will take them. He replied Okay they are yours.
He says he can deliver to OC on way to work. Okay, sounds good.
Then I get an email today that the five lug is gone, for $500.
I guess money talks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 14 2009, 10:41 PM
Post #4


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None
QUOTE(boxstr @ Feb 14 2009, 08:33 PM) *

Let me guess, the guy lives in Columbia City, out by St Helens.
I emailed him last night and asked how much he wanted$$. He replied $300.
I said I will take them. He replied Okay they are yours.
He says he can deliver to OC on way to work. Okay, sounds good.
Then I get an email today that the five lug is gone, for $500.
I guess money talks.


Yah... I made him an offer today (actually less than $500) and he took it. Sorry Craig... didn't know...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
boxstr
post Feb 14 2009, 10:50 PM
Post #5


MEMBER:PACIFIC NORTHWEST REGION
*****

Group: Members
Posts: 7,522
Joined: 25-December 02
From: OREGON
Member No.: 12
Region Association: Pacific Northwest
Yeah, No blame to you. You didn't know.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
my928s4
post Feb 14 2009, 11:05 PM
Post #6


Member
**

Group: Members
Posts: 349
Joined: 18-August 07
From: Spokane, WA
Member No.: 8,018
Region Association: Pacific Northwest
QUOTE(MrKona @ Feb 14 2009, 08:05 PM) *


By the way, anyone have a suggestion on how to remove the big castle nut with the suspension off the car? (IMG:style_emoticons/default/confused24.gif)


A decent impact wrench worked for me.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Todd Enlund
post Feb 14 2009, 11:14 PM
Post #7


Resident Photoshop Guru
****

Group: Members
Posts: 3,251
Joined: 24-August 07
From: Laurelhurst (Portland), Oregon
Member No.: 8,032
Region Association: Pacific Northwest
Man, I was way too slow...

So, Bryan... your other struts are 3" as well? I've got a pair of "A" calipers/hubs/rotors, and need some 3.5" struts.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 14 2009, 11:24 PM
Post #8


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None
QUOTE(my928s4 @ Feb 14 2009, 09:05 PM) *

QUOTE(MrKona @ Feb 14 2009, 08:05 PM) *


By the way, anyone have a suggestion on how to remove the big castle nut with the suspension off the car? (IMG:style_emoticons/default/confused24.gif)


A decent impact wrench worked for me.


Yup, I'll use an impact wrench on them, but with no car on the other end of the axle, what do I use to keep the axle from turning? My wife recommended I find a couple of strong men to hold it. (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 14 2009, 11:26 PM
Post #9


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None
QUOTE(Todd Enlund @ Feb 14 2009, 09:14 PM) *

Man, I was way too slow...

So, Bryan... your other struts are 3" as well? I've got a pair of "A" calipers/hubs/rotors, and need some 3.5" struts.


3.0" struts only here, no 3.5"... I'm sure there is a set of 3.5" struts out there with your name on them...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
LarryR
post Feb 15 2009, 12:47 AM
Post #10


Senior Member
***

Group: Members
Posts: 929
Joined: 15-March 07
From: E. Bay Area, N. California
Member No.: 7,604
My experience was that I was lifting the entire back end of the car off the ground to break those bastards loose. I would take a torch and heat them up a lot then hit them with the impact to bust them loose. a couple days soaking of liquid wrench could help too.

As for being factory six all you have to do is look at the solid rotor to realize that is not the case. However, I am confused as to why they are 5 lug calipers (non vented) but have no extra holes on the rotors. (early 911 rotors working with the 914 hubs?)

great buy.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Todd Enlund
post Feb 15 2009, 12:49 AM
Post #11


Resident Photoshop Guru
****

Group: Members
Posts: 3,251
Joined: 24-August 07
From: Laurelhurst (Portland), Oregon
Member No.: 8,032
Region Association: Pacific Northwest
QUOTE(MrKona @ Feb 14 2009, 09:26 PM) *

3.0" struts only here, no 3.5"... I'm sure there is a set of 3.5" struts out there with your name on them...

I'm sure there is... I'll look harder when I have more money (IMG:style_emoticons/default/biggrin.gif)

Looks like you scored big on this setup.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Feb 15 2009, 01:28 AM
Post #12


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
914/6 had solid rotors in the rear. What's the price on those 3" front struts? PM me.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Katmanken
post Feb 15 2009, 09:37 AM
Post #13


You haven't seen me if anybody asks...
****

Group: Members
Posts: 4,738
Joined: 14-June 03
From: USA
Member No.: 819
Region Association: Upper MidWest
Dremel and hammer and chisel, buy a new nut.

Ken
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Feb 15 2009, 10:22 AM
Post #14


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Couple of things:

Nut = Acetylene cherry red and then have a go at it. You may want to use that one solid rotor we see in the picture and, by first removing the backing plate, put it in a vise. You'll have to crank down on it but, if you can get that nut hot enough it will probably spin. All this depends on the proper air wrench as well. They're not created equal.

What is it? = I'd check the front end first for clues. The spline count will probably be 911 for sure however, check the torsion bar thickness. You may have the 17mm 914-6 bars. That would be a clue.

Rears would be easy enough to tell. Hubs should have a 901 part number on them. CV's would be 914 sized CV's. Real -6 stub axles have a cast finish on them. Search a thread by Reid on the subject (Lavanaut) from last month.

The left rear arm would have an extra tab for the heater flapper cable. This is just a simple tab maybe 1" wide by 1.5" tall with a single small sheet metal screw hole in it that a vinyl/cloth strap was looped through to hold that cable on 6's. Bear in mind, these control arms were used on all early 914's so it's nothing unique however, with 901.xxx.xxx.xx hubs, factory stub axles and this tab, you probably have a set off a six...

...now; where that car he stripped? (IMG:style_emoticons/default/idea.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Feb 15 2009, 10:27 AM
Post #15


914 Wizard
**********

Group: Members
Posts: 10,681
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
The caliper in the background is a -4 caliper.

Whats the spline count on the axles?

The front hub looks to be hubcentric which would be later.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
736conver
post Feb 15 2009, 11:38 AM
Post #16


Advanced Member
****

Group: Members
Posts: 2,117
Joined: 25-May 03
From: SE Wisconsin
Member No.: 736
Region Association: None
QUOTE
By the way, anyone have a suggestion on how to remove the big castle nut with the suspension off the car


If you cant get em off, you can always ask your local wrench to remove them.

QUOTE
Yah... I made him an offer today (actually less than $500) and he took it. Sorry Craig... didn't know...


Hey Craig cant get all the deals. (IMG:style_emoticons/default/biggrin.gif)



User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 15 2009, 01:47 PM
Post #17


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None

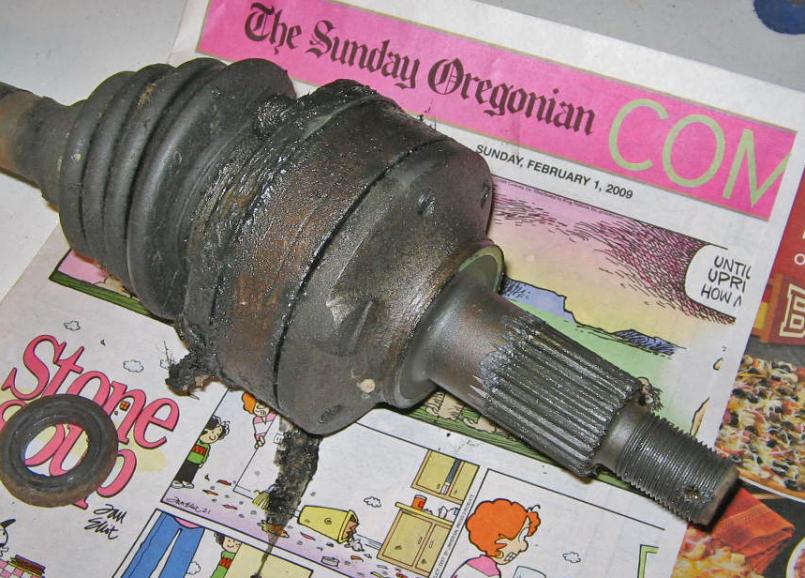

I had to spend some today to see what I've got... I took Eric's advice with the disk-in-the-vice technique and heat. My impact wrench loosened the axle nut without too much trouble. I was pretty surprised.

I tapped the stub axle and out came.... what I believe is a 914/6 stub axle! 28 splines, sure looks like one, but I've only seen them in pictures! Can anyone confirm?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 15 2009, 01:48 PM
Post #18


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None

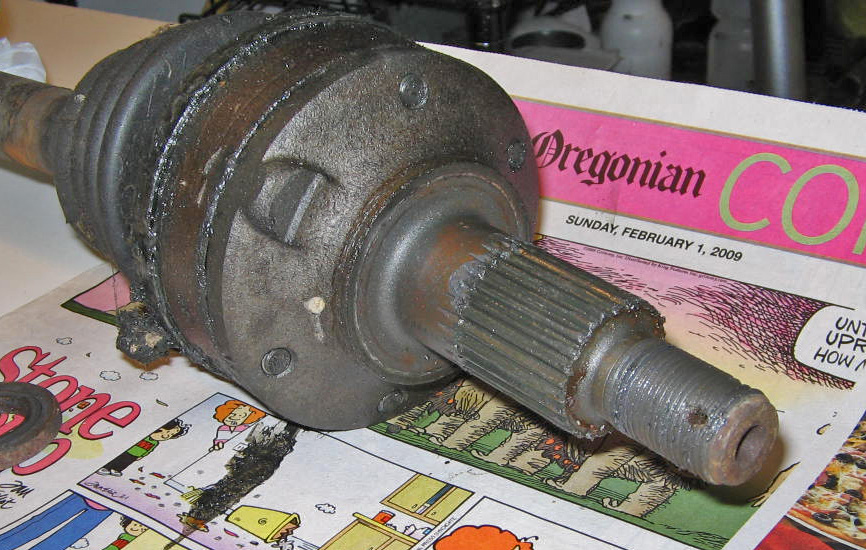

Another..


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Feb 15 2009, 02:15 PM
Post #19


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None
On the front, I measured the torsion bar diameter at 18.0mm with 29 splines. I believe this matches up to a stock 914/4 (stock diameter 17.9mm) bar.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
my928s4
post Feb 15 2009, 03:18 PM
Post #20


Member
**

Group: Members
Posts: 349
Joined: 18-August 07
From: Spokane, WA
Member No.: 8,018
Region Association: Pacific Northwest
QUOTE(MrKona @ Feb 15 2009, 11:47 AM) *

I had to spend some today to see what I've got... I took Eric's advice with the disk-in-the-vice technique and heat. My impact wrench loosened the axle nut without too much trouble. I was pretty surprised.

I tapped the stub axle and out came.... what I believe is a 914/6 stub axle! 28 splines, sure looks like one, but I've only seen them in pictures! Can anyone confirm?


Once I got a hold of a decent impact wrench I just held the drive shaft by hand and the nut came off, sounds like you had similar luck.

If you have a 914/6 rear end, sweet find for sure.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
