 External Oil Cooler, let me see some pictures |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| tradisrad |
 Jun 22 2010, 11:03 AM
Post
#1
|
|
Senior Member  Group: Members Posts: 985 Joined: 11-September 06 From: San Mateo, CA Member No.: 6,815 Region Association: Northern California  |
I am going to install my 25 row Earls oil cooler over the 4th of july and I am looking for some more ideas, tip and tricks.
I plan on using a wafer adapter to keep my filter in the stock location. I will also install a thermostat and a fan. I will most likely mount it under the rear trunk. I'd like to see some pictures of what others have done. Experinces on the wafer adapter vs relocating the oil filter and what thermostats are being used. I've seen the Pelican Article. thanks -Rob |
   |

|
  |
Replies
| Dominic |
Jun 22 2010, 05:17 PM
Post
#2
|
|
Dominic Group: Members Posts: 993 Joined: 14-January 03 From: Vacaville, CA Member No.: 149 Region Association: Northern California |

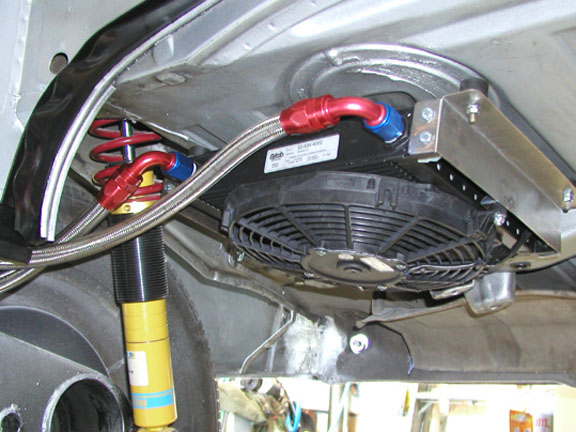

This is a picture of my oil cooler set-up, it's a large Setrab cooler with a pull through fan designed as the primary oil cooler for my car. This is for a 4 cyl car with the CFR header that exits on the opposite side so no hot exhaust below this cooler, I am still working on ducting some cool air to the top of the cooler.
Attached image(s)
|
|
|
|
Posts in this topic
tradisrad External Oil Cooler Jun 22 2010, 11:03 AM
Elliot Cannon Cooler under left side of trunk. I have a very lo... Jun 22 2010, 11:52 AM Elliot Cannon more pics Jun 22 2010, 11:54 AM
Vacca Rabite
Pics of under the trunk cooler...
Hey Elliot, I... Jun 22 2010, 01:05 PM pcar916
I am going to install my 25 row Earls oil cooler ... Jun 22 2010, 12:28 PM Joe Ricard I don't think I have any pictures but my 2316-... Jun 22 2010, 01:13 PM rwilner The PO of my car installed a front-mounted oil coo... Jun 22 2010, 02:01 PM rwilner
Plus getting a short enough filter to get by the... Jun 22 2010, 02:02 PM pcar916
...
I DO NOT like the sandwhich method of routing... Jun 22 2010, 03:44 PM tradisrad my engine is a 4 cyl 2056. I was told by Rich at H... Jun 22 2010, 03:23 PM Ferg I've done this twice, works "ok" for... Jun 22 2010, 03:42 PM mightyohm What is the alternative to a sandwich adapter?
I ... Jun 22 2010, 05:05 PM zx-niner Here's my set-up: Full flow oil, remote filte... Jun 22 2010, 10:08 PM campbellcj Here is my front cooler setup, built for hot clima... Jun 22 2010, 11:29 PM tradisrad zx-niner, wow that is clean. Talk to me a bit abou... Jun 23 2010, 07:36 AM Vacca Rabite Those of you that went to a full flow system, how ... Jun 23 2010, 07:49 AM carr914 a REAL GT Cooler
a Replica GT Cooler
the Rep... Jun 23 2010, 10:56 AM carr914 Here is a shroud I made for a front cooler (didn... Jun 23 2010, 11:05 AM azbill
This is a picture of my oil cooler set-up, it... Jun 23 2010, 05:51 PM tradisrad Can anyone fill me in on going to a full flow oil ... Jun 24 2010, 07:40 AM campbellcj
Can anyone fill me in on going to a full flow oil... Jun 24 2010, 07:54 AM Vacca Rabite For a 4 Jun 24 2010, 07:55 AM tradisrad
For a 4
thanks.. Jun 24 2010, 08:46 AM rwilner A member on club was/is selling their ride on ebay... Jun 29 2010, 08:02 AM tat2dphreak I don't have pics, but I installed a 96-plate ... Jun 29 2010, 09:59 AM jhadler
I don't have pics, but I installed a 96-plate... Jun 29 2010, 01:05 PM tat2dphreak near the tranny, but, unlike the one above(post #1... Jun 29 2010, 02:36 PM tat2dphreak went out and snapped a couple pics...
Jun 29 2010, 05:45 PM tradisrad I am getting clooser to installing my oil cooler. ... Jun 30 2010, 08:28 AM tat2dphreak
I am getting clooser to installing my oil cooler.... Jun 30 2010, 09:10 AM brp986s Elephant sells an adjustable fan switch (160 to 20... Jun 30 2010, 10:08 AM jhadler
Elephant sells an adjustable fan switch (160 to 2... Jul 12 2010, 01:45 PM tradisrad
Elephant sells an adjustable fan switch (160 to ... Jul 12 2010, 02:00 PM tat2dphreak I like that mounting, but don't you lose the r... Jun 30 2010, 10:21 AM brp986s No rain tray on a factory 6. Jun 30 2010, 10:25 AM tat2dphreak
No rain tray on a factory 6.
:stooges:
duh, I... Jun 30 2010, 10:49 AM naro914 For Papa Smurf, we have the cooler mounted to the ... Jun 30 2010, 12:02 PM tomeric914 EDIT #1: Added picture and filter part number
ED... Jun 30 2010, 01:44 PM tradisrad Oil cooler is installed. I mounted it under the re... Jul 11 2010, 10:21 AM BigD9146gt Heres a hardline setup I made for a 912E... The cu... Jul 11 2010, 12:10 PM realred914 I dont like the idea of dumping hot air from tehoi... Jul 11 2010, 12:32 PM DanT that is very nice :D Jul 11 2010, 01:09 PM gothspeed
Heres a hardline setup I made for a 912E... The c... Jul 12 2010, 11:22 AM BigD9146gt
What size thread is that thermostat you used?
... Jul 12 2010, 12:09 PM brp986s The fan is exiting up here. The fan is 20% less e... Jul 12 2010, 02:32 PM tradisrad a little follow up:
Before I installed the oil coo... Jul 15 2010, 07:46 AM ME733
a little follow up:
Before I installed the oil co... Jul 15 2010, 03:47 PM Vacca Rabite I finished my Setrab with fans last night, under t... Jul 18 2010, 10:30 AM Vacca Rabite It was 93 during my 30 mile test. Prior oil temps ... Jul 18 2010, 01:36 PM jaxdream
It was 93 during my 30 mile test. Prior oil temps... Jul 18 2010, 06:20 PM Vacca Rabite I'll take some tomorrow.
This is the cooler th... Jul 18 2010, 07:08 PM tradisrad
I'll take some tomorrow.
This is the cooler t... Jul 19 2010, 09:30 AM maf914
I'll take some tomorrow.
This is the cooler t... Jul 20 2010, 02:46 PM Vacca Rabite I will. Grad school classes started up again this... Jul 20 2010, 09:22 PM woodst Very impressive installations shown here.
I wonder... Jul 21 2010, 02:07 PM Vacca Rabite Malte, I would.
Zach Jul 21 2010, 06:58 PM qa1142 What size is the oil filter thread? 18 x 1.5? 20 x... Jul 22 2010, 04:10 PM McMark 3/4" x 16 Jul 22 2010, 04:22 PM qa1142 So this?
http://www.jegs.com/i/Derale/259/25770/1... Jul 22 2010, 08:03 PM qa1142 With this kit...
http://www.jegs.com/i/Derale/259... Jul 22 2010, 08:06 PM McMark Those adapters will all work, but space is tight, ... Jul 22 2010, 09:02 PM qa1142
Those adapters will all work, but space is tight,... Jul 22 2010, 09:11 PM McMark I have no qualitative analysis. I simply respect ... Jul 22 2010, 09:22 PM Vacca Rabite I'll put pics of mine up tonight. Going to be... Jul 23 2010, 06:58 AM qa1142 waiting for the pictures :beer2: Jul 23 2010, 09:39 AM tradisrad I added an LED to my oil temp gauge to indicate wh... Jul 25 2010, 05:09 PM qa1142 that's nice Jul 25 2010, 05:26 PM Vacca Rabite Here is a QUICK picture of my setup.
http://www.91... Jul 25 2010, 06:31 PM qa1142 Zach
With it mounted like that, do you really need... Jul 25 2010, 06:37 PM Vacca Rabite Yes, I felt I needed the fans. I was told by a lo... Jul 25 2010, 06:43 PM bugsy0
Yes, I felt I needed the fans. I was told by a l... Sep 1 2010, 10:15 AM realred914
Yes, I felt I needed the fans. I was told by a ... Sep 1 2010, 10:23 AM JimN73 Does anyone know how hot it gets in the area above... Jul 27 2010, 09:43 PM JimN73 My request for more info got buried in a busy day,... Jul 29 2010, 04:07 PM Elliot Cannon Fans only help when you're sitting idle in tra... Jul 29 2010, 05:51 PM tomeric914
Fans only help when you're sitting idle in tr... Jul 29 2010, 10:24 PM McMark I'm not so sure about the fans-restrict-airflo... Jul 29 2010, 08:11 PM Vacca Rabite Well, lots of cars use electric fans on radiators ... Sep 1 2010, 10:21 AM bugsy0 Yep - I might just be over-thinking it a bit - eve... Sep 1 2010, 10:41 AM bugsy0 realred914 - so what I hear you saying is I can ge... Sep 1 2010, 11:28 AM Vacca Rabite
now can I get away w/ a horizontal mount and no f... Sep 1 2010, 06:51 PM realred914
realred914 - so what I hear you saying is I can g... Sep 2 2010, 08:09 AM bandjoey Ok. It looks hip to have lots of chrome and stuff... Sep 2 2010, 02:36 PM Mark Henry
Ok. It looks hip to have lots of chrome and stuf... Sep 2 2010, 03:03 PM brant finally doing my install today of the atomic deral... Sep 18 2010, 10:52 AM tradisrad Brant, I hope this will help. Let me know if I can... Sep 18 2010, 01:23 PM brant awesome
thanks Rob!
nice job
brant Sep 18 2010, 01:58 PM qa1142 Very smart hose routing :first:
Any pictures ne... Sep 18 2010, 04:59 PM qa1142 Very smart hose routing :first:
Any pictures ne... Sep 18 2010, 05:01 PM tradisrad
Very smart hose routing :first:
Any pictures n... Sep 18 2010, 05:13 PM qa1142 I purchased blue hose to do my install with, I lik... Sep 18 2010, 05:18 PM tradisrad The hose is Nylon Braided AN Hose. This hose size ... Sep 18 2010, 07:59 PM qa1142 $3.20 a foot
http://www.jegs.com/i/JEGS/555/... Sep 18 2010, 08:17 PM tomeric914 Brant, I PM'd you some pictures.
Routing the ... Sep 18 2010, 09:07 PM tradisrad
Brant, I PM'd you some pictures.
Routing the... Sep 19 2010, 11:10 AM tomeric914
That is simple and you wont have any rubbing issu... Sep 19 2010, 01:48 PM rdauenhauer I recently started down this same path and the fir... Dec 14 2010, 06:18 PM realred914
I recently started down this same path and the fi... Dec 15 2010, 12:23 PM McMark Great idea! Done! :thumbsup: Dec 14 2010, 10:22 PM |
