I changed the title of the thread, so it's incognito now. (IMG:style_emoticons/default/wink.gif) - Sort of to do with the midengined-ness, my username, and of course the 420 914 thing. (IMG:style_emoticons/default/smoke.gif) The car was very original, but quite trashed when I bought it. It's a 49 state car, purchased in Colorado judging by the sticker that was on the back opposite the badge, Bob Hagestad Dealerhip. I don't have a picture of that unfortunately... Both bumpers had 1975 UCLA parking permit stickers. It is an appearance group car, tan square weave, late enough to get 2 real tan basket weave seats. Original adriatic blue paint, no repaints. The snowplow early rear valence. It has the original red heater lever pull which I don't see very much. Everything was there without having been hacked/modified (besides the door panels). Unmodified but fairly trashed.  Chassis # 174932 -Meaning the chassis was built the 17th week of the year 1972 (I think it is the 17th week with a Monday the way they count it), the 4th day of that week, Thursday April 27th, 1972. -I thought it was 4/20 but I must concede it was probably a week later, the chassis production. (IMG:http://www.914world.com/bbs2/uploads/post-179-1307065668.jpg) It is odd, though, the dash doesn't match.  1729556 vs 1749532 which is on the Karmann plate and the trunk. It would be from just 2 days earlier, but then I was thinking, if it was from another car, it could theoretically be from a 73 or a 74 car, too. It seems like it is original, though, as peple always bodge everything and it was fairly unmolested, the wiring, and hardware of the dash.  (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291418830.2.jpg)   The engine number... (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1296535790.12.jpg) |
   |

|
  |
Replies
| nathansnathan |
Dec 3 2010, 05:41 PM
Post
#2
|
|
Senior Member Group: Members Posts: 1,052 Joined: 31-May 10 From: Laguna Beach, CA Member No.: 11,782 Region Association: None |

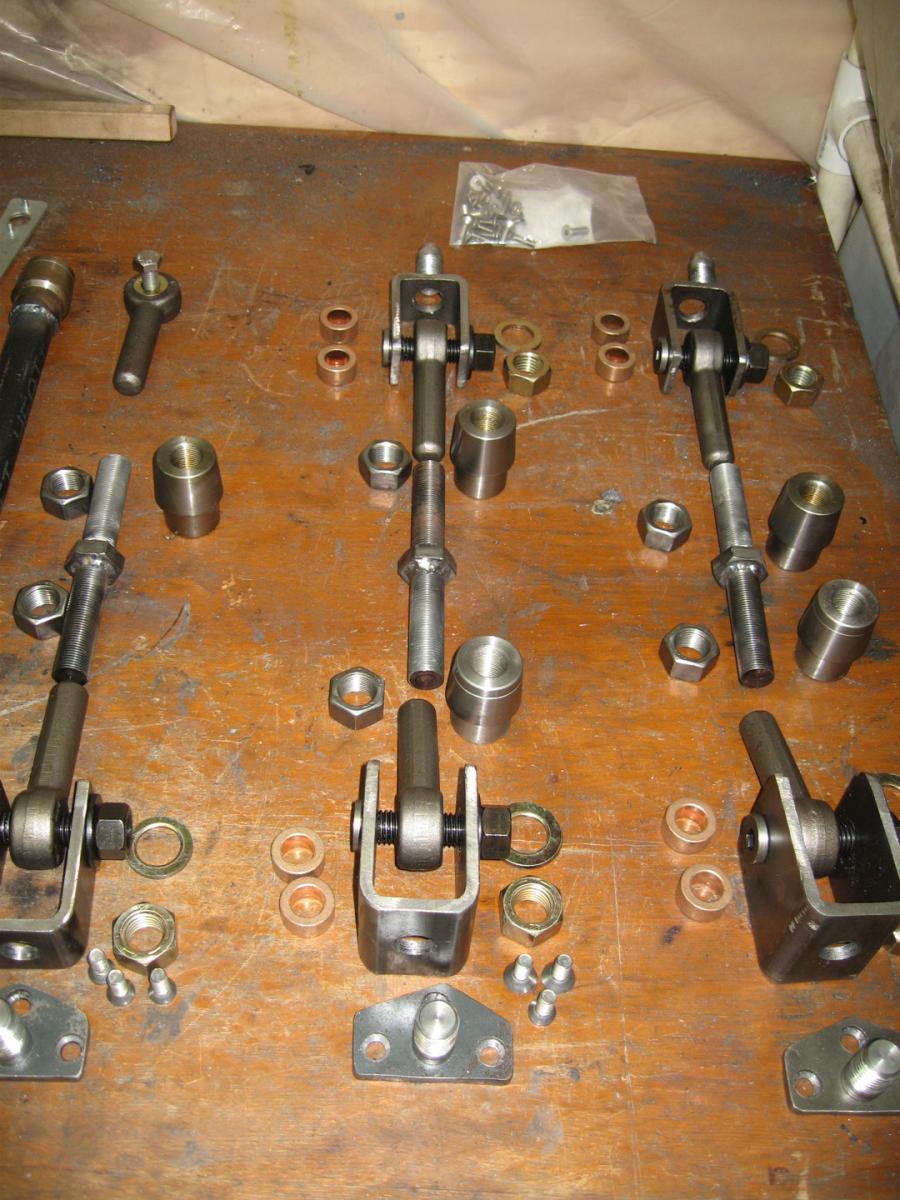

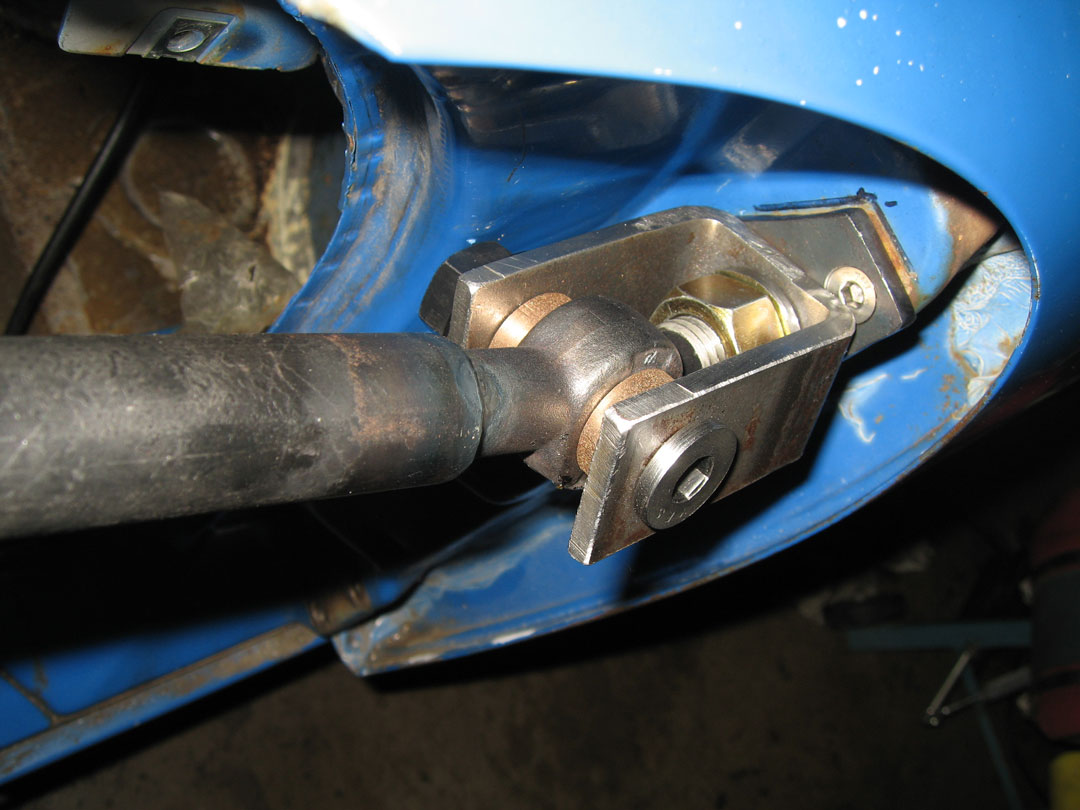

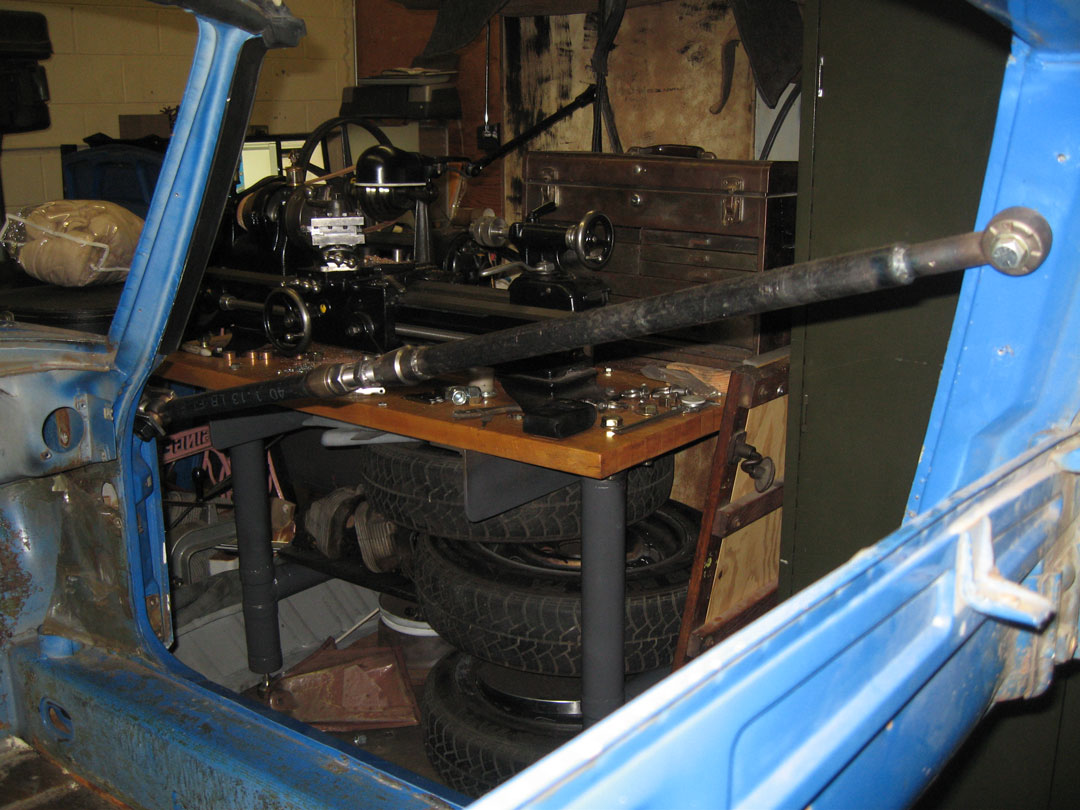

I've got one of these bad boys done so far. It's been quite a chore, as the arms are quite an assemblage.

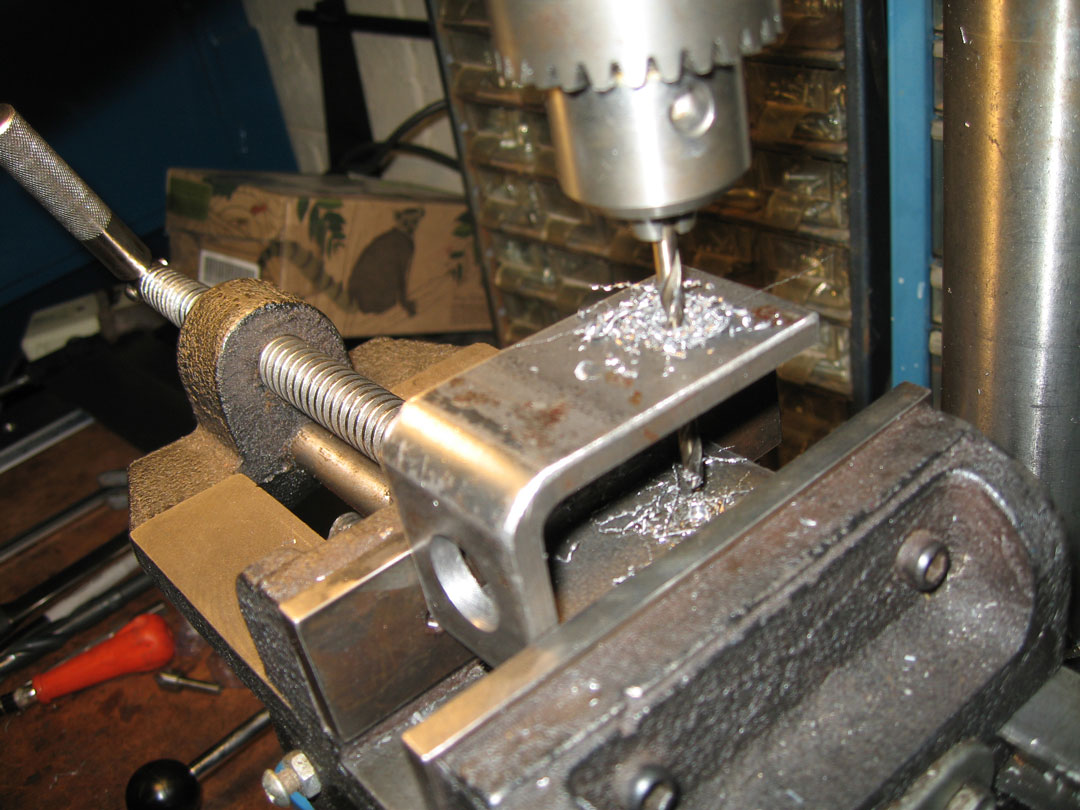

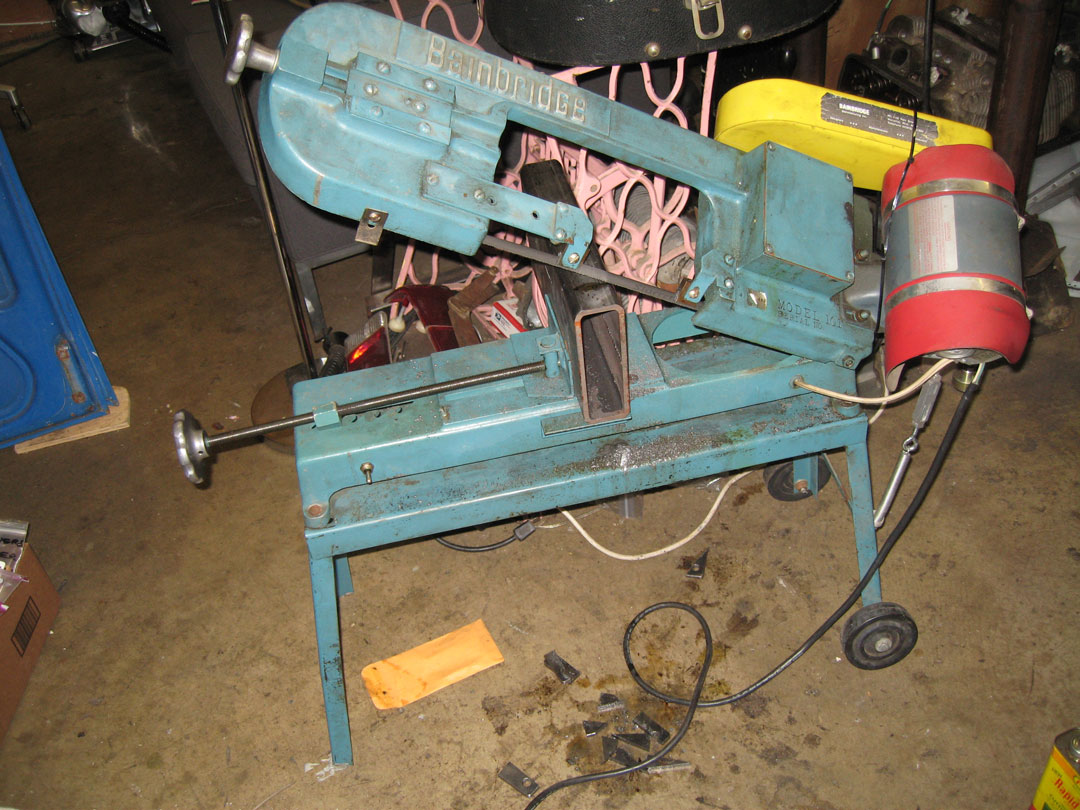

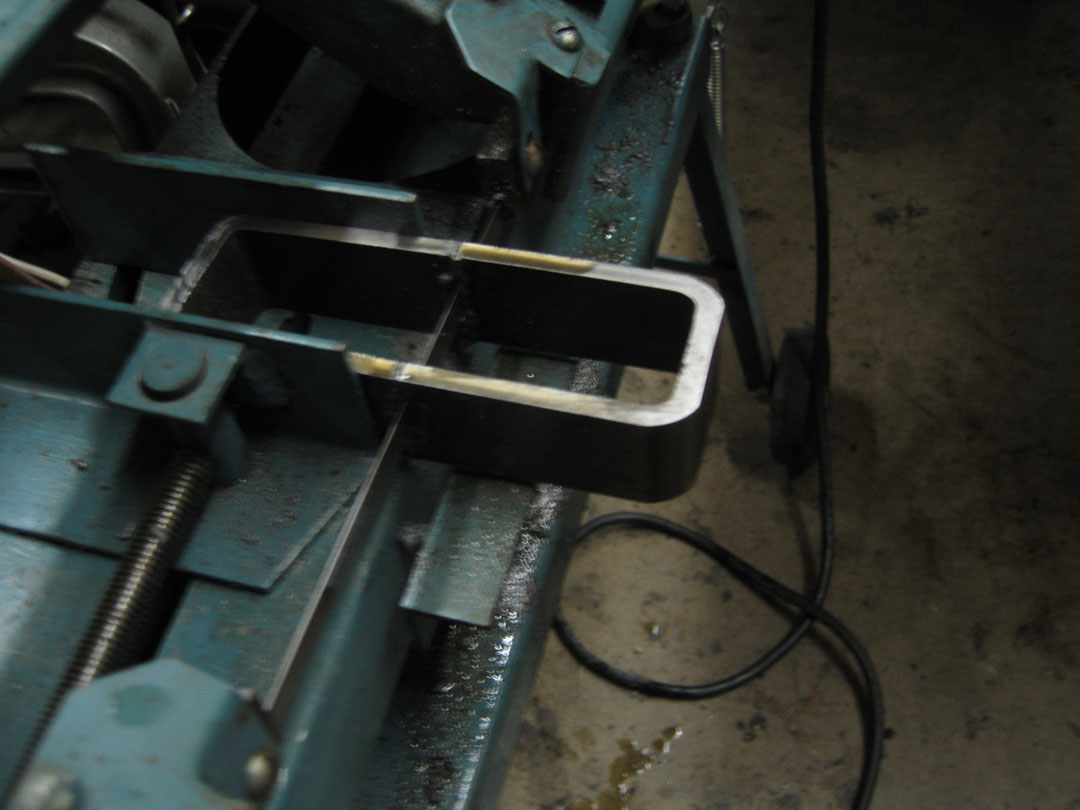

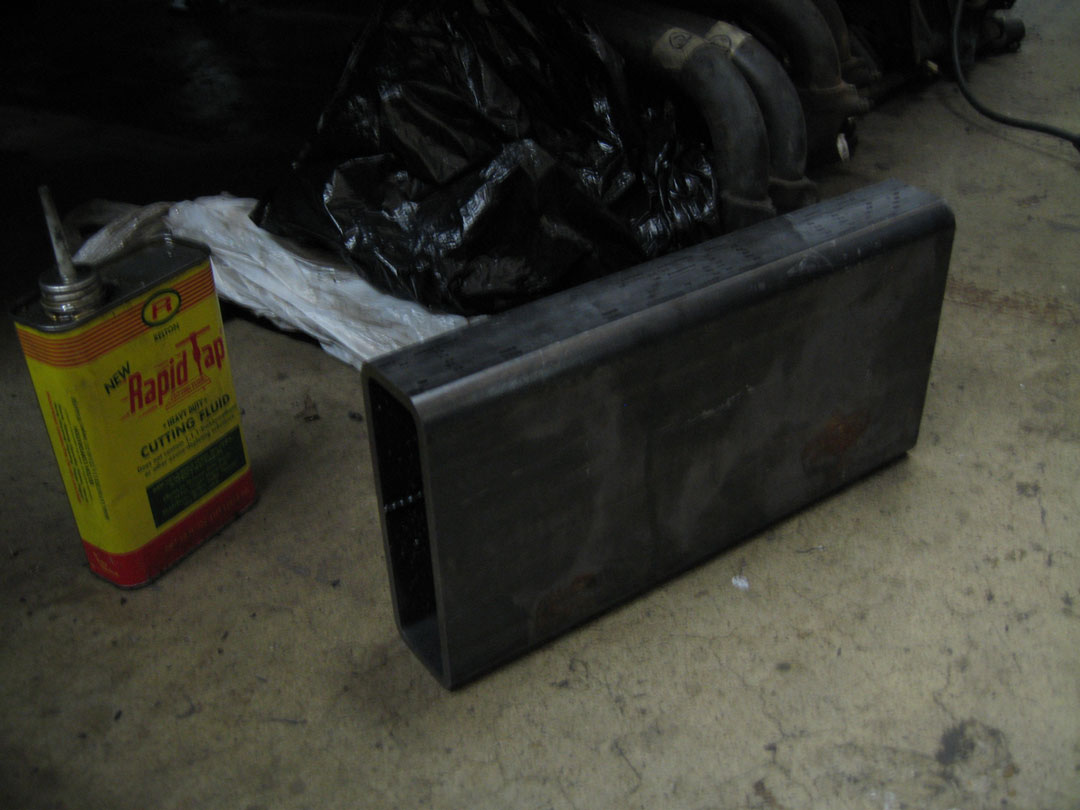

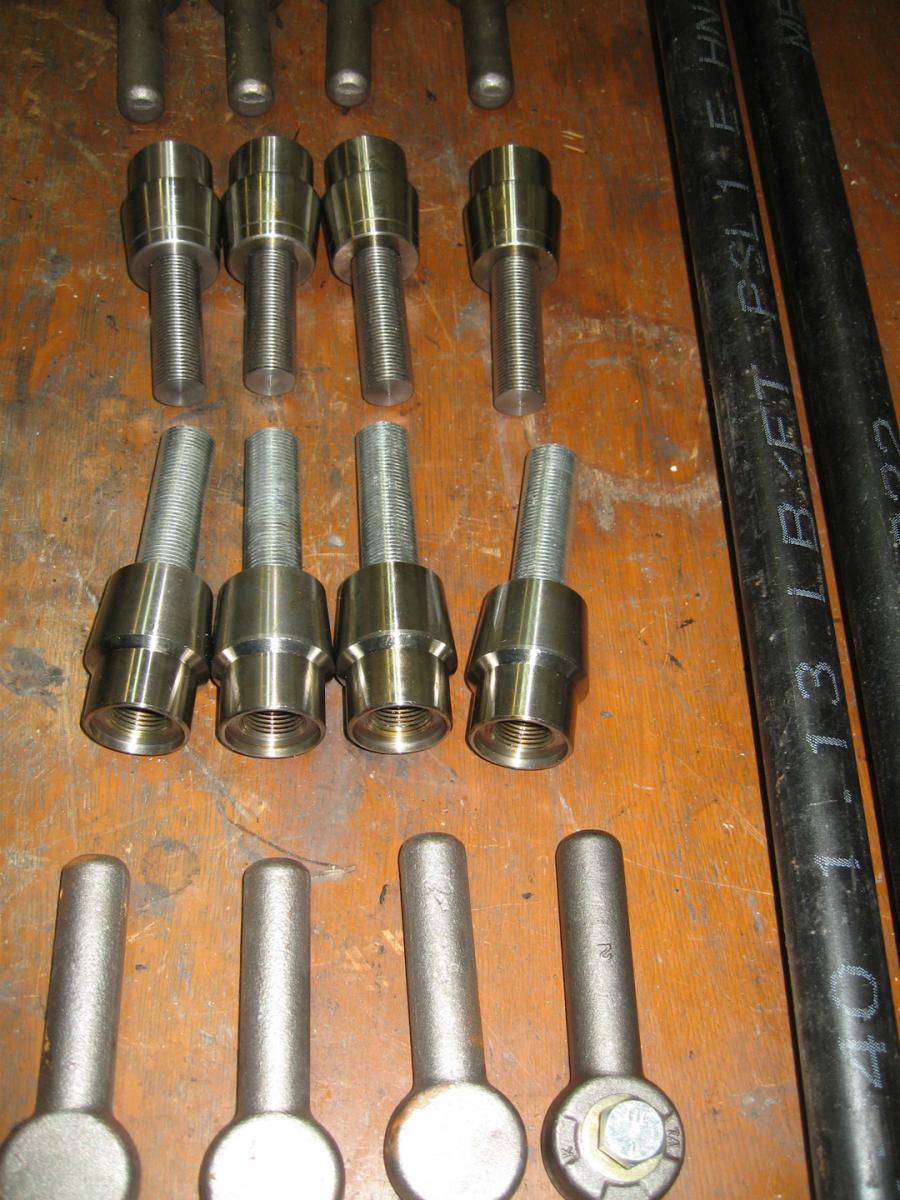

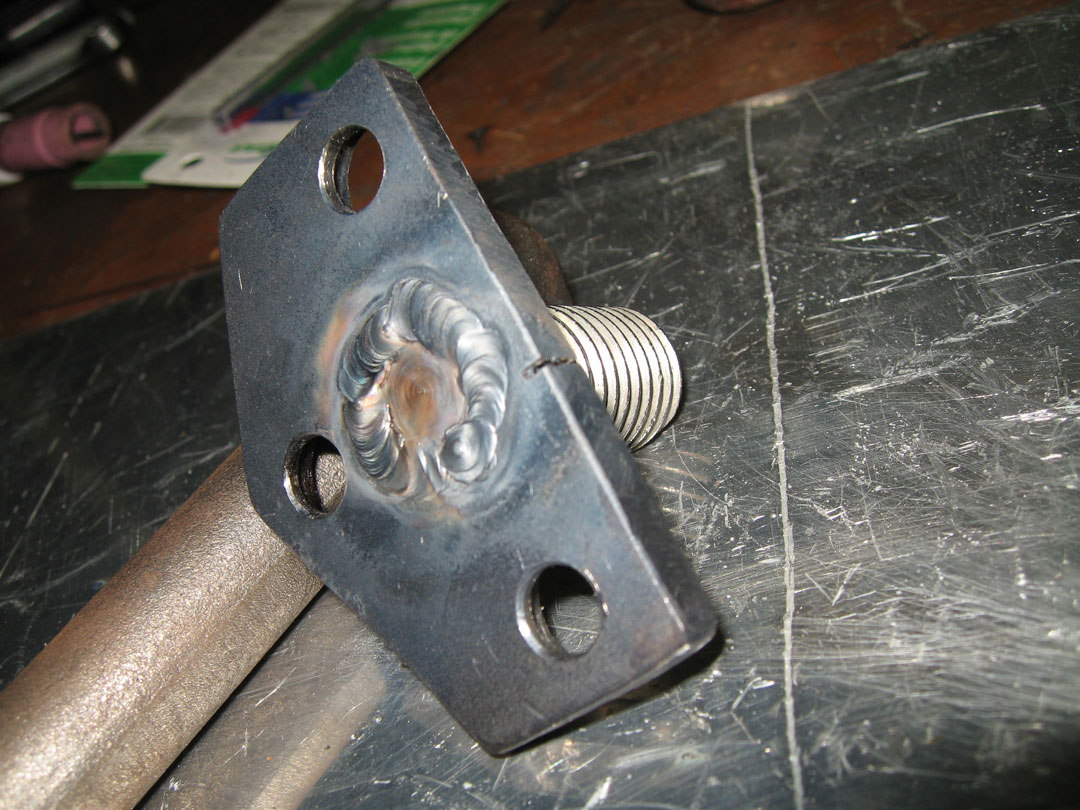

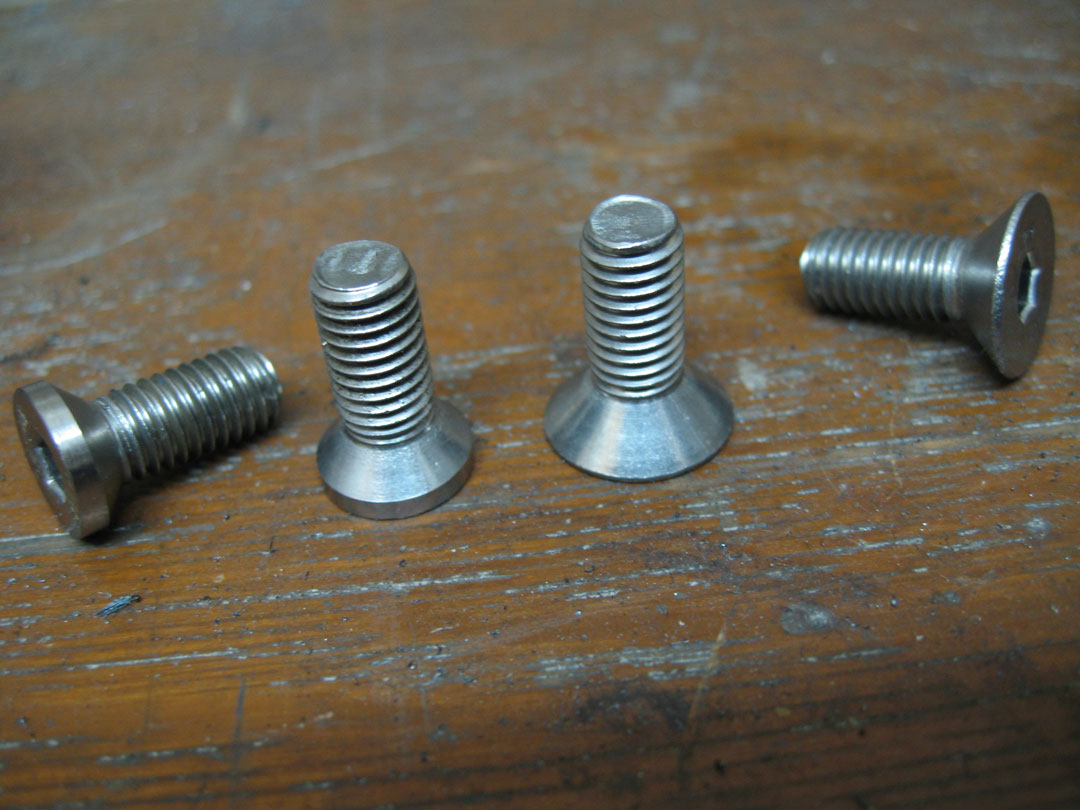

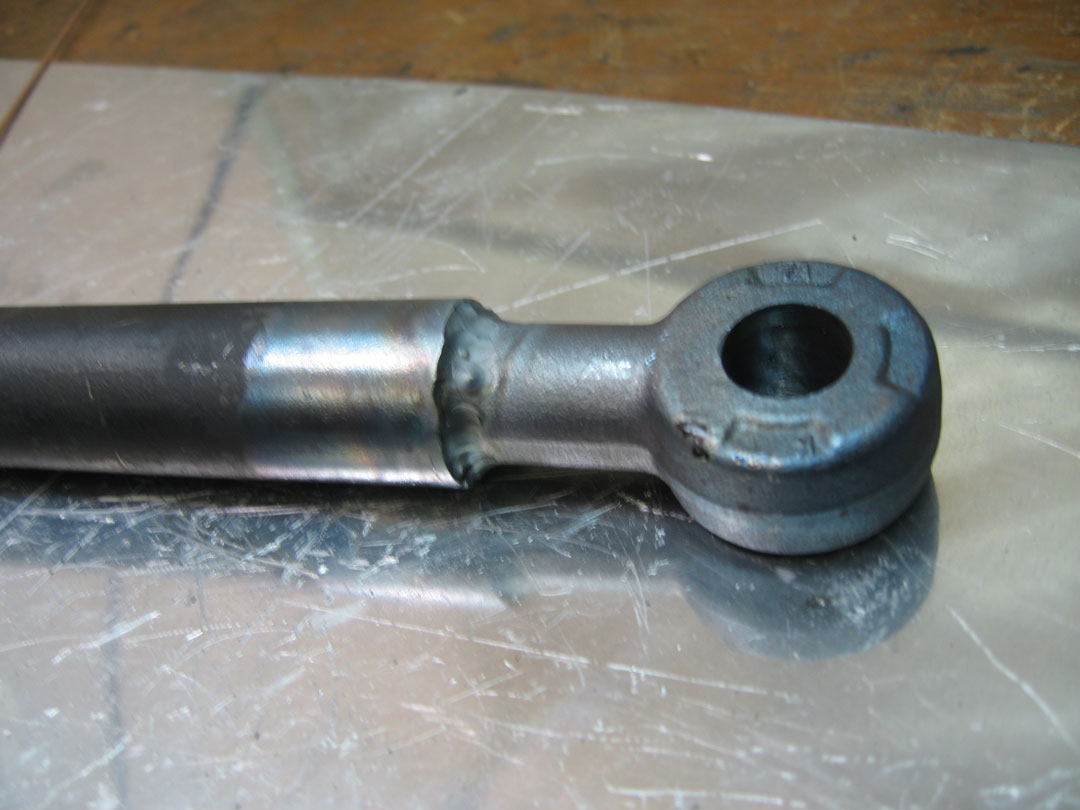

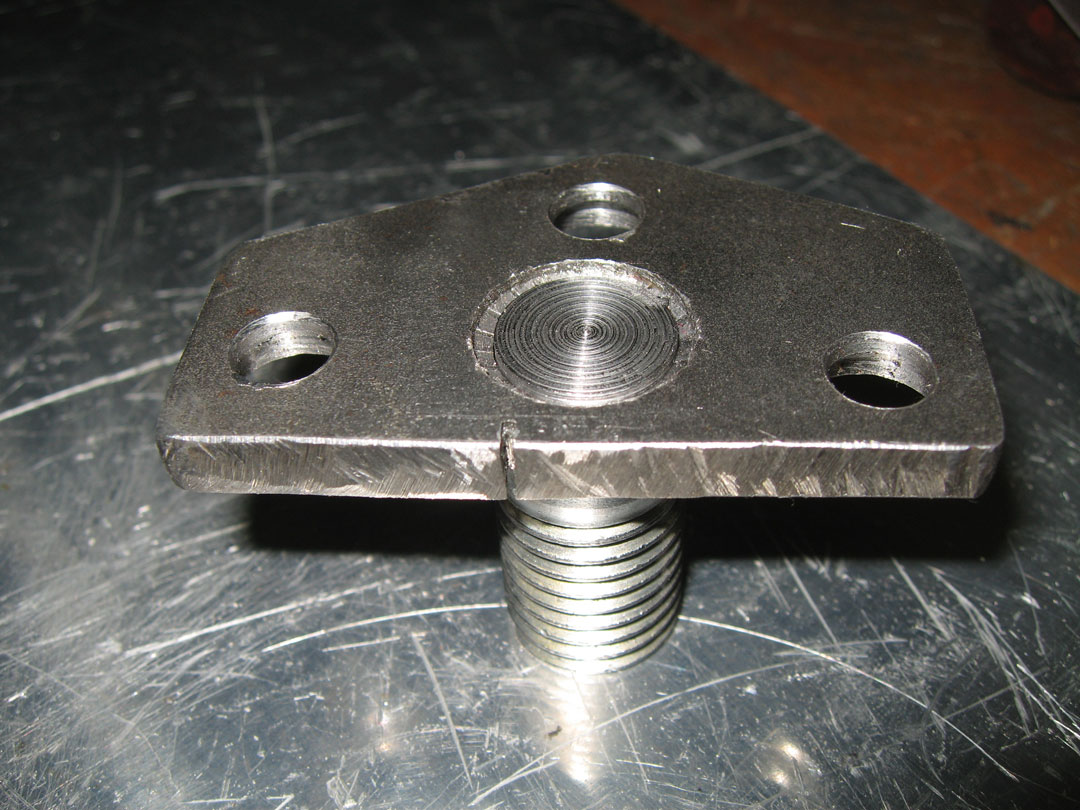

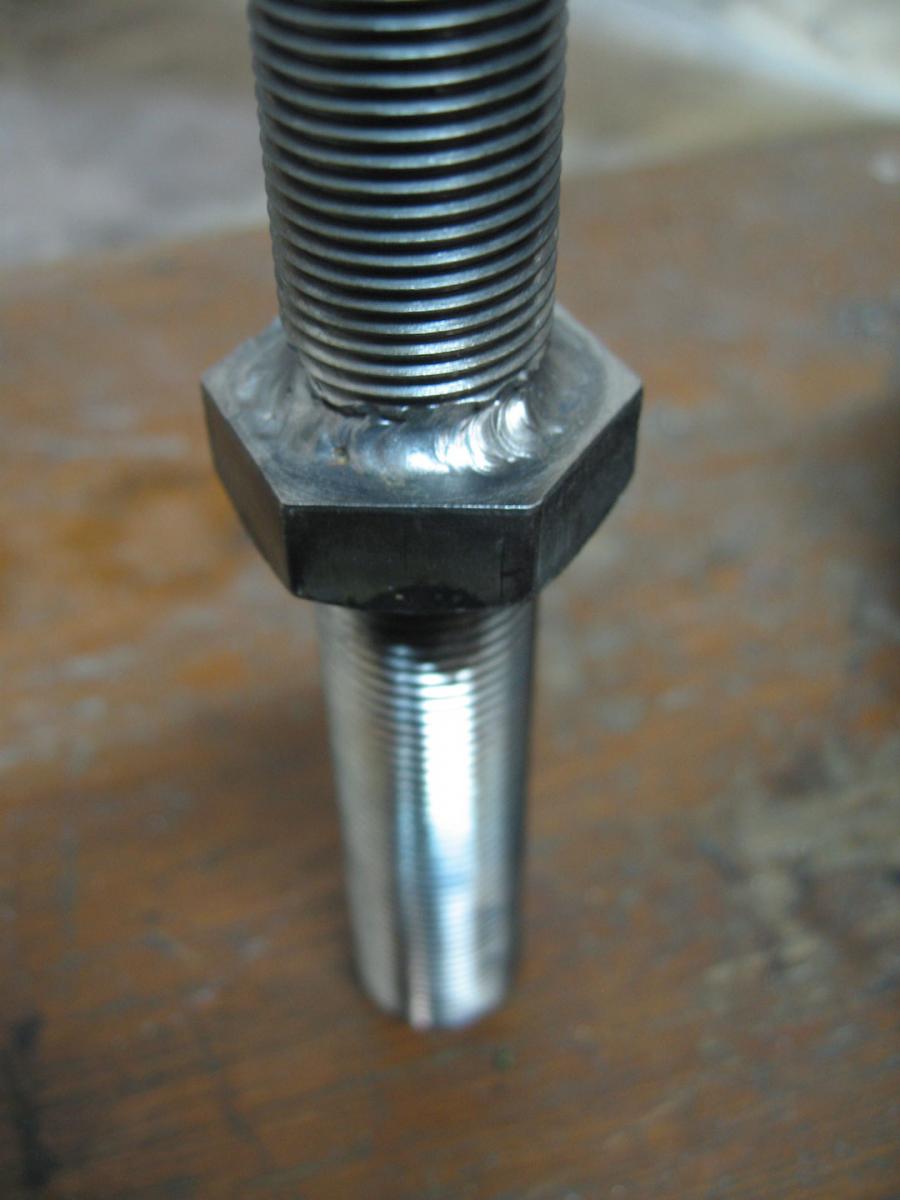

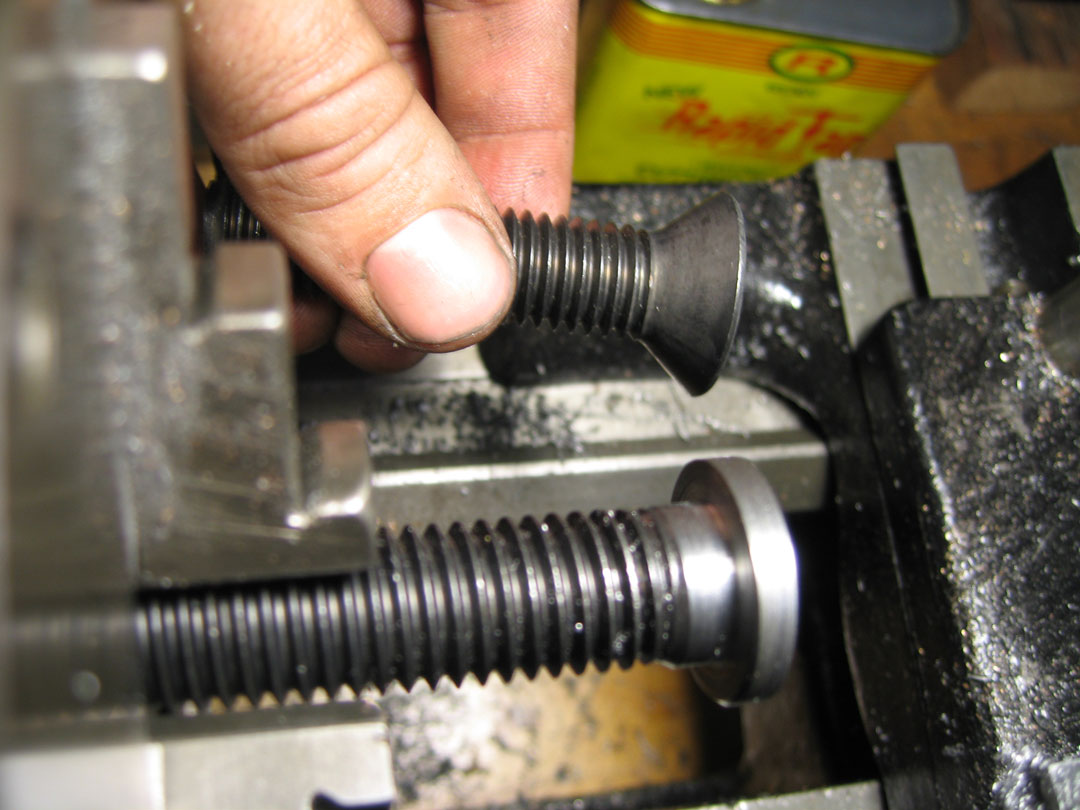

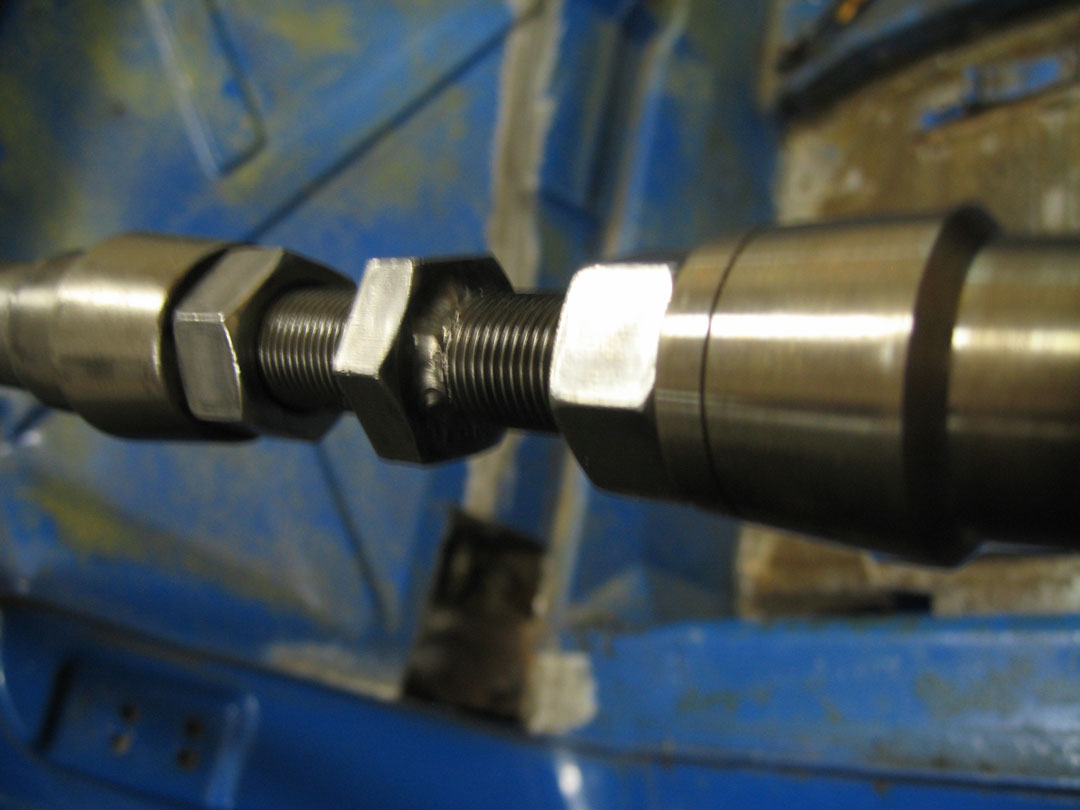

It took me a few days of pondering before I figured out how I was even gonna do it. I had some extra 3/4 inch black pipe around, some 3/4 inch fine threaded rod, and some 3/4 inch course threaded bolts and nuts from other projects so 3/4 inch is what I decided on. I ordered the goodies from McMaster-Carr, left handed threaded rod, right and left-handed 3/4 inch tube nuts, as well as 3/4 inch blank rod ends. (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419662.1.jpg) This bit of metal I got from Industrial Metal Supply which is an insanely awesome place that is right by my work. (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419662.2.jpg) 6 inch by 1 1/2 inch, 1/4 inch wall, it's about all my band saw can handle. I got this saw off craigslist for $100. I'm building the shop as I build the car. (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419666.3.jpg) (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419667.4.jpg) (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419667.5.jpg) (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419667.6.jpg) I had dreamed of getting such a welder as this for years. (IMG:style_emoticons/default/welder.gif) It's an air- cooled (IMG:style_emoticons/default/smile.gif) Miller Tig with high frequency start, pulse, dig, fully digital. Synchrowave 200. (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419668.7.jpg) A bit of fitting up, I turned the 3/4 inch bolt (now a stud) to 5/8 inch at 1 end, put a bit of a groove around the hole it sits in with the 3/4 inch drill in order to hold the weld/ increase penetration/ minimize grinding to achieve a flat mounting. I used the door hinges as a template. (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419668.8.jpg) (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419668.9.jpg) This is my 1932 South Bend Lathe, that was a project for a bit, bringing it back. (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419672.10.jpg) I was going to use flat heads all around to solve the clearance issues, but These 5/8 inch flat heads through the 1/4 inch wall clevis parts wasn't going to work even if I did have a countersink big enough. I opted, instead, to modify the bolts and make my own low profile socket head cap screws. (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419673.11.jpg) I had to do the 8mm ones for the mounts also, just at the edges, since the mounting plates are on the small side, and, well, I've only got a 1/2 inch countersink at the moment. I made the ones on the left out of the ones on the right. I went with stainless. (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419674.12.jpg) And there it is (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419674.13.jpg) The tensioner (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419674.14.jpg) And the tensioner assembly (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1291419678.15.jpg) Here's the whole of it (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1292382402.1.jpg) (IMG:http://www.914world.com/bbs2/uploads_offsite/www.914club.com-11782-1292382402.2.jpg) Just 3 more to go, and then we can really start cutting! |
|
|
|
