Doug's A/C System, R&D/Build Thread Options

[dlee6204]

I thought I would document my A/C adventure in the hopes that it would be a good reference for anyone else considering A/C. I’ll first touch base on the stock system and on custom options and then start building my own system to start testing on. I’ve working on a few systems before but I'm sure there is someone that knows more than me so don't be shy sharing or adding anything. (IMG:style_emoticons/default/smile.gif)


To begin things off here is one of the better overviews of an A/C system. Follow the link and you can see a breakdown of the whole system.


http://www.movacs.com/How%20it%20works/index.html





Anytime I refer to the stock system I will be referring to the dealer installed VPC system mostly because the only A/C cars I had came with this system and I have plenty of parts around.

I also borrowed some photos off this site so if I used any of yours... Thanks. (IMG:style_emoticons/default/smile.gif)


Compressor:

The compressor that came on dealer installed A/C systems was a York Piston style compressor that had a capacity of 6 cubic inches/Rev. From what I could find it used about 7-10 horsepower from the engine. You can still use this compressor however there are better, more efficient options out there. When choosing a new compressor it is a good idea to find one with a similar capacity. In this case going bigger does not mean better. An A/C system works as a whole unit and if you dramatically change one aspect of it, you will likely see negatives effects elsewhere. Choosing a compressor that’s too big will overwork the system, yielding no little to no benefit, and create a not-as-efficient system. During my search I looked mostly at Sanden style compressors so that's what I'll be referring to in my build. Using a modern compressor like the Sanden will only use about 3-4 hp from the engine. I have heard quite a few people use the Sanden 508 compressor with good results. It has an approximate displacement of 8 cubic inches/rev, which IMO is slightly more than I'd like to make a jump to. I'm not saying it wouldn't work, it obviously works, however I think I will get slightly better results and pressures using the Sanden 507 (approx. 7 cubic inches/rev). The SD507 is also slightly smaller in size than the 508.

Here is a picture of the York Compressor


A side by side with the SD507





And here is a SD508

[dlee6204]

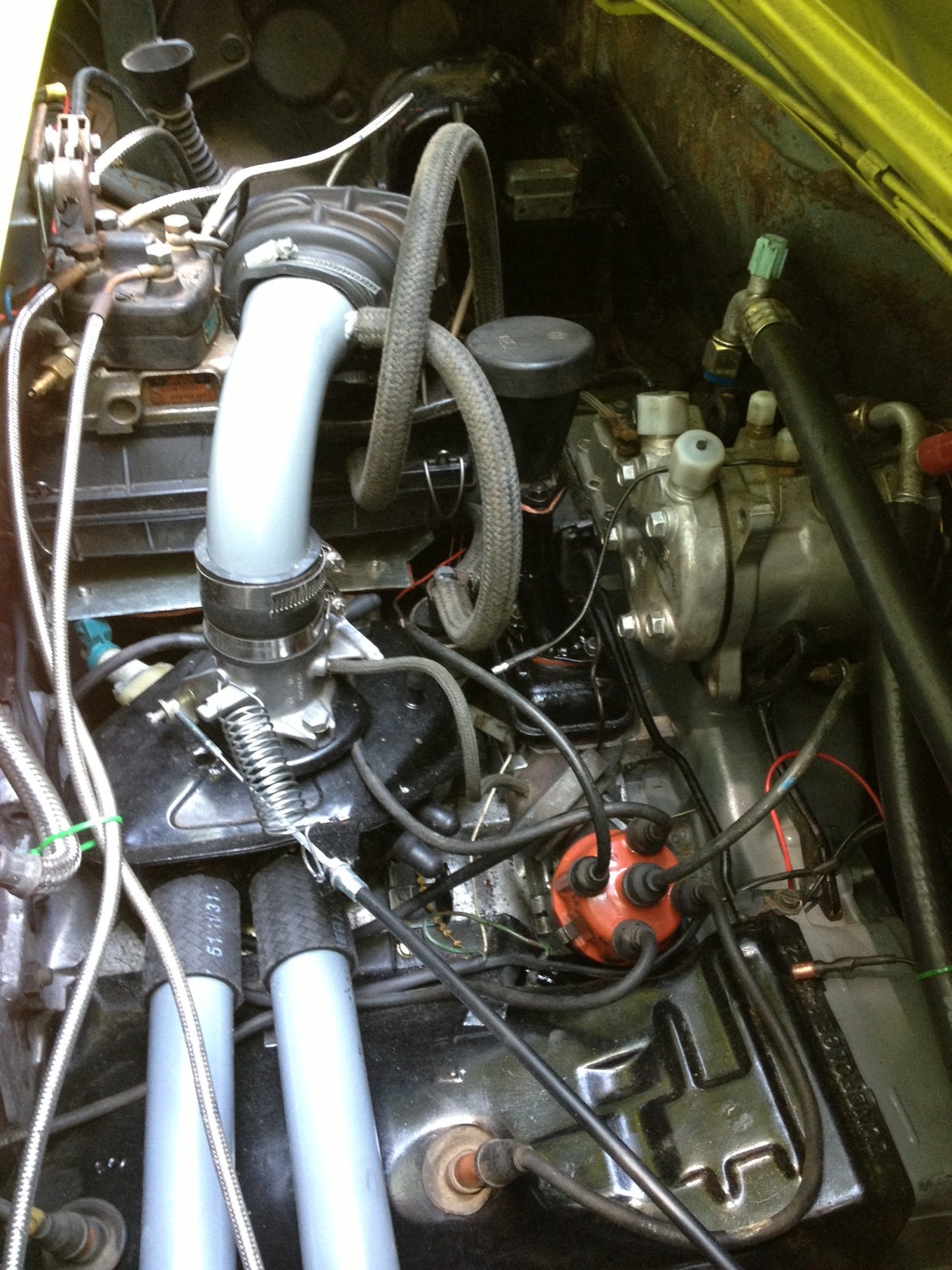

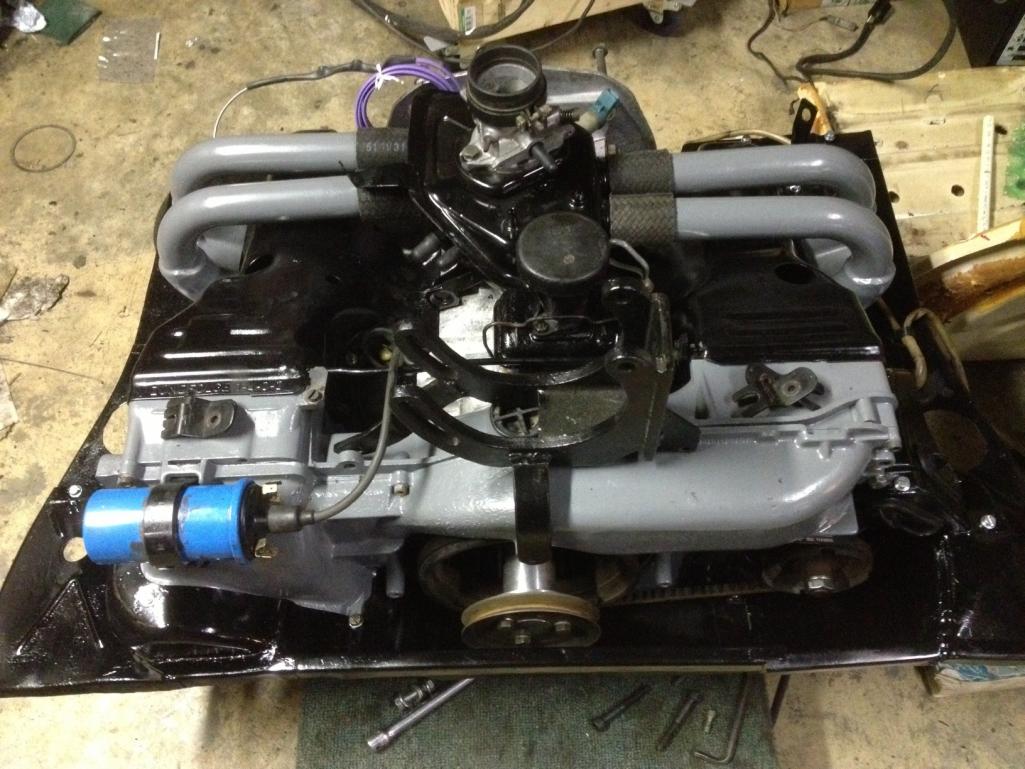

Version 2.0 is now up an running. I put a new motor in my car so I was waiting on that to try out the new stuff. Everything went together smoothly and so far no issues. I need to finish charging my system and then it will be smooth sailing just in time for the summer heat. (IMG:style_emoticons/default/shades.gif)

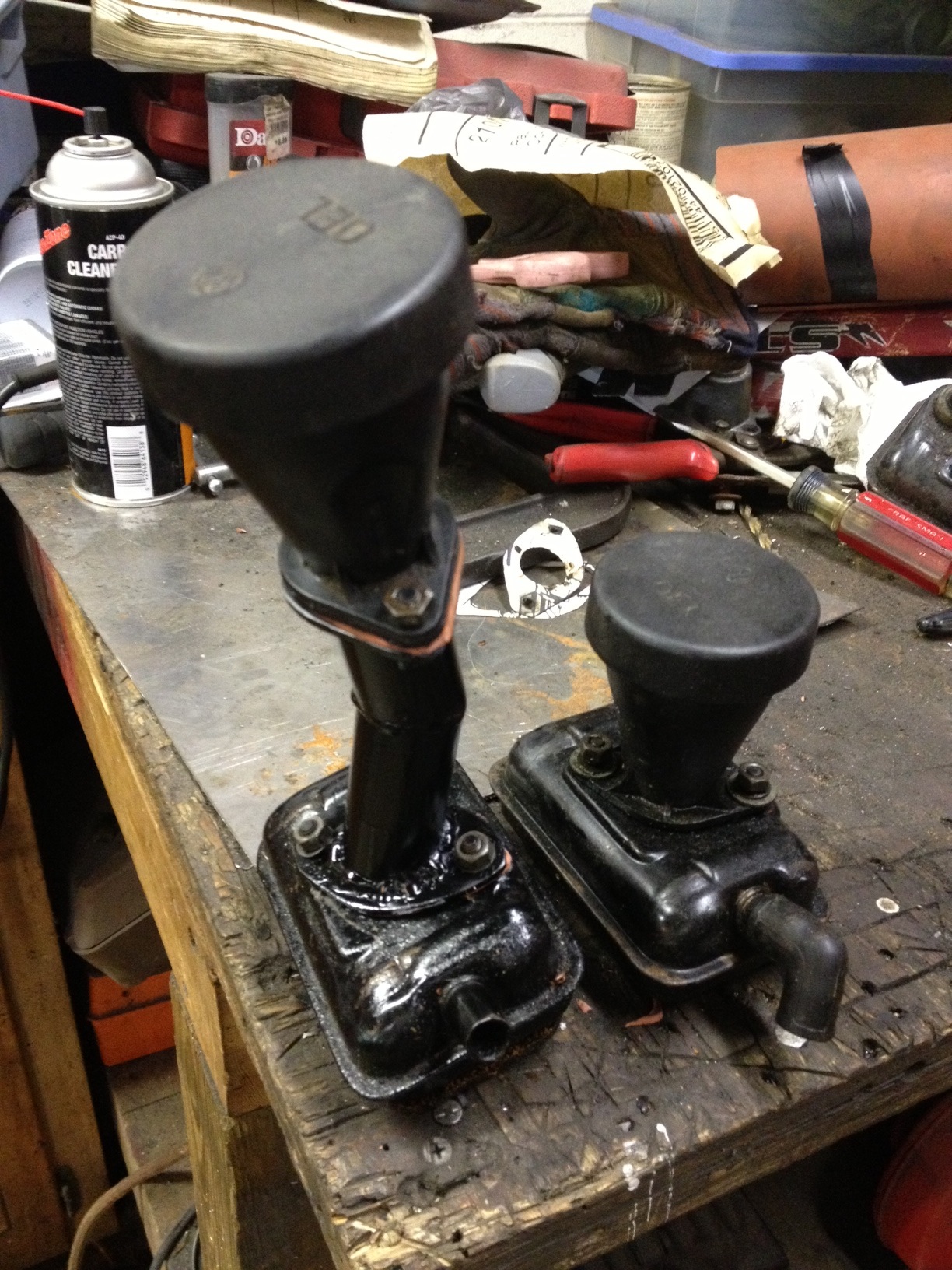

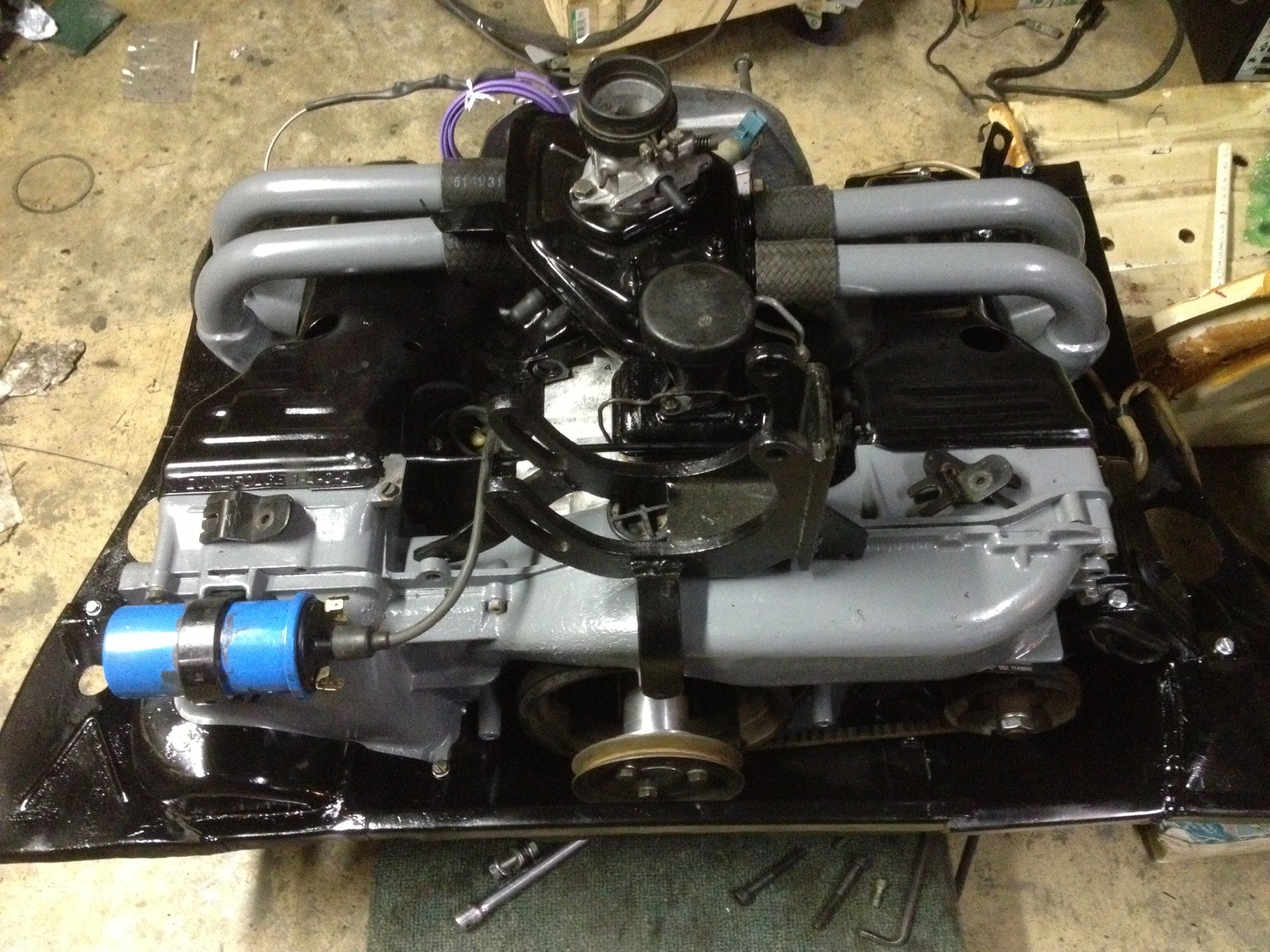

In order for the compressor to mount far enough back, I relocated the oil filler. I only needed to move it less than an inch but I went ahead and mounted it up higher. I like it better this way.



And for those who don't know I run CIS on my car so that's why it looks a bit different. (IMG:style_emoticons/default/smile.gif)



And the most exciting video to date...


https://www.youtube.com/watch?v=4LRnNZTDaTs
