Hi World!
Let the games begin! (IMG:style_emoticons/default/piratenanner.gif) As the title says, it's a '75 that's getting an LS3 (Cracker's "old" motor - thanks Tony!) and Boxster 6 speed. Also planned is zippidy doo-dah 911 front suspension with Boxster calipers all around. The rear suspension is getting 911 ebrakes, Tangerine Racing raised pickups and shock towers. I have plans to stiffen the chassis with a partial cage. Doesn't that sound like a great plan? I think so, too! BACKGROUND: I got this as a roller that was purported to be "dry and accident free". And it was! Except for all the rust and the place where it was hit. Yeah, yeah... But it's all good. The seller and I worked everything out. (IMG:style_emoticons/default/beerchug.gif) But our little 914s are full of surprises and isn't that half the fun? So, first up is rust repair time! (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/welder.gif) (IMG:style_emoticons/default/welder.gif) Let's begin with some pics of what I started with. Wish me luck! Wait, forget the luck, wish me SKILL!!! Attached image(s)
|
   |

|
  |
Replies
| tygaboy |
Oct 23 2016, 01:42 PM
Post
#2
|
|
914 Guru Group: Members Posts: 5,451 Joined: 6-October 15 From: Petaluma, CA Member No.: 19,241 Region Association: Northern California
|
CHASSIS STIFFENING: Front Hoop/Door Bars

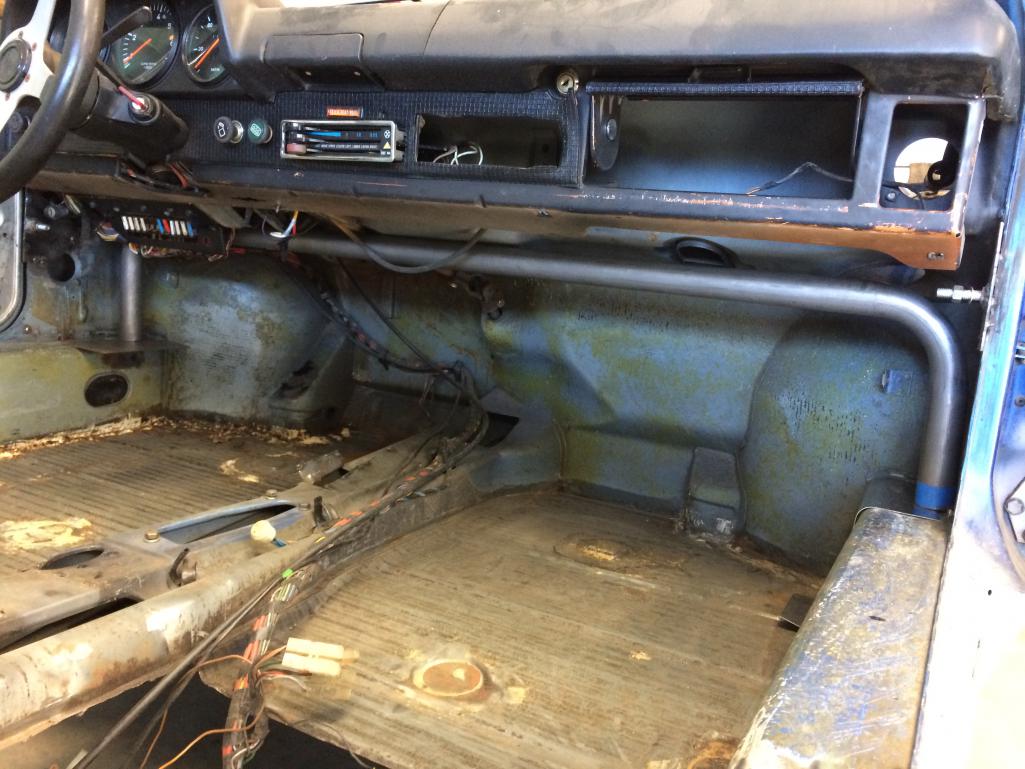

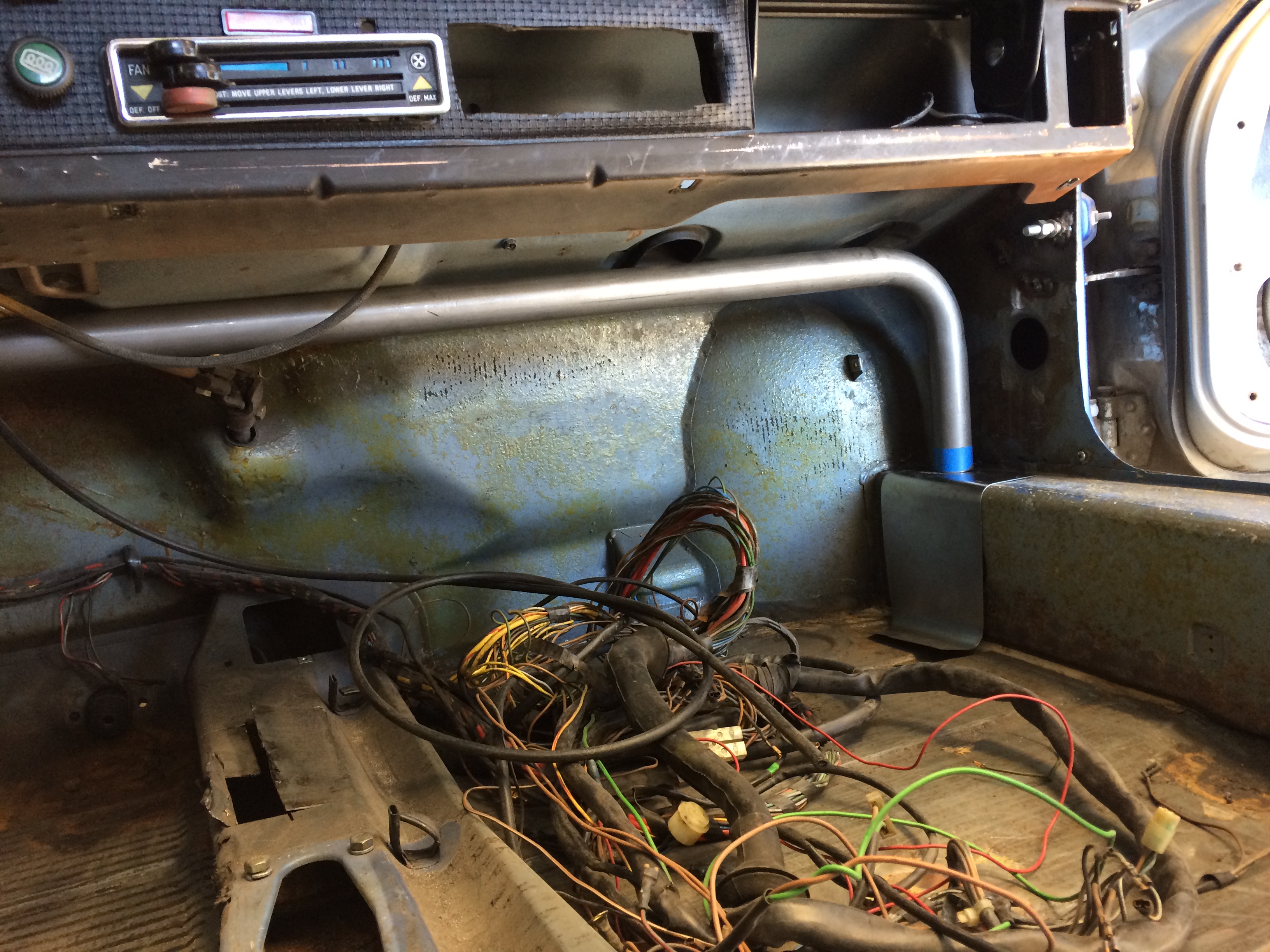

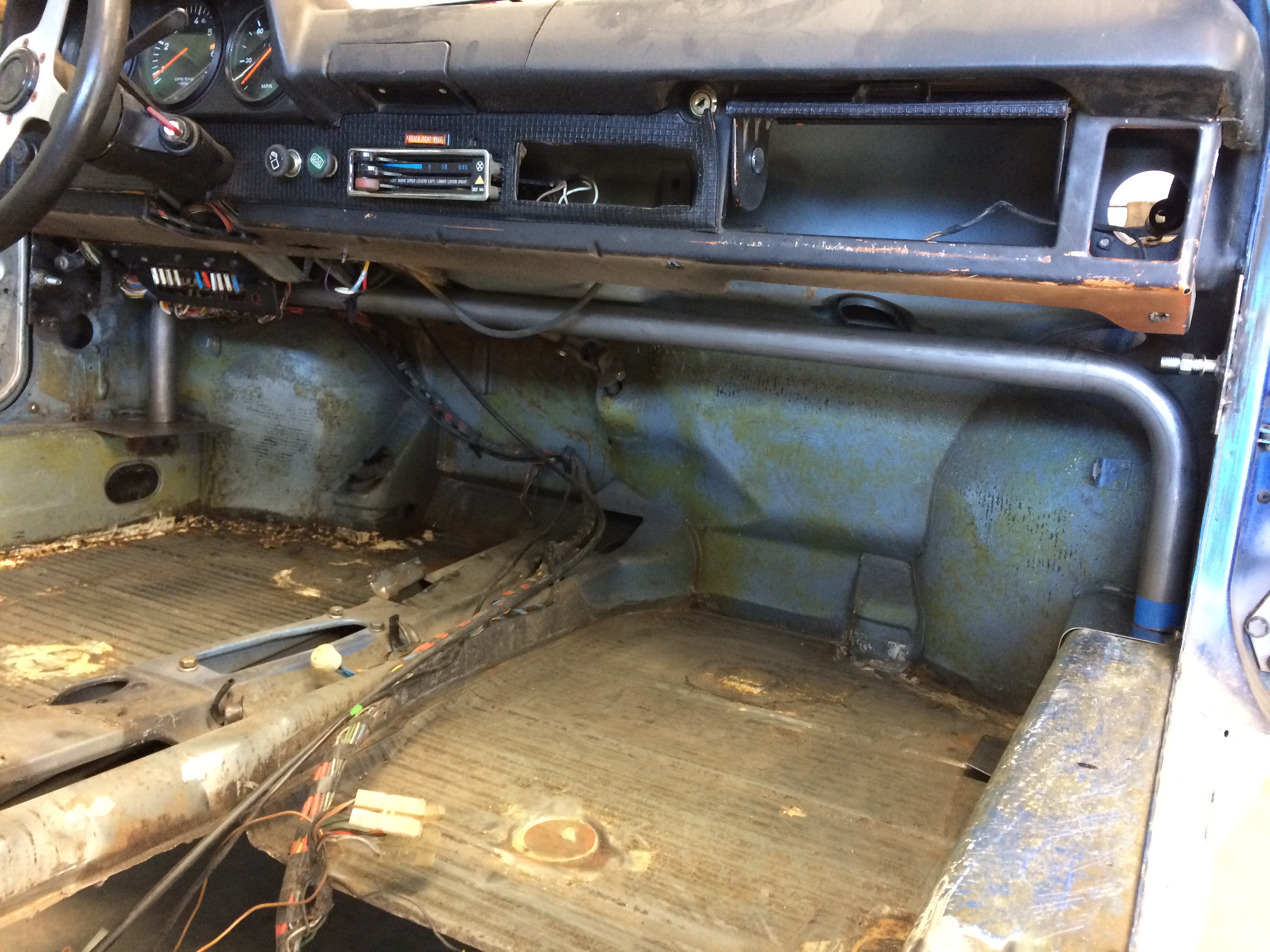

In keeping with the "hide as much as I can" approach, I bent up my front hoop (if something 9" tall qualifies!) and started trial fitting. No, that isn't the real footing. It's just blocking the heater hole... Initial fitment suggests I have plenty of foot clearance, can remove/install the steering shaft and even run the stock fuse panel, if I wanted (I don't). It lines up nicely for a bar that will run from the hoop corner, through the heater hose hole and tie into the front shock tower. Attached thumbnail(s)
|
|
|
|
