Hi World!
Let the games begin! (IMG:style_emoticons/default/piratenanner.gif) As the title says, it's a '75 that's getting an LS3 (Cracker's "old" motor - thanks Tony!) and Boxster 6 speed. Also planned is zippidy doo-dah 911 front suspension with Boxster calipers all around. The rear suspension is getting 911 ebrakes, Tangerine Racing raised pickups and shock towers. I have plans to stiffen the chassis with a partial cage. Doesn't that sound like a great plan? I think so, too! BACKGROUND: I got this as a roller that was purported to be "dry and accident free". And it was! Except for all the rust and the place where it was hit. Yeah, yeah... But it's all good. The seller and I worked everything out. (IMG:style_emoticons/default/beerchug.gif) But our little 914s are full of surprises and isn't that half the fun? So, first up is rust repair time! (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/welder.gif) (IMG:style_emoticons/default/welder.gif) Let's begin with some pics of what I started with. Wish me luck! Wait, forget the luck, wish me SKILL!!! Attached image(s)
|
   |

|
  |
Replies
| tygaboy |
Nov 18 2016, 06:30 PM
Post
#2
|
|
914 Guru Group: Members Posts: 5,452 Joined: 6-October 15 From: Petaluma, CA Member No.: 19,241 Region Association: Northern California
|

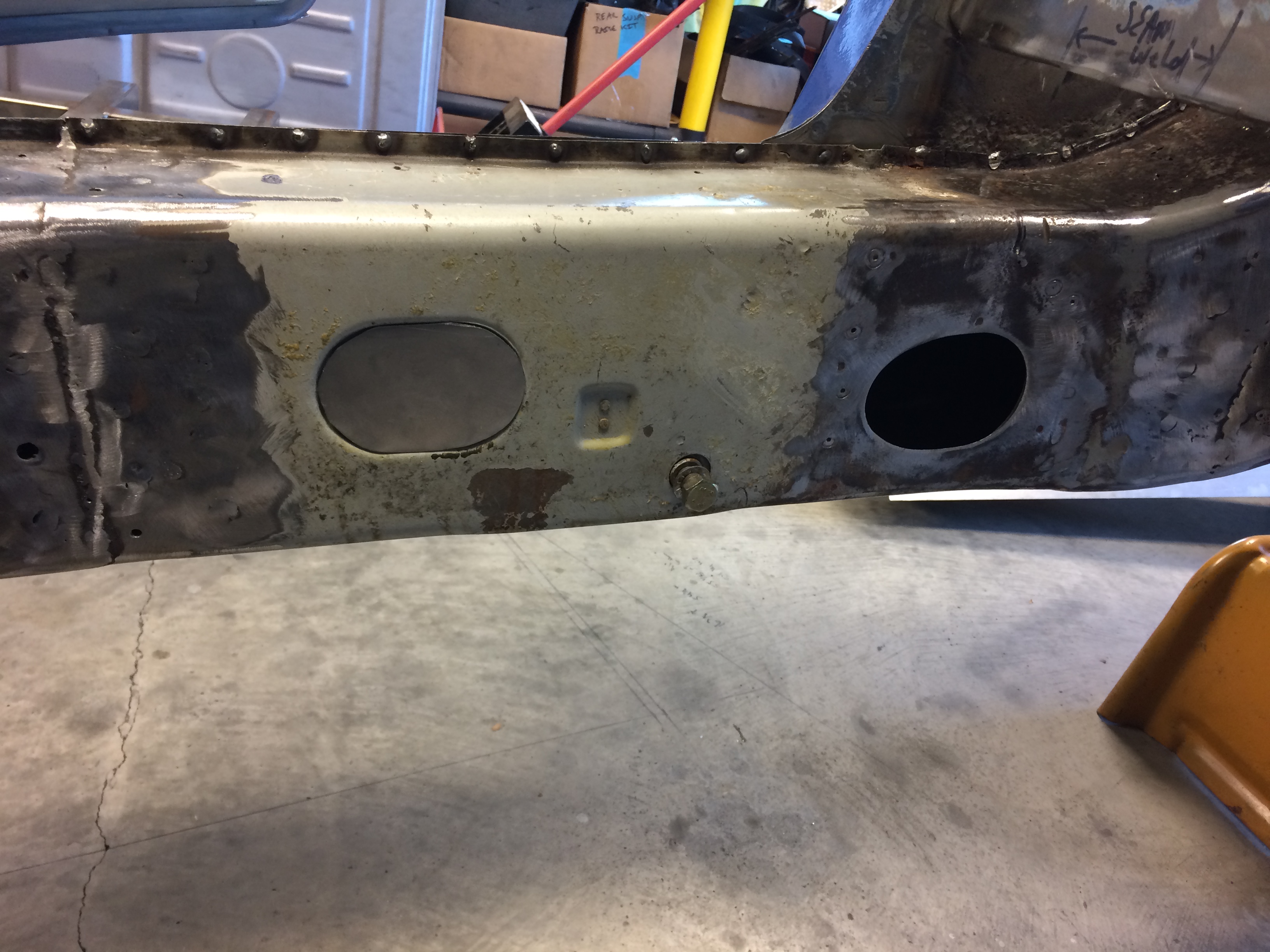

Before I install the long stiffeners, I need to close all the heater tube holes that are no longer needed as well as address the hand brake cut out. So this evening I fabbed up all the pieces to get a bit of a head start on the weekend's work.

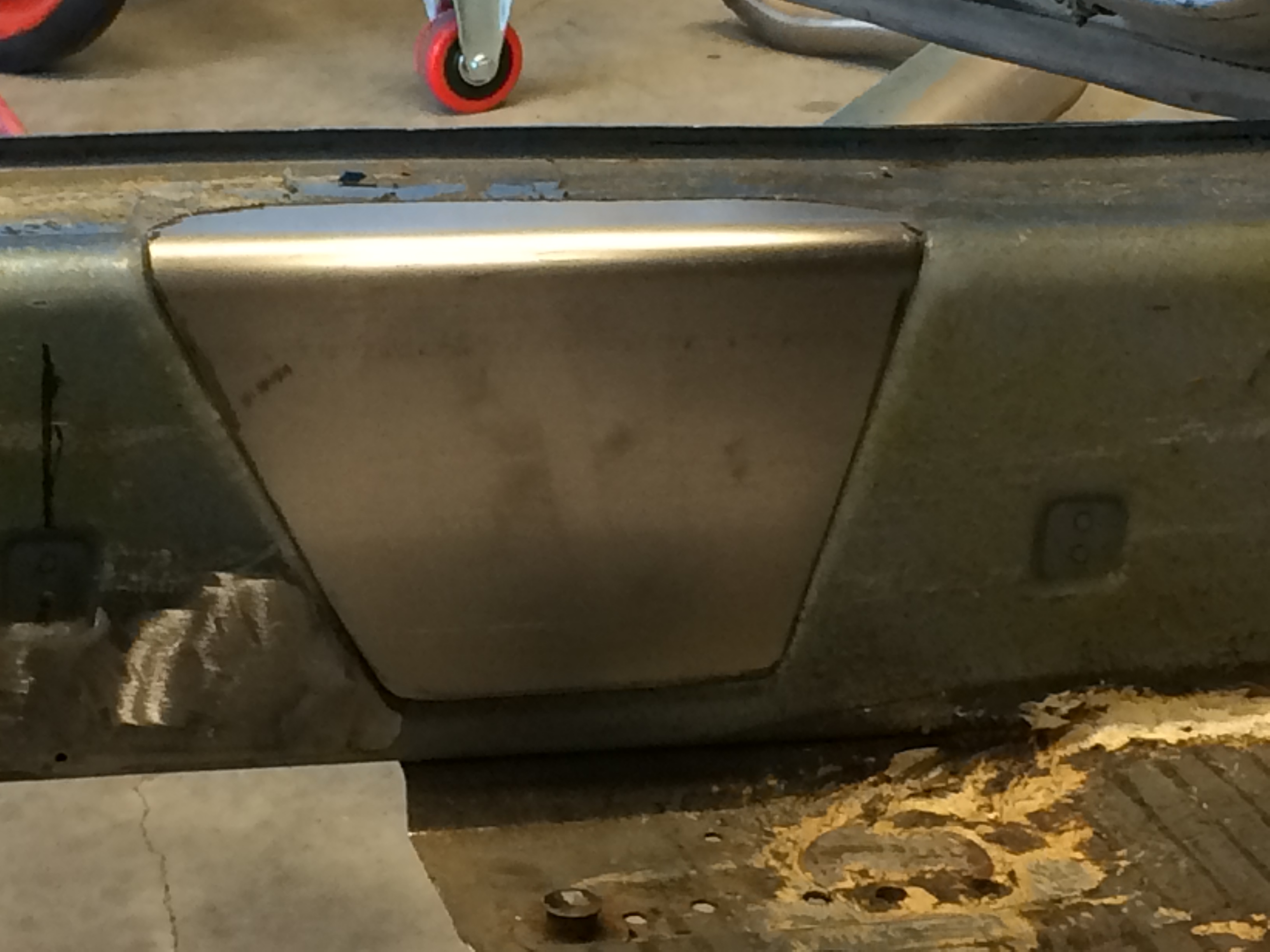

For the hand brake area, I used a section of the long stiffener blank and trimmed it to fit. These are just sitting for the pic, not fully fit. All these filler pieces will be flush with the long surface so as to give me full contact under the entire length of stiffener! Boring, I know. But necessary. Attached thumbnail(s)
|
|
|
|
