| Jeroen |
 Aug 15 2004, 02:55 PM
Post
#1
|
|
914 Guru  Group: Members Posts: 7,887 Joined: 24-December 02 From: The Netherlands Member No.: 3 Region Association: Europe  |
Didn't get to work on the 914 as much as I hoped over my vacation, but still made some good progress over the last couple of days...
Frame rails in the engine comp. are stripped naked They still need some minor detailing here and there and the "hell holes" still need to be cleaned, but most of the hard work is done Tonight I welded the rear shock towers to the frame rails Quite a gap to fill... Attached image(s)
|
   |

|
  |
Replies
| Gint |
Nov 16 2004, 09:28 PM
Post
#2
|
|
Mike Ginter Group: Admin Posts: 16,094 Joined: 26-December 02 From: Denver CO. Member No.: 20 Region Association: Rocky Mountains  |

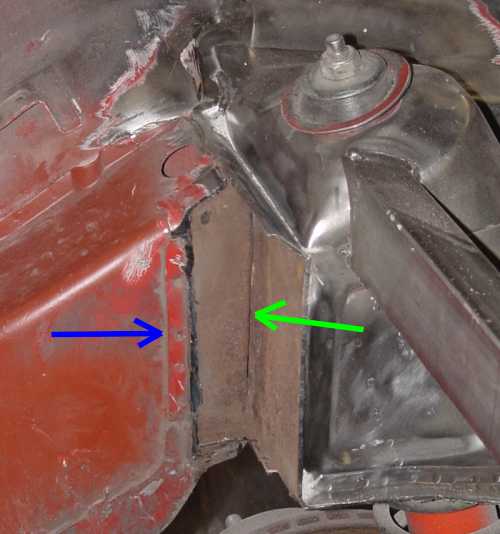

QUOTE(Jeroen Posted on Nov 16 2004 @ 05:32 PM) Ok, I'll try and explain best as I can... Thanks my friend. I think we have the info we need now. One more picture and commentary from another of Jeroen's threads. Just for completeness. This picture will help those like me who originally had trouble envisioning all of this without an actual 914 in the garage to look at. The cutaway of the firewall was especially helpful I thought. I think this entire thread is a pretty good pictorial and description of the issue. QUOTE(Jeroen Posted on Oct 11 2003 @ 08:43 AM) It's because the crappy connection from the framerails to the shock towers Look at the picture below... the firewall has been cut out and shows the crappy connection from the framerails to the shock towers (green arrow) The spotwelded seam from the firewall (blue arrow) is supposed to take care of all the stress... and like you noticed, it won't do a very good job at that... (IMG:http://www.914world.com/bbs2/uploads/post-2-1065887028.jpg) |
|
|
|
Posts in this topic
Jeroen Frame rails... Aug 15 2004, 02:55 PM
Jeroen Welded up...
:welder: Aug 15 2004, 02:56 PM Jeroen Top of the drivers side still needs to be welded, ... Aug 15 2004, 02:58 PM Jeroen Last pic for now...
I wanted to buy a better weld... Aug 15 2004, 03:00 PM watsonrx13 Damn, the trunk is GONE and the engine shelf... :D... Aug 15 2004, 06:01 PM seanery Gotta have room for that 917 motor! :woohoo: Aug 15 2004, 06:15 PM Gint Good lookin work Jeroen. Aug 15 2004, 08:13 PM Brad Roberts Good job Charlie Brown :headbanger:
Perfect pic... Aug 15 2004, 11:56 PM Lou W Wow, I never realized how those towers are attache... Aug 16 2004, 12:04 AM Brad Roberts You got it.
The GT stiff kit pieces that go insid... Aug 16 2004, 12:14 AM jgiroux67 Is there a way to do this without cutting out part... Aug 16 2004, 12:24 AM brant Damn.. nice job Jeroen.
I plagerized some of your... Aug 16 2004, 08:36 AM Joe Ricard Damn day lae and a dollar short. Wish I would hav... Aug 16 2004, 11:13 AM rdauenhauer I confused :wacko:
w/o seeing the original back ... Aug 16 2004, 11:36 AM Brad Roberts It has small tabs that are folded over and spot we... Aug 16 2004, 11:43 AM Jeroen Maybe this pic helps you get a better idea...
Her... Aug 16 2004, 05:07 PM Eric_Shea I'm going to revive this thread from August.
... Nov 16 2004, 04:44 PM brant Eric,
1) Actually I have not looked inside a lo... Nov 16 2004, 05:24 PM Gint :agree: Please? This is for my tub.
Hey Eric,
... Nov 16 2004, 05:27 PM Gint Thanks Brant!<... Nov 16 2004, 05:30 PM brant Mike,
one more thing and then I'll shut up a... Nov 16 2004, 06:01 PM Gint I hear ya, but if I want to do it, now is the time... Nov 16 2004, 06:09 PM Eric_Shea Me agrees with Brandt.
Here's what we (Mike a... Nov 16 2004, 06:14 PM brant I know I said that I'd shut up, but oh well...... Nov 16 2004, 06:23 PM Jeroen Ok, I'll try and explain best as I can...
In ... Nov 16 2004, 06:32 PM Jeroen If you wanna keep the firewall in place, like Bran... Nov 16 2004, 06:56 PM hargray2 So you are referring to all of the area highlighte... Nov 16 2004, 07:11 PM URY914 Jeroen,
Isn't the sheet metal on the shock to... Nov 16 2004, 07:16 PM URY914 I'm going to cut my firewall out. and I'm ... Nov 16 2004, 07:20 PM Gint Jeroen ... Nov 17 2004, 10:47 AM davep I think a fully dissected set of views would be re... Nov 17 2004, 12:41 PM Jeroen Here's the disected shocktower pic
This is ju... Nov 17 2004, 01:11 PM URY914 That is a great shot. Nov 17 2004, 01:14 PM Jeroen Some sawzall pics, courtesy of Mike Mueller
Drive... Nov 17 2004, 01:23 PM Jeroen drivers side front shoch tower Nov 17 2004, 01:23 PM Jeroen drivers side front shock tower - close up Nov 17 2004, 01:24 PM Jeroen firewall (passenger/engine) Nov 17 2004, 01:24 PM Jeroen rear trunk, x-section of the dogbone, near the tra... Nov 17 2004, 01:24 PM Jeroen last one...
Targa/roll bar inner reinforcement Nov 17 2004, 01:25 PM Eric_Shea QUOTE
Gint Thanks Eric... Nov 17 2004, 03:40 PM SpecialK Great pics guys! 'Saved' them all... Nov 17 2004, 06:20 PM nsyr Anybody have any pics of the shock tower seperated... Nov 17 2004, 07:05 PM hargray2 QUOTE
Brad Roberts Remove the cover. Weld stiff kit to frame rail. We... Nov 18 2004, 11:51 AM Gint <... Nov 19 2004, 02:24 AM Gint QUOTE
Gint Gint URY914 I have added bars from the shock tower down to the... Nov 21 2004, 09:27 PM Series9 Jeroen Jeroen Joe, I just noticed you cut the rear end of the tr... Nov 22 2004, 04:30 AM URY914 I want to stiffen the ear to the front (as seen in... Nov 22 2004, 08:05 AM Series9 Gint Anybody mind if I edit the title of this thread (m... Nov 24 2004, 08:36 PM URY914 I don't mind. :D Nov 25 2004, 07:11 AM Gint We had a sawzall party yoday and I disected a fram... Nov 27 2004, 06:13 PM Gint This is the opposite side showing how the inner fe... Nov 27 2004, 06:15 PM Gint I'm the proud owner of that section of tub, so... Nov 27 2004, 06:26 PM Brad Roberts That is ok. I'm still waiting to breath. I... Nov 27 2004, 06:30 PM Gint The one I just posted the pictures of was a 72 (02... Nov 27 2004, 06:31 PM
Eric_Shea QUOTE
|
