Rust repair before paint, The quest for solid metal in the driver side Long - 73 narrow body/4 rebuild thread Options

[Montreal914]

Edit: I might as well make this my rebuild thread...

Original post; I got side tracked on my Microsquirt build as I have decided, after 11 years of ownership, to finally get my car painted to get her ready for her upcoming 50th birthday. (IMG:style_emoticons/default/smile.gif)
Knowing these endeavors can take a lot more time than initially planned, I hope to make it in time... (IMG:style_emoticons/default/wacko.gif)

Originally bahia red 73 1.7. The goal is a narrow body 2056 Microsquirt, VW Tornado red, 5 lugs conversion with 16" Fuchs.
Front: 914-4 A arms with rubber bushings, 911 3" pin struts, Bilstein inserts, Alfa Brembo, vented rotor, stock torsion bar, 19mm sway bar, turbo tie rods, and 19mm master cylinder.
Rear: Drilled hubs, 914 PMB stock calipers edit: 914-6 calipers replica, 914-6 solid rear rotors, 140lbs springs, stock sway bar, rubber bushings.

But before I get the pleasure of installing all of these beautiful fresh goodies, I need to tackle the not so fun stuff... (IMG:style_emoticons/default/headbang.gif)

I have already started fixing some of the rust issues and will share that progress in the near future but right now, I wanted to post some of the issues i have on the passenger side front fender. (IMG:style_emoticons/default/sad.gif) I have searched and read many of the builds here but I would like some inputs from the people who have gone through this mess.

I am trying to understand the construction of the rear part of the fender, more precisely the area joining the front cowling.

Below is a sketch of how I think it is made but i would like someone to confirm...



Having removed the seam sealer in the upper rear area, I have discovered "this" (IMG:style_emoticons/default/dry.gif) which is not really unusual, but clearly a pain to fix. I am not sure though what I am looking at. If my sketch is correct, I guess the inner rusted layer is from the fender rear bulkhead that actually becomes an inner layer on the rear upper point of the fender by the door and cowling junction.





I might be able to cut this from the underside preventing me from cutting the outer surface of the fender. But I would like to better understand what is happening at the junction to the body.
How many layers are there from the fender, one or two?
Is the metal peeling off at the joint to the body the metal from the bulkhead/inner layer, or is it the outer fender layer?

As a reference, this if the situation of the channel, surface rust, but how bad? Is there a way to better know without destroying? Maybe poke with a screwdriver? (IMG:style_emoticons/default/confused24.gif)



Comments appreciated (IMG:style_emoticons/default/smile.gif)

[Montreal914]

It has been over two months since I posted some progress, time for some update. Things have been moving along pretty well.

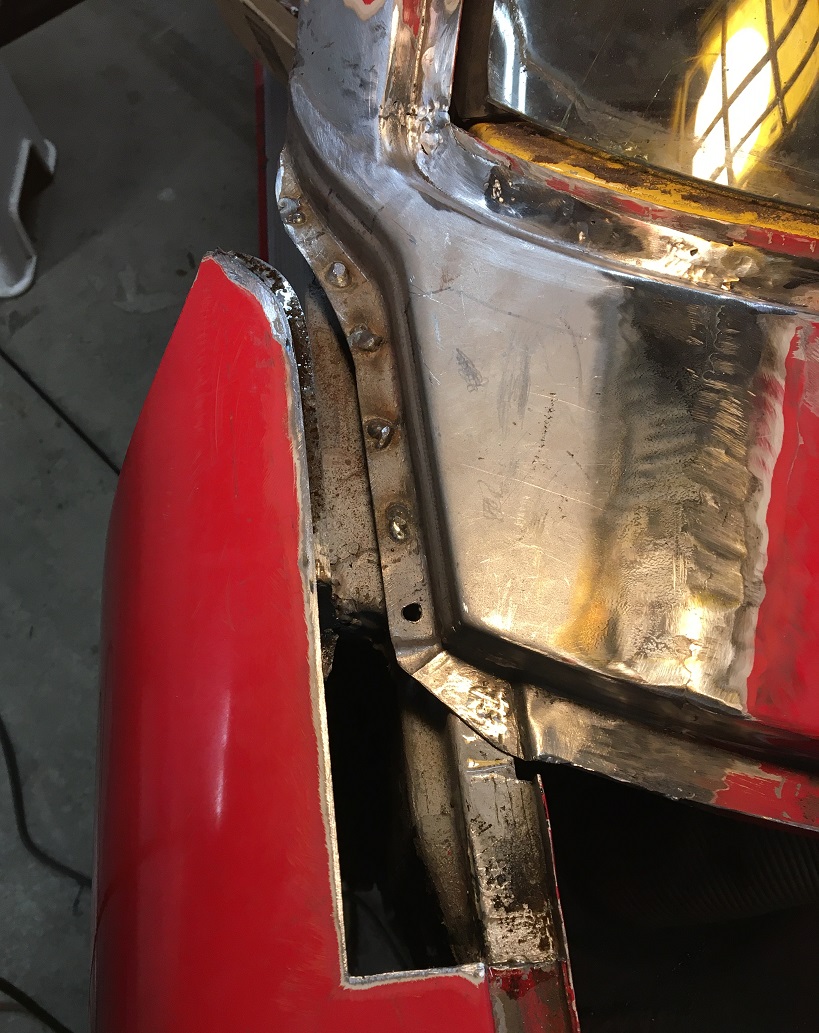

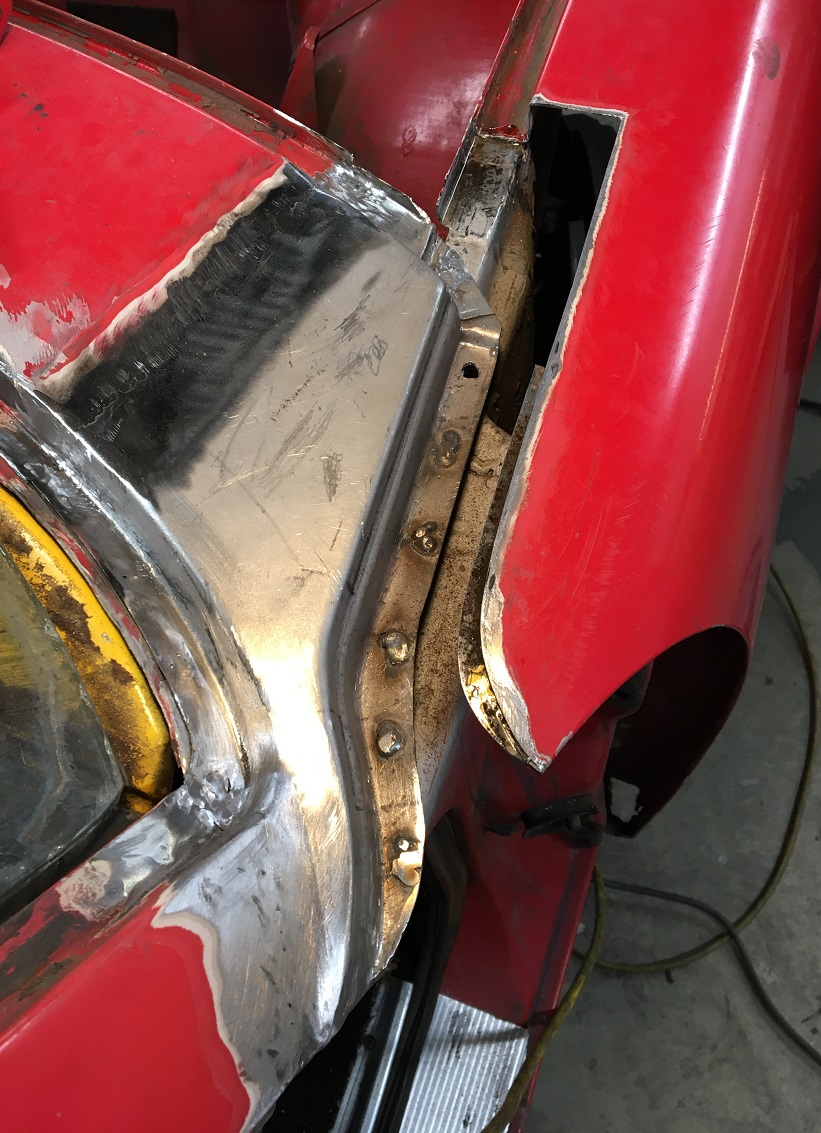

The welds of the cowl piece were grinded down and now ready to move on the fender rebuild.






The more I was looking at the AA top repair panel, the less I was attracted to use it. So I decided to hunt for and original front fender upper corner that I could use as a whole, both the inner and outer portion. I was lucky to find this one in decent shape that I started dismantling and preparing.



The back side is very good looking on the recycled piece (IMG:style_emoticons/default/smile.gif) especially compared to the original portion next to it... (IMG:style_emoticons/default/rolleyes.gif)

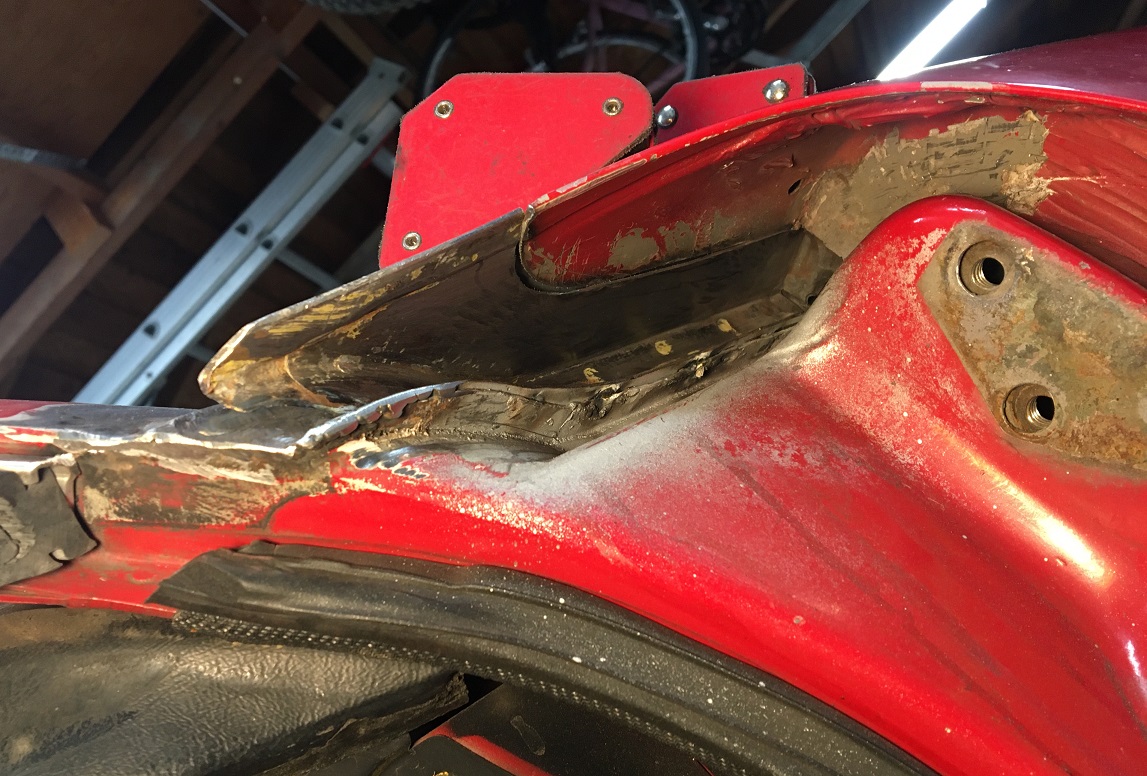

Now, it needed to be cut down to fit on the car. It was also missing a portion of the trunk seal channel, so a little more fabrication and obviously a lot of back and forth to make sure everything fits perfectly. (IMG:style_emoticons/default/smash.gif)



Making progress...

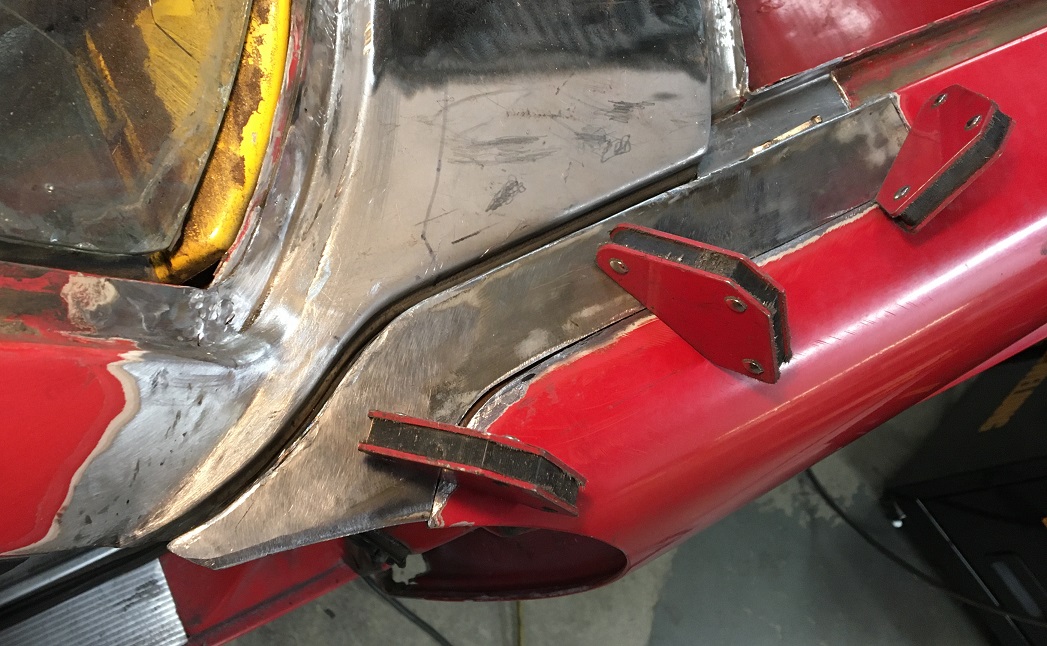

And, once ready, tack welding, making sure the alignment is good.







Since there was a little step at the door front edge line, I added some metal and refinished the line accordingly.

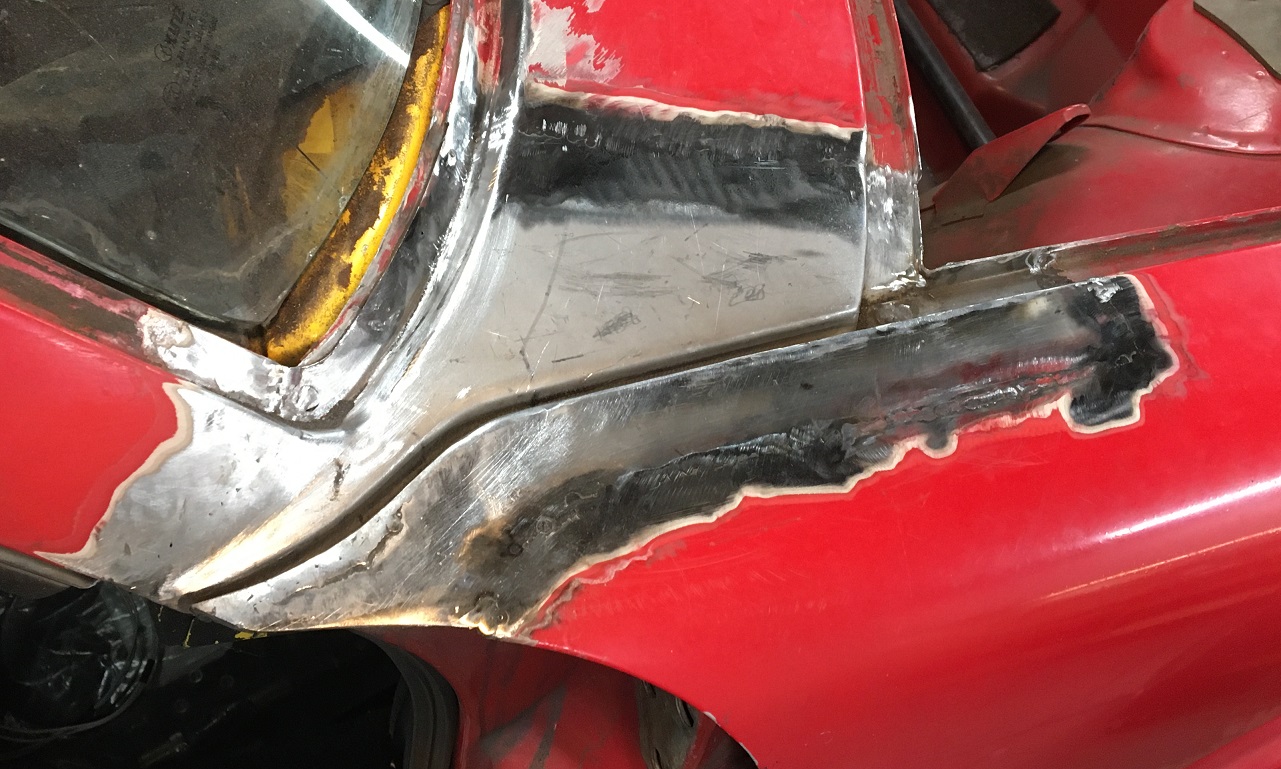

And the end result (IMG:style_emoticons/default/smile.gif)
