Porsche 914 2056 upgrade

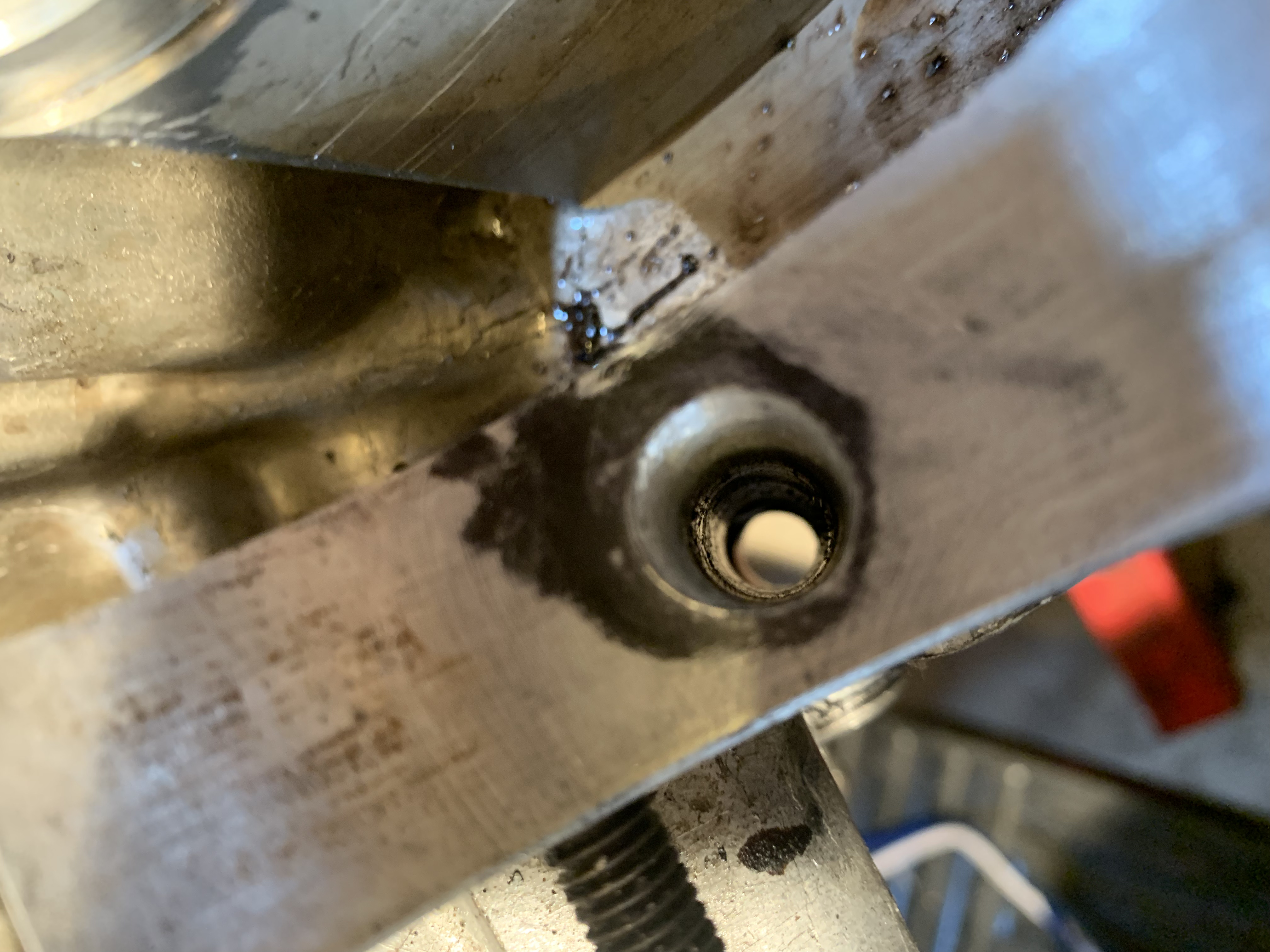

1.7 case upgrade from 1.7.> 2.0 now> 2056 53.9 cc (turns out these are 1.8 heads)new 2.0 style chamber with 44 x38 valves and 57 CC cambers 9.0 CR Cam Shaft /lifters RABY 9530. See Cam Card KB 96 Pistons and rings (2.0 rods) EMW H-Beam rods ARP bolts. EMW 2.0 Crank.25/ Standard /.25 rods Webber 40 and 44 carbs Short Pierce style manifolds 3/4 bolt Malory Unilite Grey-Grey Distributor Pete Weber 1 5/8 4-2-1 with Evo 2 muffler Tangerine 1 5/8 stub pipes and with 02 bung at collector Innovate LM-1 with RPM Balance internals Balance Crank NEW lightened/flywheel and Pressure plate with blower 1.7 tins complete 9.0 CR with Deck height to .040 Recommend RPM range. 6200? Est HP GOAL. 130-140 HP? After a tear down of my 2.0l engine I started the build up to the 2056 big bore upgrade. Having a Bridgeport I started with the (5) 3/8 oil galley plug on the block halves Drilling a hole in the plugs and a slide hammer to remove the old plugs then started the installation of the new pugs I was able to order from Type 4 store. https://www.youtube.com/watch?v=50CYceSrBq0 https://www.youtube.com/watch?v=GOMa6nqbkBQ |
   |

|
  |
Replies
| rfinegan |
Mar 25 2021, 02:05 PM
Post
#2
|
|
Senior Member Group: Members Posts: 1,042 Joined: 8-February 13 From: NC Member No.: 15,499 Region Association: MidAtlantic Region
|
While waiting on my parts I started with the cam and gear and clearance for the 30mm Schadek oil pump (T1)
Shortened the cam bolts for extra clearance : 1) 0.020 off the face of the cam bolt heads 2) Trimmed the rear of the cam bolts about flush with back of cam 3) Opened the oil pump outlet to match pump outlet 4) Hone cam thrust bearing for 0.002 end play 5) Cam spins freely on distributor side case half I used a 3 sided hand scraper to scrape/carve the aluminum in the hole to the line and blended the rest back down into the hole. EZ small bits removed and little chance of messing up the pump saddle with a power tool Also keeps the aluminum dust down till the final hone with a pencil wrapped with 600 https://www.youtube.com/watch?v=iX5ODEERDkg  |
|
|
|
Posts in this topic
rfinegan Just another home build 2056 upgrade...but this one is mine! Jan 19 2021, 08:10 AM
rfinegan Perhaps it is time to start a you tube channel for... Jan 19 2021, 08:45 AM rfinegan Note to self:
Remove bearing alignment pins prior... Jan 19 2021, 08:52 AM Mark Henry Not everyone has or wants dropbox, I didn't ev... Jan 19 2021, 09:22 AM
rfinegan
Not everyone has or wants dropbox, I didn't e... Jan 19 2021, 09:43 AM ddire333 Will be taking on similar soon. I know it's re... Jan 19 2021, 10:17 AM rfinegan Required, I would have to say NO
Best Practice. I... Jan 19 2021, 10:31 AM rfinegan deleted Jan 19 2021, 10:39 AM rfinegan deleted Jan 19 2021, 10:40 AM Superhawk996
video was too big so . . . .
Post video to You... Jan 19 2021, 12:07 PM mepstein We had a plug come loose while switching in a used... Jan 19 2021, 10:41 AM rfinegan Looks like the PO gouged the case pulling the fron... Jan 19 2021, 11:48 AM rfinegan Thanks Super hawk I added links for Youtube in OP ... Jan 19 2021, 12:39 PM Mark Henry
Thanks Super hawk I added links for Youtube in OP... Jan 19 2021, 03:29 PM rfinegan Mark Henry, thanks for the tip on embedding , its ... Jan 19 2021, 04:48 PM Al Meredith With 20/50 oil and a 30MM pump I pump about 80PSI ... Jan 19 2021, 02:52 PM Superhawk996 Ta da! Nice work - just like an old pro now. ... Jan 19 2021, 05:34 PM rfinegan UPDATE: Just received the Engine yoke for the HF s... Jan 25 2021, 06:50 AM ValcoOscar
UPDATE: Just received the Engine yoke for the HF ... Jan 26 2021, 08:22 AM rfinegan Woohoo..thanks Oscar
UPDATE: Just received the... Jan 26 2021, 08:24 AM rfinegan yoke Jan 25 2021, 09:30 AM VaccaRabite Though I have built an engine on that type of yolk... Jan 26 2021, 08:00 AM rfinegan Thanks for the Tip: I think I am going to use the ... Jan 26 2021, 08:08 AM VaccaRabite
Thanks for the Tip: I think I am going to use the... Jan 26 2021, 08:34 AM rfinegan Great advice. I have an aluminum 1/2 starter ring ... Feb 13 2021, 08:08 PM Mark Henry :agree:
You can bend up and weld in another arm a... Jan 26 2021, 12:24 PM rfinegan Today I started the engine balancing of the piston... Jan 27 2021, 09:09 AM Cairo94507 Very nice. :beer2: Jan 27 2021, 01:42 PM rfinegan Cutting 0.002 in of trimming pads of KB pistons fo... Jan 27 2021, 06:40 PM barefoot
Cutting 0.002 in of trimming pads of FB pistons f... Jan 27 2021, 06:51 PM rfinegan Tuning on the Piston pins is a great plan.. I deci... Jan 27 2021, 06:57 PM rfinegan Final weight of trimmed KB piston..
Next up, maki... Jan 27 2021, 06:42 PM 930cabman I was watching this thread close, until my recent ... Jan 27 2021, 07:23 PM rfinegan Today started making a test fixture for Split weig... Jan 28 2021, 04:18 PM barefoot /fyrX9nuf7Ys
[/quote]
Nice set-up for end to end ... Feb 5 2021, 01:25 PM rfinegan UPDATE:
I have the internals all sorted and balan... Feb 2 2021, 06:05 AM rfinegan FWIW:
While waiting on the next round of parts an... Feb 2 2021, 04:46 PM rfinegan Tonight I had some time to kill....
Matched b... Feb 4 2021, 06:22 PM rfinegan Today: Some of my parts are arriving....
My Flyw... Feb 5 2021, 03:08 PM rfinegan Fly wheel arrived from http://ljaircooledengines.c... Feb 13 2021, 05:48 PM rfinegan Finished weight at just under 16 lbs. For a weight... Feb 13 2021, 05:54 PM rfinegan Started trimming my 1.7 rockers for Elephant Foot... Feb 13 2021, 05:59 PM rfinegan Waiting on pressure plate before I can balance the... Feb 13 2021, 06:00 PM BeatNavy I hope you're enjoying the process. I enjoyed... Feb 13 2021, 06:54 PM rfinegan Thanks my friend, It has been as much fun sharing ... Feb 13 2021, 07:45 PM rfinegan Decided to change things up a little today. I deci... Feb 14 2021, 01:05 PM rfinegan Trimming the 1.7 rockers for 911 elephant feet swi... Feb 24 2021, 03:41 PM VaccaRabite I did my rockers using a bench grinder to take dow... Feb 25 2021, 09:58 AM rfinegan
I did my rockers using a bench grinder to take do... Feb 25 2021, 12:21 PM jd74914 Have to say I'm enjoying watching your progres... Feb 25 2021, 10:53 AM rfinegan Tonight i decided to pull down the Old Weber 44 ID... Mar 4 2021, 06:29 PM rfinegan other carb
Solids are seen in both holes here too.... Mar 4 2021, 06:31 PM rfinegan a better shot of the plugs hole
Mar 4 2021, 06:42 PM rfinegan Tonight my set screw (cup points) come in M8-10x5m... Mar 11 2021, 06:03 PM rfinegan This week was fabrication work: 2 1/8 exhaust pipe... Mar 18 2021, 03:55 PM rfinegan another view
Mar 18 2021, 03:56 PM rfinegan Sound clip
LhNNEG_Mi6A Mar 18 2021, 03:57 PM rfinegan forgot the shot of the pipe Mar 18 2021, 04:14 PM rfinegan Heads: Started life as 1.8 heads
Here is a pic fro... Mar 24 2021, 07:20 AM rfinegan Trying make some sense out of the balance card
Loo... Mar 24 2021, 07:24 AM Cairo94507 @rfinegan That looks and sounds very nice. Perfe... Mar 24 2021, 07:27 AM rfinegan Thank you @[url=http://www.914world.com/bbs2/ind... Mar 24 2021, 07:40 AM rfinegan Tonight, I fitted the second thrust bearing in the... Mar 26 2021, 06:48 PM rfinegan ARP bolt stretch:
Following the instructions for ... Mar 28 2021, 07:41 AM Mark Henry
ARP bolt stretch:
Following the instructions for... Mar 28 2021, 09:59 AM rfinegan plasigage:
Mar 28 2021, 07:43 AM rfinegan final assemble or rods to crank:
lyRqKfjtZ8Y Mar 28 2021, 07:46 AM ValcoOscar
final assemble or rods to crank:
lyRqKfjtZ8Y
... Mar 28 2021, 08:35 AM rfinegan @ValcoOscar It feels like I'm finally gettin... Mar 28 2021, 08:37 AM Mark Henry BTW good work! :D Mar 28 2021, 10:07 AM rfinegan Mark Henry , I did both. The first rod i did the b... Mar 28 2021, 02:27 PM 930cabman I know there are no dumb questions, but,
I also ... Mar 28 2021, 02:50 PM rfinegan Torque-to-yield fastener
From Wikipedia, the free ... Mar 28 2021, 03:34 PM jd74914
Torque-to-yield fastener
From Wikipedia, the free... Mar 29 2021, 09:00 AM rfinegan Also the bolt has a shaft that is designed to stre... Mar 28 2021, 03:39 PM 930cabman
Also the bolt has a shaft that is designed to str... Mar 29 2021, 11:54 AM rfinegan @jd74914 Thanks for the feedback Mar 29 2021, 09:17 AM rfinegan @930cabman
:agree:
about 6.99-8.99 each bolt. ... Mar 29 2021, 11:57 AM rfinegan Main bearing time:
ALWAYS measure your crank jour... Mar 29 2021, 04:52 PM rfinegan another
Mar 29 2021, 04:53 PM rfinegan another pic of the worst bearing F-ed up bearing. ... Mar 30 2021, 09:08 AM rfinegan another pic of the worst bearing F-ed up bearing. ... Mar 30 2021, 09:09 AM rfinegan tonight cleaning bolts , H/W and intake manifolds.... Mar 30 2021, 01:46 PM jd74914
I wish I had access to a dyno for tuning..guess ... Apr 23 2021, 08:10 AM rfinegan @jd74914 I have a data logger with my O2 sensor t... Apr 23 2021, 08:49 AM rfinegan Latest setbacks include:
Defective Main bearing s... Apr 21 2021, 05:54 PM rfinegan Last night had 2 hrs on the engine stand and have ... Apr 23 2021, 04:38 AM rfinegan Sorry my last edits did not save...I Was looking a... Apr 23 2021, 06:19 AM Tdskip Thanks for documenting the built and questions/les... Apr 23 2021, 07:08 AM rfinegan @[url=http://www.914world.com/bbs2/index.php?showu... Apr 23 2021, 07:14 AM jd74914 It's a little out there, but I feel that techn... Apr 23 2021, 10:25 AM rfinegan posted this on another thread for advice
http://ww... Apr 24 2021, 09:36 AM rfinegan Deck height measurements and compression ratio cal... Apr 24 2021, 11:31 AM rfinegan Installed the pistons and cylinders tonight. The r... Apr 24 2021, 03:08 PM rfinegan I am going to ty to install the piston pin retaine... Apr 24 2021, 03:14 PM rfinegan Progress update:
Head mock up for geometry class
... Apr 24 2021, 03:17 PM rfinegan Add new valve train studs tonight and getting the ... Apr 25 2021, 04:03 PM rfinegan and test springs added
The test seings are from t... Apr 27 2021, 06:21 AM rfinegan here is the first swing at setting the rocker geom... Apr 27 2021, 06:23 AM |
