 914 Front Cross Panel, how they are different |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
Model Specific Information
914/4: 70 71 72 73 74 75 76 914/6: 70 71 72
| gms |
 Nov 22 2012, 11:06 AM
Post
#1
|
|
Advanced Member  Group: Members Posts: 2,706 Joined: 12-March 04 From: Chicagoland Member No.: 1,785 Region Association: Upper MidWest
 |
From years of working on 914s I have found four different Front Cross Panel (Schloßquerwand vorn)
1970-72  1973-74 Two flat areas were created for the back of the bumperettes.  1975-76 Provisions for the 5 MPH bumper shocks were added.  Replacement Panel Note the holes are not cut out.  |
   |

|
  |
Replies
| Arno914 |
Nov 23 2021, 09:29 AM
Post
#2
|
|
Member Group: Members Posts: 233 Joined: 13-May 20 From: near Frankfurt, Germany Member No.: 24,260 Region Association: Germany
|

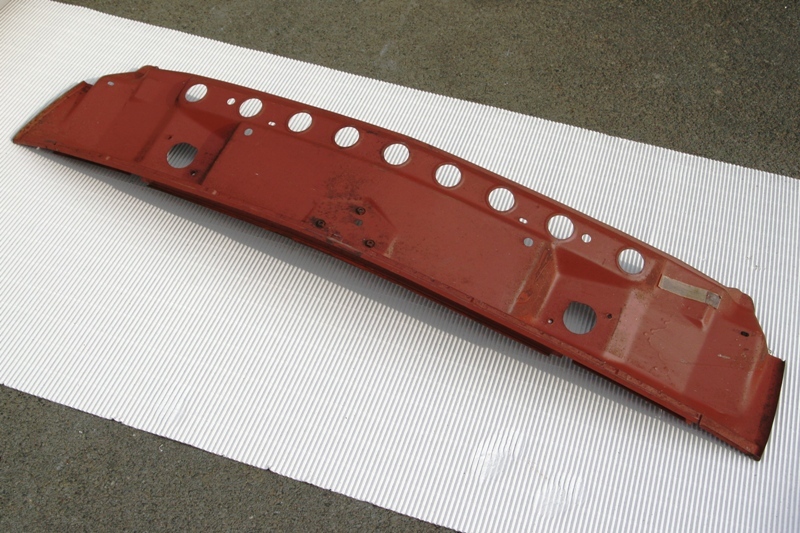

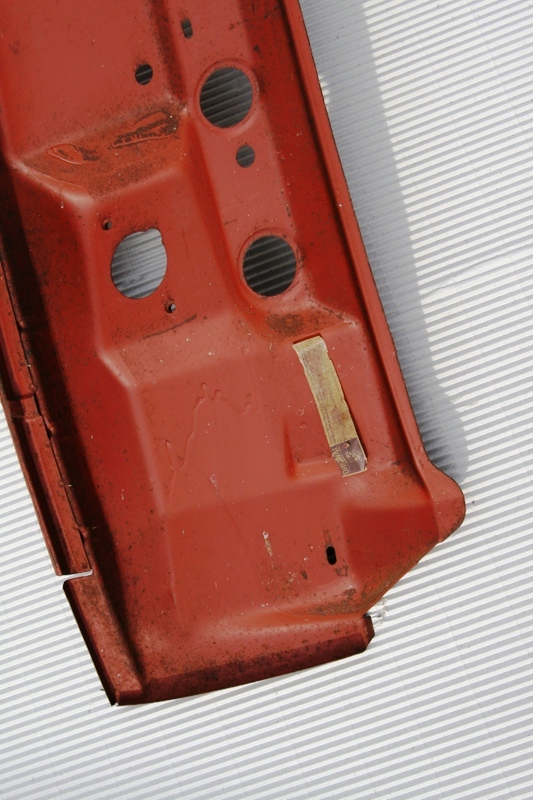

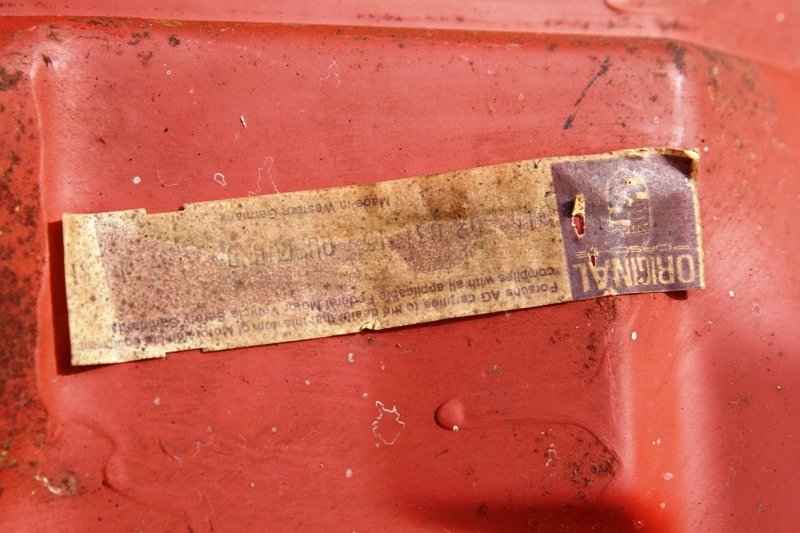

I have a NOS replacement panel, late version. With holes and lips (IMG:style_emoticons/default/dry.gif)
(IMG:http://www.914world.com/bbs2/uploads_offsite/up.picr.de-24260-1637681348.1.jpg) (IMG:http://www.914world.com/bbs2/uploads_offsite/up.picr.de-24260-1637681349.2.jpg) (IMG:http://www.914world.com/bbs2/uploads_offsite/up.picr.de-24260-1637681350.3.jpg) I suppose those cut outs where necessary for production (dipping of the bare shells?) Arno |
|
|
|
Posts in this topic
gms 914 Front Cross Panel Nov 22 2012, 11:06 AM
OmaPossu Thank you for sharing! Although it is now har... Nov 22 2012, 02:06 PM sixnotfour Nice work Glenn.
FYI in about 1983 I bought one f... Nov 23 2012, 09:09 PM sixerdon Gee, Glenn. My '75 (11/74) is as your third ph... Nov 29 2012, 08:42 PM
SirAndy I would like to hear from other '75 & ... Nov 30 2012, 02:31 PM sixnotfour Right= 75's to some point had rubber plugs. Nov 30 2012, 08:24 PM SirAndy 475.29.09903, painted over but clearly holes with ... Nov 30 2012, 09:12 PM SirAndy 476.29.03506, and here's a '76 with holes:... Nov 30 2012, 09:17 PM SirAndy 476.29.01132, and another '76 with the black p... Nov 30 2012, 09:21 PM SirAndy 47629.00593, and another:
http://www.914world.com... Nov 30 2012, 09:23 PM rjames My '75 has the holes and plastic plugs. Nov 30 2012, 11:56 PM gms CAVEAT LECTOR!
This is MY findings and is not ... Dec 1 2012, 11:29 AM SirAndy Feel free to post variations...maybe the 4th incar... Dec 1 2012, 02:00 PM sixerdon
Feel free to post variations...maybe the 4th inca... Dec 2 2012, 10:13 PM sixerdon
[quote name='SirAndy' post='1776750' date='Dec 1 ... Dec 16 2012, 03:43 PM boogie_man I Have a 72 and bought a right front body section ... Dec 1 2012, 01:27 PM scotty b Micheal's 6 had the nose replaced early in it... Dec 3 2012, 10:11 AM Cairo94507 And we ain't a drillin' no holes on that t... Dec 4 2012, 04:35 PM 914runnow Danny Gaddy who is on here..has a 76 w/only 2 hole... Dec 15 2012, 09:32 AM 914runnow
Danny Gaddy who is on here..has a 76 w/only 2 hol... Dec 16 2012, 12:57 PM scotty b this thread leads me to believe that Michaels 6, w... Dec 16 2012, 06:35 PM barefoot My 76 #4762900262 has only 2 rubber plugs at ends ... Sep 3 2013, 04:02 PM gms Early Version
Apr 7 2023, 09:59 AM davep Another thread:
http://www.914world.com/bbs2/index... Apr 7 2023, 07:27 PM Imcoz Need one for my '76 six-racecar! Left fron... Sep 30 2023, 09:42 AM |
