Rust repair before paint, The quest for solid metal in the driver side Long - 73 narrow body/4 rebuild thread Options

[Montreal914]

Edit: I might as well make this my rebuild thread...

Original post; I got side tracked on my Microsquirt build as I have decided, after 11 years of ownership, to finally get my car painted to get her ready for her upcoming 50th birthday. (IMG:style_emoticons/default/smile.gif)
Knowing these endeavors can take a lot more time than initially planned, I hope to make it in time... (IMG:style_emoticons/default/wacko.gif)

Originally bahia red 73 1.7. The goal is a narrow body 2056 Microsquirt, VW Tornado red, 5 lugs conversion with 16" Fuchs.
Front: 914-4 A arms with rubber bushings, 911 3" pin struts, Bilstein inserts, Alfa Brembo, vented rotor, stock torsion bar, 19mm sway bar, turbo tie rods, and 19mm master cylinder.
Rear: Drilled hubs, 914 PMB stock calipers edit: 914-6 calipers replica, 914-6 solid rear rotors, 140lbs springs, stock sway bar, rubber bushings.

But before I get the pleasure of installing all of these beautiful fresh goodies, I need to tackle the not so fun stuff... (IMG:style_emoticons/default/headbang.gif)

I have already started fixing some of the rust issues and will share that progress in the near future but right now, I wanted to post some of the issues i have on the passenger side front fender. (IMG:style_emoticons/default/sad.gif) I have searched and read many of the builds here but I would like some inputs from the people who have gone through this mess.

I am trying to understand the construction of the rear part of the fender, more precisely the area joining the front cowling.

Below is a sketch of how I think it is made but i would like someone to confirm...



Having removed the seam sealer in the upper rear area, I have discovered "this" (IMG:style_emoticons/default/dry.gif) which is not really unusual, but clearly a pain to fix. I am not sure though what I am looking at. If my sketch is correct, I guess the inner rusted layer is from the fender rear bulkhead that actually becomes an inner layer on the rear upper point of the fender by the door and cowling junction.





I might be able to cut this from the underside preventing me from cutting the outer surface of the fender. But I would like to better understand what is happening at the junction to the body.
How many layers are there from the fender, one or two?
Is the metal peeling off at the joint to the body the metal from the bulkhead/inner layer, or is it the outer fender layer?

As a reference, this if the situation of the channel, surface rust, but how bad? Is there a way to better know without destroying? Maybe poke with a screwdriver? (IMG:style_emoticons/default/confused24.gif)



Comments appreciated (IMG:style_emoticons/default/smile.gif)

[Montreal914]

I am using a Mercedes Diesel oil cooler I got from Bruce Stone a few years ago. There are at least 2 versions of their coolers that are normally mounted vertically to the driver side of the main radiator.

The one I will be using is the smaller one. The main reason is that I wanted it to fit under the arched structural shelf in the front of the car. The cooler came with the mating fittings which makes it convenient.

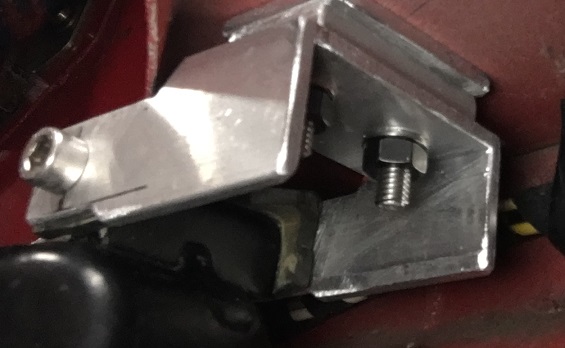

Using my trusted cheapo hack saw, file and vise, I fabricated a couple of brackets out of a 2"x2"x1/8" aluminum square tube.
The result is this:


The brackets actually use the stock MBZ cooler mounting points. So the cooler gets attached to the front shelf, suspended from it. The only modifications made to the car at this point are four 1/4" holes in the shelf and the removal of the front rubber plugs. Noting that will weaken the front of the car.

Using a torch, I gently heated up the driver side cooler fitting to change its angle to get a smooth path for the blue hose (mock up with black hose here).

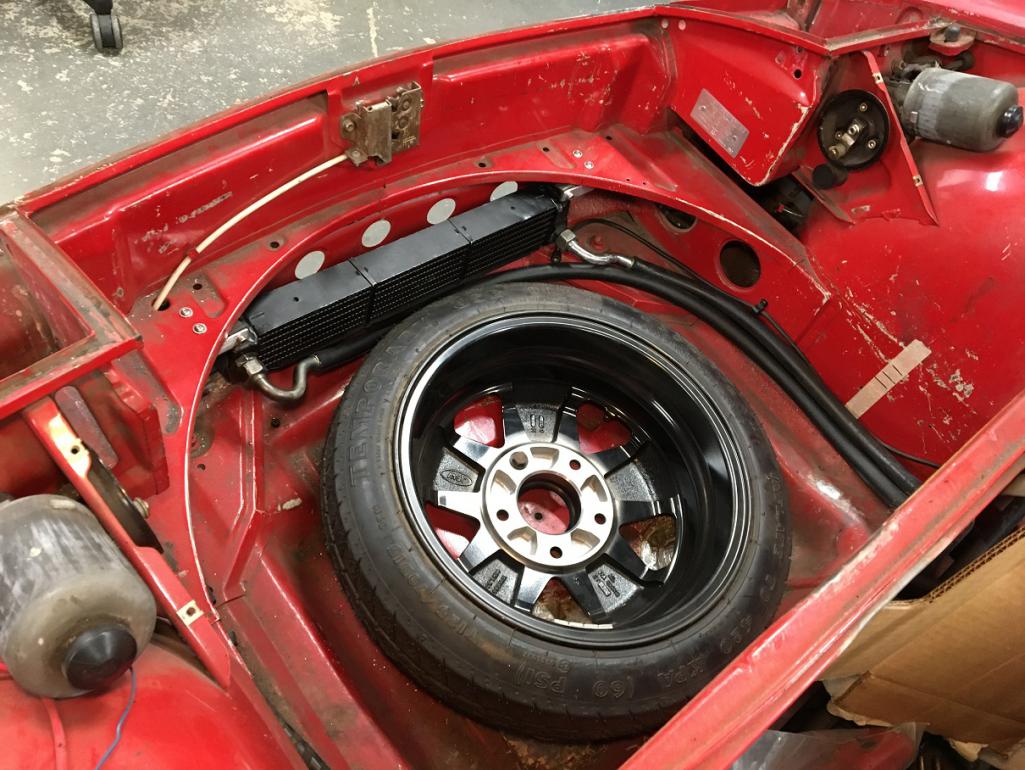

Also, since the car will be converted to 5 lugs, I am using a 4 1/2" wide Fake Fuch wheel with a small donut spare. The smaller diameter allows me to push the spare against the back end of the trunk while using the stock spare anchoring point but in one of the lug hole instead of the center of the wheel. This creates enough room for the air to exit from the back side of the cooler. Venting will be achieved through the round access ports in the back of the trunk floor. Finally, a new lower trunk floor will close tight and create the plenum for the air flow.

Result: Larger trunk space, inflated spare tire, and obviously an oil cooler. (IMG:style_emoticons/default/smile.gif)
