1974 914 1.8, the mystery of the EC-A and EC-B Options

[wonkipop]

i'll be dropping the information we have gathered over Dec 2021 in with a set of posts.

the material was prompted by mr b ( @JeffBowlsby ) who observed that for the 74 MY there was an EC-A and an EC-B engine. mr b's thought was that the EC-A was a 49 states car and and EC-B was a californian car for emissions.

mr b's view was rational and reasoned. 73 EA engines are 49 states. 73 EB engines are california. 75 engines are documented in factory literature as EC-a (49 states) and EC-b (california). the logic should follow?

BUT

as per the mystery of the 914, the truth about 74 1.8s turns out stranger than fiction (or common sense?).

the material is not necessary to running a 1.8 or having fun with a 14. (IMG:style_emoticons/default/smile.gif)

its for historical purposes and as information to 74 1.8 owners to assist with restoration if they want it.

[wonkipop]

After all that research and thanks to all members with 74 L jets who contributed generously -

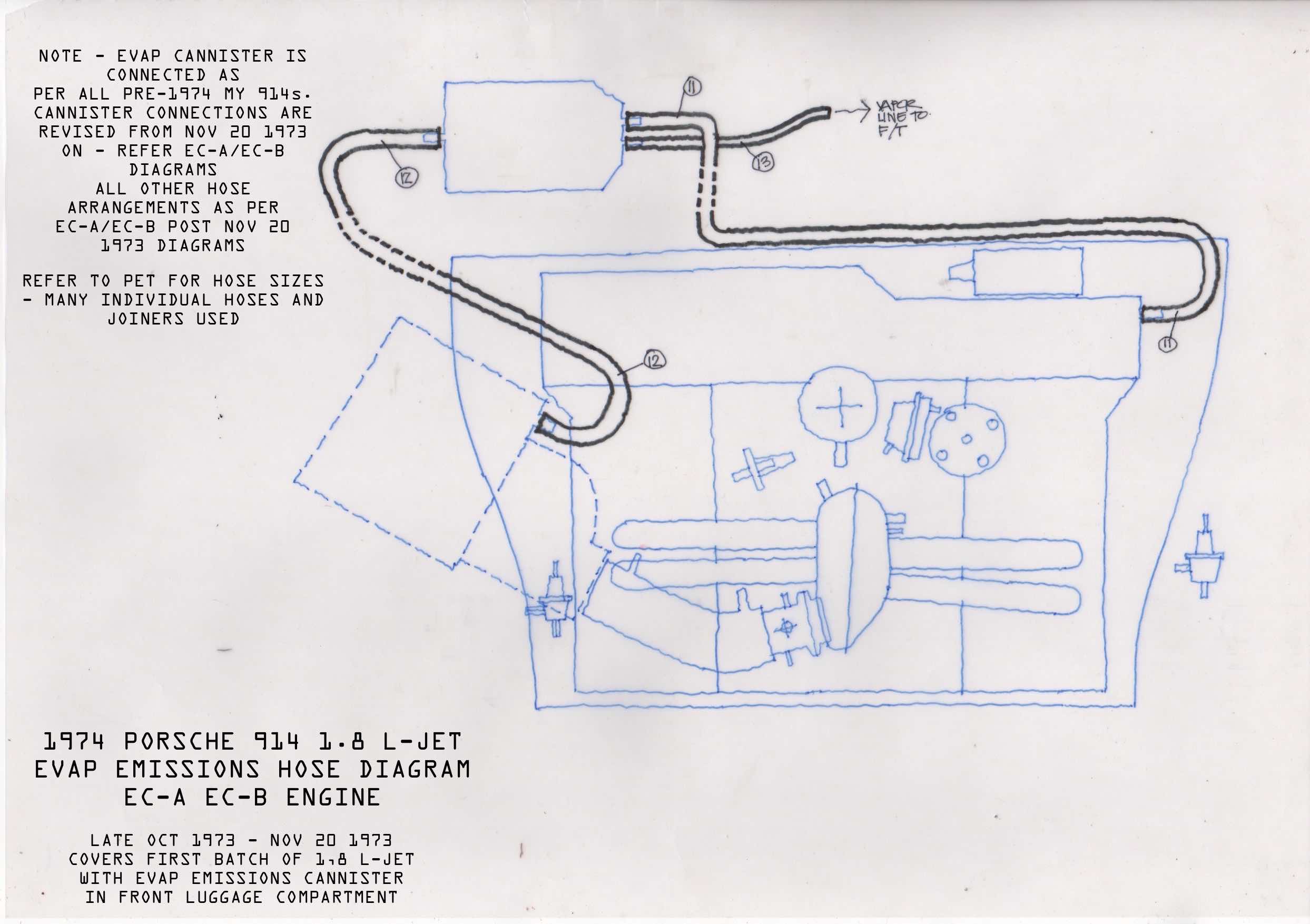

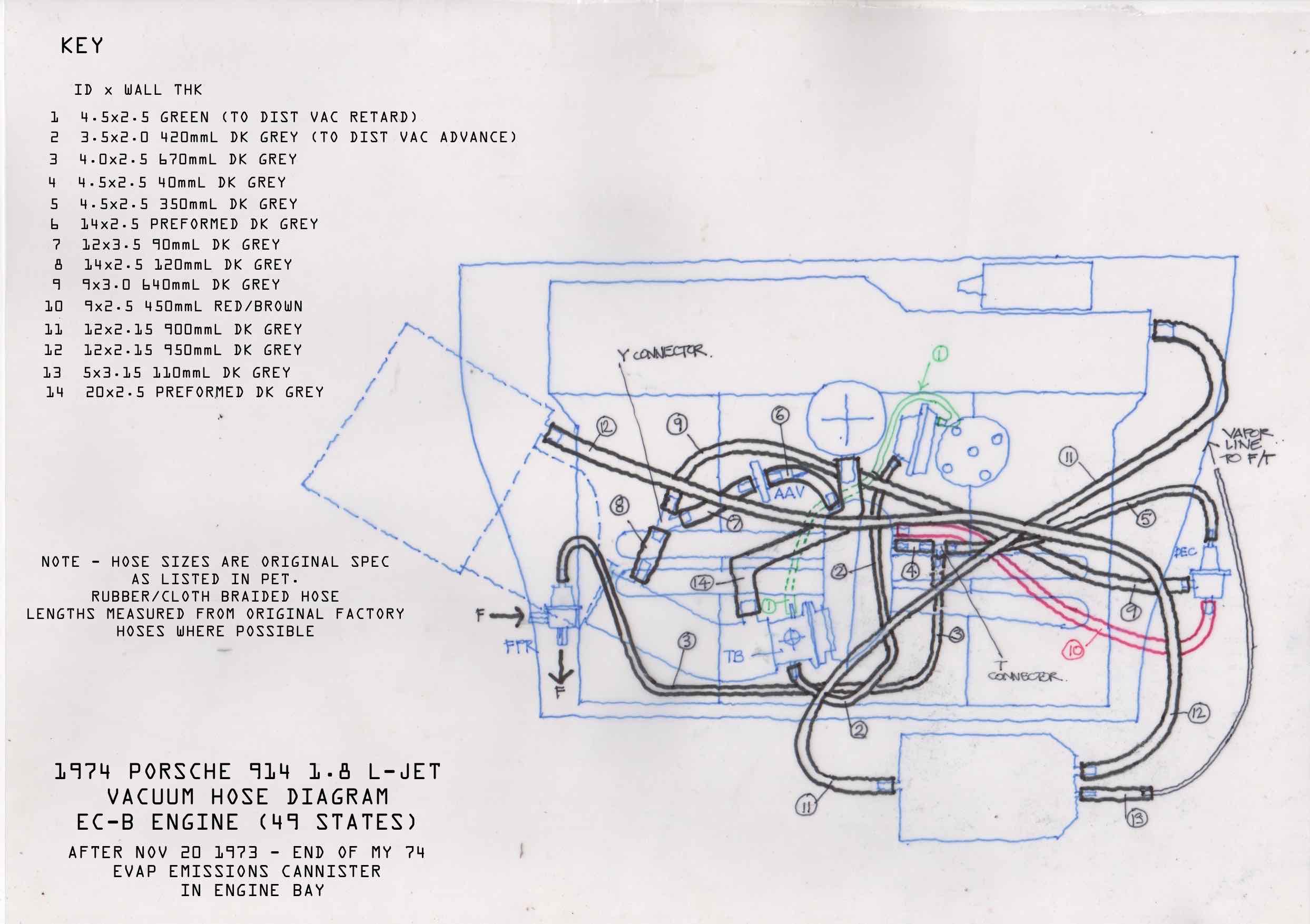

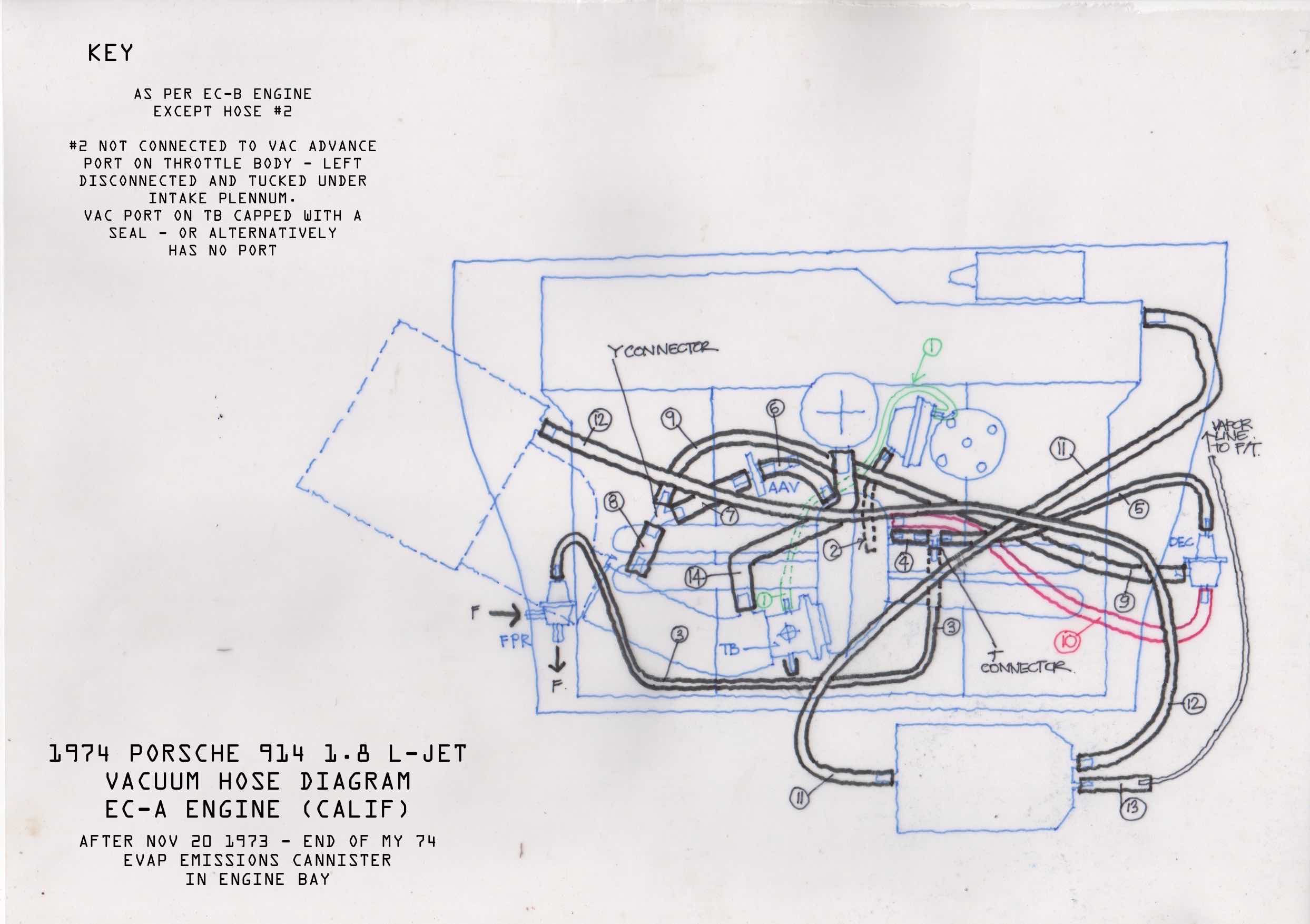

hose diagrams.
some clarity now how it went in 1974.

- all hose specs come out of the PET.
some sizes will be difficult to get these days.









additionally.
video by @Van B showing vac hose layout for 74 1.8 EC-B

https://www.youtube.com/watch?v=ToxifurNXXg
