Project Turbo 914 begins..., (yes, I know you can't turbo a 914) Options

[ottox914]

Just a little teaser on this winters project. Last winter I dug into this little update:

http://www.914world.com/bbs2/index.php?sho...c=53733&hl=

This winter will be phase 2. This photo will show some of the goodies under the tree, which will soon be under/on the car. The WRX intercooler has one round inlet on the back, and 2 smaller oval outlets under the opposite end tank. These will each exit and attach to some CB performance turbo "hats" for the ITB's that have 2" tubes welded to them. Some silicone elbows, and we're good. The intercooler will mount on braces running across the engine bay to support the intercooler as close to the GT lid as possible. I'll see how it goes, and probably do some yarn tuft testing to see about airflow in and around that lid, but I could always use the SDS computer to switch on either a puller or pusher fan below the intercooler based on boost, if needed. The turbo will mount on a custom flange/adaptor to be built to connect the turbo to the collector of the Kerry Hunter exhaust system. The turbo is a small Garrett VNT. The compressor map looks like a good match for this motor. I'm expecting the VNT turbo to give good low rpm thorttle response. Starting out at 5-6 psi, I'd be happy to see 10 when I'm done, but will tune to run safely on 93 pump gas and see where we end up. Off the back of the transmission, where the factory exhaust hanger mounted, I'll mount a similar hanger to support the turbo and exhaust system. A Tildon differential pump will return the oil to a willing valve cover. Oil will be taken from a "T" at the pressure sending unit on the case. There is a blow off valve to be added to the intercooler, and a mocal thermostat/sandwitch plate adaptor for the oil cooler, which has a thermostat controlled fan. I'll be adding an ignition switched relay for power to the fan and scavenge pump, so both will have power when the key is on. The pump will run continously, the fan when the thermo switch tells it to. Add some pressure side stainless or aluminum tubing from the turbo, thru the back engine tin, into the round inlet on the intercooler and we're done. Except for another trip to the LSE dyno, for some additional tuning. I'll keep posting as progress would warrent.

[ottox914]

Finally some progress. With work, Christmas, New Years, teaching snowboarding, our end of the season snoboard safari to the mountains, progress has been slow. Got back in the shop for a couple hours this afternoon and got the topside charge piping done. There will need to be an adaptor made to go from the WRX intercooler to the charge lines to the ITB's, so the final position of those pipes may change slightly. I just cut off the 90 degree bends to about the right length for now.

Crunch time, as this friday I load the car up, and saturday it is delivered to LSE Peformance for the final fabrication of the adaptors for the intercooler and turbo to the collector, then some dyno time, and April 21-22 is our club novice school, I plan to have it ready for that to scare some newbies during the lunch time, when we allow the instructors to take their own cars out and give rides to the students.

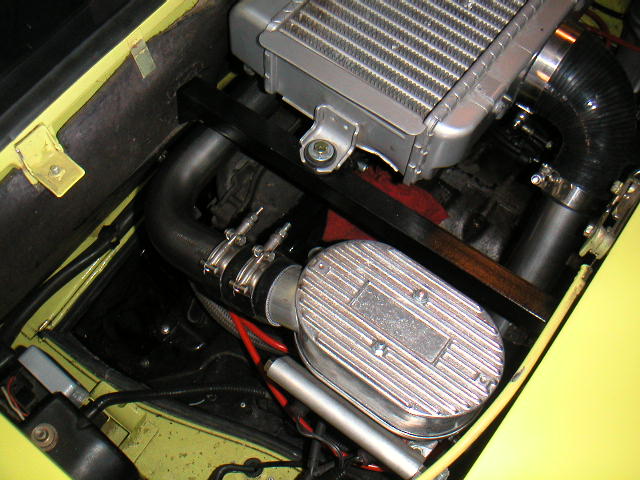

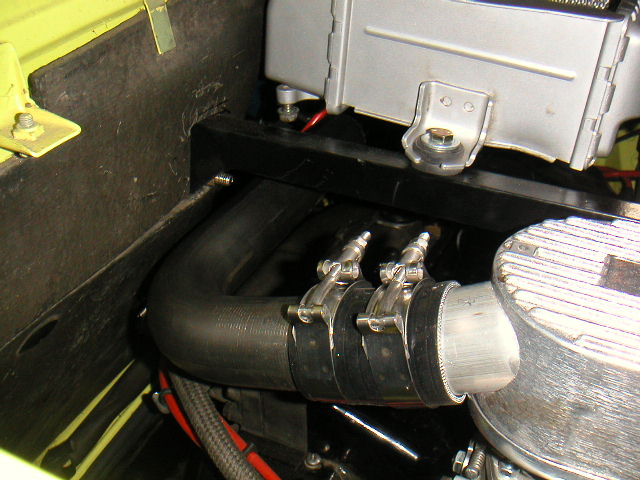

On with the photos: these are of the left side ITB plumbing. The angle of the "hat" for the ITB, which was purchased from CB performance, was just about right with a straight section of silicone.
