 914 Rear Fog Lamp Installation with details & Photo's, Only winning cars have them, BLing, Bling. |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| TJB/914 |
 Jun 30 2007, 03:50 PM
Post
#1
|
|
Mid-Engn.  Group: Members Posts: 4,383 Joined: 24-February 03 From: Plymouth & Petoskey, MI Member No.: 346 Region Association: Upper MidWest
 |
Hi Guys,
I just finished drilling (2) 6mm holes & (1) 3mm hole in by trunk to mount my "Rear Fog Light" factory accessory. I like it, makes my car different from all the others. (IMG:style_emoticons/default/pray.gif) Here's a few pictures to show details of the U.S.A. issue rear fog lamp I installed. I got a Euro fog lamp assembly from Gustl (thanks Gustl-aka-Wolfgang) & put everything together using the satin black U.S. housing with the Euro lens because I thought it looked better. One of the brackets to mount is still available from Porsche, but the exterior bracket is NLA. The exterior bracket I got from Gustl was a surprise, it's made of stainless steel. I'll post a number of photo's in a few days showing lots of details & differences. (IMG:style_emoticons/default/popcorn[1].gif) Hope you guys enjoy. Tom BTW Pat: I measured a lot before drilling the holes. Attached thumbnail(s)    Attached image(s)
|
   |

|
  |
Replies
| JeffBowlsby |
Nov 13 2007, 04:36 PM
Post
#2
|
|
914 Wiring Harnesses Group: Members Posts: 8,760 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|

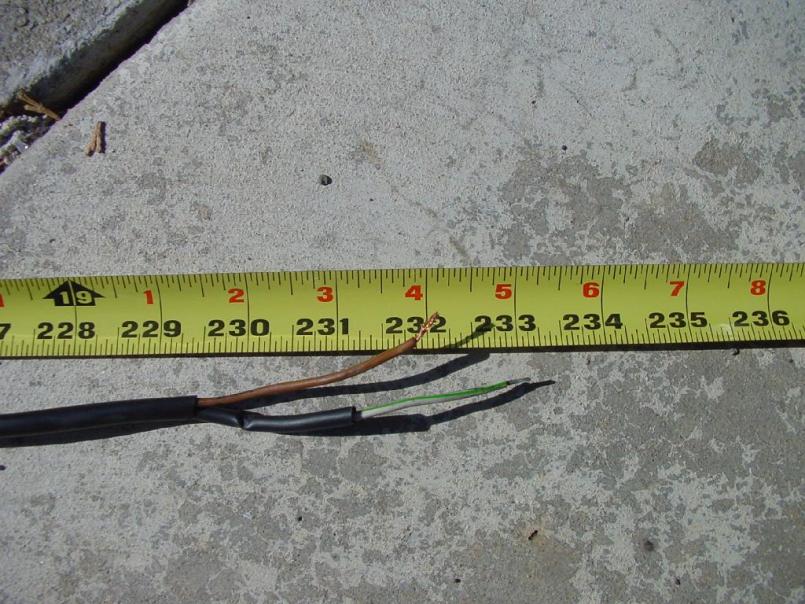

Below is the photo of the end of the harness to the lamp.
A ring terminal on the ground is exactly my thought, attached to the M6 bolt inside the trunk. The white/green wire is actually pre-tinned for mounting to a single bus bar hole with a screw down like on the one style of foglight housings...Dave, you could just mount a female spade connector to the wire after feeding it through the foglight housing. Does it look like there is adequate length on the shorter section of casing around the white/green wire to make it all the way through the tailpanel grommet, into the foglight housing? I have had no luck finding anything on the facotry wiring diagrams about where to attach the harness to switched power. Someone suggested that the harness mount with a double-ended female connector or a piggyback to the foglight switch which seemed reasonable. Does that sound ok to everyone? Attached image(s)
|
 |
|
Posts in this topic
Thomas J Bliznik 914 Rear Fog Lamp Installation with details & Photo's Jun 30 2007, 03:50 PM
Thomas J Bliznik Here's a few more photo's of the brackets.... Jun 30 2007, 04:00 PM
Gustl Note, the U.S. spec housing is satin black & t... Jun 30 2007, 05:19 PM
Jasfsmith Tom:
You missed the rubber gromet that the lead t... Jun 30 2007, 09:38 PM Thomas J Bliznik Differences inside the U.S. & Euro housings
T... Jun 30 2007, 04:09 PM Thomas J Bliznik Lens are different. I like the Euro lens & th... Jun 30 2007, 04:12 PM Johny Blackstain So update your damned avatar :D ! Looks nice... Jun 30 2007, 05:06 PM 1970 Neun vierzehn Tom,
Nice tidy installation. I presume that there... Jun 30 2007, 05:06 PM Thomas J Bliznik
Tom,
Nice tidy installation. I presume that ther... Jun 30 2007, 05:10 PM 1970 Neun vierzehn Tom,
I'd guess that a European wiring diagram... Jun 30 2007, 05:18 PM Johny Blackstain
I would also presume that the bulb used in that ... Jun 30 2007, 05:22 PM Pat Garvey Allright! You had to know this was coming Tom... Jun 30 2007, 08:33 PM Eric_Shea Excellent Tom :trophy: Jun 30 2007, 10:29 PM Jasfsmith
Excellent Tom :trophy:
To bad Pat doesn't h... Jul 1 2007, 09:20 AM Mike914 The Famous "Lost Warehouse" sale a few y... Jul 2 2007, 07:10 PM Eric_Shea
Pat can't "handle" a rear fog ligh... Jul 2 2007, 07:16 PM Thomas J Bliznik
Pat can't "handle" a rear fog lig... Jul 2 2007, 08:07 PM Pat Garvey
Pat can't "handle" a rear fog li... Jul 2 2007, 08:52 PM Pat Garvey
Pat can't "handle" a rear fog lig... Jul 2 2007, 09:01 PM Jasfsmith
I, uh am, uh, speechless.
There's a first.... Jul 3 2007, 11:16 AM Eric_Shea Keep the trunk rack Gomer :woohoo: Jul 2 2007, 08:45 PM Thomas J Bliznik
Keep the trunk rack Gomer :woohoo:
I am not don... Jul 2 2007, 08:54 PM Pat Garvey
Keep the trunk rack Gomer :woohoo:
I am not do... Jul 5 2007, 08:39 PM Eric_Shea Dirty old man... I think the boys were asking for... Jul 2 2007, 09:06 PM Eric_Shea
You can't get Two-Buck Chuck in Michigan... ... Jul 3 2007, 04:53 PM BS Chairman
You can't get Two-Buck Chuck in Michigan...... Jul 3 2007, 07:02 PM Johny Blackstain I've never seen steel wheels on a six before..... Jul 3 2007, 07:22 PM BS Chairman
I've never seen steel wheels on a six before.... Jul 3 2007, 08:51 PM Pat Garvey
I've never seen steel wheels on a six before.... Jul 5 2007, 08:44 PM Mike914 :shades: Here's a few pics of the "fatory... Jul 3 2007, 09:47 PM Eric_Shea
Joking ya old fart. Love the Golden Gate bridge... Jul 4 2007, 01:49 AM Eric_Shea
They are if you're looking for the "70... Jul 5 2007, 09:12 PM Eric_Shea Jeff PM'd me about the factory harness. He sa... Jul 9 2007, 09:04 PM Thomas J Bliznik
Jeff PM'd me about the factory harness. He s... Jul 9 2007, 10:32 PM Eric_Shea Mike and Jeff... Please make us a couple harnesses... Aug 18 2007, 07:47 PM Jeff Bowlsby Send me one to look over and I will see if I can d... Aug 19 2007, 11:29 AM orthobiz I've tried to go through the various rear fog ... Aug 19 2007, 12:06 PM Eric_Shea
Well... I do believe Mike Scott be in your home... Aug 19 2007, 01:02 PM Jeff Bowlsby I have met Mike, but dont know how to contact him.... Aug 19 2007, 04:49 PM Eric_Shea Post #28, meet post #39 :D
Mike, are you out ther... Aug 19 2007, 07:24 PM Thomas J Bliznik
Post #28, meet post #39 :D
Mike, are you out the... Aug 19 2007, 07:35 PM Mike914
Post #28, meet post #39 :D
Mike, are you out the... Aug 22 2007, 07:03 PM Mike914 More pics: Aug 22 2007, 07:14 PM orange914 is your car ORIGANALLY euro rear lights. i'm ... Nov 2 2007, 10:35 PM type4org
is your car ORIGANALLY euro rear lights. i'm... Nov 3 2007, 06:56 AM Pat Garvey OK, I'm not going to comment on how these look... Aug 19 2007, 08:35 PM Thomas J Bliznik
OK, I'm not going to comment on how these loo... Aug 19 2007, 09:13 PM Thomas J Bliznik
OK, I'm not going to comment on how these lo... Aug 19 2007, 09:16 PM Pat Garvey
OK, I'm not going to comment on how these lo... Aug 19 2007, 09:39 PM Thomas J Bliznik
[quote name='Thomas J Bliznik' post='936675' date... Aug 19 2007, 09:52 PM Jasfsmith
OK, I'm not going to comment on how these loo... Aug 20 2007, 11:01 AM Eric_Shea
Oh yeah... I made that clear in another post sor... Aug 19 2007, 10:20 PM hcdmueller This is a great thread. Anybody have a factory fo... Aug 20 2007, 06:19 AM orthobiz OK. I'm ignorant. I just don't get it but ... Aug 20 2007, 09:07 AM Jasfsmith
OK. I'm ignorant. I just don't get it but... Aug 20 2007, 11:04 AM mrgreenjeans
OK. I'm ignorant. I just don't get it but... Aug 21 2007, 06:46 PM Gustl the rear fog light shines about 4 times brighter t... Aug 20 2007, 12:00 PM Pat Garvey I'm not from Missouri, but can someone "s... Aug 20 2007, 08:09 PM Thomas J Bliznik
I'm not from Missouri, but can someone ... Aug 20 2007, 08:27 PM orthobiz
You prove to us it's not an option as you sus... Aug 21 2007, 08:26 PM Johny Blackstain The way I remember it it was a dealer option avail... Aug 21 2007, 10:08 AM Eric_Shea
It probably meant that; by that time they incorp... Aug 21 2007, 12:32 PM Johny Blackstain
It probably meant that; by that time they incorpo... Aug 21 2007, 01:22 PM Pat Garvey
It probably meant that; by that time they incorp... Aug 21 2007, 06:09 PM Eric_Shea
And again, this of course, is to give the driver... Aug 21 2007, 05:18 PM 914-8
And again, this of course, is to give the drive... Aug 21 2007, 09:58 PM Pat Garvey One has to try to remeber that, in the early-mid 7... Aug 21 2007, 09:00 PM Eric_Shea Wow! Way cool. Am I reading this right? 233... Aug 22 2007, 07:46 PM Mike914
Wow! Way cool. Am I reading this right? 233... Aug 25 2007, 11:31 AM davep I now have my lamp and inside bracket.
Eric, has t... Nov 3 2007, 09:09 AM Thomas J Bliznik
I now have my lamp and inside bracket.
Eric, has ... Nov 3 2007, 07:55 PM Pat Garvey
I now have my lamp and inside bracket.
Eric, has... Nov 3 2007, 09:00 PM davep Well hey, I'll just fake up a window sticker f... Nov 4 2007, 09:03 AM Jeff Bowlsby I haven't kept up with this thread...I will co... Nov 4 2007, 10:40 AM Jeff Bowlsby I picked up the harness last night, I am sure it w... Nov 7 2007, 04:11 PM Thomas J Bliznik
I picked up the harness last night, I am sure it ... Nov 7 2007, 08:36 PM davep I only took a quick look at my lamp assembly. Bulb... Nov 8 2007, 12:25 PM Jeff Bowlsby I looked at a fog light switch last night, its got... Nov 8 2007, 02:18 PM davep Here is the bulbholder from my lamp.
Brass 0.25... Nov 8 2007, 08:19 PM Eric_Shea Sorry, I've been away from this.
Dave, I have... Nov 9 2007, 08:58 AM Thomas J Bliznik
Sorry, I've been away from this.
Dave, I hav... Nov 9 2007, 08:22 PM davep Eric, on the bracket I'm not in a great hurry,... Nov 9 2007, 11:22 AM Eric_Shea Word. ;) Nov 9 2007, 08:52 PM Thomas J Bliznik
Word. ;)
I'll get it out Monday by Prior... Nov 9 2007, 09:17 PM Thomas J Bliznik
Word. ;)
I'll get it out Monday by Prio... Nov 12 2007, 12:41 PM Jeff Bowlsby So I understand there were two different housings,... Nov 10 2007, 11:19 AM davep
I need help figuring out where to connect the swi... Nov 11 2007, 09:15 AM Eric_Shea
Me too. At this point, I think it would be best... Nov 10 2007, 12:01 PM Eric_Shea
I just caught this while reading back through th... Nov 10 2007, 12:05 PM Pat Garvey
I just caught this while reading back through t... Nov 12 2007, 08:17 PM eg914 Eric,
I too would like one of the outer fog light... Nov 11 2007, 01:20 AM Jeff Bowlsby Both fog light housing styles only have one pole t... Nov 11 2007, 10:23 AM davep Good point. Then what about a ring connector to go... Nov 12 2007, 08:47 AM Eric_Shea
That was my thought. ;) Nov 12 2007, 09:40 AM Eric_Shea We have an originally installed one here on the bo... Nov 12 2007, 09:42 AM davep I estimate at least 3" of white wire to go th... Nov 13 2007, 08:37 PM Eric_Shea
The white/green wire exits the body panel and im... Nov 14 2007, 12:37 AM Thomas J Bliznik Hi guys,
I 've been away for 2-weeks & wo... Nov 29 2007, 10:03 AM Eric_Shea Metal shop called yesterday. 3 rear brackets are ... Dec 8 2007, 10:28 AM |
