> My 914-6 project, That's a rap, Thanks Everyone!!!
Socalandy
post Nov 16 2011, 09:07 PM
Post #161


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California
(IMG:style_emoticons/default/sawzall-smiley.gif)


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Nov 16 2011, 09:09 PM
Post #162


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California
(IMG:style_emoticons/default/icon_bump.gif)


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Nov 16 2011, 09:11 PM
Post #163


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California
(IMG:style_emoticons/default/chowtime.gif)


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Nov 16 2011, 09:13 PM
Post #164


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California

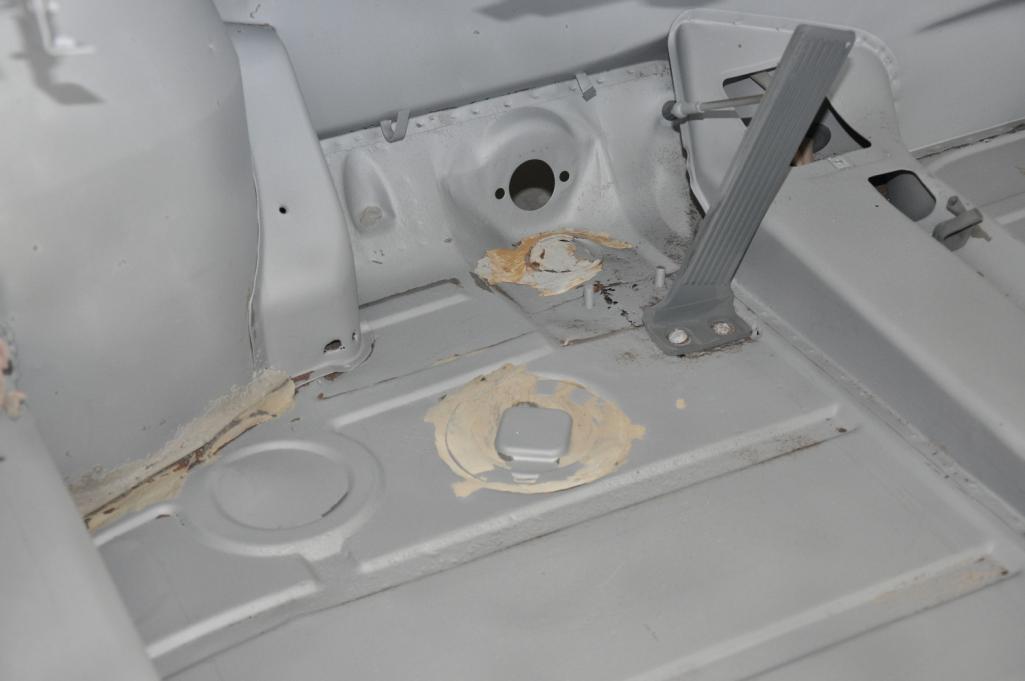

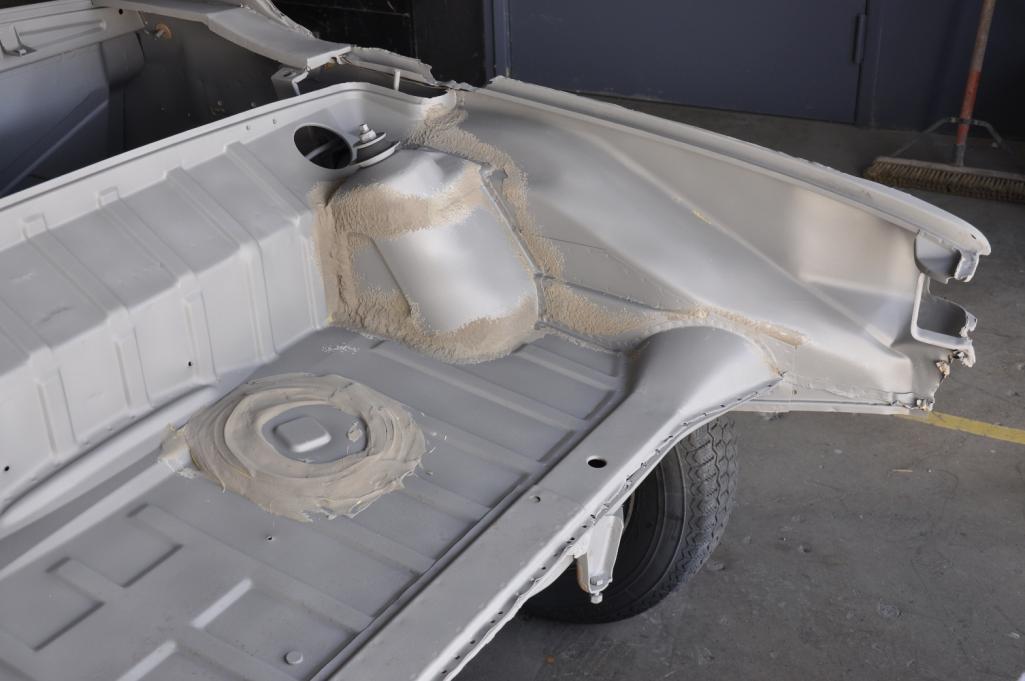

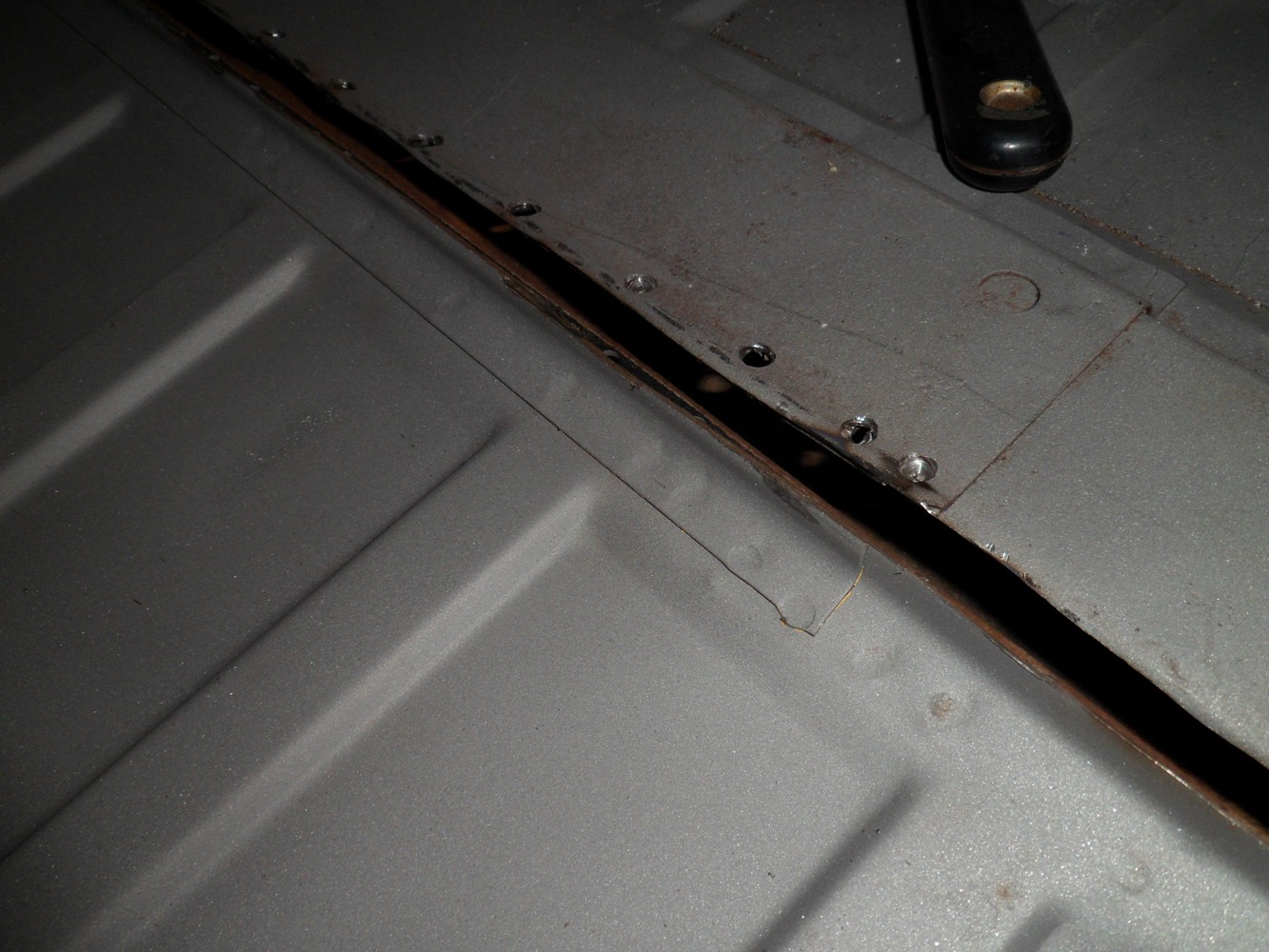

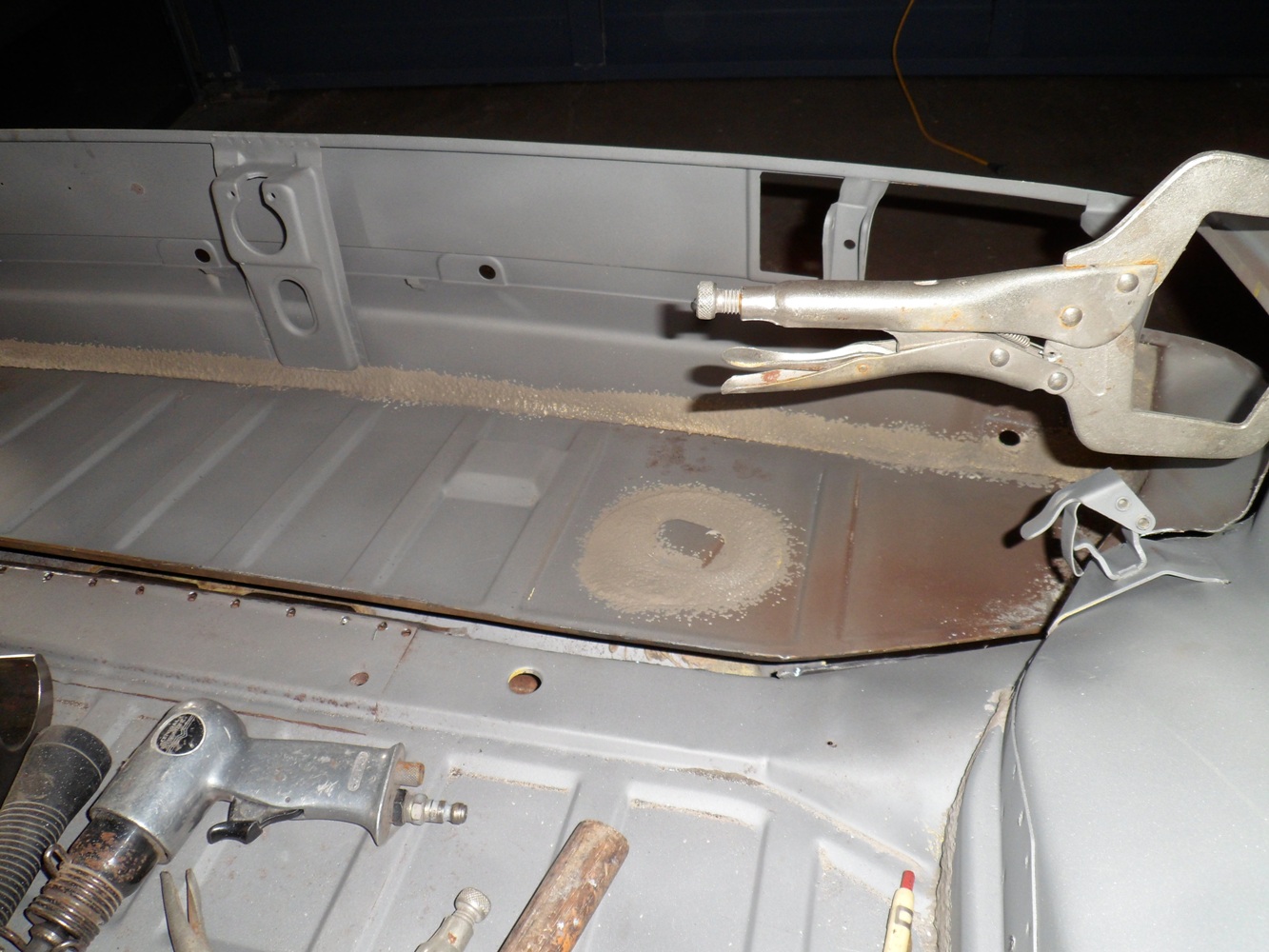

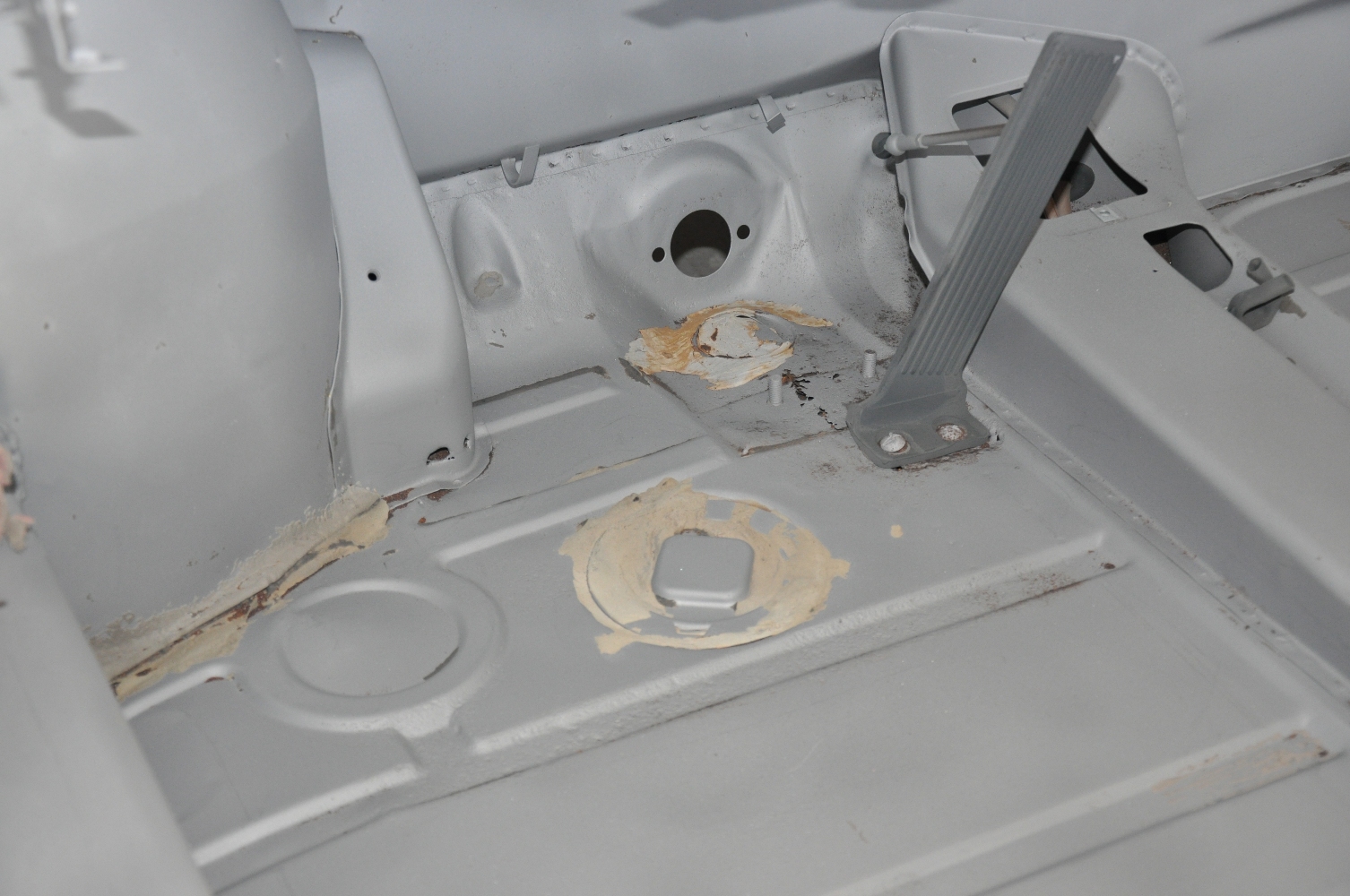

I may just be able to save the floor pans (IMG:style_emoticons/default/pray.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Nov 17 2011, 07:36 AM
Post #165


914-6 GT in waiting
***************

Group: Members
Posts: 19,592
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Can you give details on the blasting? Media, time, cost, did outfit come to you or did you bring to them, what's next? thanks, mark
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sfrenck
post Nov 17 2011, 08:00 AM
Post #166


Member
**

Group: Members
Posts: 492
Joined: 28-February 10
From: Wilmington, DE
Member No.: 11,411
Region Association: MidAtlantic Region
QUOTE(mepstein @ Nov 17 2011, 08:36 AM) *

Can you give details on the blasting? Media, time, cost, did outfit come to you or did you bring to them, what's next? thanks, mark



Mark - there's a company in Philly that does soda blasting. I think they gave me an estimate of $1000, which included pick up / delivery of the car from my house, if the car was already taken apart / ready for blasting.

Scott
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Nov 17 2011, 08:37 AM
Post #167


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California
it was and walnut shell blend, looked like some fine silica sand. I delivered and picked up and it was $1400.00 I dropped it off last thurs. but with rain on friday I asked them to wait until Monday to start. It was ready for pickup tuesday. The company is AFCO in Gardena.

cutting and trimming began last night in prep. for (IMG:style_emoticons/default/welder.gif) in the stiffining kit and rear quarters/ tail section. Then the pass. sill/rockers work and floor. It will be at least a week before its time to mount the gt rockers and valance to line up the flares (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Nov 17 2011, 09:11 AM
Post #168


914-6 GT in waiting
***************

Group: Members
Posts: 19,592
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Looked like more than soda since rust was removed.

Just my opinion but I don't think the rockers and valences have anything to do with the flare positioning. The flares are structural to the body and become part of the body of the car and should be fitted to the wheel opening. The rockers and valences are trim pieces and should be fitted to the body of the car. Again, jmo. (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Nov 17 2011, 09:55 AM
Post #169


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Nice... (IMG:style_emoticons/default/smile.gif)

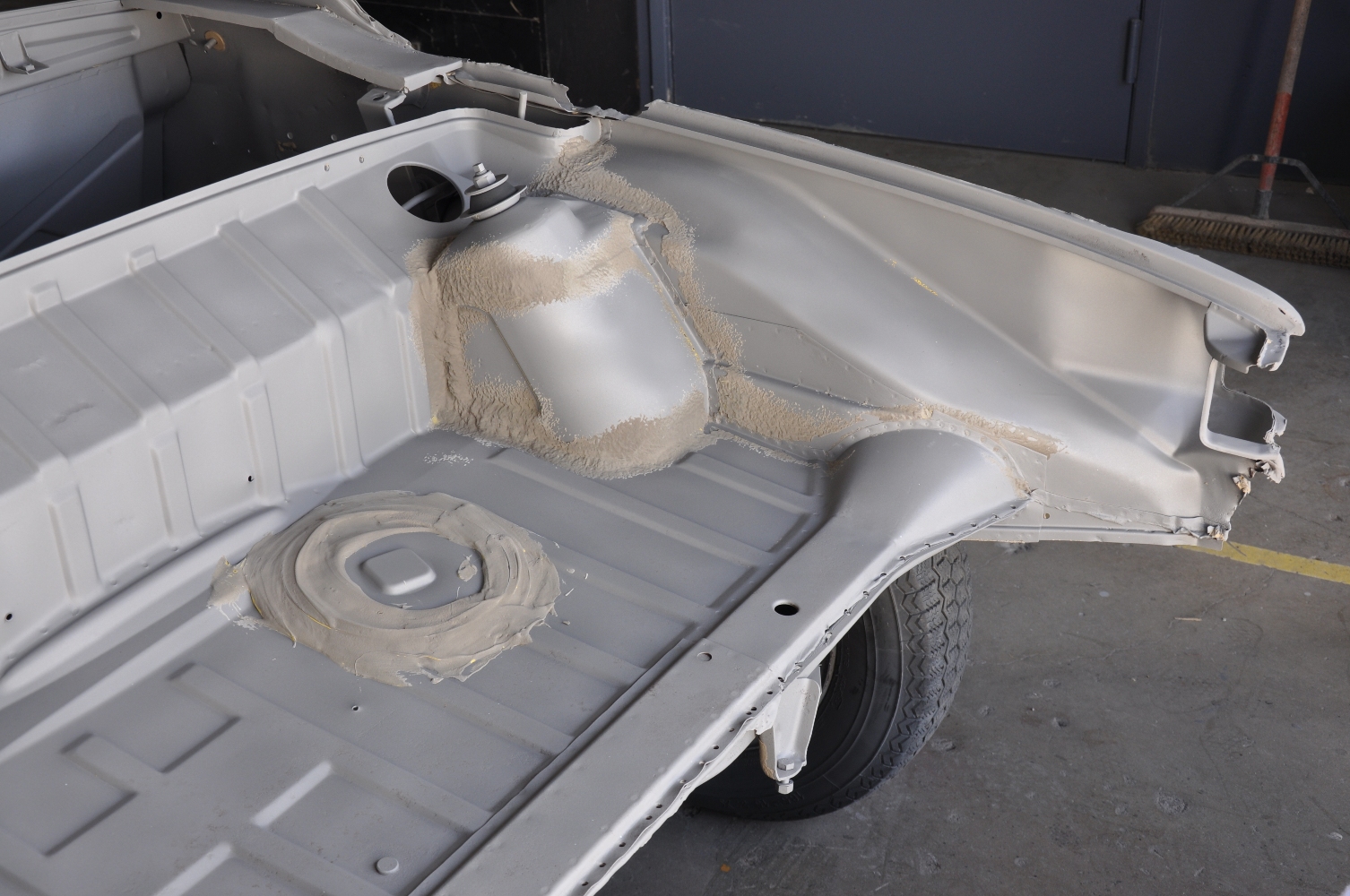

Looks like garnet from the bits I saw on the floor pan.

Keep going!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Nov 17 2011, 10:42 AM
Post #170


914 Wizard
**********

Group: Members
Posts: 10,636
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Wow , The tub looks so much better all blasted.
Pretty straight forward from here.

Andy are the pinch weld seem that pass along the rear shocks on the underside straight ?
I have seen with the smallest of rear end damage they can get a curve in that section.
Not knowing how bad the back was from rust or accident damage. Just curious.
Jeff
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Nov 17 2011, 04:15 PM
Post #171


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California
It was an accident and it wasnt. the PO before Joe of course, cut the rear and corner pannels off and not in a pretty way. it all looks strait but will be taking measurements to verify its in spec. Then the door and chassis bracing goes on and on the rotiss.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Nov 17 2011, 06:24 PM
Post #172


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California

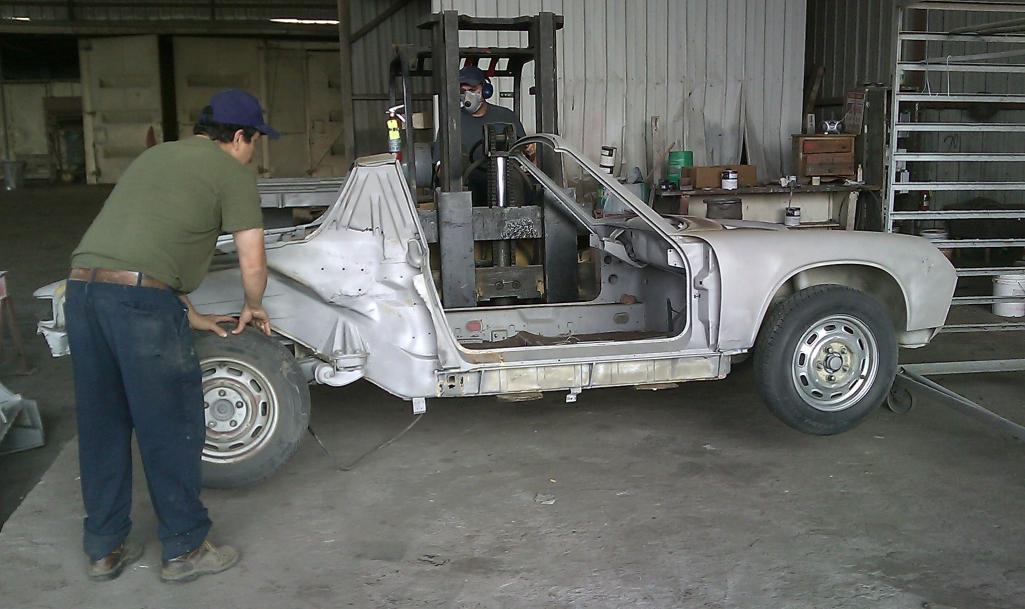

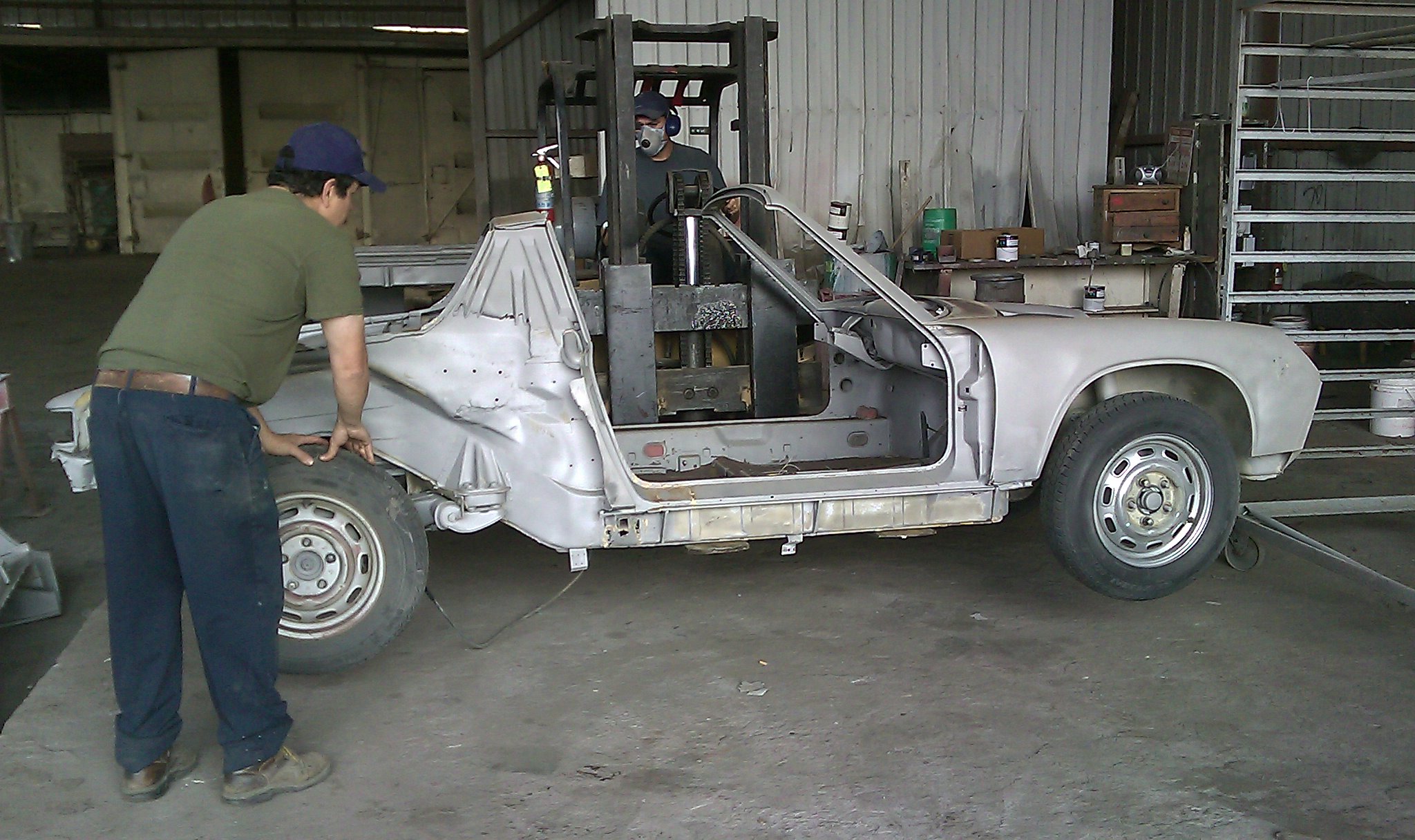

A little cell phone clip picking up the car

http://www.youtube.com/watch?v=q_AcuqG3wCQ...der&list=UL
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Nov 17 2011, 06:26 PM
Post #173


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California

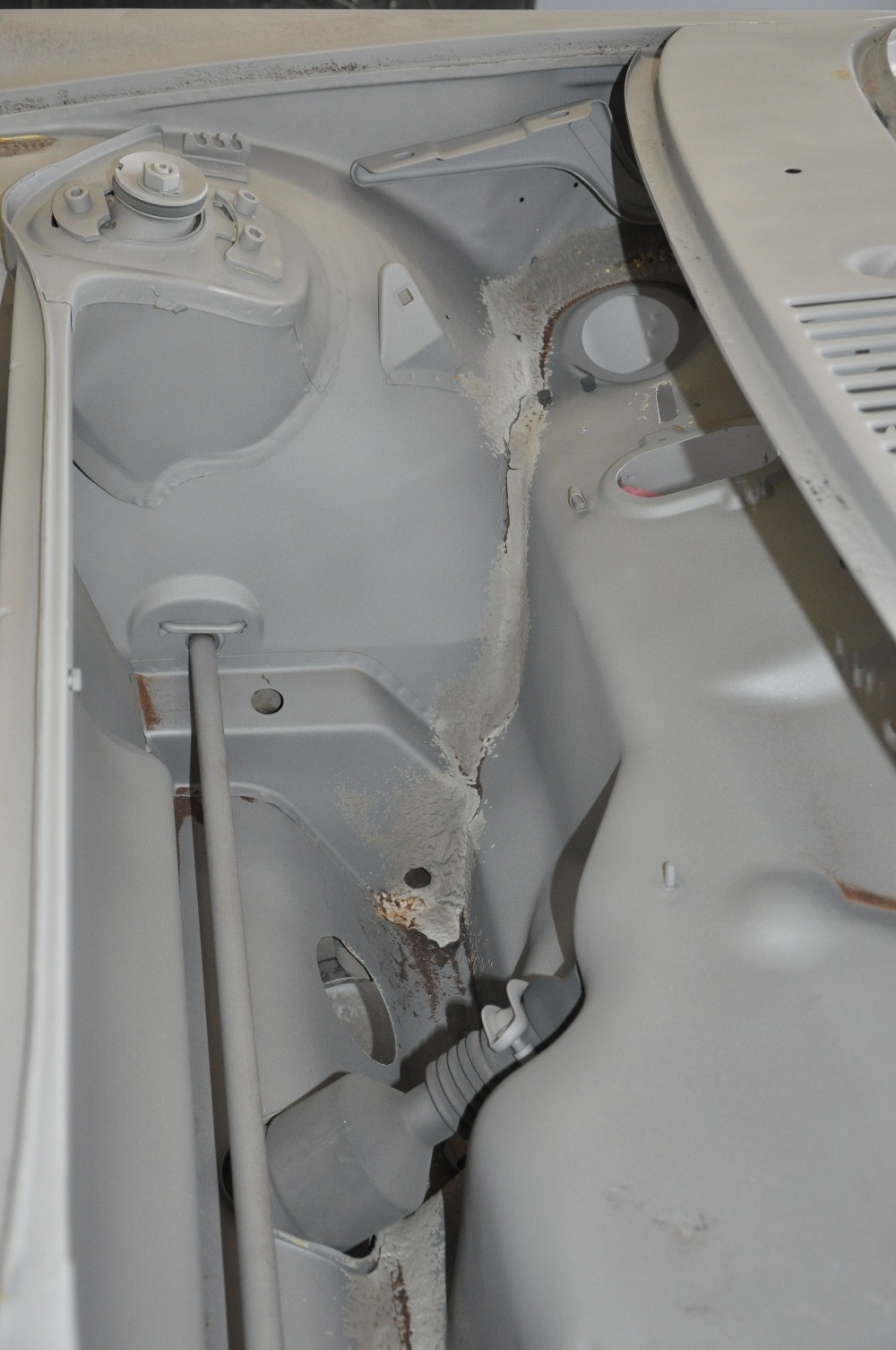

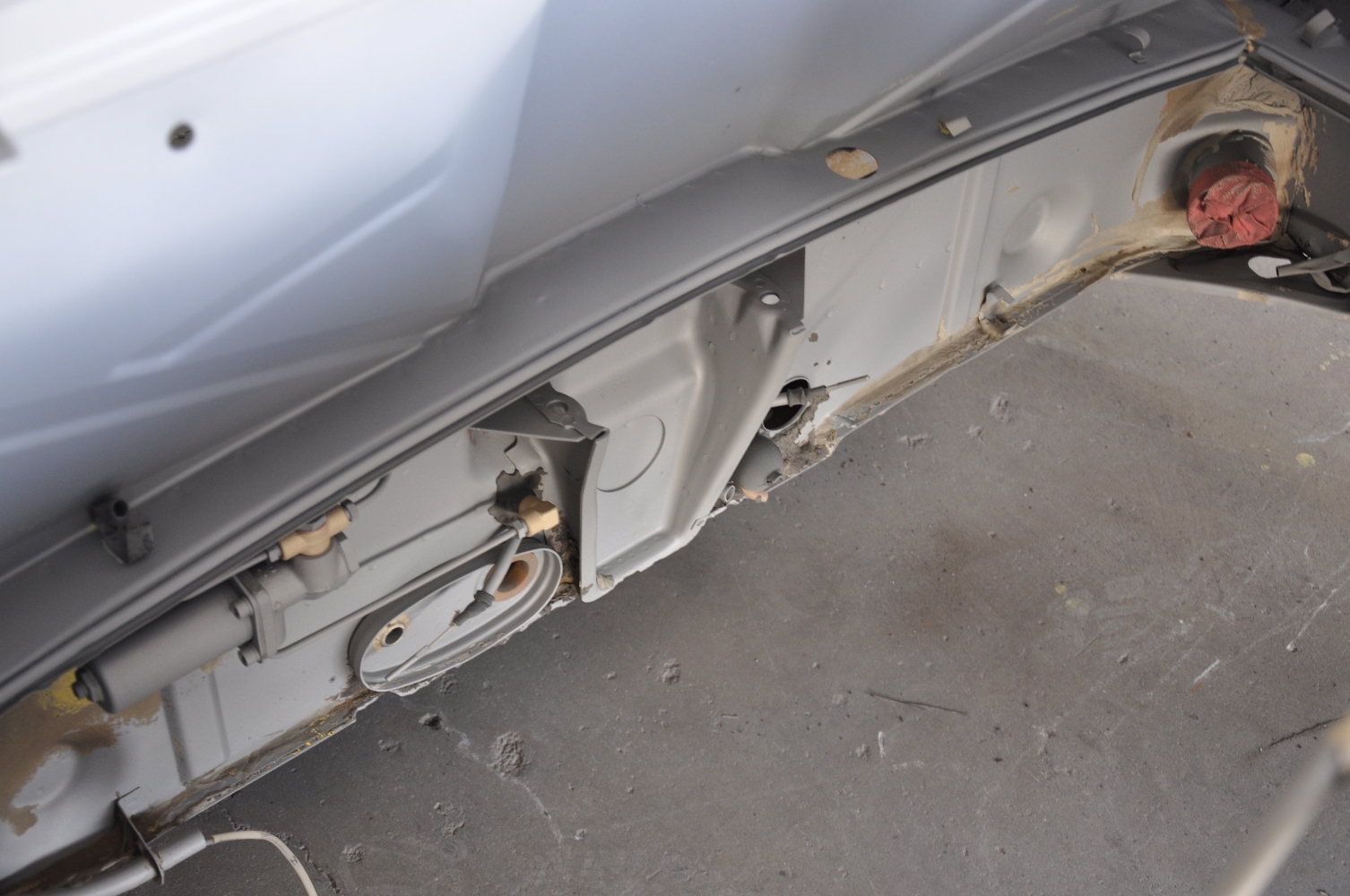

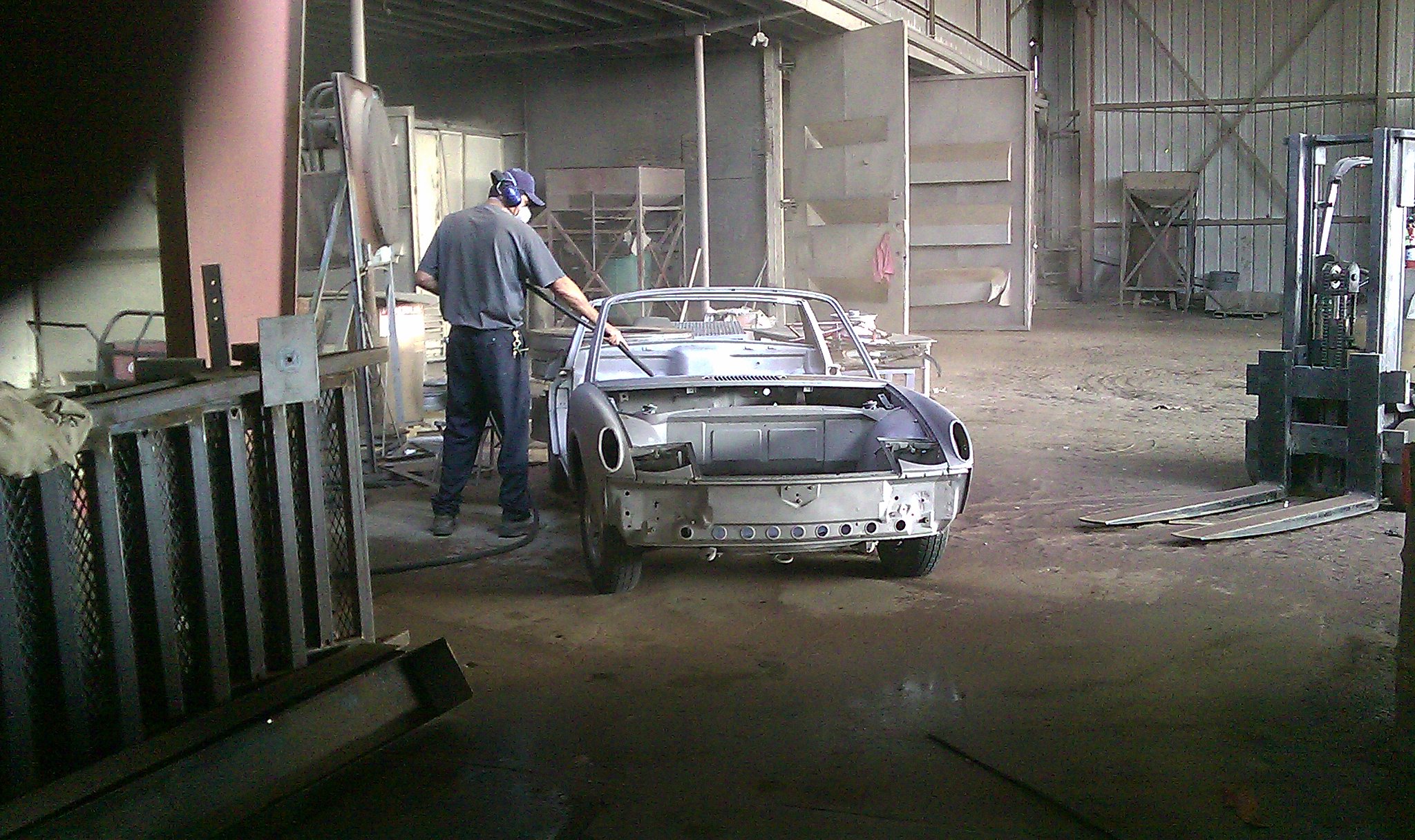

and a few shots while they blew out the media


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Nov 17 2011, 08:16 PM
Post #174


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California
looking for the site with the chassis measurments please

thanks in advance!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Nov 17 2011, 08:17 PM
Post #175


914 Wizard
**********

Group: Members
Posts: 10,636
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
http://www.914world.com/specs/bodydims.php


http://www.914world.com/specs/underdims.php
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Nov 17 2011, 08:36 PM
Post #176


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California
God I love this place (IMG:style_emoticons/default/pray.gif) I should have type measurments for GT flares. I can only find pictures but no mearsurments for proper placment

Thank You Sir!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Nov 17 2011, 09:29 PM
Post #177


914 Wizard
**********

Group: Members
Posts: 10,636
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
The back edge of the front flairs line up with the back edge of the stock fender and the front edge of the rears line up with the front edge of the flairs.

The fronts need to project forward so the wider tire/wheel combo don"t catch the front corner of the flair when turning.


It is also the safest to have the rockers at the same time to adjust as needed.




Armando's site is a great reference, here is the seam ;

http://www.pbase.com/9146gt/image/112146544
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Nov 19 2011, 07:36 PM
Post #178


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California

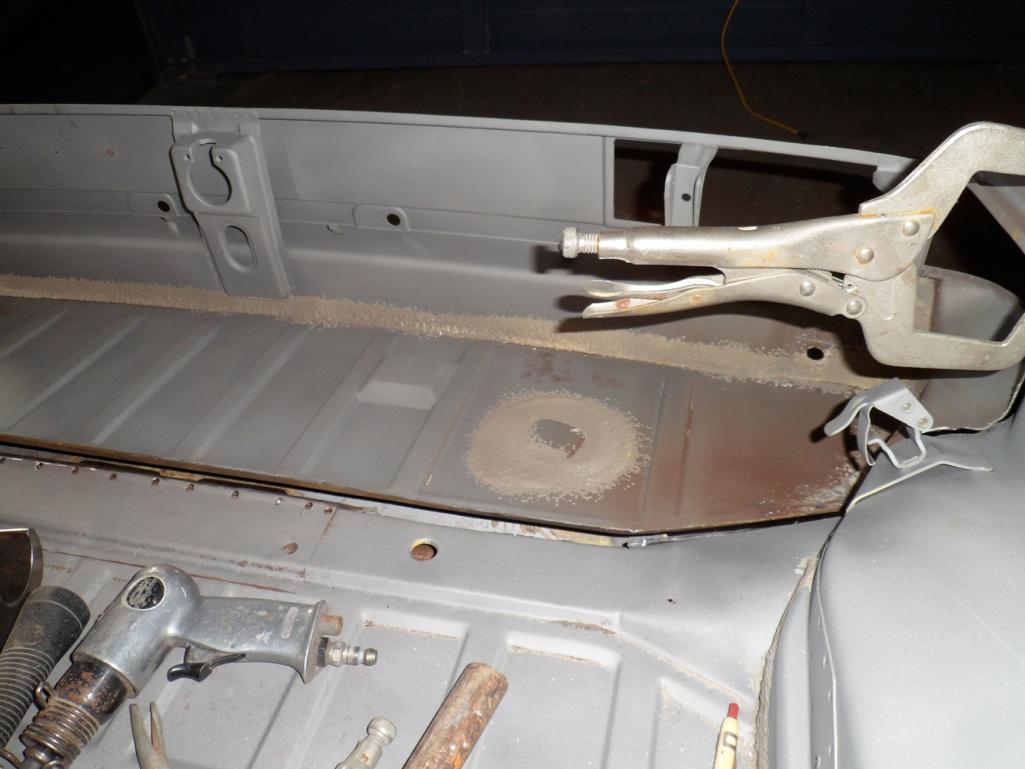

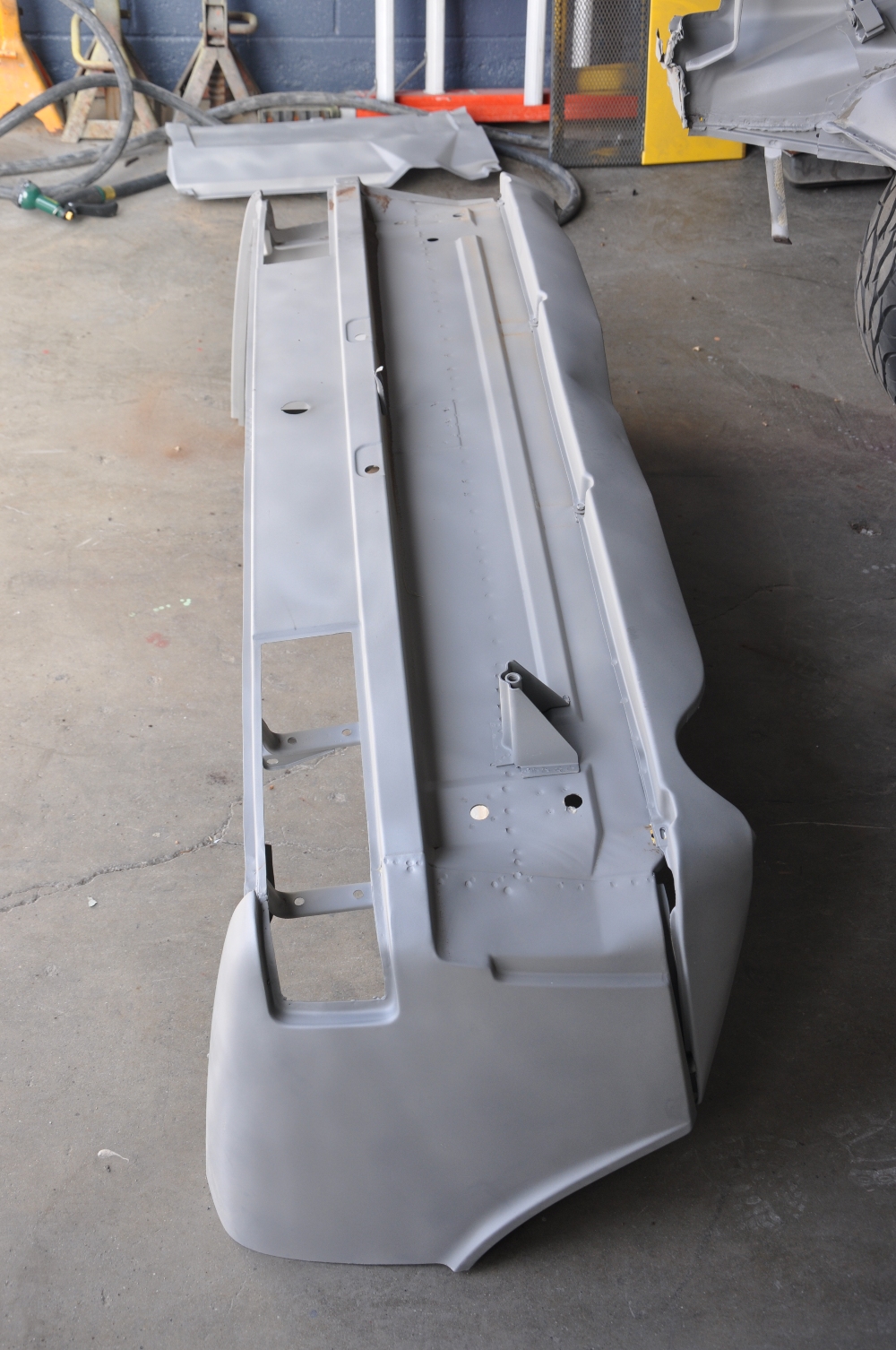

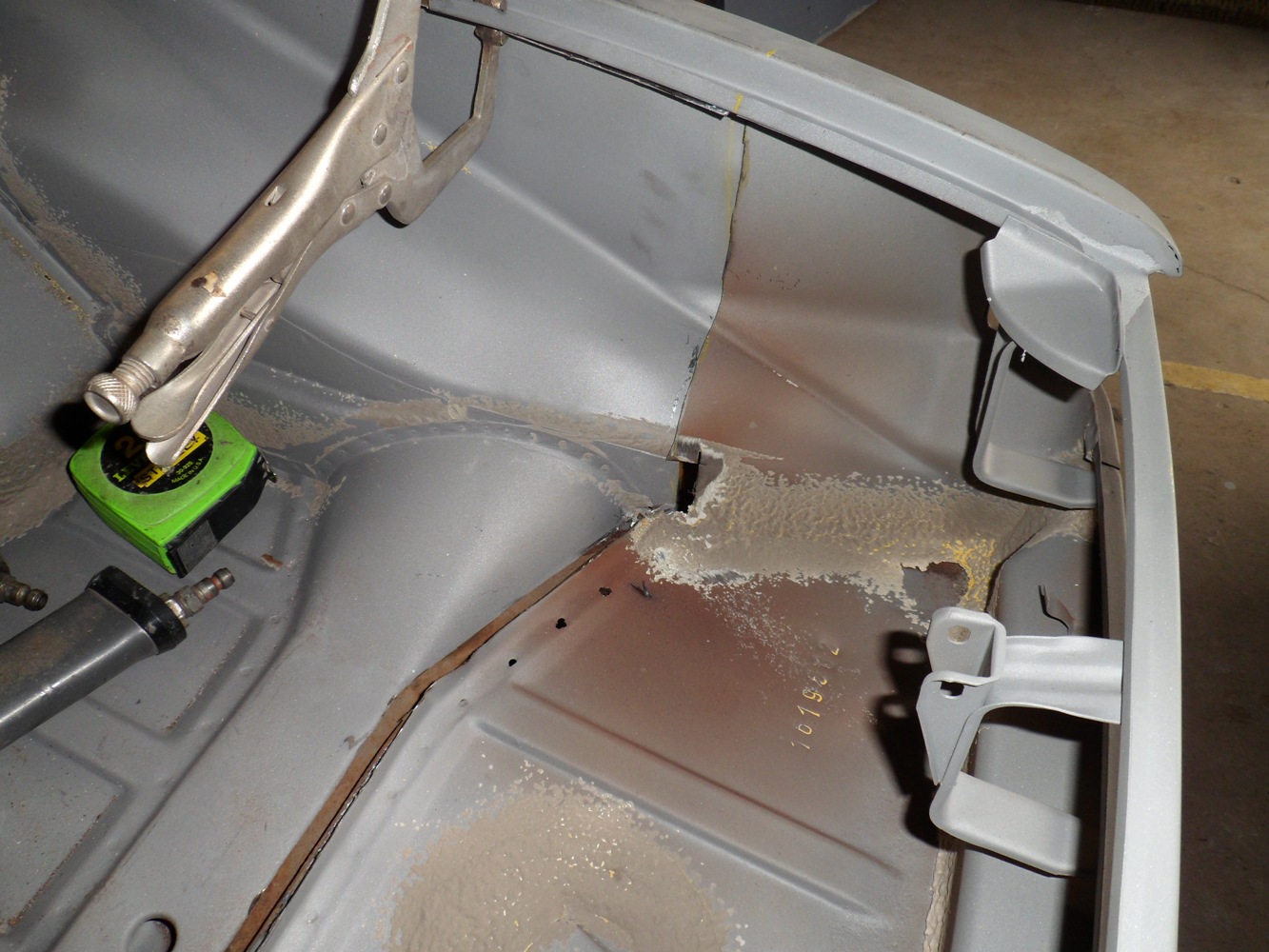

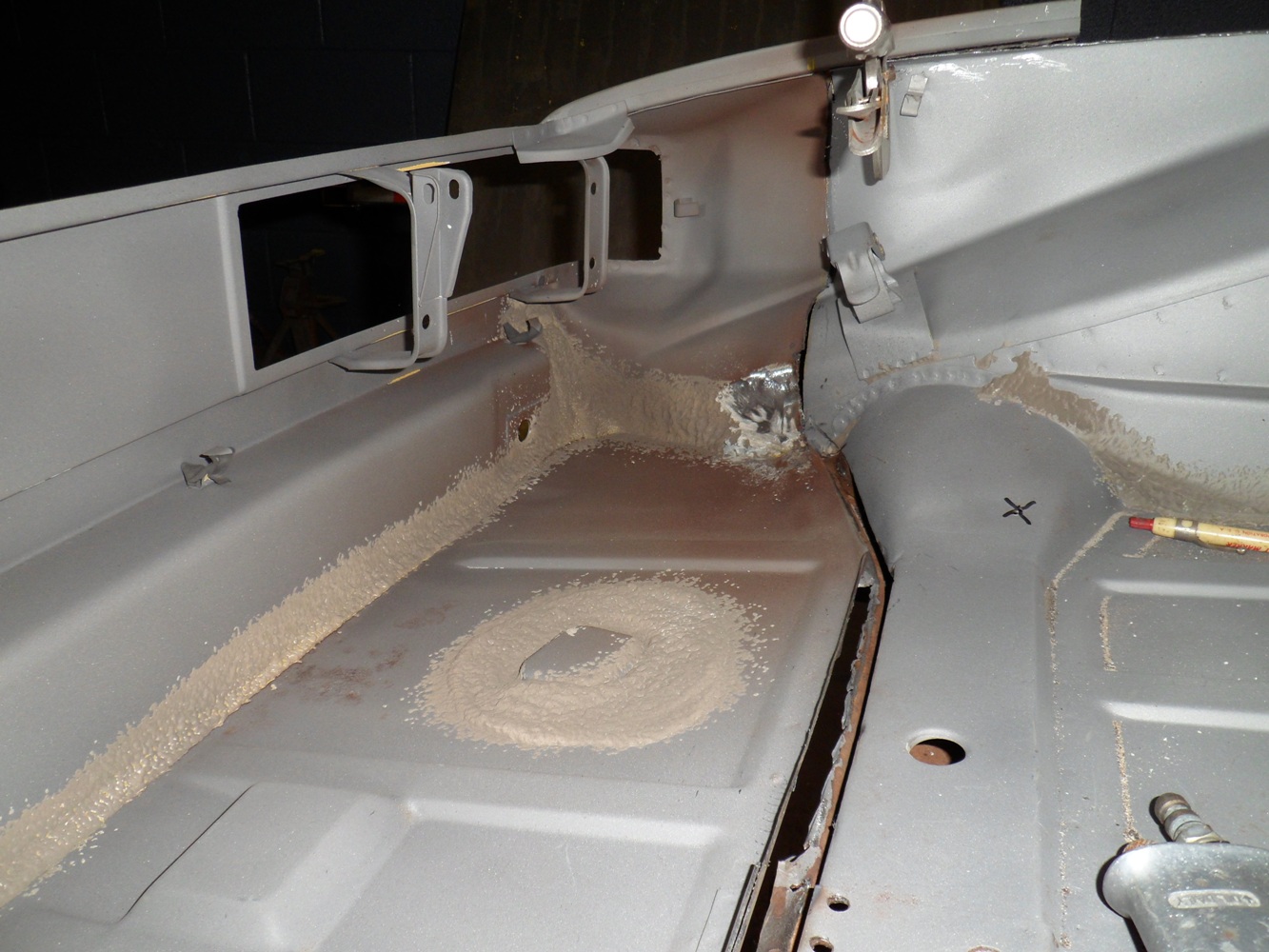

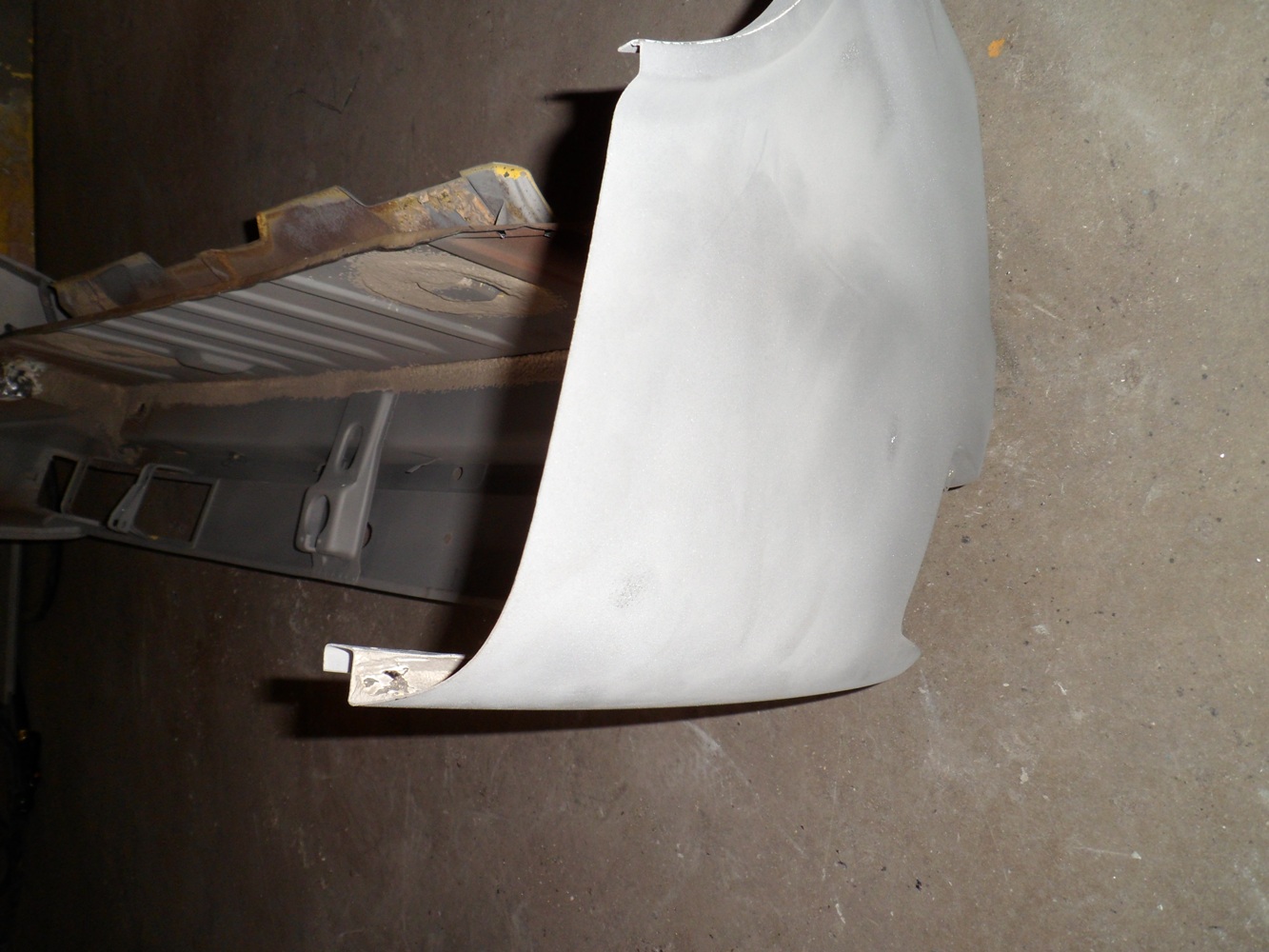

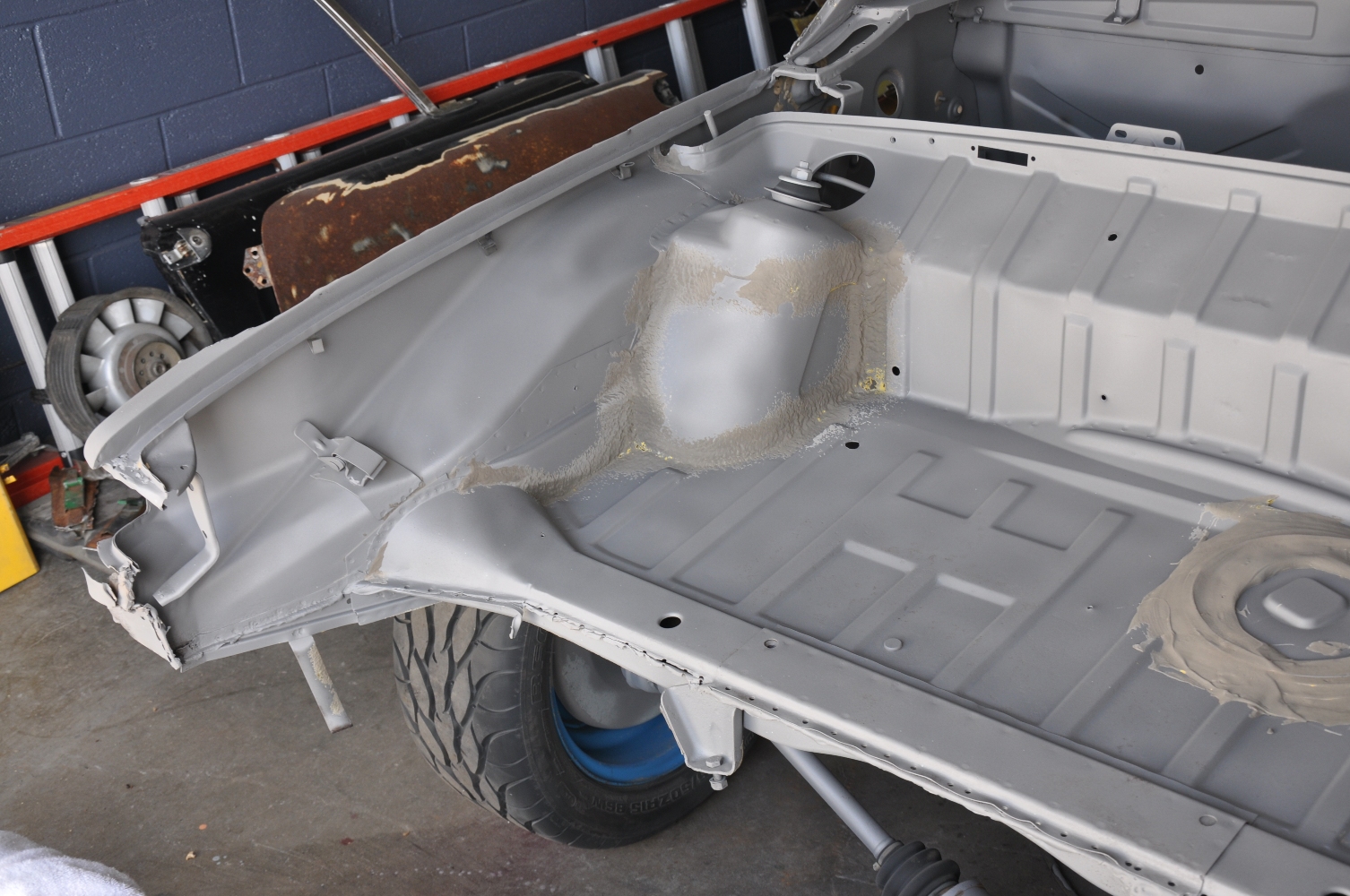

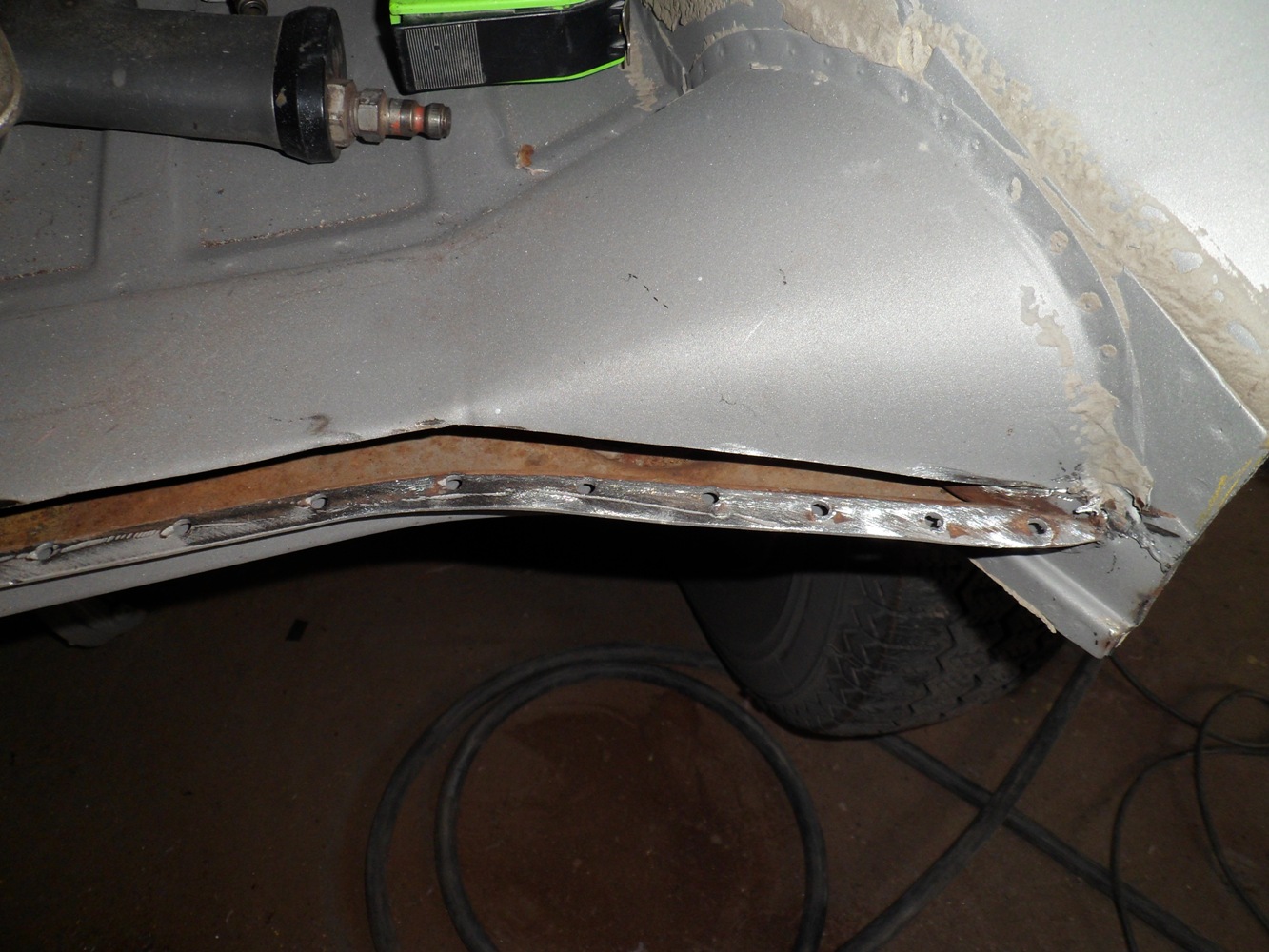

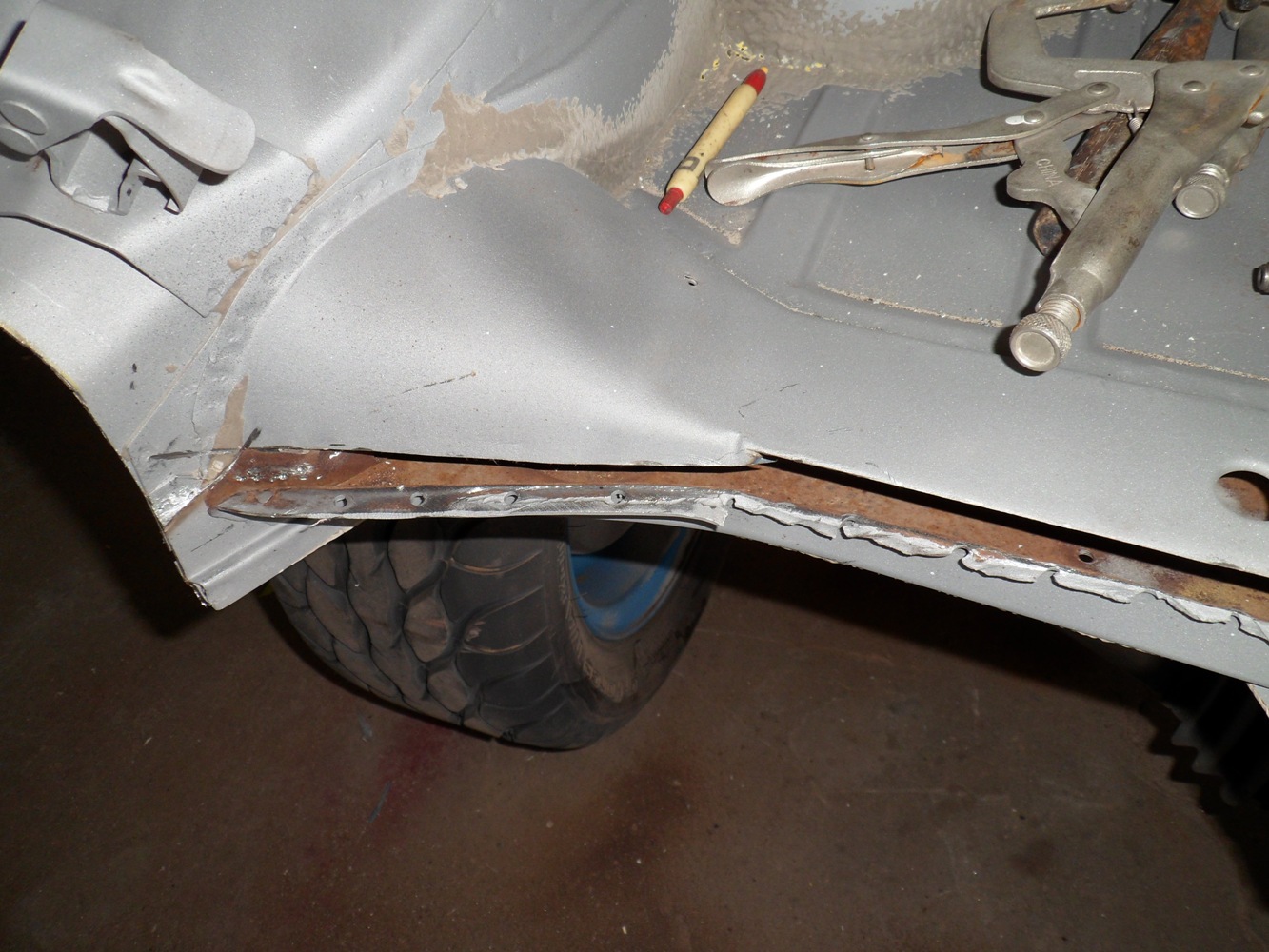

so trimming of the rear section for the donor parts begins.....


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Nov 19 2011, 07:38 PM
Post #179


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California
(IMG:style_emoticons/default/aktion035.gif)


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Nov 19 2011, 07:41 PM
Post #180


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California

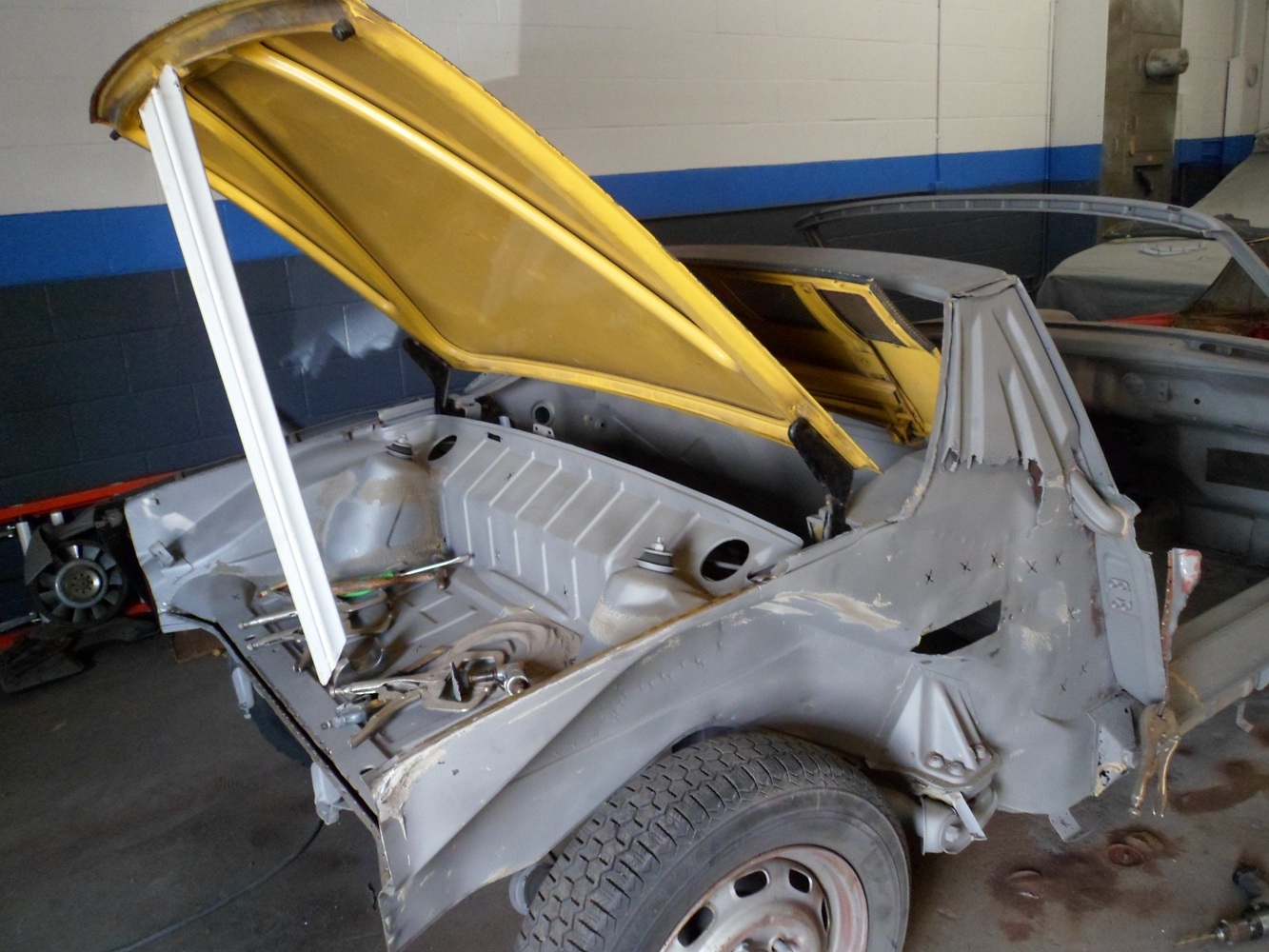

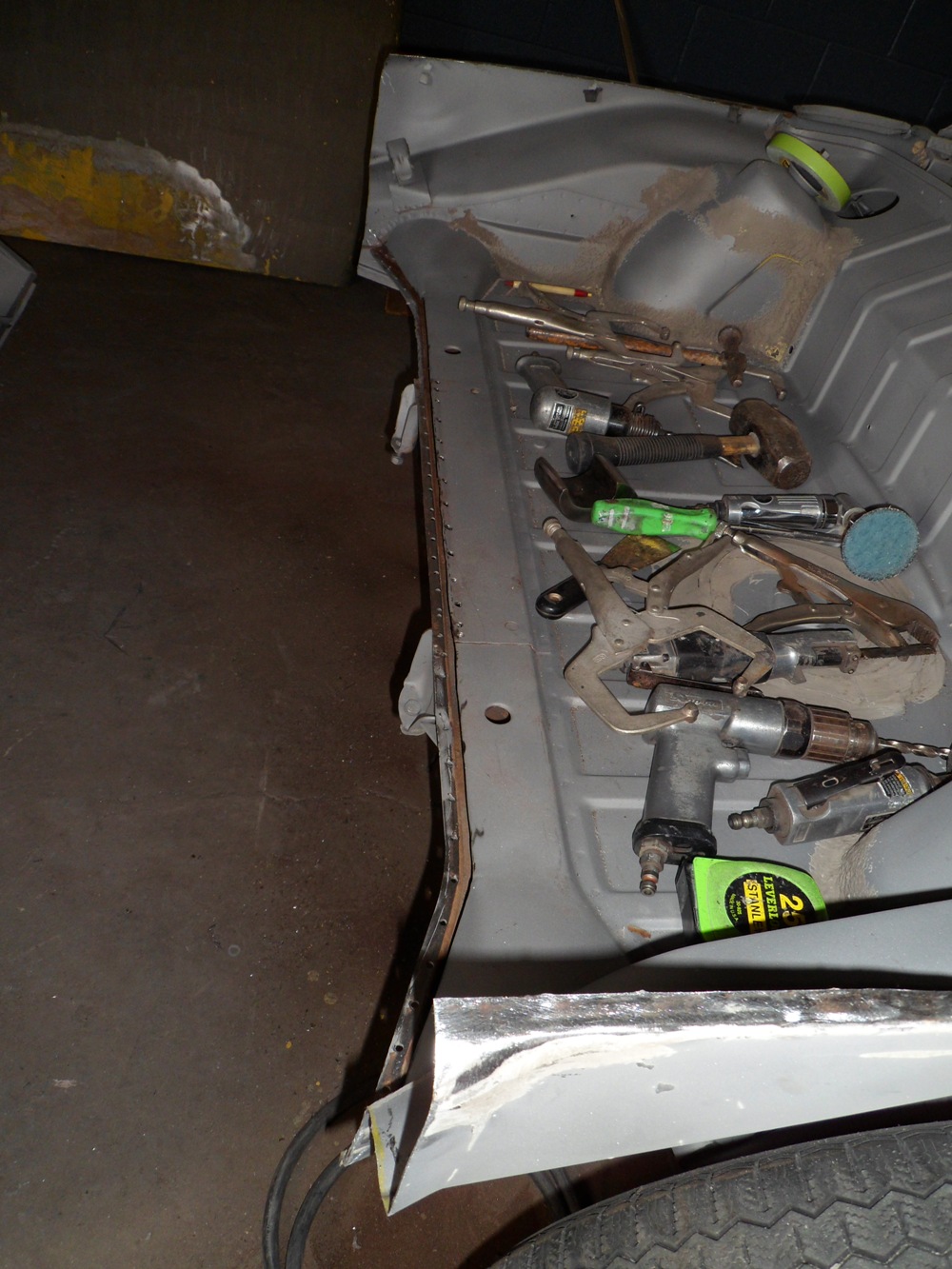

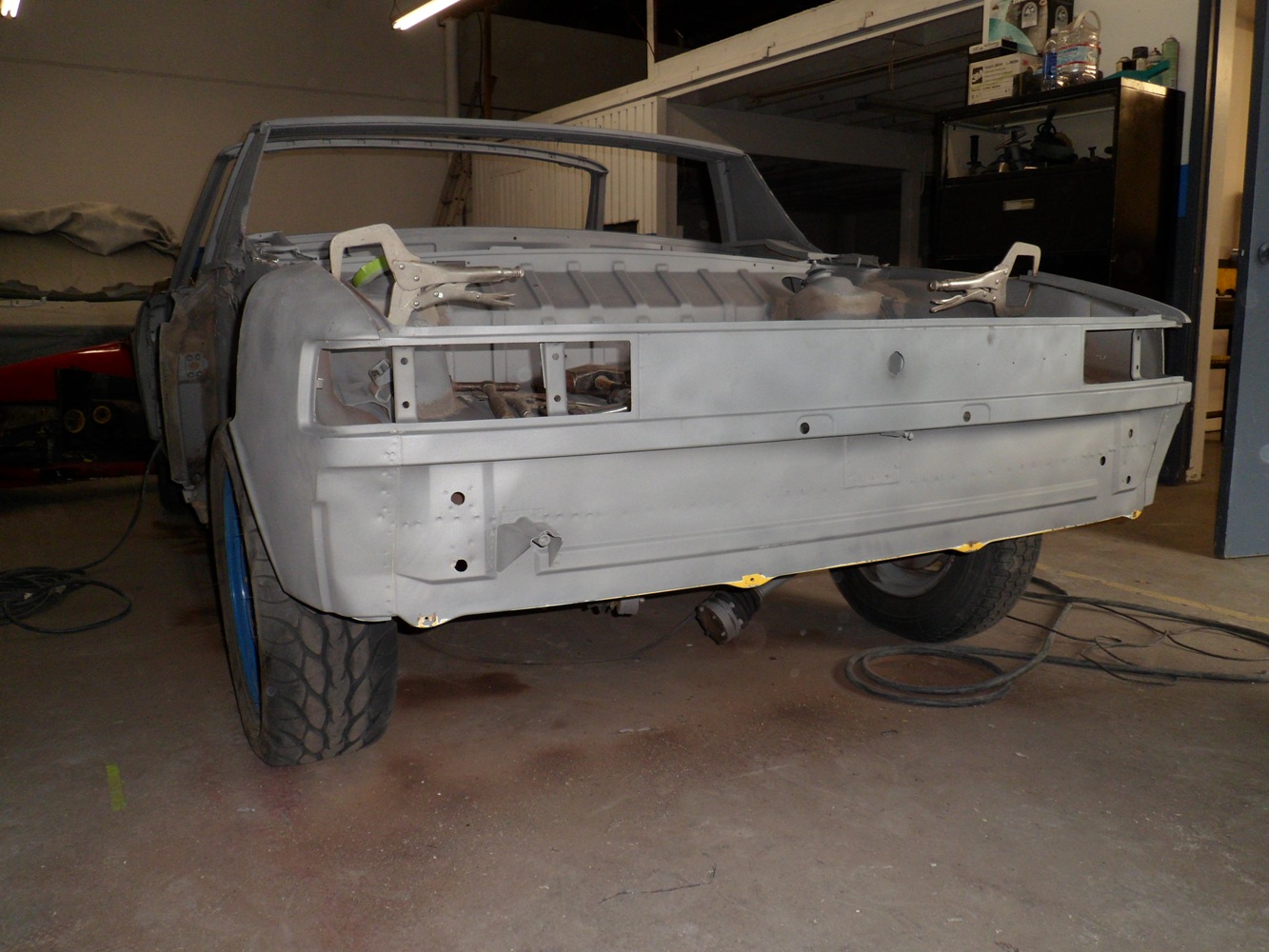

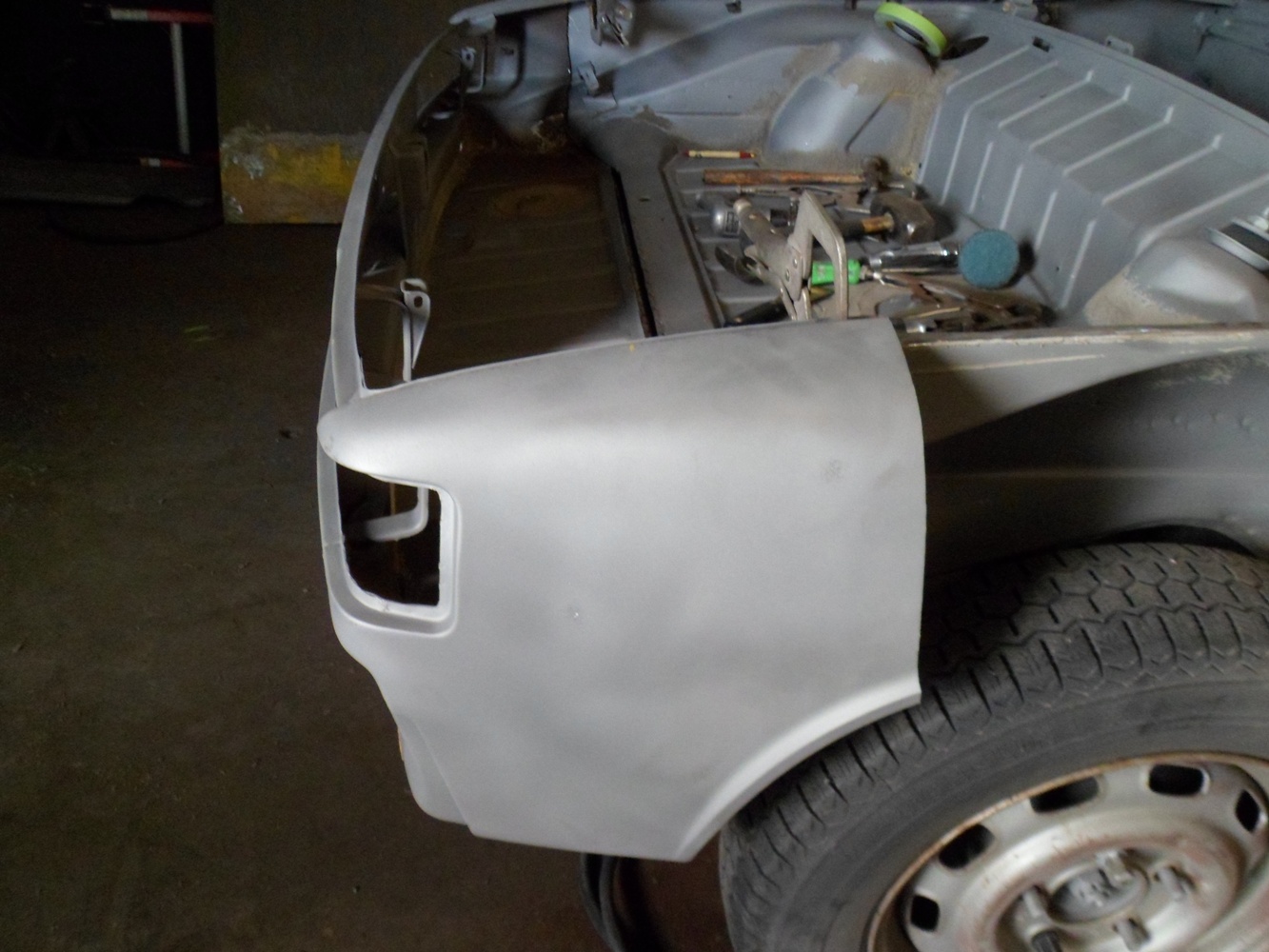

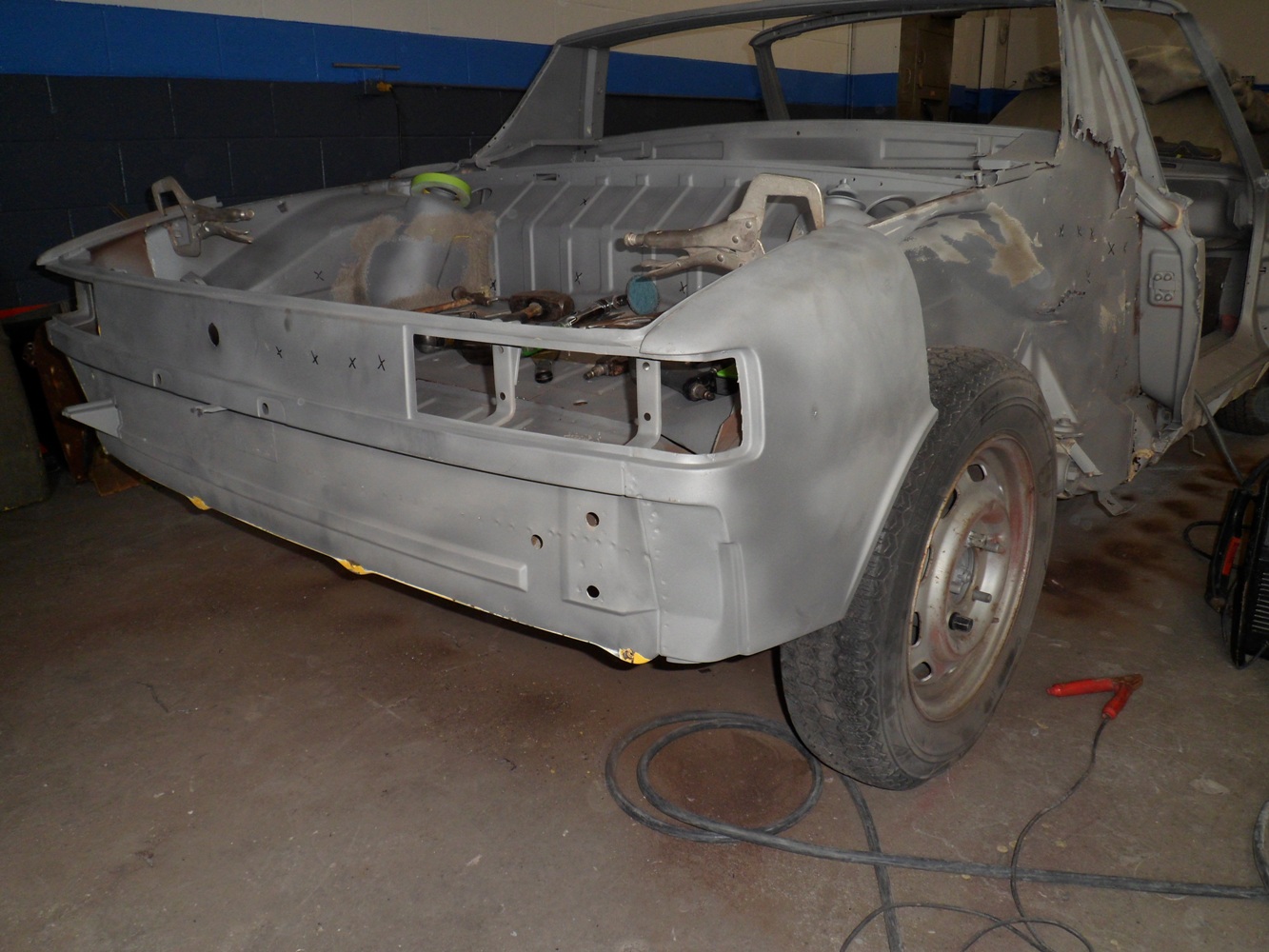

a bit more trimming and install the engine lid and deck lid for fit and alingment


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
