> My 914-6 project, That's a rap, Thanks Everyone!!!
Socalandy
post Nov 8 2009, 12:24 AM
Post #1


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California
(IMG:style_emoticons/default/piratenanner.gif) Well I placed a few orders for the car and they are coming in (IMG:style_emoticons/default/aktion035.gif)

New set of grills


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
56 Pages V « < 41 42 43 44 45 > »
 Reply to this topicStart new topic
Replies(840 - 859)
JmuRiz
post Aug 5 2013, 02:14 PM
Post #841


914 Guru
*****

Group: Members
Posts: 5,440
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
QUOTE(Socalandy @ Aug 5 2013, 08:20 AM) *

QUOTE(sbsix @ Aug 5 2013, 08:38 AM) *

Andy, what paint did you use on your rotors?



VHT 1850 deg. header paint

Good move, I will do the same on mine when my car comes back from the shop. My rotors have surface rust that makes the fancy parts look ugly.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Aug 5 2013, 03:12 PM
Post #842


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California
QUOTE(bulitt @ Aug 5 2013, 01:03 PM) *

Is this car going to a museum when finished? Auction?
Way too nice to drive! (IMG:style_emoticons/default/shades.gif)



Thanks for the great compliments!!! I plan on driving it a lot and fully enjoying it for many years and 914 events. (IMG:style_emoticons/default/driving.gif) The VHT header paint held up great on my 72 rotors and keeps the rust away.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Aug 10 2013, 12:42 AM
Post #843


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California

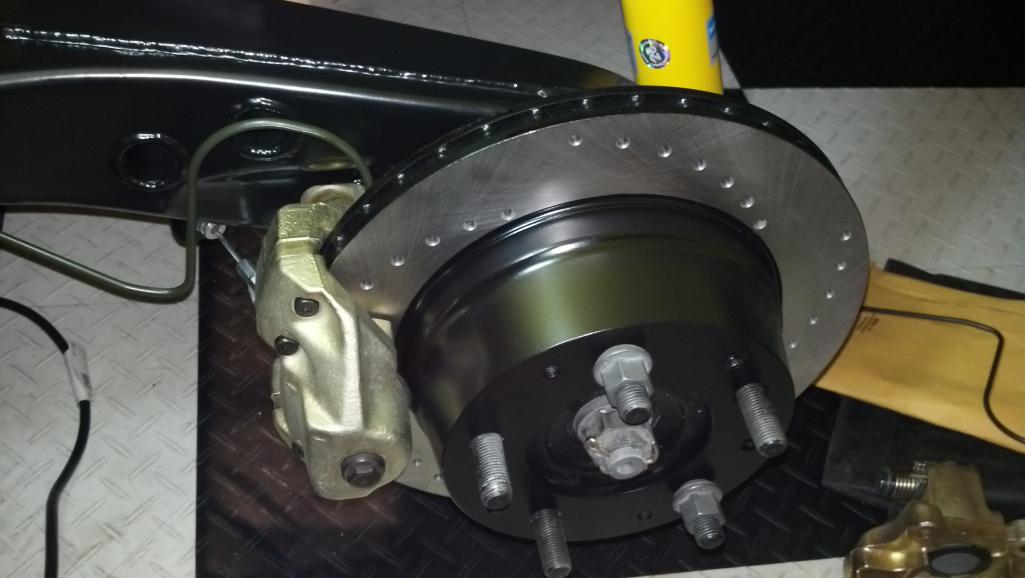

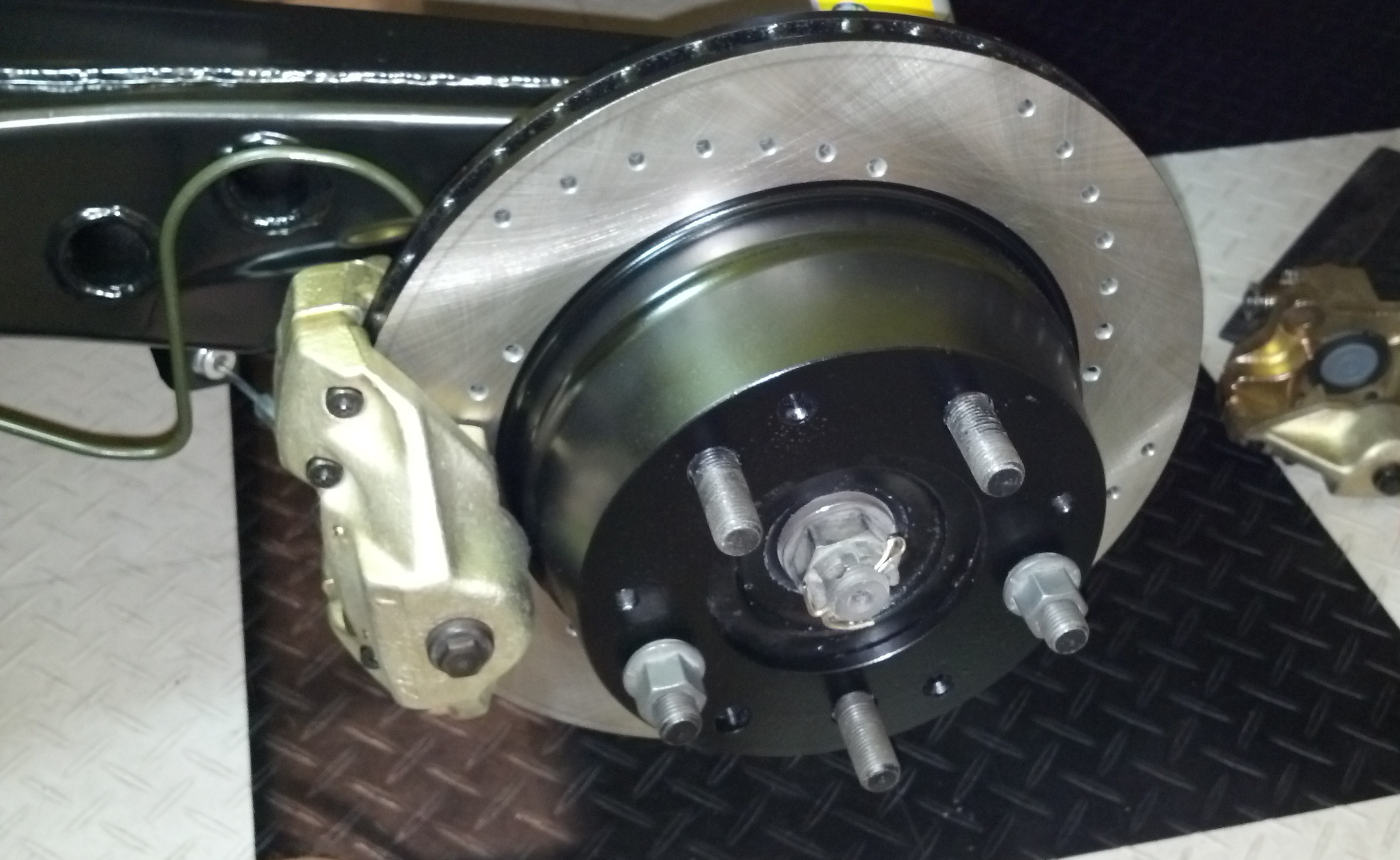

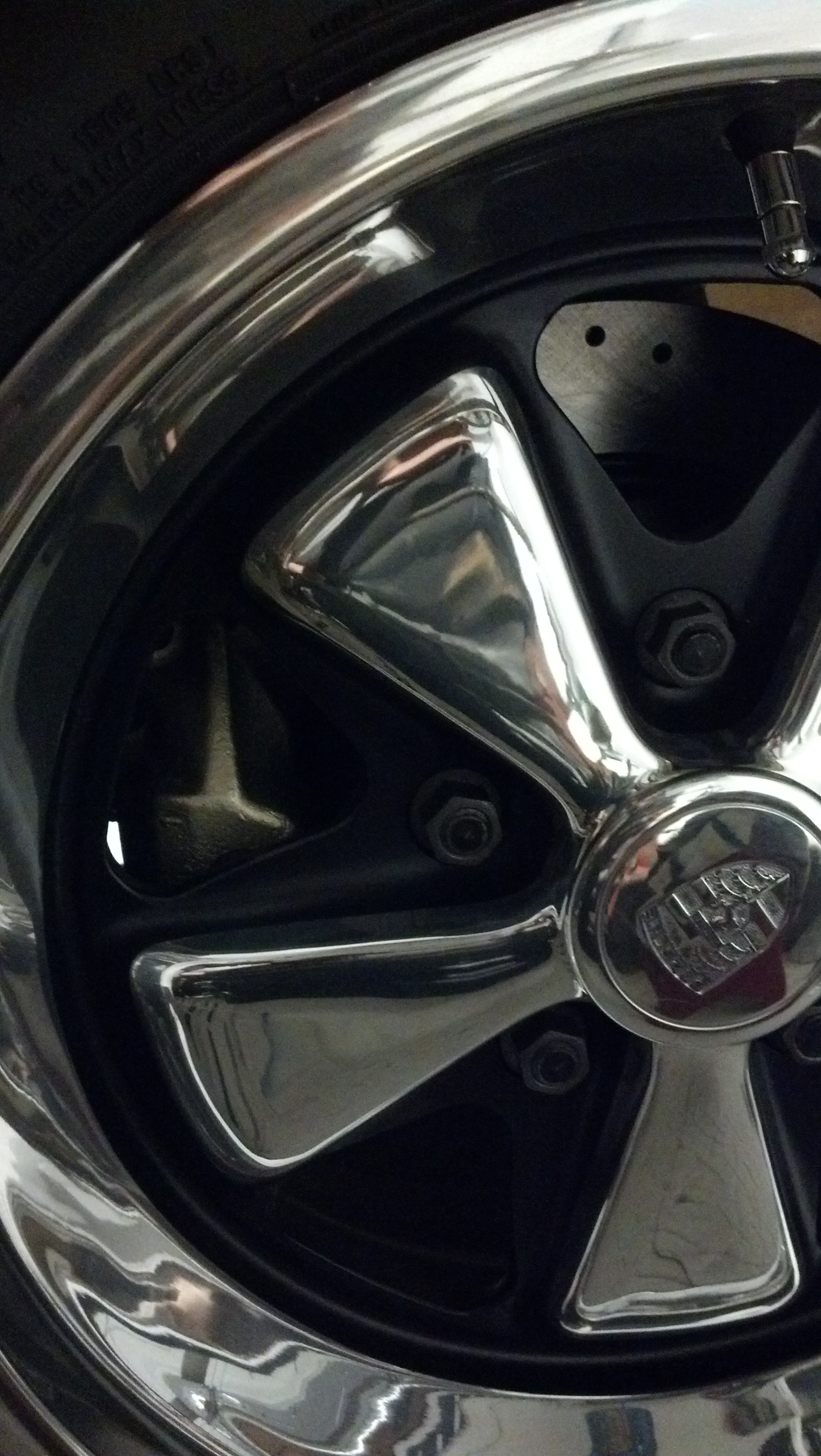

More bling from PMB installed!!! Got out to the garage after work and set the back spacing to center the calipers. Should have all the brakes done tomorrow and bleed the system (IMG:style_emoticons/default/biggrin.gif)



Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Aug 10 2013, 07:43 AM
Post #844


Apex killer!
***************

Group: Members
Posts: 23,628
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
Ooo! Ahh! (IMG:style_emoticons/default/evilgrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Aug 10 2013, 08:00 AM
Post #845


Michael
*****

Group: Members
Posts: 9,850
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Andy- Very nice. Did you grind down the trailing arm reinforcements for clearance for the GT calipers or did you space the rotor outward? My car will stay narrow-bodied so I can't afford to space the rotor outward.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Aug 10 2013, 09:53 AM
Post #846


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California
QUOTE(Cairo94507 @ Aug 10 2013, 07:00 AM) *

Andy- Very nice. Did you grind down the trailing arm reinforcements for clearance for the GT calipers or did you space the rotor outward? My car will stay narrow-bodied so I can't afford to space the rotor outward.


Thanks, I opted for the tube style reinforcement adding the two you see in the photo so I think your referring to the stock brake adjustment tube in the swing arm? I did grind the outside tube down per Eric Shea's recom. to clearance the caliper from the swing arm. It cleared (IMG:style_emoticons/default/piratenanner.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SLITS
post Aug 10 2013, 09:59 AM
Post #847


"This Utah shit is HARSH!"
**********

Group: Benefactors
Posts: 13,602
Joined: 22-February 04
From: SoCal Mountains ...
Member No.: 1,696
Region Association: None
Andy, I don't remember if your rear hubs are "hub centric" or not. If "hub centric", a 5 mm spacer under the caliper ears is necessary to center the rotor. They don't look "hub centric".

Forget it ... it's a stock six now that the grey cells have kicked in!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Aug 10 2013, 06:08 PM
Post #848


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California

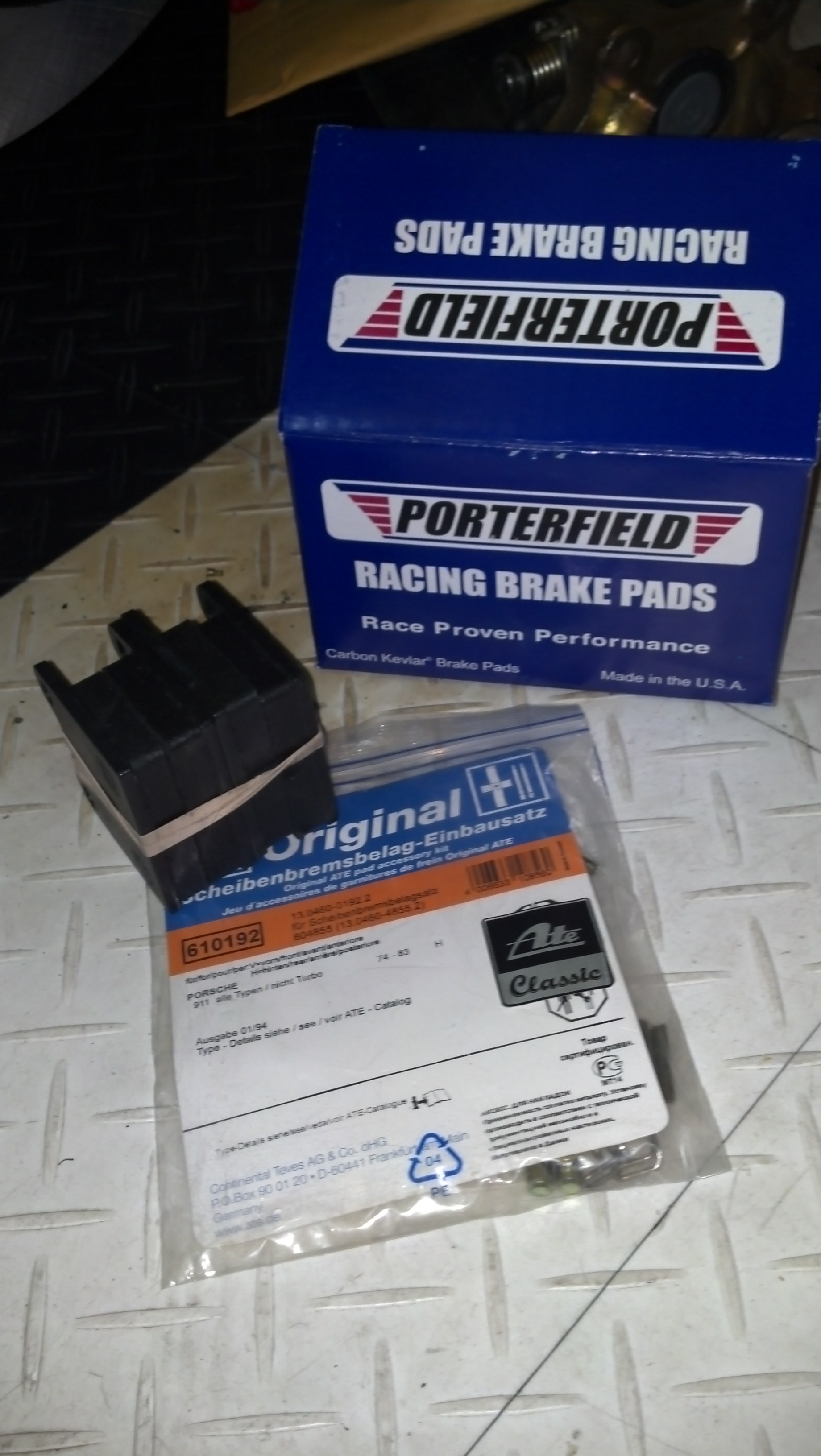

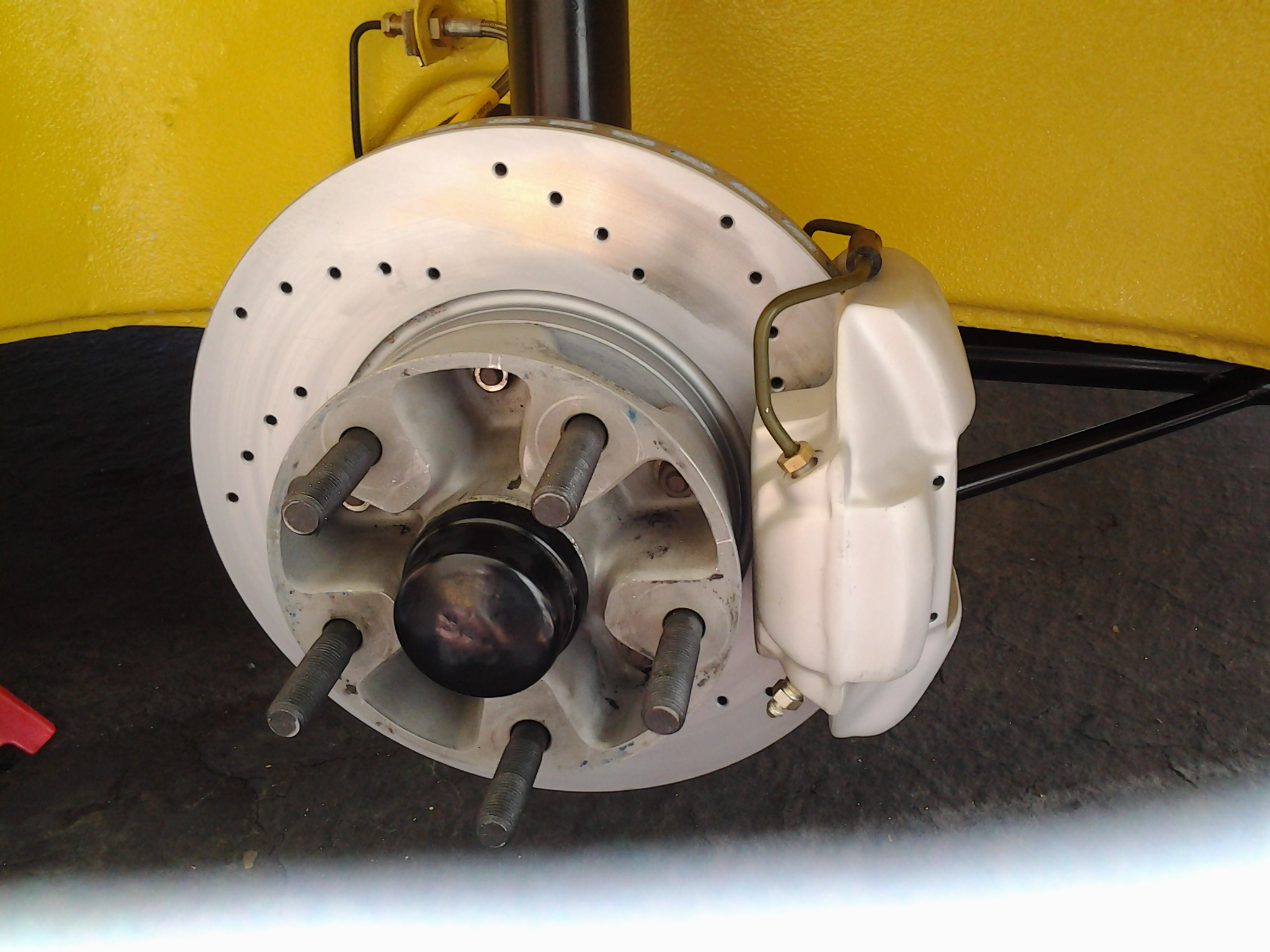

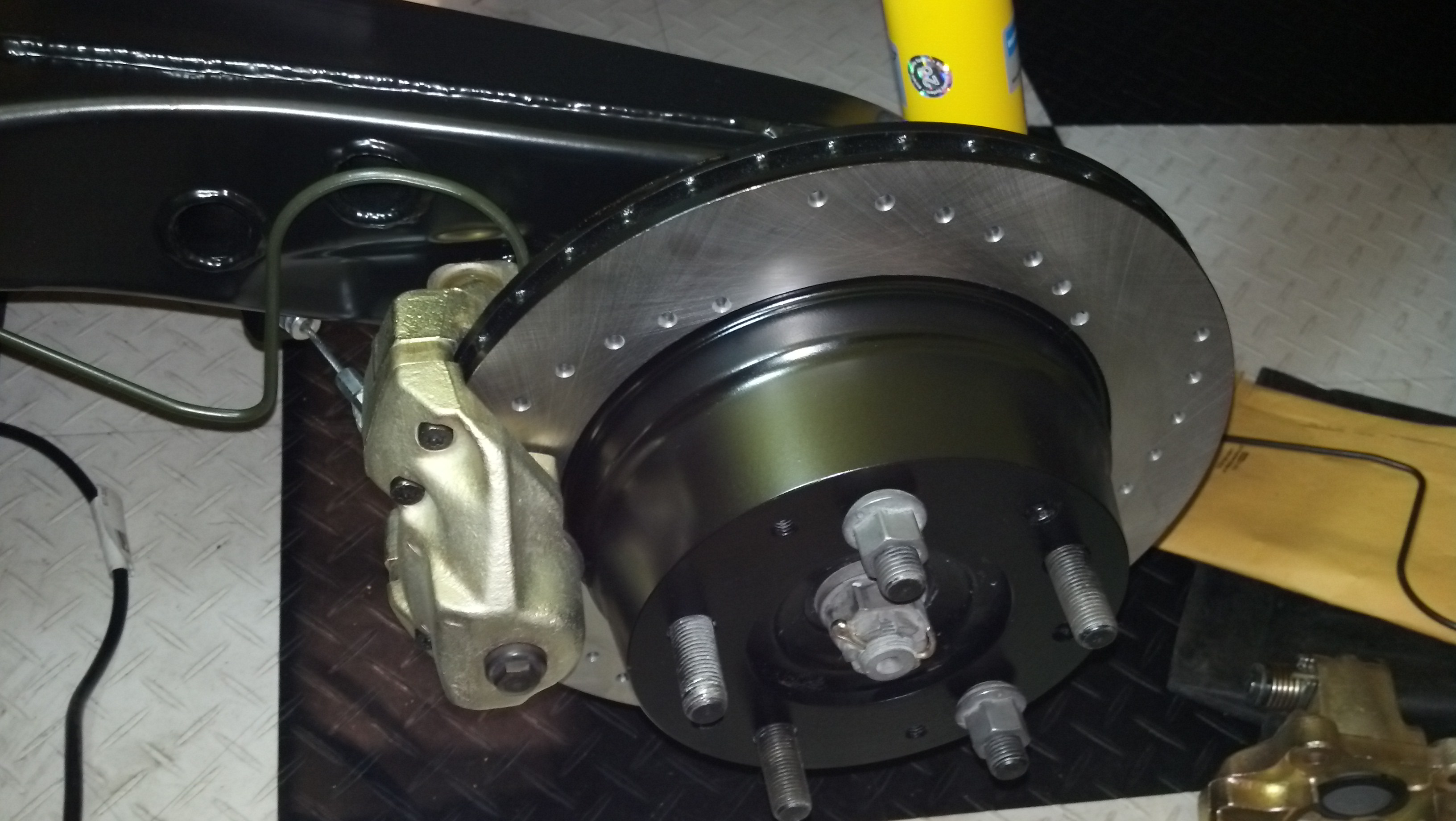

No problem Ron, I installed my calipers, lines,spacers and bolted the wheel on only to relize the pads didnt go in... (IMG:style_emoticons/default/blink.gif) But i did get all four corners done today (IMG:style_emoticons/default/biggrin.gif)


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Aug 10 2013, 06:27 PM
Post #849


Apex killer!
***************

Group: Members
Posts: 23,628
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
Bleeder on the bottom?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Aug 10 2013, 06:32 PM
Post #850


Apex killer!
***************

Group: Members
Posts: 23,628
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
Pretty sure the bleeder and line go on the inside. If the bleeder isn't on the top, how can the air get out?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Aug 10 2013, 09:47 PM
Post #851


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California

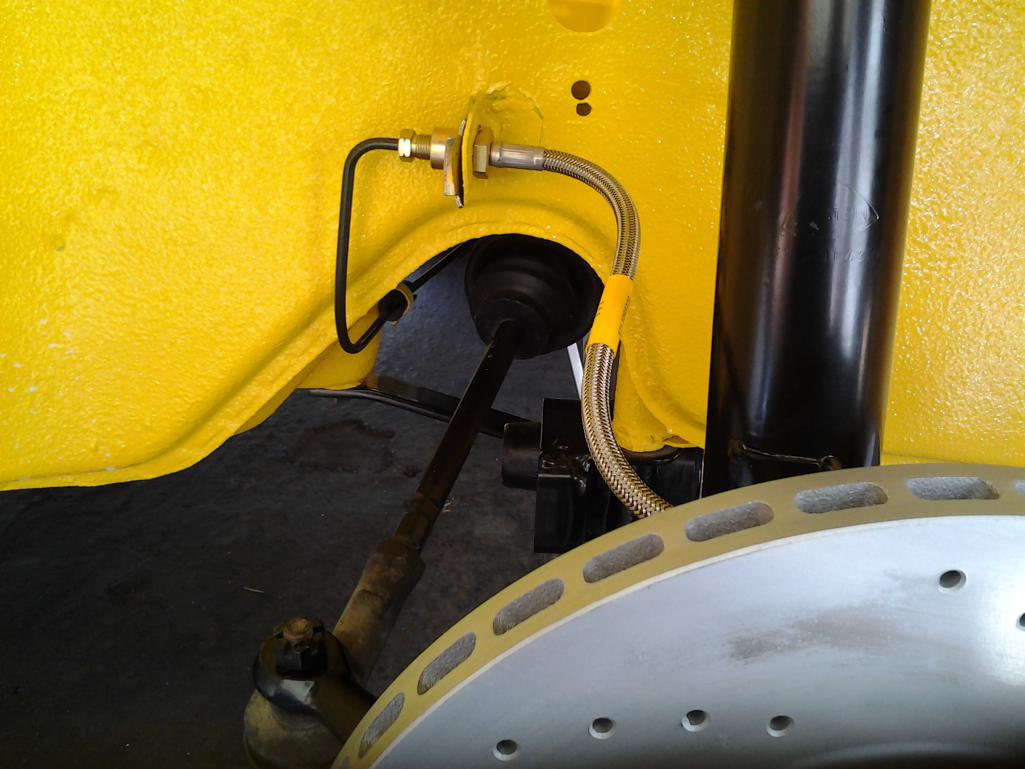

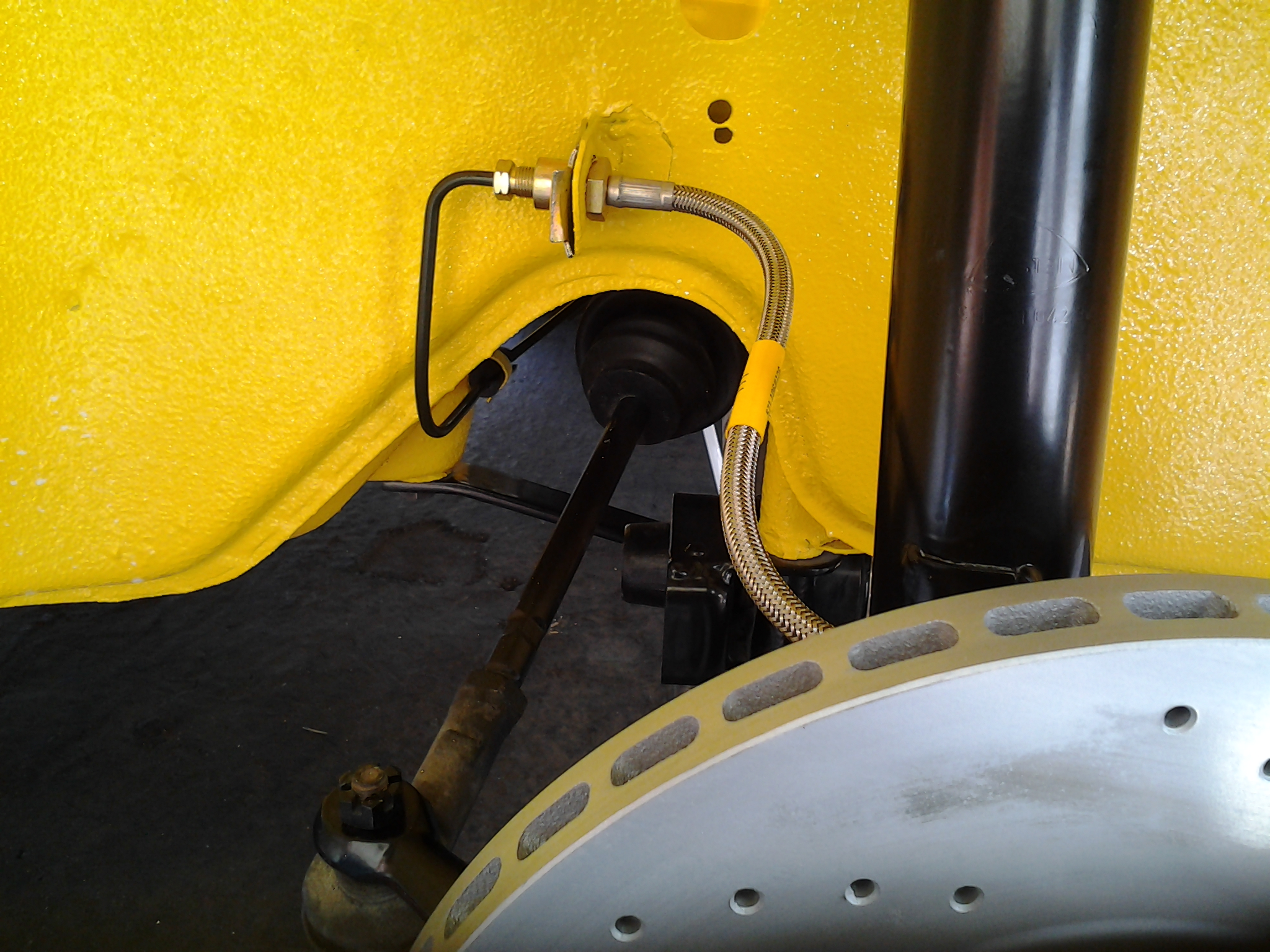

Yeah, this was the first side and right after I realized the dust shields were not correct for S calipers and took the rotors off and deleted the shields. I did notice it was the drivers side and both bleeders are on top.

I had a few steps backwards today but got it done less the proportioning valve and bleeding


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
badm
post Aug 11 2013, 08:25 AM
Post #852


Member
**

Group: Members
Posts: 213
Joined: 10-May 09
From: Cape Cod Taxachusetts
Member No.: 10,350
Region Association: North East States
Wow! I have been away from the World for the last year and just spent the last 20 min on your thread. Having gone through some of the same process it's amazing to see it in pictures. Your quality of work is amazing and trust me in the end it will all be worth the trouble and time. My GT took 5 years and I never thought it wold be done. Badm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Aug 11 2013, 09:26 AM
Post #853


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Lookin good! (IMG:style_emoticons/default/thumb3d.gif)

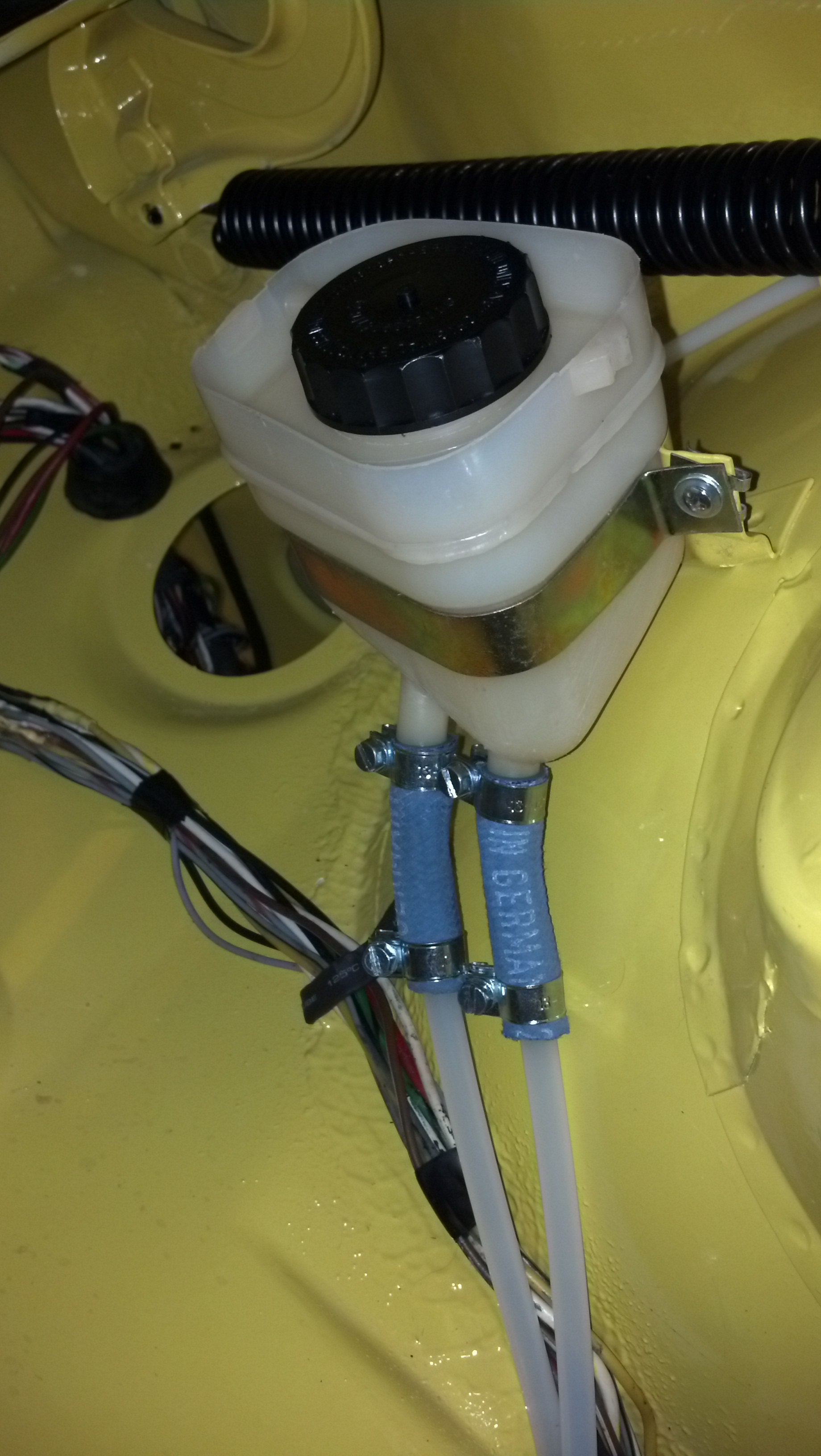

You don't need clamps on the reservoir blue lines. No pressure there.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pete000
post Aug 11 2013, 10:59 AM
Post #854


Senior Member
***

Group: Members
Posts: 1,885
Joined: 23-August 10
From: Bradenton Florida
Member No.: 12,094
Region Association: South East States
QUOTE(McMark @ Aug 11 2013, 08:26 AM) *


You don't need clamps on the reservoir blue lines. No pressure there.



Did the 914's 6 and 4's come from the factory clamp less?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 11 2013, 11:58 AM
Post #855


914-6 GT in waiting
***************

Group: Members
Posts: 19,332
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(pete000 @ Aug 11 2013, 12:59 PM) *

QUOTE(McMark @ Aug 11 2013, 08:26 AM) *


You don't need clamps on the reservoir blue lines. No pressure there.



Did the 914's 6 and 4's come from the factory clamp less?


Maybe overkill but maybe not a bad idea to insure the lines never come loose and drip fluid on the paint.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Aug 11 2013, 06:12 PM
Post #856


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California
QUOTE(pete000 @ Aug 11 2013, 09:59 AM) *

QUOTE(McMark @ Aug 11 2013, 08:26 AM) *


You don't need clamps on the reservoir blue lines. No pressure there.



Did the 914's 6 and 4's come from the factory clamp less?

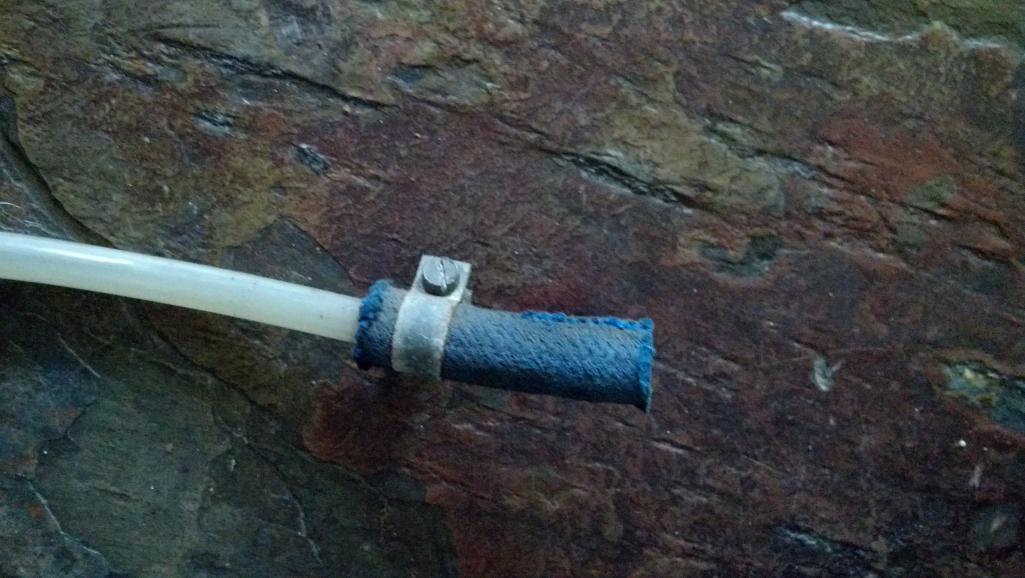

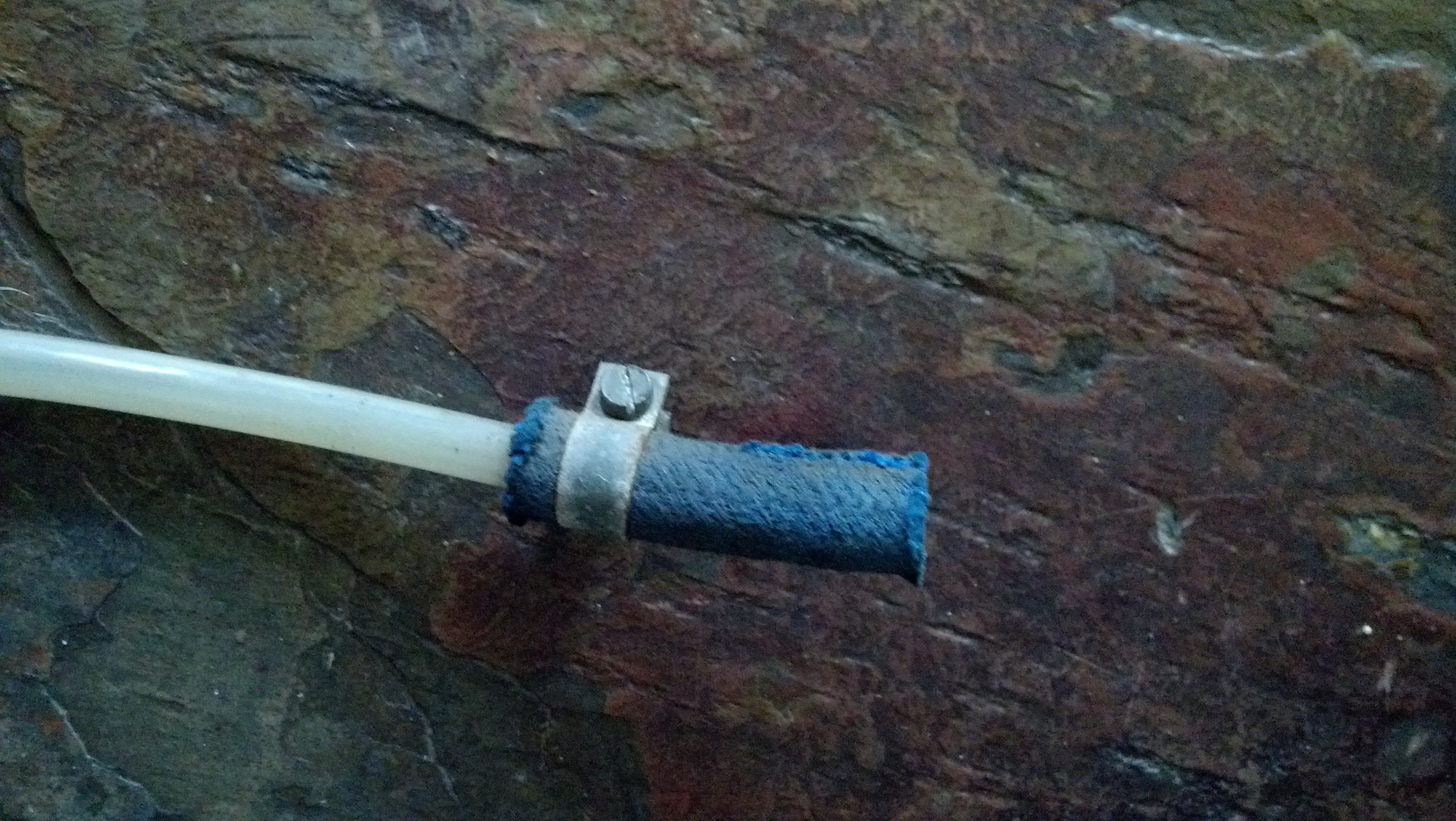

This is the original line and it had claps on each hose? Not to say a PO had done it but it's the way it was when I got the car. (IMG:style_emoticons/default/confused24.gif)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bigkensteele
post Aug 11 2013, 07:06 PM
Post #857


Major Member
****

Group: Members
Posts: 2,197
Joined: 30-August 04
From: Cincinnati, OH
Member No.: 2,660
Region Association: South East States
I don't disagree with Mark, but nobody ever lost their braking when they really needed it by clamping a hose that didn't technically need to be clamped. Mine appear to be clamped from the factory as well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bigkensteele
post Aug 11 2013, 08:07 PM
Post #858


Major Member
****

Group: Members
Posts: 2,197
Joined: 30-August 04
From: Cincinnati, OH
Member No.: 2,660
Region Association: South East States
Doh! Double post.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Sleepin
post Aug 20 2013, 04:00 PM
Post #859


Advanced Member
****

Group: Members
Posts: 3,647
Joined: 20-November 07
From: Grand Junction, Co.
Member No.: 8,357
Region Association: Rocky Mountains
Nice Andy! Any Updates?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Socalandy
post Aug 21 2013, 09:37 AM
Post #860


Its got to be Yellow!!!
****

Group: Members
Posts: 2,432
Joined: 29-August 09
From: Orange
Member No.: 10,742
Region Association: Southern California
QUOTE(Sleepin @ Aug 20 2013, 03:00 PM) *

Nice Andy! Any Updates?


Sadly No (IMG:style_emoticons/default/sad.gif) Work has been crazy and the car wont be ready for RRC this year. I'm not going to rush it and then make that drive to CO. my shake down test. I'll still be in the garage this weekend getting things done!!!
