 The Few, the rare......, As delivered, no resto, no repaint - show 'em! |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
Model Specific Information
914/4: 70 71 72 73 74 75 76 914/6: 70 71 72
  |
| MDG |
 Dec 8 2009, 06:33 AM
Post
#41
|
|
Wolf in wolf's clothing.  Group: Members Posts: 8,652 Joined: 3-February 09 From: Toronto Member No.: 10,018 Region Association: None  |
Thanks! It's like being transported back to a showroom in 1973.
One question; was there any issues left behind on the paint when you swapped back from those aftermarket side mirrors? mike |
   |

|
| dcheek |
Dec 8 2009, 09:12 AM
Post
#42
|
|
Senior Member Group: Members Posts: 692 Joined: 30-May 06 From: Westfield, New Jersey Member No.: 6,103 |
Steve,
What a car! What a find. And the paint to sample color, yikes! I tried to order my car with a custom color but it was too late. The production was already over for the entire 914 series. I wanted a dark metallic brown with tan interior. So I went with the Malaga Red with Tan interior. When I went to take delivery, the interior was black?? Oops, they made a mistake and tan was not to be found that late in the model year. It was either a black interior or a 924. Ultimately, I think I made the right decision. Here is me and my 914 at the staging area for the Original Owners Display at the 2005, 50th Anniversary Porsche Parade. It was great seeing you there. Dave  |
|
|
|
| 6freak |
Dec 8 2009, 09:24 AM
Post
#43
|
|
MR.C Group: Members Posts: 4,740 Joined: 19-March 08 From: Tacoma WA Member No.: 8,829 Region Association: Pacific Northwest |
WOW (IMG:style_emoticons/default/smilie_pokal.gif) ...Are you missing the cover over the brake fluid reservoir..maybe they didnt come with that year car ....Again WOW
|
|
|
|
| tod914 |
Dec 8 2009, 09:33 AM
Post
#44
|
|
Advanced Member Group: Members Posts: 3,755 Joined: 19-January 03 From: Lincoln Park, NJ Member No.: 170 |
Dave you car is equally as nice. I drool everytime I see it. But far enough away so I don't drip on it.
|
|
|
|
| smg914 |
Dec 8 2009, 09:50 AM
Post
#45
|
|
Sahara Beige Steve Group: Members Posts: 1,969 Joined: 22-February 04 From: Tampa, FL Member No.: 1,695 Region Association: None  |
Thanks to everyone that expressed positive comments. I'm not sure where to stop. I will add more photos and details but I don't want to hold up Dave C. from getting started with his car.
Mike, the original owner handed me a box that contained the original factory mirrors. For some reason, he didn't like the way they looked. I can't tell you how happy I was to find that Charles was smart enough to use the original factory holes to install the Vitaloni Tornado Mirrors. All I had to do was just unscrew the Vitaloni's and install the originals. I sold the Vitaloni's on ebay to a Ferrari guy for quite a bit of money. For some reason my camera is beginning to screw up. This has been happening a lot lately. Some photos come out unrecognizable, all blurred. A few photos of the engine compartment. Please keep in mind that I haven't cleaned these areas since the 2003 Parade. Note the factory original "RED" vacuum hoses. I soaked/washed them in wool-lite in the kitchen sink (don't tell my wife) and they turned out looking like new. Also note the original valve adjustment sticker on the left front of the engine tin and the original factory emission stickers on the left side of the body and the correct yellow tape on the voltage regulator. Attached image(s)
|
|
|
|
| smg914 |
Dec 8 2009, 09:56 AM
Post
#46
|
|
Sahara Beige Steve Group: Members Posts: 1,969 Joined: 22-February 04 From: Tampa, FL Member No.: 1,695 Region Association: None |
QUOTE(6freak @ Dec 8 2009, 07:24 AM)  WOW (IMG:style_emoticons/default/smilie_pokal.gif) ...Are you missing the cover over the brake fluid reservoir..maybe they didnt come with that year car ....Again WOW That was an aftermarket thing. Functional but not original. |
|
|
|
| smg914 |
Dec 8 2009, 10:04 AM
Post
#47
|
|
Sahara Beige Steve Group: Members Posts: 1,969 Joined: 22-February 04 From: Tampa, FL Member No.: 1,695 Region Association: None |
QUOTE(dcheek @ Dec 8 2009, 07:12 AM) Steve, What a car! What a find. And the paint to sample color, yikes! I tried to order my car with a custom color but it was too late. The production was already over for the entire 914 series. I wanted a dark metallic brown with tan interior. So I went with the Malaga Red with Tan interior. When I went to take delivery, the interior was black?? Oops, they made a mistake and tan was not to be found that late in the model year. It was either a black interior or a 924. Ultimately, I think I made the right decision. Here is me and my 914 at the staging area for the Original Owners Display at the 2005, 50th Anniversary Porsche Parade. It was great seeing you there. Dave A lot of people don't know that Dave and I have know each other since the 1970's when we were both NNJR members. It sure is great seeing you again and seeing your beyond excellant 914 is still as nice as it was back in the day. I look forward to seeing and reading about your 914. I recently talked to Joe Reid on the phone for well over an hour. |
|
|
|
| smg914 |
Dec 8 2009, 10:14 AM
Post
#48
|
|
Sahara Beige Steve Group: Members Posts: 1,969 Joined: 22-February 04 From: Tampa, FL Member No.: 1,695 Region Association: None |

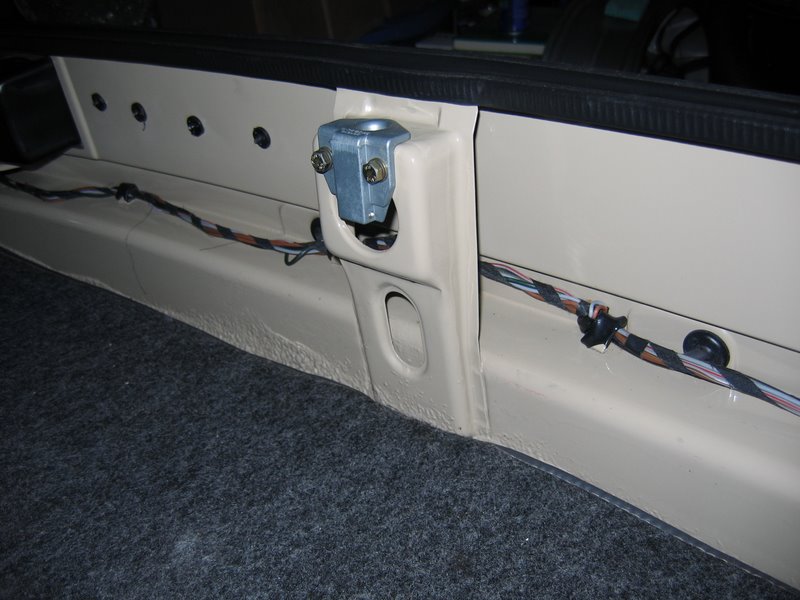

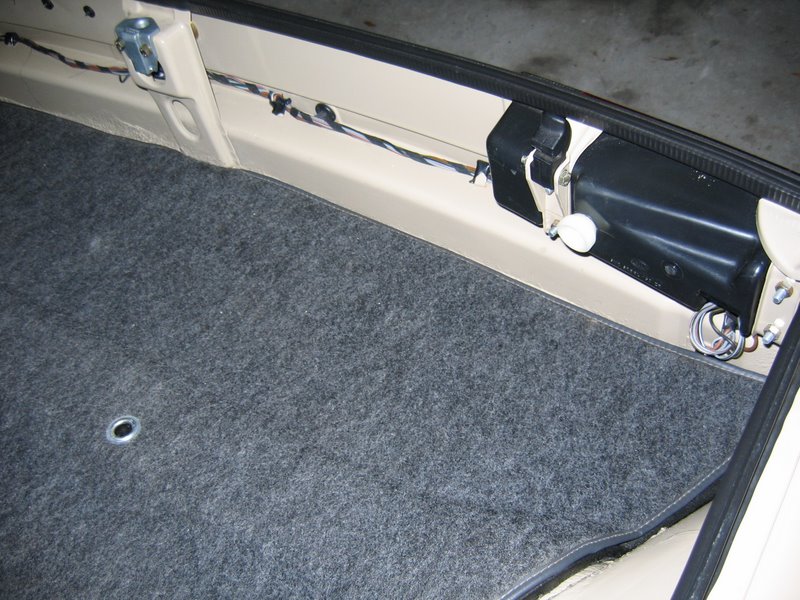

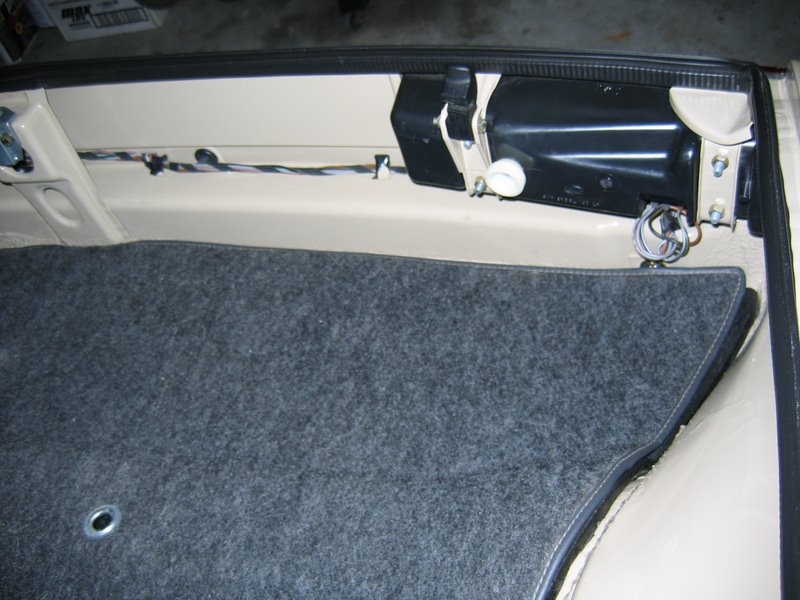

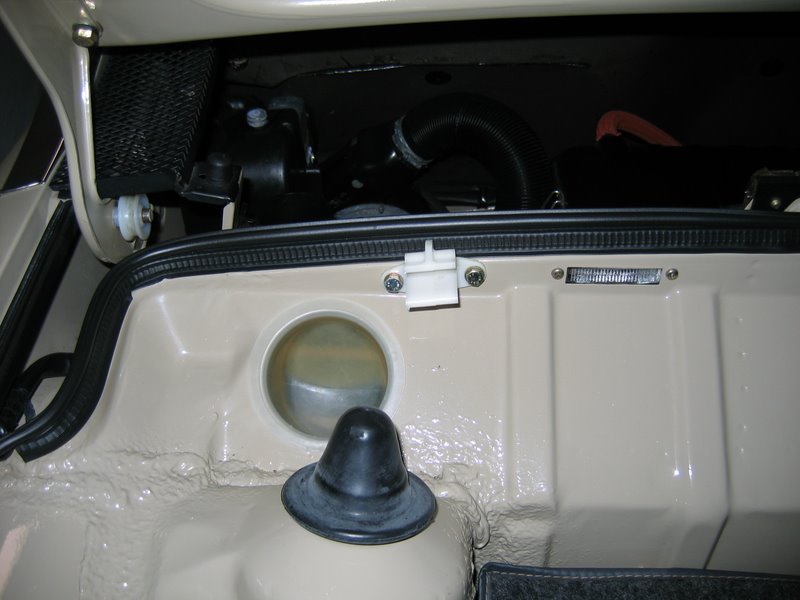

Rear trunk showing nice original cab plaiting on the nuts and bolts and original gauze type wrapping around the wiring harness.
Attached image(s)
|
|
|
|
| smg914 |
Dec 8 2009, 10:18 AM
Post
#49
|
|
Sahara Beige Steve Group: Members Posts: 1,969 Joined: 22-February 04 From: Tampa, FL Member No.: 1,695 Region Association: None |

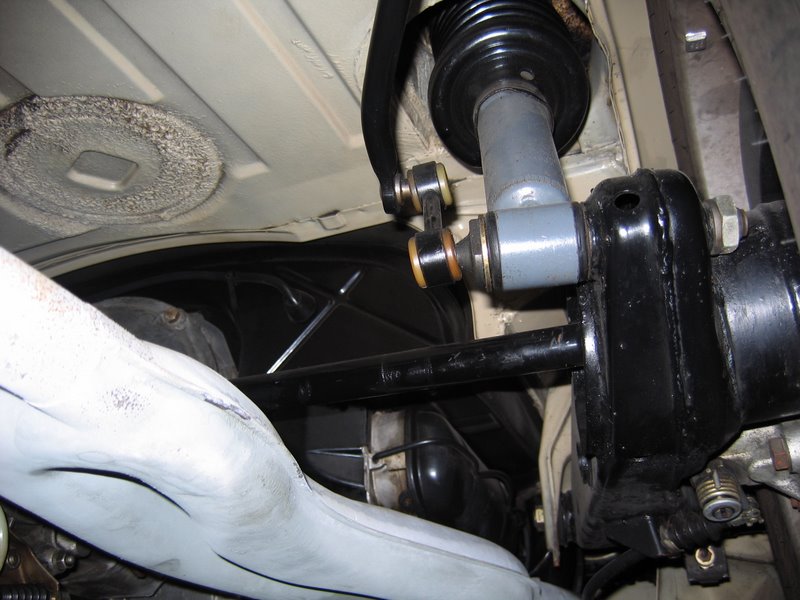

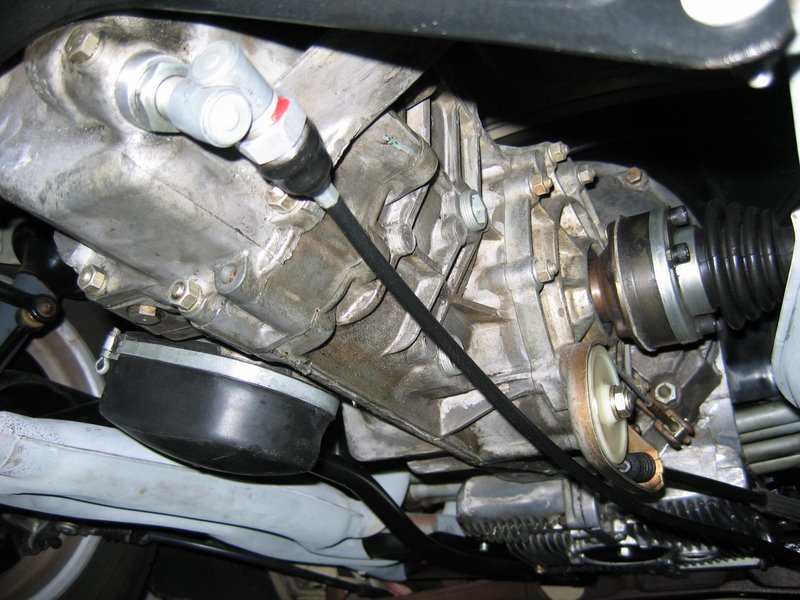

No longer concours but here are some photos of the trans area showing the original heat exchangers and the original Boge shocks.
Attached image(s)
|
|
|
|
| Porsche Rescue |
Dec 8 2009, 10:41 AM
Post
#50
|
|
Saving and Enjoying Old Porsches Group: Members Posts: 2,978 Joined: 31-December 02 From: Bend, Oregon Member No.: 64 Region Association: None |
Thanks Steve. Keep 'em coming. How about a few more of the interior. The work involved in achieving the clean turn signal/side marker area inside the front fender is awe inspiring.
|
|
|
|
| 6freak |
Dec 8 2009, 10:51 AM
Post
#51
|
|
MR.C Group: Members Posts: 4,740 Joined: 19-March 08 From: Tacoma WA Member No.: 8,829 Region Association: Pacific Northwest |
QUOTE(smg914 @ Dec 8 2009, 07:56 AM) QUOTE(6freak @ Dec 8 2009, 07:24 AM) WOW (IMG:style_emoticons/default/smilie_pokal.gif) ...Are you missing the cover over the brake fluid reservoir..maybe they didnt come with that year car ....Again WOW That was an aftermarket thing. Functional but not original. 10-4 again amazing car |
|
|
|
| smg914 |
Dec 8 2009, 12:14 PM
Post
#52
|
|
Sahara Beige Steve Group: Members Posts: 1,969 Joined: 22-February 04 From: Tampa, FL Member No.: 1,695 Region Association: None |

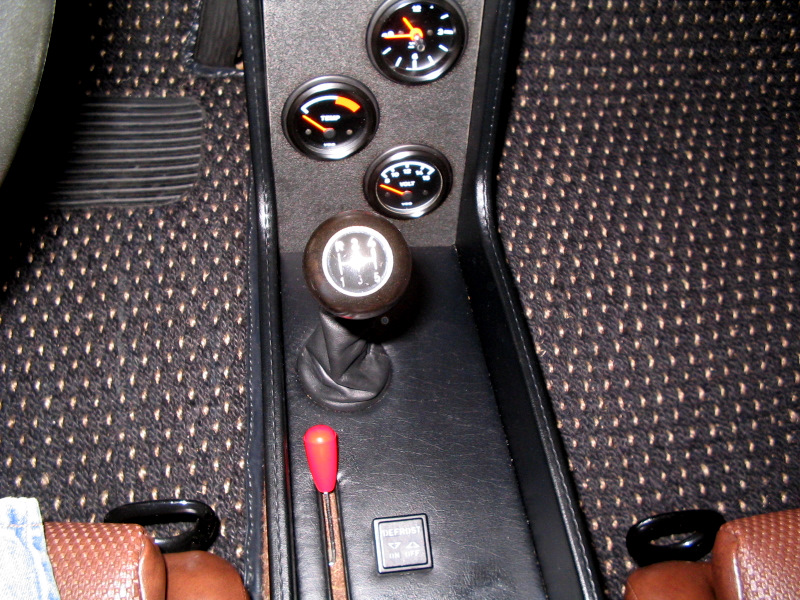

Center console showing the correct 1973 temp gauge with the longer red area. Perfect heat seam stiching along the top edge of the console sides. Oh yes, the period correct COCO Mats in black with tan dots.
Attached image(s)
|
|
|
|
| smg914 |
Dec 8 2009, 12:18 PM
Post
#53
|
|
Sahara Beige Steve Group: Members Posts: 1,969 Joined: 22-February 04 From: Tampa, FL Member No.: 1,695 Region Association: None |

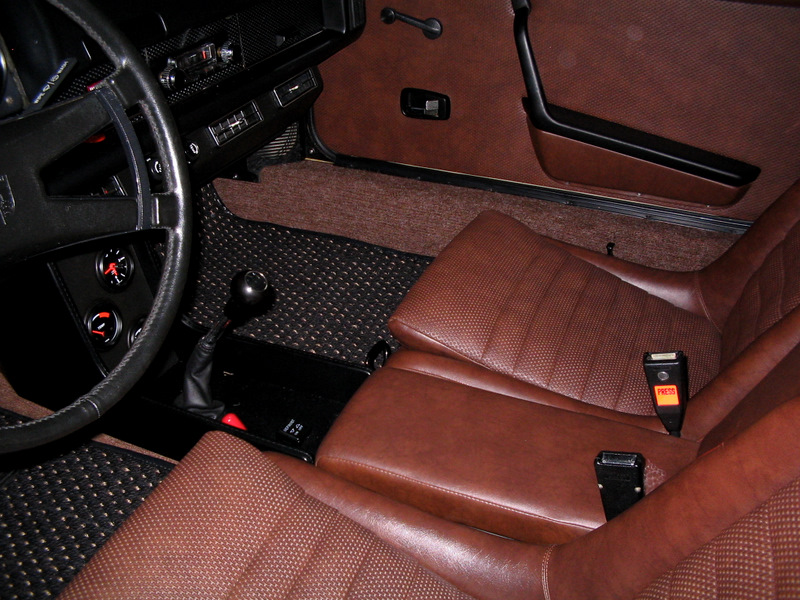

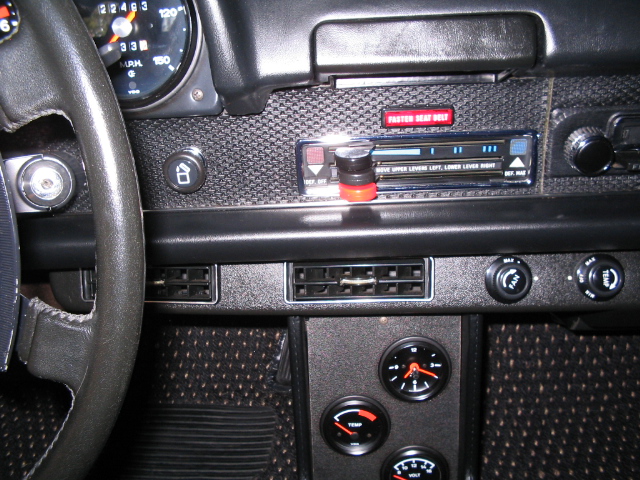

Dealer installed VPC Air Conditioning under dash unit. They had to shorten the center console when AC was installed to make room for the under dash unit. Hence the altered arrangement of the three gauges. Check out the mileage on the speedo!
Attached image(s)
|
|
|
|
| smg914 |
Dec 8 2009, 12:22 PM
Post
#54
|
|
Sahara Beige Steve Group: Members Posts: 1,969 Joined: 22-February 04 From: Tampa, FL Member No.: 1,695 Region Association: None |
The original owner had a FLAPS leather steering wheel cover/wrap installed. I wasn't sure what I would find when I removed it but to my surprise I found it to be perfectly preserved and original.
Attached image(s)
|
|
|
|
| dcheek |
Dec 8 2009, 12:28 PM
Post
#55
|
|
Senior Member Group: Members Posts: 692 Joined: 30-May 06 From: Westfield, New Jersey Member No.: 6,103 |
QUOTE(smg914 @ Dec 8 2009, 10:18 AM) Dealer installed VPC Air Conditioning under dash unit. They had to shorten the center console when AC was installed to make room for the under dash unit. Hence the altered arrangement of the three gauges. Check out the mileage on the speedo! Steve, How is the quality of the installation of the condenser? I've seen some that were really butchered up. In fact that's why I didn't opt for it since there was a chance that my dealer would not do a neat "factory" installation. Dave |
|
|
|
| dr914@autoatlanta.com |
Dec 8 2009, 12:29 PM
Post
#56
|
|
914 Guru Group: Members Posts: 8,101 Joined: 3-January 07 From: atlanta georgia Member No.: 7,418 Region Association: None |
QUOTE(smg914 @ Dec 7 2009, 04:07 PM) this looks like it was re cad plated! Much too pristine and golder (sp) than original |
|
|
|
| kconway |
Dec 8 2009, 12:30 PM
Post
#57
|
|
Senior Member Group: Members Posts: 1,347 Joined: 6-December 04 From: Monrovia, CA Member No.: 3,231 Region Association: Southern California |
QUOTE(smg914 @ Dec 7 2009, 03:07 PM)  I can't place this, what is this a photo of? Can't be front trunk, not correct profile for headlight? Kev |
|
|
|
| smg914 |
Dec 8 2009, 12:44 PM
Post
#58
|
|
Sahara Beige Steve Group: Members Posts: 1,969 Joined: 22-February 04 From: Tampa, FL Member No.: 1,695 Region Association: None |

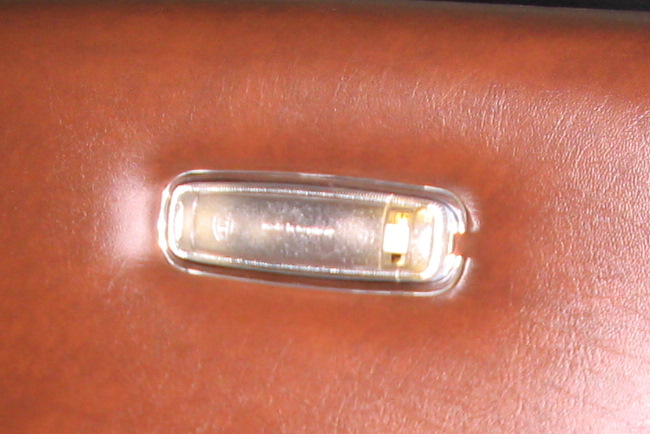

Although there are at least 10 different versions of this interior light available, this is the only one ever used (except some of the very, very early 914s had a version made by SIDLER).
The face of the lens should show: VW, Made in Germany and HELLA all etched into the plastic. The on off switch should be flat (flush with the lens) and it should be white. And of course the all important chrome bezel. Attached image(s)
|
|
|
|
| smg914 |
Dec 8 2009, 12:46 PM
Post
#59
|
|
Sahara Beige Steve Group: Members Posts: 1,969 Joined: 22-February 04 From: Tampa, FL Member No.: 1,695 Region Association: None |
QUOTE(dr914@autoatlanta.com @ Dec 8 2009, 10:29 AM) QUOTE(smg914 @ Dec 7 2009, 04:07 PM) this looks like it was re cad plated! Much too pristine and golder (sp) than original No, more an issue with my camera and/or the camera operator. And besides, think about it. Here is a car that was kept in a climate controlled garage its entire life, with only 22,000 original miles, every receipt since new, why in the hell would the front hood latch need to be replated????????? It shouldn't even be questioned. |
|
|
|
| smg914 |
Dec 8 2009, 12:49 PM
Post
#60
|
|
Sahara Beige Steve Group: Members Posts: 1,969 Joined: 22-February 04 From: Tampa, FL Member No.: 1,695 Region Association: None |

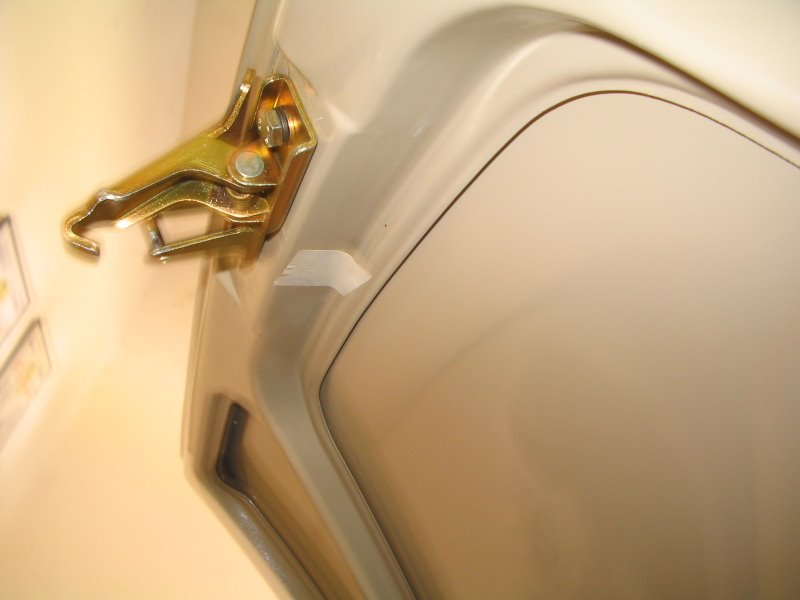

QUOTE(kconway @ Dec 8 2009, 10:30 AM) QUOTE(smg914 @ Dec 7 2009, 03:07 PM) I can't place this, what is this a photo of? Can't be front trunk, not correct profile for headlight? Kev Kev, No its the front trunk latch. Just a strange angle that is screwing you up. Absolutely the original front hood latch with its original cad. |
|
|
|
|
