> Sheet metal mods for 3.6 conversion, cut and paste 101
East coaster
post Mar 30 2004, 09:19 PM
Post #1


Senior Member
***

Group: Members
Posts: 1,792
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
Finished my sheet metal mods to fit the 914-6 cooling tin to the 3.6 engine yesterday. I figured I'd post some pics so if someone else has to cross this bridge it'll give them some ideas. Since you can't buy a kit that fits the 3.6 you need to do something like this...........


Attached File(s)
Attached File  sheetmetal_004.JPE ( 14.42k ) Number of downloads: 0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Mar 30 2004, 09:20 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,792
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
next pic.......


Attached File(s)
Attached File  sheetmetal_001.JPE ( 14.3k ) Number of downloads: 0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Mar 30 2004, 09:20 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,792
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
...........


Attached File(s)
Attached File  sheetmetal_002.JPE ( 15.04k ) Number of downloads: 0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Mar 30 2004, 09:21 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,792
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
rear.......


Attached File(s)
Attached File  sheetmetal_005.JPE ( 14.81k ) Number of downloads: 0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Mar 30 2004, 09:22 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,792
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
again....


Attached File(s)
Attached File  sheetmetal_006.JPE ( 15.11k ) Number of downloads: 0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Mar 30 2004, 09:22 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,792
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
distributor area...


Attached File(s)
Attached File  sheetmetal_003.JPE ( 15.26k ) Number of downloads: 0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Mar 30 2004, 09:24 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,792
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None

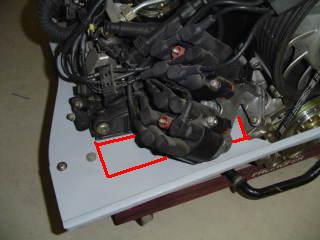

These shots highlight the areas (in red) where you need to add/fab new material.....


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Mar 30 2004, 09:26 PM
Post #8


Senior Member
***

Group: Members
Posts: 1,792
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None

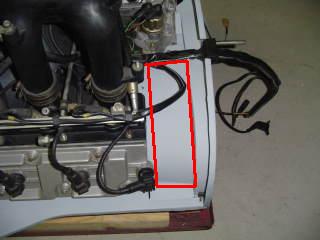

This is where the factory 6 oil cooler resides, the 3.6 has none. Had to fab a block off and a air plate to take care of this. All the mods are butt welded in adn ground out to look stock as possible?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Mar 30 2004, 09:27 PM
Post #9


Senior Member
***

Group: Members
Posts: 1,792
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
had to add plate behind the dizzy. The cam shaft covers angle back on a 3.6 and this leaves a big void with the stock metal.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Mar 30 2004, 09:30 PM
Post #10


Senior Member
***

Group: Members
Posts: 1,792
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
Last but not least, a block off for the factory heater port. I'll be fabbing a small port to flow air to the distributor belt ports. Anybody looking into a 3.6 will learn about this mod!


Attached File(s)
Attached File  oil_lines_007.JPE ( 14.74k ) Number of downloads: 0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Mar 30 2004, 09:32 PM
Post #11


Senior Member
***

Group: Members
Posts: 1,792
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
Oh yeah..........cut and fit the oil tank holes this weekend too!


Attached File(s)
Attached File  oil_tank_008.JPE ( 15.01k ) Number of downloads: 0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brad Roberts
post Mar 30 2004, 11:25 PM
Post #12


914 Freak!
***************

Group: Members
Posts: 19,148
Joined: 23-December 02
Member No.: 8
Region Association: None
Tidbit of info on the block off plate for the fan shroud:

Drill holes in it and let it breath a little. The fan was setup with a certain back pressure on it, you change this when you block that area off completely.

Dyno pulls and testing showed a reduction in cooling. Dont ask me how. We where all standing there scratching our heads (Jerry Woods dyno) We vent all of them.

Your tin looks awesome.

B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeroen
post Mar 31 2004, 03:51 AM
Post #13


914 Guru
*****

Group: Members
Posts: 7,887
Joined: 24-December 02
From: The Netherlands
Member No.: 3
Region Association: Europe
Very clean job!!!

cheers,

Jeroen
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RON S.
post Mar 31 2004, 06:10 AM
Post #14


9140430841, FINALLY RUNNING
***

Group: Members
Posts: 1,212
Joined: 22-May 03
From: WALTERBORO,S.C.
Member No.: 724
Region Association: South East States
Great looking job Easter.
All the trial and error on converting 3.6's to 914 use sure gives us an education about what has to be done to make things work and look professional.
We're riding down the same road.Great work.
One note on my job.It looks like you started with the same type of sheetmetal kit when you began.
When I got my kit in the mail,I thought right off the bat that it was a really cheap,poor quality kit for the $375.00 I paid for it to begin with.It was rusty,and made from 26ga.steel.Thin as a sheet of paper.
If I'd do it again,I'd pay a little a little more money and buy maybe a Pelican kit that looks like it is die stamped.At least it would look like a true copy of the original sheetmetal.
Just a thought.



Ron
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Mar 31 2004, 08:22 AM
Post #15


914 Guru
*****

Group: Members
Posts: 5,514
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
Wow, that does look nice. In the first pics you couldn't even tell it wasn't like that to begin with. That car is going to have some serious scoot when it's done!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Mar 31 2004, 08:30 AM
Post #16


Senior Member
***

Group: Members
Posts: 1,792
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
Brad/Ron, Thanks for the feedback! I guess I'll have to consider relieving the block off somehow. I thought about whether this might overload the impeller, but it seemed like a small area vs the overall output area. I imagine if it's a problem it would have to be at the upper extremes of the rpm range. Maybe I'll put a spring loaded blow off port that way it'll only blow out at high R's. In my case there's not much room to do anything more than put some holes in the block off plate due to flipping the intake. The air flow sensor lays right on top of the block off area.
