> External Oil Cooler, let me see some pictures
tradisrad
post Dec 15 2010, 12:26 PM
Post #101


Senior Member
***

Group: Members
Posts: 985
Joined: 11-September 06
From: San Mateo, CA
Member No.: 6,815
Region Association: Northern California
Rich, I like your idea.
-Rob
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
realred914
post Dec 15 2010, 12:27 PM
Post #102


Senior Member
***

Group: Retired Members
Posts: 1,086
Joined: 1-April 10
From: california
Member No.: 11,541
Region Association: None
QUOTE(tradisrad @ Dec 15 2010, 10:26 AM) *

Rich, I like your idea.
-Rob



what idea is that????
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
0396
post May 16 2011, 09:19 PM
Post #103


Advanced Member
****

Group: Members
Posts: 2,046
Joined: 13-October 03
From: L.A. Calif
Member No.: 1,245
Region Association: Southern California
QUOTE(BigD9146gt @ Jul 11 2010, 11:10 AM) *

Heres a hardline setup I made for a 912E... The customer wanted the stock front mount 911 oil cooler setup. Used a Mocal sandwich thermostat.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i97.photobucket.com-3502-1278872083.1.jpg)
(IMG:http://www.914world.com/bbs2/uploads_offsite/i97.photobucket.com-3502-1278872083.2.jpg)
(IMG:http://www.914world.com/bbs2/uploads_offsite/i97.photobucket.com-3502-1278872084.3.jpg)



Very coool...what's the cost?

Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cwpeden
post Jan 13 2013, 12:37 AM
Post #104


Great White North, huh?
***

Group: Members
Posts: 916
Joined: 20-August 06
From: Victoria BC
Member No.: 6,693
Region Association: Canada
(IMG:style_emoticons/default/WTF.gif)

QUOTE(rockyyy123 @ Jan 12 2013, 10:20 PM) *

hiii there ... (IMG:style_emoticons/default/smile.gif) (IMG:style_emoticons/default/smile.gif)
My leak began as a nothing leak. I thought it was just from running the air conditioner and within 2 weeks I had huge puddles under my car....... (IMG:style_emoticons/default/smile.gif) (IMG:style_emoticons/default/smile.gif) (IMG:style_emoticons/default/drunk.gif) ..
...................................................
Top Ten Classified website
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jan 13 2013, 12:39 AM
Post #105


914 Idiot
***************

Group: Members
Posts: 15,059
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
It's spam. Just to get the link in the sig indexed.

Hopefully the post and the spammer will both be gone soon.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Mar 26 2013, 10:24 AM
Post #106


Senior Member
***

Group: Members
Posts: 1,327
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States
Do any of these systems incorporate in- line check valves in the lines to or from the cooler ?
I just bought 76 that is fitted with ex cooler and has check valve in line, not sure why needed (or if needed).
Comments ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
maf914
post Mar 26 2013, 01:51 PM
Post #107


Not a Guru!
****

Group: Members
Posts: 3,049
Joined: 30-April 03
From: Central Florida
Member No.: 632
Region Association: None
QUOTE(barefoot @ Mar 26 2013, 08:24 AM) *

Do any of these systems incorporate in- line check valves in the lines to or from the cooler ?
I just bought 76 that is fitted with ex cooler and has check valve in line, not sure why needed (or if needed).
Comments ?


I would guess that the installer wanted to keep the oil in the external cooler and piping from draining back into the crankcase, resulting in a high oil level in the engine.

I have wondered about that occurring if the cooler is higher than the normal crankcase oil level. Is that an issue or problem? (IMG:style_emoticons/default/idea.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Harpo
post Mar 26 2013, 02:04 PM
Post #108


Senior Member
***

Group: Members
Posts: 1,304
Joined: 21-August 11
From: Motor City aka Detroit
Member No.: 13,469
Region Association: None
Instead of the sandwich adapters I have seen an adapter that replaces the OE oil cooler. I don't remember where I saw it though. Basically it was a plate that had AN fitting that bolted replacing the cooler

David
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Mar 26 2013, 03:45 PM
Post #109


Senior Member
***

Group: Members
Posts: 1,327
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States
QUOTE(maf914 @ Mar 26 2013, 03:51 PM) *

QUOTE(barefoot @ Mar 26 2013, 08:24 AM) *

Do any of these systems incorporate in- line check valves in the lines to or from the cooler ?
I just bought 76 that is fitted with ex cooler and has check valve in line, not sure why needed (or if needed).
Comments ?


I would guess that the installer wanted to keep the oil in the external cooler and piping from draining back into the crankcase, resulting in a high oil level in the engine.

I have wondered about that occurring if the cooler is higher than the normal crankcase oil level. Is that an issue or problem? (IMG:style_emoticons/default/idea.gif)

The cooler is presently mounted vertically to the underside of the rear trunk, so at about same level as sump. I just got car and it isn't running, but I'd like to reposition the cooler in the right rear fender well as I have air scoops into that area and it's then further from exhaust piping.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IGTARD
post Dec 11 2013, 07:05 PM
Post #110


IGTARD
*

Group: Members
Posts: 27
Joined: 8-October 12
From: Left Coast
Member No.: 15,013
Region Association: Southern California
International Space Station experiencing possible over heating. (IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tumamilhem
post Dec 12 2013, 07:57 AM
Post #111


LUFTBRIGADE
***

Group: Members
Posts: 1,228
Joined: 29-October 12
From: Jacksonville, FL
Member No.: 15,092
Region Association: South East States
I'm glad for this thread. I want to install a second oil cooler on my LE, but because it's an LE, I don't want to chop it up. Any add-ons I do I am trying to do without performing surgery to its originality. So basically looking to just bolt on.

My other 914 has a second large oil cooler that is simply bolted to the floor pan underneath the car right before the engine bay opening. Being underneath the car it gets constant surrounding air, so there's no fan. This simple setup has worked fine for this car but I am not sure what the best placement would be for optimal functionality and protection.

Also, I'm not really sure what the best oil cooler to get would be. being in Florida I have very hot temperatures and drive my car year round. So I would like a larger cooler with optimal performance to help protect the duration of my engine and give me better performance. Also, if I need a fan a/o thermostat. I suppose living in Florida it's best to have the cooler operating whenever the car is on instead of just when it hits a certain temperature. Also I'm not familiar with this sandwich method that doesn't seem to be very popular.

From your expert opinions, what kind of oil cooler would you suggest I get? Where would you suggest I place it and how given my limitations of not chopping up my car? I did like the idea of it being turned at an angle underneath the trunk. Will this actually make it cooler by catching more air and having more oil in the cooler? And would it get enough air underneath the trunk? Also do I need a fan and thermostat? Any better suggestions than what I already have on my other 914 which is basically just a large cooler bolted underneath the floor pan forward from the rear wheels? Suggestions are much appreciated. Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Dec 12 2013, 09:24 AM
Post #112


914 Guru
*****

Group: Members
Posts: 5,504
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
QUOTE(tumamilhem @ Dec 12 2013, 05:57 AM) *

I'm glad for this thread. I want to install a second oil cooler on my LE, but because it's an LE, I don't want to chop it up. Any add-ons I do I am trying to do without performing surgery to its originality. So basically looking to just bolt on.

My other 914 has a second large oil cooler that is simply bolted to the floor pan underneath the car right before the engine bay opening. Being underneath the car it gets constant surrounding air, so there's no fan. This simple setup has worked fine for this car but I am not sure what the best placement would be for optimal functionality and protection.

Also, I'm not really sure what the best oil cooler to get would be. being in Florida I have very hot temperatures and drive my car year round. So I would like a larger cooler with optimal performance to help protect the duration of my engine and give me better performance. Also, if I need a fan a/o thermostat. I suppose living in Florida it's best to have the cooler operating whenever the car is on instead of just when it hits a certain temperature. Also I'm not familiar with this sandwich method that doesn't seem to be very popular.

From your expert opinions, what kind of oil cooler would you suggest I get? Where would you suggest I place it and how given my limitations of not chopping up my car? I did like the idea of it being turned at an angle underneath the trunk. Will this actually make it cooler by catching more air and having more oil in the cooler? And would it get enough air underneath the trunk? Also do I need a fan and thermostat? Any better suggestions than what I already have on my other 914 which is basically just a large cooler bolted underneath the floor pan forward from the rear wheels? Suggestions are much appreciated. Thanks!

I had one under the trunk floor in my 2.0 with carbs. Worked like a champ, but mine had a manual one/off switch for the fan. A cleaner install would be to use a thermostatic switch to have the fan come on automatically when the temp get to the set point. I just used a sandwich plate at the oil filter to run to/from the cooler. Bolted to the trunk floor with rubber spacers to get the spacing and isolate from vibration.
But, you could always make a bracket to bolt to the transmission mount to eliminate a couple of holes in the trunk.

I still have the cooler/fan/lines in my parts bin.

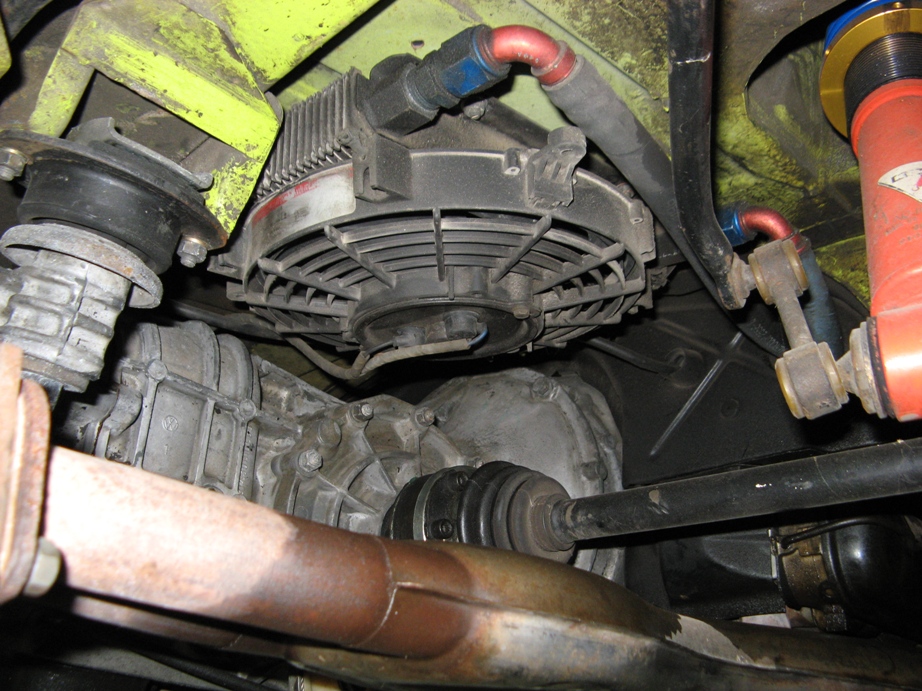

I'm doing something similar but with larger cooling capacity in my /6 conversion.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Randal
post Dec 12 2013, 10:46 AM
Post #113


Advanced Member
****

Group: Members
Posts: 4,446
Joined: 29-May 03
From: Los Altos, CA
Member No.: 750
Re post #87: Nice installation, but be careful with that cloth braided line. Anywhere it rubs it will fray and then fail, especially if there is any pressure in the lines.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stugray
post Dec 12 2013, 06:11 PM
Post #114


Advanced Member
****

Group: Members
Posts: 3,825
Joined: 17-September 09
From: Longmont, CO
Member No.: 10,819
Region Association: None
I have one I might be willing to part with almost identical to the pic with thermostat switch.
It would be minus the sandwich adapter plate as I am going to use that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gothspeed
post Dec 12 2013, 06:44 PM
Post #115


Senior Member
***

Group: Members
Posts: 1,539
Joined: 3-February 09
From: SoCal
Member No.: 10,019
Region Association: None
QUOTE(Harpo @ Mar 26 2013, 12:04 PM) *

Instead of the sandwich adapters I have seen an adapter that replaces the OE oil cooler. I don't remember where I saw it though. Basically it was a plate that had AN fitting that bolted replacing the cooler

David

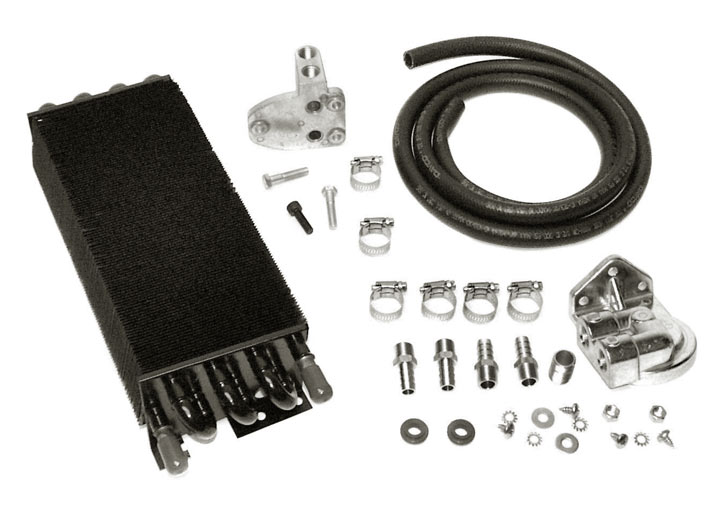

Is this the setup you are thinking of?

http://www.autoatlanta.com/Porsche-914-Oil-Cooler-srch.html


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Dec 13 2013, 09:05 AM
Post #116


I am Tangerine Racing
*****

Group: Members
Posts: 7,964
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(Harpo @ Mar 26 2013, 03:04 PM) *

Instead of the sandwich adapters I have seen an adapter that replaces the OE oil cooler. I don't remember where I saw it though. Basically it was a plate that had AN fitting that bolted replacing the cooler

David

I have a batch of adapter plates for the cooler location sitting in a box here.
I also have some inline thermostats, and some block-off-plates for the tin.

I've been trying to find time to complete a kit which includes premade hoses between the adapter and the thermostat, with options for either a front or a rear mounted cooler.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gothspeed
post Dec 13 2013, 11:54 AM
Post #117


Senior Member
***

Group: Members
Posts: 1,539
Joined: 3-February 09
From: SoCal
Member No.: 10,019
Region Association: None
QUOTE(Racer Chris @ Dec 13 2013, 07:05 AM) *

QUOTE(Harpo @ Mar 26 2013, 03:04 PM) *

Instead of the sandwich adapters I have seen an adapter that replaces the OE oil cooler. I don't remember where I saw it though. Basically it was a plate that had AN fitting that bolted replacing the cooler

David

I have a batch of adapter plates for the cooler location sitting in a box here.
I also have some inline thermostats, and some block-off-plates for the tin.

I've been trying to find time to complete a kit which includes premade hoses between the adapter and the thermostat, with options for either a front or a rear mounted cooler.

That is a good idea ........ is tapping the oil cooler location better for the oil pressure, than the oil filter sandwich? Or is there no difference? ... (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
vw505
post Dec 13 2013, 12:13 PM
Post #118


Member
**

Group: Members
Posts: 228
Joined: 17-April 03
From: San Antonio, TX , Navy retired
Member No.: 579
Region Association: None
Chris would it block the stock cooler?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Dec 13 2013, 01:41 PM
Post #119


I am Tangerine Racing
*****

Group: Members
Posts: 7,964
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(vw505 @ Dec 13 2013, 01:13 PM) *

Chris would it block he stock cooler?

It eliminates the stock cooler.
The air normally supplied to the cooler becomes available for improved cooling of cyls 3 & 4.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Dec 13 2013, 01:52 PM
Post #120


I am Tangerine Racing
*****

Group: Members
Posts: 7,964
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(gothspeed @ Dec 13 2013, 12:54 PM) *

QUOTE(Racer Chris @ Dec 13 2013, 07:05 AM) *

QUOTE(Harpo @ Mar 26 2013, 03:04 PM) *

Instead of the sandwich adapters I have seen an adapter that replaces the OE oil cooler. I don't remember where I saw it though. Basically it was a plate that had AN fitting that bolted replacing the cooler

David

I have a batch of adapter plates for the cooler location sitting in a box here.
I also have some inline thermostats, and some block-off-plates for the tin.

I've been trying to find time to complete a kit which includes premade hoses between the adapter and the thermostat, with options for either a front or a rear mounted cooler.

That is a good idea ........ is tapping the oil cooler location better for the oil pressure than the oil filter sandwich? Or is there no difference? ... (IMG:style_emoticons/default/popcorn[1].gif)

I think its much better - for several reasons including improved oil pressure.
1) Added load on the filter circuit increases the likelihood that oil will bypass the filter unless the bypass valve is blocked.
2) A sandwich plate adds complexity (& drag) to the oil circuit - lowering the available pressure to the bearings.
3) The oil cooler inlet and outlet are already there on the block.
4) The stock filter mounted on a sandwich plate hangs down to where its hard to get past the engine crossbar.
5) More cooling air available for cyls 3&4
6) The stock cooler is inefficient in the stock location. Its adequate for stock engines but not so much for higher power rebuilds.
7) etc.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


7 Pages V « < 4 5 6 7 >
Reply to this topicStart new topic
10 User(s) are reading this topic (10 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 22nd November 2024 - 06:10 PM
Invision Power Board v9.1.4 © 2024  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
