> M471 Clarification, just flares?
McMark
post Jun 23 2010, 12:08 AM
Post #1


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
I read this thread about M471 cars and had a question.

As I read it, the M471 designation really applies to 'factory' flares. GT-cars had the oil cooler, but as I understand it, the M471 did not specifically include the cooler. Am I right?

For those of you familiar with these cars, or GT cars, were the flares completely seam welded? Or were they flange welded?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jun 23 2010, 12:50 AM
Post #2


Resident German
*************************

Group: Admin
Posts: 41,954
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(McMark @ Jun 22 2010, 11:08 PM) *

I read this thread about M471 cars and had a question.

As I read it, the M471 designation really applies to 'factory' flares. GT-cars had the oil cooler, but as I understand it, the M471 did not specifically include the cooler. Am I right?

For those of you familiar with these cars, or GT cars, were the flares completely seam welded? Or were they flange welded?

Factory steel flares, as far as i can tell butt-welded and wider wheels and tires (7" x 8" WRONG! should be 6" with 1" spacers).


I know of at least one m471 who also came with a leather interior instead of vinyl from the factory, but i don't think the two are related ...


Basically, the m471 option was simply the Porsche option for a GT look-alike.
(IMG:style_emoticons/default/popcorn[1].gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tom_T
post Jun 23 2010, 02:18 AM
Post #3


TMI....
*****

Group: Members
Posts: 8,320
Joined: 19-March 09
From: Orange, CA
Member No.: 10,181
Region Association: Southern California
M471 also included alloy wheels & 185/70VR15 tires IIRC - often as the Michelin XWX, which are still available in that size new from Lucas Tires at $400+ each! (IMG:style_emoticons/default/blink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jun 23 2010, 07:15 AM
Post #4


914 Guru
*****

Group: Members
Posts: 8,111
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
one neat touch was the factory flared front steel valance.

QUOTE(Tom_T @ Jun 23 2010, 01:18 AM) *

M471 also included alloy wheels & 185/70VR15 tires IIRC - often as the Michelin XWX, which are still available in that size new from Lucas Tires at $400+ each! (IMG:style_emoticons/default/blink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Jun 23 2010, 08:09 AM
Post #5


Apex killer!
***************

Group: Members
Posts: 23,859
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
George, was the "stiffening kit" part of the package the dealerships sold?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jun 23 2010, 08:10 AM
Post #6


Advanced Member
****

Group: Members
Posts: 4,771
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Then it also had longer wheel studs.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jun 23 2010, 10:03 AM
Post #7


914 Guru
*****

Group: Members
Posts: 8,111
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None
QUOTE(ConeDodger @ Jun 23 2010, 07:09 AM) *

George, was the "stiffening kit" part of the package the dealerships sold?


no actually the car was just a totally stock 914-6 with the addition of butt welded factory flares, 21 mm wheel spacers, longer wheel studs, 6x15 fuchs alloys including the spare 185 70 15 tires, front steel flared valance, NO rear valance, fiberglass flared rocker panels, and for the USA cars lower mounted front side marker assemblies.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jun 23 2010, 01:24 PM
Post #8


914 Wiring Harnesses
*****

Group: Members
Posts: 8,783
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

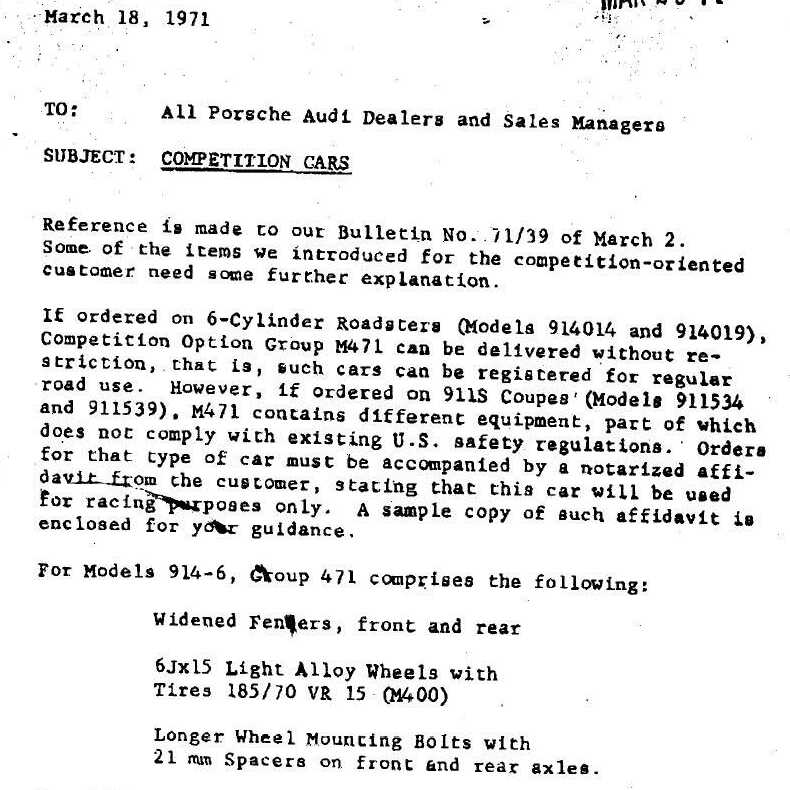

This from my files:



Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jun 23 2010, 04:52 PM
Post #9


Resident German
*************************

Group: Admin
Posts: 41,954
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(Jeff Bowlsby @ Jun 23 2010, 12:24 PM) *

This from my files:

4600 DM? Wow, that stuff was expensive!

And it doesn't list any rockers or valences. Only the flares and the 6" wheels with tires and longer wheel studs ...
(IMG:style_emoticons/default/idea.gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Jun 23 2010, 05:00 PM
Post #10


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Flares and 6" wheels with spacers.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post Jun 23 2010, 05:33 PM
Post #11


914 Historian
*****

Group: Benefactors
Posts: 5,225
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
QUOTE(dr914@autoatlanta.com @ Jun 23 2010, 05:15 AM) *

one neat touch was the factory flared front steel valance.


George, was it just the front valence, or did it include the rear valence and the rocker panels? All four pieces benefit from flaring to match the fenders.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
carr914
post Jun 23 2010, 06:03 PM
Post #12


Racer from Birth
****************************************************************************************************

Group: Members
Posts: 122,725
Joined: 2-February 04
From: Tampa,FL
Member No.: 1,623
Region Association: South East States
QUOTE(SirAndy @ Jun 23 2010, 02:50 AM) *

QUOTE(McMark @ Jun 22 2010, 11:08 PM) *

I read this thread about M471 cars and had a question.

As I read it, the M471 designation really applies to 'factory' flares. GT-cars had the oil cooler, but as I understand it, the M471 did not specifically include the cooler. Am I right?

For those of you familiar with these cars, or GT cars, were the flares completely seam welded? Or were they flange welded?

Factory steel flares, as far as i can tell butt-welded and wider wheels and tires (7" x 8" with 1" spacers).


I know of at least one m471 who also came with a leather interior instead of vinyl from the factory, but i don't think the two are related ...


Basically, the m471 option was simply the Porsche option for a GT look-alike.
(IMG:style_emoticons/default/popcorn[1].gif) Andy



QUOTE(Jeff Bowlsby @ Jun 23 2010, 03:24 PM) *

This from my files:


6x15 were the wheels on a M471
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jun 23 2010, 06:10 PM
Post #13


Resident German
*************************

Group: Admin
Posts: 41,954
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(carr914 @ Jun 23 2010, 05:03 PM) *

Then why mislead people?

Because i'm stupid and didn't recall the tire size correctly. Thanks for pointing out the very obvious. (IMG:style_emoticons/default/KMA.gif)


You need to get laid more ...
(IMG:style_emoticons/default/rolleyes.gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
carr914
post Jun 23 2010, 07:56 PM
Post #14


Racer from Birth
****************************************************************************************************

Group: Members
Posts: 122,725
Joined: 2-February 04
From: Tampa,FL
Member No.: 1,623
Region Association: South East States
QUOTE(SirAndy @ Jun 23 2010, 08:10 PM) *

QUOTE(carr914 @ Jun 23 2010, 05:03 PM) *

Then why mislead people?

Because i'm stupid and didn't recall the tire size correctly. Thanks for pointing out the very obvious. (IMG:style_emoticons/default/KMA.gif)


You need to get laid more ...
(IMG:style_emoticons/default/rolleyes.gif) Andy



And I get Laid plenty, Thank You
T.C.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jun 23 2010, 08:08 PM
Post #15


Resident German
*************************

Group: Admin
Posts: 41,954
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(carr914 @ Jun 23 2010, 06:56 PM) *
you are no where near an expert on 914s or a Human being.

We can't all be like you. I'm a mere mortal who makes mistakes.


How does it feel to be so superior? I'd like to know ...
(IMG:style_emoticons/default/popcorn[1].gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
carr914
post Jun 23 2010, 08:15 PM
Post #16


Racer from Birth
****************************************************************************************************

Group: Members
Posts: 122,725
Joined: 2-February 04
From: Tampa,FL
Member No.: 1,623
Region Association: South East States
Feels Good, especially when I don't have to attack anyone personally

T.C.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jun 23 2010, 08:22 PM
Post #17


Resident German
*************************

Group: Admin
Posts: 41,954
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(carr914 @ Jun 23 2010, 07:15 PM) *

especially when I don't have to attack anyone personally

Then maybe you shouldn't ...

(IMG:style_emoticons/default/shades.gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
carr914
post Jun 23 2010, 08:33 PM
Post #18


Racer from Birth
****************************************************************************************************

Group: Members
Posts: 122,725
Joined: 2-February 04
From: Tampa,FL
Member No.: 1,623
Region Association: South East States
QUOTE(SirAndy @ Jun 23 2010, 08:10 PM) *

QUOTE(carr914 @ Jun 23 2010, 05:03 PM) *

Then why mislead people?



You need to get laid more ...
(IMG:style_emoticons/default/rolleyes.gif) Andy


Then maybe you shouldn't start the insults

T.C
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
carr914
post Jun 23 2010, 08:37 PM
Post #19


Racer from Birth
****************************************************************************************************

Group: Members
Posts: 122,725
Joined: 2-February 04
From: Tampa,FL
Member No.: 1,623
Region Association: South East States
QUOTE(SirAndy @ Jun 23 2010, 08:10 PM) *

QUOTE(carr914 @ Jun 23 2010, 05:03 PM) *

Then why mislead people?

Because i'm stupid and didn't recall the tire size correctly. Thanks for pointing out the very obvious. (IMG:style_emoticons/default/KMA.gif)


You need to get laid more ...
(IMG:style_emoticons/default/rolleyes.gif) Andy


And all you had to was read the Post above yours to find the correct wheel size or the original post that McMark referenced before you voiced opinions as facts.

T.C.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JRust
post Jun 23 2010, 08:39 PM
Post #20


914 Guru
*****

Group: Members
Posts: 6,311
Joined: 10-January 03
From: Corvallis Oregon
Member No.: 129
Region Association: Pacific Northwest
Are we 12 today (IMG:style_emoticons/default/confused24.gif) Did someone pee in someone's cherios (IMG:style_emoticons/default/sad.gif) Some days you just can't win. At least it is summer & we can go ride our BMX bikes instead of go to school (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
