 Fuel Evaporative Control System-AKA Charcoal Canister, More information than anyone wants to know |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
Model Specific Information
914/4: 70 71 72 73 74 75 76 914/6: 70 71 72
  |
| rhodyguy |
 Apr 18 2014, 08:56 AM
Post
#41
|
|
Chimp Sanctuary NW. Check it out.  Group: Members Posts: 22,237 Joined: 2-March 03 From: Orion's Bell. The BELL! Member No.: 378 Region Association: Galt's Gulch  |
i tried all of the pet stores, both big chain and independents, in my area before i looked at amazon. the pet stores didn't offer the activated charcoal in PELLETIZED form. all i found were expensive big clunky chunks.
|
   |

|
| Bleyseng |
Apr 25 2014, 05:07 AM
Post
#42
|
|
Aircooled Baby! Group: Members Posts: 13,036 Joined: 27-December 02 From: Seattle, Washington (for now) Member No.: 24 Region Association: Pacific Northwest |
|
|
|
|
| euro911 |
Apr 25 2014, 05:18 PM
Post
#43
|
|
Retired & living the dream. God help me if I wake up! Group: Members Posts: 8,878 Joined: 2-December 06 From: So.Cal. & No.AZ (USA) Member No.: 7,300 Region Association: Southern California
|
Cool. Great link, Geoff (IMG:style_emoticons/default/beerchug.gif)
|
|
|
|
| partwerks |
Jun 25 2021, 06:08 PM
Post
#44
|
|
Senior Member Group: Members Posts: 1,611 Joined: 7-September 06 From: Grand Island, NE Member No.: 6,787 |
QUOTE(Jeff Bowlsby @ Jun 30 2010, 08:05 AM)  VIN 4722907659 Any pictures of how the band that goes around the canister, mounts to the channel on the gas tank? |
|
|
|
| StarBear |
Jun 26 2021, 11:26 AM
Post
#45
|
|
Advanced Member Group: Members Posts: 2,114 Joined: 2-September 09 From: NJ Member No.: 10,753 Region Association: North East States
|
QUOTE(rhodyguy @ Apr 18 2014, 10:56 AM) i tried all of the pet stores, both big chain and independents, in my area before i looked at amazon. the pet stores didn't offer the activated charcoal in PELLETIZED form. all i found were expensive big clunky chunks. Our local fish store (yes, we still have one) has the pelletized form. Enough for 2 fillings. |
 |
|
| davep |
Jul 15 2021, 10:31 AM
Post
#46
|
|
914 Historian Group: Benefactors Posts: 5,260 Joined: 13-October 03 From: Burford, ON, N0E 1A0 Member No.: 1,244 Region Association: Canada  |
Do you have a UPC from the package of pellets, or at least a brand name to look for?
BTW, I weighed the pellets I removed from a plastic unit, and it was exactly 800 grams. Or 1.8 lbs. |
|
|
|
| StarBear |
Jul 15 2021, 05:03 PM
Post
#47
|
|
Advanced Member Group: Members Posts: 2,114 Joined: 2-September 09 From: NJ Member No.: 10,753 Region Association: North East States
|
@davep . I got Acurel Extreme Activated Carbon Pellets. 45oz. Www.acurel.com. I think it was $24.99 or so. Clearly enough for two fillings.
|
|
|
|
| 914werke |
Jul 15 2021, 06:29 PM
Post
#48
|
|
"I got blisters on me fingers" Group: Members Posts: 11,211 Joined: 22-March 03 From: USofA Member No.: 453 Region Association: Pacific Northwest
|
Lets keep this going (IMG:style_emoticons/default/smile.gif)
Since so many cars have been converted to carburators it only makes sense to address how if at all you can still use the evaporative system? I know many people complain about the fuel smell that can permiate thier garage after putting away thier carb'd car. What is the best way to plumb the motor to lessen that effect? Is there one? Edit : whoops! i didnt notice this was in the Originality sub! |
|
|
|
| robkammer |
Oct 29 2021, 11:01 AM
Post
#49
|
|
Member Group: Members Posts: 211 Joined: 7-January 21 From: Vermilion Ohio Member No.: 25,049 Region Association: North East States |
Wow, an 11 year old thread! Jeff had a lot of time on his hands in 2010. I'm trying to put my 74 BB back to as original as possible and it came without a canister or hoses or a bracket. I now have a bracket but I'm wondering if finding a canister is going to be as difficult as finding an AAR valve.
|
|
|
|
| partwerks |
Dec 8 2021, 06:28 AM
Post
#50
|
|
Senior Member Group: Members Posts: 1,611 Joined: 7-September 06 From: Grand Island, NE Member No.: 6,787 |
QUOTE(1970 Neun vierzehn @ Aug 26 2011, 07:24 PM) Not all 914s had a charcoal canister. This, from an early '70/4...... That's what my mounting tab looks like. I'm wondering if I have the wrong canister, with the band that goes around the canister, don't make sense for attaching the two together?? |
|
|
|
| RRietman |
Dec 11 2021, 07:34 PM
Post
#51
|
|
Member Group: Members Posts: 103 Joined: 13-December 09 From: Pacific Northwest USA Member No.: 11,124 Region Association: None
|

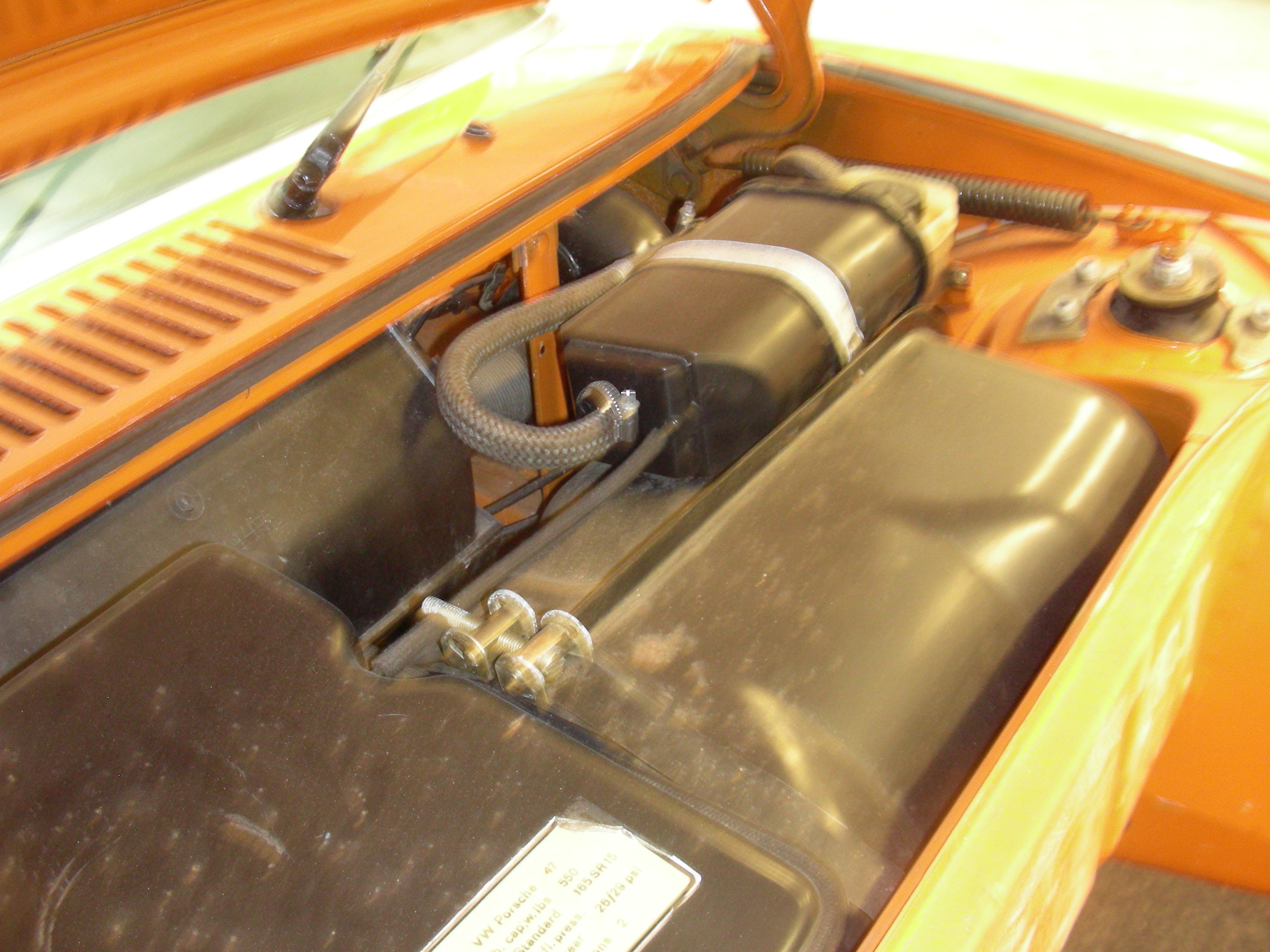

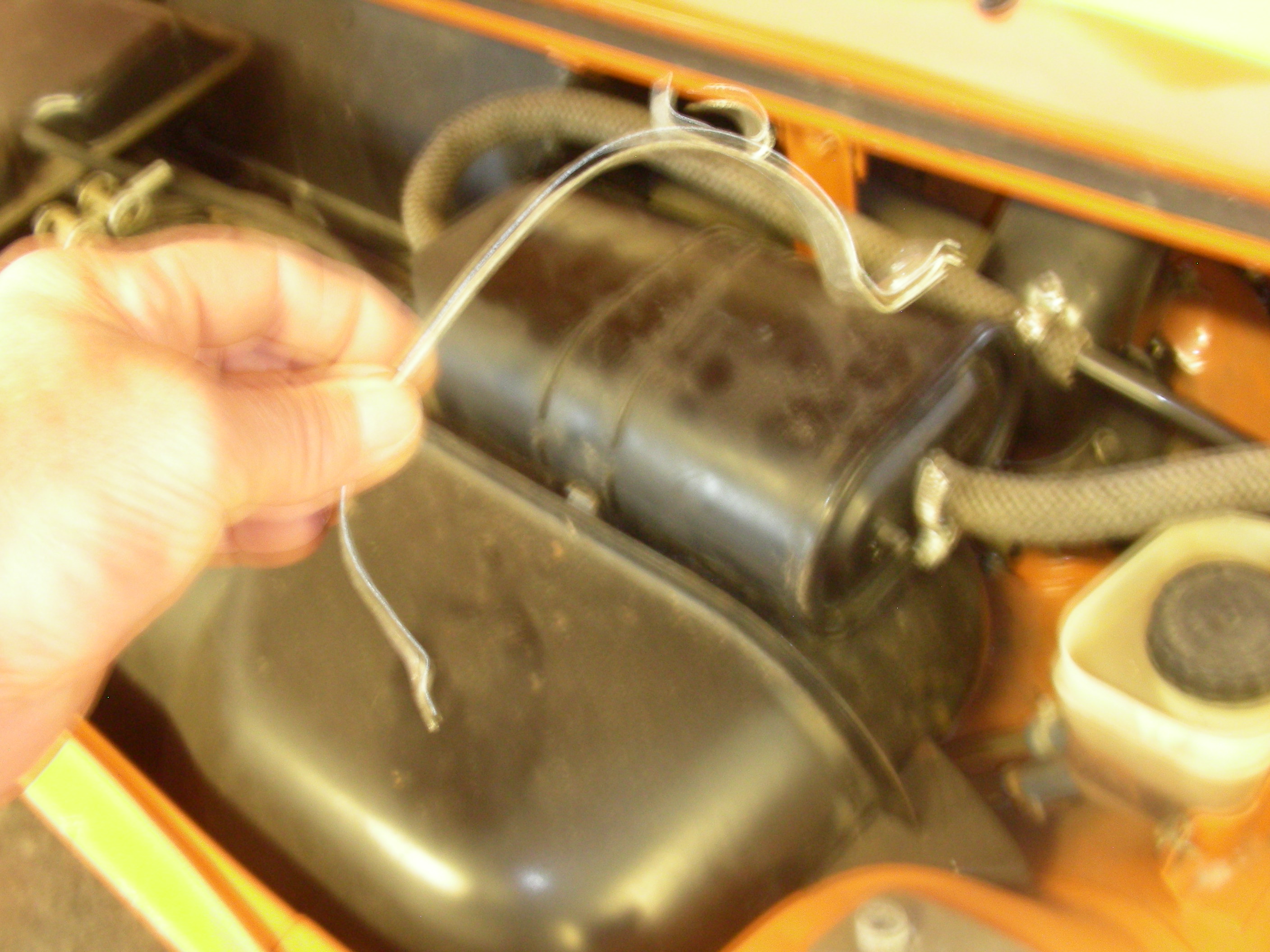

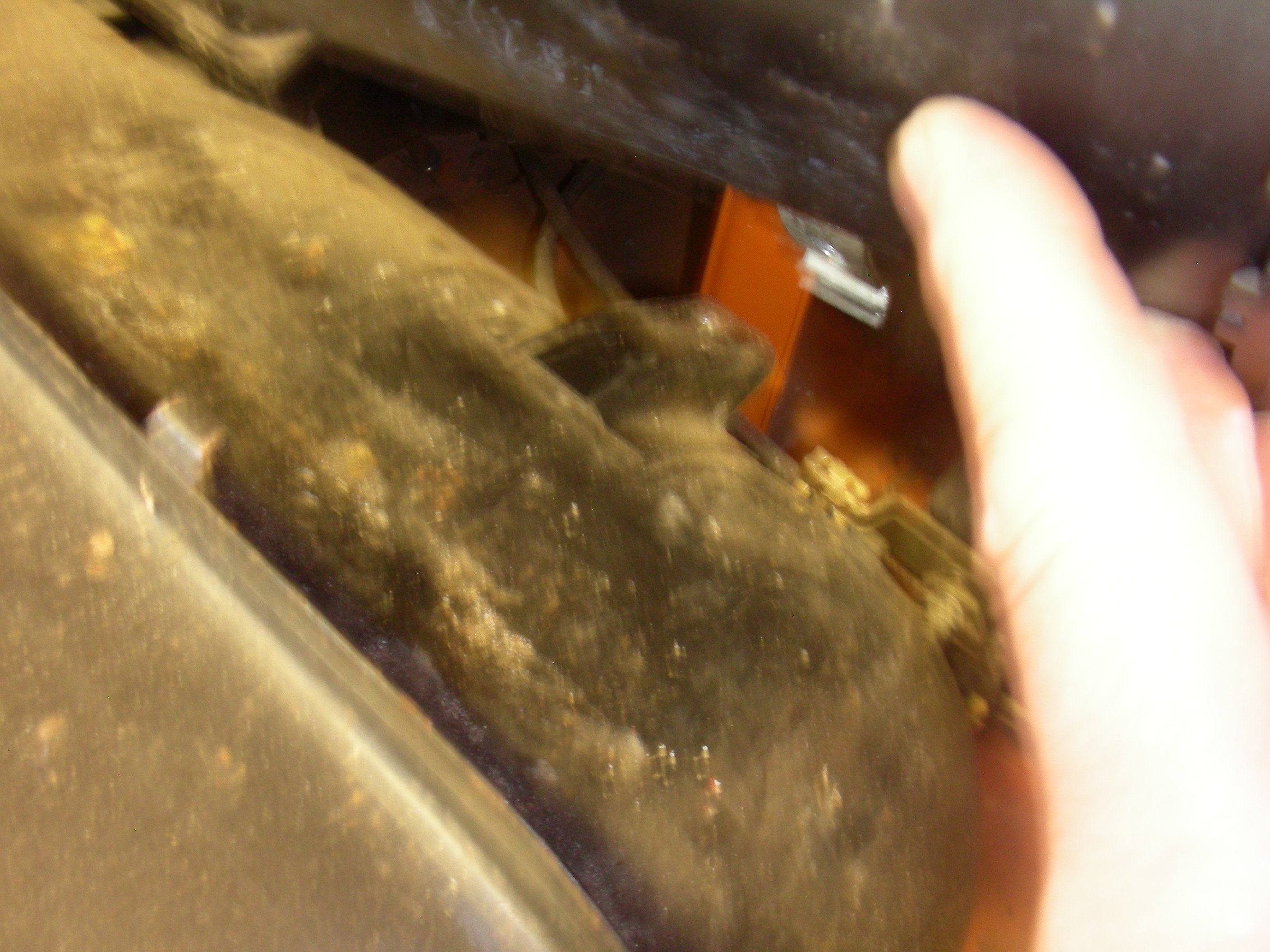

QUOTE(partwerks @ Jun 25 2021, 04:08 PM) QUOTE(Jeff Bowlsby @ Jun 30 2010, 08:05 AM) VIN 4722907659 Any pictures of how the band that goes around the canister, mounts to the channel on the gas tank? OK pics of canister mount and band Thanks Randy     |
|
|
|
|
