> Type IV Upright Cooling Conversion
NC_Colfax
post Nov 19 2010, 01:07 PM
Post #1


Member
**

Group: Members
Posts: 130
Joined: 26-July 10
From: North Carolina
Member No.: 11,982
Region Association: South East States
Do they have a conversion for the Type IV to use an upright cooling fan like the 911 or Type 1?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Nov 19 2010, 01:14 PM
Post #2


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(NC_Colfax @ Nov 19 2010, 02:07 PM) *

Do they have a conversion for the Type IV to use an upright cooling fan like the 911 or Type 1?


Do it yourself Joe cali conversion. http://www.nextgen-usa.com/
DTM by Massive type4 (Jake Raby)
Many 911 types, I like sharpbuilt for this type.

This is the forum you want: http://www.shoptalkforums.com/viewforum.ph...569d953418bcb1d
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Nov 19 2010, 01:17 PM
Post #3


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
The DTM is the fastest/least work.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RFoulds
post Nov 19 2010, 01:49 PM
Post #4


914Rennsport
***

Group: Members
Posts: 842
Joined: 10-August 09
From: La Quinta, CA
Member No.: 10,656
Region Association: Southwest Region
Whats the advantage of doing this??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Nov 19 2010, 02:20 PM
Post #5


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(RFoulds @ Nov 19 2010, 02:49 PM) *

Whats the advantage of doing this??


You can put a type 4 in a bug, bus, 356 kit car etc.

It's what I'm doing in my '67 bug and the bulk of Jake's type 4 engine sales go into bugs.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NC_Colfax
post Nov 19 2010, 03:19 PM
Post #6


Member
**

Group: Members
Posts: 130
Joined: 26-July 10
From: North Carolina
Member No.: 11,982
Region Association: South East States
I was looking at using it in the 914 for better cooling.

Is it worth it in the 914 ??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
904svo
post Nov 19 2010, 03:26 PM
Post #7


904SVO
***

Group: Members
Posts: 1,124
Joined: 17-November 05
From: Woodstock,Georgia
Member No.: 5,146

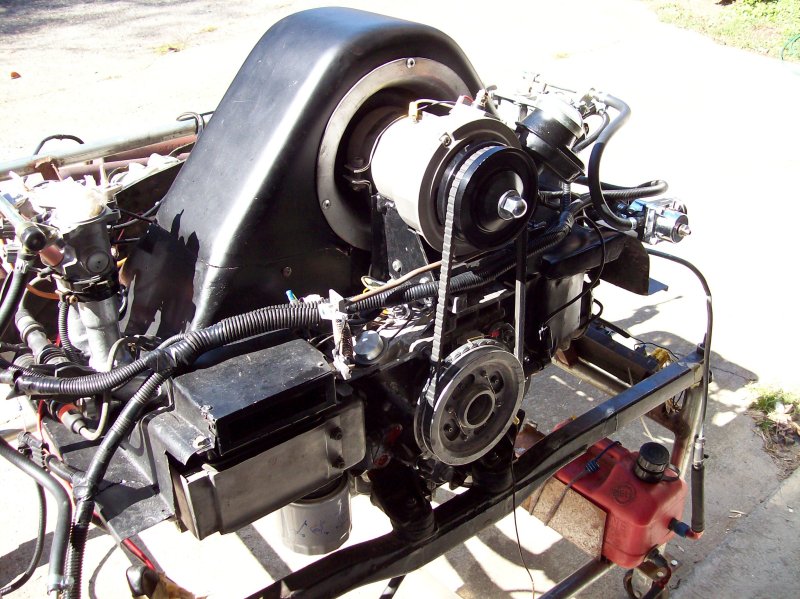

This is what I build.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Nov 19 2010, 03:27 PM
Post #8


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(NC_Colfax @ Nov 19 2010, 04:19 PM) *

I was looking at using it in the 914 for better cooling.

Is it worth it in the 914 ??


IMHO no it's not worth the bother, maybe if you're tracking it and looking for every ounce in weight savings and any advantage however small to cooling.
.
Jake has a DTM for the 914 it has no oil cooler provision so you have to do a whole cooler set up, lose the rain tray...etc
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
RFoulds
post Nov 19 2010, 05:07 PM
Post #9


914Rennsport
***

Group: Members
Posts: 842
Joined: 10-August 09
From: La Quinta, CA
Member No.: 10,656
Region Association: Southwest Region
Thats why I was confused. I see it for a transplant to a Beetle, but not in a 914.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Nov 19 2010, 05:11 PM
Post #10


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Before making a REALLY big change to this, please take the time to do some evaluation of what's really the problem and what possible solutions are out there. Are you measuring head temps? Are you measuring oil temp? Do you have a larger displacement motor? Turbo? Hot cam? Or is the motor just tired? Or does the timing just need to be set? Or is it running lean? As you can see, there are a TON of questions that need absolute, definitive answers before a swap of the cooling system would be justified.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Nov 19 2010, 05:20 PM
Post #11


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(McMark @ Nov 19 2010, 06:11 PM) *

Before making a REALLY big change to this, please take the time to do some evaluation of what's really the problem and what possible solutions are out there. Are you measuring head temps? Are you measuring oil temp? Do you have a larger displacement motor? Turbo? Hot cam? Or is the motor just tired? Or does the timing just need to be set? Or is it running lean? As you can see, there are a TON of questions that need absolute, definitive answers before a swap of the cooling system would be justified.

(IMG:style_emoticons/default/agree.gif) If you are thinking over do this for an overheating issue it's a band-aid on your elbow for a cut on your knee.
Find the real problem not the symptom.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NC_Colfax
post Nov 19 2010, 05:32 PM
Post #12


Member
**

Group: Members
Posts: 130
Joined: 26-July 10
From: North Carolina
Member No.: 11,982
Region Association: South East States
I am having no real issues I just really asked as a point of reference as 914 world provides good answers and subjective opinions.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Nov 19 2010, 09:46 PM
Post #13


Engine Surgeon
*****

Group: Members
Posts: 9,398
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States
The stock cooling system is effective to around 210HP, around 52HP per cylinder when fitted to a properly configured and blueprinted engine.

Want to run cool? Build the engine efficiently.

That comes from a guy that would love to sell you a 914 DTM, but knows you don't need it..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tom_T
post Nov 19 2010, 11:32 PM
Post #14


TMI....
*****

Group: Members
Posts: 8,320
Joined: 19-March 09
From: Orange, CA
Member No.: 10,181
Region Association: Southern California
QUOTE(NC_Colfax @ Nov 19 2010, 11:07 AM) *

Do they have a conversion for the Type IV to use an upright cooling fan like the 911 or Type 1?


Check on the FAT Performance website, they do them, with a 911 fan IIRC.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Nov 19 2010, 11:59 PM
Post #15


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

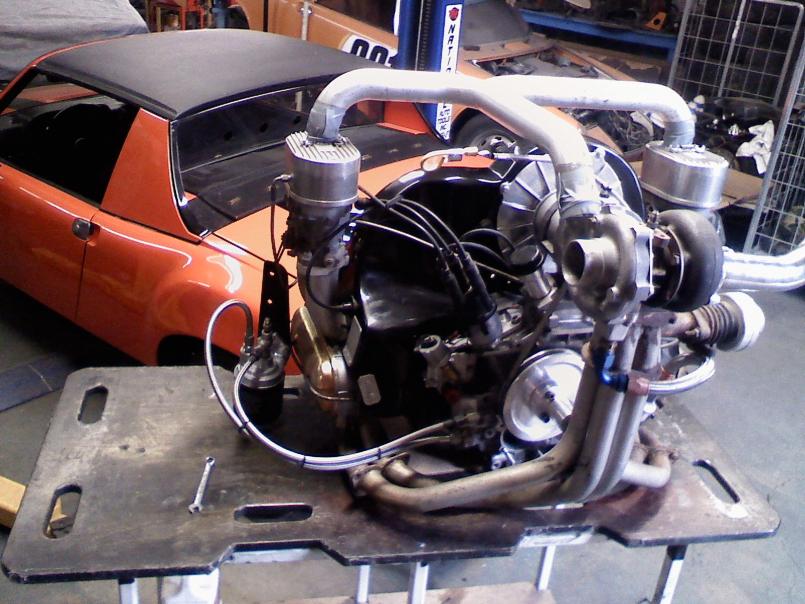

this is a jake raby dtm sample


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Nov 20 2010, 12:00 AM
Post #16


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

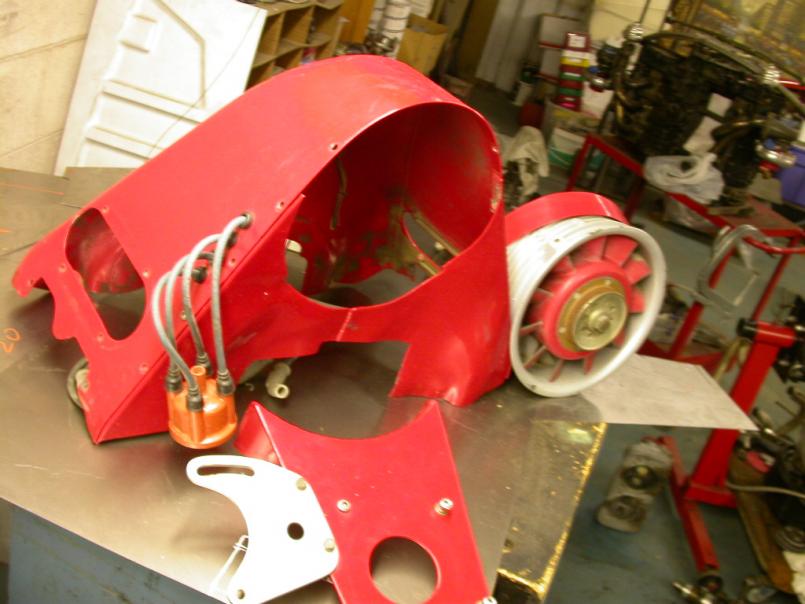

911 type cooling


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Nov 20 2010, 12:05 AM
Post #17


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

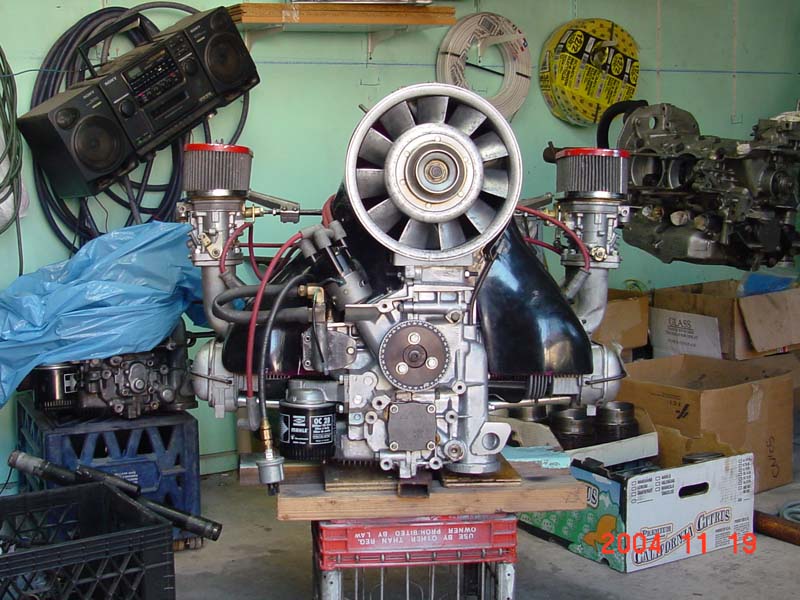

another 911 style fan, different
IMO they are a waste of time in a 914. strickly bling. great way to put a type 4 in a bug. big jump in power for a bug


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bills914-4
post Nov 20 2010, 09:43 AM
Post #18


Member
**

Group: Members
Posts: 311
Joined: 1-March 08
From: suburbs of Miami FL.
Member No.: 8,762
Region Association: South East States

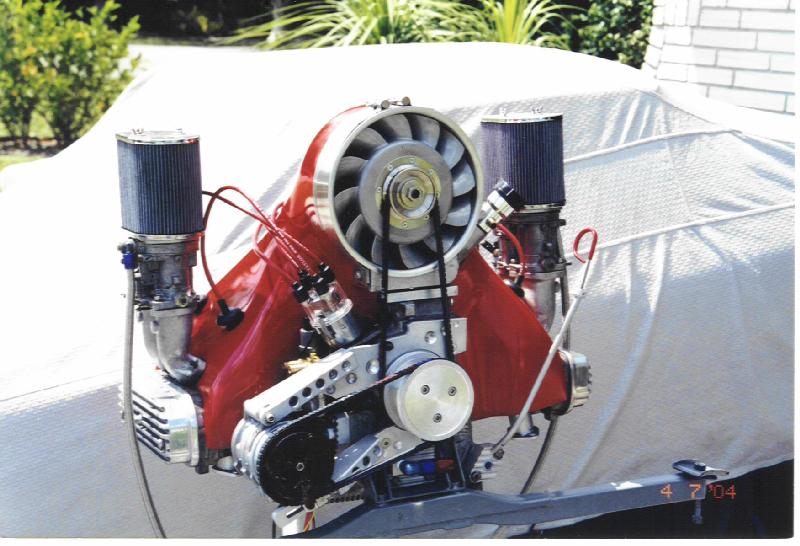

DO NOT go with the 911 style shroud , I made that mistake back 2004 , I've
had my share of issue's ( mainly unbalanced temps between cylinders ) , I didn't
do my reserach & I chose because of the LOOK's & the COOL factor , I didn't think much about the IMPORTANT part , the FUNCTION of it (IMG:style_emoticons/default/sad.gif) , If I was to do
it over I would go with the DTM v2 ( 914 version ) or possibly a horizontal
style ,again must do reserach . Ok confession over (IMG:style_emoticons/default/biggrin.gif)

Bill D.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Nov 20 2010, 10:24 AM
Post #19


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
All of those 911 pic's show why if I was inclined to do a 911 fan in a bug it would be a Sharpbuilt.
Number one reason is not one of those would the hood close in a bug, maybe even a teen would have issues, they are all too tall.
The sharpbuilt also has some vanes to direct the air better.

DTM or Joe Cali would be my picks and I've installed all three (plus a 911 FAT) types over the years.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Nov 20 2010, 01:11 PM
Post #20


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Another 911 shroud conversion...


Attached image(s)
Attached Image
User is offlineProfile CardPM
