> Out with the old...in with the new...Britain's Racecar Development, Subaru Engine, Lotus Suspension! Time to go racing!
bulitt
post Dec 9 2011, 07:43 AM
Post #361


Achtzylinder
****

Group: Members
Posts: 4,188
Joined: 2-October 11
Member No.: 13,632
Region Association: South East States
Just read your thread and starting from page one noticed the pic of the factory ported intake ports. I don't believe I have ever seen a port job that left the casting marks intact?
Great job! Awesome work!
(IMG:http://www.914world.com/bbs2/uploads_offsite/sphotos.ak.fbcdn.net-364-1291656809.1.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
0396
post Dec 9 2011, 08:21 AM
Post #362


Advanced Member
****

Group: Members
Posts: 2,046
Joined: 13-October 03
From: L.A. Calif
Member No.: 1,245
Region Association: Southern California
I have to add these two simple comments:


*congrats

*one bad ass ride
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
d914
post Dec 9 2011, 08:22 AM
Post #363


Advanced Member
****

Group: Members
Posts: 2,343
Joined: 12-July 03
From: Atlanta, ga
Member No.: 904
Region Association: South East States
I dont think horse power is his problem right now,,, keeping that hp bolted to the ground is!! (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Dec 9 2011, 11:19 AM
Post #364


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
QUOTE(bulitt @ Dec 9 2011, 05:43 AM) *

Just read your thread and starting from page one noticed the pic of the factory ported intake ports. I don't believe I have ever seen a port job that left the casting marks intact?
Great job! Awesome work!
(IMG:http://www.914world.com/bbs2/uploads_offsite/sphotos.ak.fbcdn.net-364-1291656809.1.jpg)



My understanding is that they were cast with larger ports as compared to standard 2.0L heads. I agree, they don't appear to be hand ported.

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Dec 9 2011, 11:21 AM
Post #365


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
QUOTE(oldschool @ Dec 9 2011, 12:19 AM) *

QUOTE(Britain Smith @ Dec 8 2011, 10:18 PM) *

Yea, it is an adventure with no end in sight. I talk with JP all the time...we both knew this was coming eventually.

-Britain


Very cool man, yeah I know the shop Ted is way cool. (IMG:style_emoticons/default/aktion035.gif)


I will be back down in SoCal this Sat. thru Tuesday...come by and check it out.

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
J P Stein
post Dec 9 2011, 11:32 AM
Post #366


Irrelevant old fart
*****

Group: Members
Posts: 8,797
Joined: 30-December 02
From: Vancouver, WA
Member No.: 45
Region Association: None
Brit continues with the mantra of "It's never done" or continuous improvement ....pick one. My spirit was strong but my wallet was weak.
The car did OK for with my low rent efforts but Brit is moving to a higher level......but it still requires development. No instant gratification here..just a lot of hard work. I am confident that he will make it work.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Dec 12 2011, 10:11 AM
Post #367


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California
Braved the 605 and the 5 Saturday to see the project. Amazing attention to "how stuff works". Gonna end up with an insane power to weight ratio in a chassis that should handle like a slot car. Impressive! I look forward to seeing it run some events.

The Cap'n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Randal
post Dec 12 2011, 10:28 AM
Post #368


Advanced Member
****

Group: Members
Posts: 4,446
Joined: 29-May 03
From: Los Altos, CA
Member No.: 750
What's the schedule for the car Britain, i.e., are you planning any early events in 2012?

Excellent planning and execution.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Dec 13 2011, 03:14 AM
Post #369


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
The current goal to have the car ready for testing by mid-Feb. Based on the amount that we got done in the last few days, that goal is feasible. I fly back to Portland tomorrow and I will have some time to post some new pictures. Wait till you see what we got done on the rear suspension...it is amazing.

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Dec 13 2011, 11:17 PM
Post #370


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
Just got back from another 4 days in sunny SoCal working on the racecar. 12-15hrs days, but we got a lot done. Check it out.

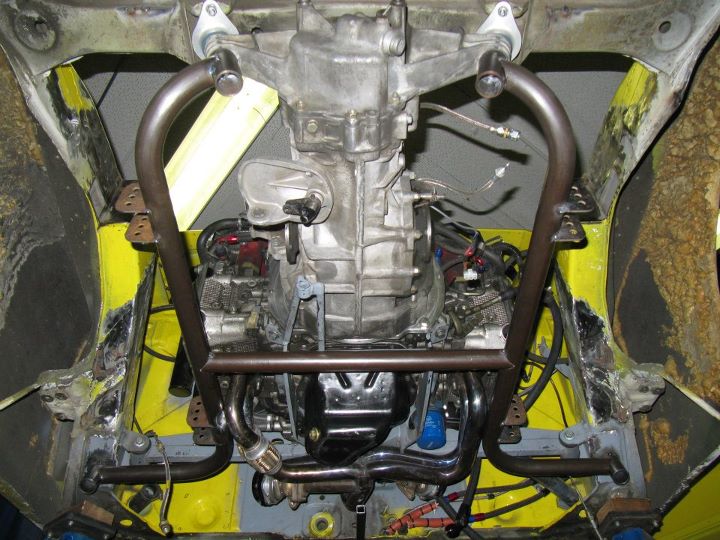

Lower bars of the rear sub-frame completed. These two bars took 5 attempted to get right. They had to contact 4 points with two compound bends and angled cuts. They intersect the frame rails in the front and the transmission mounts in the back.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a1.sphotos.ak.fbcdn.net-364-1323839824.1.jpg)

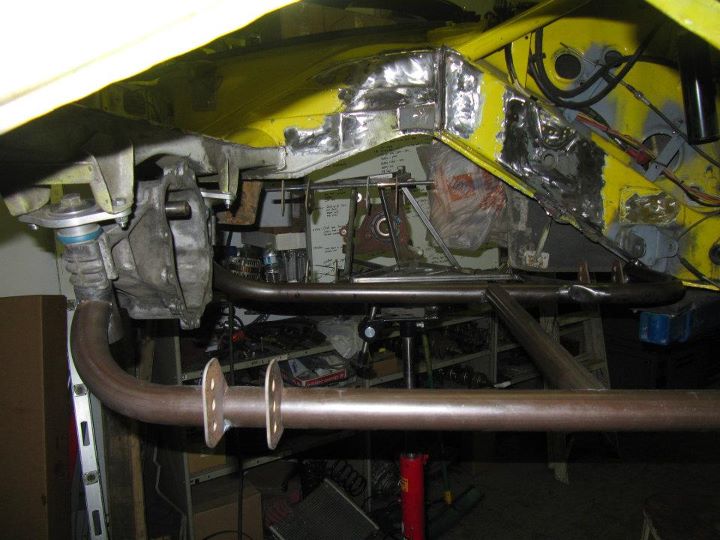

Side view of the lower sub-frame in place without the engine and transmission in place. Used an extra 901 nosecone to locate the transmission mounts.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a3.sphotos.ak.fbcdn.net-364-1323839824.2.jpg)

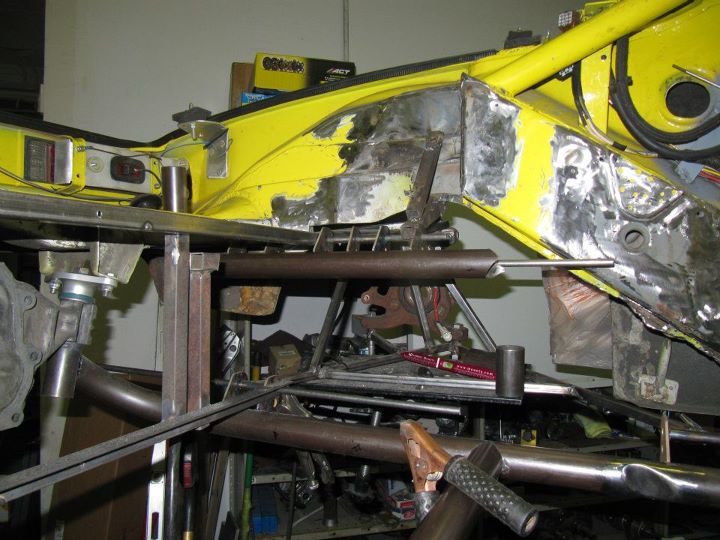

Jigs in place to locate the proper pick-ups points for the upper mounts. The upper mounts are in-board 1/4" to achieve more negative camber compared to a stock lotus.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a4.sphotos.ak.fbcdn.net-364-1323839824.3.jpg)

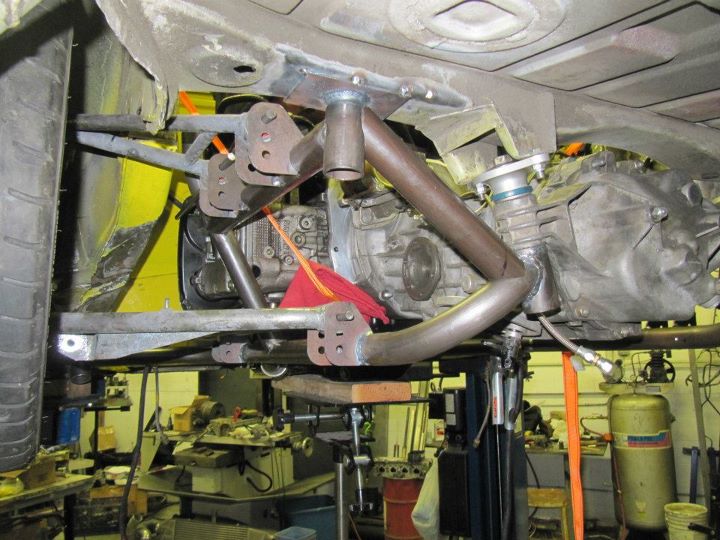

Rear suspension control arms in place at the upper pick-up point. Additional rear body mount added for the upper mount bar to hit the chassis.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a6.sphotos.ak.fbcdn.net-364-1323839825.4.jpg)

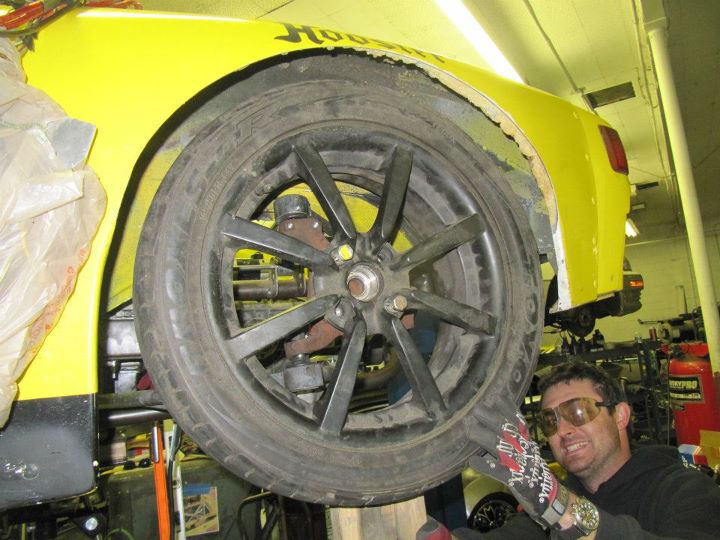

Rear Lotus wheel mounted on the car.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a1.sphotos.ak.fbcdn.net-364-1323839825.5.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Dec 13 2011, 11:19 PM
Post #371


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364

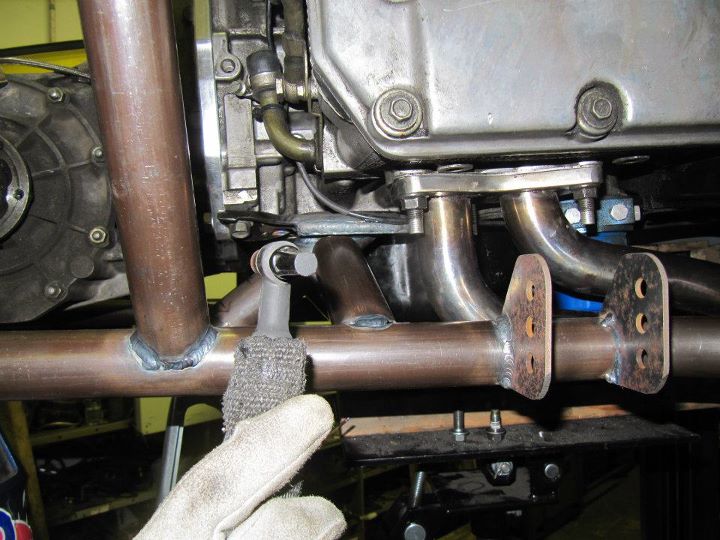

The rear sub-frame will also be a cradle for the engine mounts. This will free up some much needed room in the front of the engine. These utilize the stock Subaru engine mount parts with a few modifications.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a3.sphotos.ak.fbcdn.net-364-1323839951.1.jpg)

Engine in place in the new sub-frame and bolted to the car. There will be an additional cross-bar in place between the frame rails.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a6.sphotos.ak.fbcdn.net-364-1323839952.2.jpg)

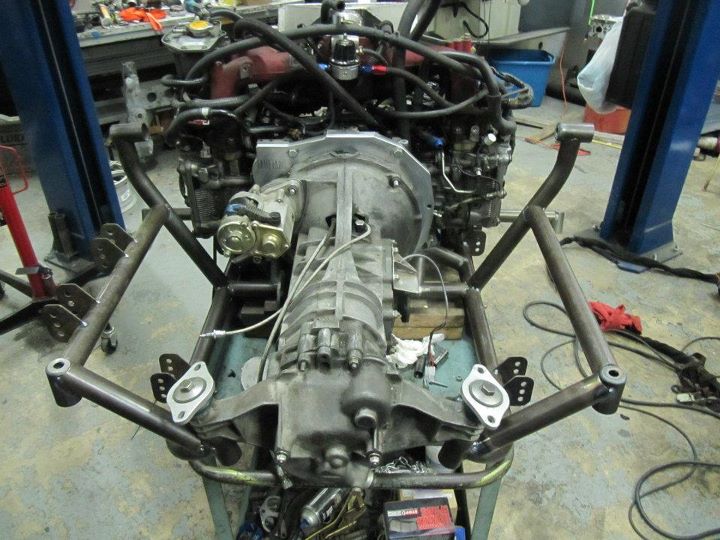

The sub-frame will unbolt from the car and the engine, transmission, and rear suspension will come out as one piece.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a1.sphotos.ak.fbcdn.net-364-1323839952.3.jpg)

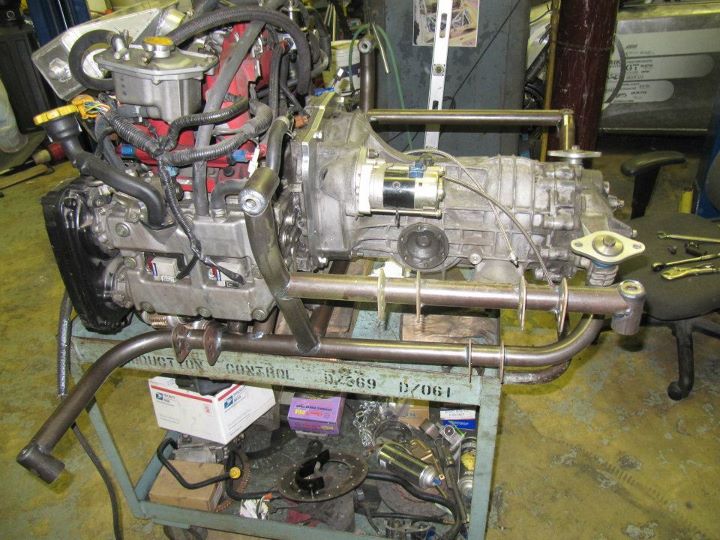

Side view of the sub-frame. The will be an additional bar across the front of the engine to support the turbo and other items that used to be mounted to the old crossbar.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a7.sphotos.ak.fbcdn.net-364-1323839953.4.jpg)

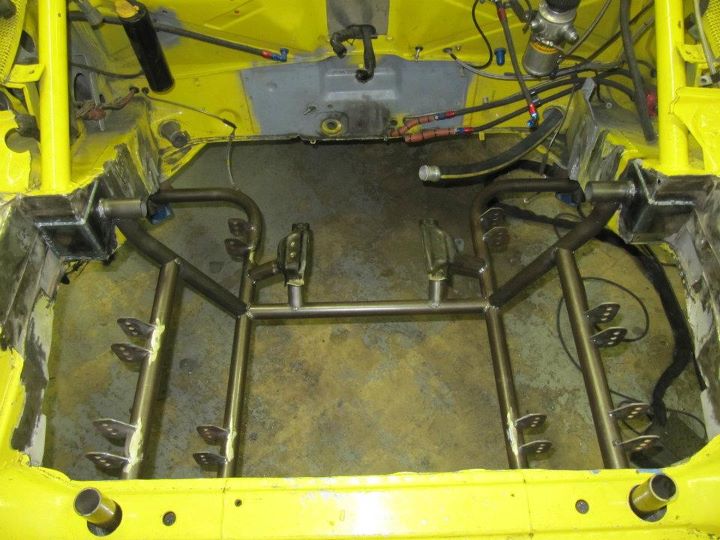

Completed rear sub-frame in place in the car for final welding. Here you can see the new engine mounts.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a4.sphotos.ak.fbcdn.net-364-1323839953.5.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Dec 13 2011, 11:22 PM
Post #372


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364

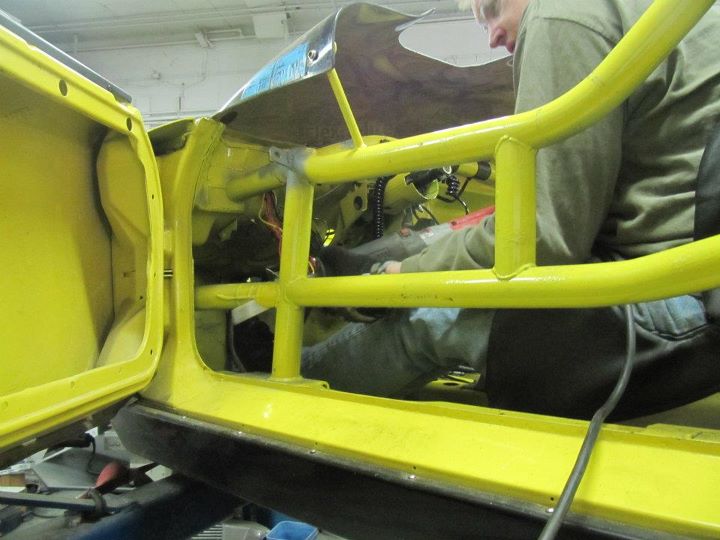

I knew the day would come sooner or later, but here we are cutting out the old cage.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a3.sphotos.ak.fbcdn.net-364-1323840127.1.jpg)

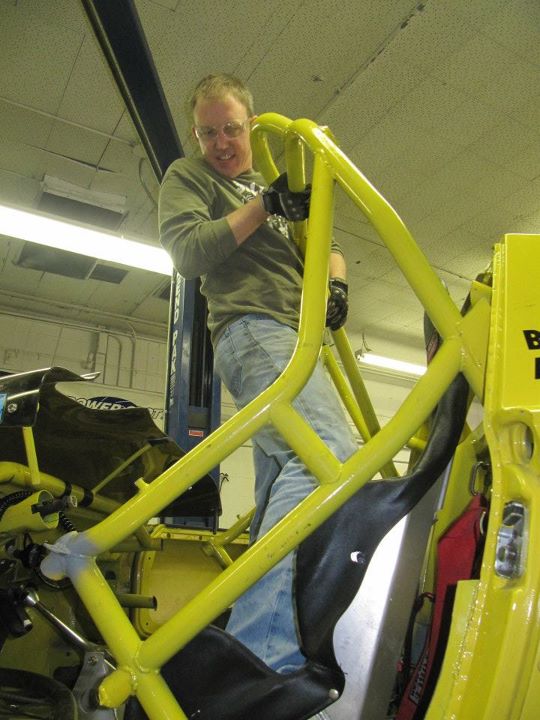

The old cage was 1.75" x 0.120" and weighed in at 92lbs. It was a bit heavy as you can tell from my expression here.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a2.sphotos.ak.fbcdn.net-364-1323840127.2.jpg)

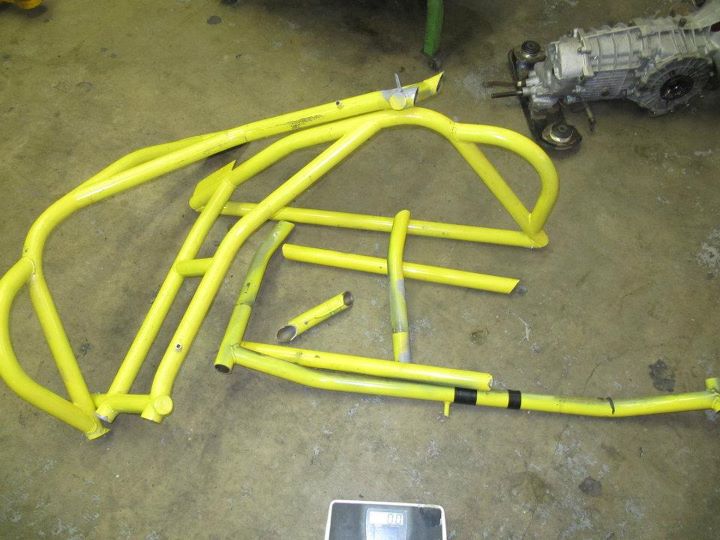

Pile of bars from the old cage. 92lbs of steel sitting here. I estimate that the new cage will be approximately 50lbs.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a7.sphotos.ak.fbcdn.net-364-1323840128.3.jpg)

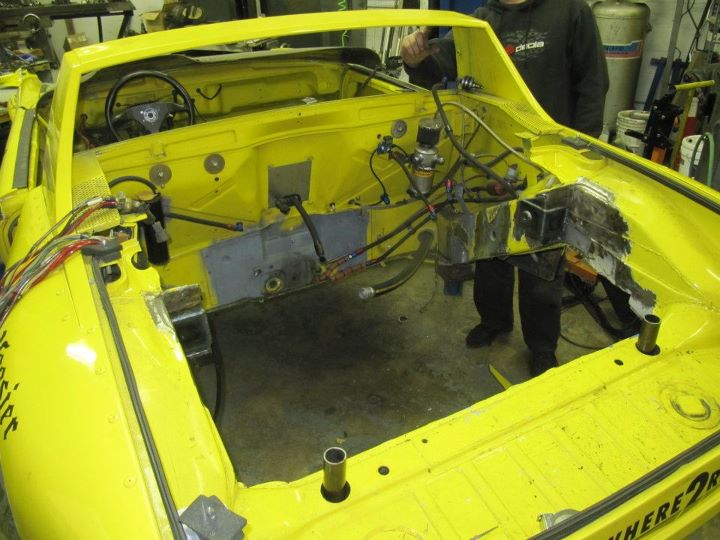

View from the rear without the cage. The new cage will tie in the frame rails as well as the two bars sticking up in the rear which are the upper sub-frame mounts.

(IMG:http://www.914world.com/bbs2/uploads_offsite/hphotos-iad1.fbcdn.net-364-1323840128.4.jpg)

Additional structure related to the old suspension cut out of the front. Material will be added back to the wheel wells and the cage will extend forward to pick-up the front suspension assembly.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a2.sphotos.ak.fbcdn.net-364-1323840129.5.jpg)

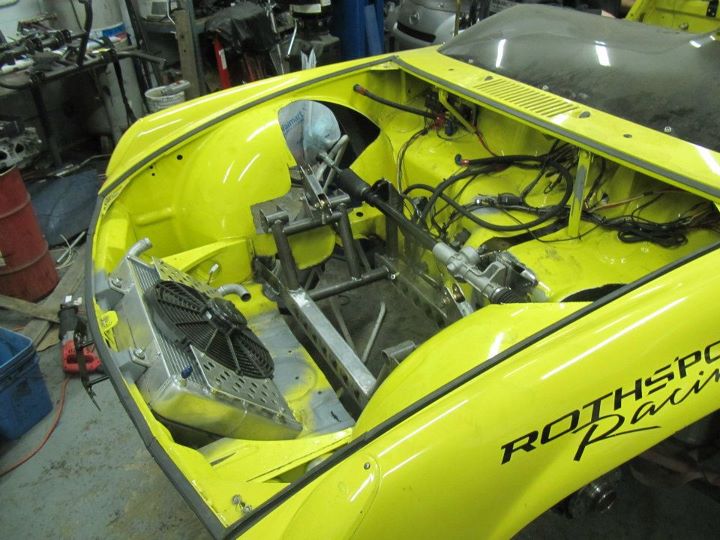

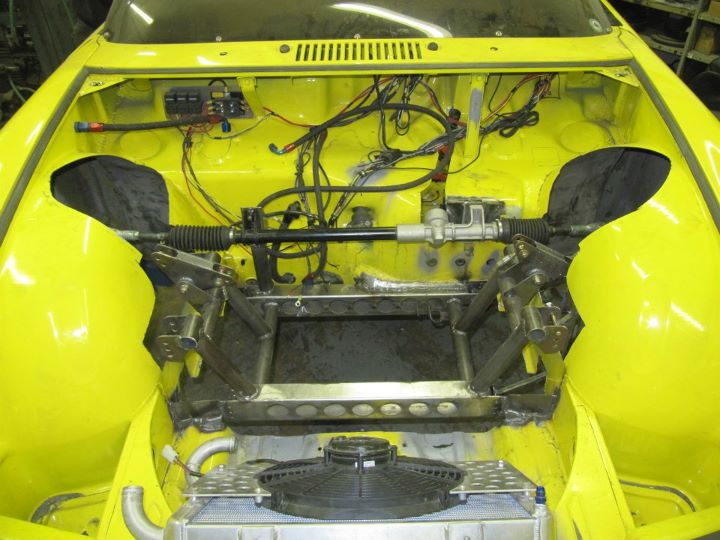

Lotus steering rack in place and excess 914 sheet metal removed.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a8.sphotos.ak.fbcdn.net-364-1323840129.6.jpg)

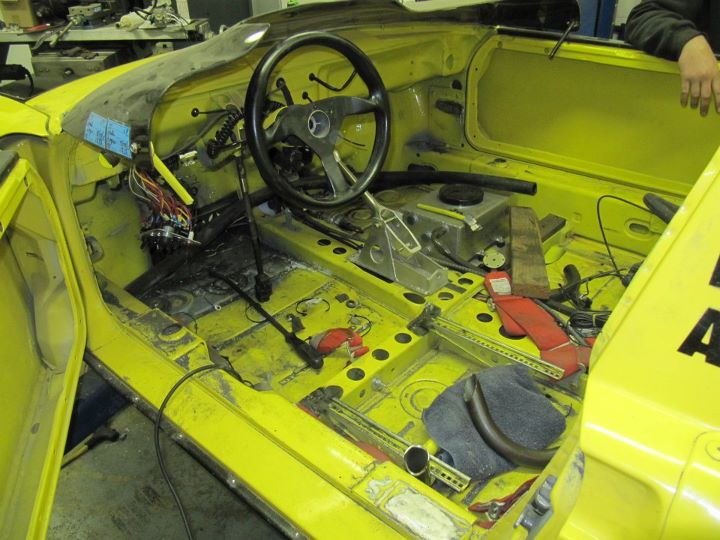

Lots more room in the car with the cage removed.

(IMG:http://www.914world.com/bbs2/uploads_offsite/a4.sphotos.ak.fbcdn.net-364-1323840130.7.jpg)

Next step is to construct the new cage and start putting the car back together.

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris Pincetich
post Dec 14 2011, 10:28 AM
Post #373


B-)
****

Group: Members
Posts: 2,082
Joined: 3-October 05
From: Point Reyes Station, CA
Member No.: 4,907
Region Association: Northern California
wild (IMG:style_emoticons/default/beerchug.gif)
Do you think the new "system" will accelerate or slow engine or transaxle removal?
Critical decision: paint the new cage to match the suspension sub-frame, or in a contrasting color? (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Dec 14 2011, 11:03 AM
Post #374


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
The removable sub-frame should make the engine removal much quicker since the I won't have to disconnect the axles or any of that stuff. I plan to add quick disconnects for the brake lines, but I will still have to deal with the radiator lines.

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Andyrew
post Dec 14 2011, 03:50 PM
Post #375


Spooling.... Please wait
**********

Group: Members
Posts: 13,377
Joined: 20-January 03
From: Riverbank, Ca
Member No.: 172
Region Association: Northern California
Awesome (IMG:style_emoticons/default/smile.gif)

You will be running the porsche wheels with the new tires correct?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Dec 14 2011, 04:04 PM
Post #376


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
Nope. The Lotus stuff is 4x100 so I will be ordering all new wheels...which are wider (IMG:style_emoticons/default/smile.gif)

All my old wheels are for sale if you are interested....see the classifieds.

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
yeahmag
post Dec 15 2011, 11:48 AM
Post #377


Advanced Member
****

Group: Members
Posts: 2,442
Joined: 18-April 05
From: Pasadena, CA
Member No.: 3,946
Region Association: Southern California
Where are you doing the build? I'd love to drop by and see it in person...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Dec 15 2011, 11:54 AM
Post #378


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
It is at Mavrik Motorsports in Fullerton.

-Britain
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
yeahmag
post Dec 15 2011, 12:01 PM
Post #379


Advanced Member
****

Group: Members
Posts: 2,442
Joined: 18-April 05
From: Pasadena, CA
Member No.: 3,946
Region Association: Southern California
Heading down to Costa Mesa R&D on Saturday so I'll be driving right by there (well, close anyway). Let me know if it's acceptable to drop in. Not sure I'll have time, but just in case...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Britain Smith
post Dec 15 2011, 12:03 PM
Post #380


Nano Member
****

Group: Members
Posts: 2,354
Joined: 27-February 03
From: Hillsboro, OR
Member No.: 364
I am sure it won't be a problem, I won't be there...but the car is.

_Britain
