Andrew,

What carb are you using for that latest dyno graph?

[Andyrew]

600 or so holley single pumper, I know with fuel injection i can hit 350hp and well over 400lbs of tq.

[matthepcat]

Is it vacuum secondaries?

600 or so holley single pumper, I know with fuel injection i can hit 350hp and well over 400lbs of tq.

[BajaXJ92]

Time for me to post the engagement pics (IMG:style_emoticons/default/smile.gif)

(IMG:http://www.914world.com/bbs2/uploads_offsite/a2.sphotos.ak.fbcdn.net-172-1321246690.6.jpg)

This picture is awesome!! (IMG:style_emoticons/default/biggrin.gif)

Congrats! (IMG:style_emoticons/default/beerchug.gif)

[Andyrew]

Is it vacuum secondaries?

600 or so holley single pumper, I know with fuel injection i can hit 350hp and well over 400lbs of tq.

Yup

[Black914_4]

Sweet ride. I bet its a beast with the V8. (IMG:style_emoticons/default/biggrin.gif)

[Andyrew]

Teaser (IMG:style_emoticons/default/smile.gif) More photos and video to come (IMG:style_emoticons/default/smile.gif)

[Andyrew]

https://www.youtube.com/watch?v=tOJf7PpP4l0


https://www.youtube.com/watch?v=SwMCIE9bIKA


https://www.youtube.com/watch?v=dwsJnH1xpcc



Gopro video's to come a bit later..

[Mike Bellis]

Looks like fun (IMG:style_emoticons/default/smile.gif)

[dan10101]

I must say I was hesitant, but dam if it wasn't a kick in the butt. I can't get over how the exhaust sounds almost exactly like you were standing there. The echo off the concrete walls made seem like it was surround sound.

Does anyone remember a song from around 2000 that included the words "faster faster faster". Not that the video needed any sound enhancement...

[Andyrew]

Been busy so I couldnt upload pics, but heres one of proof that Dad joined (IMG:style_emoticons/default/smile.gif)

[Andyrew]

Nother

[Andyrew]

Dad, This song?

https://www.youtube.com/watch?v=jDJpf2mQ0w4

[dan10101]

Good song, but not the one.

It's been years since I heard it, but i think it may have been a bit of 90s pop/rock or maybe techno. I just remember someone is the SFR SCCA doing a video of his autocross day with this in the background. Oh well, it was a long shot. I just thought it was good background music. Most car videos shouldn't have music anyway...

[orange914]

Teaser (IMG:style_emoticons/default/smile.gif) More photos and video to come (IMG:style_emoticons/default/smile.gif)

Got any videos to post yet?

I was surprised to see how tight the side to side movement of the rear wheels were in those tight wheel wells (IMG:style_emoticons/default/first.gif) that v-8 sounded wicked
Wish I could've seen the 944 go at it.

[dan10101]

Teaser (IMG:style_emoticons/default/smile.gif) More photos and video to come (IMG:style_emoticons/default/smile.gif)

Got any videos to post yet?

I was surprised to see how tight the side to side movement of the rear wheels were in those tight wheel wells (IMG:style_emoticons/default/first.gif) that v-8 sounded wicked
Wish I could've seen the 944 go at it.

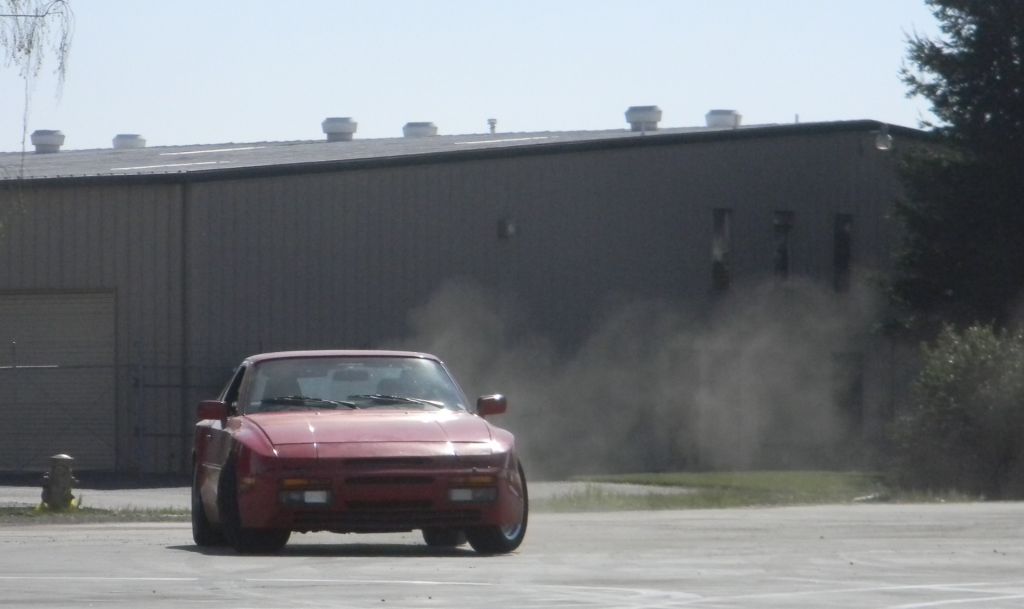

Here is someone you know doing a better job with the 944 than I did. No wicked sound for some reason, it sounds a lot better in person. None the less, very good car control!

http://youtu.be/LX8j_GfIkvY

[Andyrew]

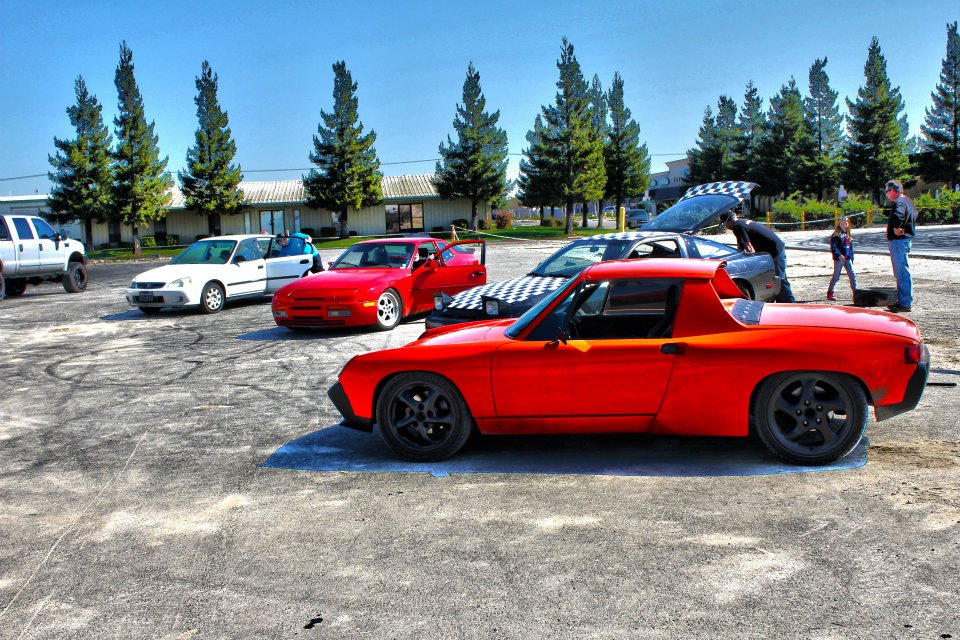

Pics

[Andyrew]

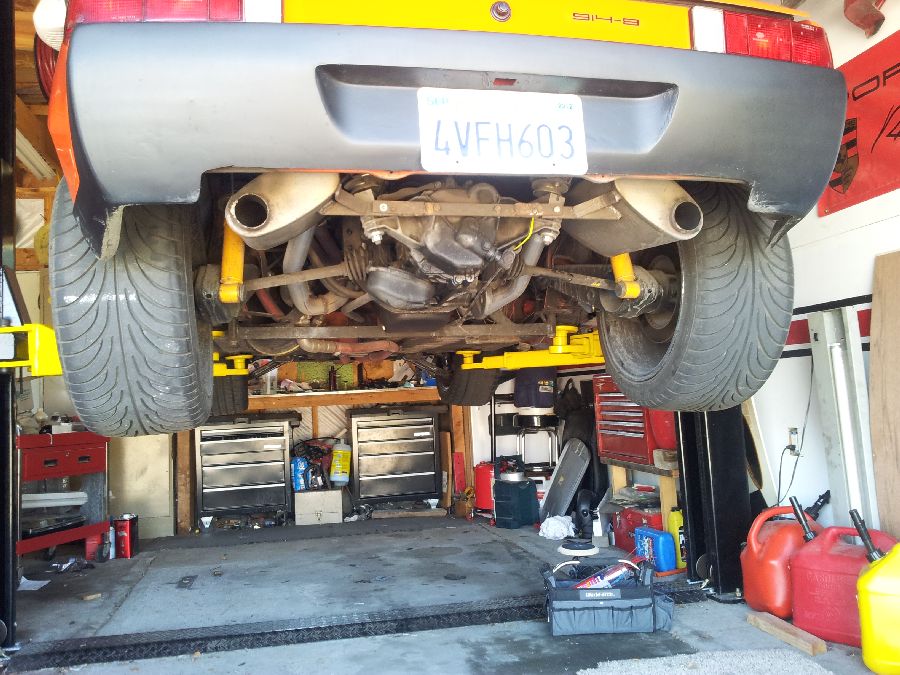

In prep for WCR, we threw the 914 on the lift to check things out.

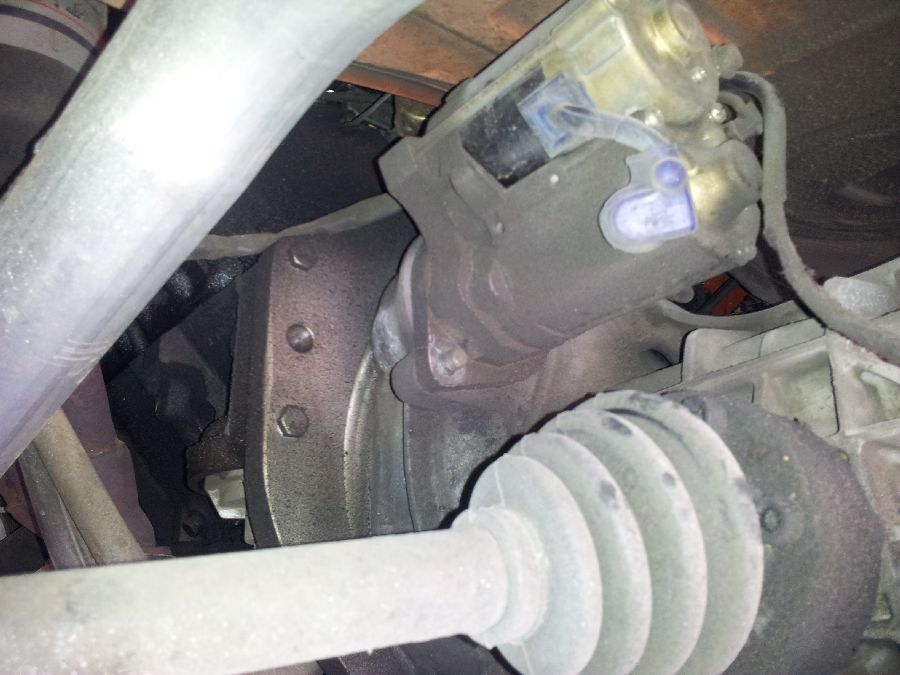

First off, starter bolt was GONE. Replaced.

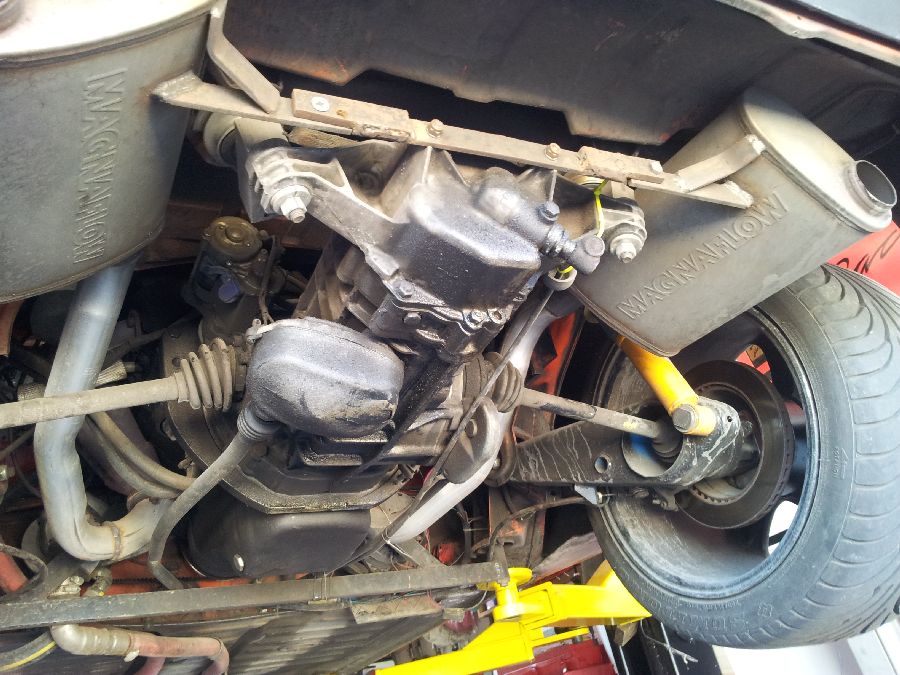

CV joints were tight, All major bolts were tight.

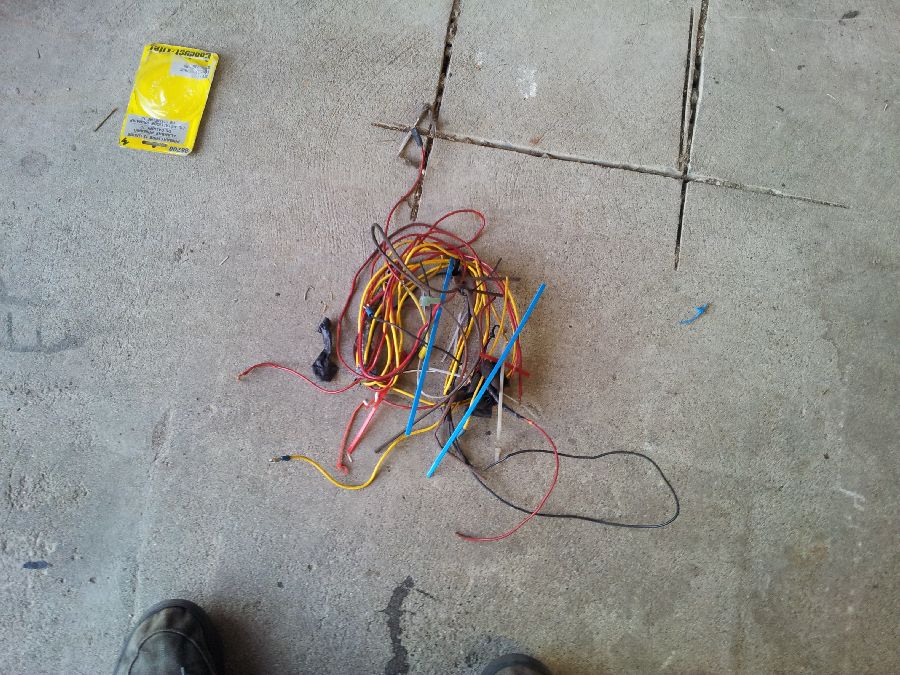

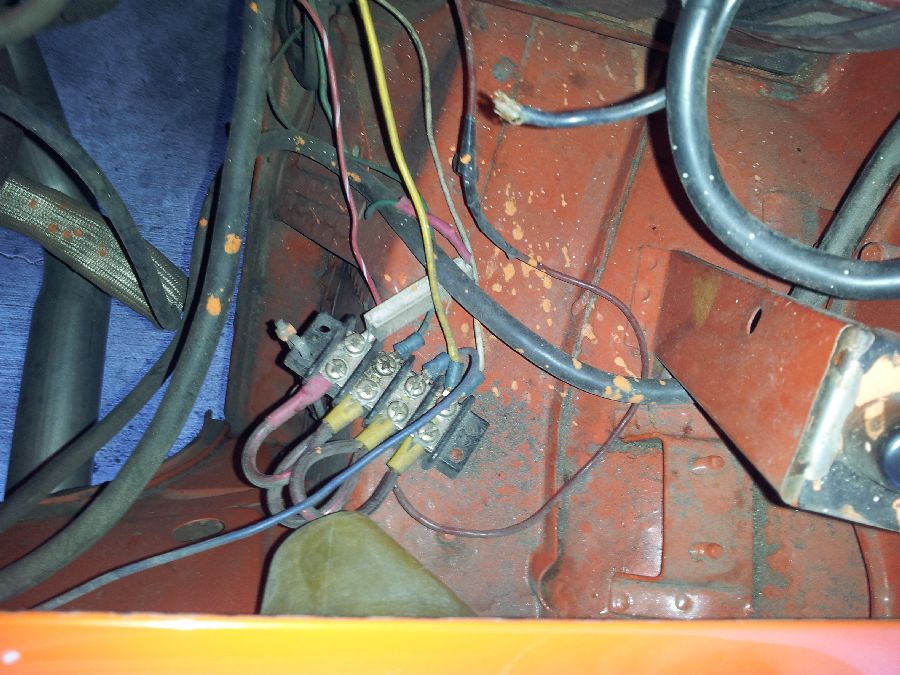

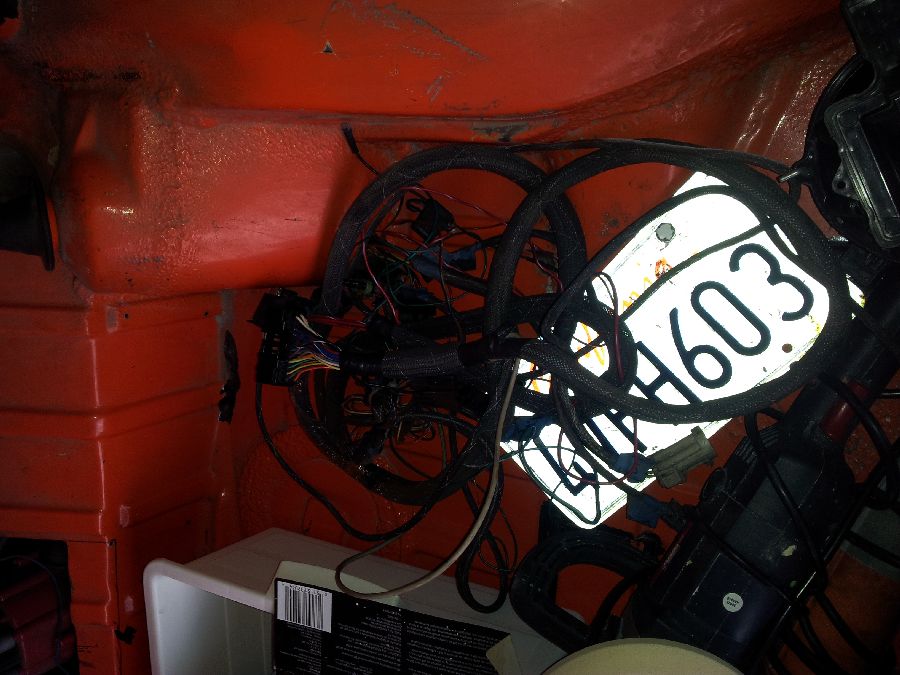

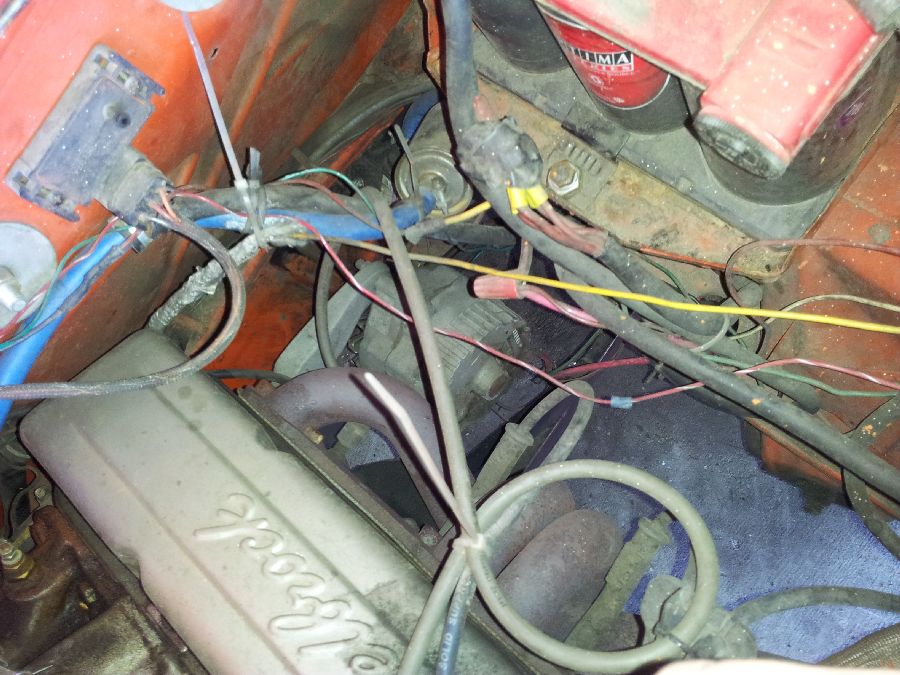

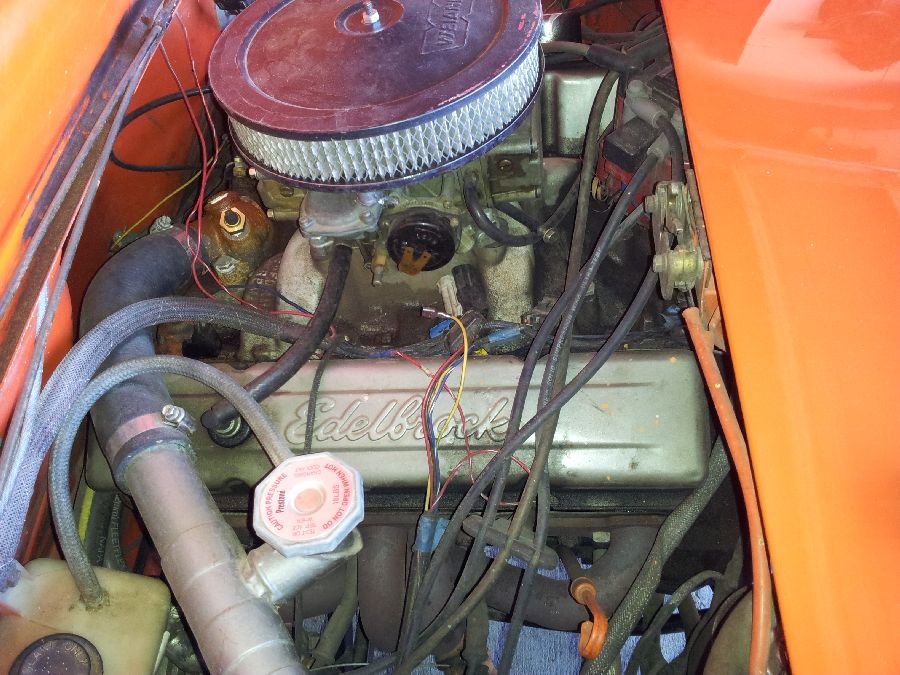

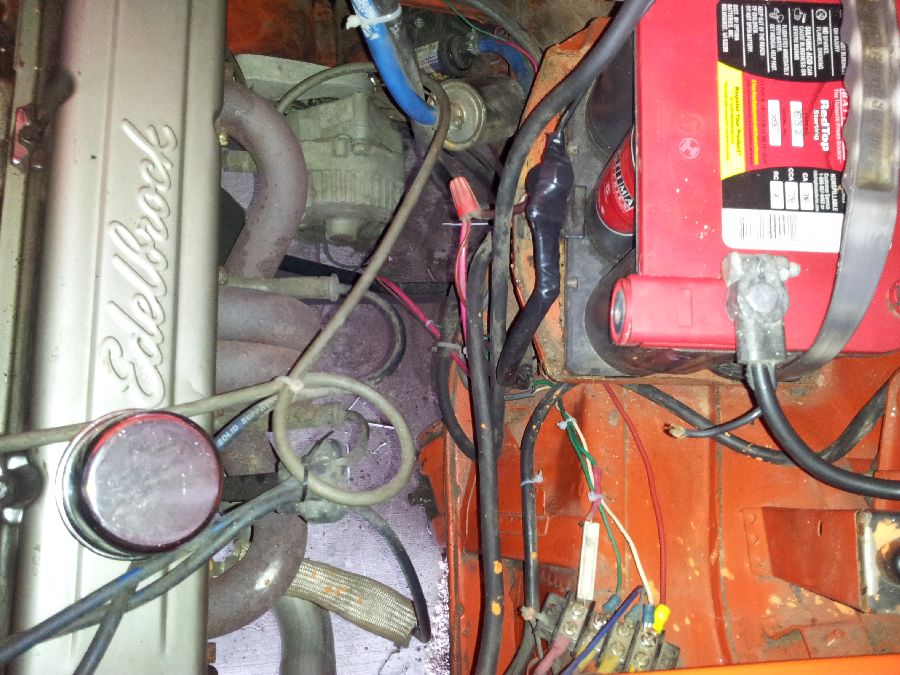

Wiring needed to be cleaned up so I removed the ECU wiring from the fuel injection and removed and trimmed/replaced a bunch of wiring.

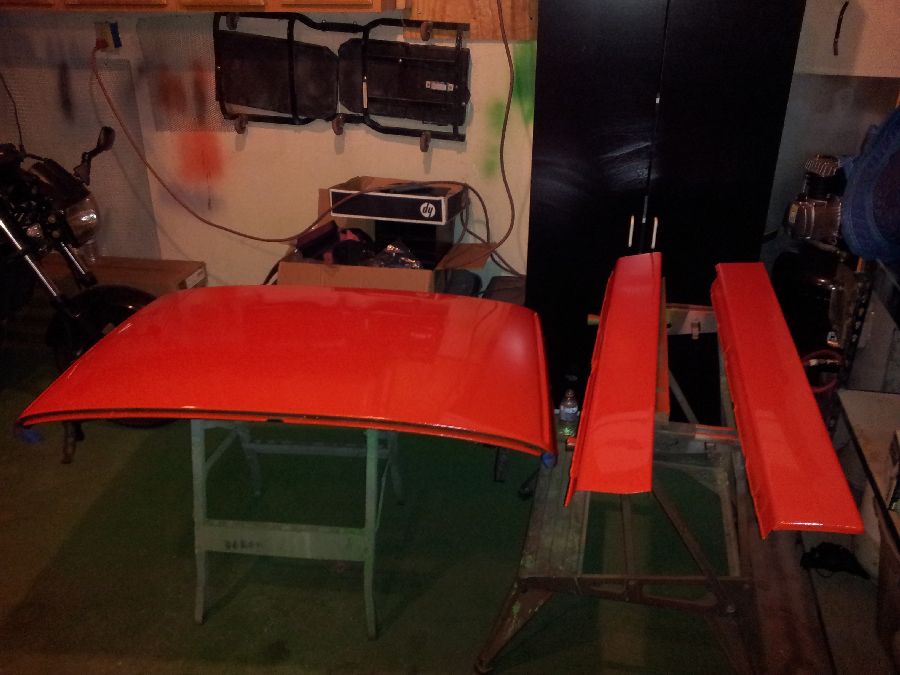

Also the targa top was looking sad as I never got around to respraying it. Also the rocker panels were sprayed with a spray can and were not the right color. So I sanded and sprayed them with my new gun... Unfortunately it took quite a long time to get the gun adjusted right so its not up to par and will get resprayed after WCR... Just no time now.

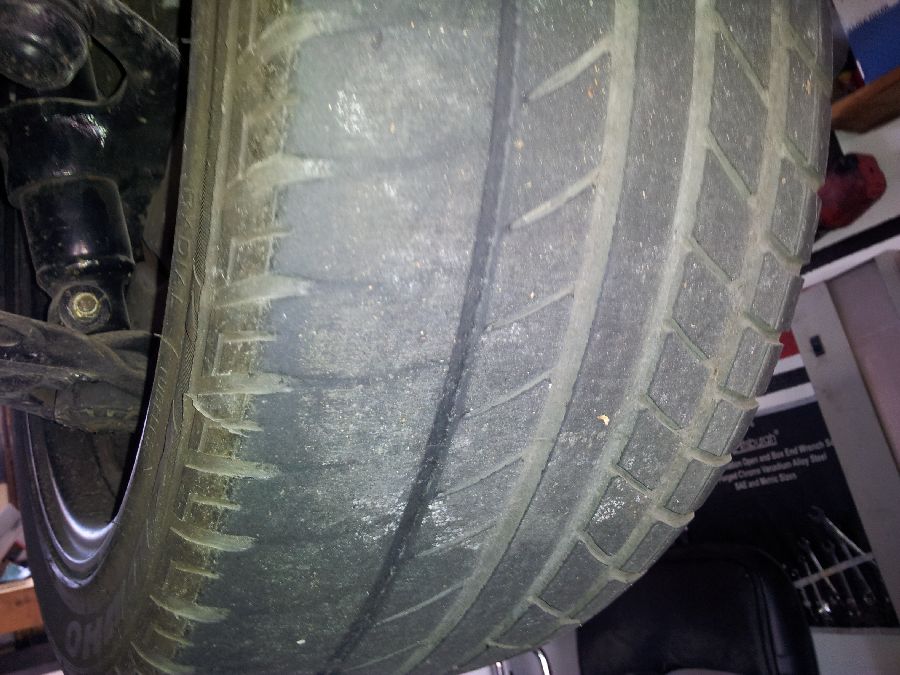

Still have a lot left to do and im swamped at work... so this is going way to slow.. New front tires are on order and an alignment will be done Thurs or Friday.

[emenot]

(IMG:style_emoticons/default/biggrin.gif)

Nope, Very little going to be done today... I got roped into helping my GF setup for her best friends baby shower, AND I have to help during the shower tomorrow...

Yesterday we went to the snow.. So pretty much this weekend is a wash, but I was expecting that. Monday i'll hit on it again and finish up the seat, then possibly work on something else.

Its pretty ironic, we were the pants but are slaves to the skirts...(*&^%&) (IMG:style_emoticons/default/slap.gif) (IMG:style_emoticons/default/wub.gif) (IMG:style_emoticons/default/pray.gif) (IMG:style_emoticons/default/confused24.gif)

[stewteral]

Well it has been far to long since I drove my 914 any bit regularly, and 4 years since it has been registered for the road. This whole time it has been locked in my garage waiting for me to work on it. Sadly I haven't done more than a handful of things to it over that time. This thread is to motivate me to change that.

The goal is to get the car to the point that I can drive and enjoy the car again. Most of you know some of the details on my car, but since this thread is about this car I figure I would list them.

73 1.7 Converted to 2.0 by the previous owner then converted to 5.7 SBC by myself.
Engine:
350SBC w/ .030 over
Edelbrock RPM Intake
Holley Pro Jet Comander fuel injection 650cfm (laptop programmable) * Converted back to 600 Holley Carb*
Shorty Headers
R/V cam
Remote oil filter
Aprox 350hp 400lbs TQ *250HP/250TQ Estimate after converting back to Carb*
Home made radiator setup

Trani/Clutch:
Stock 914 Sideshift
Stock 914 CV's (on 3rd replacement)
Rennegade adapter
Kennedy Engineering VW conversion kit w/ Stage 4 clutch
Rennshifter

Suspension:
Raised 911 spindals up front with Koni reds
Mueller Roller Needle Bearings front and rear
Turbo tie rods
22mm Torsion bars
Nascar front sway bar
Koni yellows rear
911 rear hubs with 100mm studs
Ground control coil over kit
275lb springs

Brakes:
911 A calipers front
Stock 914 rear calipers
Vented rotors front and rear
Porterfield semi race pads
19mm M/C
Proportioning valve replaced with T

Wheels:
Boxter rear 17 x 8.5 twists up front
911 turbo 18 x 10 turbo twists in back

Body:
Rich Bontempi HPH Flares Front and Rear, Molded
916 front and rear bumpers (front bumper to be reworked completely)
Cowl style hood (to be replaced with factory)
6" ducktail spoiler with supports
Engman long stiffening kit
Seam welded rear
Camp 914 hood shocks front/rear
Camp 914 Euro front turn signals
Bike rack (IMG:style_emoticons/default/biggrin.gif)

Interior:
Momo steering wheel
Harness Bar
5 point Cam lock harnesses
Uncracked dash (IMG:style_emoticons/default/biggrin.gif)
Pepboys Corbeau style seats
Carpeted backpad
Aluminum pedalboard


Future Plans:
Replace engine/trani with Audi 2.8 FWD
Replace dash with Audi dash, Retaining A/C and Heater controls.
Get new tires


~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Now that the intro is done, here is my checklist of things that I want to get done with it.

Register *Done*
Fix ignition **5-30-11**
Tune (again) ecu ** Converted back to Carbs after ECU died 5-30-11**
Clean goo in trunk (pic)
Install Dr window crank *5-30-11*
Change oil ****Finished 1-29-11****
Change water pump *Received Remanufactured pump from Slits 1-26-11****Finished Install w/ hangups 1-29-11****
Flush coolant
Finish targa bar S *Started progress on the bar*
Dr front 1/4 *Sand day 1 1-29-11* *Bondo Day 2-1-11**Primer Day 2-19-11*
Dr door *Sand day 1 1-29-11**Bondo Day 2-1-11*[/url]*Primer Day 2-19-11*
Rocker pannels *5-7-11*
Dr rear 1/4 *Sand day 1 1-29-11**Bondo Day 2-1-11*[/url]*Primer Day 2-19-11*
Trunk *Removed spoiler, Plugged old spoiler holes, Long board sanded trunk*
Rear bumper *Page 8*
Pass rear 1/4 *4-17-11*
Pass door *4-17-11*
Pass front 1/4 *4-17-11*
Front bumper *5-5-11*
Hood *Primer 5-2-11* *Paint 5-15-11*
Top *5-4-11[url=http://www.914world.com/bbs2/index.php?showtopic=114780&st=120#]
Primer sealer *5-15-11*
Paint *5-15-11*
Radiator cutouts in wheel well (And replace hood with stock) ***Completed 1-26-11***
Fix headlights *6-8-11*
Fix horn
Finish seat install ****Progress 1-19-11**** ***Finished 1-26-11***
Finish carpet *6-8-11*
Finish front sway bar
Fix Dr Door handle


Starting state

(IMG:http://www.914world.com/bbs2/uploads_offsite/i1210.photobucket.com-172-1295463716.1.jpg)

I made a photobucket album to host my phone pictures that i'll take durring the process. I'll take quality pictures where I see the need.

http://s1210.photobucket.com/albums/cc411/andyrew914/914/

Hey Andyrew,

First off, your paint job is just Freakin' Awesome! Wow, what a great finish! I'm working on my 2nd 914 (restoration car) and could surely learn some things from you on paint work!

Unsolicited suggestion, accept them if you agree:
-Like you, I also have a SBC conversion car that I've been running on track for about 10 years now and am very concerned about the removal of the brake proportioning valve. While I always have hated the mushy pedal the valve creates, it IS important. I'm concerned that when you need emergency braking or one of the few wet days in Modesto, that you will get nasty rear wheel lock-up and spin the car. I'm running the Wilwood dual-master cylinder w/ balance bar setup and not only is it very low-cost, it works terrifically. I see that you are a skillfull guy, it should be not a big project for you to do: remote reservoirs mount under the front hood like the original and you will have the hardest brake pedal you have ever felt. When I'm on-track and don't have my bias adjusted correctly, I spin off like a top!

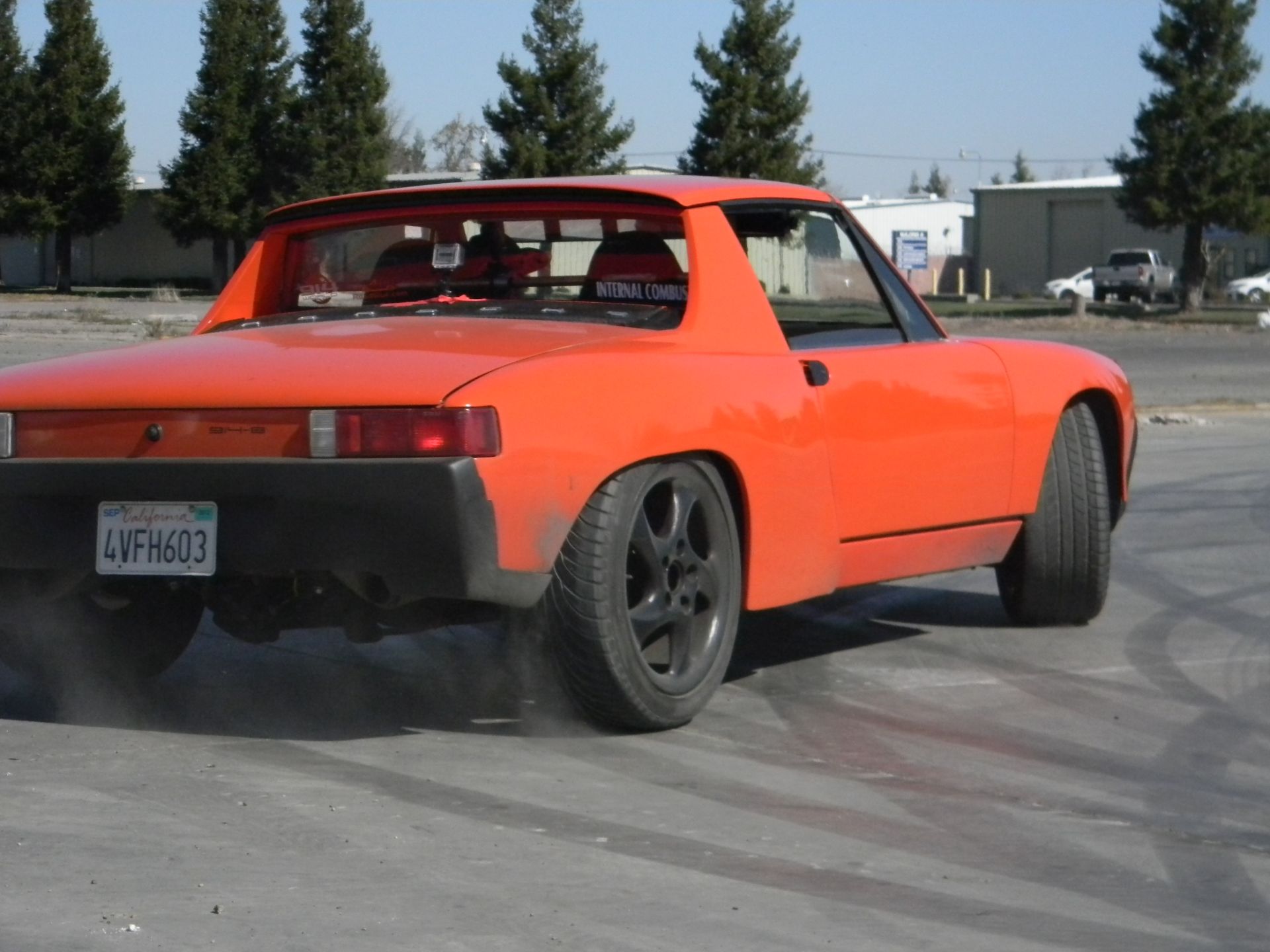

-I viewed you sliding your car in the parking lot and noted that the outside rear tire appeared to have Positive camber....this makes the car oversteery and not what you want. I would recommend 2 - 2-1/2 degrees of Negative camber in the rear. Rear stability is a blessing.
-Lastly, I saw your skillful fixes of the mechanical water pump. While this setup "works", I'd like to suggest going to a remote Electric pump if you continue to have cooling issues. Lord knows Modesto has long hot summers!
Why the electric? Because you get CONSTANT MAX water flow ALL the time. So when you are in traffic with the engine idling, you are getting water flow as though you had the engine revving 4000 (I did the homework on this issue). I've been running my Meziere 55 GPM pump for over 10 years with NO problems. The say it has an MTBF of 30,000 hours and will rebuilt it for around $50.
-One of the BEST things you did for cooling was cut that hole in your front hood, I tried ducted out the bottom for a long time and was always running hot. As soon as I cut my hood vent, all my problems went away, including running at Willow Springs in the upper desert of SOCAL in summer.

I hope this is help, enjoy that beautiful car you created!
Terry
