Andyrews Progress Thread, 1/16/22 A Trip to The Red Barn - Lets fab a Firewall! Options

[Chris H.]

Yeah it may be time to separate that setup if no one wants to pay up. It's a damn good engine. Needs a wider audience.

BTW why does every car comment remind me of a movie?


https://www.youtube.com/watch?v=tWTjf0-GBQQ


This was my 2am college move go-to. Hollywood Knights.

[mgp4591]

Yeah it may be time to separate that setup if no one wants to pay up. It's a damn good engine. Needs a wider audience.

BTW why does every car comment remind me of a movie?


https://www.youtube.com/watch?v=tWTjf0-GBQQ


This was my 2am college move go-to. Hollywood Knights.

(IMG:style_emoticons/default/agree.gif) "this punch does have a little WHANG to it..." (IMG:style_emoticons/default/lol-2.gif)

[Chris H.]

"Good though...." (IMG:style_emoticons/default/lol-2.gif)

[Maltese Falcon]

Remember this Cobra in the movie?
The only way they could get it into the scenes was to allow its actual owner to do the driving. So the owner/driver picks my friend and body+paint man Jack Kimoto to sit shotgun during the street race scenes.
How cool is that ? (IMG:style_emoticons/default/aktion035.gif)

[mgp4591]

Remember this Cobra in the movie?
The only way they could get it into the scenes was to allow its actual owner to do the driving. So the owner/driver picks my friend and body+paint man Jack Kimoto to sit shotgun during the street race scenes.
How cool is that ? (IMG:style_emoticons/default/aktion035.gif)

And going up against someones "rail job", basically a slightly lengthened frame with a '23 t-bucket dropped on it. I'd take the Cobra anyday...
If you need a good example of a real Cobra accelerating, check out the Gumball Rally sequence toward the end when the Cobra and the Daytona Ferrari exit the LA river and hit the surface streets- the Daytona moves out fast but the Cobra literally LEAPS from gear to gear as the exhaust sound explodes from the pipes. The sound may have been file audio but it's one of the greatest examples of power to weight ratios in film IMHO... (IMG:style_emoticons/default/shades.gif)

[Andyrew]

Well... Lots of little things have been happening. Nothing Huge BUT lets to a rundown.

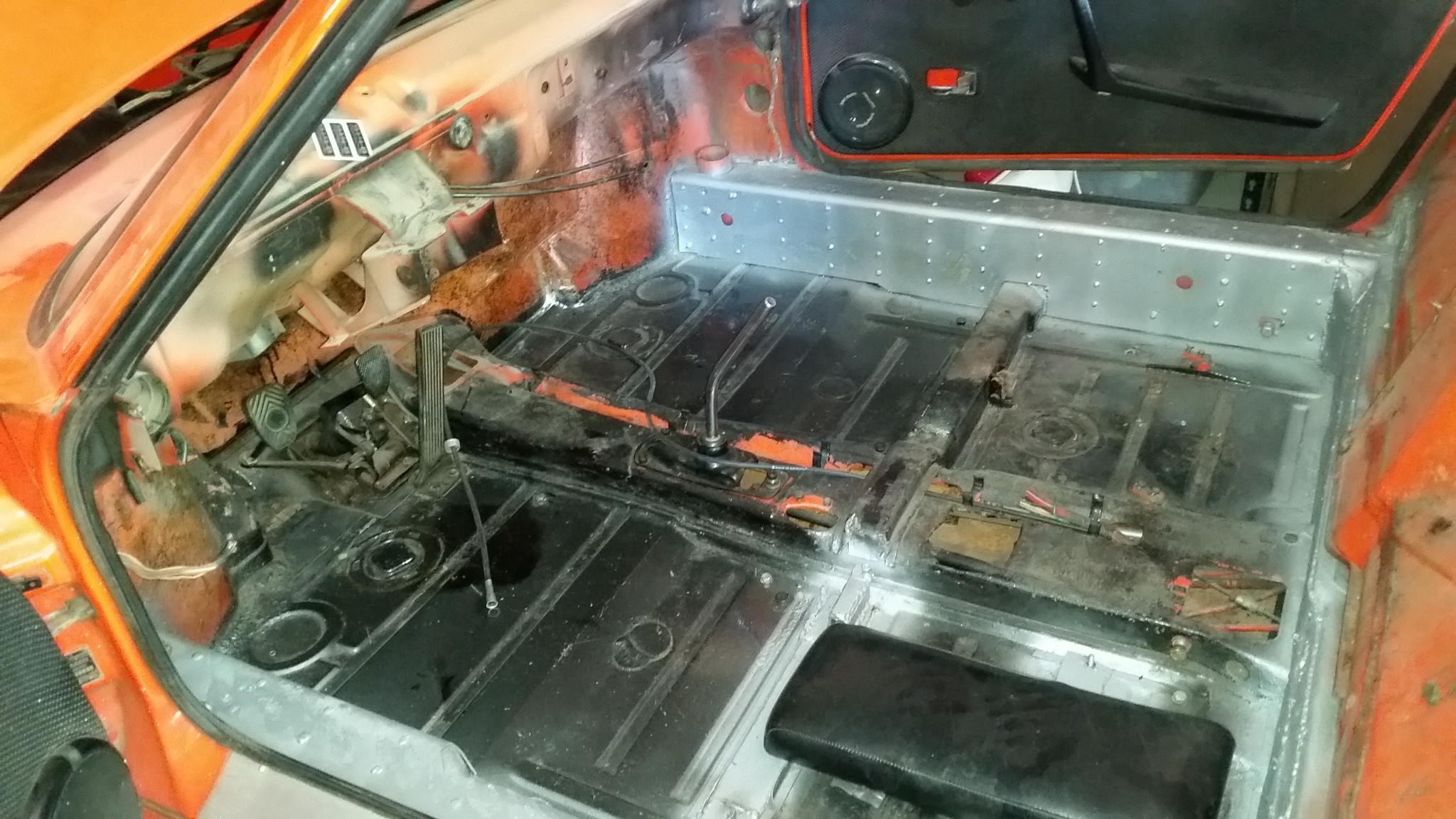

Interior is stripped, and I finally threw some galvanized paint on my longitudinal reinforcements since they were bare.


Next big thing to figure out on the interior is the steering column. It looks like I need to cut the dash up to mount the column. Then I need to find some way of adapting the column to the 914 shaft.


In the mean time I have been acquiring quite the parts collection.

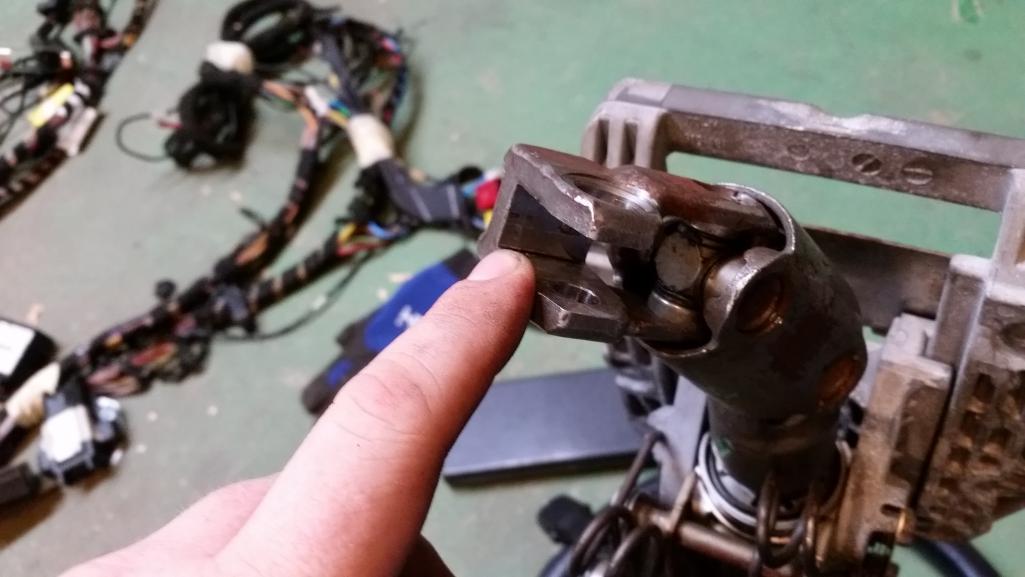

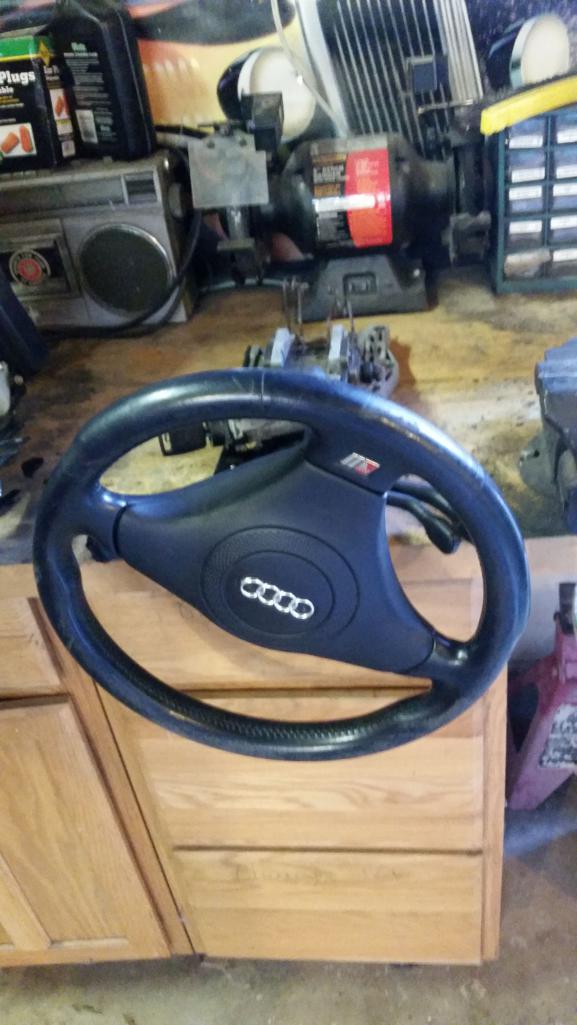

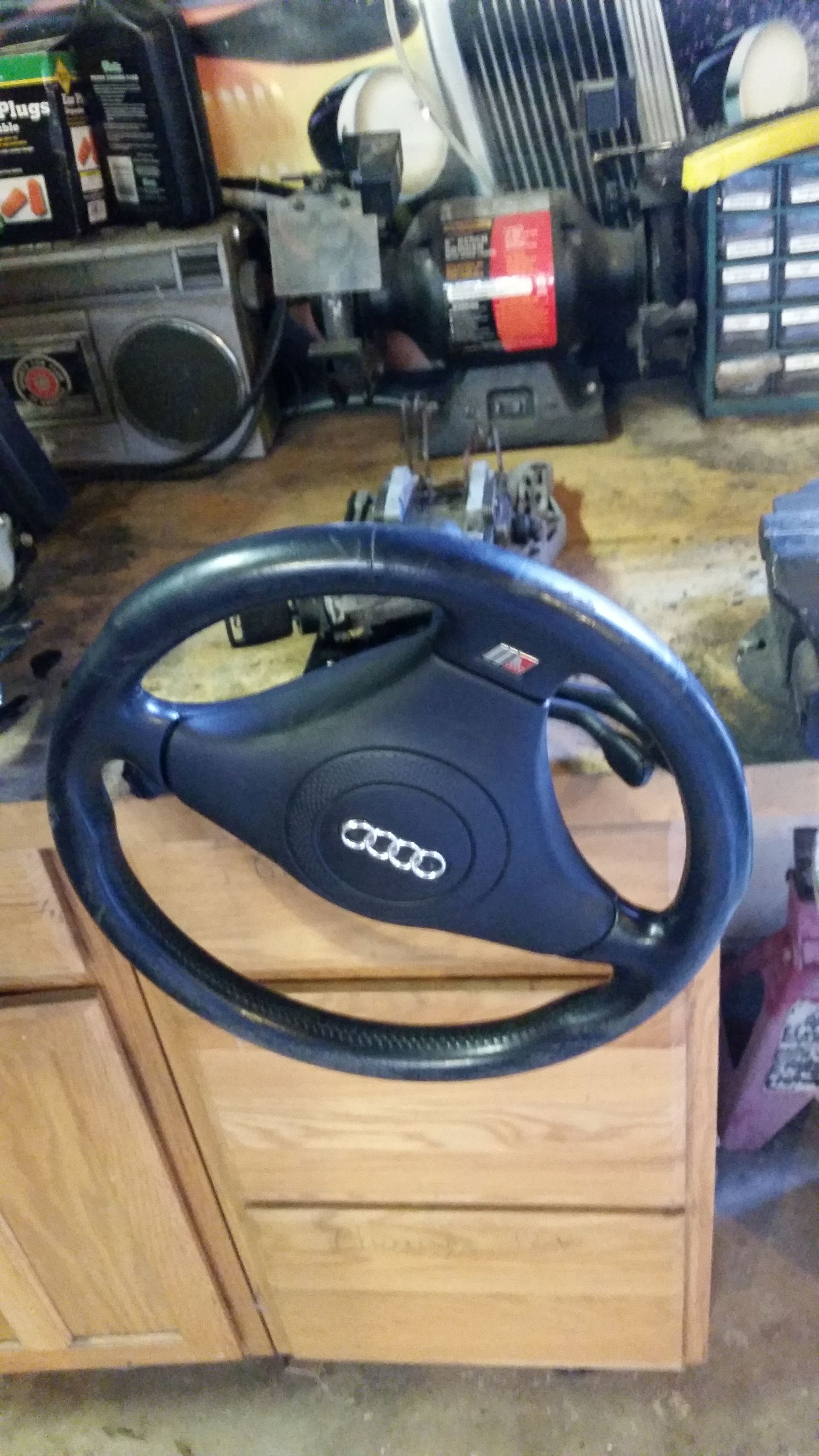

Steering column and wheel


Body wiring harness

[Andyrew]

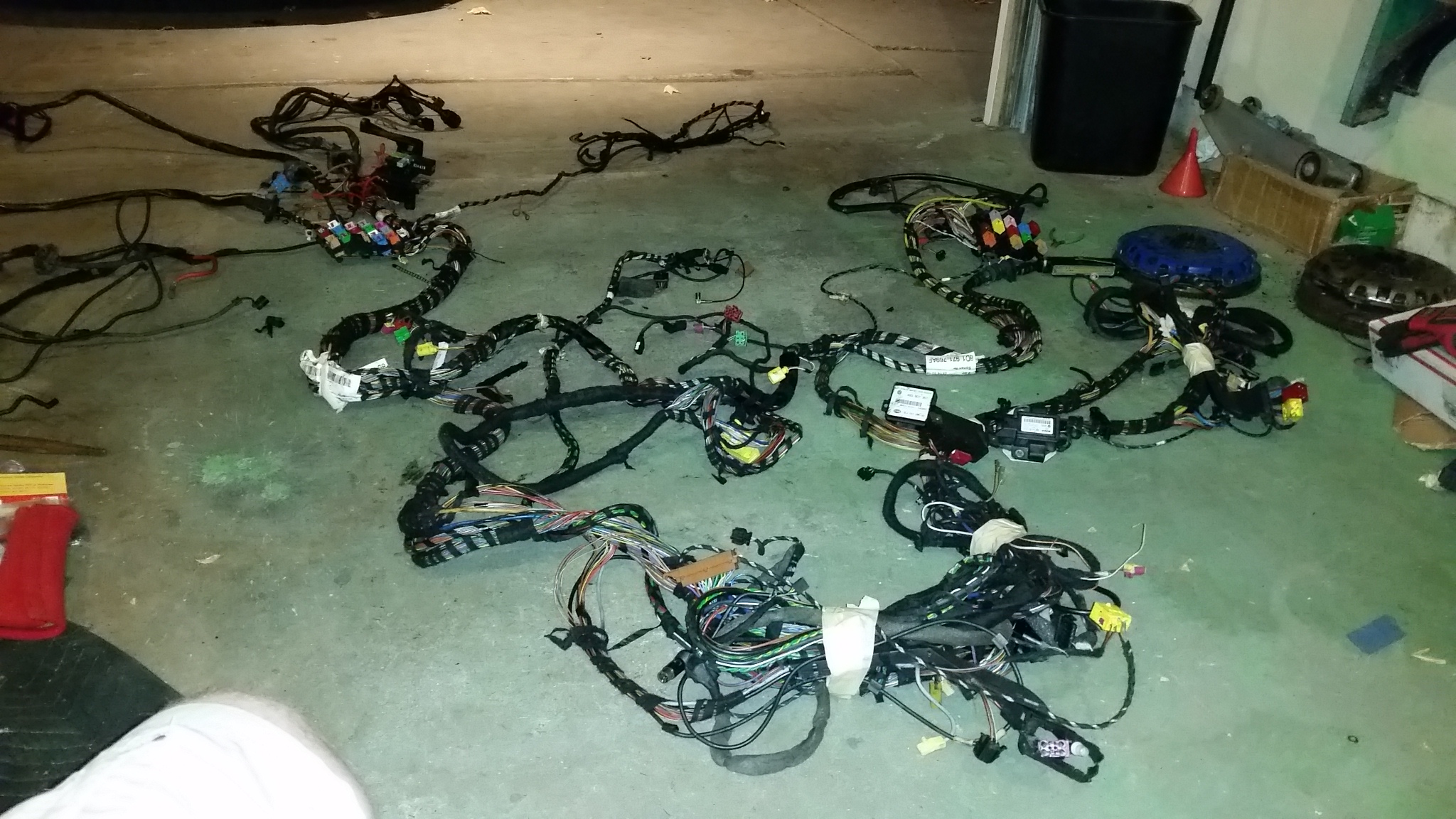

Dash wiring harness (There are 2 dash wiring harnesses in the picture)

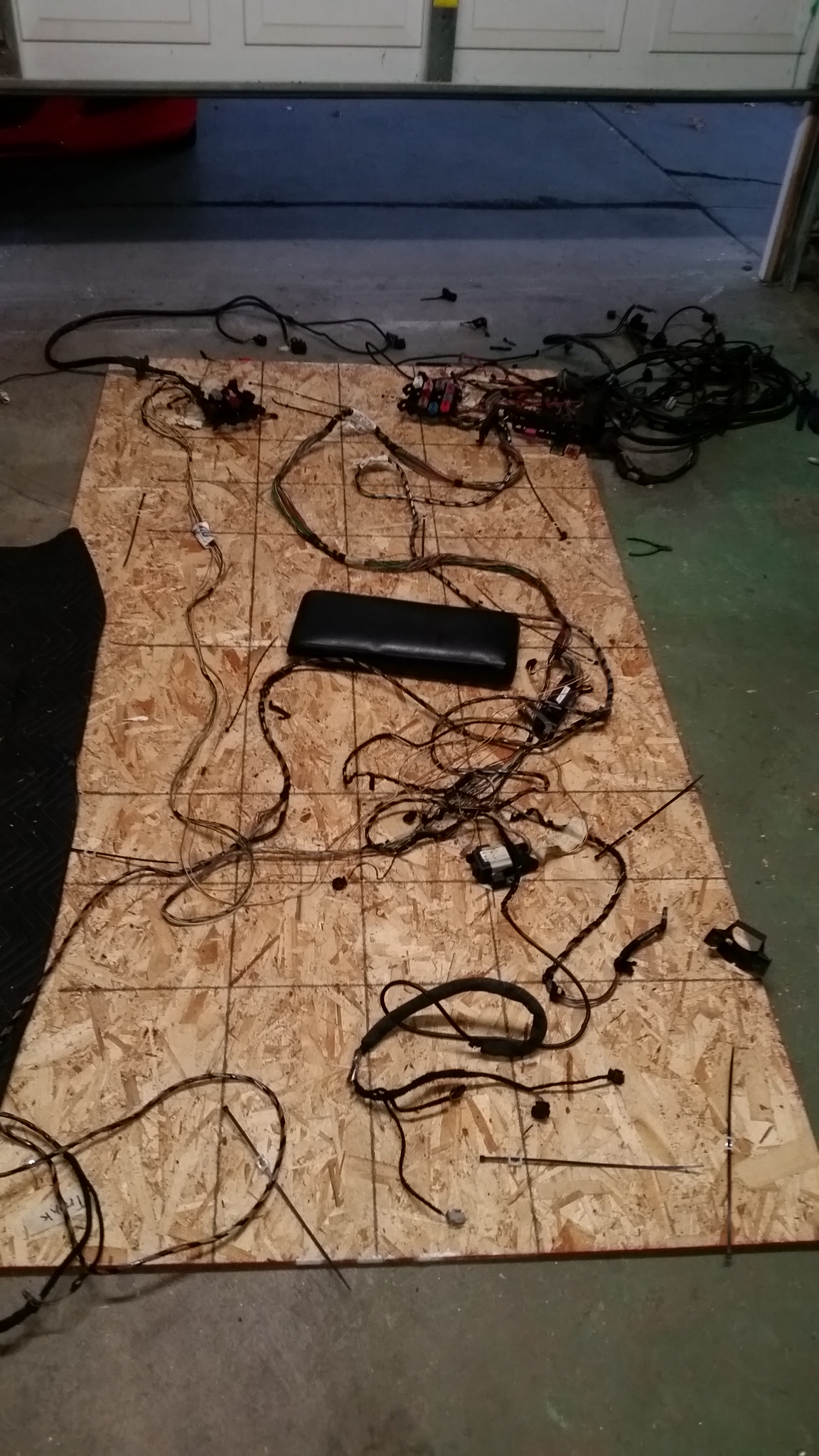

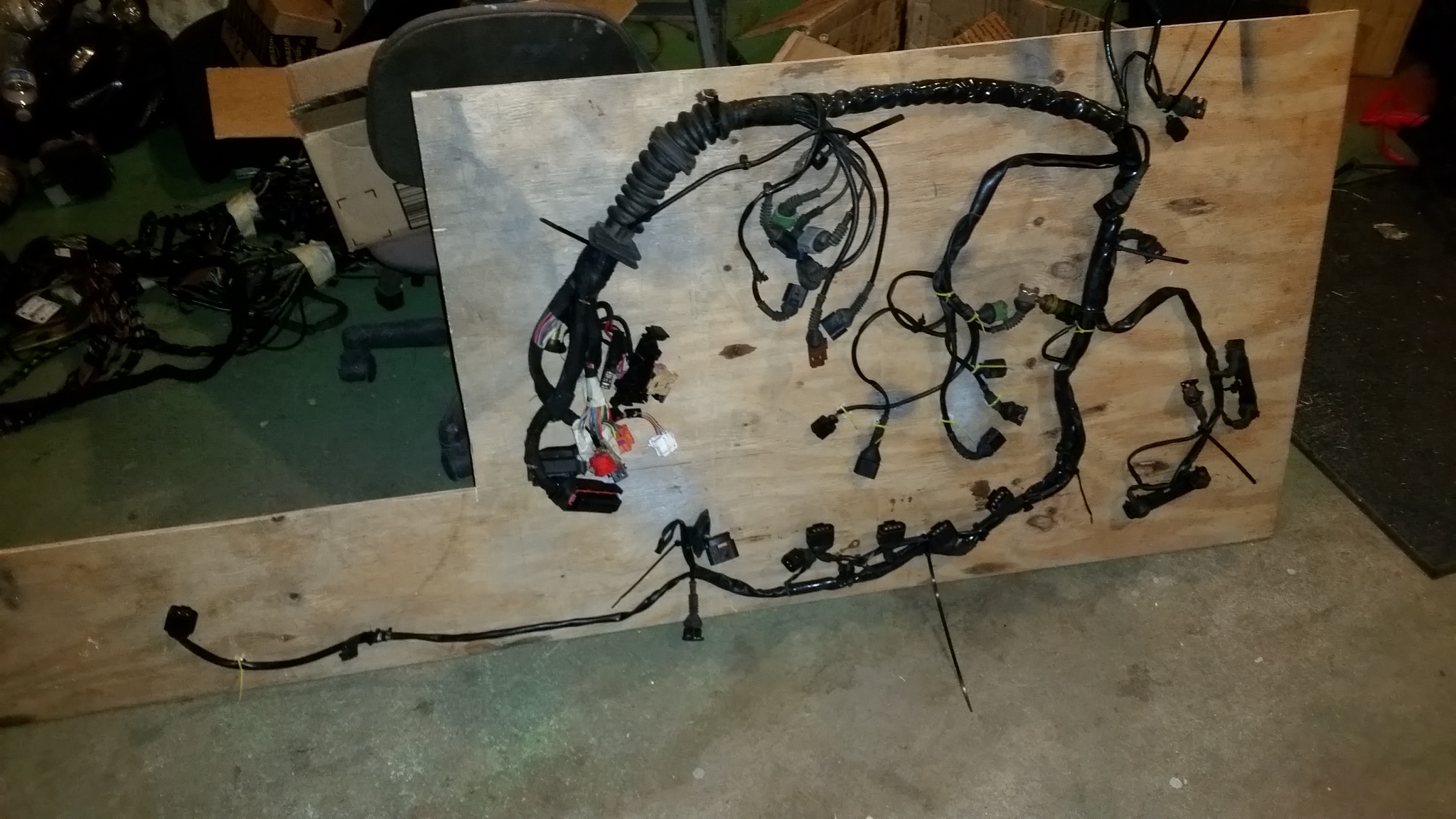

Engine harness (Bought it a while ago, but here it is laid out on plywood for storage and sorting)

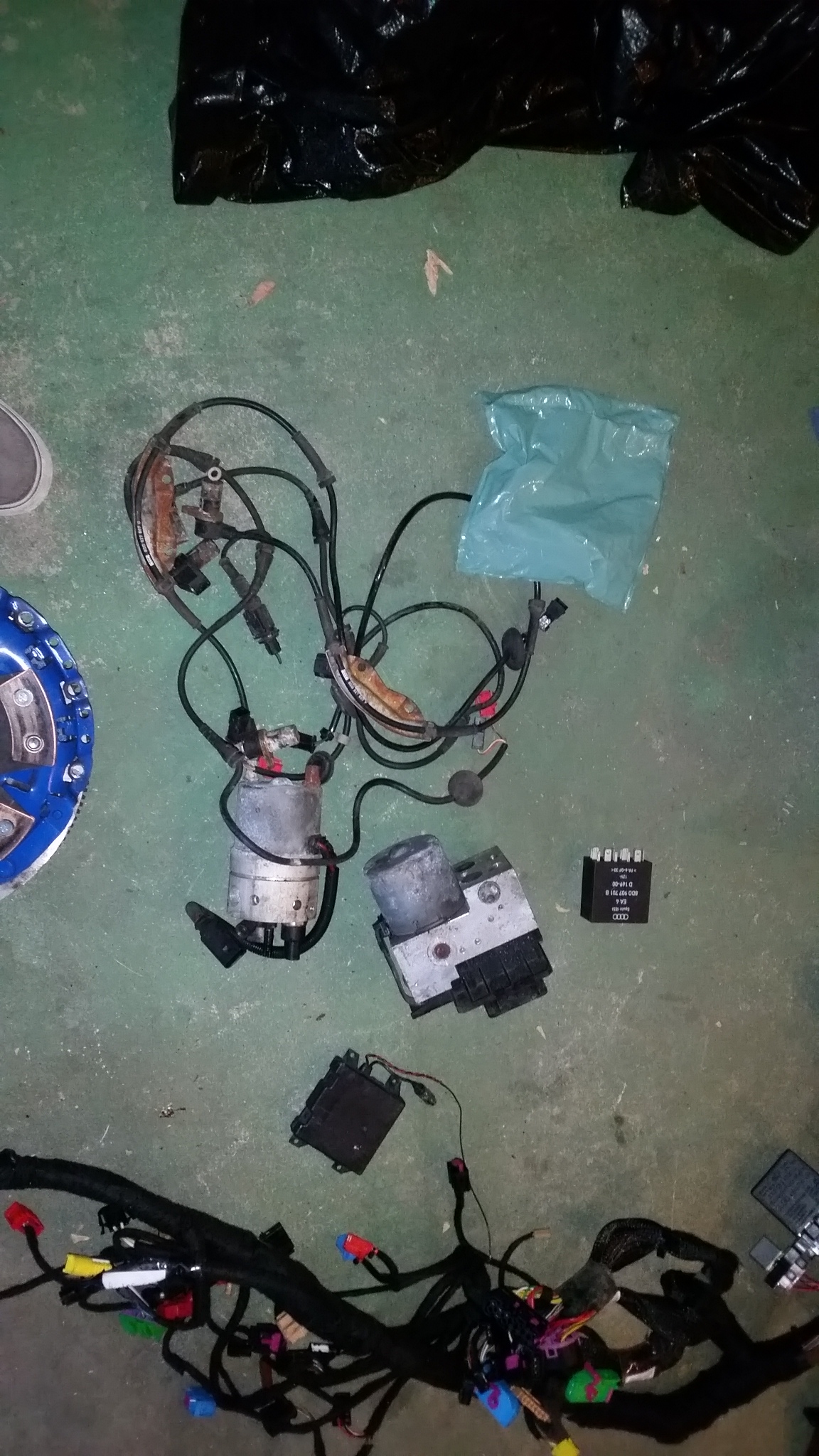

ABS module/block/sensors and pump for stability control (brake assisted)

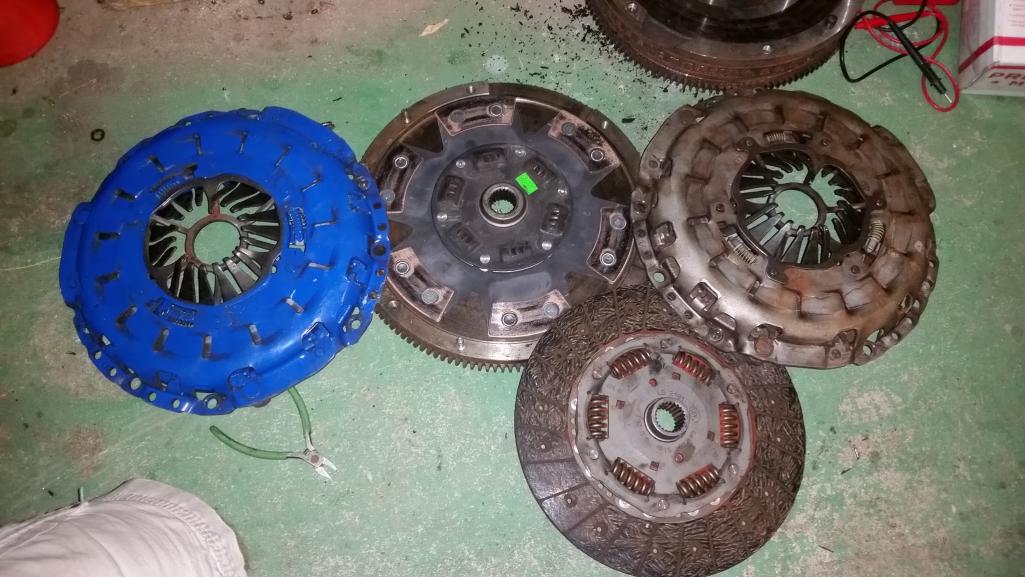

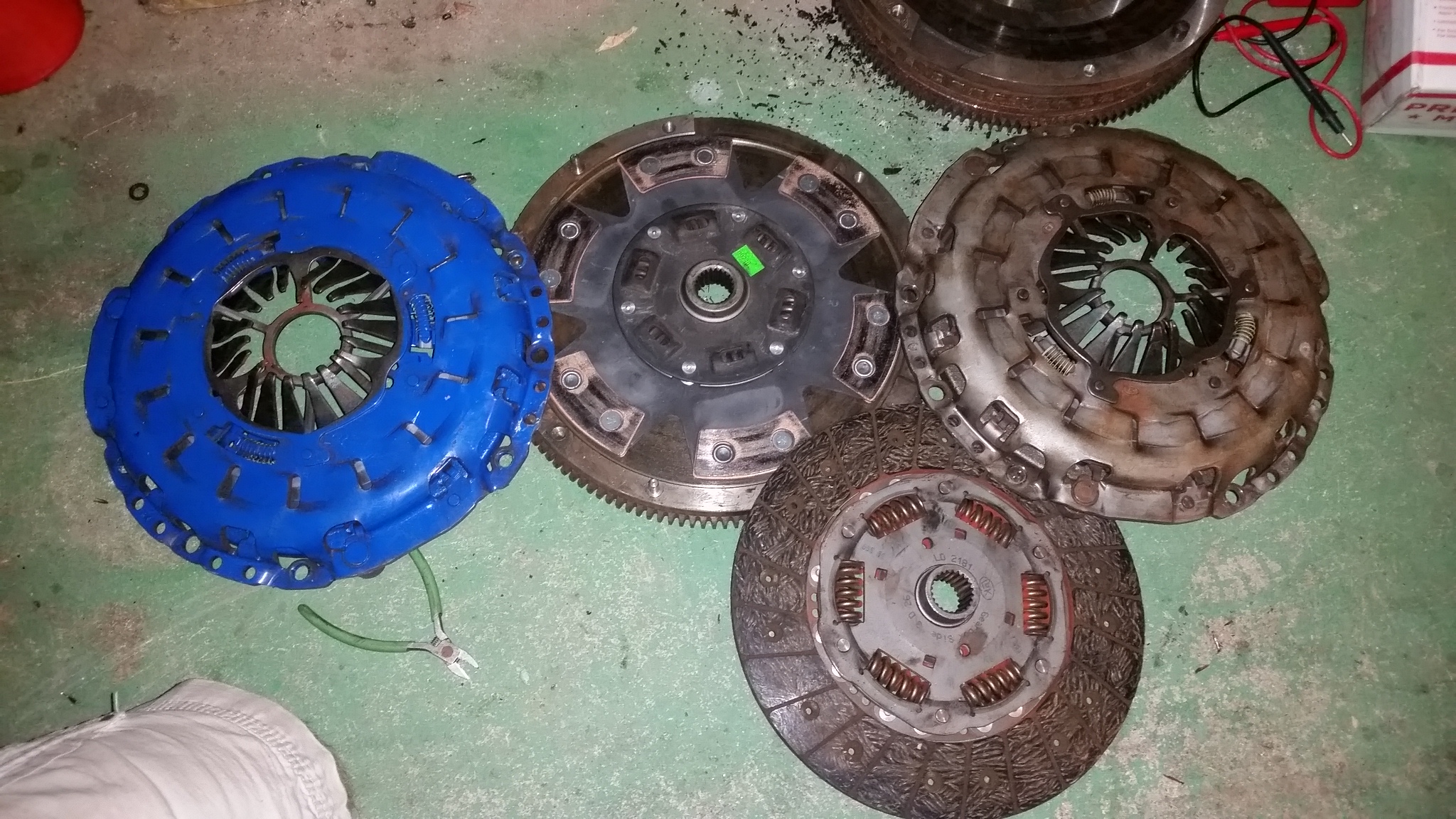

240MM 12lb flywheel for the 1.8T engine, 6 puck disk and standard pressure plate.

[Andyrew]

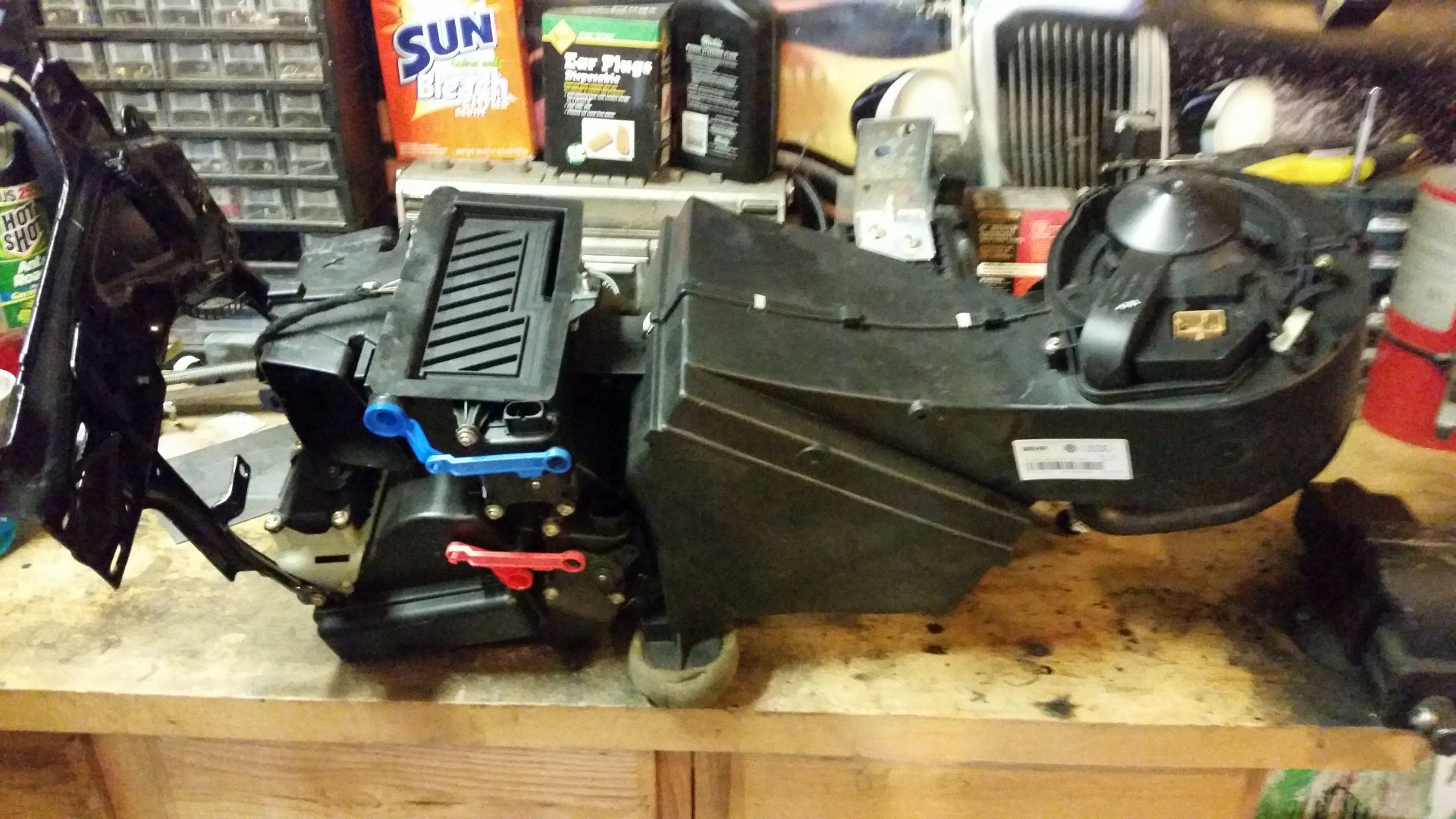

Ac/Heater box complete

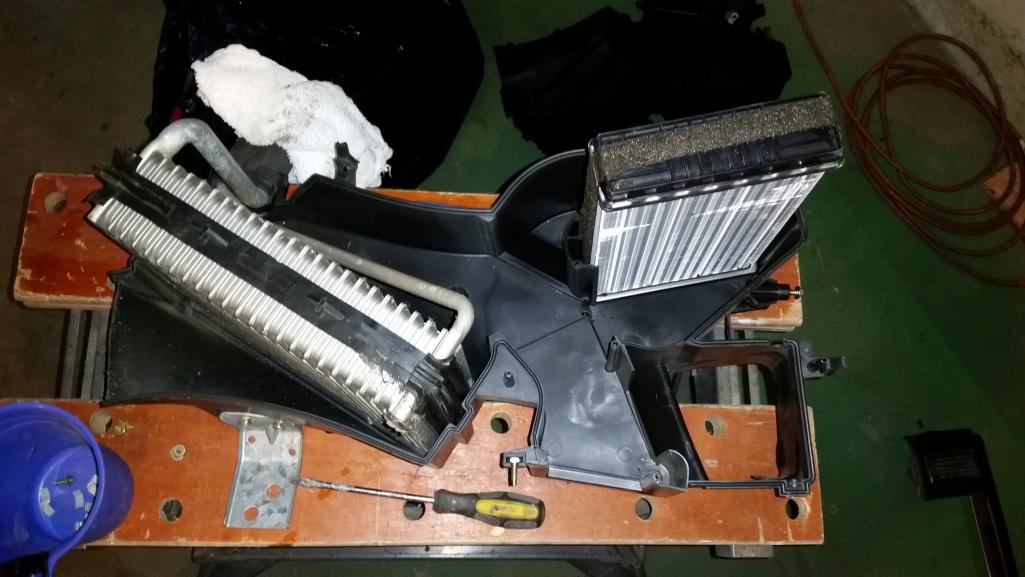

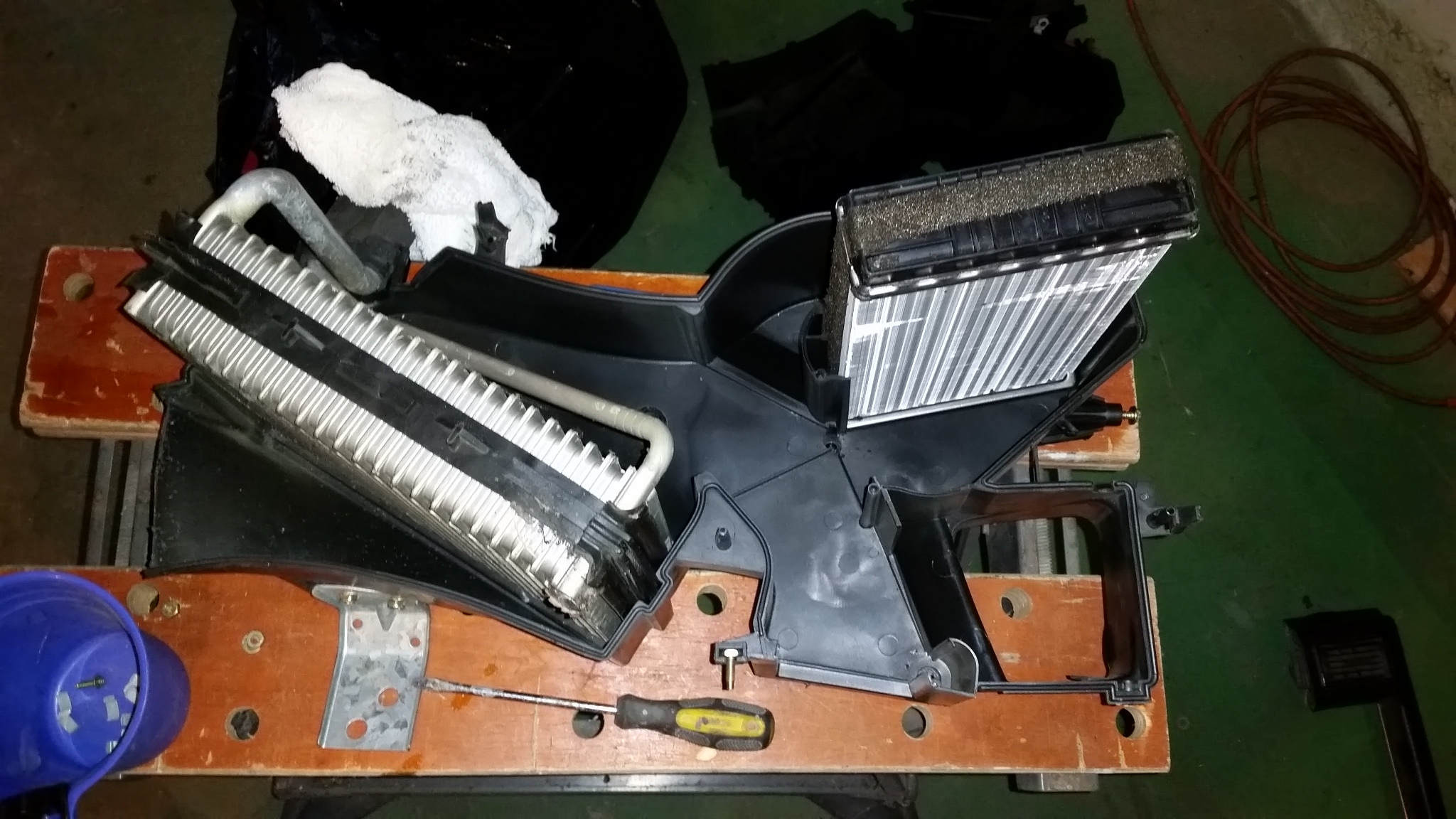

AC Heater box cut in half (removed fan) and opened up.

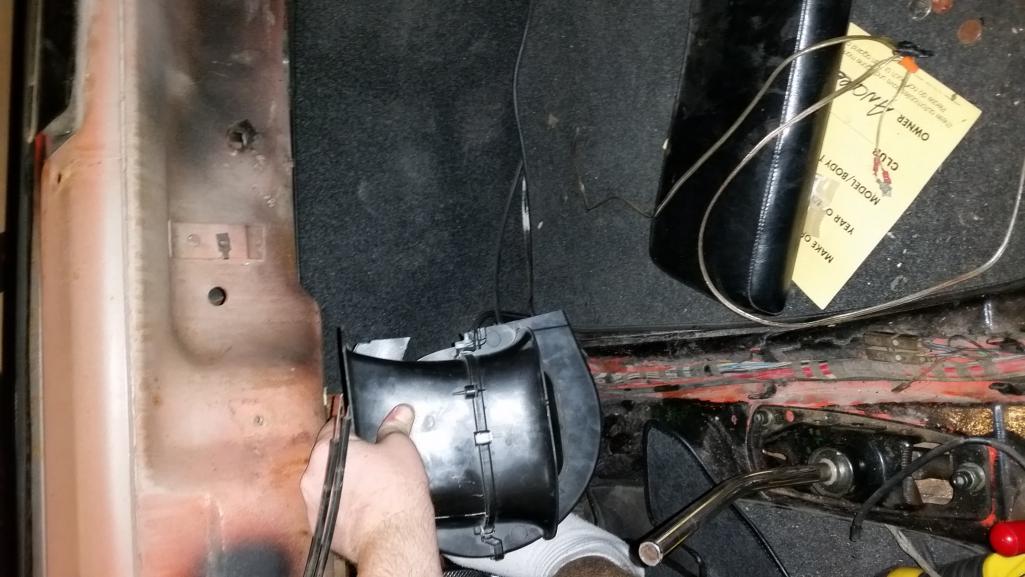

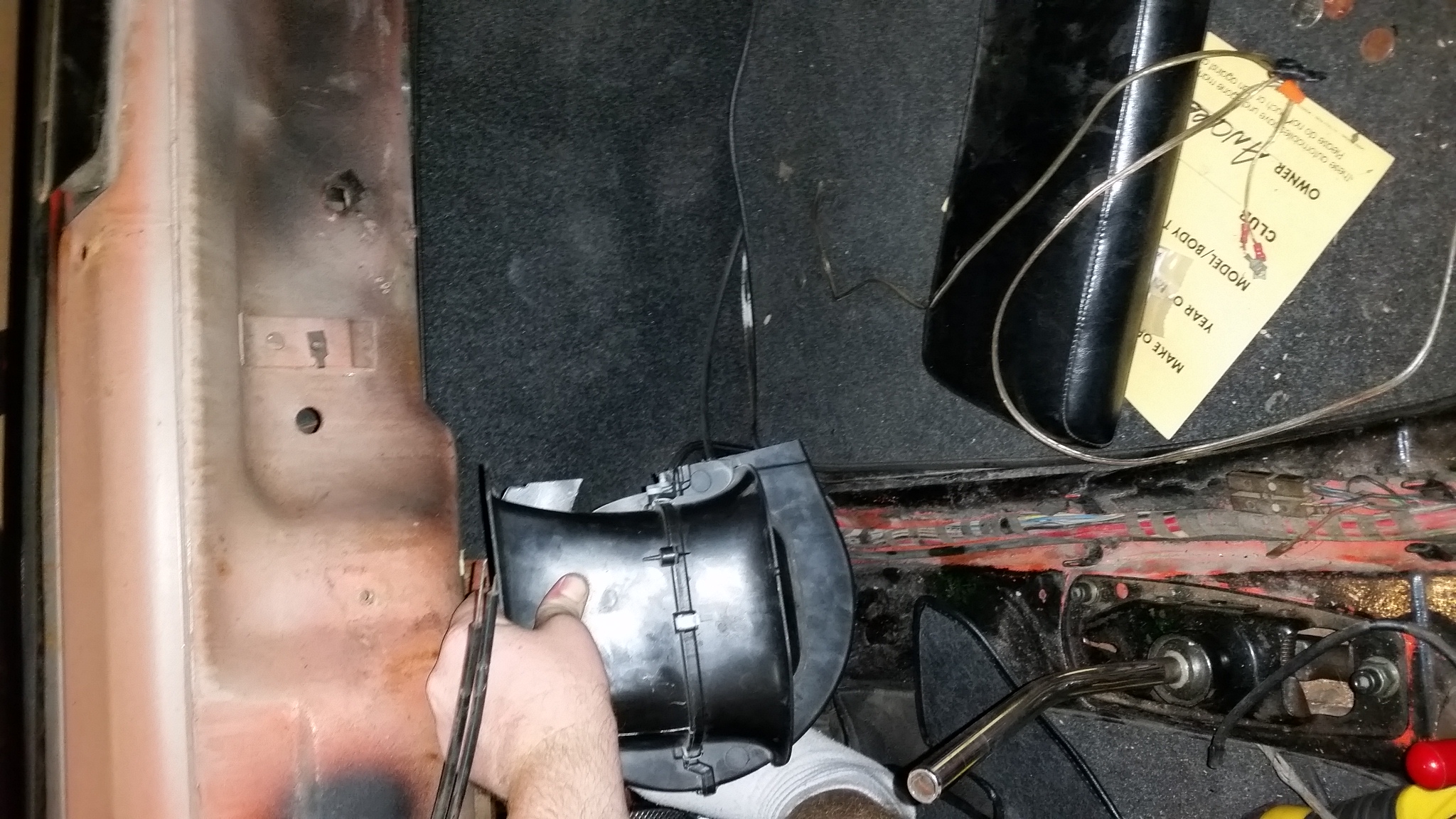

Fan in mock up position

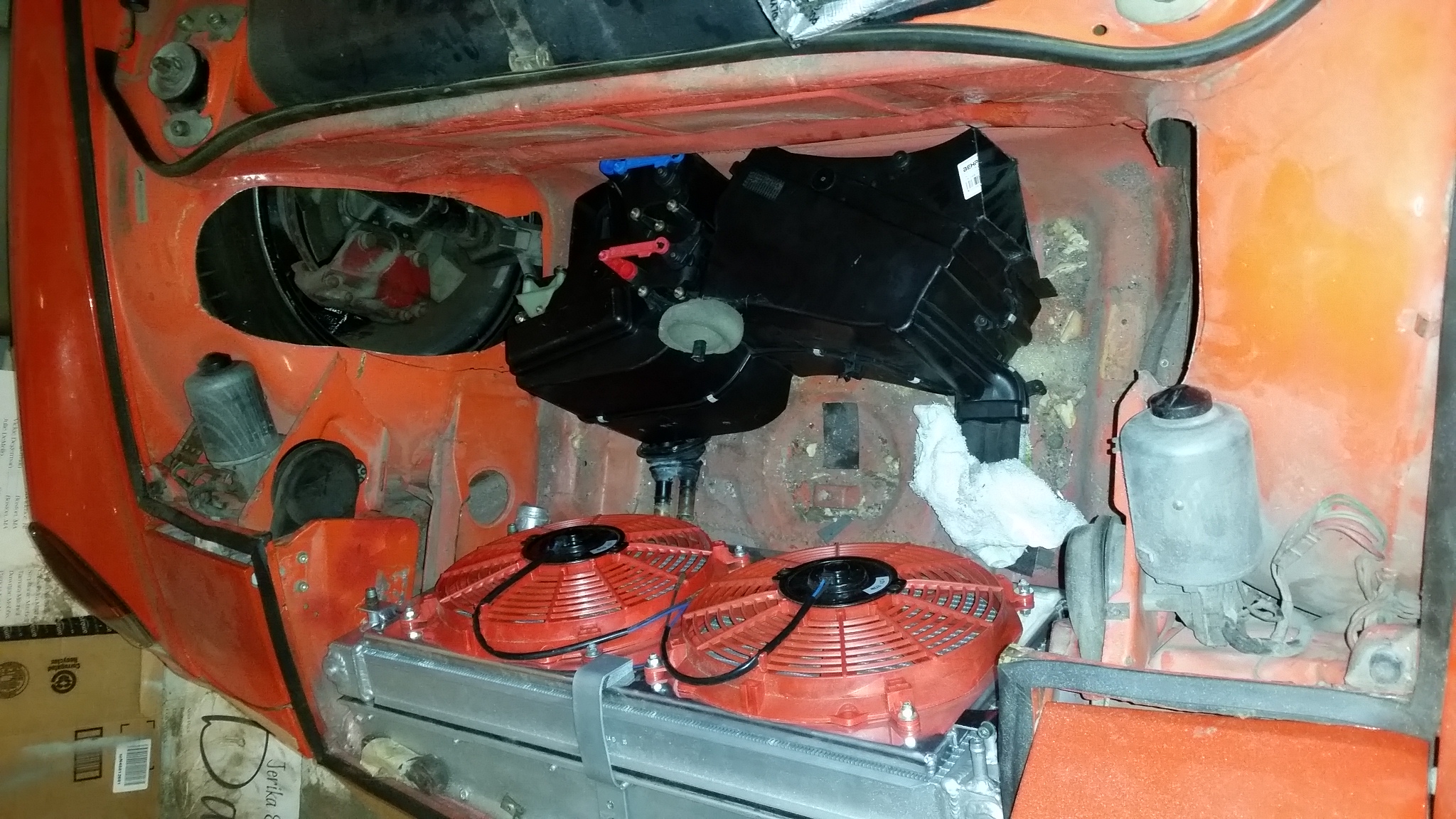

Ac/Heater box in mock up position. Yes this will kill half the front trunk but I still have plenty of space for a medium sized suitcase up front and this gives me much more legroom in the cabin. This position was suggested by my Jerika (my wife) and after looking at it, it make a lot of sense! And yes it is upside down, I dont have a good photo of the mock up position. The heater core connection lines will be cut short and the AC lines might get bent just to get a bit more room. And yes I will cut some holes to run the ducting to the cabin.

[Andyrew]

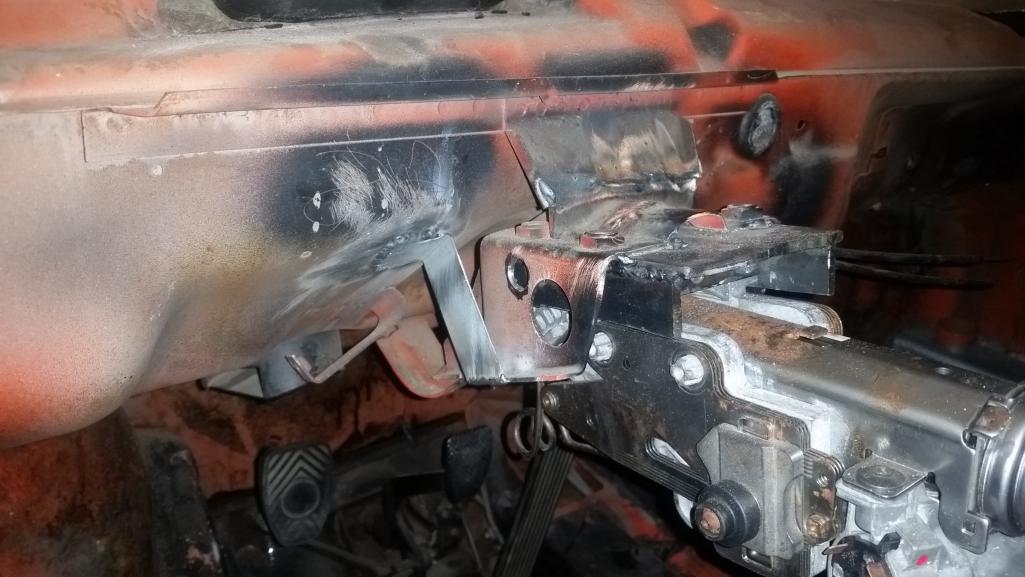

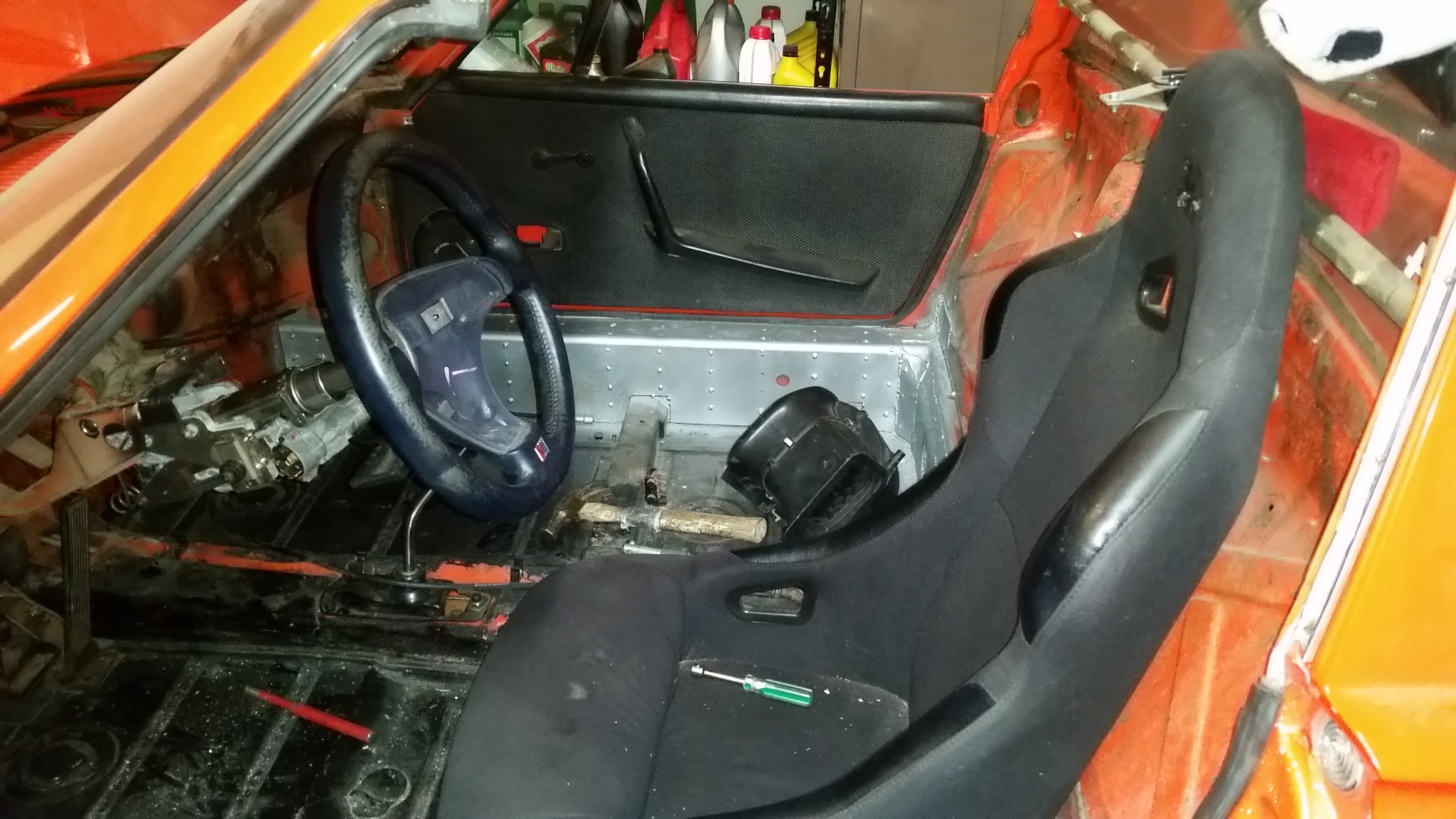

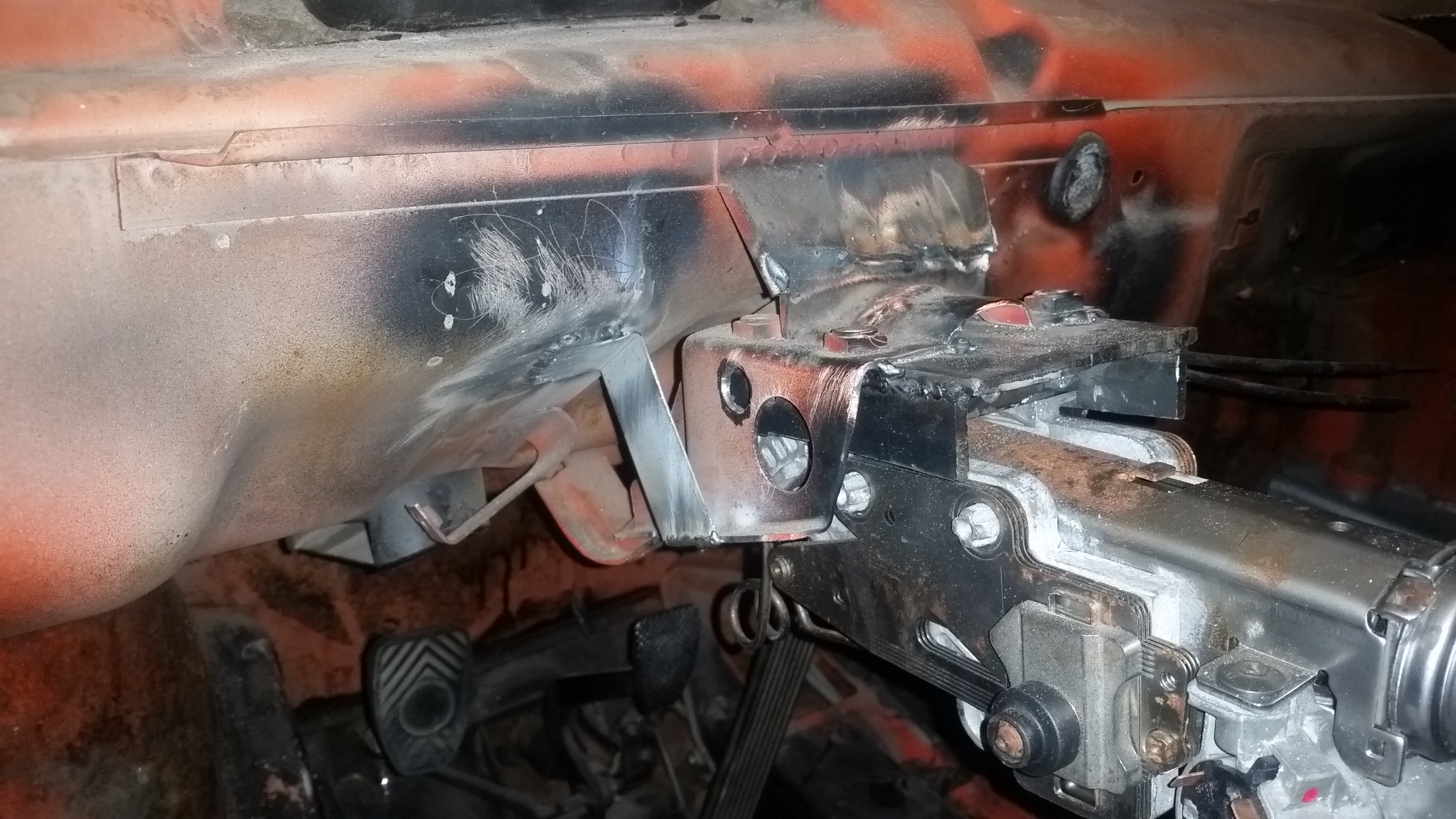

Steering column is mounted and moved back.

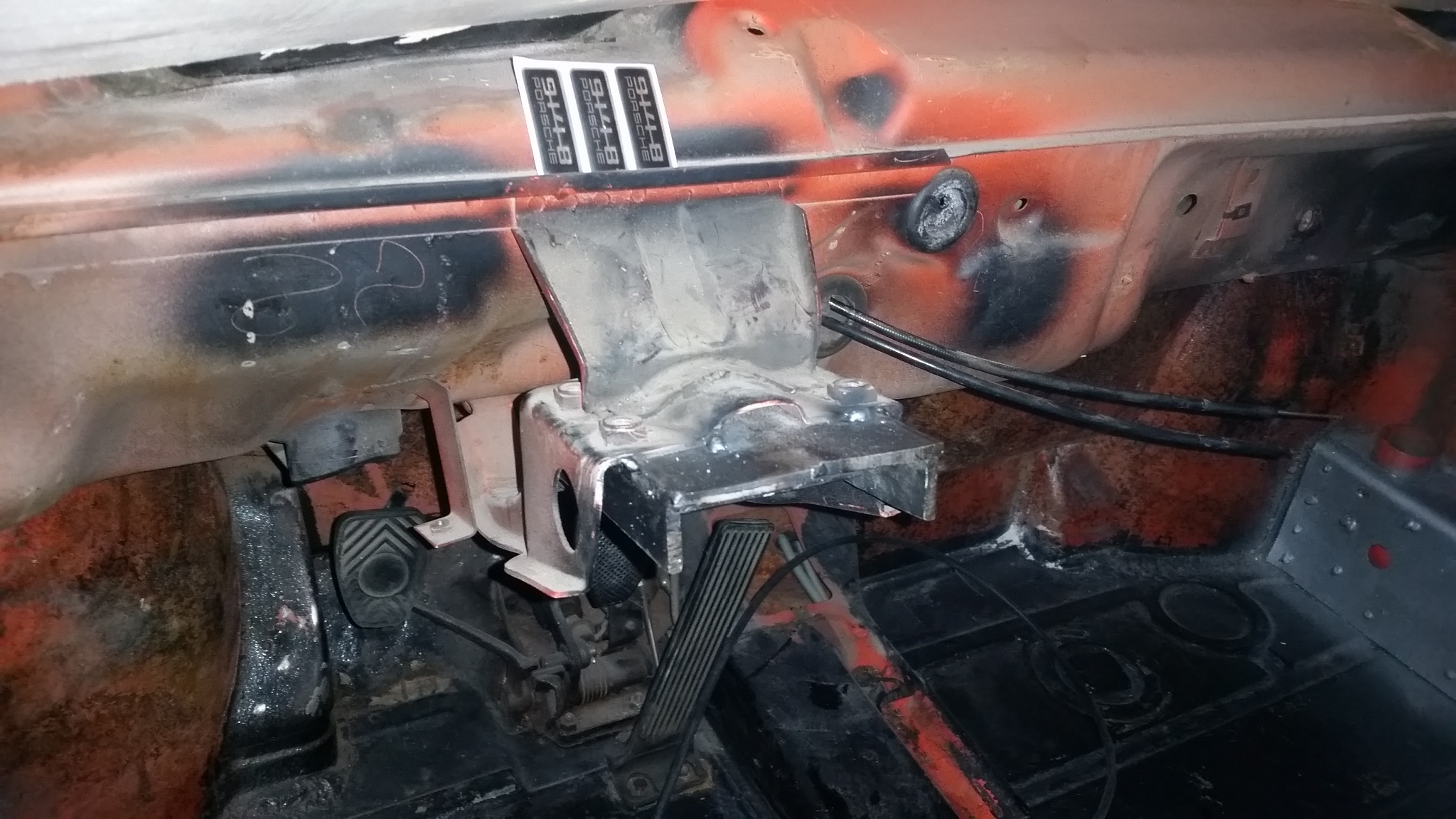

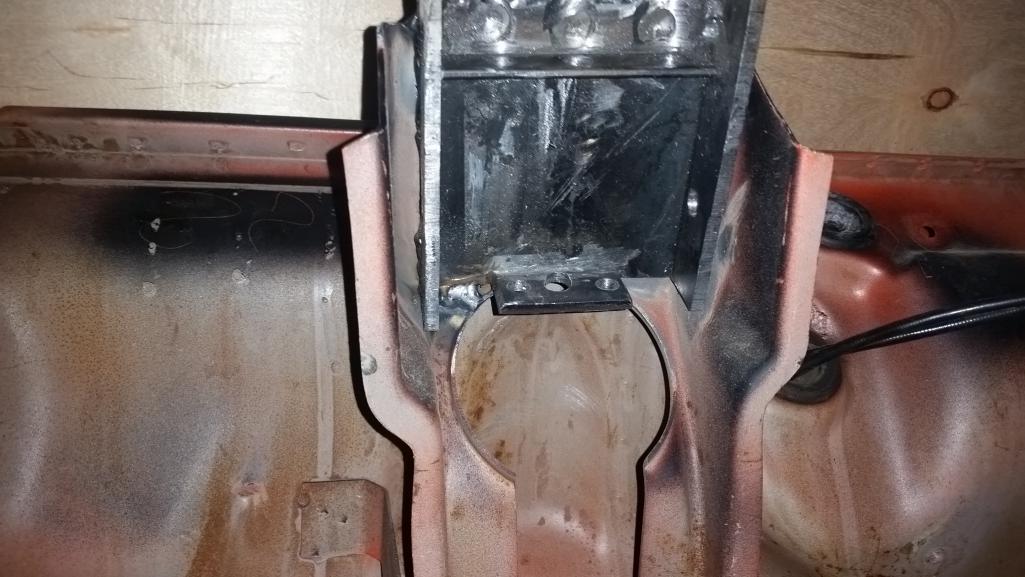

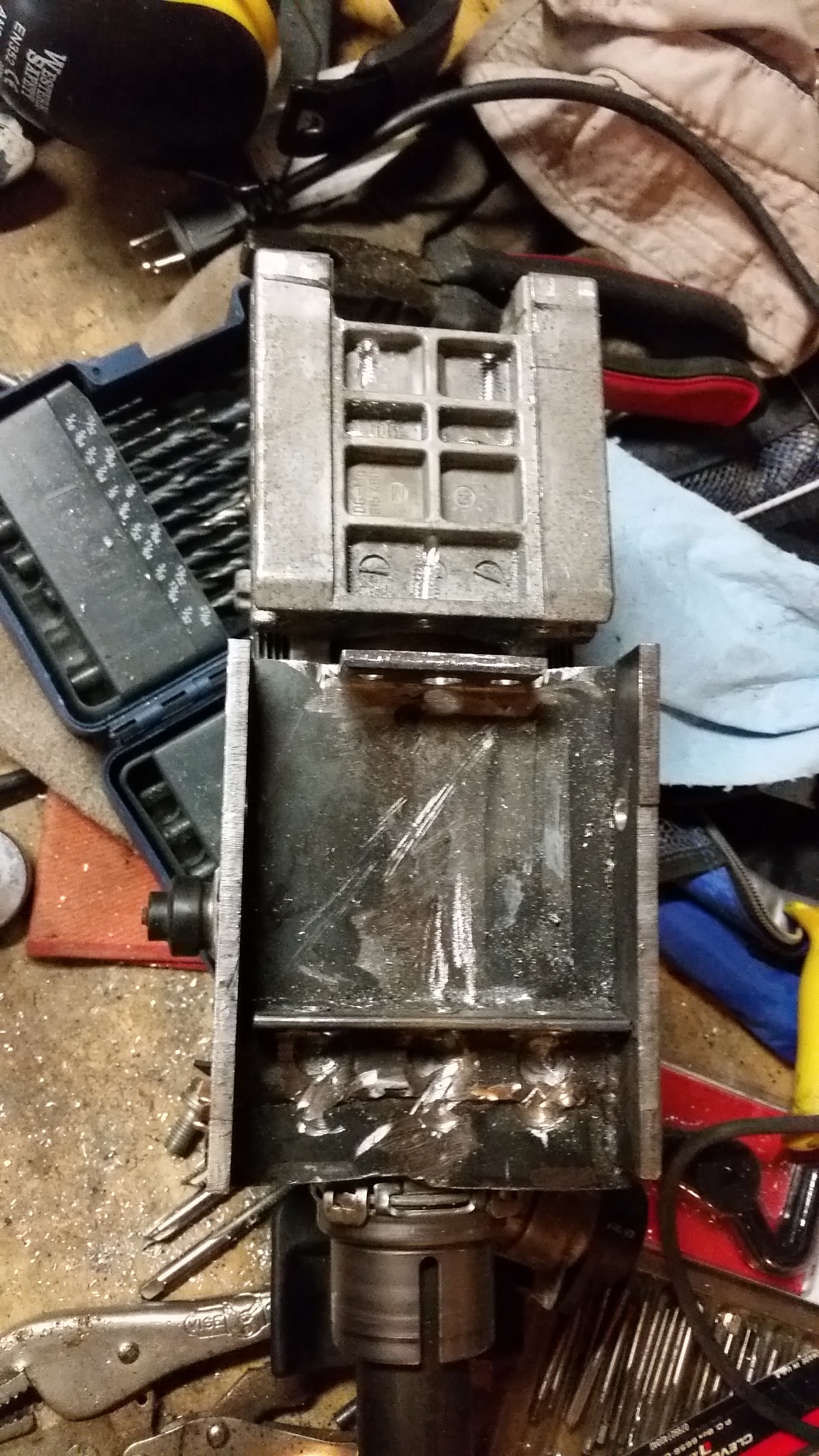

Unlike Mike my steering column was not surrounded with steel it was surrounded with aluminum (IMG:style_emoticons/default/dry.gif). So I first had to build a steel enclosure for that and then mount that to the 914 body. I decided to weld it and bolt the Audi column to it. (Secured with 8 1/4x20 bolts and an extremely tight fitting enclosure, Hammer required)

[Andyrew]

However the position was not good enough for me... So I modified it, essentially twisted the assembly in and down (then back up). More bracing will follow later when everything gets fully welded and braced where needed.

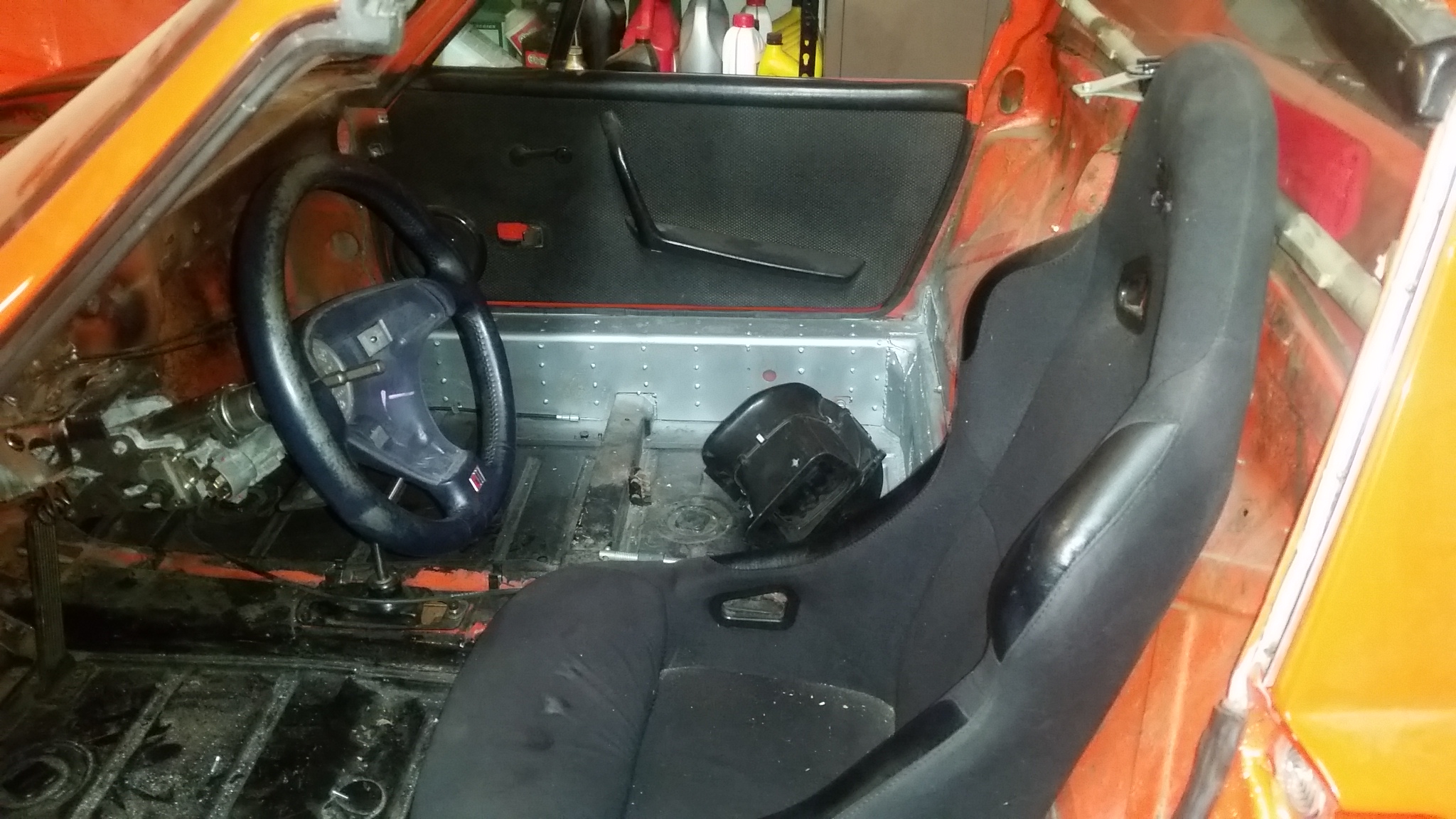

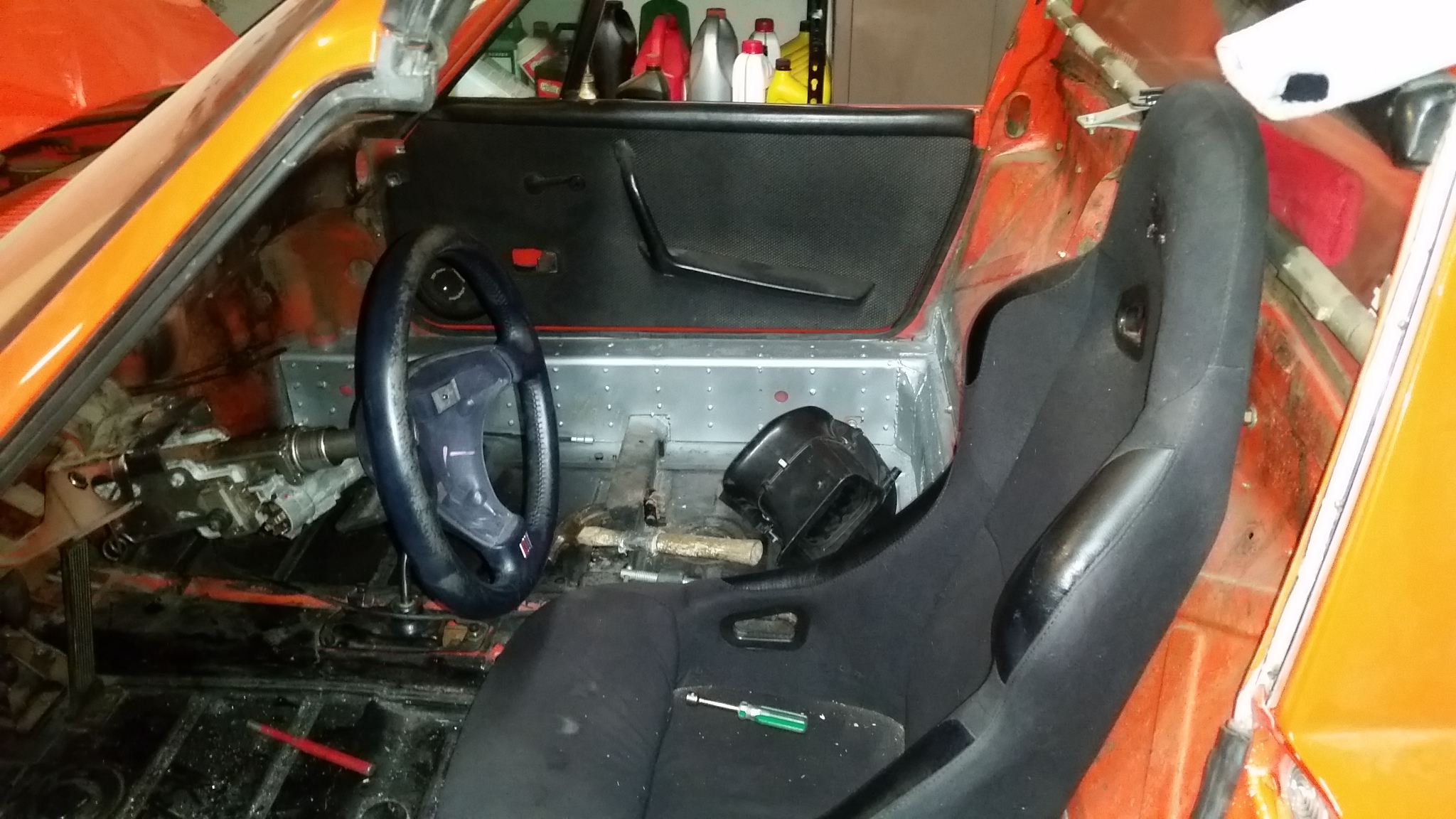

Before, All the way up and tilted up.

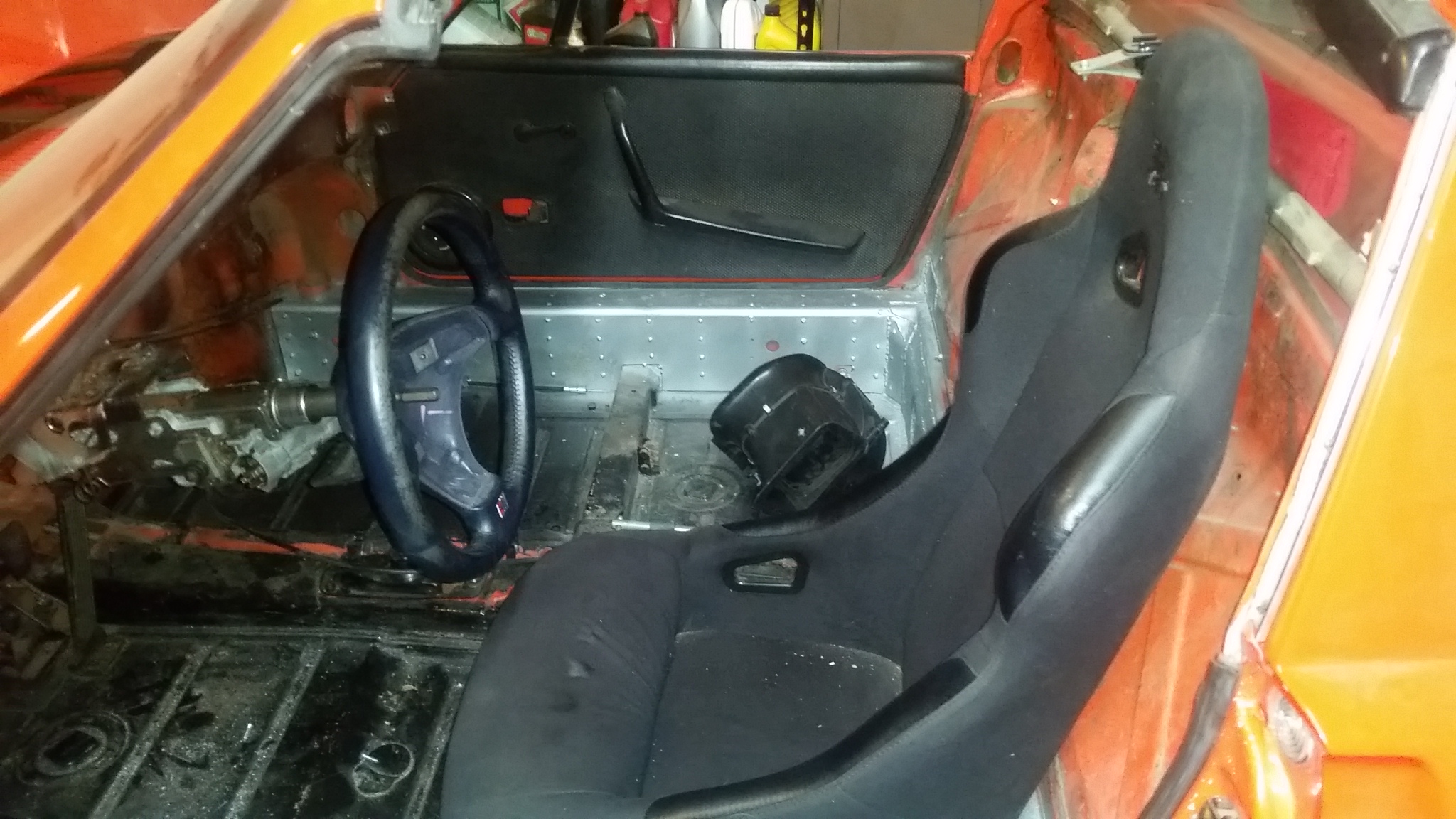

After, All the way up and tilted up.

[Andyrew]

Before all the way up and tilted down.



After all the way up and tilted down.




It only moved it away from the driver maybe 1/2 an inch, but I think it made a big difference in the driving position. I am very happy with it where it is. Now I will modify the steering shaft and get all that squared away!

[mgp4591]

So are you going to have a fixed seat or adjustable like stock? I agree that getting the column just right is essential for any mods- I'm planning on that using the stock SVX steering column but I've got tilt and telescopic, however not much in the latter. I'm getting all kinds of ideas from your last few pictures and getting antsy sitting in this frickn' wheelchair- I want to start working on stuff!! (IMG:style_emoticons/default/headbang.gif)

[Andyrew]

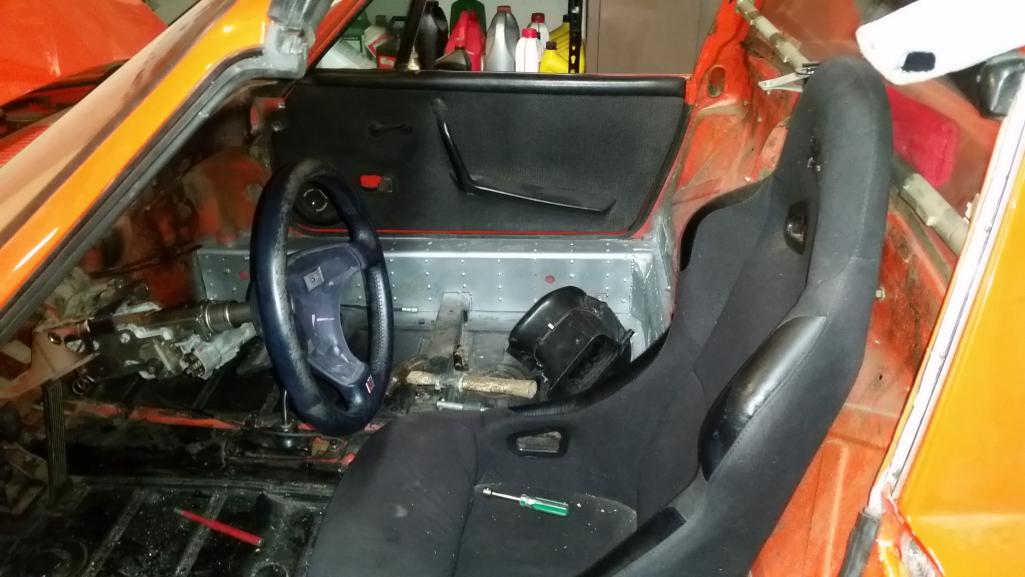

Drivers seat is on forward and back rails as low as possible. Passenger seat is on stock 914 rail.

I am 6'0 with a lot of mid body height.

The Audi steering wheel is quite a lot bigger than the Momo I had in there previously. I'll keep looking around for a factory Audi wheel that is smaller and possibly pushed back , if I can find something then I think it'll help quite a bit as well.

[Andyrew]

I might have found a solution that will push the steering wheel back some more.

The Audi steering wheel is VERY profiled. It is a good 4" in profile. This NRG adapter is low profile, say 1 1/2", Combine that with a nice flat steering wheel and not only do I get to actually use the telescoping feature, I can get a smaller steering wheel. Need to measure to ensure that the stalks are not going to get in the way.

http://thmotorsports.com/nrg-innovations/n...h/i-286499.aspx

[Andyrew]

Steering column is done (IMG:style_emoticons/default/smile.gif)

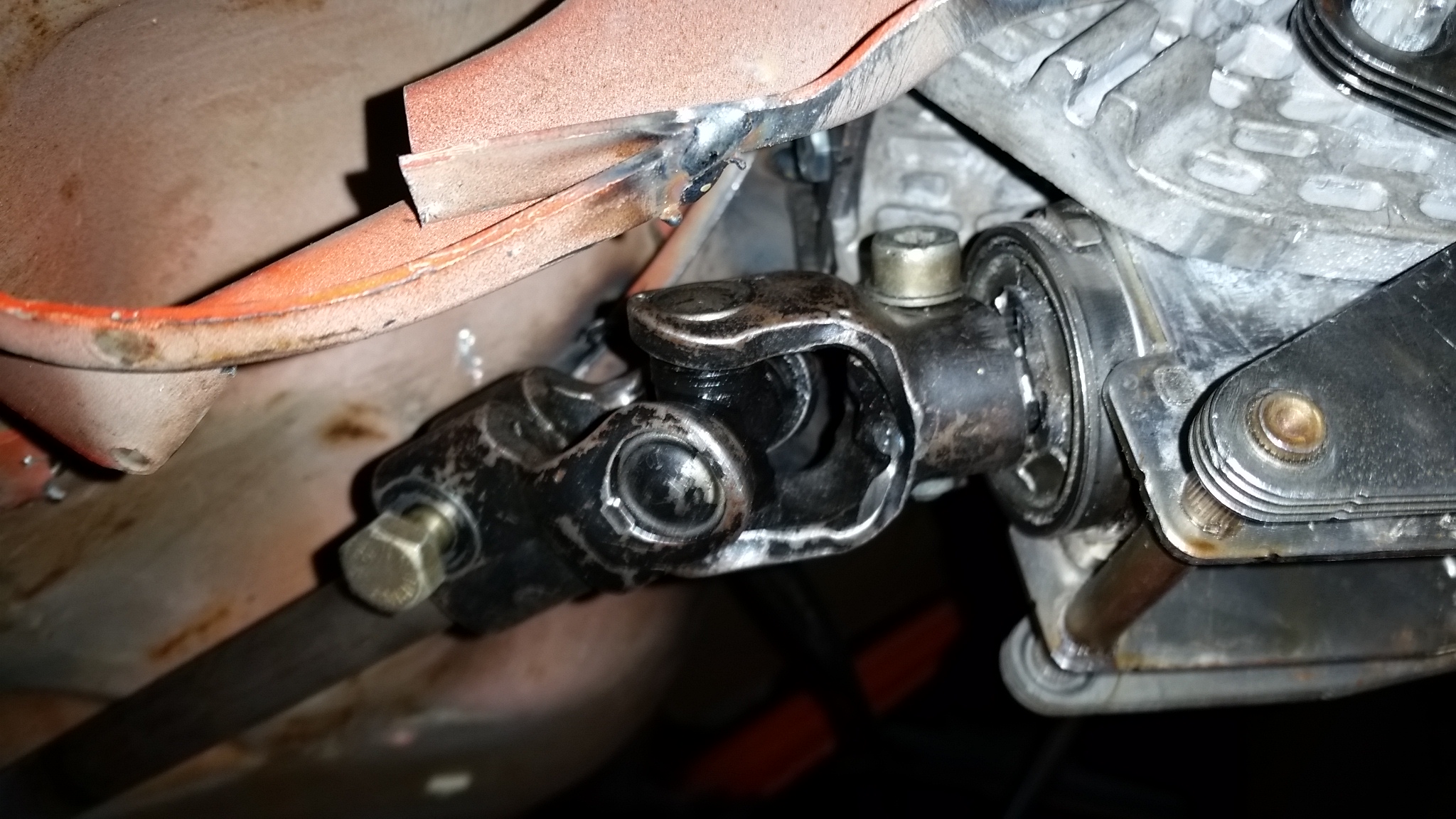

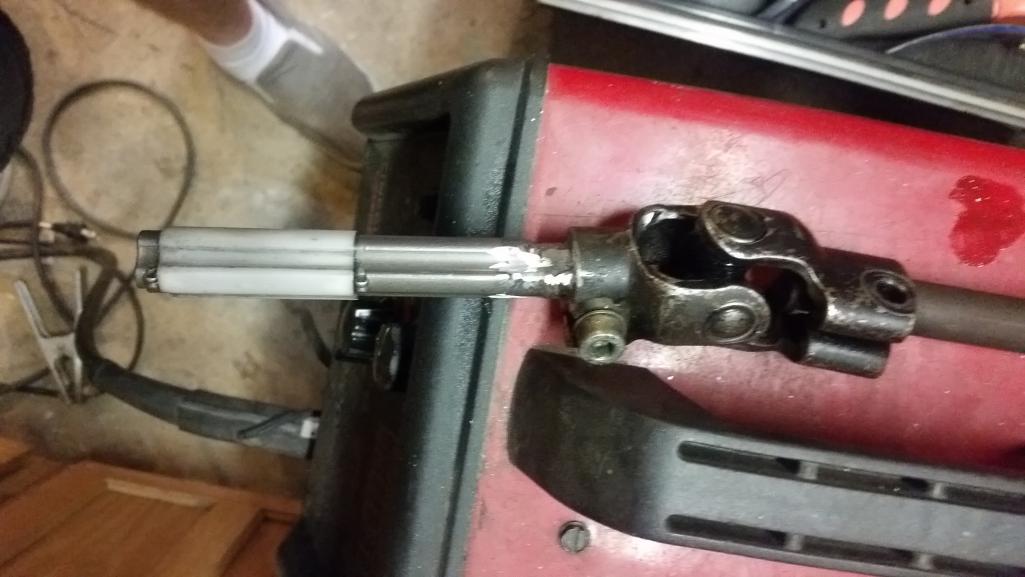

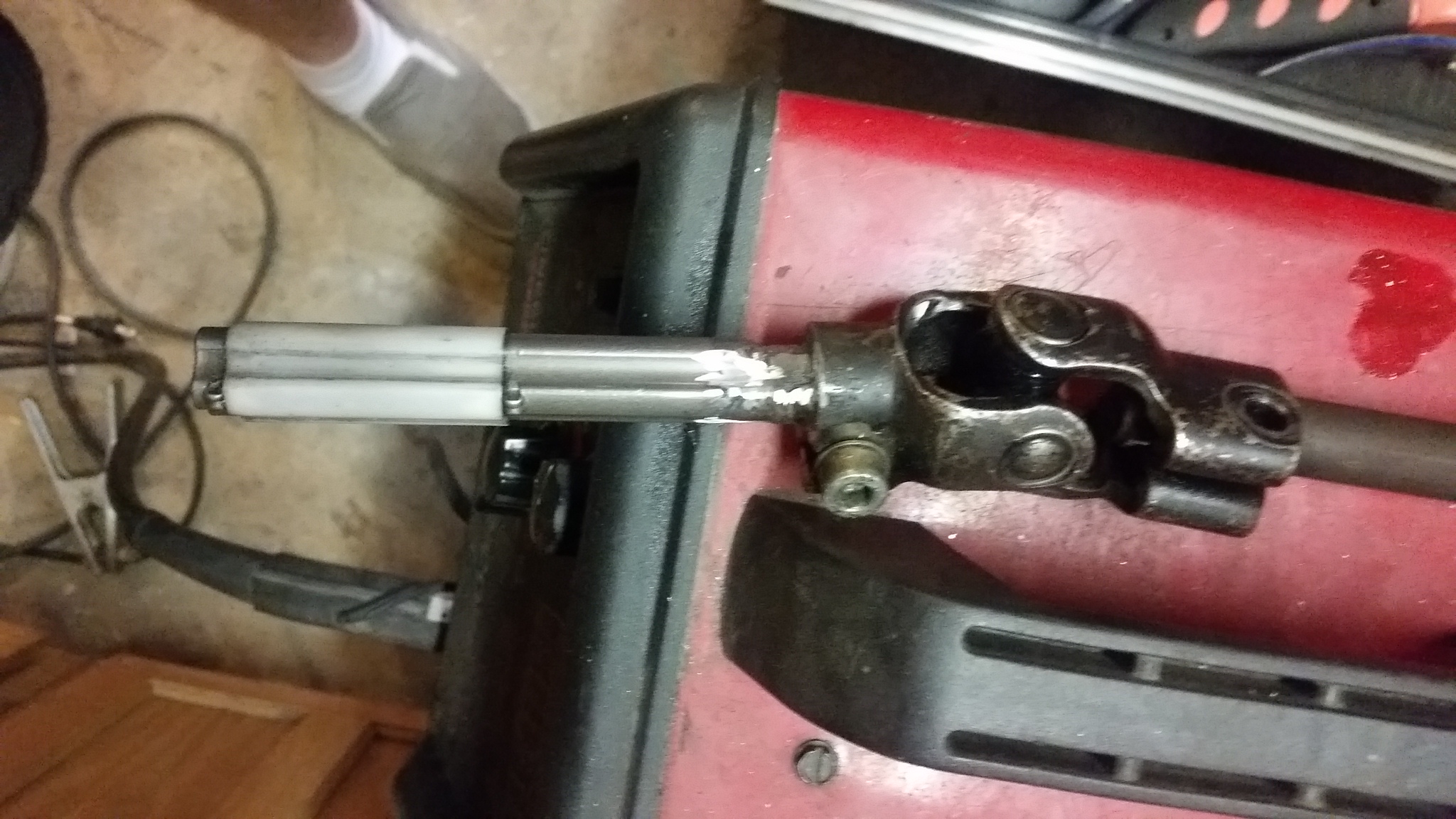

Lots of mods to the steering linkage, but its very solid and seems smooth enough. Its also in the original position that the 914 steering knuckle was so that's a plus.


Modifications to the steering knuckle and column moved the knuckle assembly forward almost an inch.

[Andyrew]

Gotta love those Germans....



Audi apparently individually wraps and connects all their different wiring harnesses separately.. They also have white ID tags on all their harnesses with part numbers that I can look up (most of the time) and ID what exactly they are for!

So I took the big chassis wiring harness (You remember, this one..)
(IMG:http://www.914world.com/bbs2/uploads/post-172-1441612878_thumb.jpg)

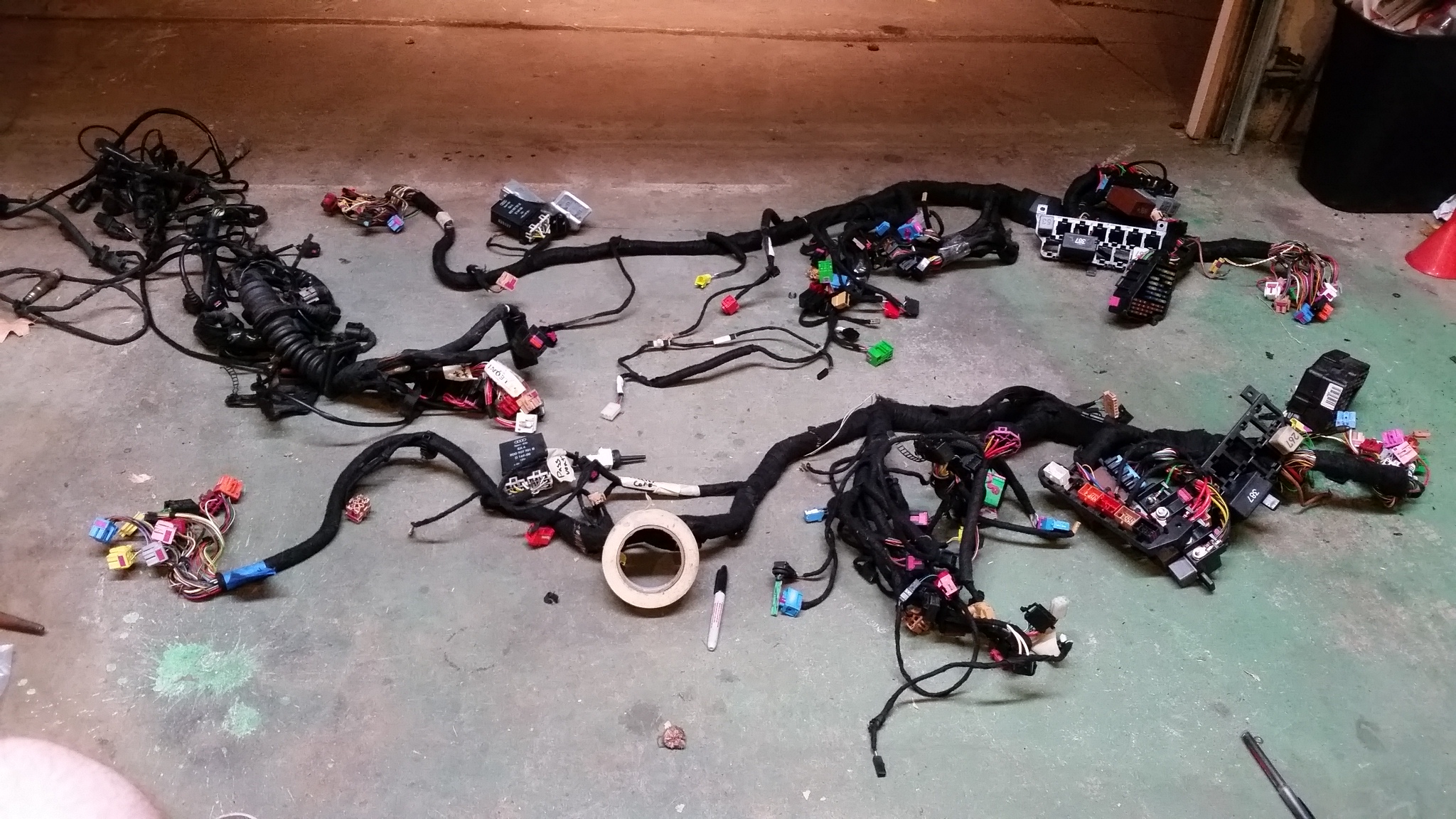

And I removed all the wiring harness looms that I will not be using in the car.. And we made... Note I did remove one harness after this pic, and I havent touched the engine side (Note not engine harness, just all the wires on the engine side you can see they all have black plastic shrouding) So it will likely be a bit smaller all said and done.

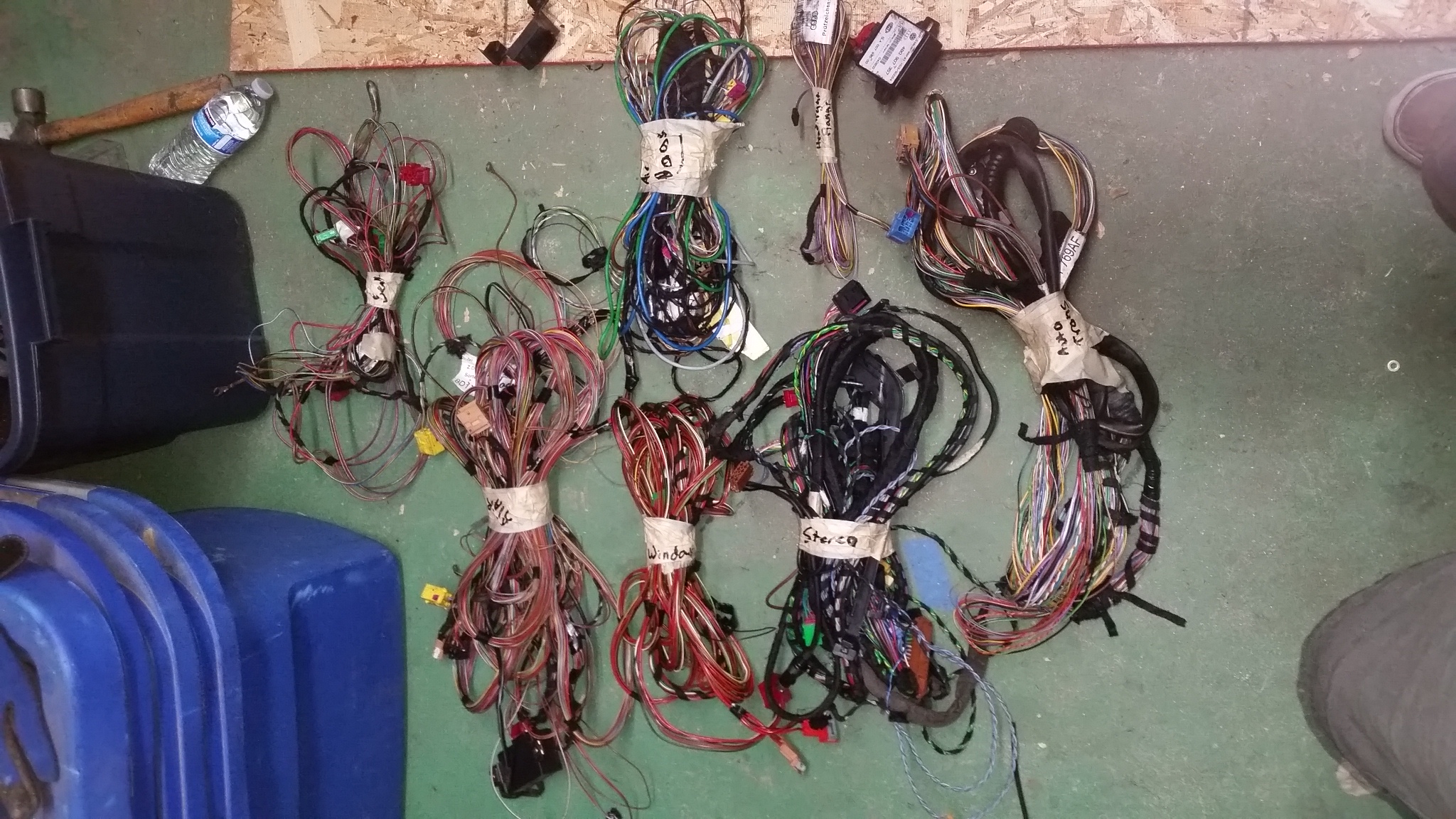

And we got this left over! Total weight of the removed wiring was ~ 20lbs!


If I ever need to I can add the harnesses back relatively easy!


Next is to go through the dash harness and remove the similar wires that I dont need.

[Andyrew]

I only have 2 harnesses left interior side of the chassis harness. the "body" which is basically all the lights, and "ABS" which houses all the stability control stuff and the abs stuff.

[76-914]

My OG plan was to do as you have done Andrew, albeit Subaru. Then I realized that I may not live long enough to see it to completion, (IMG:style_emoticons/default/hissyfit.gif) . You however, have time on your side and I like your approach. WORD: don't drink or smoke anything when messing with the electrical. Your brain is left scrambled after a few hours of re-wiring anyway so there is no sense in starting out that way. (IMG:style_emoticons/default/blink.gif) (IMG:style_emoticons/default/wacko.gif) I notice you try to work on it a little every day. Smart, if only for 1/2 hour at a time! At this rate you will be back on the road before Christmas. (IMG:style_emoticons/default/beerchug.gif) Kent

[Andyrew]

My wife is currently busy with her masters degree schoolwork, so I get to spend ~ an hour or two on it 2-3 nights a week and then about 4 hours on it on the weekend (More if I get up early).

I dont think Christmas is in the cards at all... (IMG:style_emoticons/default/smile.gif) If I can make it by Christmas of NEXT year I will be happy.

The good thing about the wiring that I am doing right now is that the more I do the more sense everything makes. Im taking quite a bunch of pictures that are not posted, but I try to post everything that could be helpful to the next build (I might just do another Audi build... This is really starting to make sense... Probably not another one with ESP or power brakes, but maybe ABS...)

[Mike Bellis]

Take it from me my friend... Once you start on wiring keep going. Do not take time off the project. No vacations. No long weekends away. No breaks! Not until you have it sorted out.

Once it's in your head, keep it there. A month off the car will be a real PITA to get back to.
