 starter motor wiring, help please |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| rwilner |
 Feb 20 2011, 09:44 AM
Post
#1
|
|
No Ghosts in the Machine  Group: Members Posts: 953 Joined: 30-March 10 From: Boston, MA Member No.: 11,530 Region Association: North East States  |
During my enthusiasm for my transmission drop, I neglected to properly document how the starter motor is wired.

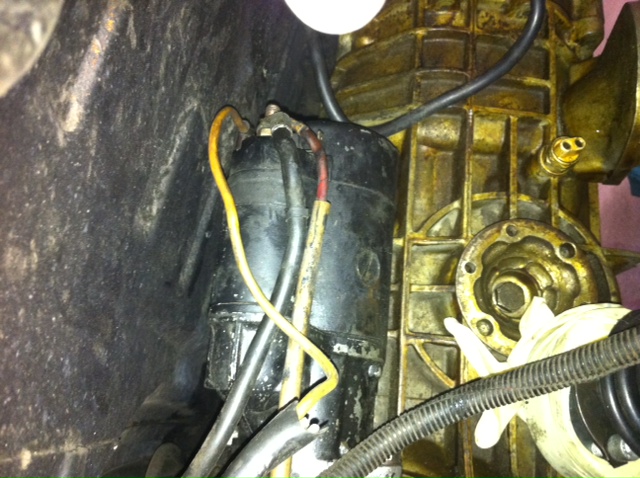

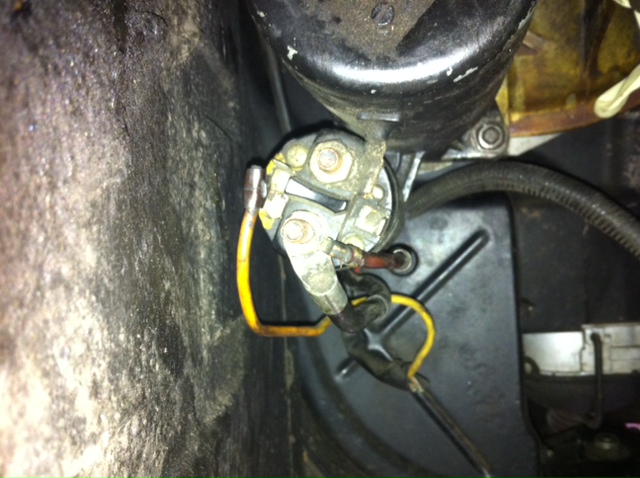

Of course, some wires are cut or missing which makes this a bit more challenging than it might otherwise be (car did start and run prior to the drop) -- check out pics for 2 wires cut back in the small-gauge harness. Can someone take a look at the pics below and let me know if I've got it right? (The pics are rotated 90 degrees ccw for some reason.) Thanks TERMINALS  SIDE VIEW  |
   |

|
| Tom |
Feb 20 2011, 11:17 AM
Post
#2
|
|
Advanced Member Group: Members Posts: 2,139 Joined: 21-August 05 From: Port Orchard, WA 98367 Member No.: 4,626 Region Association: None |
Rich,
Yep, looks like you got it right! Tom |
|
|
|
| IronHillRestorations |
Feb 20 2011, 11:30 AM
Post
#3
|
|
I. I. R. C. Group: Members Posts: 6,792 Joined: 18-March 03 From: West TN Member No.: 439 Region Association: None
|
Yea, that looks right to me. Get a new boot for the wires though, they aren't too expensive and will help keep the road grime off.
|
|
|
|
| rwilner |
Feb 20 2011, 02:49 PM
Post
#4
|
|
No Ghosts in the Machine Group: Members Posts: 953 Joined: 30-March 10 From: Boston, MA Member No.: 11,530 Region Association: North East States |
Thanks guys. Are the wires hat are cut off for the reverse switch?
|
|
|
|
| Tom |
Feb 20 2011, 06:17 PM
Post
#5
|
|
Advanced Member Group: Members Posts: 2,139 Joined: 21-August 05 From: Port Orchard, WA 98367 Member No.: 4,626 Region Association: None |
I think so. Mine has an additional two wires that do go to the reverse switch. I always play it safe when I've done things like this and leave the negative battery terminal untightened - just pushed on snug, just in case. After testing, then tighten it up.
Tom |
|
|
|
| underthetire |
Feb 20 2011, 06:55 PM
Post
#6
|
|
914 Guru Group: Members Posts: 5,062 Joined: 7-October 08 From: Brentwood Member No.: 9,623 Region Association: Northern California |
The smaller of the two battery leads looks bent over kinda close to the solenoid mounting screw. Might wanna double check it. If it touches, you will have a Chinese new year party going on.
|
|
|
|
|
