starter relay, next gen modification Options

[Prospectfarms]

Yes, I understand that every time you open a circuit to a coil the juice wants to keep flowing ("collapsing field" ) There are discussions about that effect on all kinds of automotive and MC boards dealing with a variety of different circuits and the consensus seems to be that it is helpful to either: put a diode across the wires near the coil (in this case, the starter) and/or to relay the current, or both. They didn't have cheap semi-conductors in 1972 then and I guess they must of run out of room on the panel for one more relay.

Do you recall discussing how my ignition harness crisped when the AAR grounded itself? It was fused from the engine bay panel and managed to burn anyway. I've fused the (new) red wire ever since.

[Elliot Cannon]

Look out Maude, here comes the rain on the parade!

In your search for a "hidden and different" location for your hot start relay, you've put it outside the protective cover for the relay board, exposed the connections to moisture by mounting the relay on its side, mounted it where it takes a long run of heavy wire to be effective, and used cheap Chinese crap for a relay.

In theory, you want a relay that will trigger at the low voltage often supplied buy the aging wiring on a 914, and you want it as close to the starter as possible, while keeping the connections out of the elements as much as possible. That's why I use a 6-volt Ford type relay, mounted close to the starter, and cover all splices and connections, other than those directly on the relay posts, with heat-shrink tubing. A fuse is unnecessary, and just another potential failure point. BTW, I have customer cars that have seen daily use for more than 25 years with the 6V relays, without a single relay failure. Ugly? Sure, but they're under the car where no one sees them, and they're convenient for service or bypass should they ever fail, which they don't.

The Cap'n

Oh man! Don't you just hate it when you have to agree with that Cap'n Krusty guy? Do you suppose after 75 years of working on these cars he knows what he is talking about. (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/welder.gif) (IMG:style_emoticons/default/first.gif)

[76-914]

Prospectfarms,


I have no plans at this time to make kits for this as there are already vendors that supply this type of modification, minus the "bump" feature.
Tom

Too late, I already ordered one. (IMG:style_emoticons/default/lol-2.gif)

[Tom]

Well, now that I have the fuse block kits all done, I had time to get back to my project. Have the relay and push button mounted, now have to draw a wiring diagram and get the wires installed. It fits under the cover just fine!
Tom
EDIT: the wiring diagram is done.

[Tom]

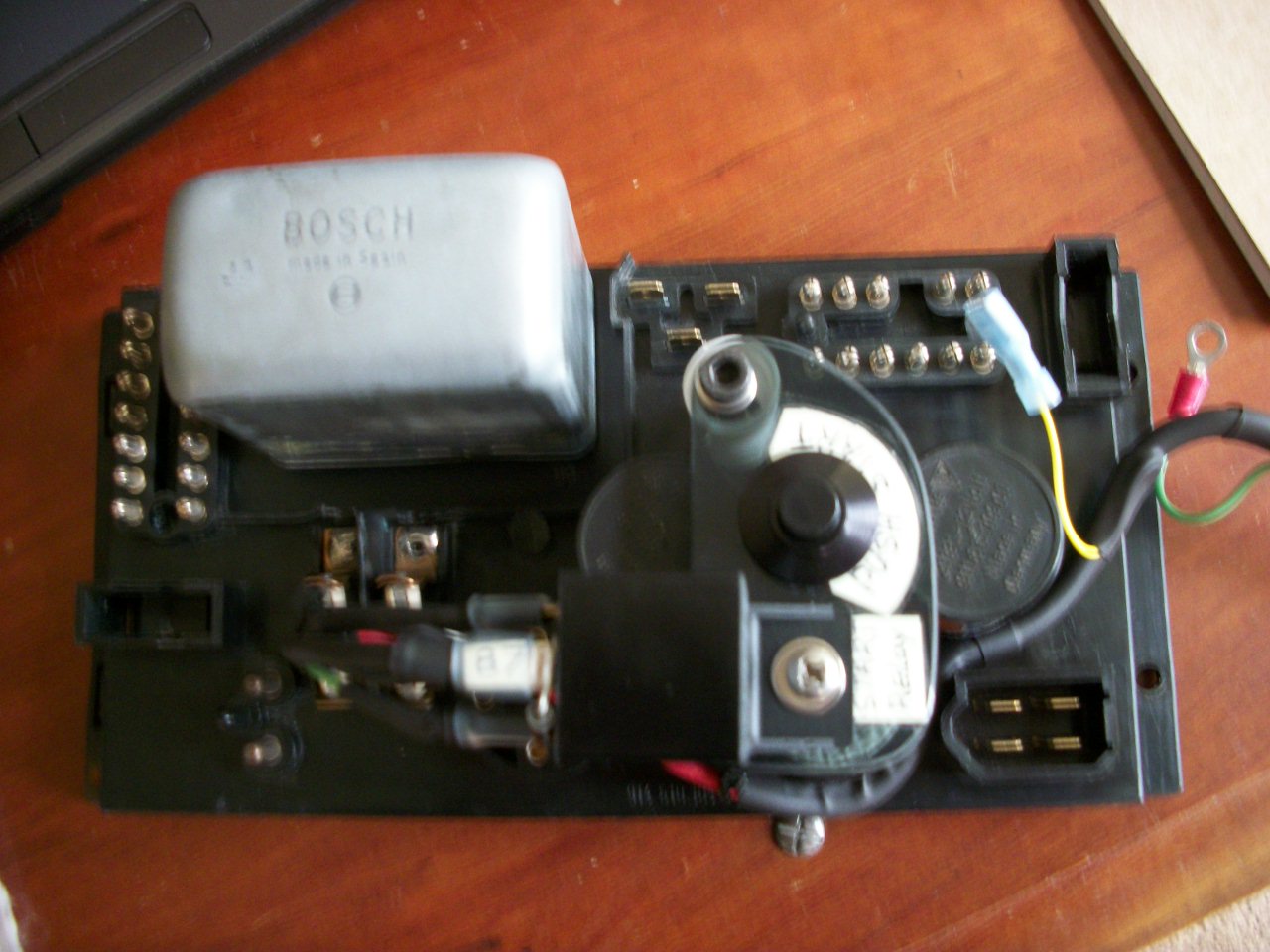

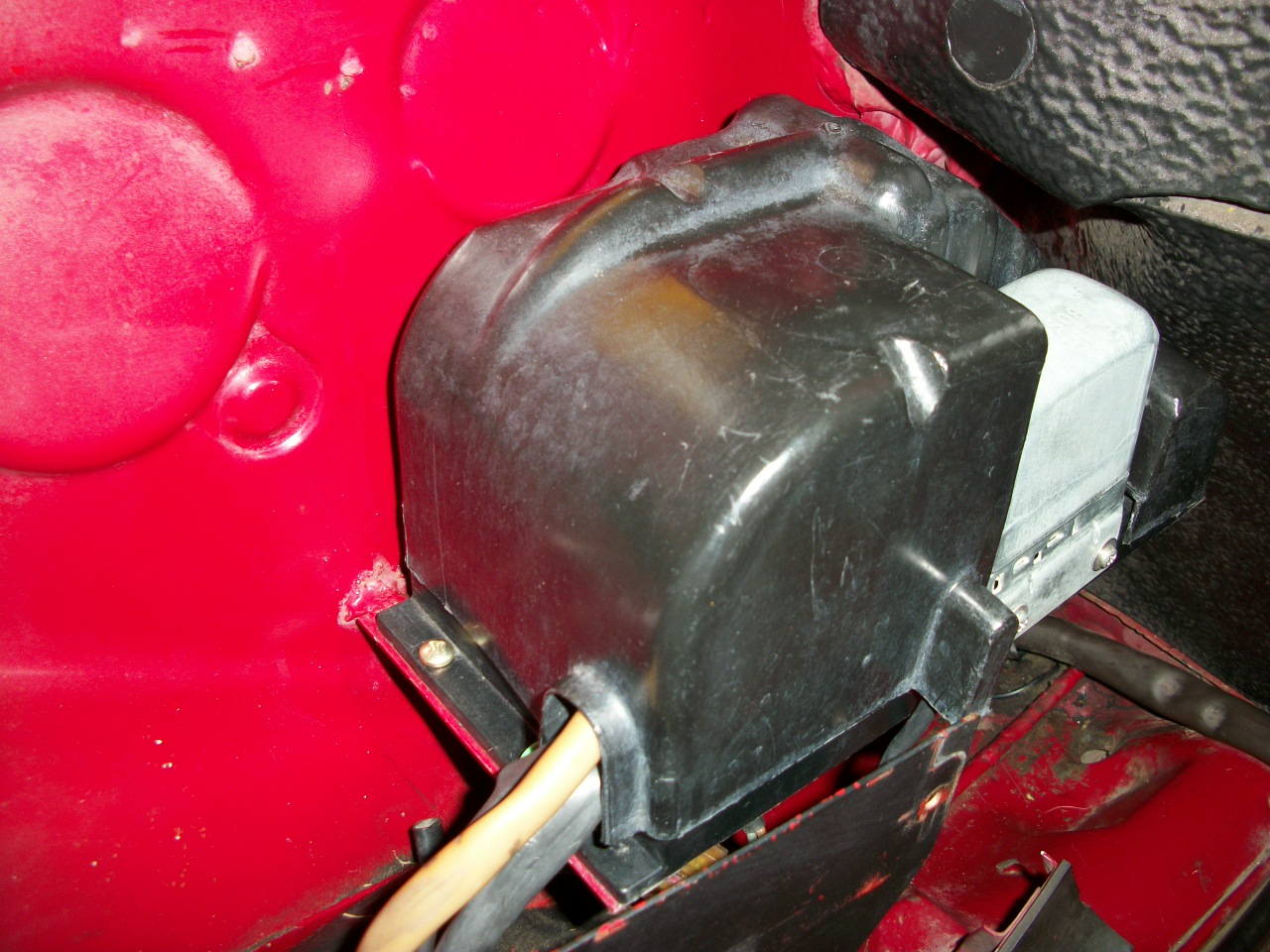

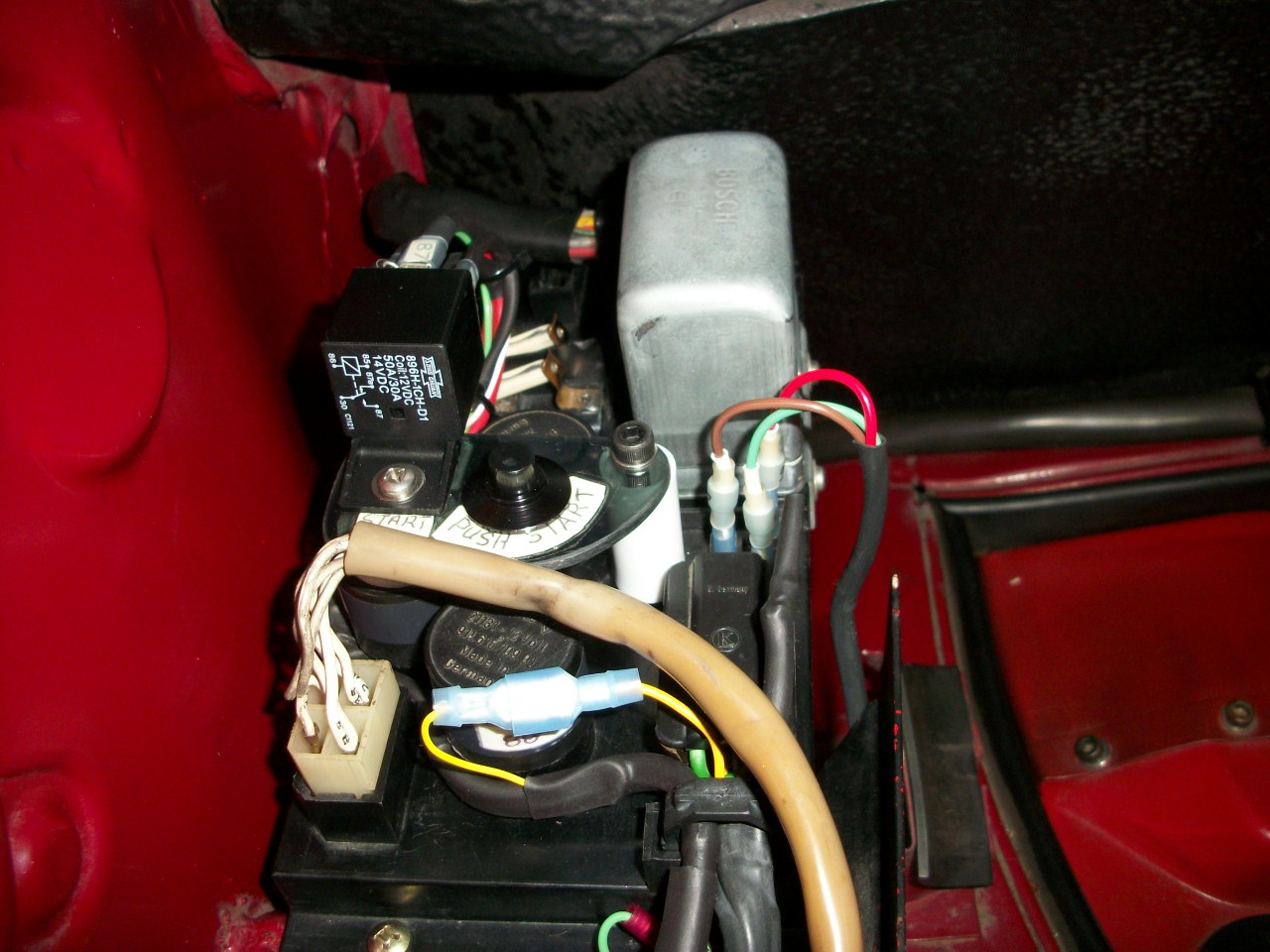

With no forum to spend time on, I found time to finish up my generation 2 starter relay with bump feature and got it installed. It works great. Key off and just push the start switch on the relay panel for a bump. Pics show installation on the relay board, then installed on car, and finally stealth mode. With cover on, it is not noticable that there have been any changes made except for the extra wiring harness! Don't know how many would even notice that unless they were looking for it.
Tom

[76-914]

Tom, I received my kit while this site was down. Can't wait to get it installed but my wife drafted my services whilst the board was down. I suspect my next kitchen pass won't be for another couple of weeks. I'll post up when I can. Very nice kit. (IMG:style_emoticons/default/wub.gif)

[Tom]

Kent,
I sent you a PM. I think I put in some instructions on how to get the heat shrink on the rear wires, but just in case you now have a way to get in touch. Glad you like the kits. (IMG:style_emoticons/default/smile.gif)
Tom

[Valy]

Tom very nice but a word of advise:
Please, put a label next to the button asking to check that the transmission is in neutral.

I have a friend who was severely injured with something similar - he installed a remote controlled start button and got himself injured when the car jumped and squeezed him against the wall. Both his legs were fractured.

Please, please, please...

[jim_hoyland]

Like your idea, very clean installation. If the wire to the coil is hot, will the engine start ?

[Tom]

Jim,
With the key off, the coil has no power and if it is fuel injected, neither does the ECU, so no it should not start. All you are doing is the same as putting a screwdriver across the hot wire on the solenoid to the solenoid power connector, Ie. engaging the starter only. About the same as a remote start switch that mechanics use to turn the engine over without starting the engine, kind of like when setting the points or valves. Releasing the button will stop the "bump" feature. There are other ways to do this and the same safety measures need to be observed. This is a good way to "save" the electronic ignition mods from having to have the key switch on, which has a detremintal effect on the electronic ignitions.
Valy,
No one can engineer out all of the mistakes a home mechanic can do to himself, which is one of the reasons I am not doing kits for this mod. I only did one extra kit for someone I felt had the expertise and understanding to use it safely. But your reasoning is very good and understood. Besides that, the only thing that could happen if the car is in gear, is the car will move forward or backward. To push the button, you would need to be on the driver's side reaching into the engine bay and not in the path of the car.
To all, there is an addition I have made to the schematic to ensure there is no power feedback to any other circuits. It is adding a diode between the normal start circuit and the push switch. This ensures no power goes from the push switch to pin #6 of the 12 pin connector on the relay board. If anyone is interested in doing this to their car, let me know and I will post an updated schematic.
Thanks,
Tom

[jim_hoyland]

Please post the schematic, the parts list, and instructions. I'd really like to do this. Just need some guidance.

[Tom]

Jim,
I'll put an updated schematic tomorrow and some instructions as to how to do this. Also I will include the part numbers for the relays and diodes. As for the push to close switches, I can only give you the electrical characteristics as the two switches I used are ones I had left over for some projects many years ago. But they are basically just a momentary close push to close switch. Doesn't need to be very heavy duty as the relay only draws about 150 mili-amps. Any push to close momentary contact switch that will handle 1 amp will be sufficient.This saves the high current from going through the key switch. Normally, the starter solenoid draws about 35 amps initially for as long as the solenoid needs to close and then the large electrical contacts in the solenoid carries the majority of the solenoid current and the current through the key switch drops to about 10 amps. With this modification or similar starter relay set ups the current through the key switch is greatly reduced. BIG difference between 10 amps and 150 mili-amps in the resulting arc across the key switch contacts.
Tom

[Tom]

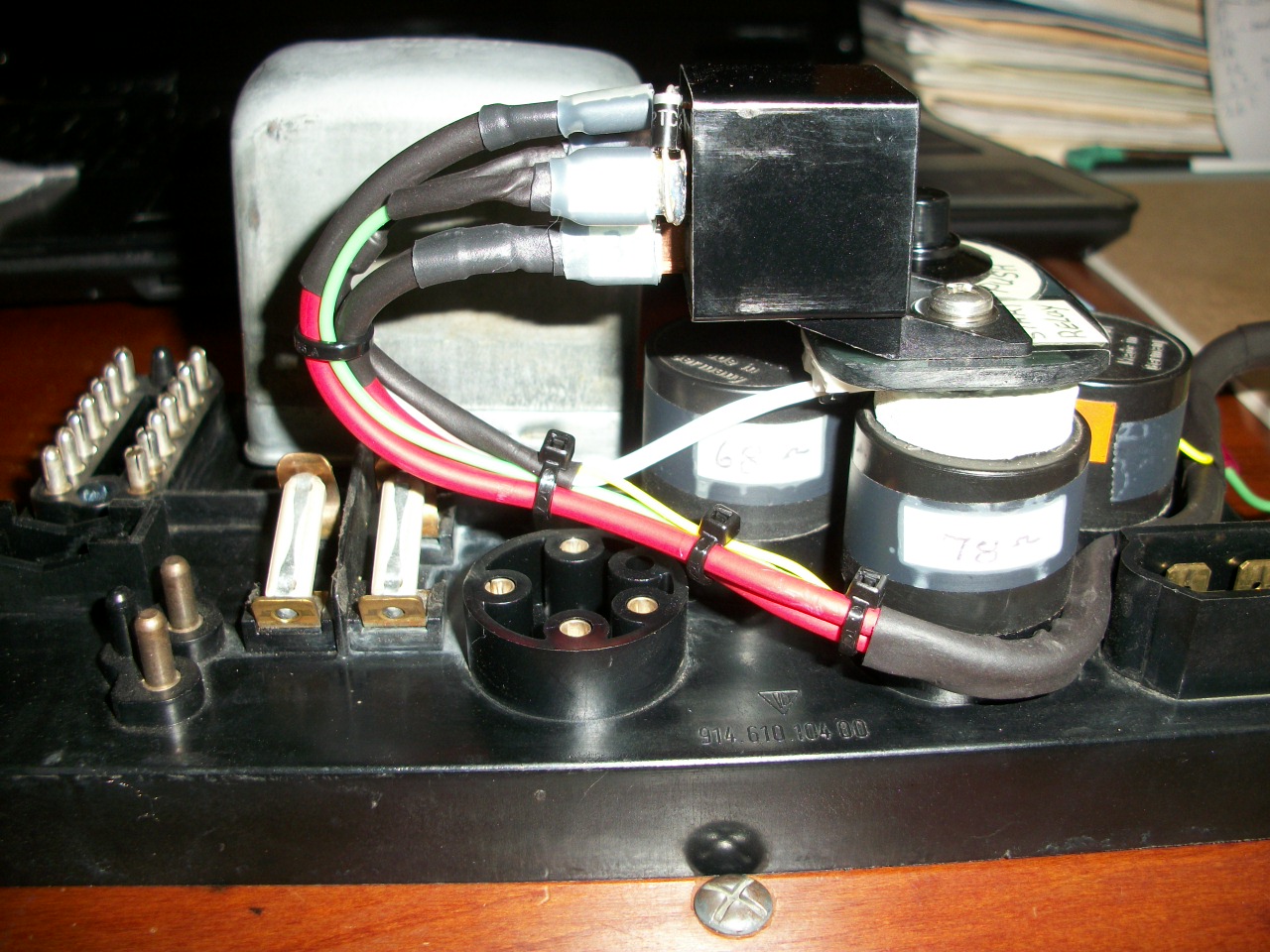

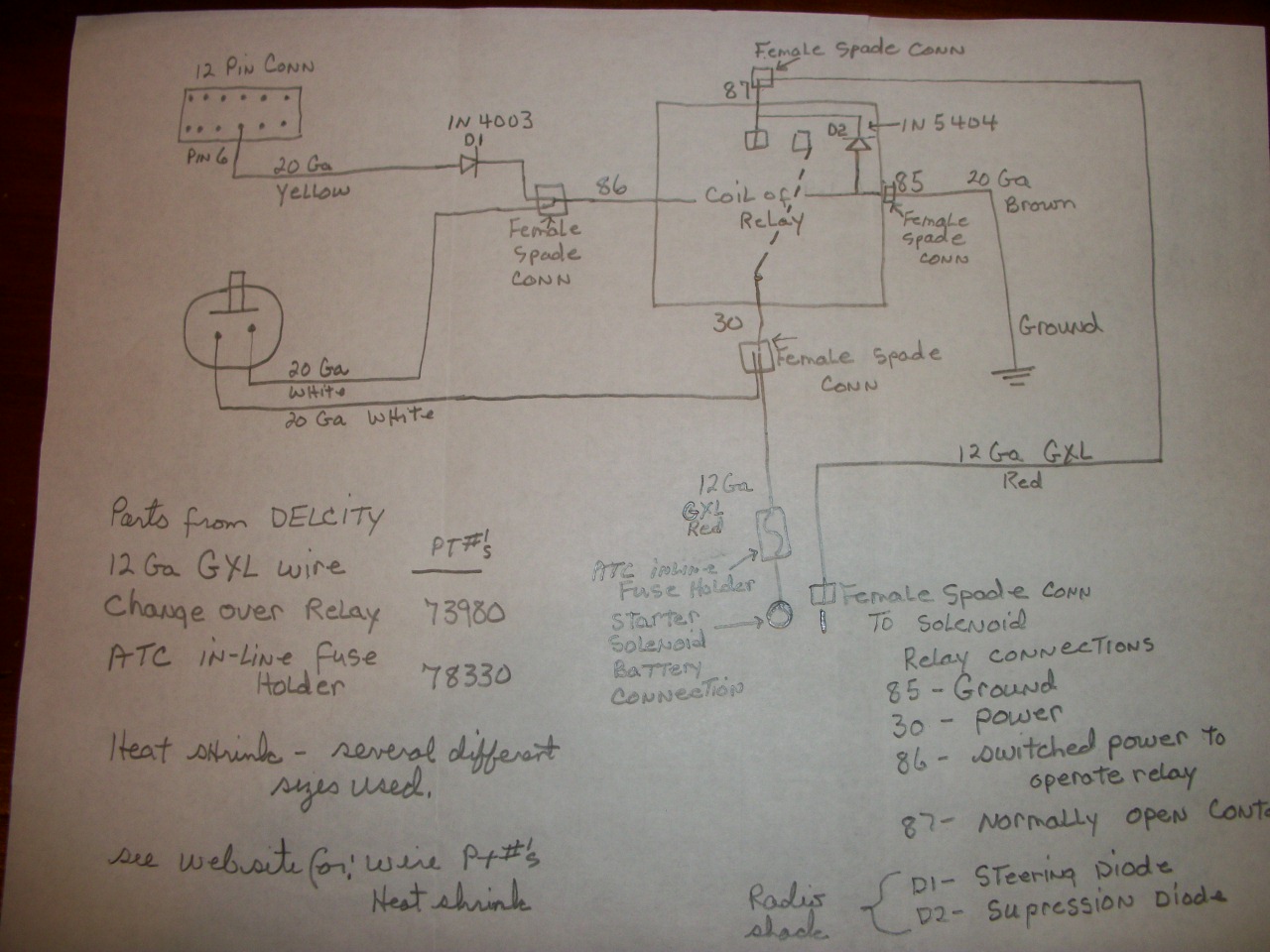

As you can see from the pictures the large yellow wire needs to be removed from the 12 pin connector and insulated at that end as well as the starter end. A new 20 ga. yellow wire needs to be soldered to the pin for #6 of the 12 pin connector. The other end will need to be soldered to the anode of D1. The cathode end of D1 and a 20 ga. white wire need to be crimped/soldered or both depending on the type of female spade connector being used and this connector labeled 86. The other end of this white wire will go to either side of the push switch.

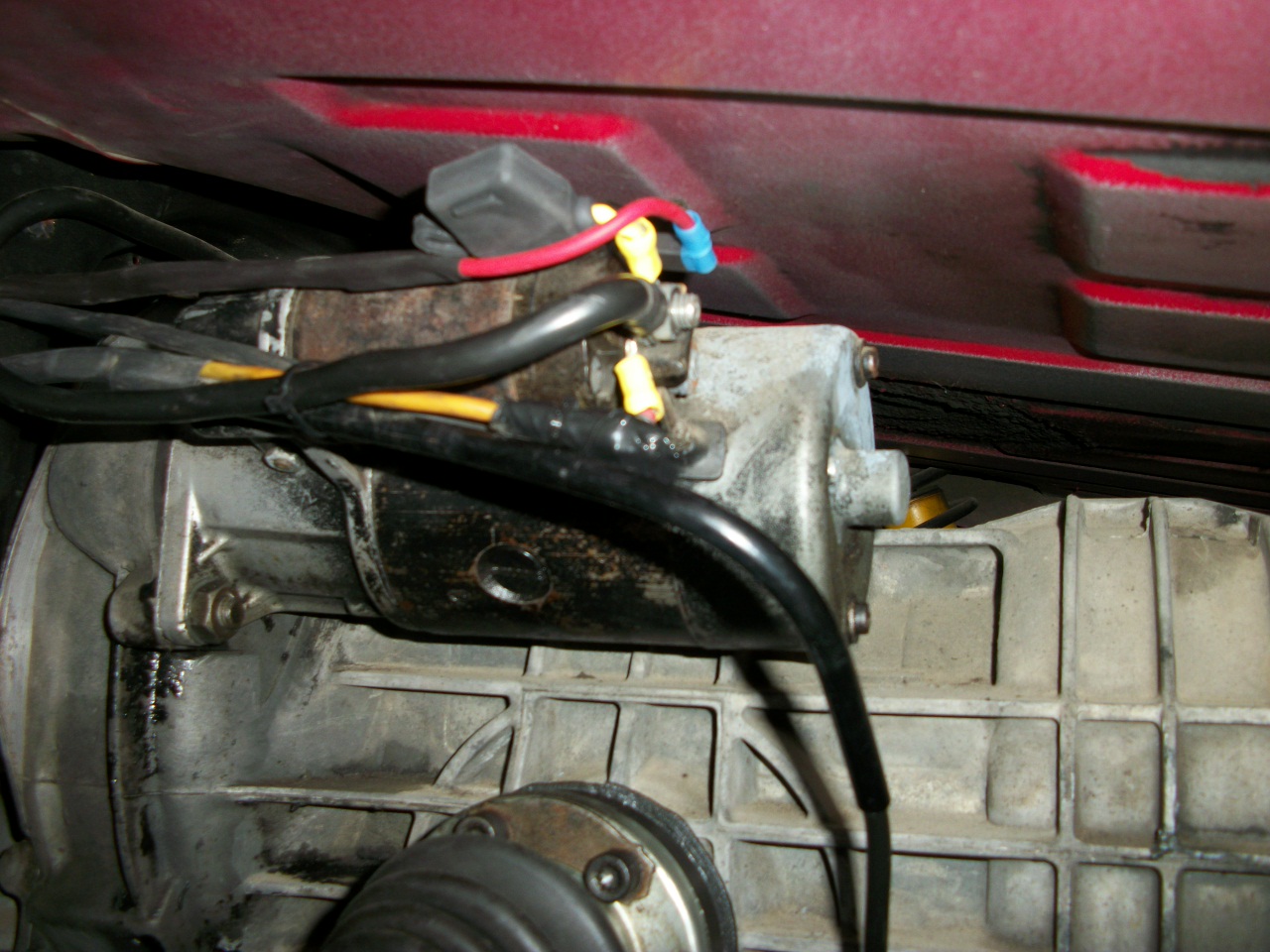

The other white wire from the [push switch will need to go into another female spade connector along with one of the large 12 ga. red wires and be labeled 30. This red wire will need to be about 5 to 5 and 1/2 feet long as it and the other large red wire goes back to the starter area. The starter end of this wire is where you need to place the inline fuse holder and on the end of the fuse holder wire you will need a ring terminal to place on the starter terminal with the battery lead. The other red wire needs a female spade connector and should be labeled 87. The other end of this wire(87) will also need a female spade connector to allow connecting to the solenoid male spade connector. The last wire is a 20 ga brown that needs to be long enough to place a ring terminal under one of the securing screws on the relay board ( ground).
The diodes are there to D1- steer the push button voltage to only the relay and not back to the #6 pin of the 12 pin connector, and D2 - to suppress the inductive spike and give the relay contacts a longer life.
Some parts were ordered from DELCITY and some Radio Shack or local parts houses. I carry an extra relay just in case it goes out as it may be hard to find one at inopportune times.
As can be seen in the pics, I don't have a rear window defog relay. If I did, I would have had to route the wires a little differently. Also check your relay board for the metal insert to screw the hold down bolt into. Later one don't always have it. Mine did not and I made one from brass and glued it in.
Before you attempt this, please have someone you trust with electrics look over the schematic and give a second opinion for you.
Tom

[Tom]

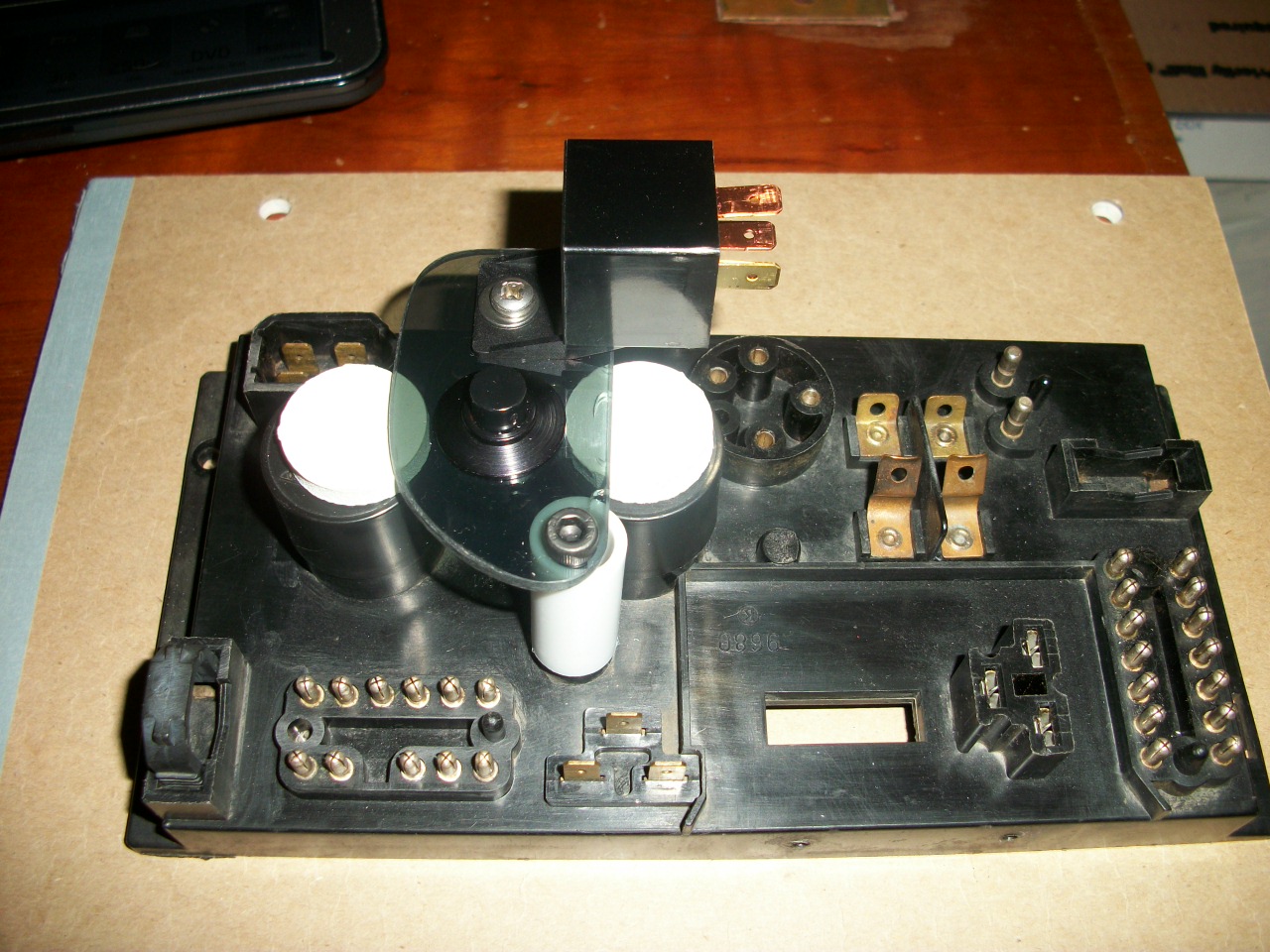

Additional pics for illustration purposes.
Tom

[Tom]

more.

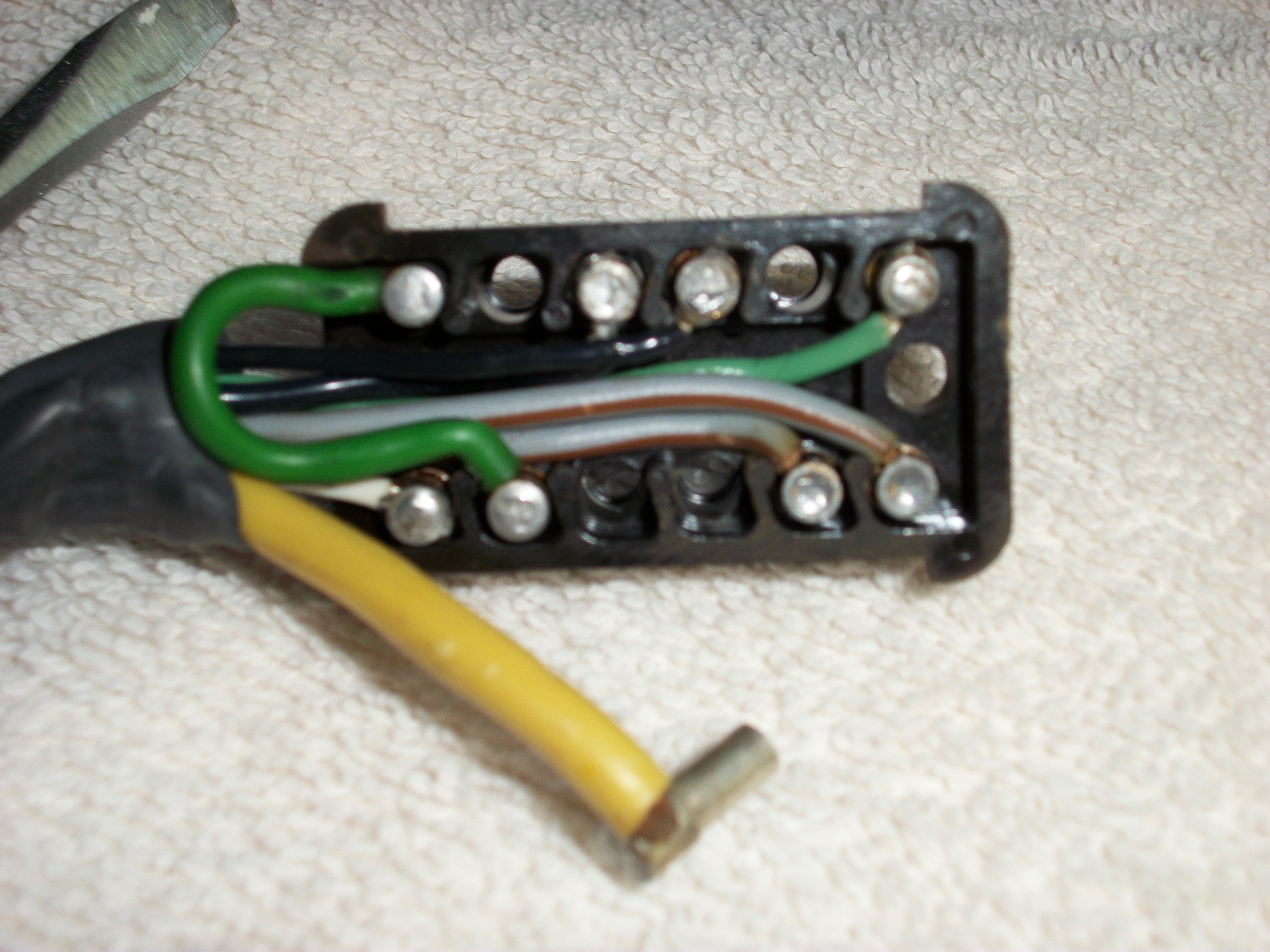

Even though this is first gen of this mod, you can see the pin 6 now has a smaller yellow wire and the large yellow wire has been insulated.
I think that should be enough to show anyone who would think of doing this mod what amount of work is envolved. Make sure you get the relay board end completed first, run the heat shrink over the two red wires leaving plenty of room for the starter end's work to be done. Shrink the first piece of heat shrink, then after cooling put another piece up over the first one that can be slid back and shrunk after the starter end's work is completed.
Tom

[jim_hoyland]

Am I correct that the relay will be used by both the regular key start and the momentary switch ?

Also, I have a 1.8 L-Jet where the power relay, FP relay, and 4-plug connector are not used ( except for the yellow jumper wire ) I'm thinking of using that unused portion of the relay board for the relay. Hmmmm..........

[Tom]

Jim,
Yes, the relay works for both the key switch start circuit and the bump circuit. Looking at the schematic, there are two times the relay is energized causing the starter to operate, 1- when the key switch is turned to start -yellow wire, and 2- when the push button is pushed- white wire.
As to using the portion of the relay board you speak of, I don't have any L-jet experience. Doesn't the start circuit still run through the relay board the same as D-jet?
Tom

[jim_hoyland]

Just installed the relay today. How much amperage should the momentary switch be rated ?

[76-914]

Jim, the amp load to activate the relay is minimal. I would think it is very low. Love mine. (IMG:style_emoticons/default/beerchug.gif)

[Tom]

Jim,
The relay I used draws about 145 miliAmps, so a one amp switch is more than adequate.
76-914,
Glad to hear all turned out well on your installation. (IMG:style_emoticons/default/smile.gif)
Tom
