 Nov 27 2004, 06:37 PM
Post
#101
|
|
Mike Ginter  Group: Admin Posts: 16,094 Joined: 26-December 02 From: Denver CO. Member No.: 20 Region Association: Rocky Mountains   |
QUOTE(Brad Roberts) I removed the "cover" on Chris Reales car a few months back. Hang on whilst I find the pics. To be specific, this is what I'd like to see pics of and hear more about. |
   |

|
| Brad Roberts |
Nov 27 2004, 06:38 PM
Post
#102
|
|
914 Freak! Group: Members Posts: 19,148 Joined: 23-December 02 Member No.: 8 Region Association: None |
Ok. I know I have a ChrisR folder on my home computer. I'll try and post tonight from home. I'll be doing computer work all day today and tomorrow.
B |
|
|
|
| Gint |
Nov 27 2004, 06:43 PM
Post
#103
|
|
Mike Ginter Group: Admin Posts: 16,094 Joined: 26-December 02 From: Denver CO. Member No.: 20 Region Association: Rocky Mountains |
Thanks Brad. Happy birthday BTW.
|
|
|
|
| Brad Roberts |
Nov 27 2004, 07:10 PM
Post
#104
|
|
914 Freak! Group: Members Posts: 19,148 Joined: 23-December 02 Member No.: 8 Region Association: None |
Thanks Gint. Another year older and deeper in debt..LOL
B |
|
|
|
| drew365 |
Nov 28 2004, 12:37 PM
Post
#105
|
|
These are the good old days! Group: Members Posts: 2,004 Joined: 29-December 02 From: Sunny So. Cal. Member No.: 37 |
Here's some pictures of the reinforcement done to my car by TRE here in North Hollywood. They connected the roll cage with the front and rear shock towers. Triangulated the shock towers to the tranny mount rail in the rear trunk. Connected the back of the suspension ear to the underside of the tranny mount rail, and added an adjustable toe brace to the front of the alingnment foot of the suspension.
Here's the cage to the front of the rear shock tower: Attached image(s)
|
|
|
|
| drew365 |
Nov 28 2004, 12:39 PM
Post
#106
|
|
These are the good old days! Group: Members Posts: 2,004 Joined: 29-December 02 From: Sunny So. Cal. Member No.: 37 |

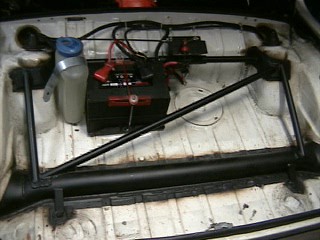

Triangulation in the rear trunk with larger rail at trans mounts:
Attached image(s)
|
|
|
|
| drew365 |
Nov 28 2004, 12:41 PM
Post
#107
|
|
These are the good old days! Group: Members Posts: 2,004 Joined: 29-December 02 From: Sunny So. Cal. Member No.: 37 |

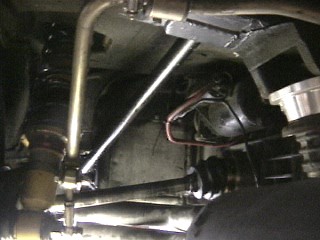

Underside of tranny mount rail to back of suspension ear, It's hard to get a good pic with engine and trans in the car:
Attached image(s)
|
|
|
|
| drew365 |
Nov 28 2004, 12:43 PM
Post
#108
|
|
These are the good old days! Group: Members Posts: 2,004 Joined: 29-December 02 From: Sunny So. Cal. Member No.: 37 |

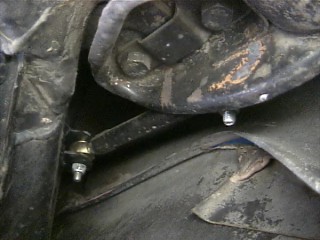

Adjustable toe reinforcement, again not a good angle for pic:
Attached image(s)
|
|
|
|
| drew365 |
Nov 28 2004, 12:44 PM
Post
#109
|
|
These are the good old days! Group: Members Posts: 2,004 Joined: 29-December 02 From: Sunny So. Cal. Member No.: 37 |

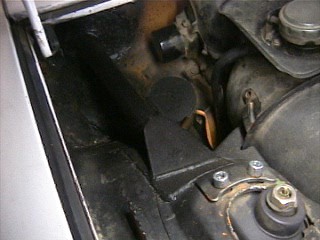

Front shock tower to cage:
Attached image(s)
|
|
|
|
| drew365 |
Nov 28 2004, 12:51 PM
Post
#110
|
|
These are the good old days! Group: Members Posts: 2,004 Joined: 29-December 02 From: Sunny So. Cal. Member No.: 37 |
Same brace on the inside, there's also a brace about 18" up that connects down onto this one to triangluate this:
Attached image(s)
|
|
|
|
|
