> diggin into hell, Rustoration: You have to be strong
rhodyguy
post Mar 13 2005, 09:11 AM
Post #241


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,192
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
great thread (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) . did you locate/buy the triangular threshold supports as individual pieces? if so, where? i need some and don't want to buy the whole outer long just to cut them off.

k
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 13 2005, 09:54 AM
Post #242


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None
QUOTE (rhodyguy @ Mar 13 2005, 07:11 AM)
great thread (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) . did you locate/buy the triangular threshold supports as individual pieces? if so, where? i need some and don't want to buy the whole outer long just to cut them off.

k

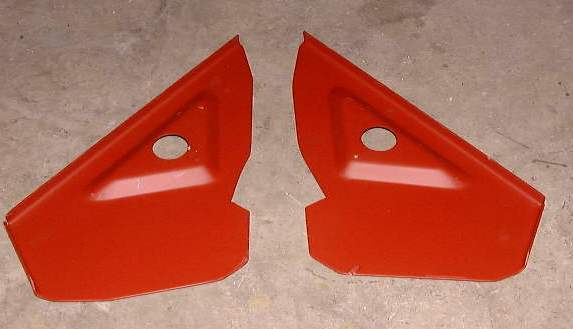

I got this part from an ebay auction. The guy build it scratch.
I know another guy in germany who fabricate them without the radius.
This was 25 Euro the pair.
Did you check restoration design homepage?

(IMG:http://www.914world.com/bbs2/html/emoticons/smilie_flagge6.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Katmanken
post Mar 13 2005, 11:03 AM
Post #243


You haven't seen me if anybody asks...
****

Group: Members
Posts: 4,738
Joined: 14-June 03
From: USA
Member No.: 819
Region Association: Upper MidWest
I just cut off the old one, traced it onto a piece of thick sheet metal, and cut out the profile.

Tacked the sheet metal profile onto the top of the old plate and hammered away (into the dipped area) with my ball peen body hammer until the two profiles matched perfectly and nested together. Used some dollys for support on the back side of the original, particularly where the original was thin. (IMG:http://www.914world.com/bbs2/html/emoticons/smash.gif)

Bent the edge using the hammer and vise trick. (IMG:http://www.914world.com/bbs2/html/emoticons/smash.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smash.gif)

A little smoothing hammer and dolly work, and it was perfect. Cut off the cup, derusted it and welded into place on the new part. Primed, clamped and welded into place.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 19 2005, 10:21 AM
Post #244


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None
Hi everybody,

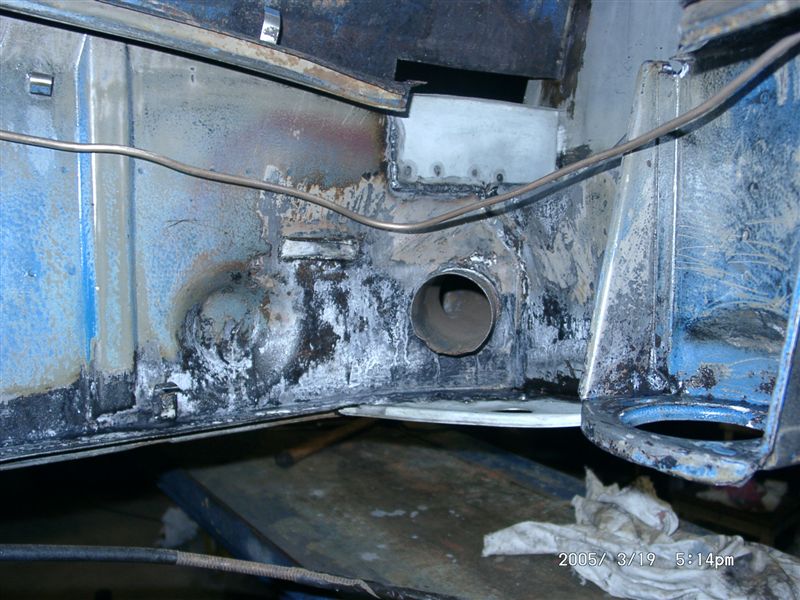

today i did some cleaning the part under the hell hole. Step one : sanding down the worst dirt ans rust. Step two : Cleaned up with Marine clean. Step three: Used metal-Ready. Step four: Painted the glove box with Por15 (IMG:http://www.914world.com/bbs2/html/emoticons/laugh.gif) .
I let work the metal-Ready thing a day or two, then the part under hell hole will be painted with por15.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 19 2005, 10:22 AM
Post #245


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None

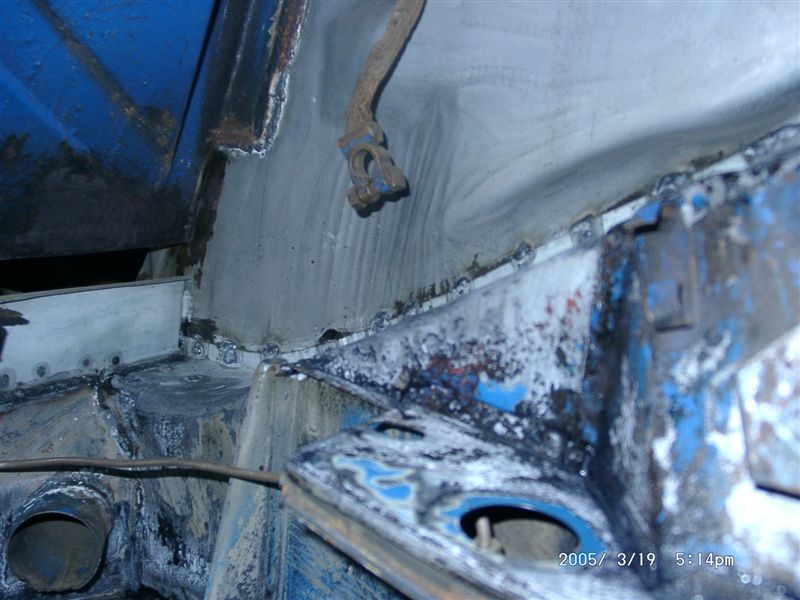

nother view


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 19 2005, 10:22 AM
Post #246


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None

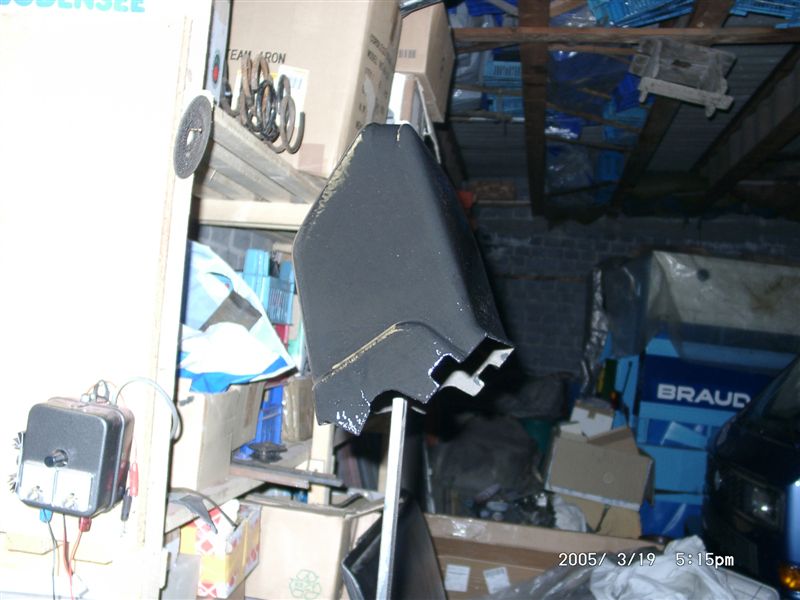

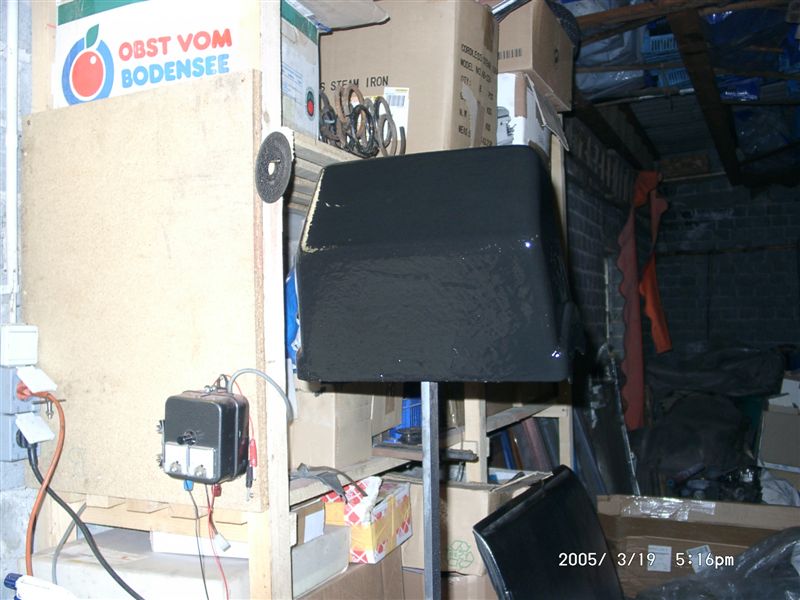

and the box #1


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 19 2005, 10:23 AM
Post #247


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None
#2

(IMG:http://www.914world.com/bbs2/html/emoticons/smilie_flagge6.gif)

Have a nice weekend!


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Mar 19 2005, 10:58 AM
Post #248


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,192
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
i called R.D. some time ago about purchasing just the supports and the caping piece on the end. couldn't be done, it was the whole long or nothing. i've considered your method as well ken.

k
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 20 2005, 03:53 AM
Post #249


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None
I also tryed to contact R.D. three or four times. Never got any reply. (IMG:http://www.914world.com/bbs2/html/emoticons/sad.gif) .

I ordered then the needed parts by an german dealer (Mittelmotor). Took about 3 month till they delivered the parts.

(IMG:http://www.914world.com/bbs2/html/emoticons/smilie_flagge6.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CptTripps
post Mar 20 2005, 07:51 AM
Post #250


:: Punch and Pie ::
****

Group: Members
Posts: 3,584
Joined: 26-December 04
From: Mentor, OH
Member No.: 3,342
Region Association: Upper MidWest
Ditto here...

I've tried R.D. Twice and even left messages saying "I want to buy something from you. I now what I want, all I want is for someone to call me and take my money." Nothing...

That's a crying shame.

Your work is fantastic michelko!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 24 2005, 03:11 PM
Post #251


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None
Hi together,
since the weather is realy good the last days, its realy funny to work on the car.
I made some big progress. Watch the pic´s.

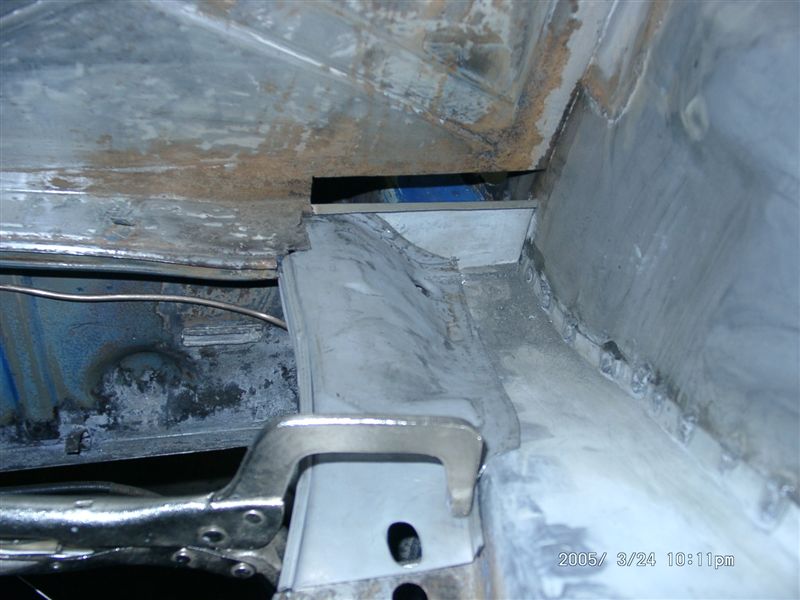

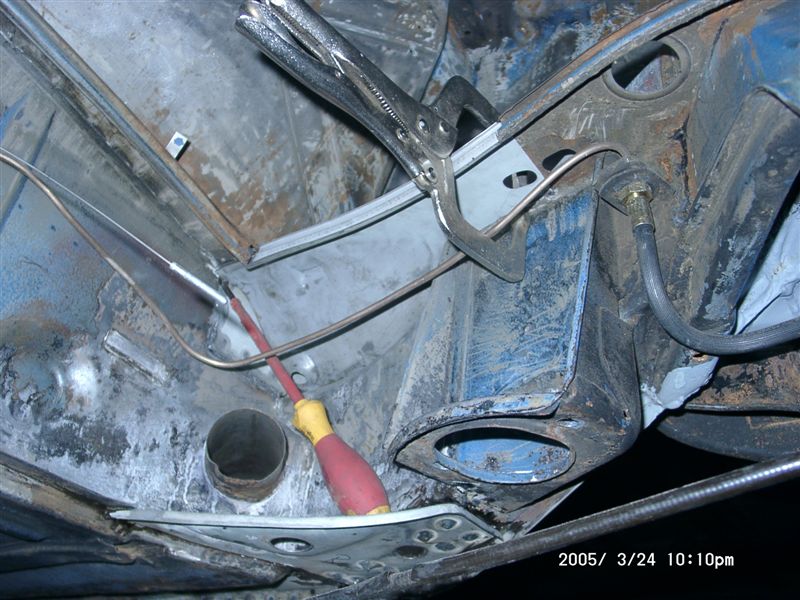

first : engine shelf


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 24 2005, 03:14 PM
Post #252


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None
#2: nother view. as you can see, i did some cleaning and grinding on the fire wall.
Someone sprayed a black material on it and covered that with the blue paint. Unfortunately the metall was rusted (surface) in uncountable places.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 24 2005, 03:16 PM
Post #253


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None
i will treat the whole metal in this area a second time with metal ready, just for sure.

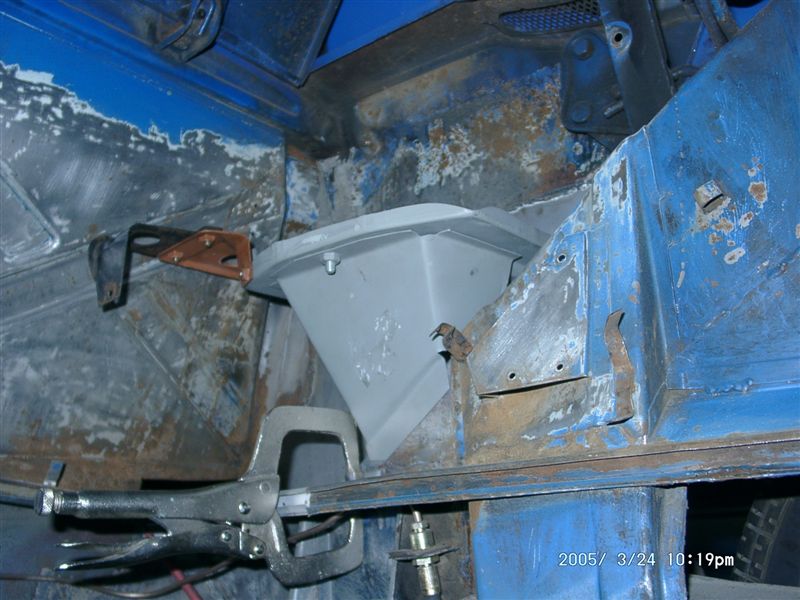

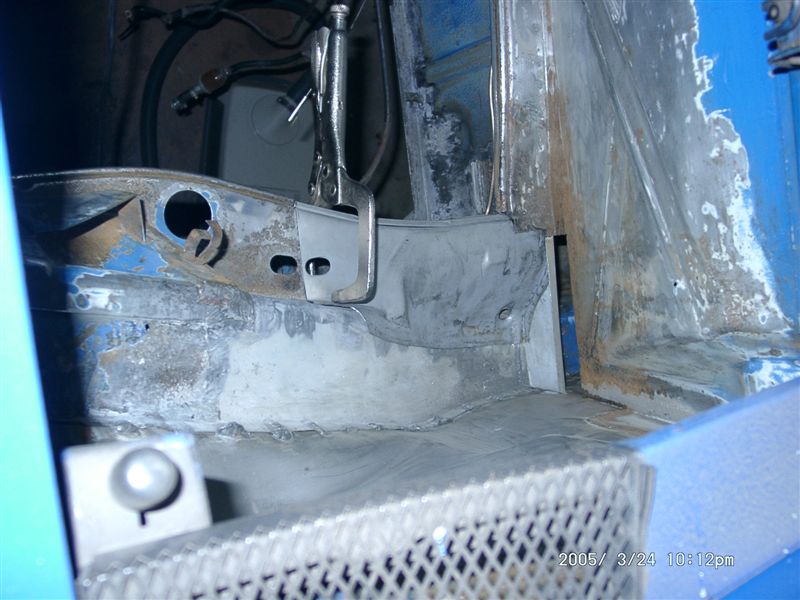

pic #3 : battery tray held in place


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 24 2005, 03:18 PM
Post #254


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None
#4 nother view


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Mar 24 2005, 03:24 PM
Post #255


Village Idiot
*****

Group: Members
Posts: 8,484
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
(IMG:http://www.914world.com/bbs2/html/emoticons/drooley.gif) Sweet mother of metal replacement! (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif) That is some amazing work! Talk about saving a teener! Wow! (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 24 2005, 03:25 PM
Post #256


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None

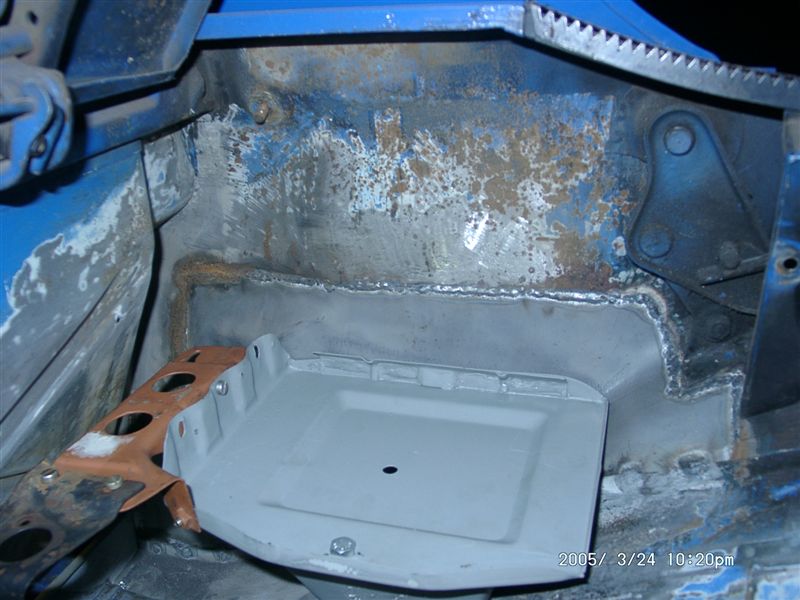

I am not sure if i should grind down that long welding seam arround the tray or leave it as it is (IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif)

(IMG:http://www.914world.com/bbs2/html/emoticons/smilie_flagge6.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Mar 24 2005, 03:27 PM
Post #257


Village Idiot
*****

Group: Members
Posts: 8,484
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
I just replaced the engine shelf on my 914. Little tacs about an inch appart. I ground them flat. most of them only needed a little touching anyway, but after painting it, they almost disapear. So yeah, I would do it. Looks cleaner.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
michelko
post Mar 24 2005, 03:38 PM
Post #258


Senior Member
***

Group: Members
Posts: 867
Joined: 30-November 03
From: Germany, Lambsheim
Member No.: 1,404
Region Association: None

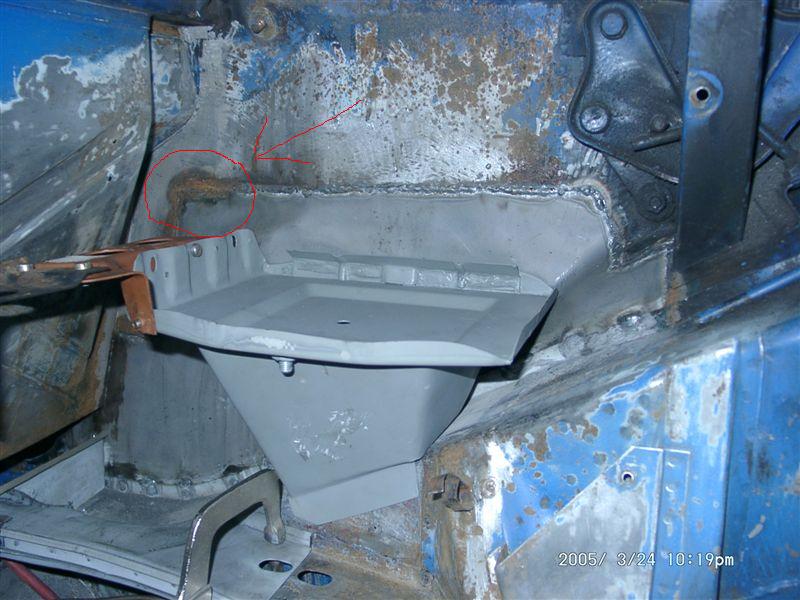

can´t believe how fast that shit is rusting again. That seam is just half a year old. (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lou W
post Mar 24 2005, 03:39 PM
Post #259


"Here Kitty Kitty" my ass......
****

Group: Members
Posts: 4,109
Joined: 9-May 04
From: Roseburg, OR.
Member No.: 2,039
Region Association: Spain
Michelko, Looks great, your work has me motivated to start my rust repair, I just got both of these sent to me this week.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lou W
post Mar 24 2005, 03:40 PM
Post #260


"Here Kitty Kitty" my ass......
****

Group: Members
Posts: 4,109
Joined: 9-May 04
From: Roseburg, OR.
Member No.: 2,039
Region Association: Spain
and this one (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
