> Gauging interest. Bi-xenon headlight conversion kit., I see a brighter future.
Chris914n6
post Apr 19 2012, 02:23 AM
Post #1


Jackstands are my life.
****

Group: Members
Posts: 3,413
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region
So 10 years ago I designed a low profile popup headlight kit using the Hella 90mm housings. Didn't have the all tools to produce them. Now I do. But times have changed and bi-xenon housings are readily available. Plus, 1 will do the job of 2 and fit A LOT neater.

Package would include a pair of FX-R bi-xenon projectors, custom powder-coated headlight structures, formed lexan shrouds, and a few other pieces to make it a quality product. Raised headlight height will be about 1/2 stock. (Sleepy eyes for you s13 owners lol)

Price will be about $350-400.

You will still need D2S bulbs and ballasts. New kits run about $70 for DDM, $160 for Morimoto, and $250 for Philips & Mitsu OEM stuff.

OR

Also been working on a design for the turn signal location. Hi Felix (IMG:style_emoticons/default/bye1.gif) Using the Mini projectors, LED panels for the park/turn lights, Lexan cover, housing. Hoping to get the D2S version to fit so it can use the Awesome and Almost as Awesome bulb/ballast setups. Still labor intensive enough to put the price in the $350-400 range.

LASTLY

Also brainstormed a LED replacement for the side marker. Less wart, more pimple lol. Looking to be about $100/pr if the idea pans out.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
billh1963
post Apr 19 2012, 04:49 AM
Post #2


Car Hoarder!
****

Group: Members
Posts: 3,404
Joined: 28-March 11
From: North Carolina
Member No.: 12,871
Region Association: South East States
I will watch this thread with interest! I might be interested depending on how close to stock (cosmetically) the final solution turns out.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tracer
post Apr 19 2012, 06:24 AM
Post #3


Newbie
*

Group: Members
Posts: 44
Joined: 26-July 04
From: El Dorado Hills, CA
Member No.: 2,405
Region Association: Northern California
I would be on board for this change. Do you have any pictures of the finished working system you are proposing?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
carr914
post Apr 19 2012, 06:37 AM
Post #4


Racer from Birth
****************************************************************************************************

Group: Members
Posts: 121,985
Joined: 2-February 04
From: Tampa,FL
Member No.: 1,623
Region Association: South East States
Also watching
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rnellums
post Apr 19 2012, 07:29 AM
Post #5


Professional Enthusiast
***

Group: Members
Posts: 1,646
Joined: 26-November 09
From: Littleton, CO
Member No.: 11,072
Region Association: Rocky Mountains
VERY interested in a headlight for the turn signal location. If you develop a kit for this I WILL buy it.

-Ross
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
effutuo101
post Apr 19 2012, 07:49 AM
Post #6


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 10-April 05
From: Lemon Grove
Member No.: 3,914
Region Association: Southern California
Pictures?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
matthepcat
post Apr 19 2012, 08:46 AM
Post #7


Meat Popsicle
***

Group: Members
Posts: 1,462
Joined: 13-December 09
From: Saratoga CA
Member No.: 11,125
Region Association: Northern California
I am always interested in this stuff. I am a fan of unconventional, and I like the sleepy eye concept.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Apr 19 2012, 09:37 AM
Post #8


Resident Electrician
*****

Group: Members
Posts: 8,346
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
Interested. Need to see a mock up.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
falconfp2001
post Apr 19 2012, 11:50 AM
Post #9


Pancho Pantera
**

Group: Members
Posts: 451
Joined: 5-December 10
From: Downey, CA
Member No.: 12,456
Region Association: Southwest Region
Very interested. (IMG:style_emoticons/default/popcorn[1].gif)

By half Height, do you mean to modify the Headlight so it only opens half height? The way the headlight motors and relays are designed, they would have to fully cycle to open so how would you keep the motor from doing this?

While working on mine I once blew a fuse because the motor could not fully cycle to its stop position. Would be cool to have only a few inches open just don't see it happening easily.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
matthepcat
post Apr 19 2012, 12:00 PM
Post #10


Meat Popsicle
***

Group: Members
Posts: 1,462
Joined: 13-December 09
From: Saratoga CA
Member No.: 11,125
Region Association: Northern California
Probably will not use factory motors.....or motors at all(thats how I would do it).

Or maybe linear actuators.

QUOTE(falconfp2001 @ Apr 19 2012, 10:50 AM) *

Very interested. (IMG:style_emoticons/default/popcorn[1].gif)

By half Height, do you mean to modify the Headlight so it only opens half height? The way the headlight motors and relays are designed, they would have to fully cycle to open so how would you keep the motor from doing this?

While working on mine I once blew a fuse because the motor could not fully cycle to its stop position. Would be cool to have only a few inches open just don't see it happening easily.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Apr 19 2012, 01:29 PM
Post #11


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
I did that with factory motors and bi-xenon. (IMG:style_emoticons/default/happy11.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post Apr 19 2012, 01:45 PM
Post #12


Jackstands are my life.
****

Group: Members
Posts: 3,413
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region
Questions to date...

Pics- I find the brainstorming part fun, lots of doodles, sourced components I would use, but haven't invested the many hours or dollars to prototype it or jigs. Probably 2 weeks for the frame and another 2 weeks for the molding bucks. Plus a week for the hard parts to get here.

Motors- Uses stock motor setup. Just needed to change lever geometry.

Fog lights- Got a PM about adding fog lights to the popups. Anyone else into that possibility?

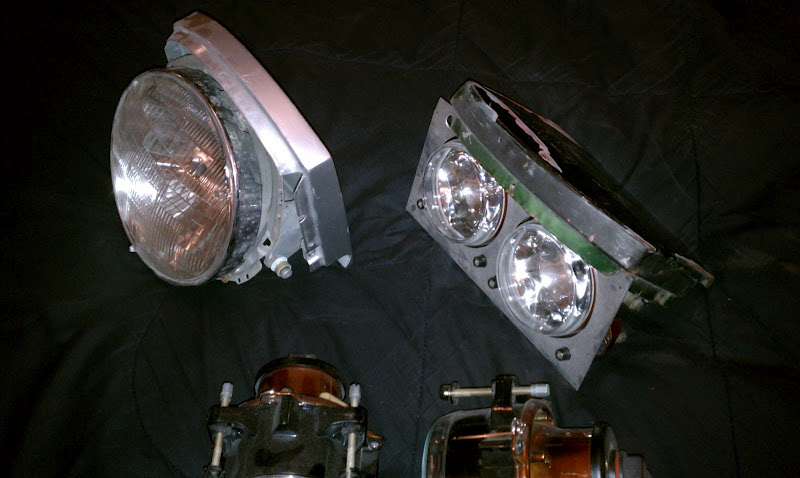

Original Hella fitting.
(IMG:http://www.914world.com/bbs2/uploads_offsite/lh3.googleusercontent.com-431-1334864823.1.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Apr 19 2012, 07:42 PM
Post #13


914 Guru
*****

Group: Members
Posts: 5,504
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
I'm watching too, I'm a fan of modern tech in an old package...sometimes it pays to buy a non original car (IMG:style_emoticons/default/smile.gif)

914/8 style duals would be cool, but I guess that'd need a new hood shape...so stock headlight covers would be best.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post Apr 23 2012, 12:05 AM
Post #14


Jackstands are my life.
****

Group: Members
Posts: 3,413
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region

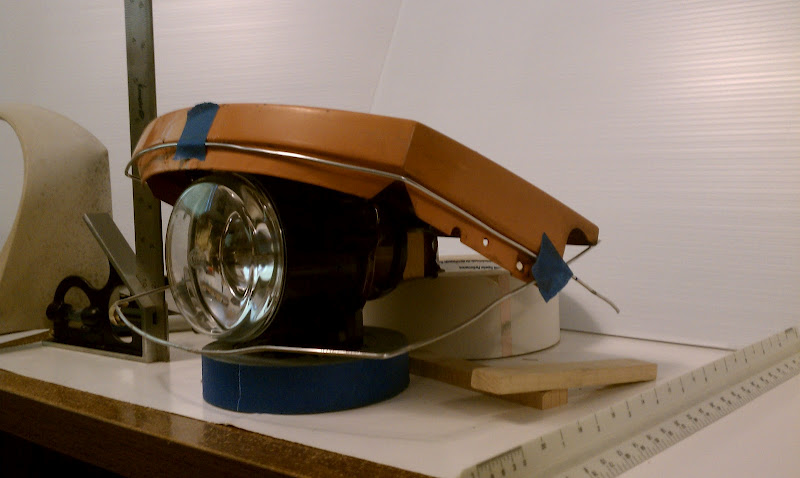

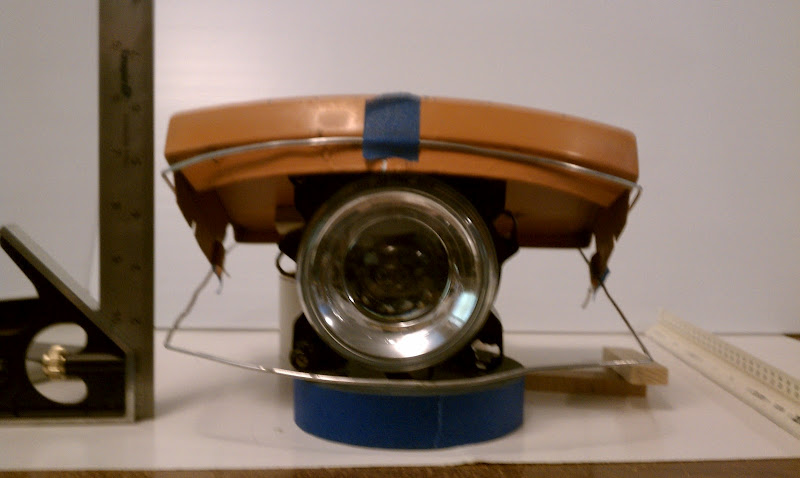

Looks like enough interest to move forward, so this weekend I did a mock-up and started blueprinting. Ordering hard parts Monday. Raised height about 4 1/2".

(IMG:http://www.914world.com/bbs2/uploads_offsite/lh6.googleusercontent.com-431-1335161125.1.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/lh6.googleusercontent.com-431-1335161125.2.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rnellums
post Apr 23 2012, 07:09 AM
Post #15


Professional Enthusiast
***

Group: Members
Posts: 1,646
Joined: 26-November 09
From: Littleton, CO
Member No.: 11,072
Region Association: Rocky Mountains
Looks good. Shoot me a PM if you get around to making them for mount in the turn signal housing!

-Ross
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimsfolly
post May 25 2012, 05:37 PM
Post #16


Newbie
*

Group: Members
Posts: 17
Joined: 15-June 08
From: Renton, WA
Member No.: 9,174
Region Association: None
QUOTE(Chris914n6 @ Apr 19 2012, 01:23 AM) *

So 10 years ago I designed a low profile popup headlight kit using the Hella 90mm housings. Didn't have the all tools to produce them. Now I do. But times have changed and bi-xenon housings are readily available. Plus, 1 will do the job of 2 and fit A LOT neater.

Package would include a pair of FX-R bi-xenon projectors, custom powder-coated headlight structures, formed lexan shrouds, and a few other pieces to make it a quality product. Raised headlight height will be about 1/2 stock. (Sleepy eyes for you s13 owners lol)

Price will be about $350-400.

You will still need D2S bulbs and ballasts. New kits run about $70 for DDM, $160 for Morimoto, and $250 for Philips & Mitsu OEM stuff.

OR

Also been working on a design for the turn signal location. Hi Felix (IMG:style_emoticons/default/bye1.gif) Using the Mini projectors, LED panels for the park/turn lights, Lexan cover, housing. Hoping to get the D2S version to fit so it can use the Awesome and Almost as Awesome bulb/ballast setups. Still labor intensive enough to put the price in the $350-400 range.

LASTLY

Also brainstormed a LED replacement for the side marker. Less wart, more pimple lol. Looking to be about $100/pr if the idea pans out.

Trying to be patient waiting for update on progress, I was going to do the dual 60mm hella setup but i've got more money than time..... (IMG:style_emoticons/default/pray.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
smj
post May 25 2012, 06:23 PM
Post #17


"Dude, Steve from Berkeley."
***

Group: Members
Posts: 591
Joined: 28-August 05
From: Berkeley, CA
Member No.: 4,691
Region Association: Northern California
QUOTE(JmuRiz @ Apr 19 2012, 05:42 PM) *

I'm watching too, I'm a fan of modern tech in an old package...sometimes it pays to buy a non original car (IMG:style_emoticons/default/smile.gif)

Amen, brother! (IMG:style_emoticons/default/biggrin.gif)

I'm very interested, I think these would look great with the slant nose on my -6. Torn about incorporating the fogs, I generally like the option of running them without having to pop up the mains.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kerensky
post May 25 2012, 09:37 PM
Post #18


Senior Member
***

Group: Members
Posts: 531
Joined: 1-February 06
From: Norman, OK
Member No.: 5,508
Region Association: Southwest Region
Highly interested in this mod. (IMG:style_emoticons/default/smile.gif) (IMG:style_emoticons/default/popcorn[1].gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris914n6
post May 25 2012, 10:31 PM
Post #19


Jackstands are my life.
****

Group: Members
Posts: 3,413
Joined: 14-March 03
From: Las Vegas, NV
Member No.: 431
Region Association: Southwest Region
You know the quick times were to keep me motivated and not for you right lol. The Universe honors no plans. Took 3 weeks to get parts as I timed the order right during industry week. Can't find a local supplier for the 5/8" .095 DOM cross tube... luckily I don't need much because it's costing triple. Everything else is coming together. Have a paper template and the design is done. Just need to build one and real world test it.

I also worked out a deal to get electronics, so I can do a discounted package.

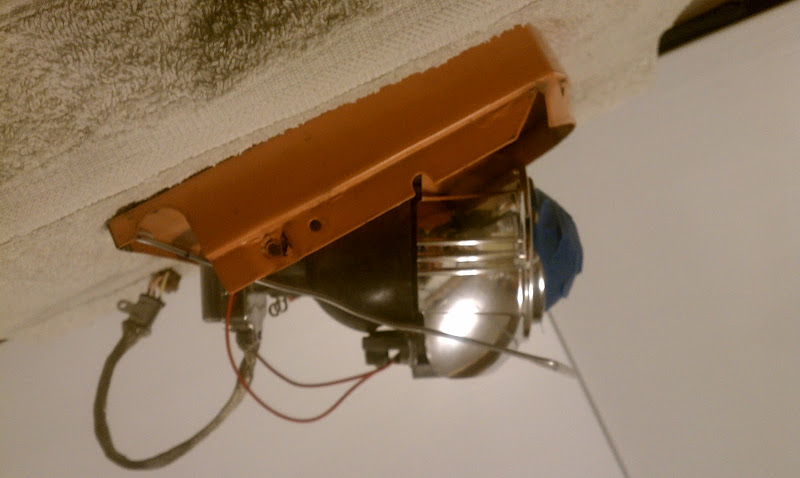

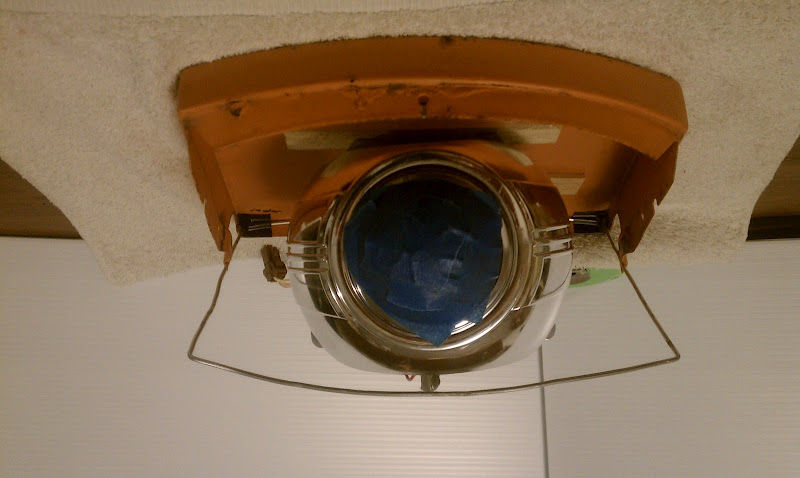

Here are some teaser pics from when the lights first got here. Chrome shroud optional. Tape over lens so I don't scratch 'em.

(IMG:http://www.914world.com/bbs2/uploads_offsite/lh5.googleusercontent.com-431-1338006683.1.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/lh5.googleusercontent.com-431-1338006684.2.jpg)

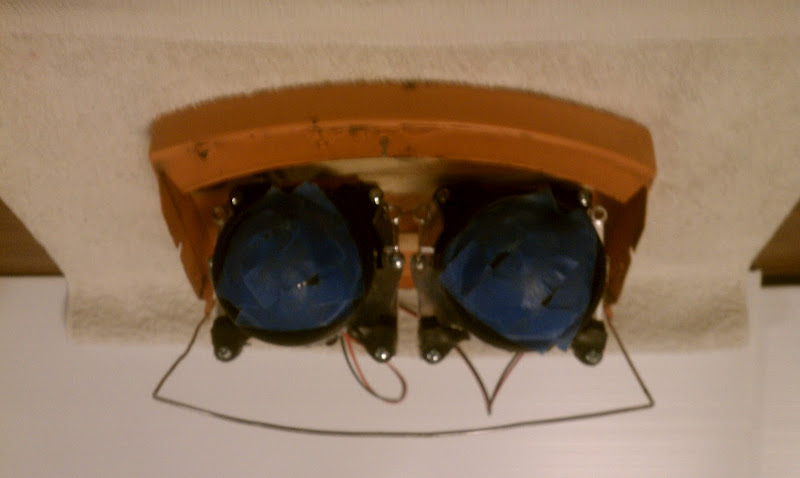

Double light/fog. Also the same lights for the turn sig setup if that gets more interest.
(IMG:http://www.914world.com/bbs2/uploads_offsite/lh3.googleusercontent.com-431-1338006684.3.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
smj
post May 31 2012, 02:06 AM
Post #20


"Dude, Steve from Berkeley."
***

Group: Members
Posts: 591
Joined: 28-August 05
From: Berkeley, CA
Member No.: 4,691
Region Association: Northern California
Thinking about this a little more, the dual headlight/foglight setup might be a good option for the earlier cars where the headlights are always raised when the running lights are turned on. (At least, that's the case with my -6...)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
