> My vintage race project, yes... my first pictures are included
brant
post Dec 27 2004, 01:35 PM
Post #141


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

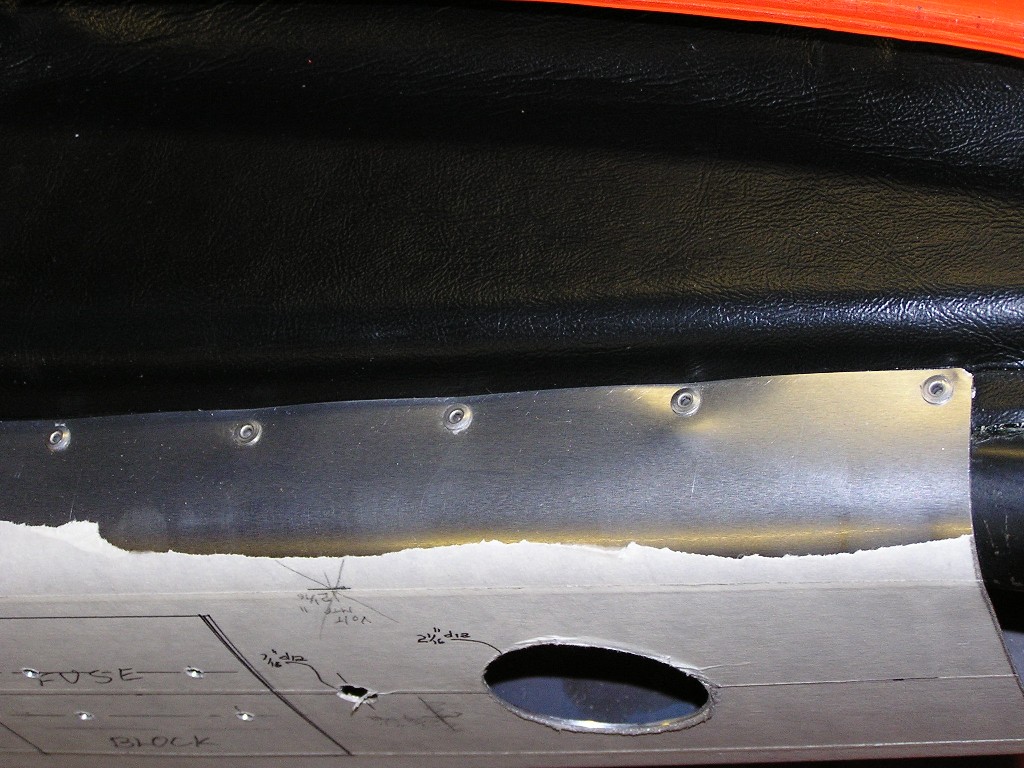

Here is a close up of the rivet line:

Installation involved riveting and then bending or rolling it down and then finally attatching the bottom:


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Dec 27 2004, 01:41 PM
Post #142


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
couple of last dash pics for now...

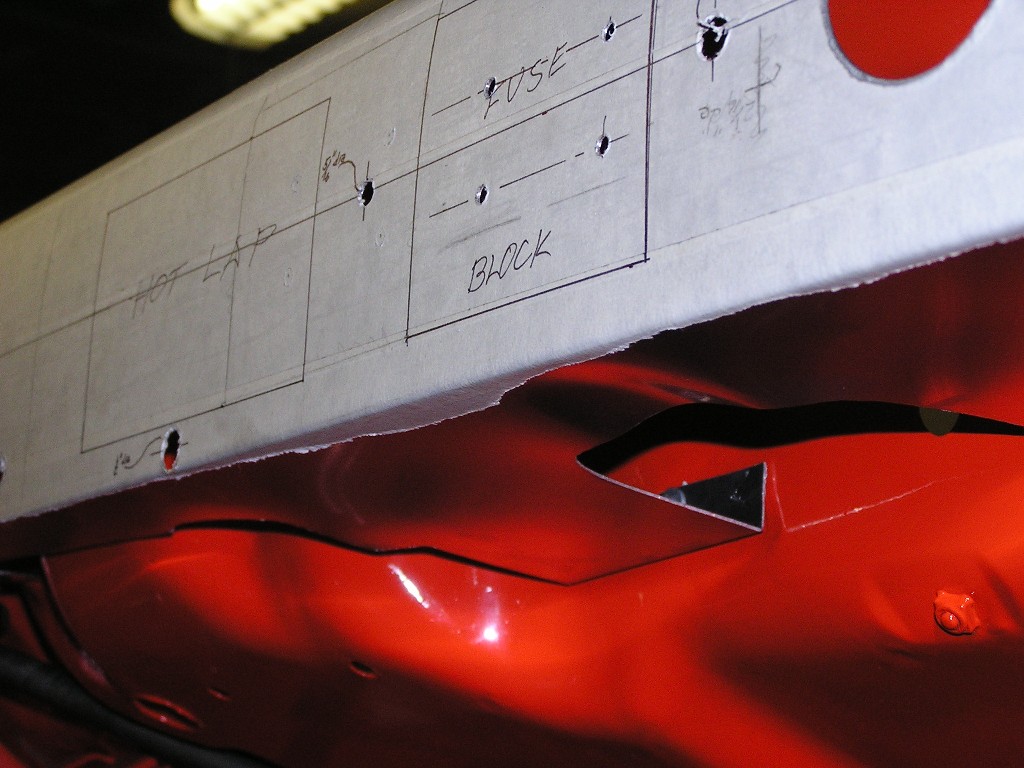

here is the underside. It was attatched to add strength and "finish" to the dash:


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Dec 27 2004, 01:43 PM
Post #143


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

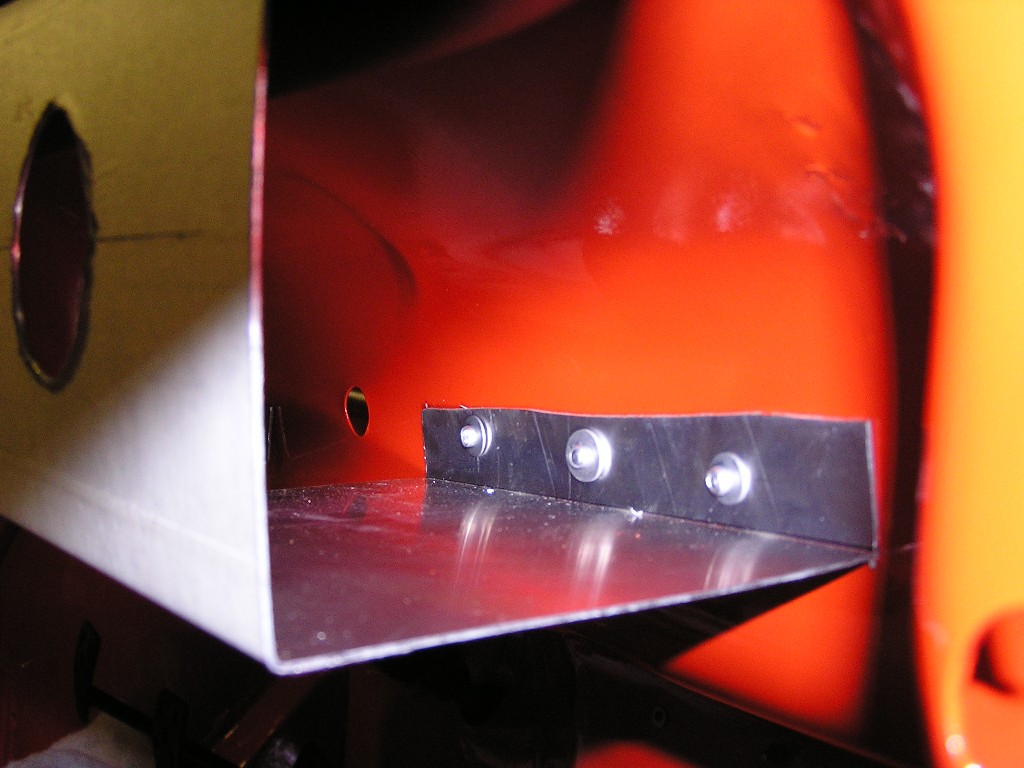

And here is inside kinda. We cut holes in the underside so that it would be possible to get your hands in there for wiring purposes....

overall, probably about 15lbs lighter than the stock frame and stock dash:


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanery
post Dec 27 2004, 06:21 PM
Post #144


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,854
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None
(IMG:http://www.914world.com/bbs2/html/emoticons/drooley.gif) this looks great brant!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Dec 27 2004, 06:25 PM
Post #145


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

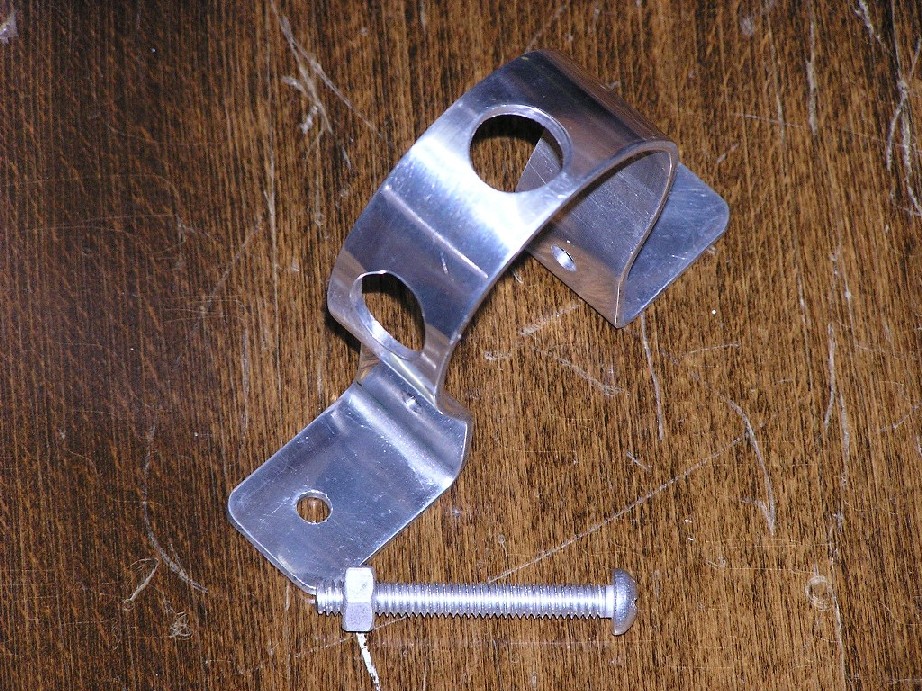

Here is another pic. Its a coil bracket that dad made up from aluminum. Also pictured is the aluminum bolt and nut that will pinch it tight...

I think we will probalby mount it on the firewall ... kinda over in the hell-hole area:


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Dec 27 2004, 06:58 PM
Post #146


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

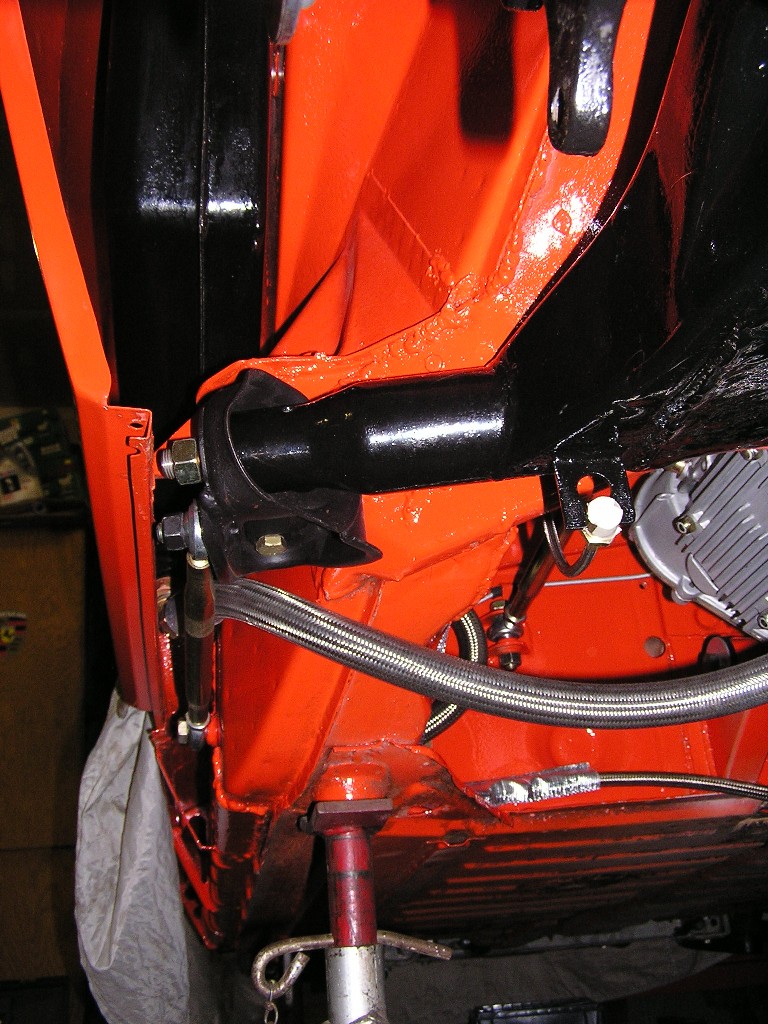

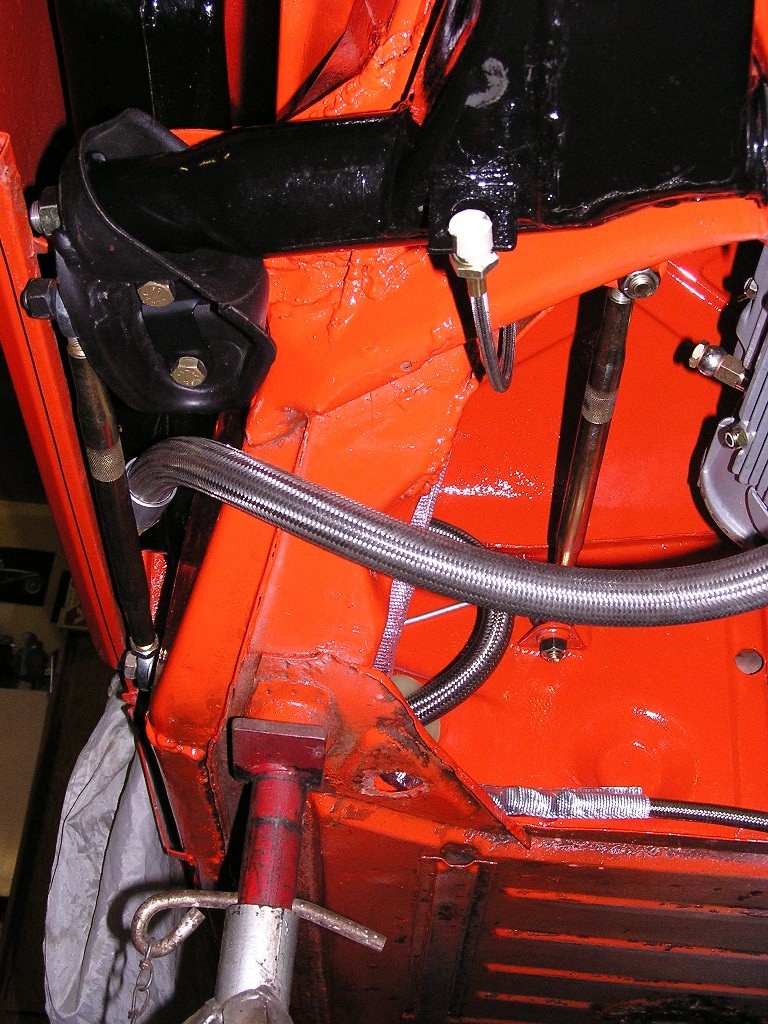

Ok we also got the rear suspension hung. I particularly like this shot as it shows the inboard and outboard braces at the same time and in the same plane of direction....

The rear busings are AJRS monoballs:


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Dec 27 2004, 07:03 PM
Post #147


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

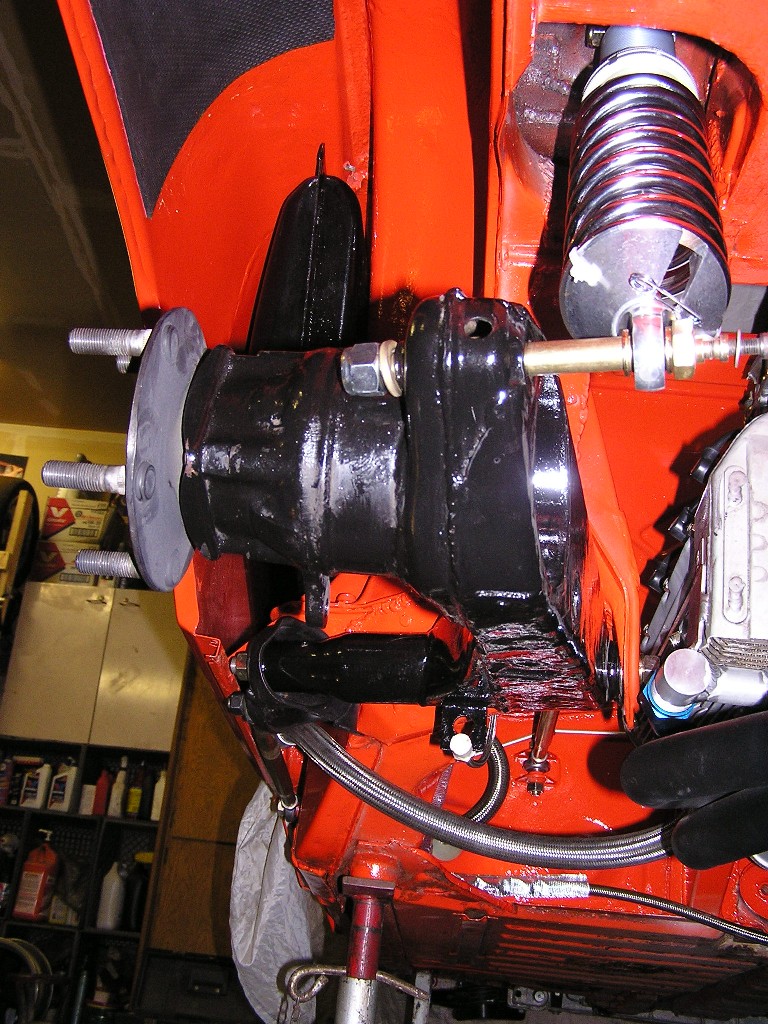

sorry for the near duplication... similar picture except the oil tank is in this one:


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Dec 27 2004, 07:04 PM
Post #148


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

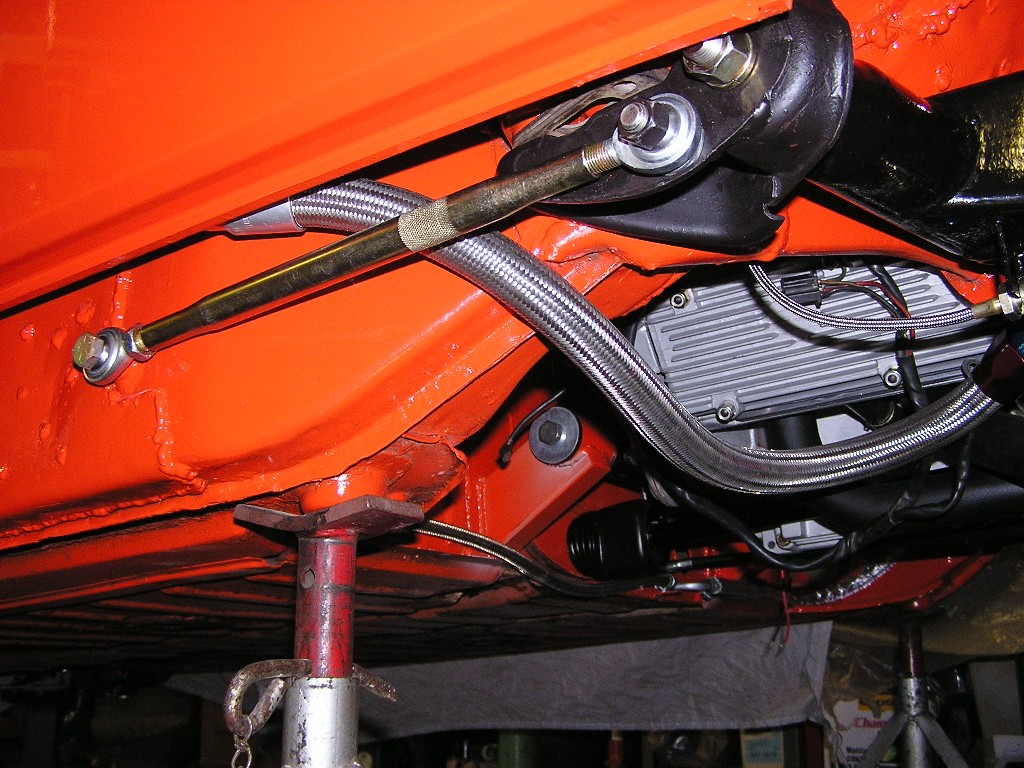

Here is a better picture regarding the toe brace. I tried to show this earlier but un-mounted. With it mounted onto the long it makes more sense.

(boy I wish that valve cover had 3 more holes with 3 more spark plugs):


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
echocanyons
post Dec 27 2004, 07:09 PM
Post #149


Advanced Member
****

Group: Benefactors
Posts: 2,096
Joined: 24-December 02
From: Bay Area, CA
Member No.: 7
Region Association: Central California
Your car is amazing it looks as though everything has been thought of and accounted for.

It is sure to be a winner on the track. (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris Julian
post Dec 27 2004, 10:57 PM
Post #150


Member
**

Group: Members
Posts: 159
Joined: 19-March 04
From: SF Bay area
Member No.: 1,821
Great job Brant, and cheers to your dad. I just got thru all 8 pages and it's amazing how quickly the car is coming together. Nice job.

Chris
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cha914
post Dec 27 2004, 11:29 PM
Post #151


MUSR 8 - 5lug conversion done wed - drive 500miles thrus
***

Group: Members
Posts: 739
Joined: 31-December 02
From: Austin, TX
Member No.: 63
Brant,

Do you have any more info/pics of the AJRS monoball rear suspension bushings you are talking about?

Your car is an inspiration, thanks for sharing,

Tony
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Dec 28 2004, 09:00 AM
Post #152


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Who was it that convinced him to get a digital camera?? (IMG:http://www.914world.com/bbs2/html/emoticons/laugh.gif)

It's a beauty Brant (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post Dec 28 2004, 09:23 AM
Post #153


Mike Ginter
***************

Group: Admin
Posts: 16,094
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
QUOTE (Eric_Shea Posted on Dec 28 2004 @ 08:00 AM)
Who was it that convinced him to get a digital camera??


I'm sure it was mostly his own decision. But I'd be surprised if I wasn't a tiny bit to blame. (IMG:http://www.914world.com/bbs2/html/emoticons/laugh.gif)

Looking great Brant! Can't wait to see it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Dec 28 2004, 11:21 AM
Post #154


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
Kelley, Chris, Tony, Eric... and Mike

Thanks again for the feed back and input.
yeah... I got a bit jealous of everones cool pictures and then Ginter got a cool 2nd camera too.

Regarding the mono-balls. I actually haven't seen the inside of them so its hard for me to tell you much about them. I know they are a solid replacement for the bushing with a metal to metal contact... Its a full insert that is placed into the swing arm tube and then welded... It uses a full different shaft, and we even had to enlargen the holes for the shaft to mount to the console.

but since I've not seen one uninstalled, and I've also not seen a mueller roller bearing uninstalled its hard for me to draw comparisons.

I know AJ has been selling and installing these on 914's for a long time. But I'm not sure if he produces or buys a mono-ball kit from a producer.

Regarding AJRS. The AJ, that I refer to is not the Allan Johnson that advertises and has the big race shop and all.... Its a little independant 914 shop that doesn't even put their phone # into the local phone book. He is in Grand Junction, Colorado and this Allen Johnsen is truly a Guru...

He has been building and modifying 914's for years. He comes up with some of the most inventive ideas and he is also a heck of a driver... His -4cyclinder GT5 PCA car out runs most of the GT4 and even GT3 cars at any event he attends...

I don't like that it sounds as if I'm bragging, but this guy is truly an unknown genius of the 914 world.

brant
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Trekkor
post Dec 28 2004, 11:31 AM
Post #155


I do things...
*****

Group: Members
Posts: 7,809
Joined: 2-December 03
From: Napa, Ca
Member No.: 1,413
Region Association: Northern California
Congrats, Brant on sticking with your project. (IMG:http://www.914world.com/bbs2/html/emoticons/clap.gif)

You serve as a motivator for the rest of us.
You're good...

KT
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Dec 28 2004, 11:38 AM
Post #156


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
Thanks KT...

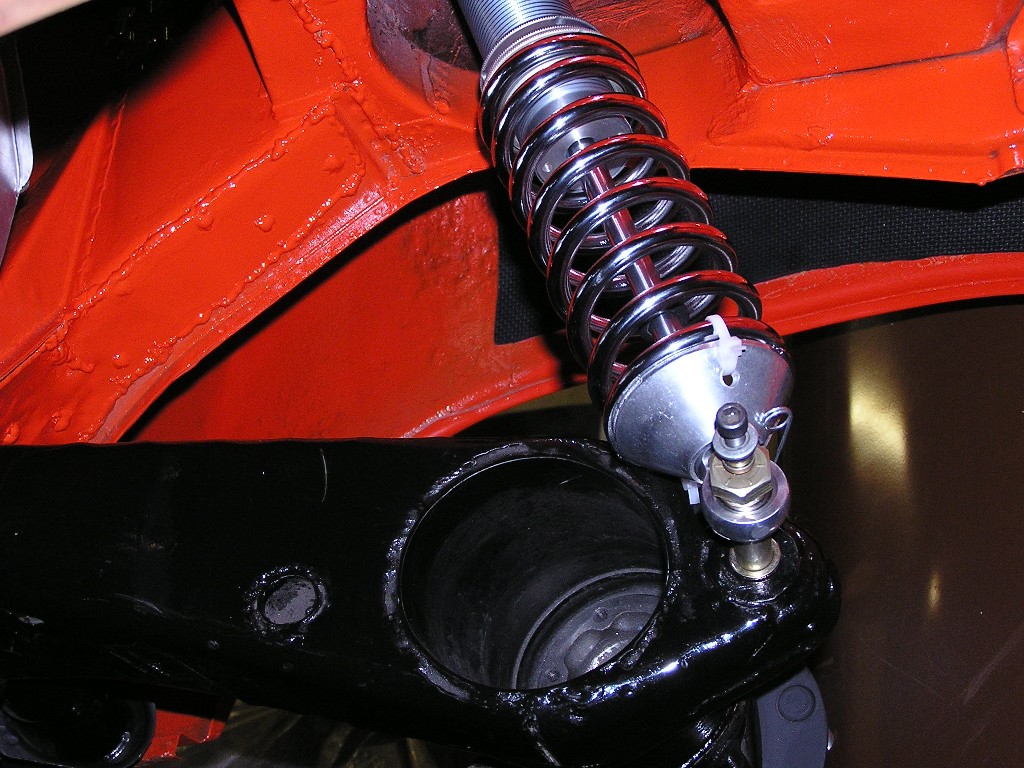

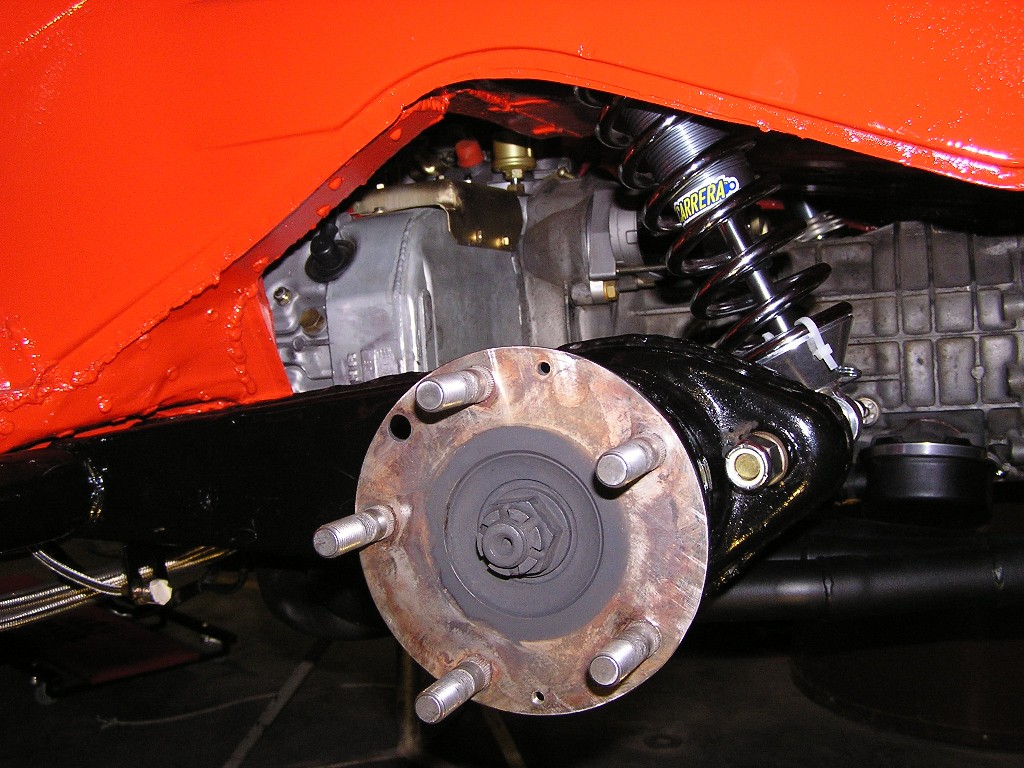

Ok, here are some shots of the rear shocks and suspension. I'm pretty happy with these. The shocks are a carrerra brand race shock. Since I'm planning on running the car very low, we made them up with a reduced travel range.. Supposedly they are valved for our weight and rough colorado tracks

They are an inverted shock, which theoretically may move a tiny bit of the weight off of the suspension:


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Dec 28 2004, 11:44 AM
Post #157


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

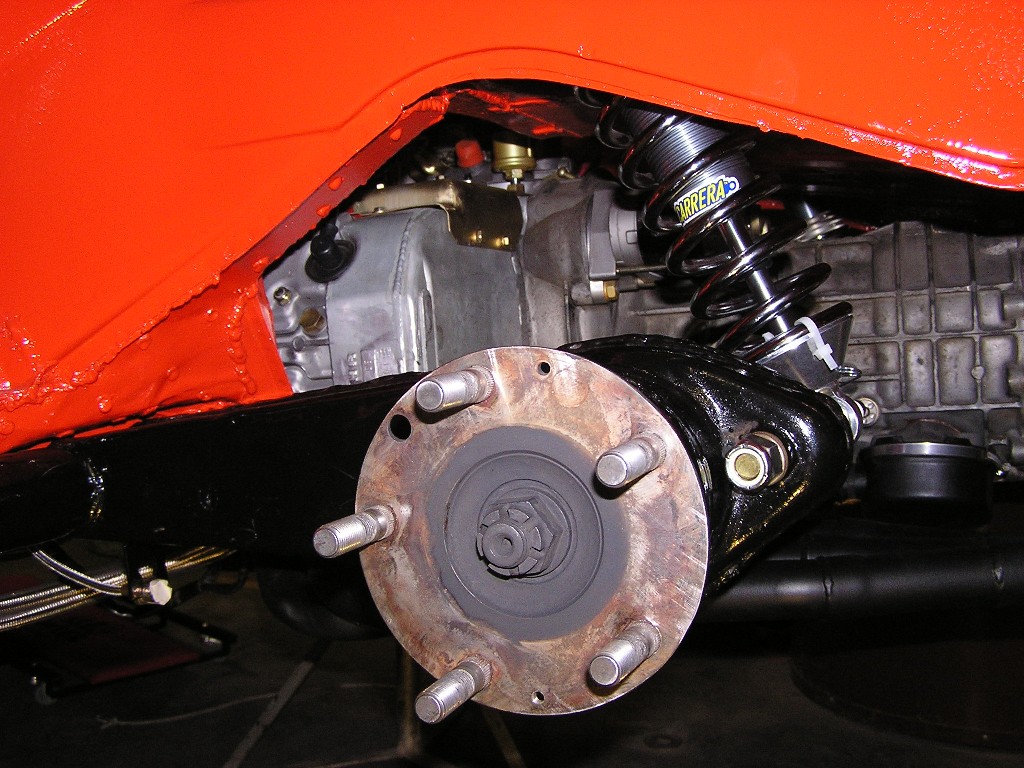

Other side:


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Dec 28 2004, 11:49 AM
Post #158


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

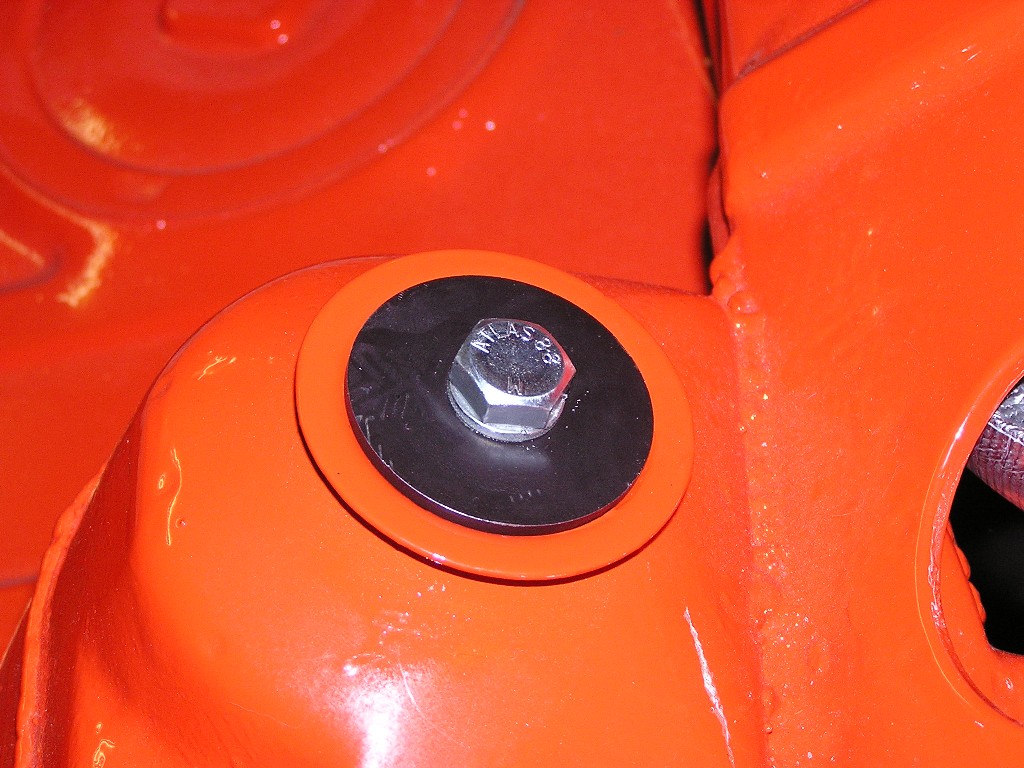

This is the top of the shock mount (inside the rear trunk):


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Dec 28 2004, 11:50 AM
Post #159


Village Idiot
*****

Group: Members
Posts: 8,484
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
(IMG:http://www.914world.com/bbs2/html/emoticons/drooley.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
brant
post Dec 28 2004, 12:14 PM
Post #160


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
The rear shock bolt is modified for the rear sway we used to run on our old car:


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
