got a bit more work done over this weekend.

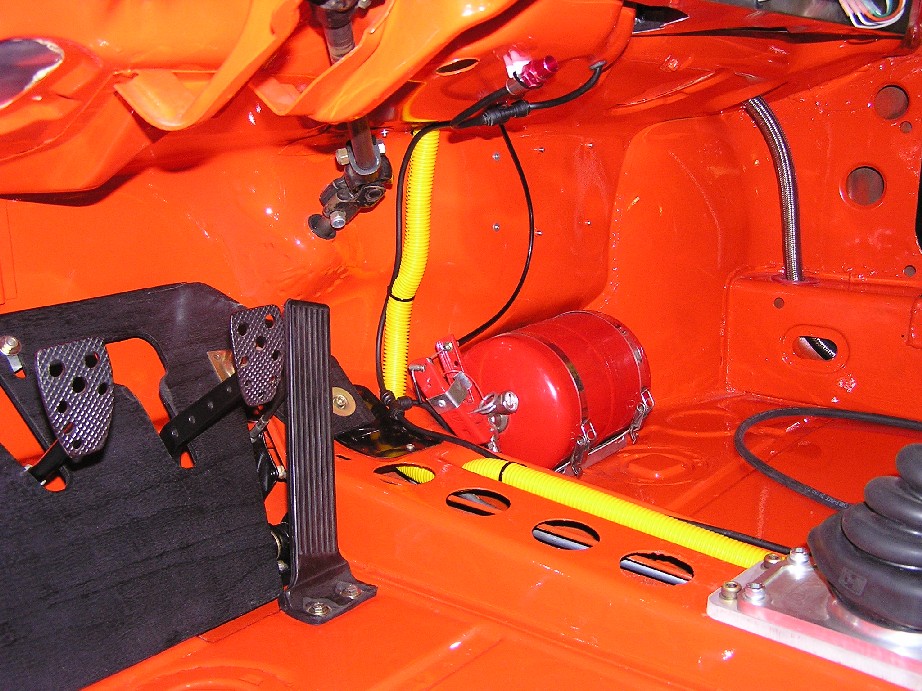

My liscensing school is in 4 days... doesn't look like I'll be driving the orange car in it. Heck last year I did the school in my ford focus, so I think I'll be repeating that. Anyways the car is coming along and starting to "feel" like the end is at least in sight. Here is the fire supression system plumbed and mounted. Front nozzle over pumps and cell: Attached thumbnail(s)
|
   |

|
| brant |
Mar 15 2005, 03:41 PM
Post
#222
|
|
914 Wizard Group: Members Posts: 11,793 Joined: 30-December 02 From: Colorado Member No.: 47 Region Association: Rocky Mountains
|

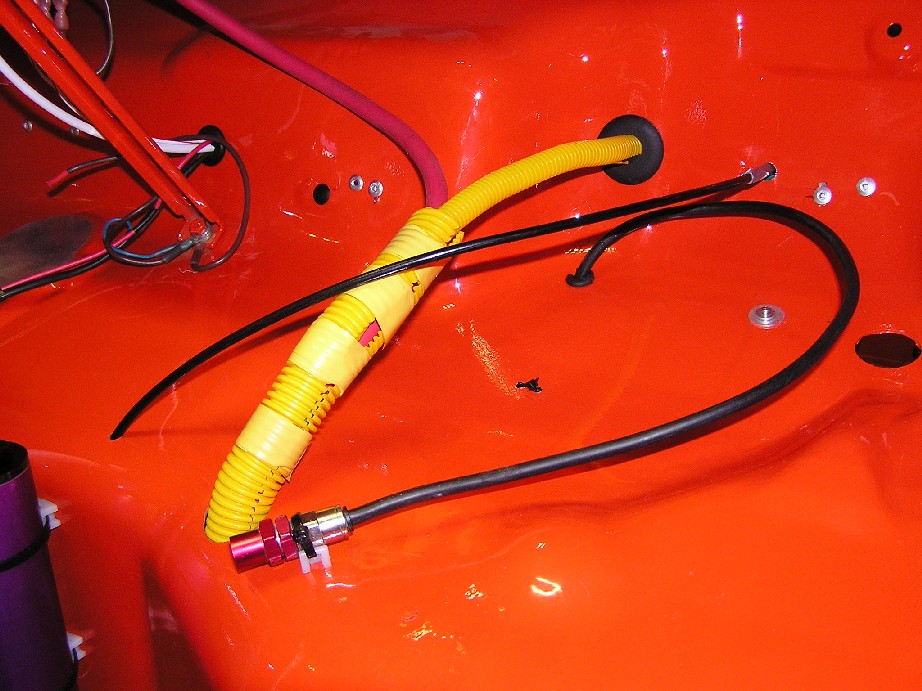

Dad made up a full wiring harness to save weight over stock. All of the wiring is from aircraft supply and is of slightly lighter weight than average. The battery cable is in that last shot (red), and fits inside the yellow sheath with the rest of the loom. Here is one angle of the bottle. I had intended to put the battery next to the bottle originally, but will now be moving the battery to keep a little bit of passenger foot room for when I'm instructing in my own car:
Attached thumbnail(s)
|
|
|
|
| brant |
Mar 15 2005, 03:43 PM
Post
#223
|
|
914 Wizard Group: Members Posts: 11,793 Joined: 30-December 02 From: Colorado Member No.: 47 Region Association: Rocky Mountains
|

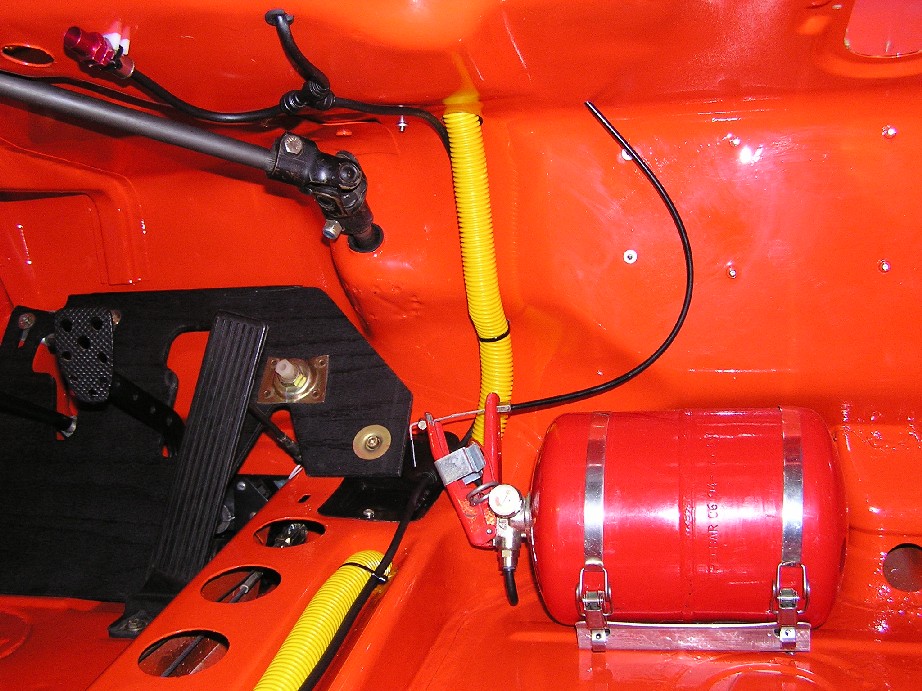

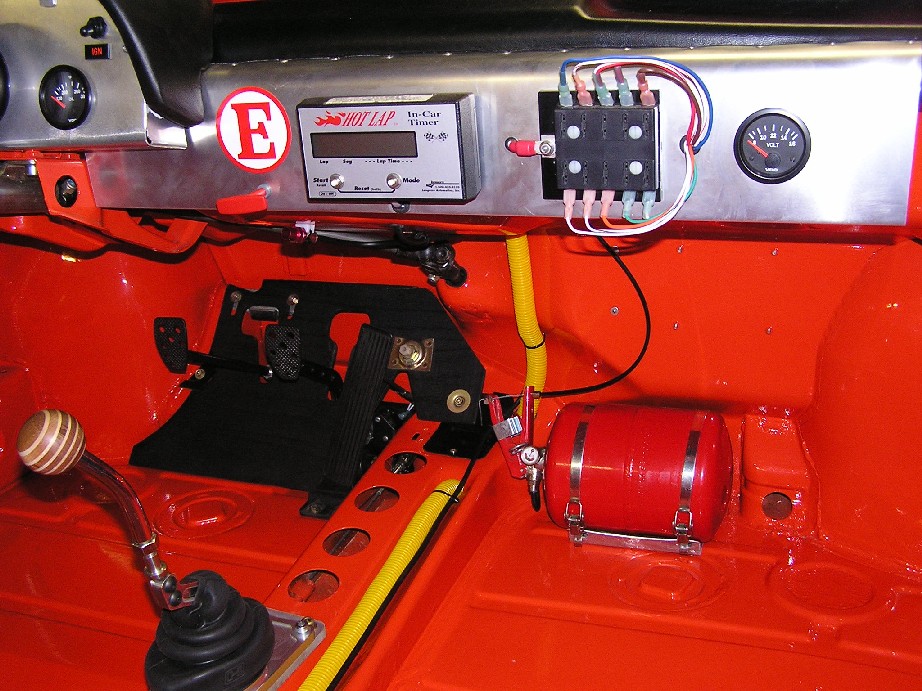

same bottle other view (shows pull cable, and cockpit fire nozzle):
Attached thumbnail(s)
|
|
|
|
| brant |
Mar 15 2005, 03:45 PM
Post
#224
|
|
914 Wizard Group: Members Posts: 11,793 Joined: 30-December 02 From: Colorado Member No.: 47 Region Association: Rocky Mountains
|

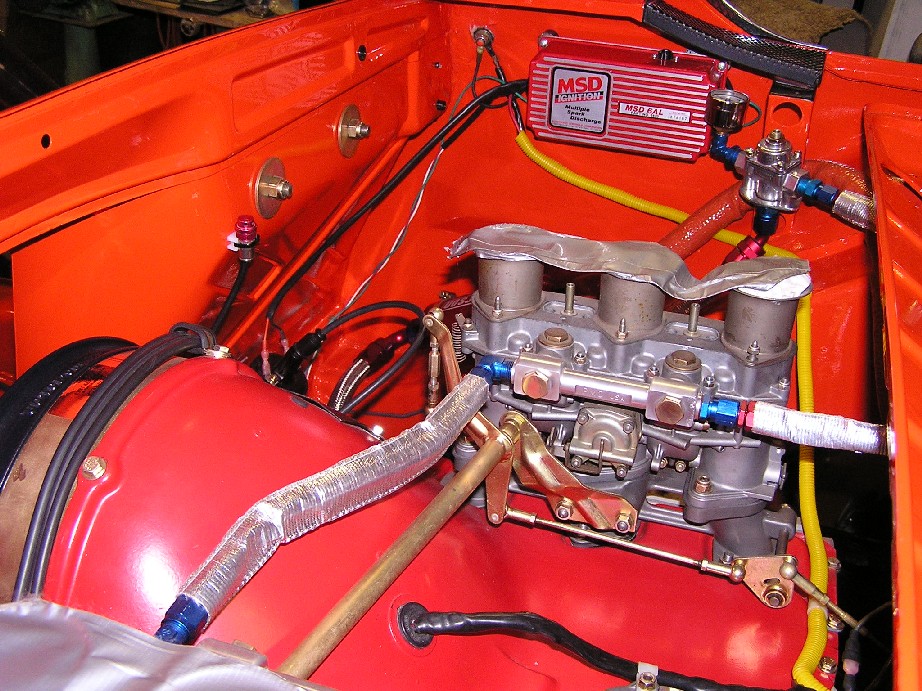

Engine nozzle:
Attached thumbnail(s)
|
|
|
|
| brant |
Mar 15 2005, 03:50 PM
Post
#225
|
|
914 Wizard Group: Members Posts: 11,793 Joined: 30-December 02 From: Colorado Member No.: 47 Region Association: Rocky Mountains
|

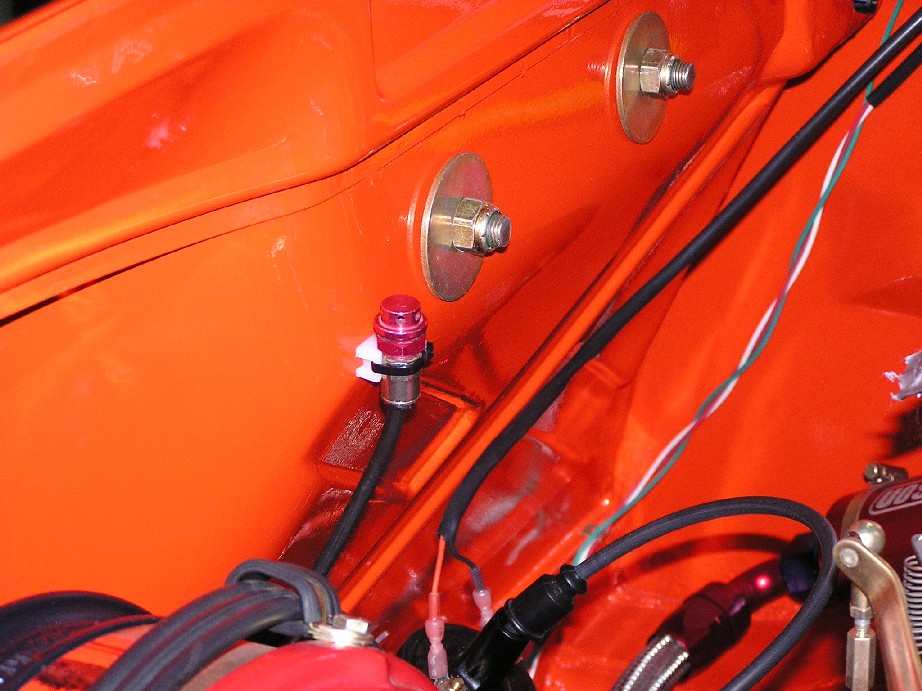

More wire loom:
Attached thumbnail(s)
|
|
|
|
| brant |
Mar 15 2005, 03:51 PM
Post
#226
|
|
914 Wizard Group: Members Posts: 11,793 Joined: 30-December 02 From: Colorado Member No.: 47 Region Association: Rocky Mountains
|

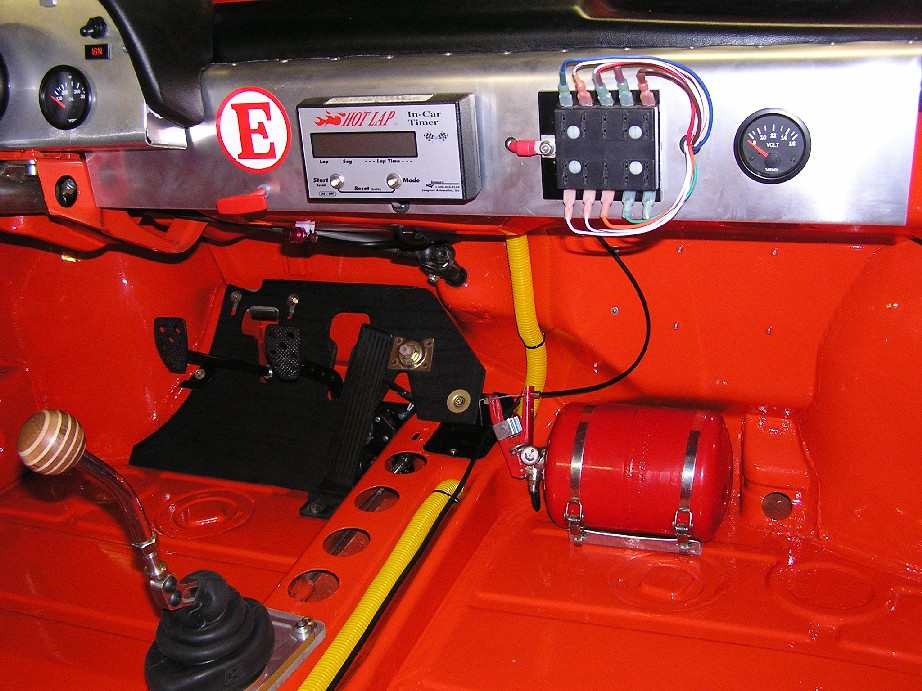

Ferg, I kinda snuck this picture in on ya:
Attached thumbnail(s)
|
|
|
|
| brant |
Mar 15 2005, 04:23 PM
Post
#227
|
|
914 Wizard Group: Members Posts: 11,793 Joined: 30-December 02 From: Colorado Member No.: 47 Region Association: Rocky Mountains
|

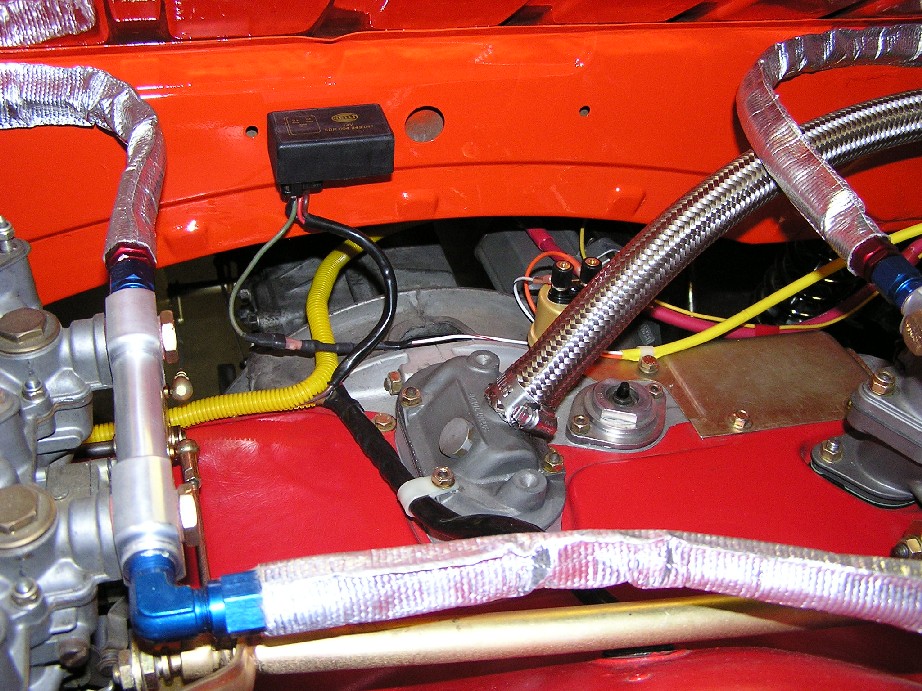

More wiring loom. The engine bay is starting to look very full:
Attached thumbnail(s)
|
|
|
|
| Gint |
Mar 15 2005, 04:24 PM
Post
#228
|
|
Mike Ginter Group: Admin Posts: 16,094 Joined: 26-December 02 From: Denver CO. Member No.: 20 Region Association: Rocky Mountains  |
Simply awesome Brant. Please tell Bob I said so, and "Hi!" for me.
How about some pics of the new Focus?!?! |
|
|
|
| brant |
Mar 15 2005, 04:26 PM
Post
#229
|
|
914 Wizard Group: Members Posts: 11,793 Joined: 30-December 02 From: Colorado Member No.: 47 Region Association: Rocky Mountains
|
Back of engine bay. Alternator and starter are wired in. We had to figure out a replacement diode to excite the charging circuit and then a seperate relay to trigger our large alternator/cooling fan warning light.
Here is the new vent hose and also where we installed the regulator: Attached thumbnail(s)
|
|
|
|
| brant |
Mar 15 2005, 04:28 PM
Post
#230
|
||
|
914 Wizard Group: Members Posts: 11,793 Joined: 30-December 02 From: Colorado Member No.: 47 Region Association: Rocky Mountains
|
I'll tell Bob, but he reads along here regularly. I've been trying to get him to register you mean the big tomato? I'll wash it up and take one. twas the only color brighter than the yellow car ha... |
||
|
|
|
||
| brant |
Mar 15 2005, 04:29 PM
Post
#231
|
|
914 Wizard Group: Members Posts: 11,793 Joined: 30-December 02 From: Colorado Member No.: 47 Region Association: Rocky Mountains
|

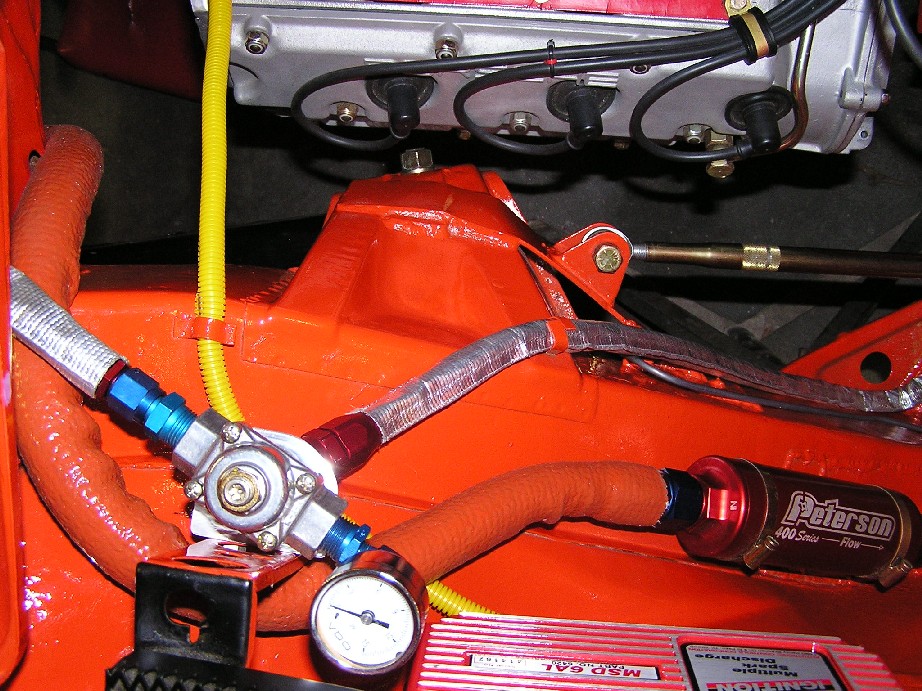

Heat shield on the oil line where is runs by the fuel line (trying to keep that fuel cool)
Attached thumbnail(s)
|
|
|
|
| brant |
Mar 15 2005, 04:33 PM
Post
#232
|
|
914 Wizard Group: Members Posts: 11,793 Joined: 30-December 02 From: Colorado Member No.: 47 Region Association: Rocky Mountains
|
Tiny bit more wiring.
Brake lights will be the only exterior lights on the car. We are running them off of a very short ground and only a single power wire: (less wires = less weight) Attached thumbnail(s)
|
|
|
|
| brant |
Mar 15 2005, 05:06 PM
Post
#233
|
|
914 Wizard Group: Members Posts: 11,793 Joined: 30-December 02 From: Colorado Member No.: 47 Region Association: Rocky Mountains
|

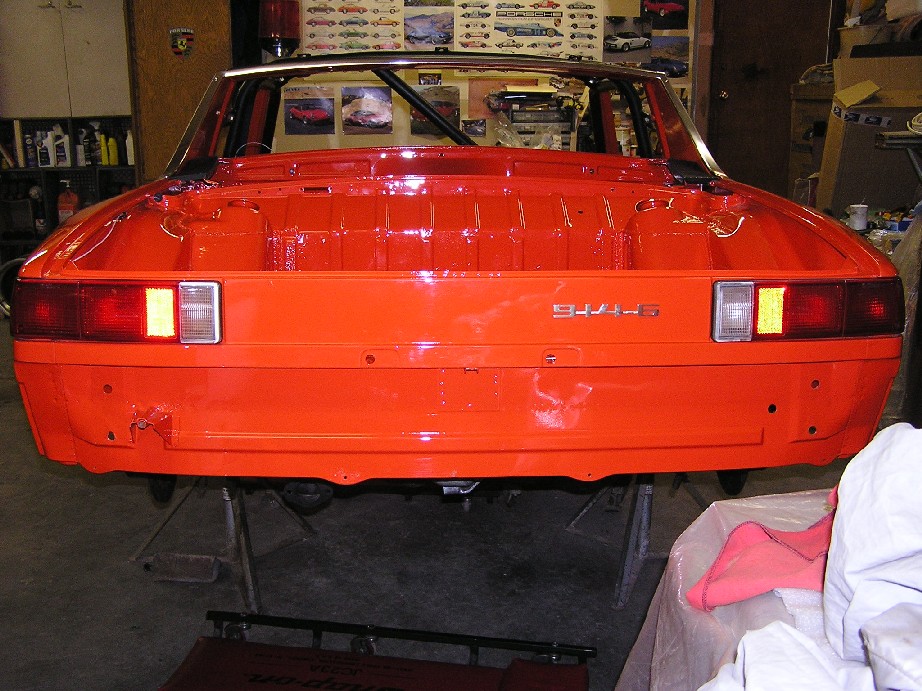

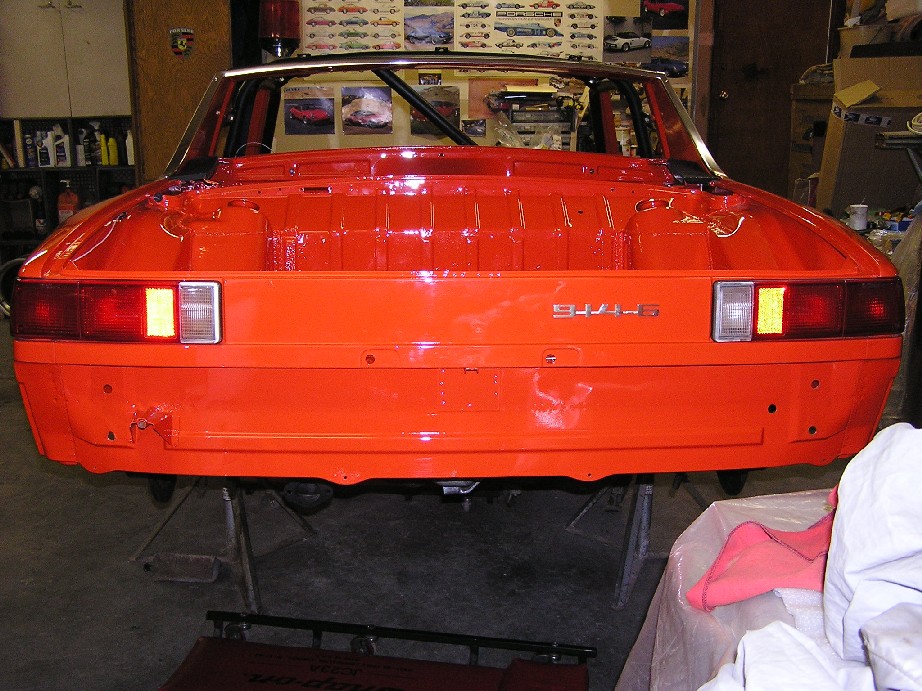

tail lights installed:
Attached thumbnail(s)
|
|
|
|
| john rogers |
Mar 15 2005, 05:42 PM
Post
#234
|
|
Senior Member Group: Members Posts: 1,525 Joined: 4-March 03 From: Chula Vista CA Member No.: 391 |
I am curious as to what type of plug wires you are using on the engine, solid or spiral?
|
|
|
|
| seanery |
Mar 15 2005, 05:48 PM
Post
#235
|
|
waiting to rebuild whitey! Group: Retired Admin Posts: 15,854 Joined: 7-January 03 From: Indy Member No.: 100 Region Association: None |

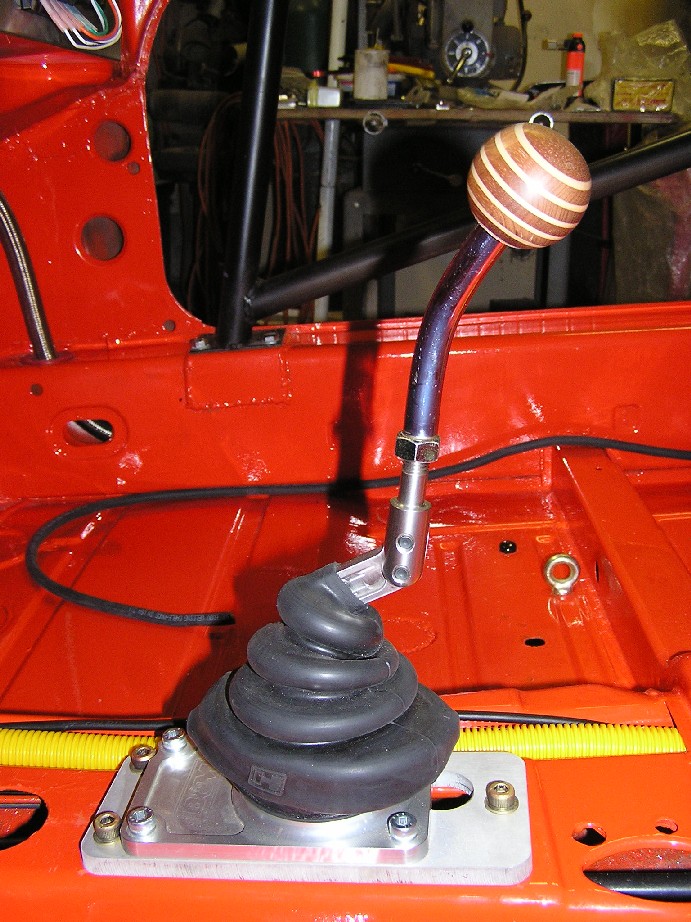

Did I miss the info about the B&M shifter?
|
|
|
|
| Ferg |
Mar 15 2005, 05:58 PM
Post
#236
|
|
914 Guru Group: Members Posts: 5,948 Joined: 8-January 03 From: Boulder CO Member No.: 116 Region Association: None
|
Nice, I didn't weigh the shift knob to see if it is lighter than stock, but i'm sure you did! (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
Ferg (IMG:http://www.914world.com/bbs2/html/emoticons/w00t.gif) |
|
|
|
| Ferg |
Mar 15 2005, 05:59 PM
Post
#237
|
||
|
914 Guru Group: Members Posts: 5,948 Joined: 8-January 03 From: Boulder CO Member No.: 116 Region Association: None
|
pretty sure that info is classified (IMG:http://www.914world.com/bbs2/html/emoticons/cool_shades.gif) |
||
|
|
|
||
| brant |
Mar 16 2005, 09:53 AM
Post
#238
|
|
914 Wizard Group: Members Posts: 11,793 Joined: 30-December 02 From: Colorado Member No.: 47 Region Association: Rocky Mountains
|
John,
I'm not sure and will have to check. I've got to shorten my coil wire so will figure it out soon. They were on the motor when I bought it and look to be brand new. Motor was built by Henry Schmidt at Supertec and I assumed he put on what he generally uses. Sean, Shifter hmmm... how to say this. Well, I don't want to take away any credit from James' shifter. This is built off of a modified B&M that AJRS mods and sells. I haven't driven it yet so I honestly can't say how it works. I spoke with James about it and the rennshifter may have some things going for it that this one does not... plus the rennshifter is more affordable too. But this one is highly recommended by AJ and thats why I went with his. I place a ton of weight into his advice. Mike Ferguson: little bit lighter! |
|
|
|
| john rogers |
Mar 16 2005, 10:02 AM
Post
#239
|
|
Senior Member Group: Members Posts: 1,525 Joined: 4-March 03 From: Chula Vista CA Member No.: 391 |
Nice looking job. If the wires are solid core you'll have to change to the spiral type because of the MSD box I think, unless they have changed their requirements? Might want to check before you fire it up the first time.
|
|
|
|
| brant |
Mar 16 2005, 10:06 AM
Post
#240
|
||
|
914 Wizard Group: Members Posts: 11,793 Joined: 30-December 02 From: Colorado Member No.: 47 Region Association: Rocky Mountains
|
John, Thanks for the advice. I'll look into it. I love all the help, and thanks a ton to you and everyone! |
||
|
|
|
||
|
