> My vintage race project, yes... my first pictures are included
Gint
post Mar 23 2011, 10:04 PM
Post #521


Mike Ginter
***************

Group: Admin
Posts: 16,094
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
QUOTE(brant @ Mar 23 2011, 06:05 PM) *
QUOTE(Gint @ Mar 23 2011, 06:59 PM) *
I guess I know what you're doing every weekend this summer!
I hope a few weekends anyways
I really missed it last summer when the motor blew in July.
Hey, you want to travel or at least come out for a local event this year
(you can visit the lovely and exotic locations of oklahoma, texas, kansas, and nebraska if you want)

I promise not to force you to mix buckets of concrete... not even one!

(IMG:style_emoticons/default/lol-2.gif) What do you do for fun then? All the plains hotspots. That's pretty tempting.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Mar 24 2011, 11:42 AM
Post #522


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
Danny,
definitely going to be at hpr
rmvr season opener is may 14th
come out and have lunch if you can make it... I've always got extra food and water around.
(I'm trying to get some travel in this summer and love ECR(texas) as well as Hallet(OK)... although nebraska is not as fun of a track as hpr, I love the event and the tom-foolery of the party, so hope to go to Nebraska too. Even trying to get accepted into the Corando Festival of Speed down in San Diego for the fall.

Mike,
seriously, if you ever want to take a 3-4 day weekend and travel with dad and I to an "exotic" locale your always welcome to come ride along

brant
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Oct 1 2011, 01:53 PM
Post #523


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

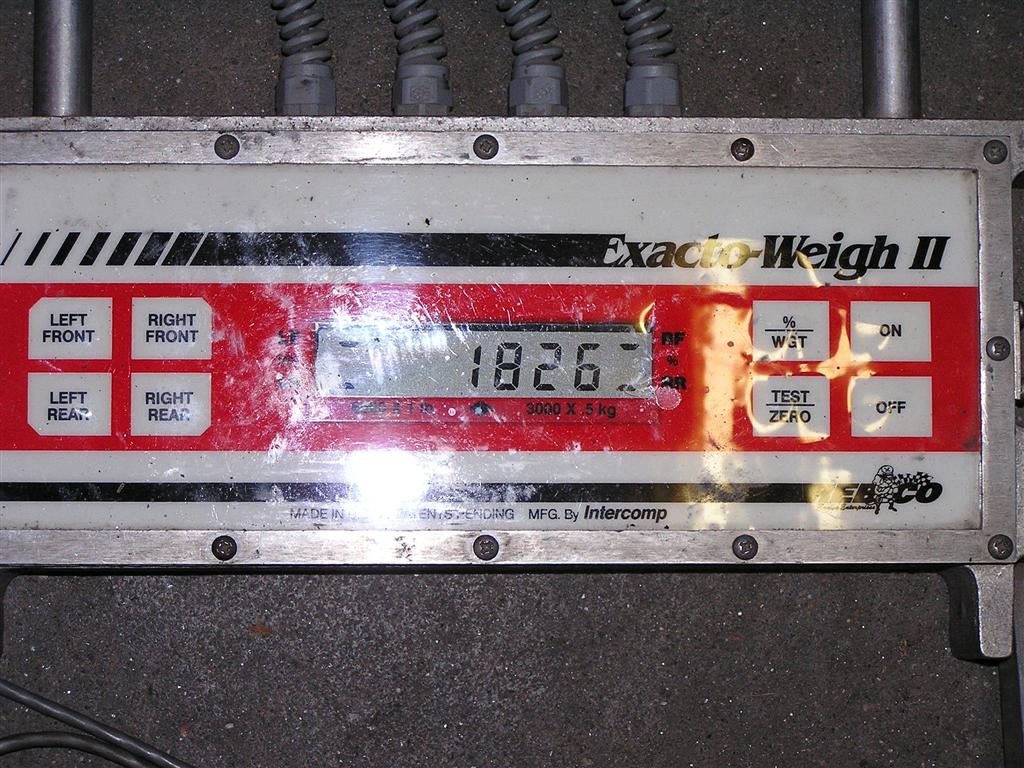

We re-scaled and recorner balanced after switching over to the magnesium case motor. We hoped to loose a few pounds by switching out of the aluminum case. It paid off, here is our new wet weight with 19quarts of oil and 4.5 gallons of gas on board.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KaptKaos
post Oct 1 2011, 02:36 PM
Post #524


Family
****

Group: Members
Posts: 4,009
Joined: 23-April 03
From: Near Wausau
Member No.: 607
Region Association: Upper MidWest
I love that merged exhaust. Like the old 356 Sebring style ones.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bryans914
post May 18 2012, 11:43 PM
Post #525


Newbie
*

Group: Members
Posts: 12
Joined: 18-May 12
From: Laguna Niguel, CA
Member No.: 14,449
Region Association: Southern California
Great story and pics! Would be a good book. Where, when will you run the car?
George, SoCal, also on a long term project.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post May 22 2012, 01:15 PM
Post #526


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
Hi George,

I've been running it mostly in colorado for about 6 years
I've done events in Oklahoma, texas, nebraska also
I was able to participate in fleetweek last fall at coronado island, in san diego also.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stuttgart46
post May 23 2012, 06:58 AM
Post #527


Member
**

Group: Members
Posts: 305
Joined: 17-December 07
From: Santa Monica, CA
Member No.: 8,474
Region Association: None
Let me know when you run TWS next time. I'd love to help out. And I work for cheap. (like a sandwich and beer cheap) LOL
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanery
post May 23 2012, 07:04 AM
Post #528


waiting to rebuild whitey!
***************

Group: Retired Admin
Posts: 15,854
Joined: 7-January 03
From: Indy
Member No.: 100
Region Association: None
One of my all time favorite threads!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
0396
post May 23 2012, 07:26 AM
Post #529


Advanced Member
****

Group: Members
Posts: 2,046
Joined: 13-October 03
From: L.A. Calif
Member No.: 1,245
Region Association: Southern California
Very cool! Your -6 has always been one of my favorite.
Congrats on all your new mods.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Sep 19 2012, 06:43 PM
Post #530


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
25 hours on my last tranny rebuild wasn't acceptable
I have been running the car with 2 drivers on the track and I think this is a big factor in my situation at altitude......

I don't believe I need to update the 901 yet as I am not ripping things apart like the big HP guys do with 901's

all signs point to heat
so I decided to add cooling
I just couldn 't find a location that had the air flow I wanted
I'm running a center exhaust now and that eliminated some cooler location options

I hate adding the weight, but hopefully it improves reliability
the weight is in the worse place too, so we kept everything as light as possible and as far forward on the chassis as we could.....
the pump is heavy, but the ducting up high weighs nearly nothing. The cooler is light too.

I considered heat shields next to exhaust and header locations and also didn't like things that close to exhaust heat.....

we really wanted the pump to self prime as overall that is a good thing, and we can avoid using a one way valve (one less thing to fail) So a low mounted pump became a priority for us. and also factored into the plumbing.

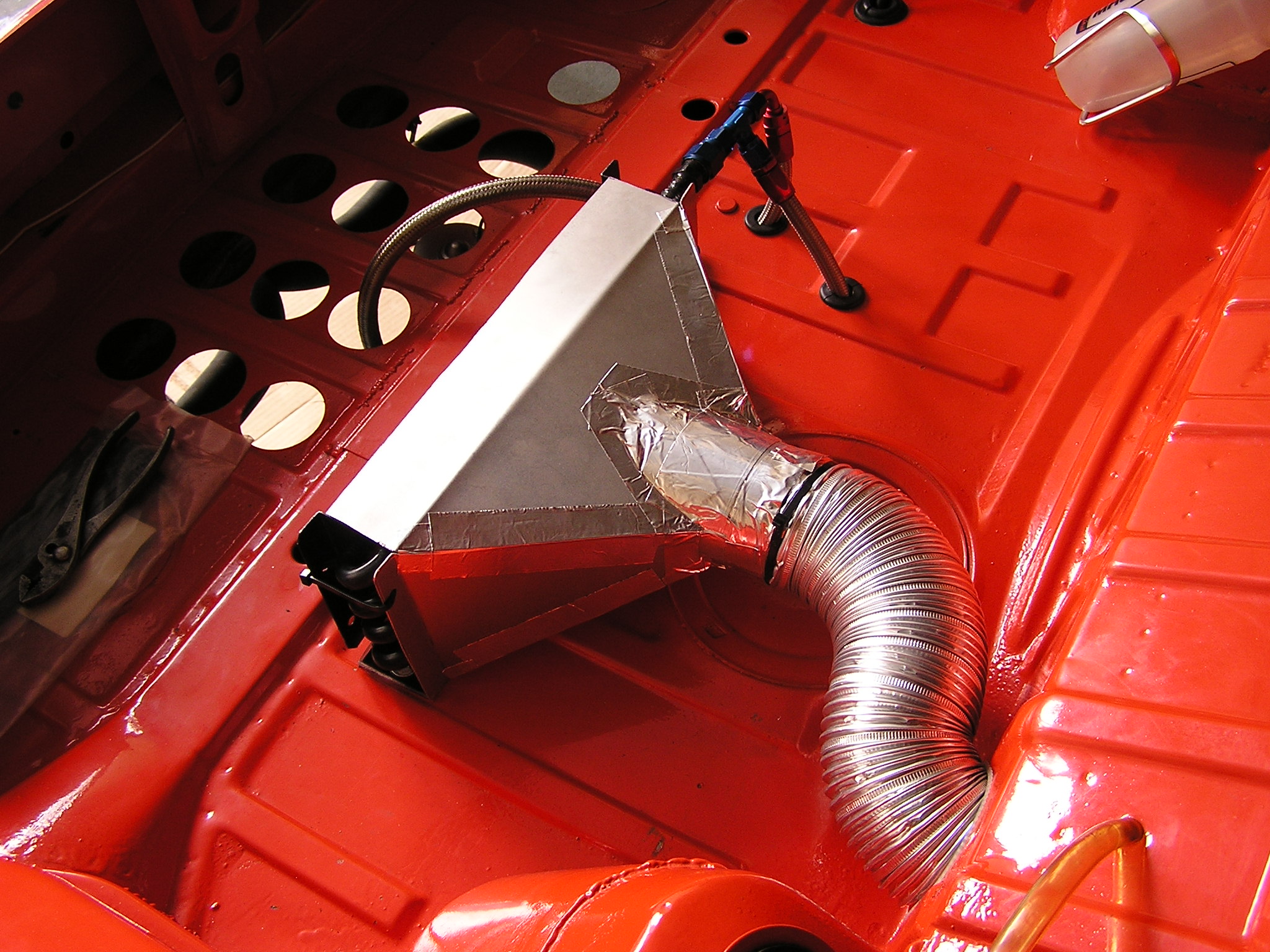

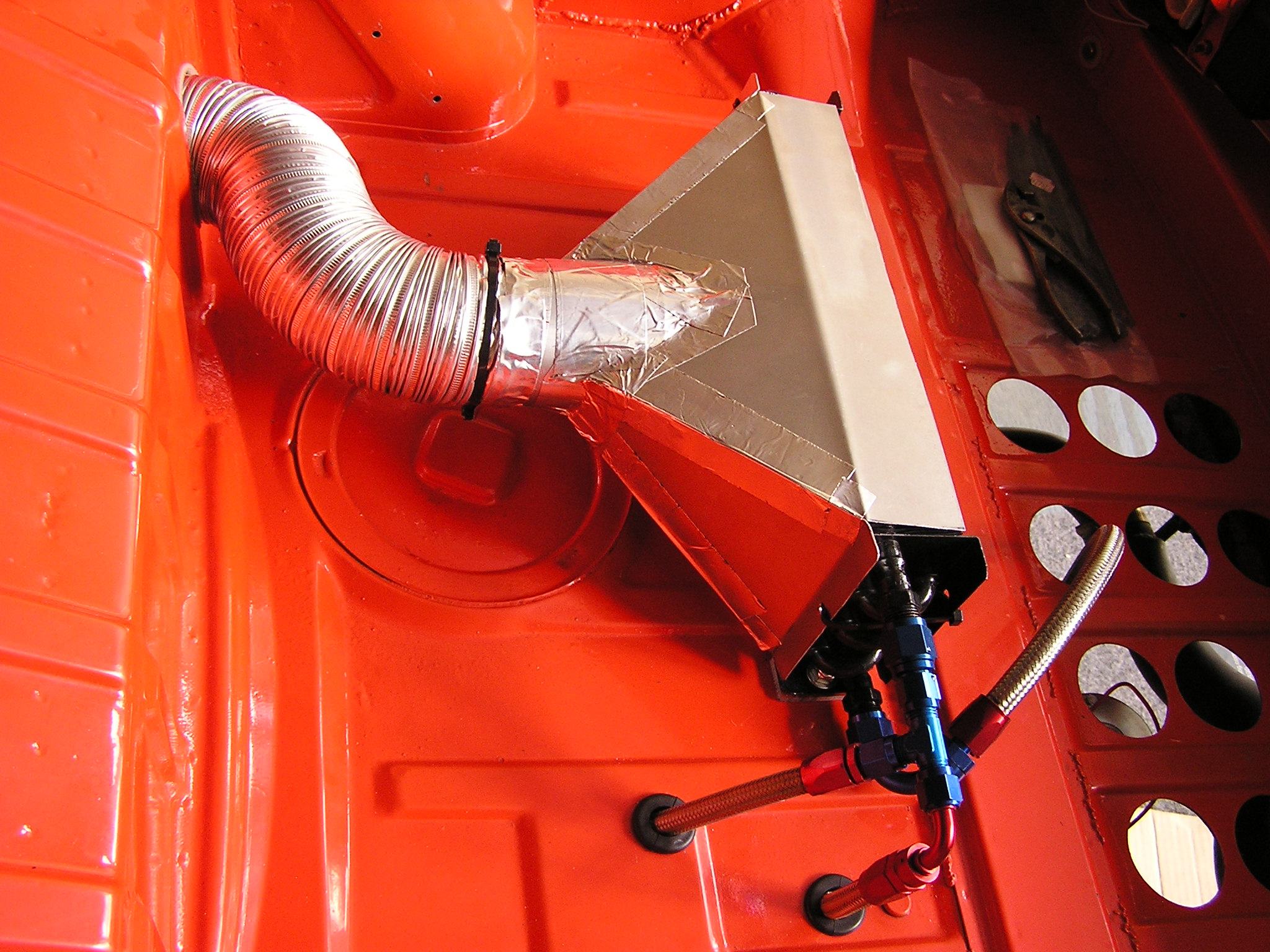

after much thought... I decided to go inside the trunk with duct work
the trunk offers me its own built in heat shielding
the down sides is that it requires the duct work.

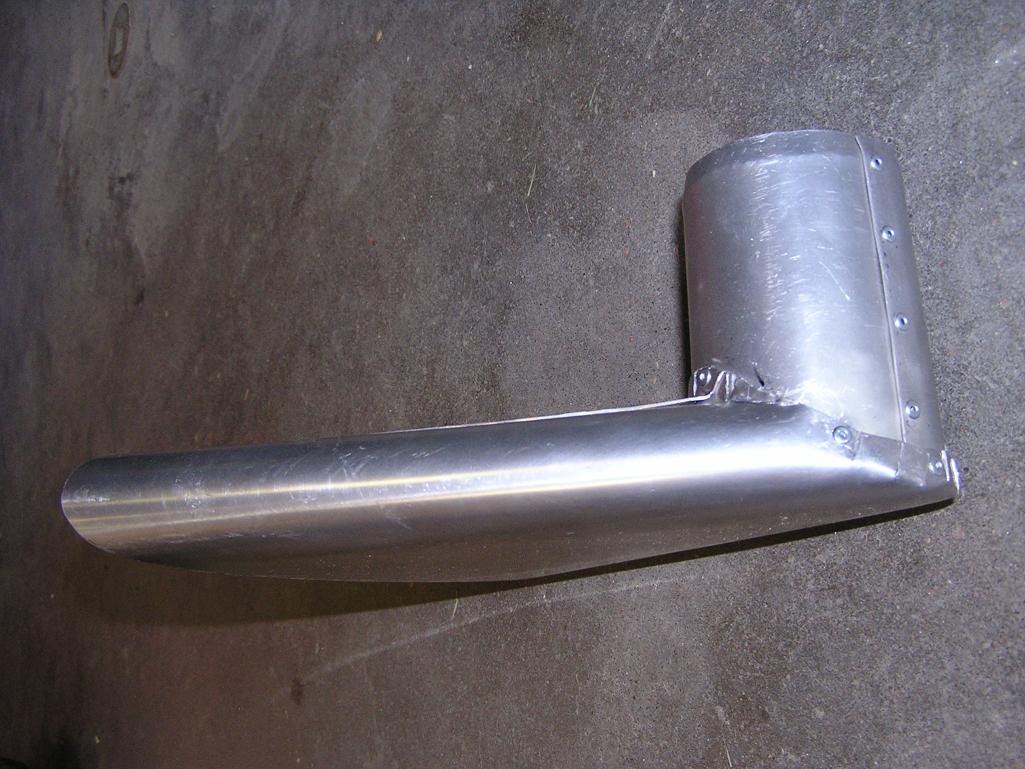

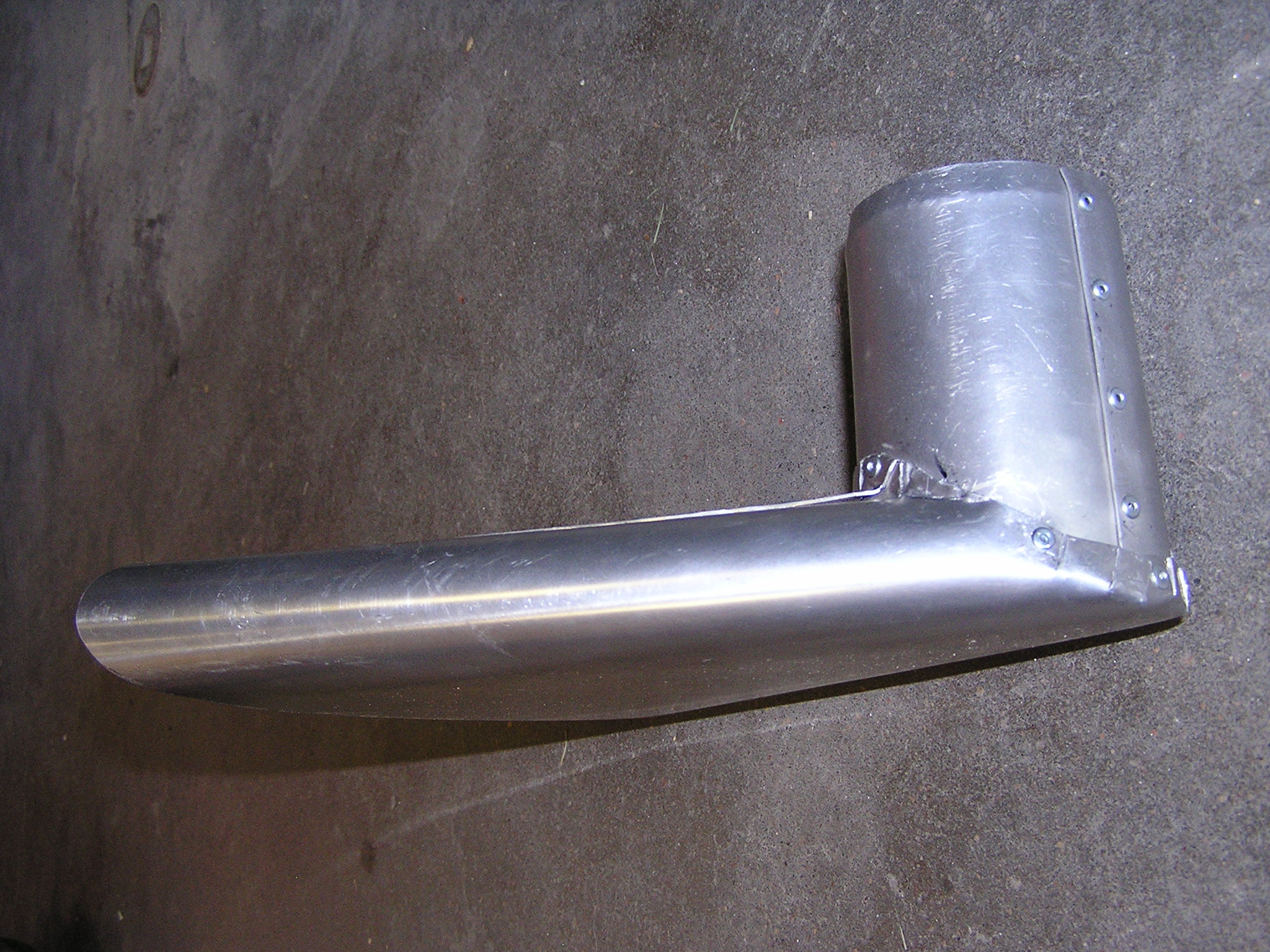

dad and I hand built some aluminum ducts.. a scoop and a "hood" to disperse the air. the scoop really came out nice and it was all my father's work. too bad we don't have tig yet, but it still looks great with only rivets....

I added a gauge and sensor in the speedo drive location
we used a stock speedo aluminum piece by cutting off the top and bottom, gutting the seal, and tapping the center... it really came out nice and is in a good oil flow
I intend to pull the gauge after we verify the ducting (or possibly modify things if necessary) so the gauge is temp mounted in the cockpit and is extra weight that will go after 3-4 events prove it out.

anyway here are some pictures:


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Sep 19 2012, 06:45 PM
Post #531


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

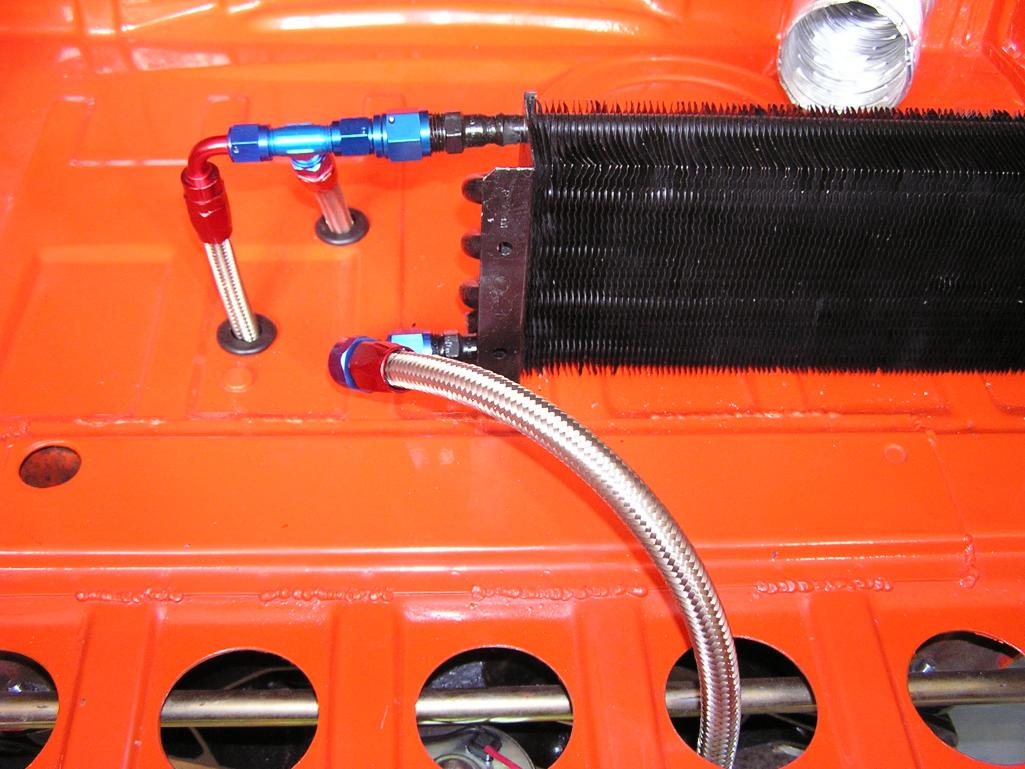

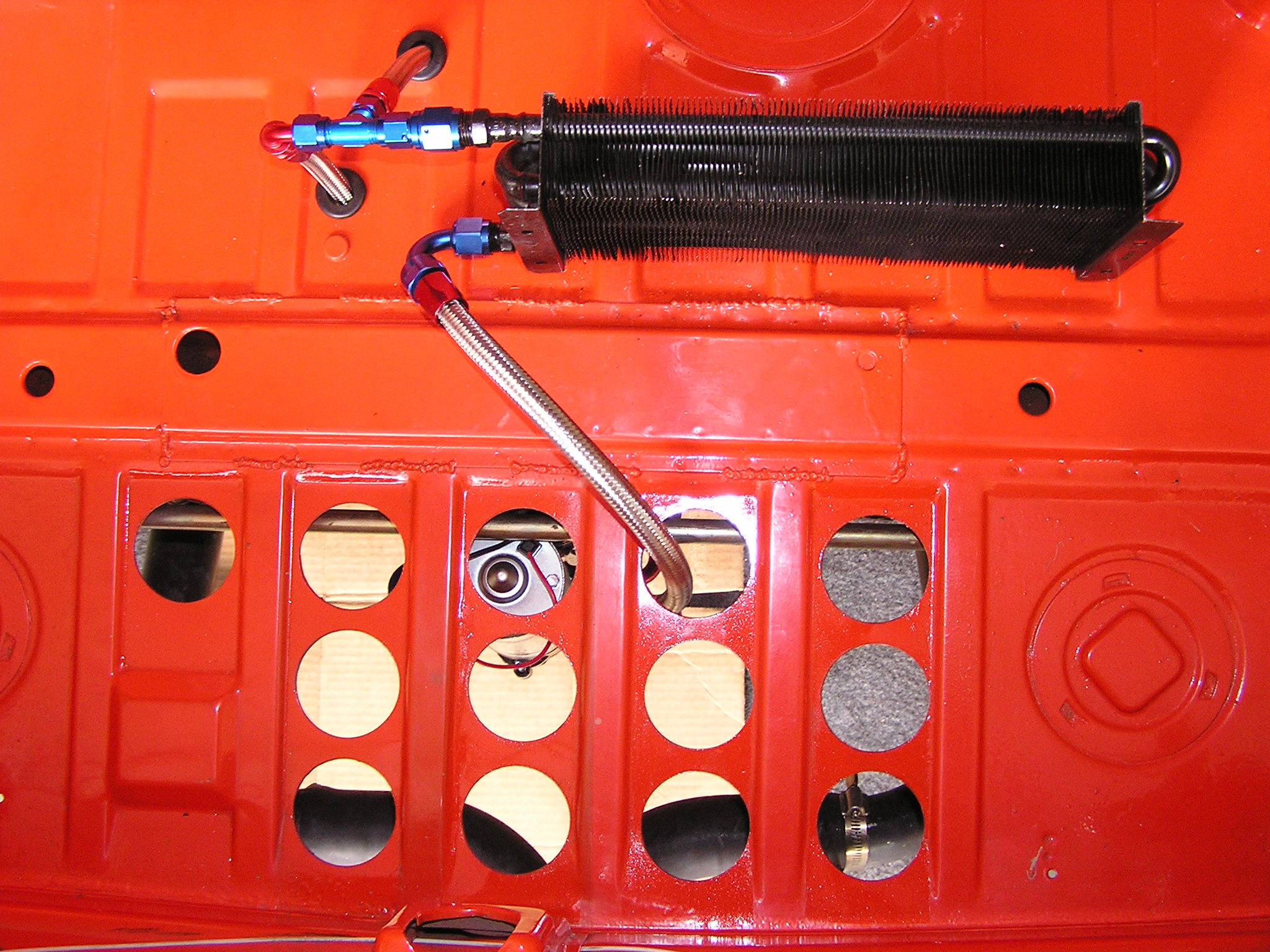

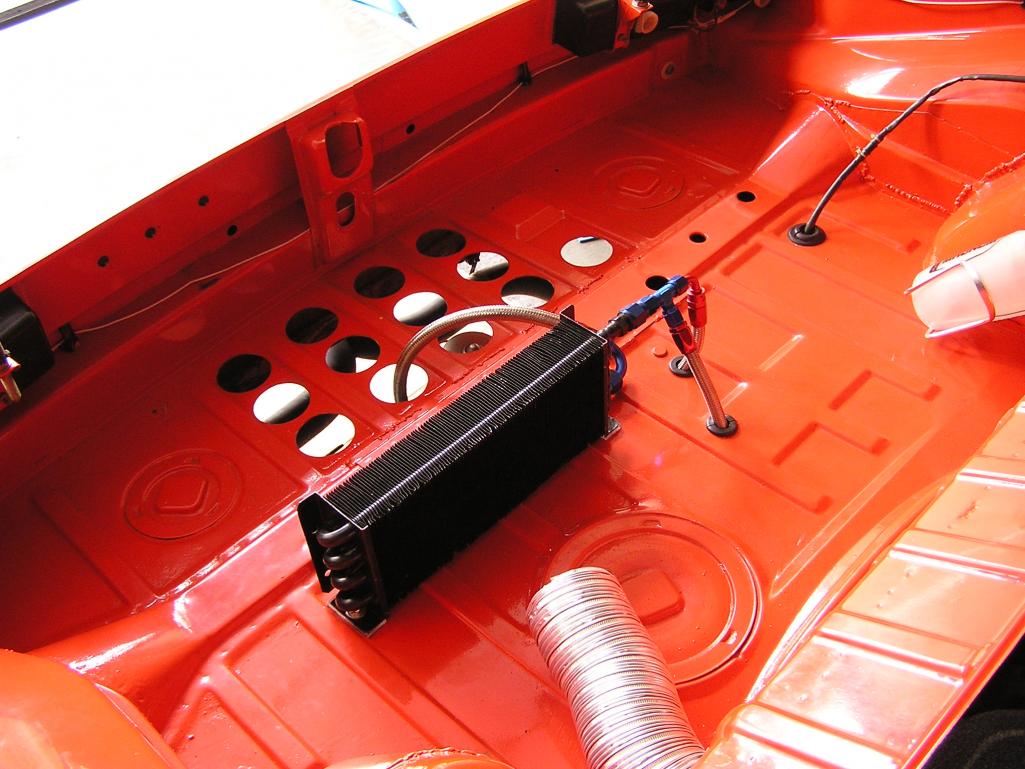

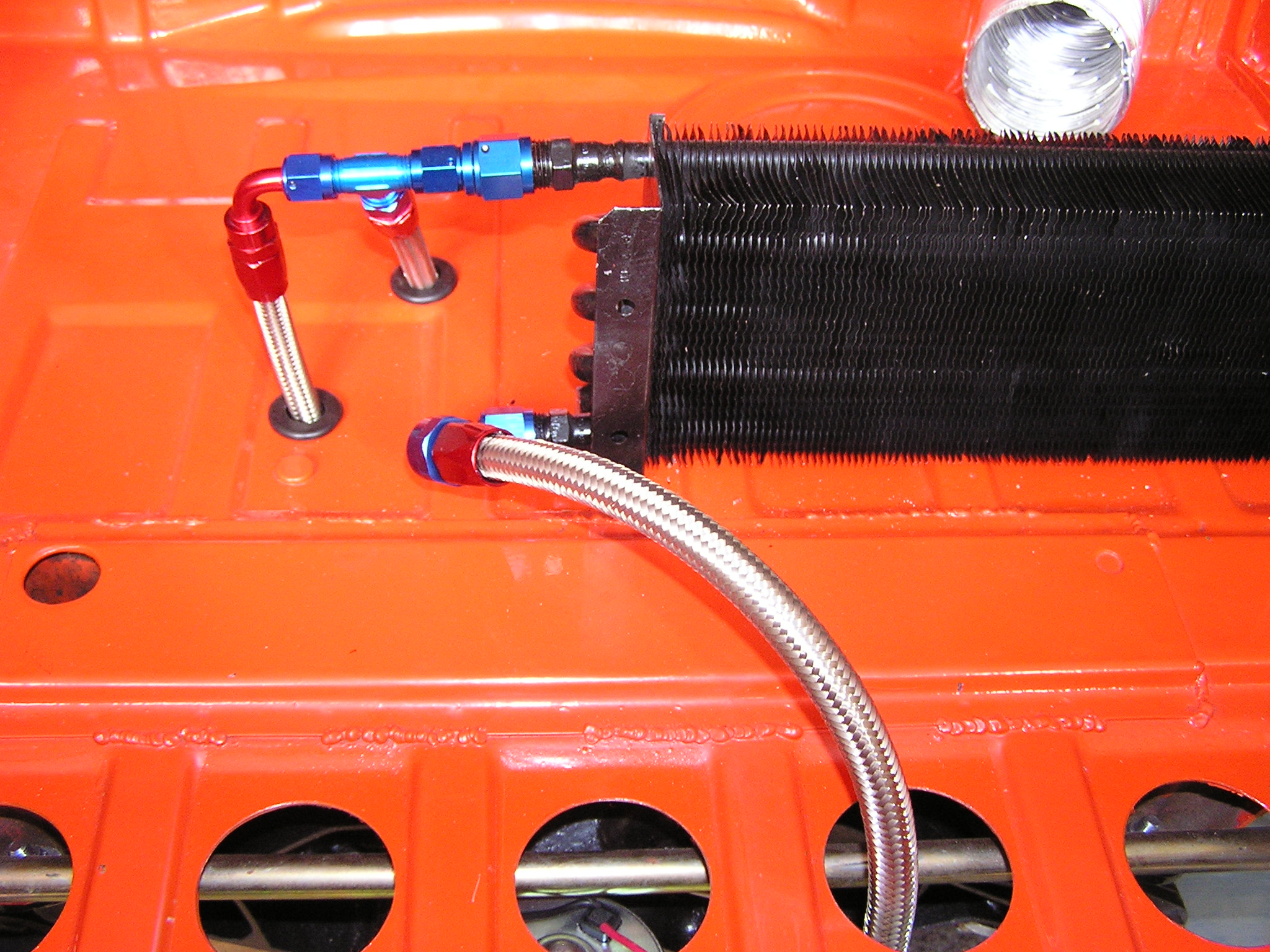

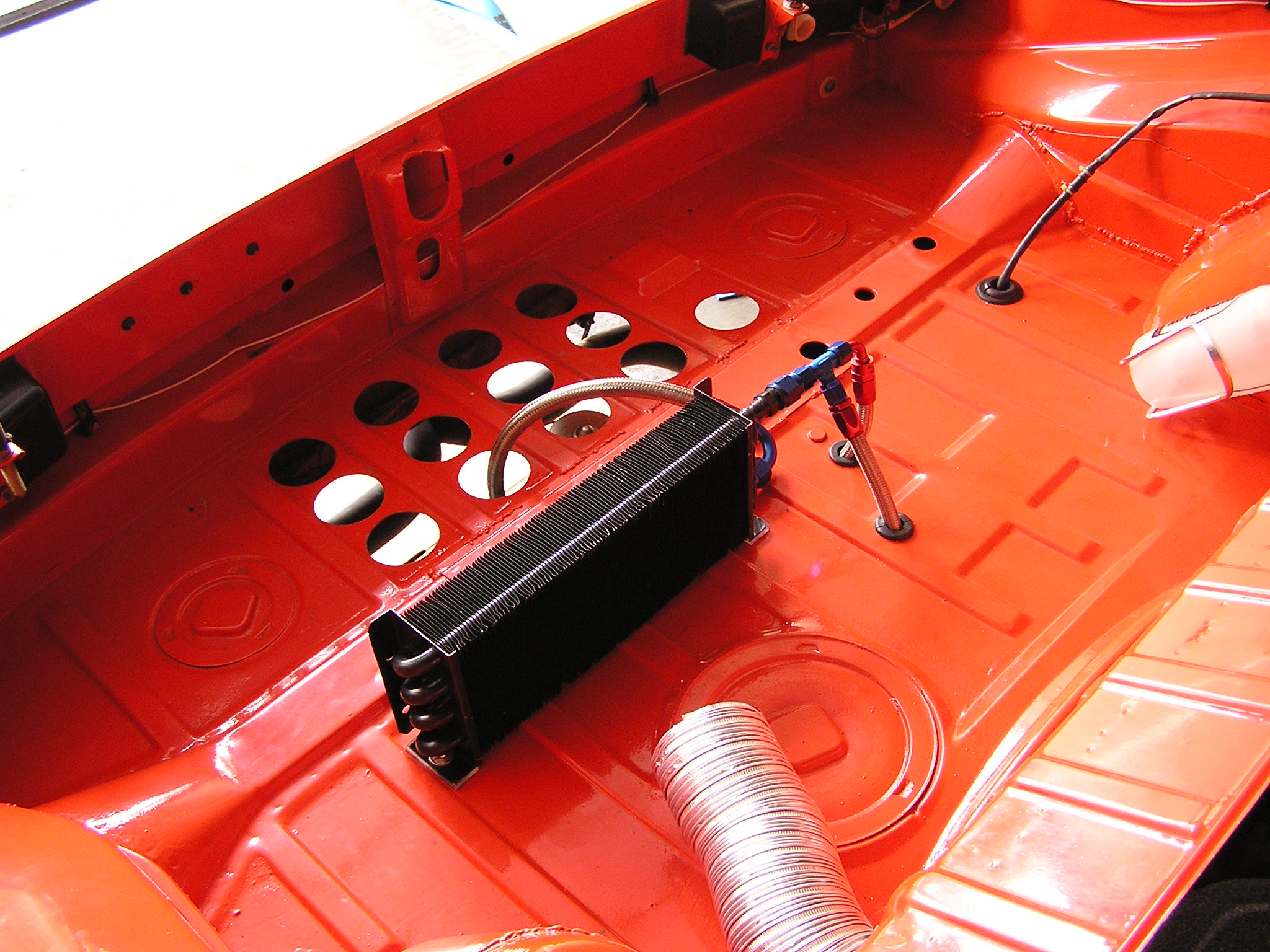

Here is the cooler in the trunk without the duct work attatched:


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Sep 19 2012, 06:47 PM
Post #532


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

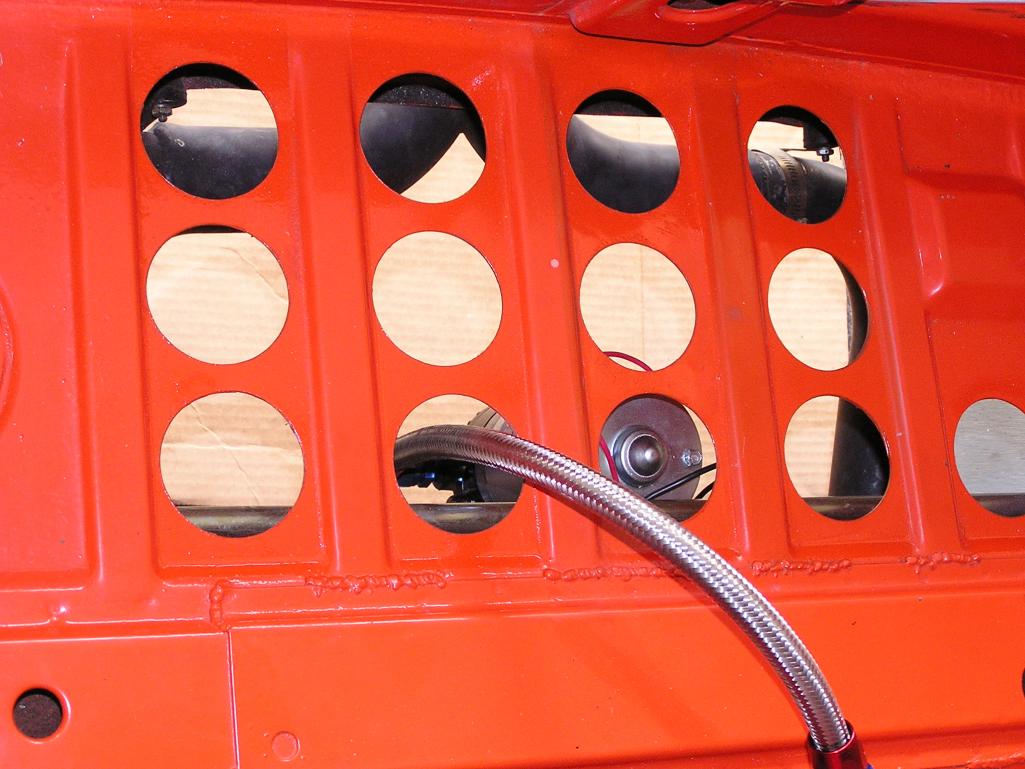

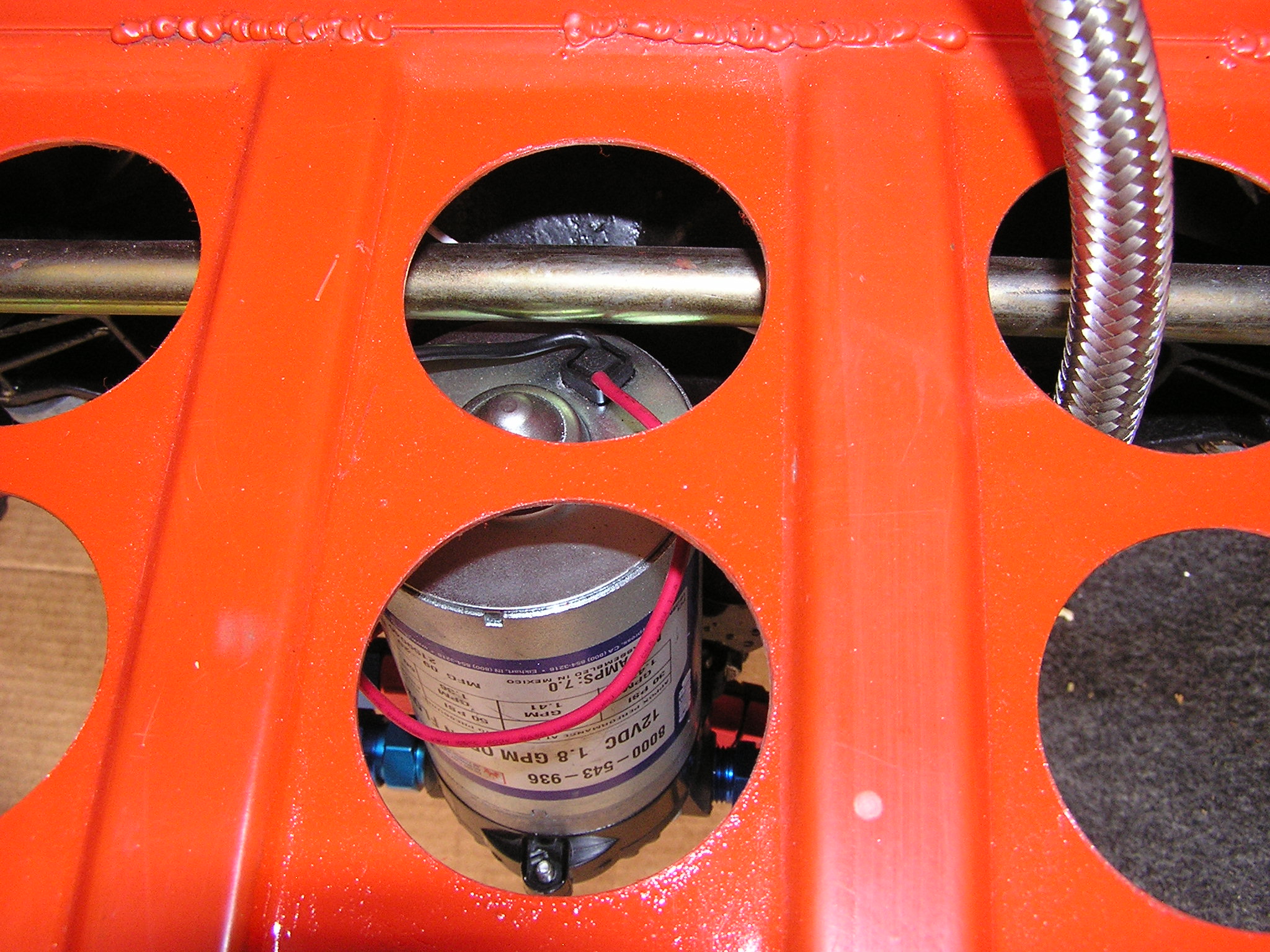

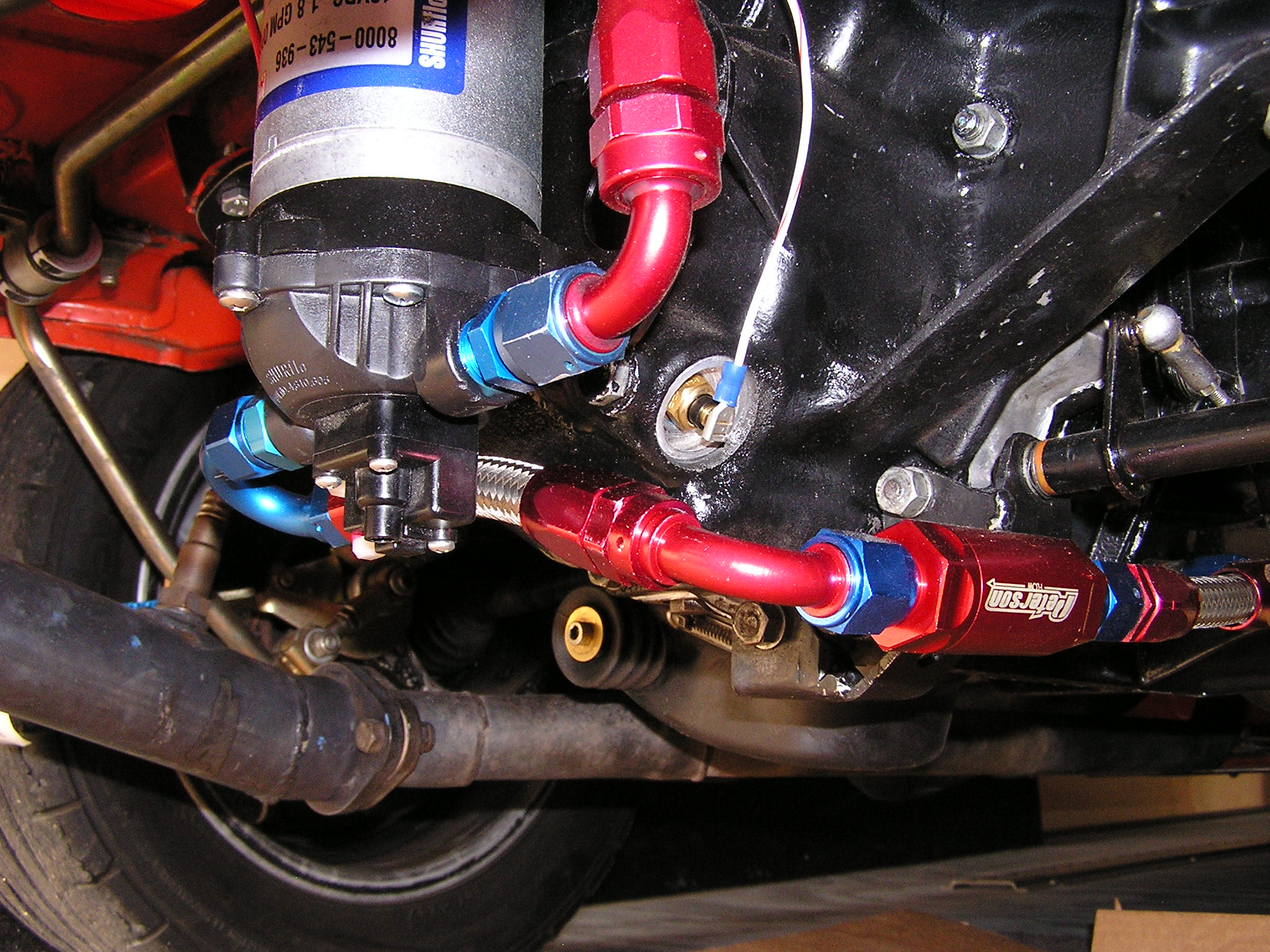

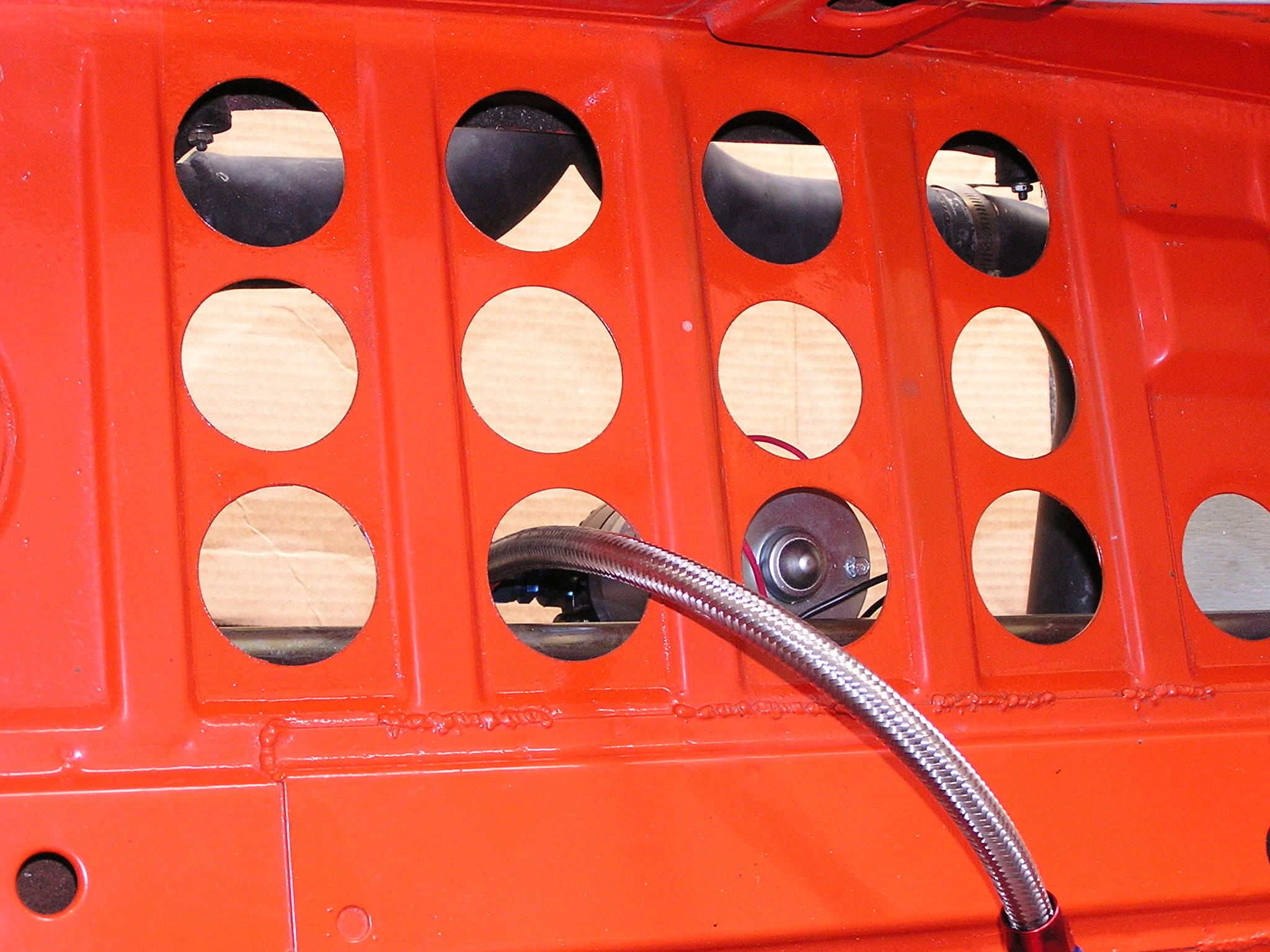

underneath:


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Sep 19 2012, 06:50 PM
Post #533


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

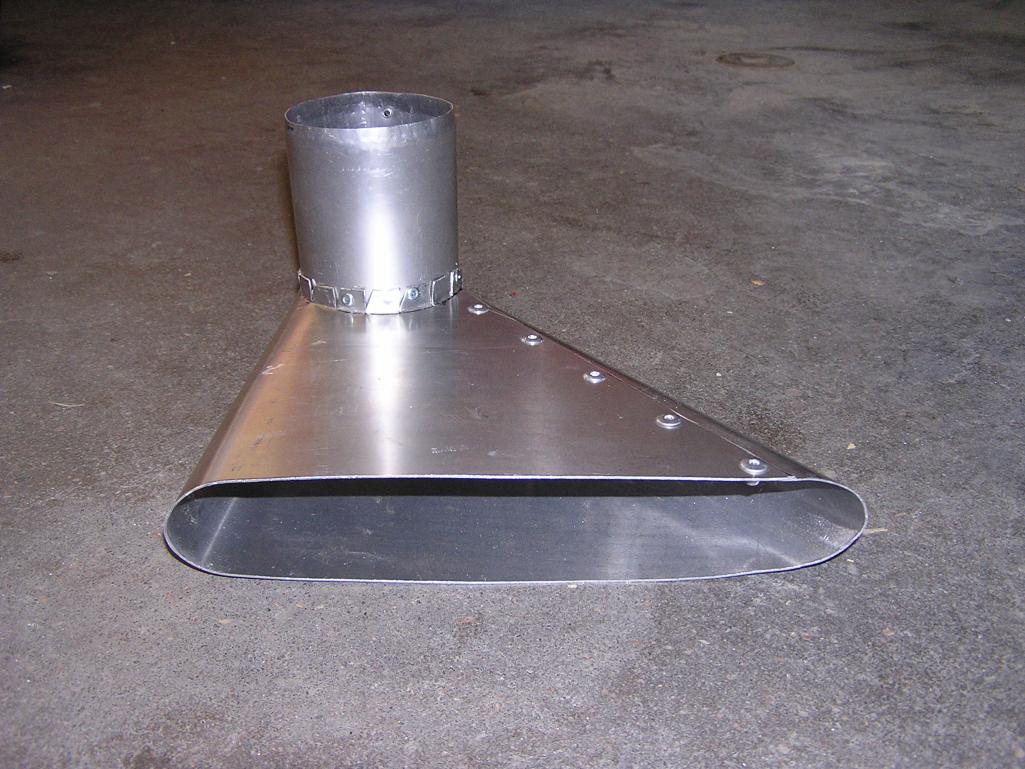

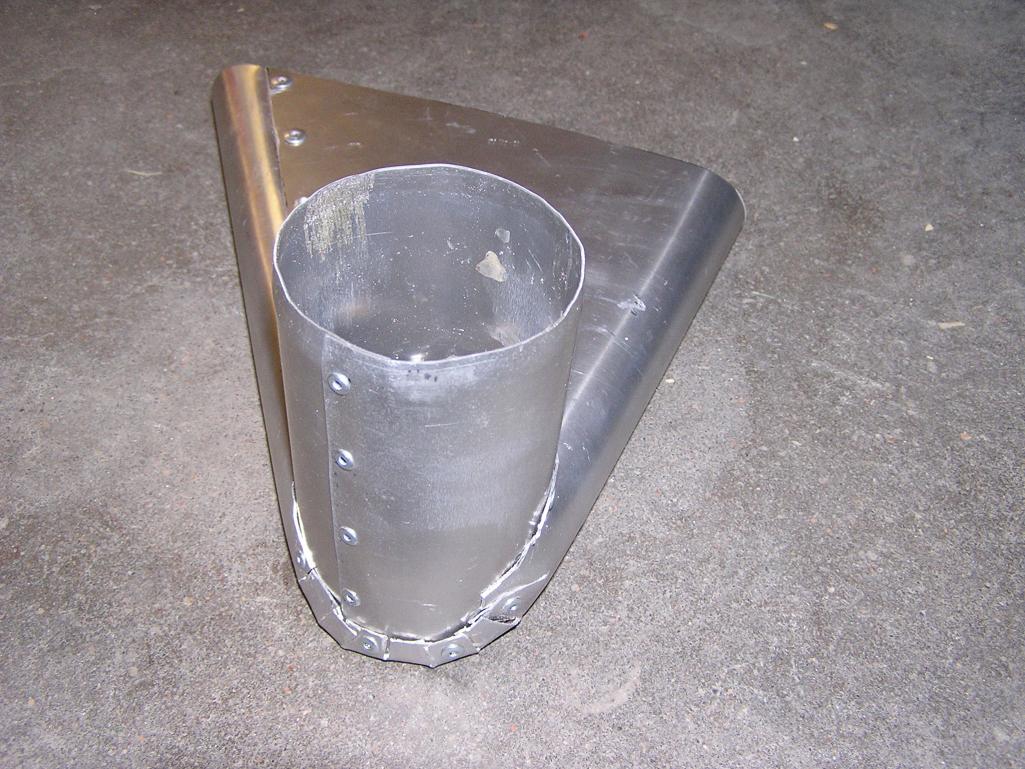

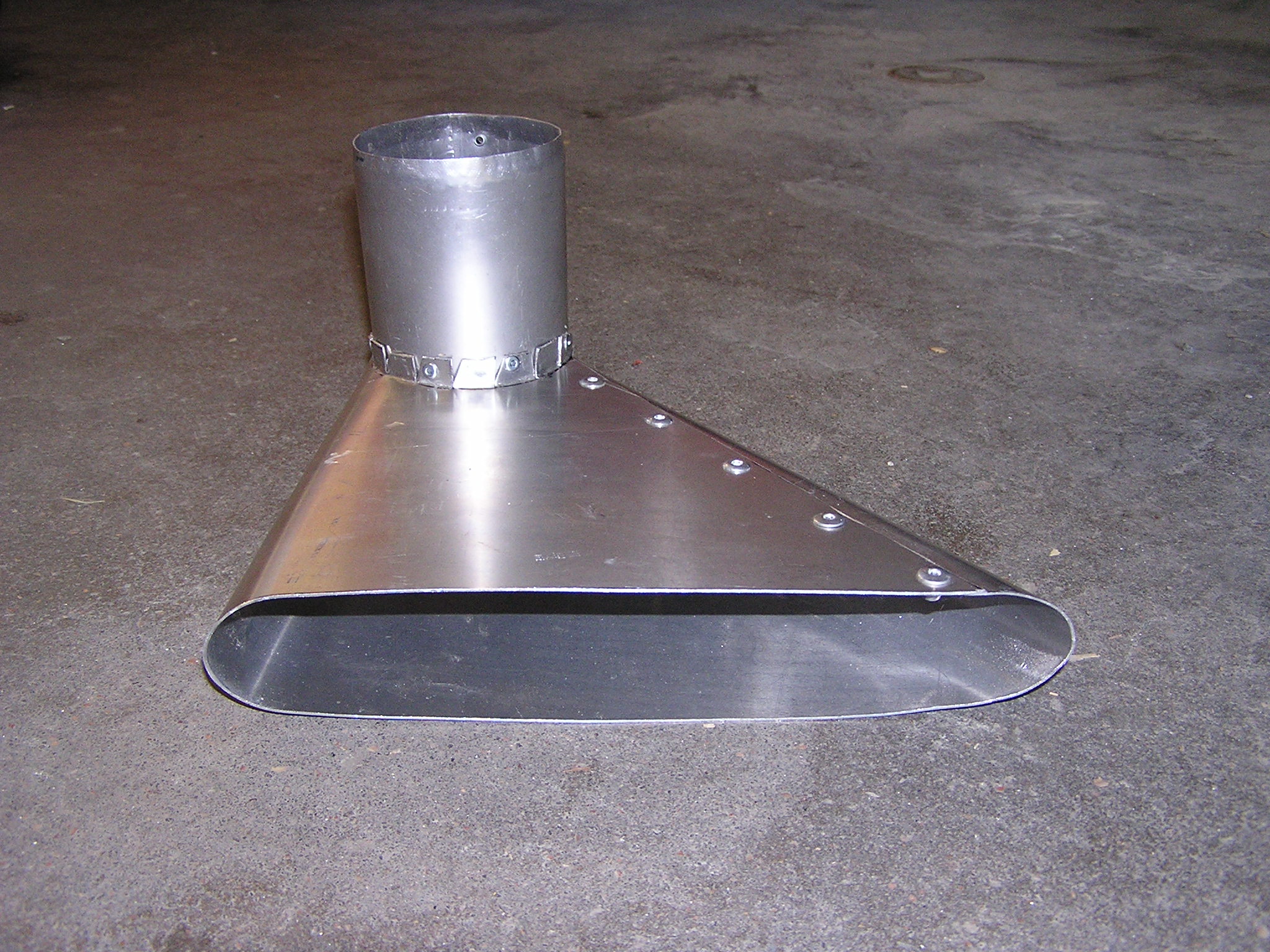

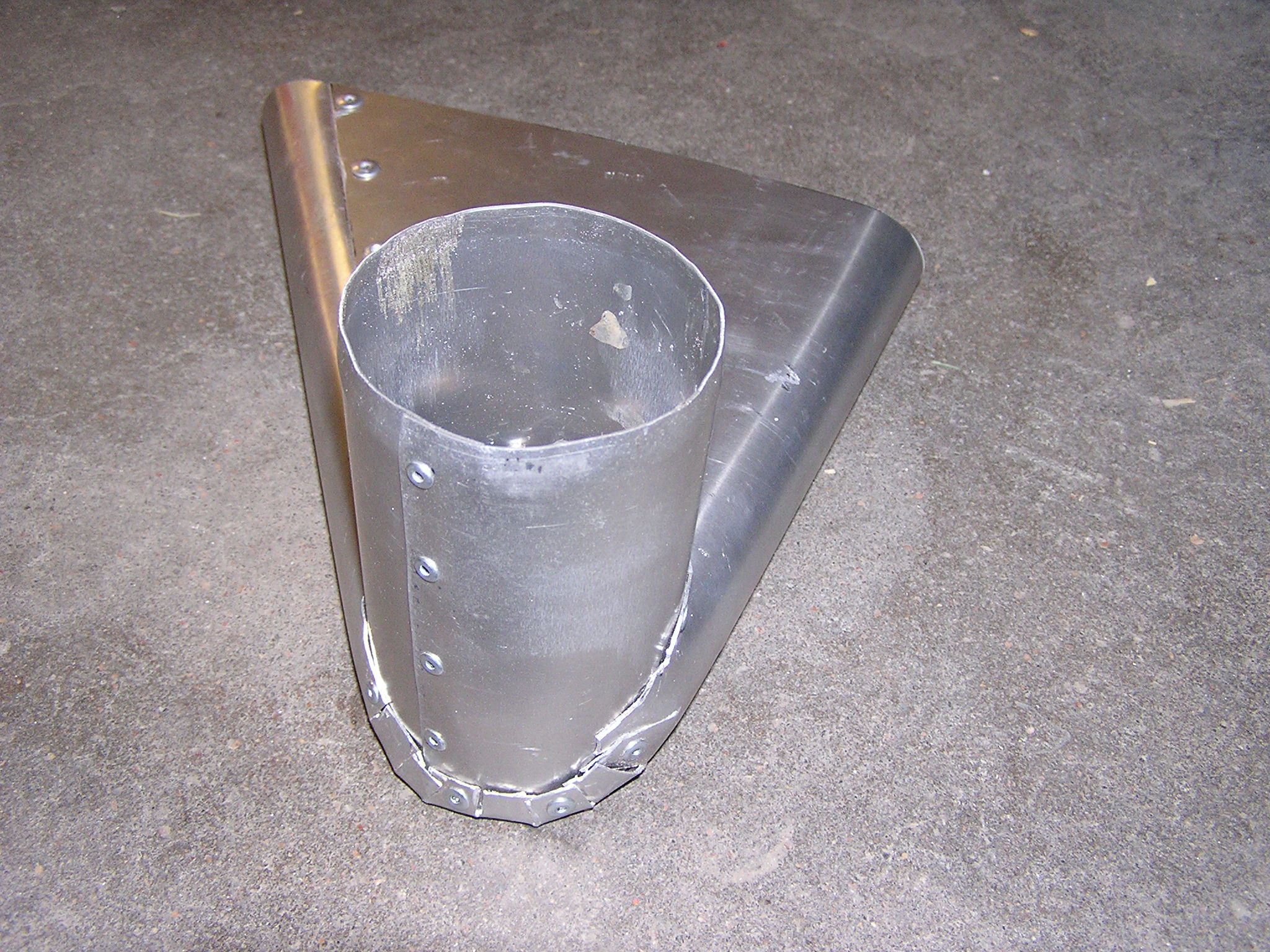

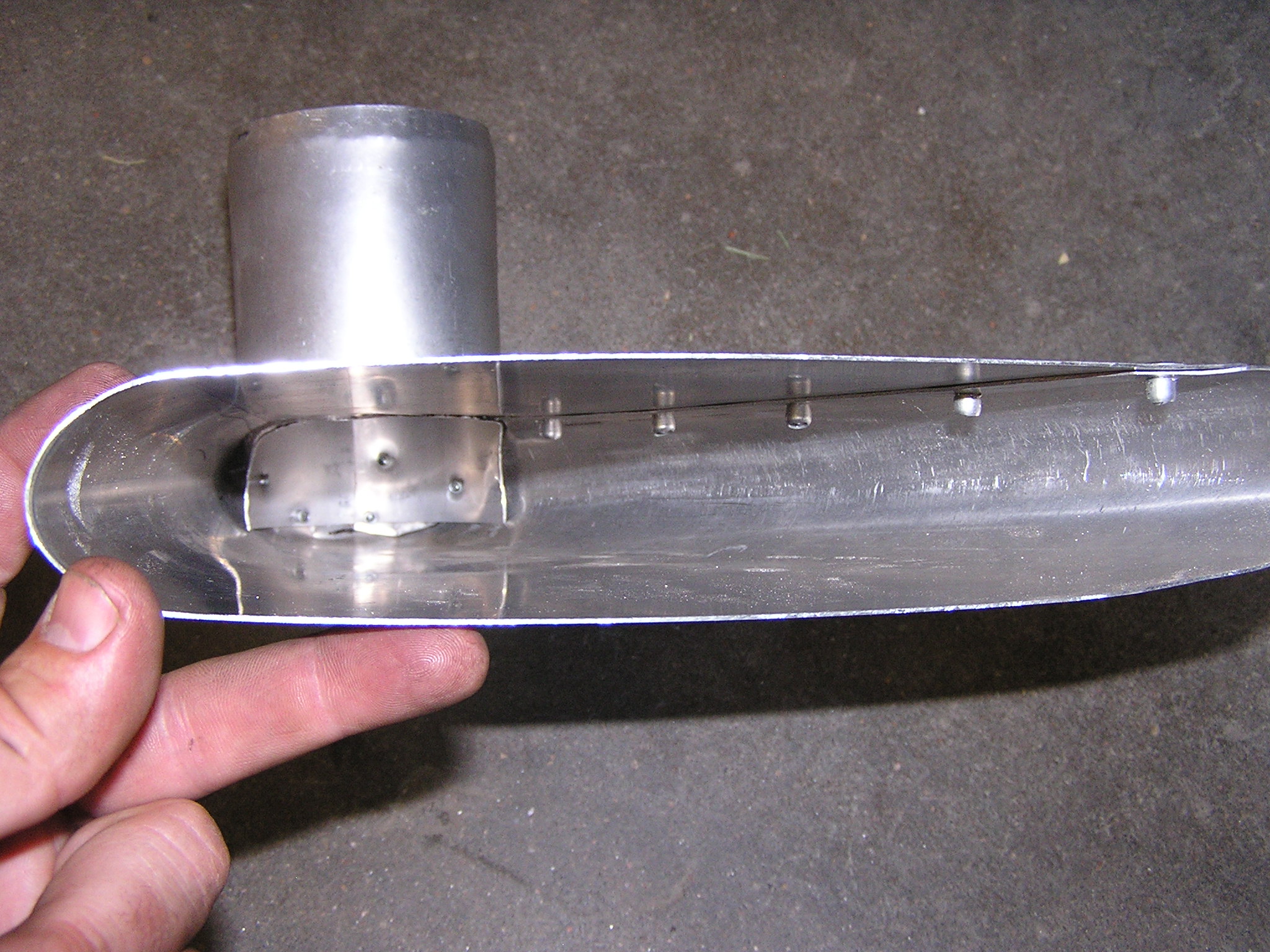

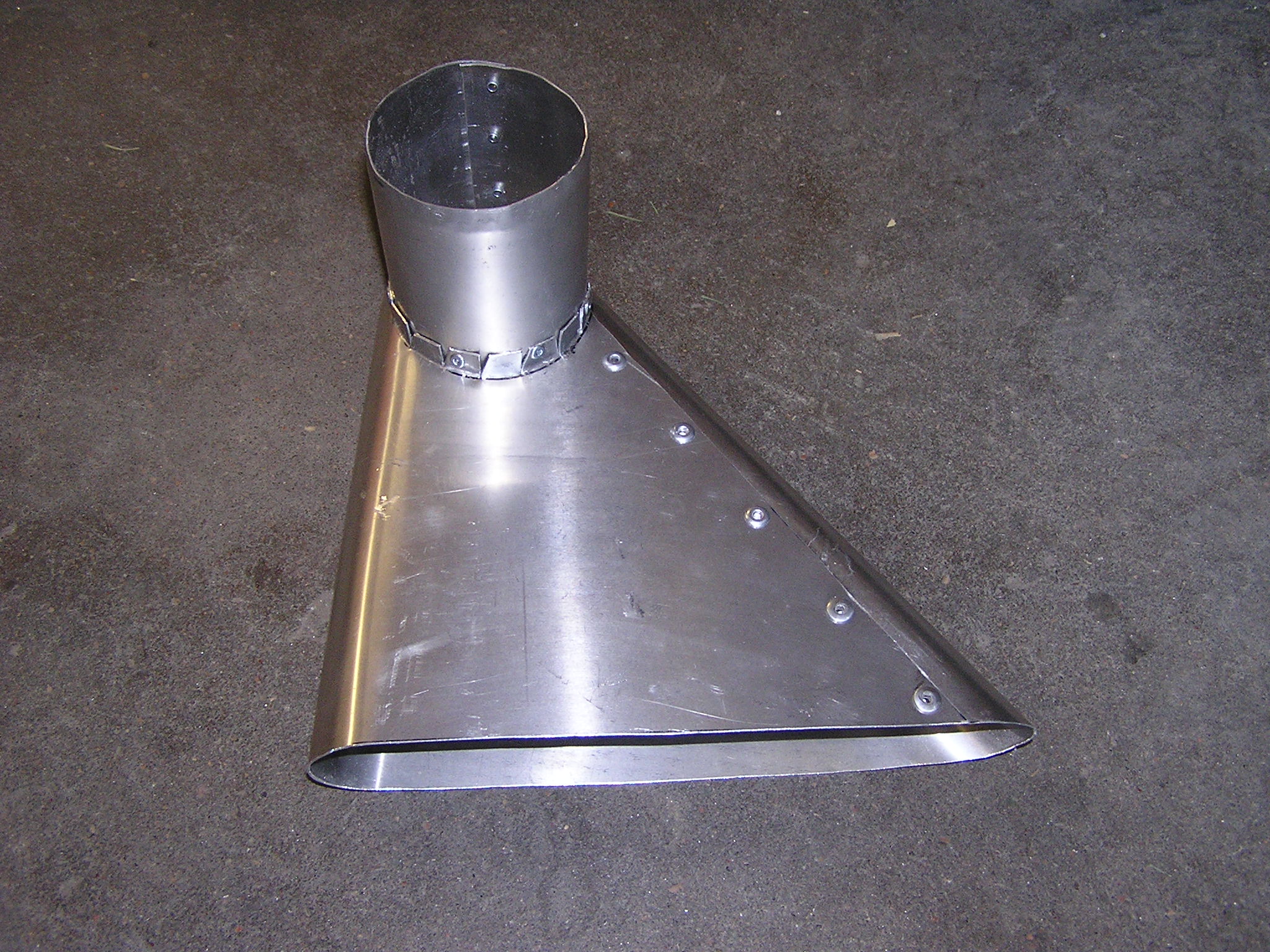

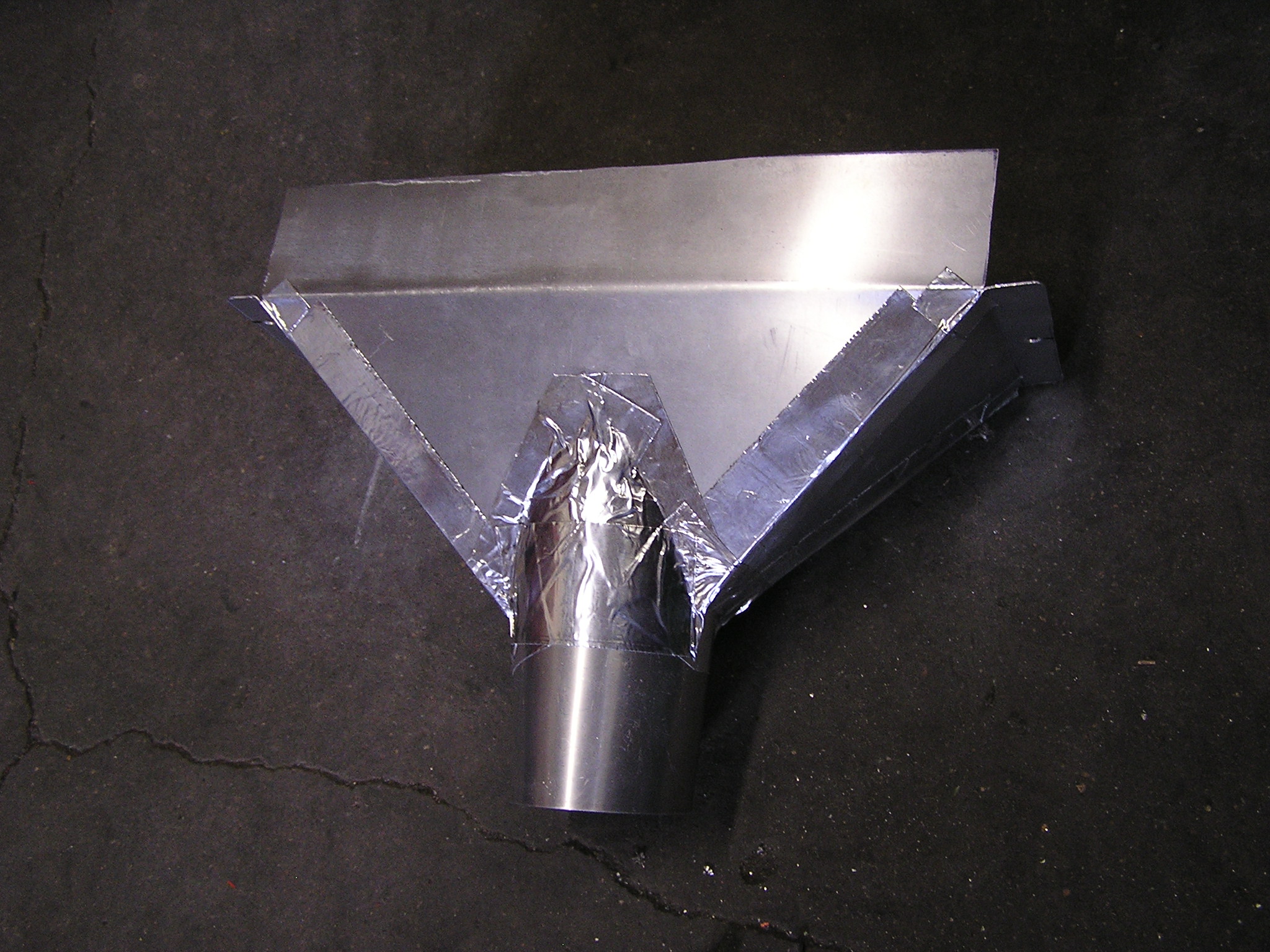

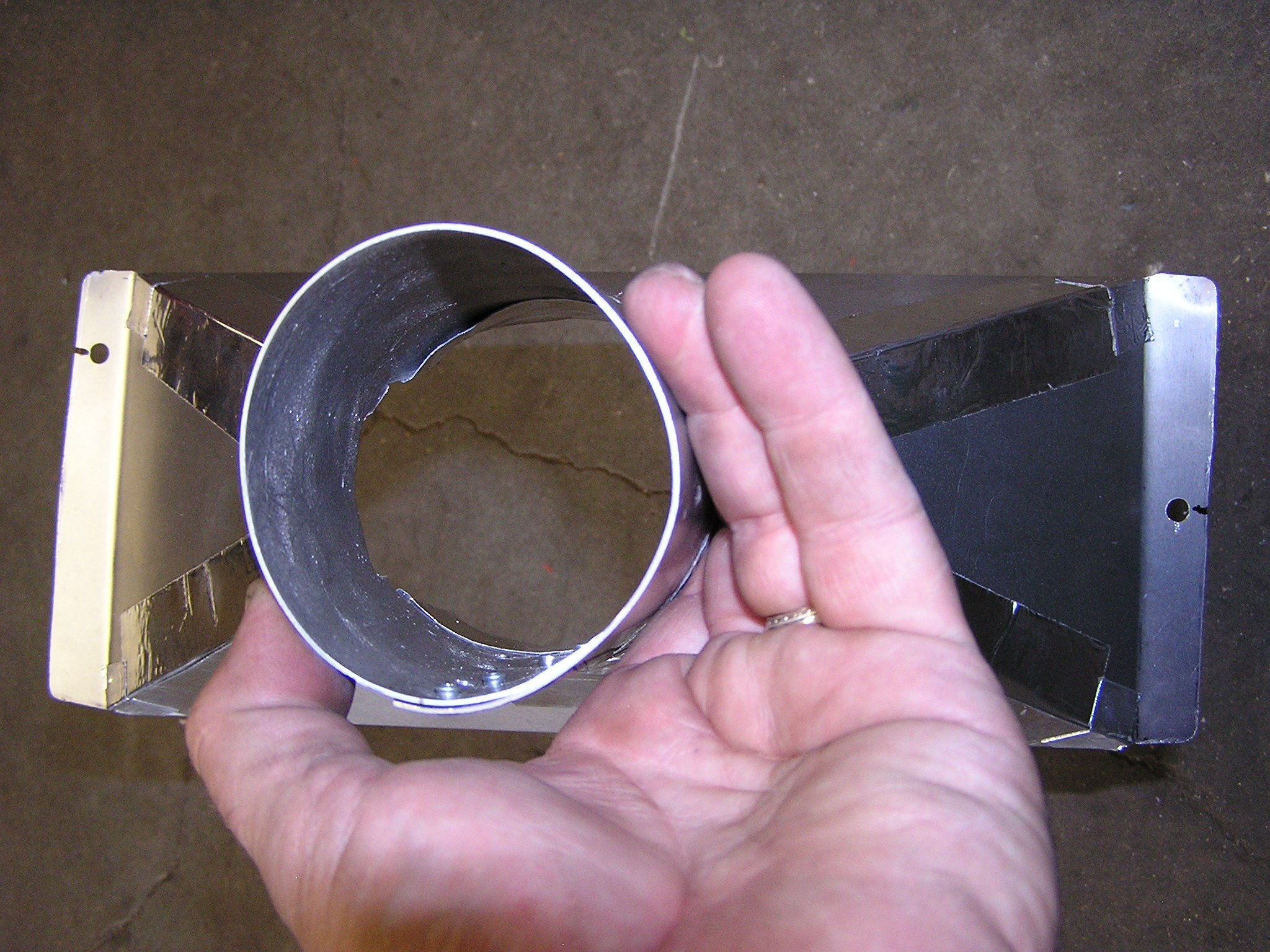

the aluminum hood:


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Ferg
post Sep 19 2012, 07:09 PM
Post #534


914 Guru
*****

Group: Members
Posts: 5,948
Joined: 8-January 03
From: Boulder CO
Member No.: 116
Region Association: None
Cool! (IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MoveQik
post Sep 19 2012, 10:54 PM
Post #535


What size wheels can I fit?
****

Group: Members
Posts: 4,654
Joined: 5-April 05
From: Scottsdale, AZ
Member No.: 3,881
Region Association: Southwest Region
Where is the "scoop" located back there to give you more pressure in front of the cooler than behind it? Looks cool!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Sep 19 2012, 11:15 PM
Post #536


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
QUOTE(MoveQik @ Sep 19 2012, 10:54 PM) *

Where is the "scoop" located back there to give you more pressure in front of the cooler than behind it? Looks cool!


Good question. Approximately at the lower firewall, where the 4 cylinder turblance flaps would be. We will see if it gets enough airflow according to the gauge.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stuttgart46
post Sep 20 2012, 06:39 AM
Post #537


Member
**

Group: Members
Posts: 305
Joined: 17-December 07
From: Santa Monica, CA
Member No.: 8,474
Region Association: None
Beautiful work as always.
When are you going to get to try it out?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Sep 20 2012, 12:08 PM
Post #538


914 Wizard
**********

Group: Members
Posts: 11,793
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
QUOTE(stuttgart46 @ Sep 20 2012, 06:39 AM) *

Beautiful work as always.
When are you going to get to try it out?


I should be on the track at coronado tomorrow morning if there are no surprises. We crossed the california border and have another 175 miles to go
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Ferg
post Sep 20 2012, 02:46 PM
Post #539


914 Guru
*****

Group: Members
Posts: 5,948
Joined: 8-January 03
From: Boulder CO
Member No.: 116
Region Association: None
QUOTE(brant @ Sep 20 2012, 10:08 AM) *

QUOTE(stuttgart46 @ Sep 20 2012, 06:39 AM) *

Beautiful work as always.
When are you going to get to try it out?


I should be on the track at coronado tomorrow morning if there are no surprises. We crossed the california border and have another 175 miles to go


(IMG:style_emoticons/default/driving.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cracker
post Jan 11 2013, 08:47 AM
Post #540


Advanced Member
****

Group: Members
Posts: 2,148
Joined: 2-February 10
From: Atlanta (area)
Member No.: 11,316
Region Association: South East States
OT: Coronado in Sept? I had the family in SD on vacation Thursday (20th) evening in Coronado and pulled over quickly because I saw what appeared to be a "mini-car show" (BMW 2002's, 911, etc) and vintage race cars. After scrambling for a parking space, we rounded the street on foot to see them as they all roared off. It was a bummer for me and my son. The folks there said they were racing at Coronado (air field?) in the morning. Small world possibly, but were you there that "closed street" deal Thursday evening (about 5:00-6:00)? I understood that to be an autocross set-up. Had I known you or other teeners were there I would have come by Sat. AM. Bummer!

Just for the record: I have an understanding wife who encouraged me to go the next morning to the races but we were planning on heading back up to Newport Beach/Check out, etc. and I didn't feel like cramping the "family" schedule so I didn't go. I wish I had now...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
