> LSD, cheep but hard way
sixnotfour
post Oct 28 2012, 08:37 PM
Post #1


914 Wizard
**********

Group: Members
Posts: 10,678
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
904 /aluminum case 901 ZF limited slip.

My buddy had this lying around , it wont work in the 914-901...
Well to much time and little cash....

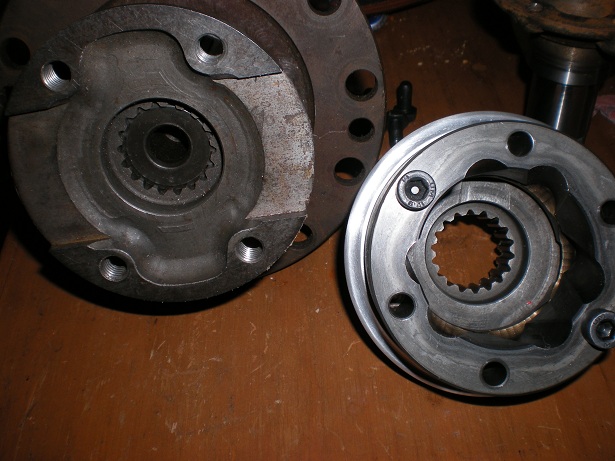

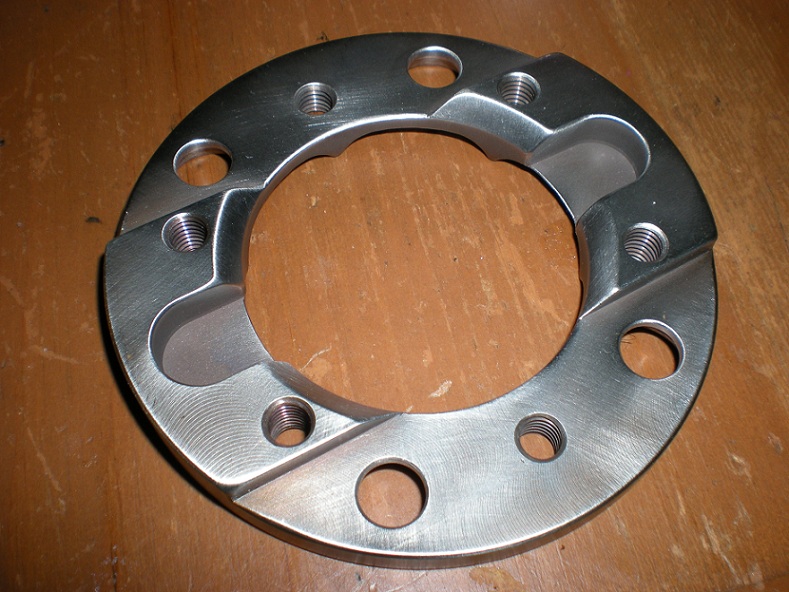

First the drive flange adapters= Done

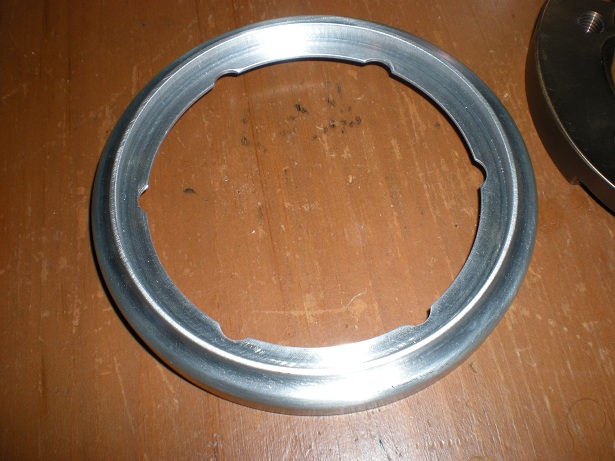

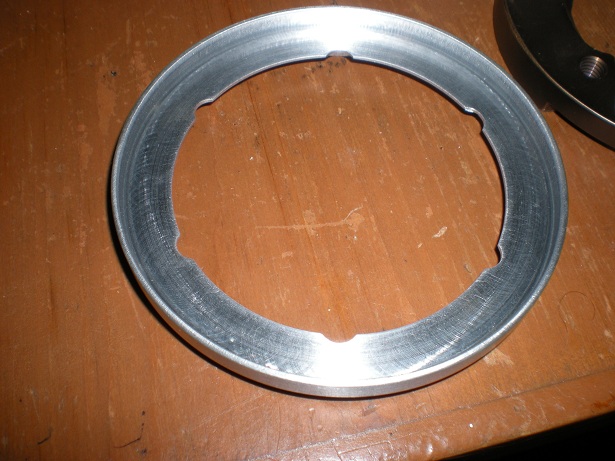

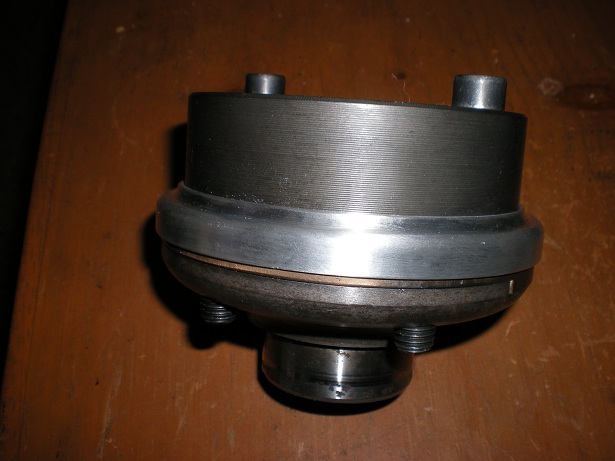

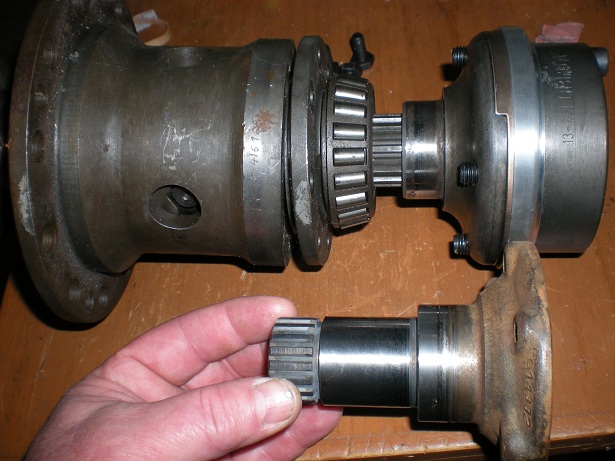

Second bearing sleeve and spacer. zf uses 45 mm bearings, 914 are 50mm
and is about 12mm narrower.


Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Oct 28 2012, 09:32 PM
Post #2


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,029
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Ok maybe Im dense but what are we looking at here?
Just an quick peak at the OE LSD elements that happened to be available for Pics?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Oct 28 2012, 10:00 PM
Post #3


914 Wizard
**********

Group: Members
Posts: 10,678
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
My buddy was going to sell the early ZF LSDiff, but I told him I can make it work. equals cheap posi. for his 914-6

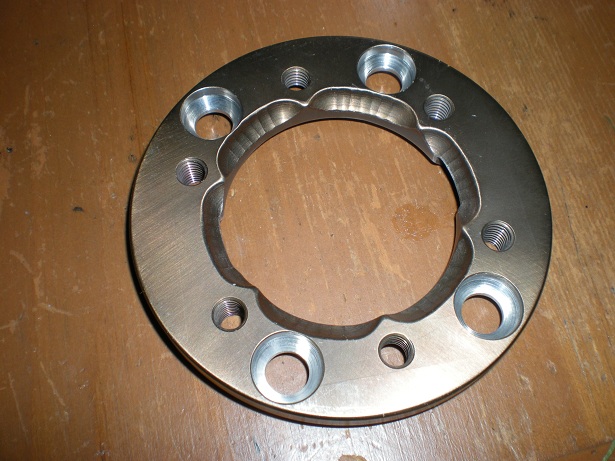

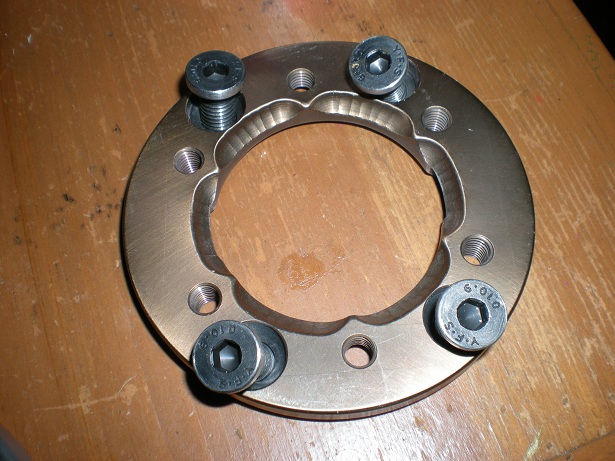

I made the the brown adapter discs and the alum. shields, so it will bolt up to the 914 CV's and no gaskets.
Thats All
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Randal
post Oct 29 2012, 08:00 AM
Post #4


Advanced Member
****

Group: Members
Posts: 4,446
Joined: 29-May 03
From: Los Altos, CA
Member No.: 750
QUOTE(sixnotfour @ Oct 28 2012, 09:00 PM) *

My buddy was going to sell the early ZF LSDiff, but I told him I can make it work. equals cheap posi. for his 914-6

I made the the brown adapter discs and the alum. shields, so it will bolt up to the 914 CV's and no gaskets.
Thats All



How did it work when installed in the 901?

Nice work by the way! (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Oct 29 2012, 08:38 AM
Post #5


914 Wizard
**********

Group: Members
Posts: 10,678
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Worked fine, old school .. low horsepower..and had nadella axles.. I am working on the bearing adapters now.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Randal
post Oct 29 2012, 12:44 PM
Post #6


Advanced Member
****

Group: Members
Posts: 4,446
Joined: 29-May 03
From: Los Altos, CA
Member No.: 750
QUOTE(sixnotfour @ Oct 29 2012, 07:38 AM) *

Worked fine, old school .. low horsepower..and had nadella axles.. I am working on the bearing adapters now.



Track or autoxing?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Oct 29 2012, 01:05 PM
Post #7


914 Wizard
**********

Group: Members
Posts: 10,678
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Vintage Racer, spare gearbox , His other Box has a Guard LS
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Oct 29 2012, 08:48 PM
Post #8


Advanced Member
****

Group: Members
Posts: 2,708
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
Interesting Stoddard used the 904 style in my GT, I will have to post some pix
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Van914
post Oct 30 2012, 04:11 AM
Post #9


Van914
***

Group: Members
Posts: 702
Joined: 5-January 03
From: Cincinnati, Ohio
Member No.: 90
Region Association: Upper MidWest
I know where one is for sale, not cheap.
van914
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Oct 30 2012, 12:04 PM
Post #10


914 Wizard
**********

Group: Members
Posts: 10,678
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
QUOTE(gms @ Oct 29 2012, 07:48 PM) *

Interesting Stoddard used the 904 style in my GT, I will have to post some pix


Glenn, please do, I wonder what parts they used ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wingnut86
post Oct 30 2012, 12:36 PM
Post #11


...boola la boo boola boo...
***

Group: Members
Posts: 1,053
Joined: 22-April 10
From: South Carolina
Member No.: 11,645
Region Association: South East States
That's some real nice carving.

what did you use to make your parts?

Da Macheen?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Oct 30 2012, 02:47 PM
Post #12


914 Wizard
**********

Group: Members
Posts: 10,678
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Old hercules lathe and a bridgeport. material is 17-4 SS HT to h900
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Middlefour
post Oct 31 2012, 04:34 AM
Post #13


Newbie
*

Group: Members
Posts: 42
Joined: 1-December 04
From: Northamptonshire UK.
Member No.: 3,199
Region Association: None
Hi from across the pond. I would be interested to know how many of you have an LSD fitted? My 1970 1.7 has a factory fitted one, the first owner in the USA did a lot of what we call autotest I think you call them slaloms. I know that in the UK my car is the only 4 cylinder with a factory fitted LSD, and possible the only 914 of any sort with a factory fitted one. Be interested to find out.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pcar916
post Oct 31 2012, 08:07 AM
Post #14


Is that a Lola?
***

Group: Members
Posts: 1,523
Joined: 2-June 05
From: Little Rock, AR
Member No.: 4,188
Region Association: None
You might want to start another thread with this question and perhaps a poll if there isn't one already... I haven't looked. That said.

Your autotests are probably what we call autocross, or AX. In fact I thought it was you folks that called them sloloms. I've run both torque-bias'd (TBD) and clutch-type limited slip differentials (LSD). The TBD is far better for AX events while the LSD diff's likely have a better application on track events like racing, high-speed drivers ed, time-trials and hillclimbs.

Both are better than an open differential at getting power to the ground, but drivers new to them have to be careful on wet surfaces until they are familiar with the increased tendency of the car to swap ends in the corners. You'll get a bigger percentage of folks that have those diff's in the Paddock forum on this site.

Back on topic: Nice machine work and good to see.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Oct 31 2012, 12:21 PM
Post #15


914 Wizard
**********

Group: Members
Posts: 10,678
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Steve, check this thread out ; It is a rare option.
http://www.914world.com/bbs2/index.php?sho...197147&st=0

QUOTE(Middlefour @ Oct 31 2012, 03:34 AM) *

Hi from across the pond. I would be interested to know how many of you have an LSD fitted? My 1970 1.7 has a factory fitted one, the first owner in the USA did a lot of what we call autotest I think you call them slaloms. I know that in the UK my car is the only 4 cylinder with a factory fitted LSD, and possible the only 914 of any sort with a factory fitted one. Be interested to find out.


QUOTE
Back on topic: Nice machine work and good to see.


Thanks Ron
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Oct 31 2012, 04:58 PM
Post #16


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,029
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
BOT how did you HT? do you have an oven in your garage as well?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Oct 31 2012, 05:21 PM
Post #17


914 Wizard
**********

Group: Members
Posts: 10,678
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
No Oven to 900 at home, Tyee in tooling we have a 2000 degree oven.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Middlefour
post Nov 1 2012, 05:33 AM
Post #18


Newbie
*

Group: Members
Posts: 42
Joined: 1-December 04
From: Northamptonshire UK.
Member No.: 3,199
Region Association: None
QUOTE(sixnotfour @ Oct 31 2012, 06:21 PM) *

Steve, check this thread out ; It is a rare option.Thanks Ron



Cheers Ron, will do!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Nov 3 2012, 12:39 PM
Post #19


914 Wizard
**********

Group: Members
Posts: 10,678
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
I found a picture of glenn's LSD, Looks like Stoddard did the same thing.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Nov 12 2012, 09:17 PM
Post #20


Advanced Member
****

Group: Members
Posts: 2,708
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
QUOTE(sixnotfour @ Nov 3 2012, 12:39 PM) *

I found a picture of glenn's LSD, Looks like Stoddard did the same thing.

That is it!
and here is the flange
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
