> LED Taillights, Custom Made for the 914
effutuo101
post Dec 17 2013, 09:08 AM
Post #181


Advanced Member
****

Group: Members
Posts: 2,735
Joined: 10-April 05
From: Lemon Grove
Member No.: 3,914
Region Association: Southern California
Great. Another thing to spend money on for my car.
Nice work! (IMG:style_emoticons/default/wub.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
monkeyboy
post Dec 17 2013, 11:04 AM
Post #182


Senior Member
***

Group: Members
Posts: 808
Joined: 8-June 08
From: Los Angeles, Ca
Member No.: 9,147
Region Association: None
Can't wait to see these work! Awesome!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 18 2013, 03:10 PM
Post #183


Jerry
*****

Group: Members
Posts: 6,996
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None

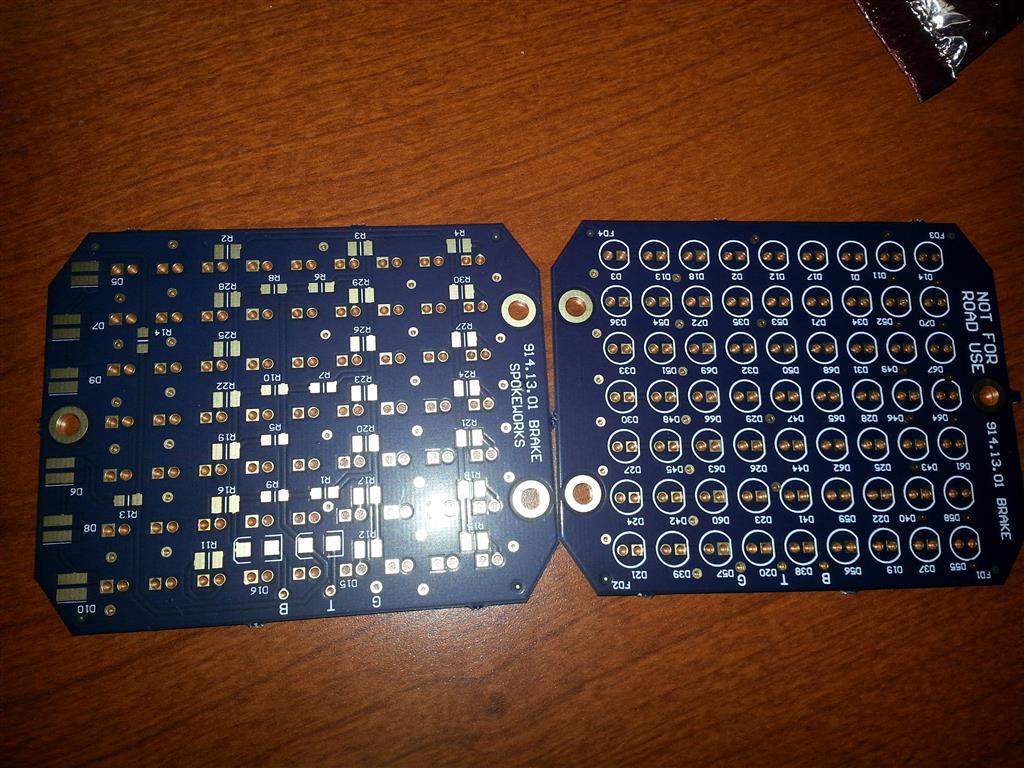

Received the alternate boards today. This one uses lower power through hole 5mm LEDs. This board will be easy to build since the through hole devices are easy to solder.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mikesmith
post Dec 18 2013, 04:53 PM
Post #184


Member
**

Group: Members
Posts: 202
Joined: 5-September 13
From: SF
Member No.: 16,354
Region Association: Northern California
(please let me know if you'd rather I didn't clutter your thread with stuff like this)

I figured it'd be interesting to mock something up using 'smart' LEDs; this is 88 WS2812s behind a 'euro' lens. Currently just running some static patterns, but fully logic controlled so they could literally do anything.

My phone does a bad job dealing with how bright they are, so it gets hard to distinguish red from amber, but in person it's quite clear. You'd have the most flexibility with the clear 'italian' lenses, since then you're not limited to the colours you can display in each region.

Attached File  IMG_0102.MOV ( 2.36mb ) Number of downloads: 101


(hmm, not sure how to inline a video that's hosted here...)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 18 2013, 06:17 PM
Post #185


Jerry
*****

Group: Members
Posts: 6,996
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
Those WS2811s look pretty cool. I looked for them online but couldn't find them at findchips.com so see how expensive they are.

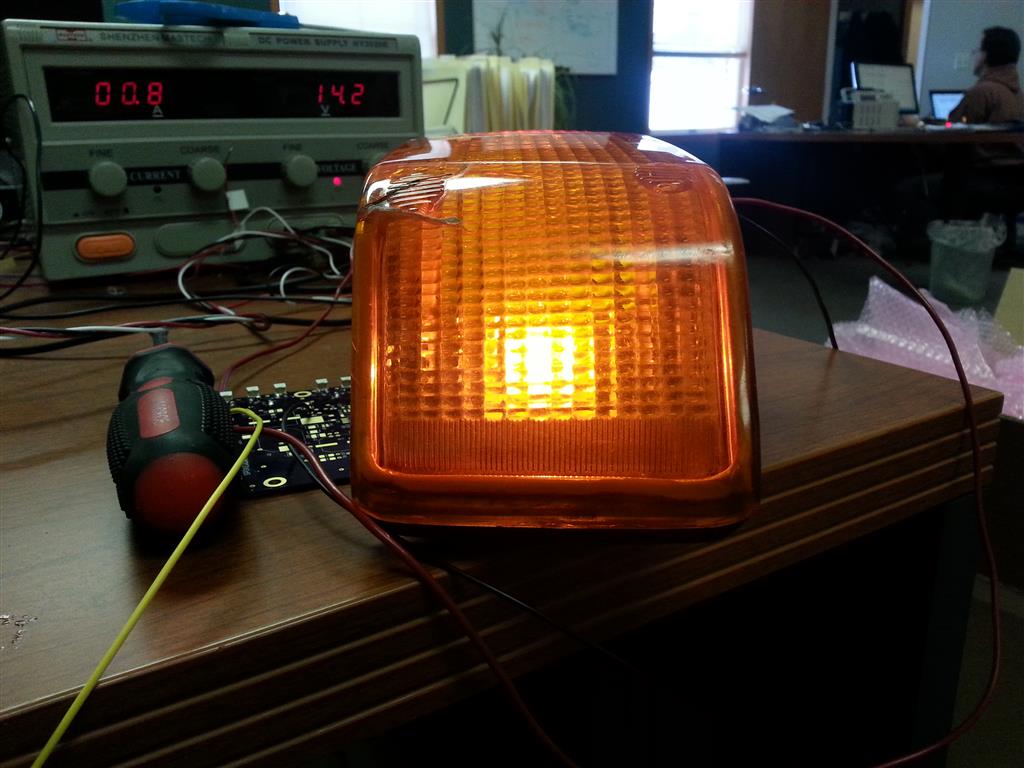

I tested the side LEDs to see how they would work for the side light. I used 6 LEDs. The result wasn't much different than the single small bulb.

Single Small Bulb

Attached Image

6 SideLEDs. The LEDs give a more spread out light. Not bad but not better. More efficient LEDs would work better. These LEDs max out at 20mA. There are 50mA 5mm LEDs which would work better.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 18 2013, 06:21 PM
Post #186


Jerry
*****

Group: Members
Posts: 6,996
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None

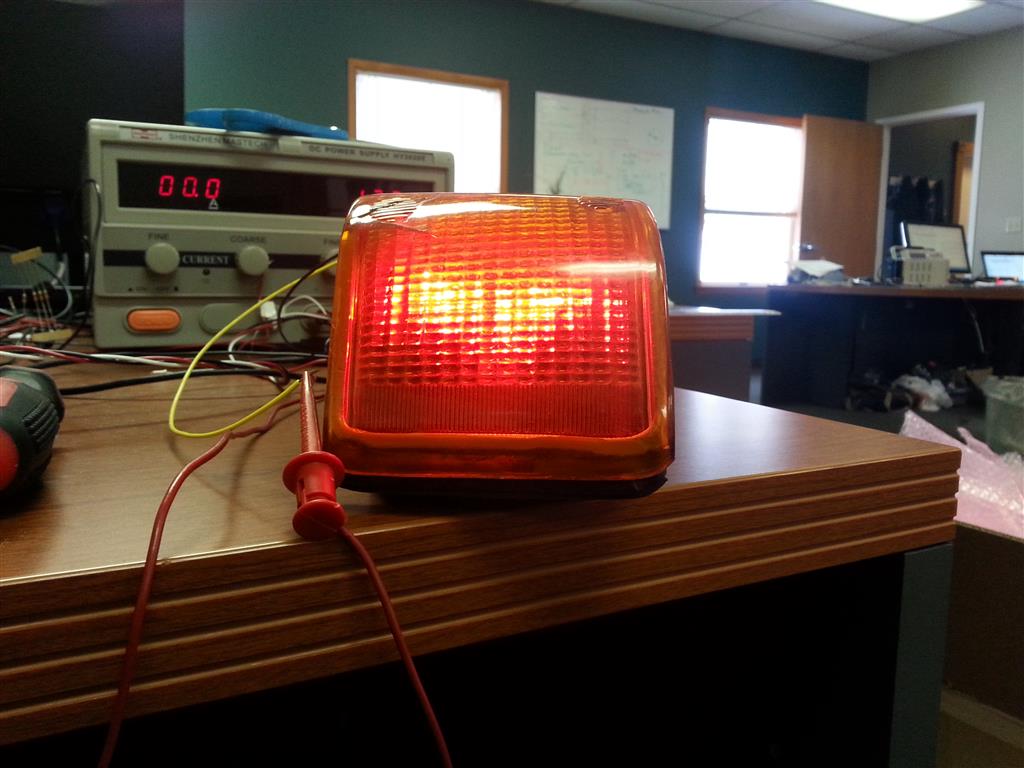

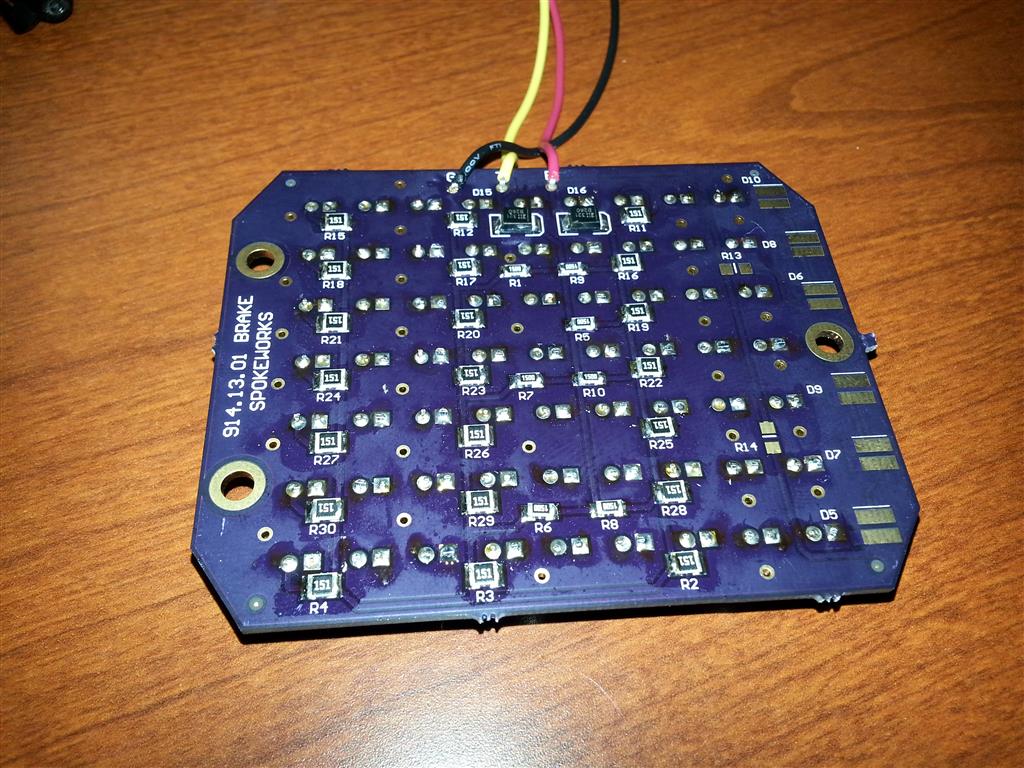

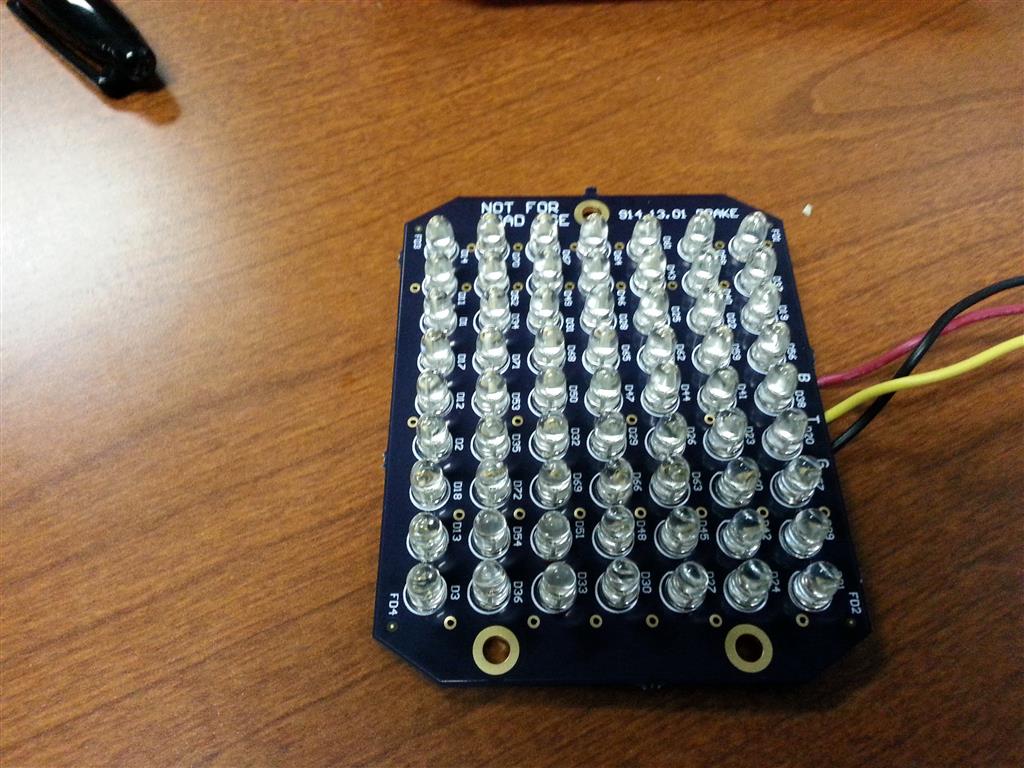

I built up one of the 5mm LED lights. Pretty easy to build with the through-hole LEDs and large resistors. The sideLEDs were not populated on this board.


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 18 2013, 06:30 PM
Post #187


Jerry
*****

Group: Members
Posts: 6,996
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
The 5mm LEDs are a good bit brighter than the brake lamp. The light from the LEDs is more focused than the lamp.

I tried to get some comparison pics of both lights.

Here's a view looking straight at the light from about 12 feet away.

Lamp

Attached Image

LEDs

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 18 2013, 06:33 PM
Post #188


Jerry
*****

Group: Members
Posts: 6,996
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
This shot is with the brake light pointing up towards the ceiling.

Again the lamp light is more dispersed than the LED. The LED is quite a bit more concentrated.

Brake Lamp

Attached Image

LEDs

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 18 2013, 06:37 PM
Post #189


Jerry
*****

Group: Members
Posts: 6,996
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None

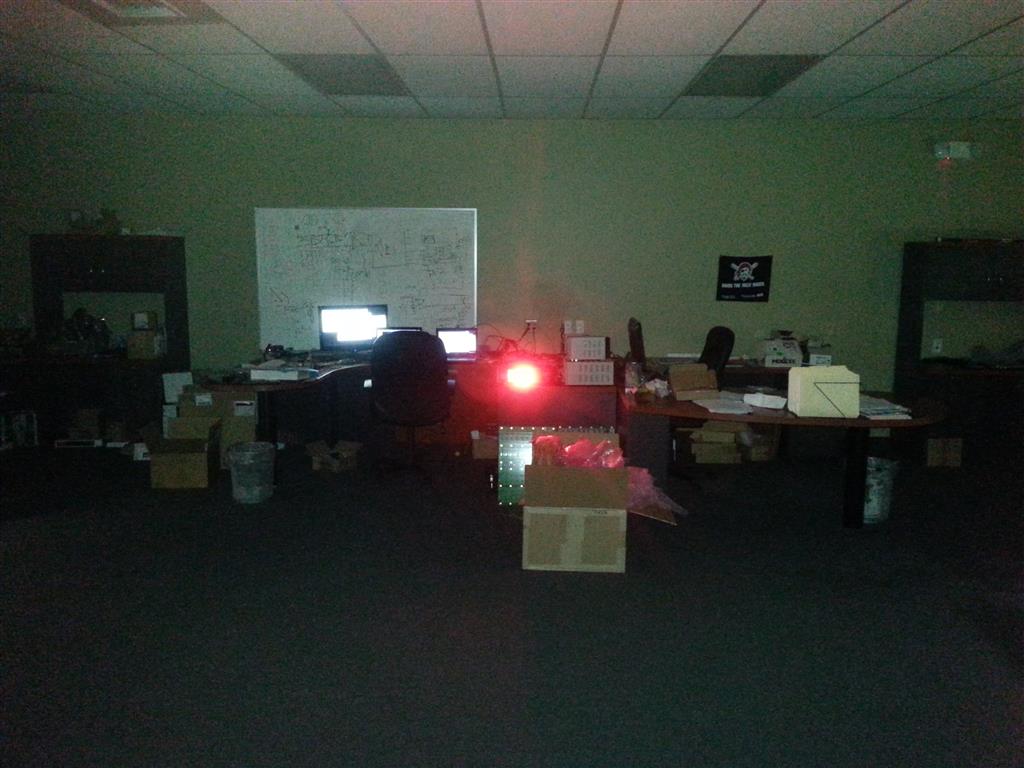

This shot is most telling of the difference in output.

The wall is about 12 feet away and I am about 6 feet away from the lights.

My outline is somewhat noticeable with the lamp but nothing like the light produced by the LEDs.

Lamp:

Attached Image

LEDs:

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Dec 18 2013, 07:22 PM
Post #190


Michael
*****

Group: Members
Posts: 9,860
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
This is so sweet! I love watching these come together. Can't wait to see a completed set installed. You could leave a stock taillight on one side and the LED taillight on the other for easy comparison. This project is making terrific progress. (IMG:style_emoticons/default/smilie_pokal.gif) This truly will be a 914 saver.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mikesmith
post Dec 18 2013, 07:22 PM
Post #191


Member
**

Group: Members
Posts: 202
Joined: 5-September 13
From: SF
Member No.: 16,354
Region Association: Northern California
That shadow contrast trick is pretty neat.

Re: the WS2812 LEDs, they tend to run about $0.20 each in quantity. I bought these on a strip backing and mounted them to some Depron loosely secured to the back of the lens (I did say it was a mockup 8).

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CptTripps
post Dec 18 2013, 07:42 PM
Post #192


:: Punch and Pie ::
****

Group: Members
Posts: 3,584
Joined: 26-December 04
From: Mentor, OH
Member No.: 3,342
Region Association: Upper MidWest
Can't wait for a set. Great work!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 20 2013, 10:34 PM
Post #193


Jerry
*****

Group: Members
Posts: 6,996
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
I mounted the one 5mm LED brake light tonight.

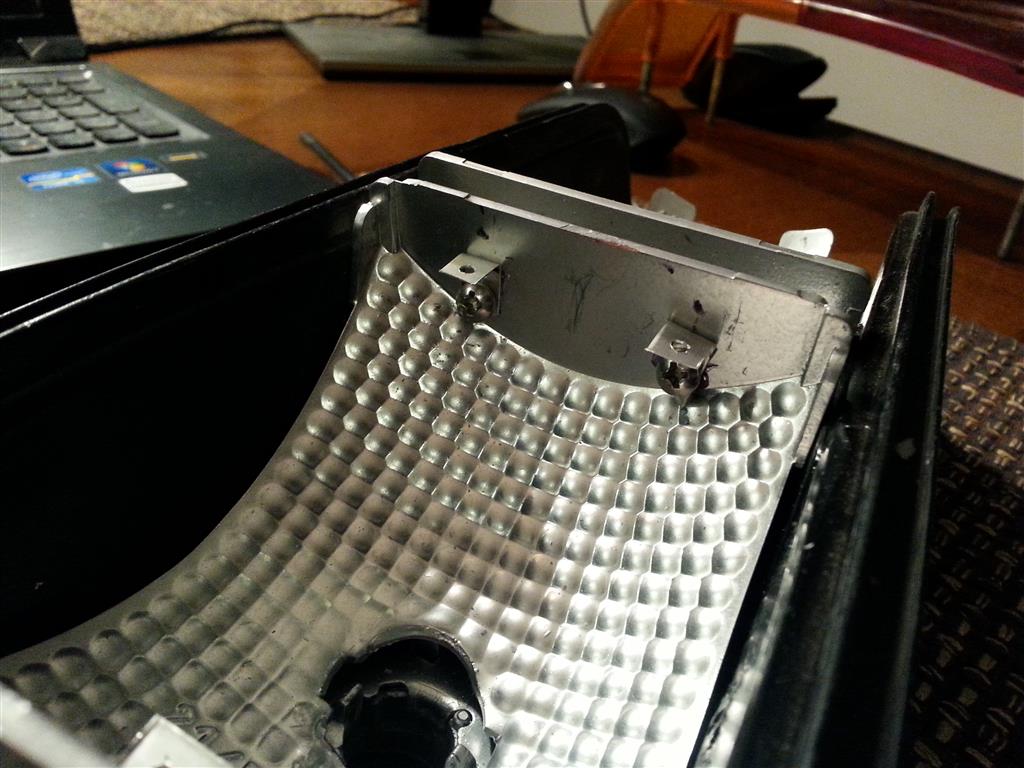

I made 3 small brackets and attached to the inside of the brake fixture.

Before attaching the brackets to the fixture, I had to determine the plane on which to place the PCB so that it would be perpendicular to the vehicle. The LED light is concentrated 90 degrees from the mounting surface of the PCB. We want the majority of the light to be focused directly behind the vehicle.

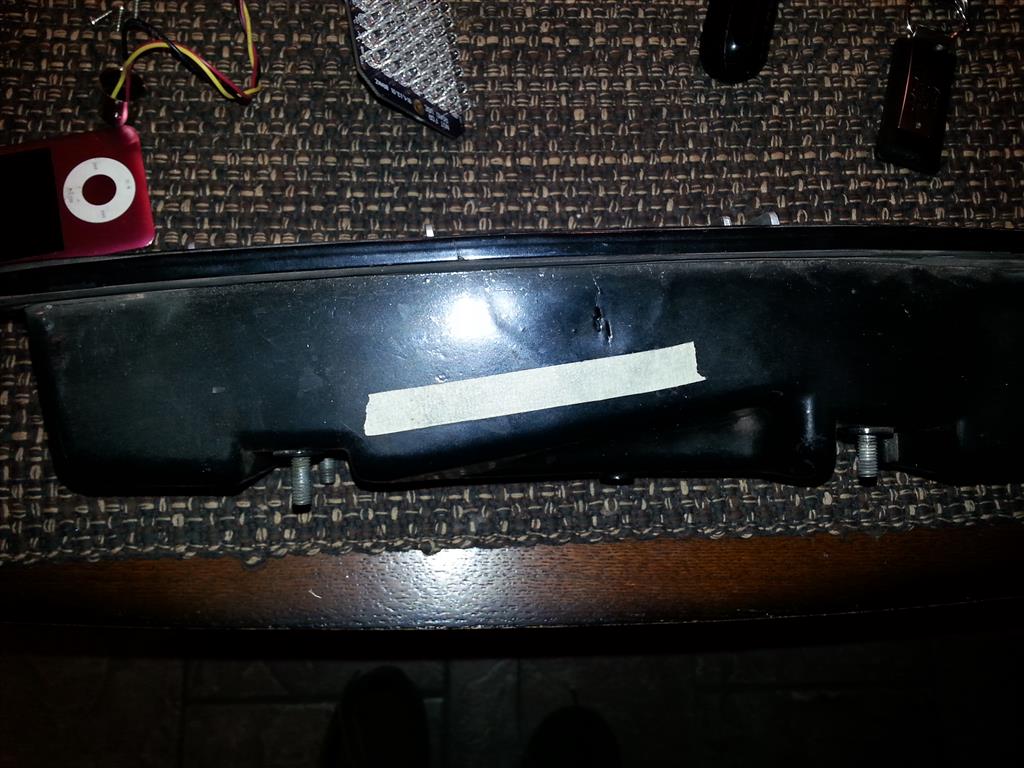

I applied the piece of tape while the fixture was mounted on the car. Since the rear of the car is slightly rounded, the tape and plane of the PCB is not parallel to the surface of the fixture.

Attached Image

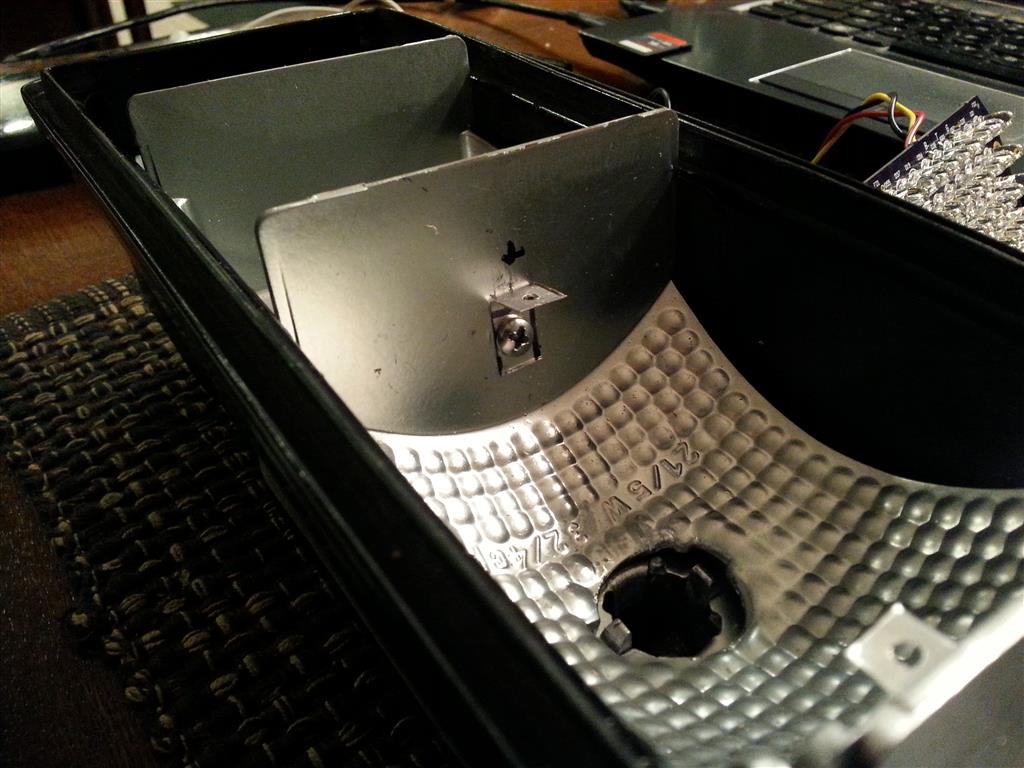

After determining the angle of the PCB, I drilled pilot holes and secured the brackets with 3/8 inch #6 screws.

Attached Image

Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 20 2013, 10:41 PM
Post #194


Jerry
*****

Group: Members
Posts: 6,996
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None

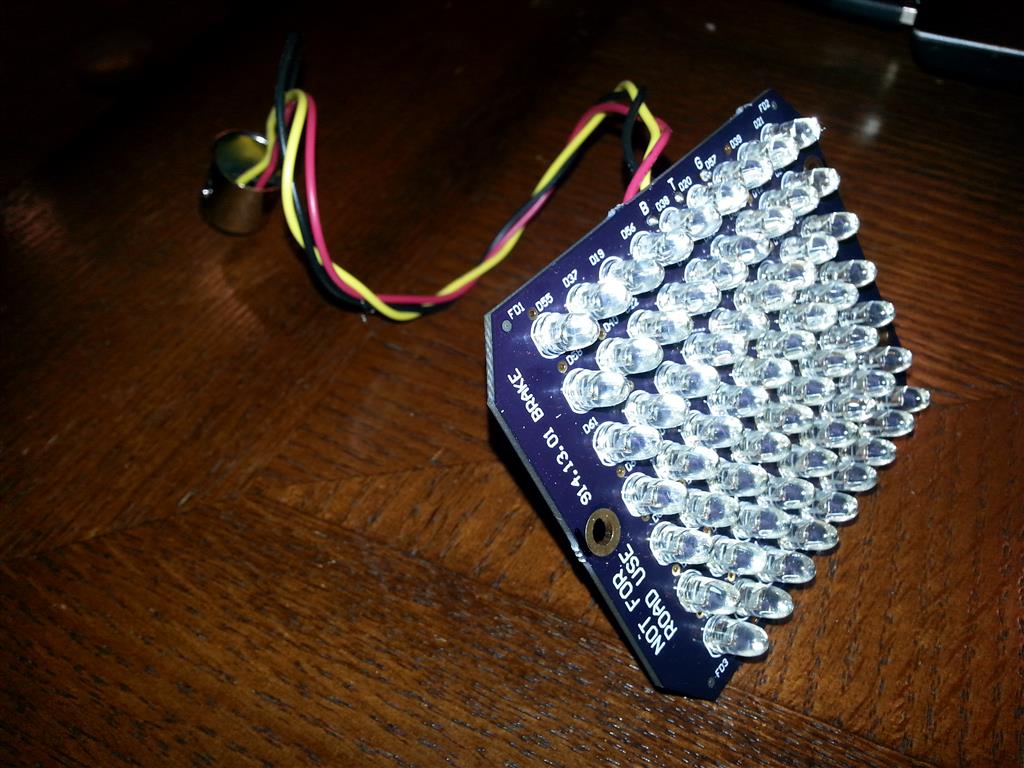

A 1057 base was soldered onto the pigtail from the PCB. This will make removing the PCB quite easy. This board is a test platform and I don't expect it to remain in the vehicle forever.

I still have the other high power LED design to build and test.

Attached Image

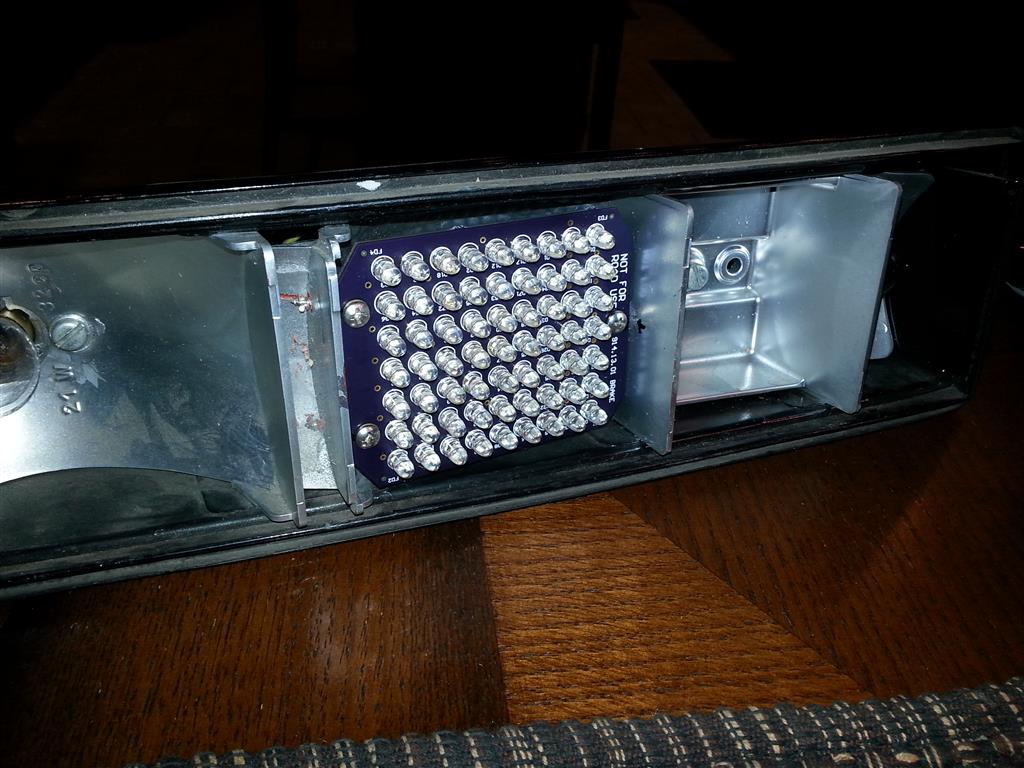

The board mounted in the light fixture. The board fits quite nicely. It probably could have been a few millimeters taller but will do the job quite nicely.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rleog
post Dec 21 2013, 04:44 AM
Post #195


Senior Member
***

Group: Members
Posts: 608
Joined: 12-October 03
From: Middleton, MA
Member No.: 1,239
Region Association: North East States
Great to see this coming together. Very nicely done.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Dec 21 2013, 08:29 AM
Post #196


Jerry
*****

Group: Members
Posts: 6,996
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None

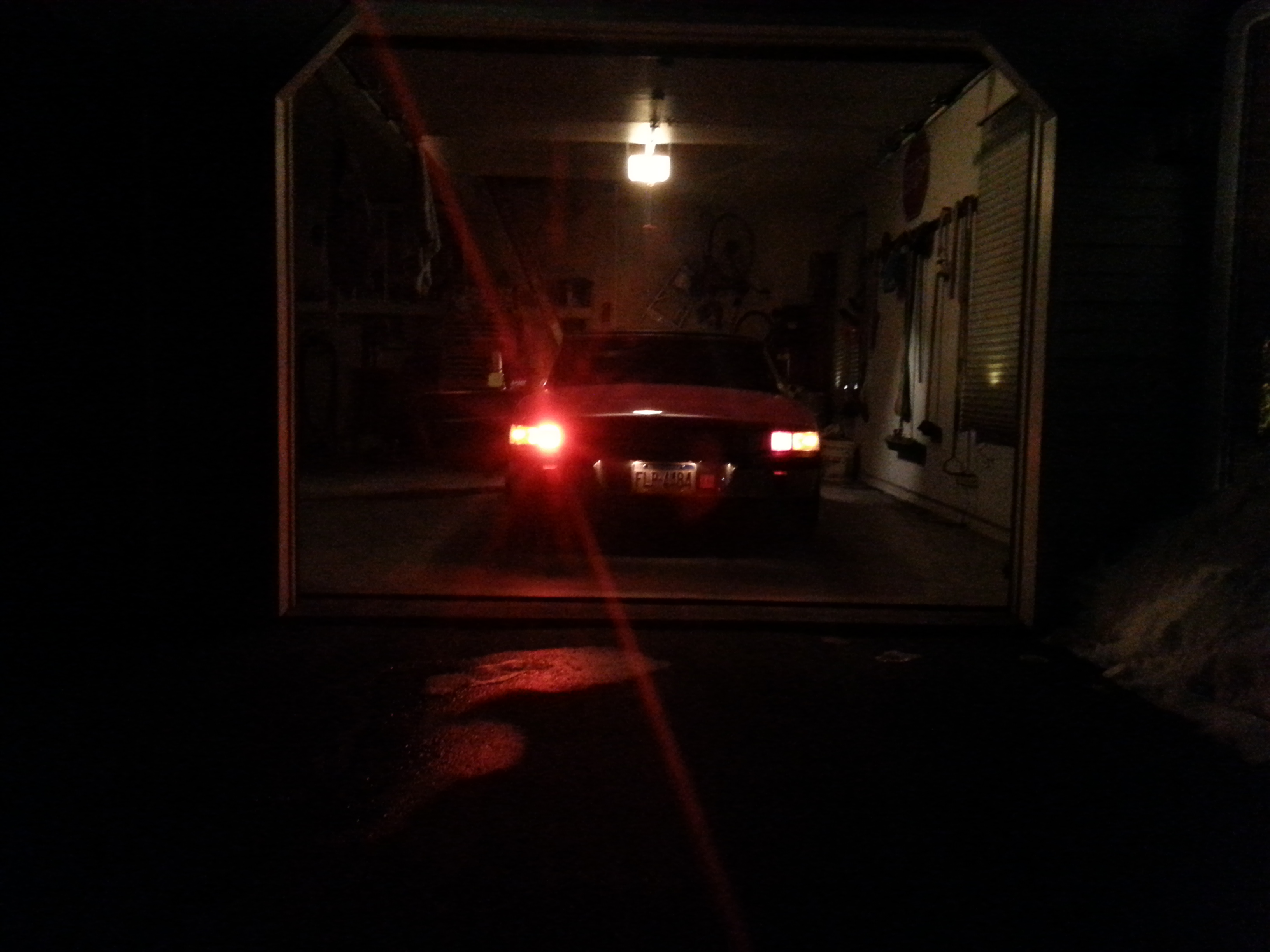

Here's some comparisons of the brightness of the brake light. As before in the office, there is no comparison to the light output directed behind the vehicle.

The 1057 lamp is bright and shines some light rearwards but the LEDs illuminate rearward big time.


Attached Image



Also a video of the brake comparison:

https://www.youtube.com/watch?v=jQx6pgGpsoI



Here's the running light comparison. Not sure if they are too bright for running lights. They are definitely pulling more current than I designed them for. I may tune these down a bit.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Speedmster
post Dec 21 2013, 11:19 AM
Post #197


Member
**

Group: Members
Posts: 62
Joined: 19-September 07
From: Louisville, Ky
Member No.: 8,132
Region Association: MidAtlantic Region
Thats a pretty big difference. Looks good!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
StratPlayer
post Dec 21 2013, 11:59 AM
Post #198


StratPlayer
****

Group: Members
Posts: 3,278
Joined: 27-December 02
From: SLC, Utah
Member No.: 27
Region Association: Rocky Mountains
Bit to bright
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rleog
post Dec 21 2013, 12:41 PM
Post #199


Senior Member
***

Group: Members
Posts: 608
Joined: 12-October 03
From: Middleton, MA
Member No.: 1,239
Region Association: North East States
Well....Duh!

I looked at the 1st pic above, then wondered where was the pic showing the regular 1057 bulb. (IMG:style_emoticons/default/av-943.gif)

Then I realized, after looking at the lower pic, that the 1057 lamp was also lit. What a contrast. I think you have a winner here.

(IMG:style_emoticons/default/first.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stugray
post Dec 21 2013, 01:22 PM
Post #200


Advanced Member
****

Group: Members
Posts: 3,825
Joined: 17-September 09
From: Longmont, CO
Member No.: 10,819
Region Association: None
Sorry, I didnt read the whole thread but curious:

Have you tried single CREE XRE type of LEDs shining backwards towards the reflector?

I build LED lighting for reef fishtanks (THOUSANDS of watts) and some for local grow operations (I live in Colorado ...wink, wink....).

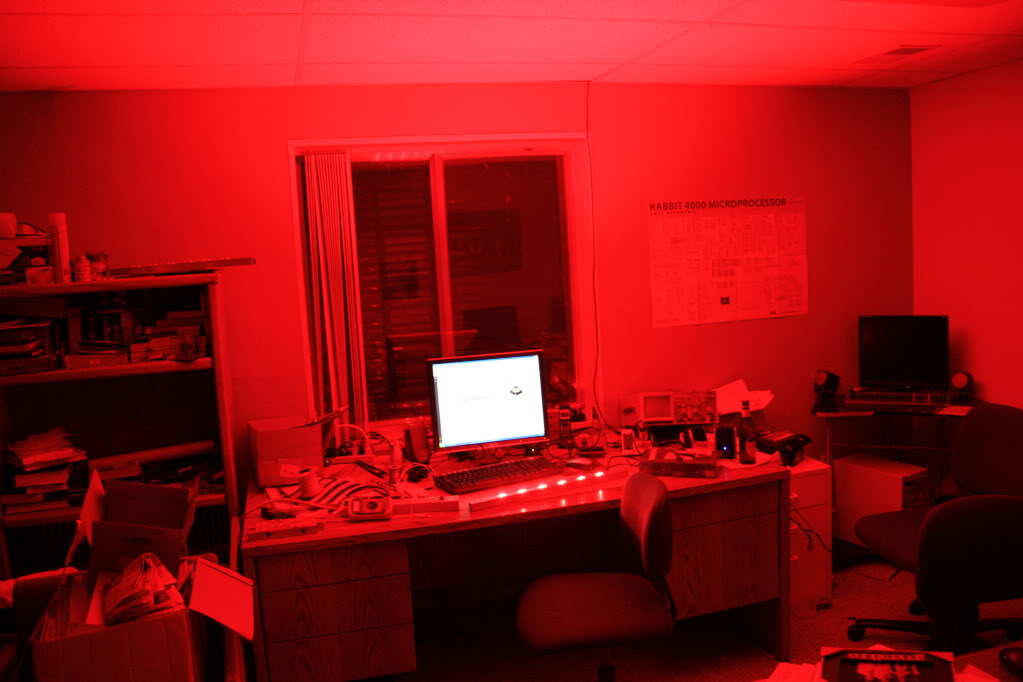

I have built some pure red
(IMG:http://www.914world.com/bbs2/uploads_offsite/i366.photobucket.com-10819-1387653737.1.jpg)

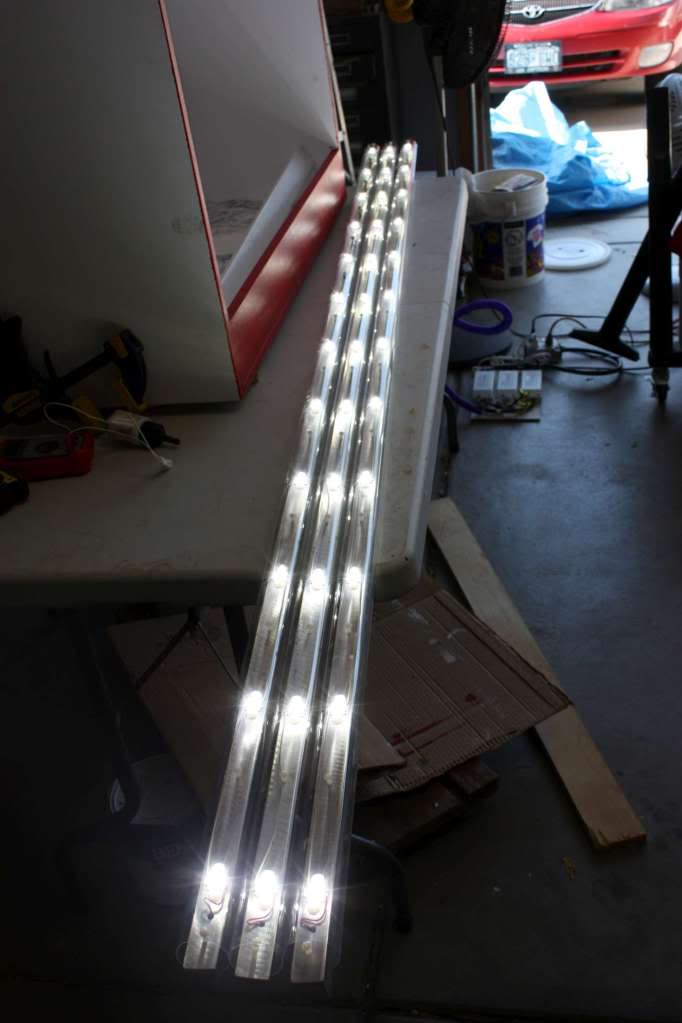

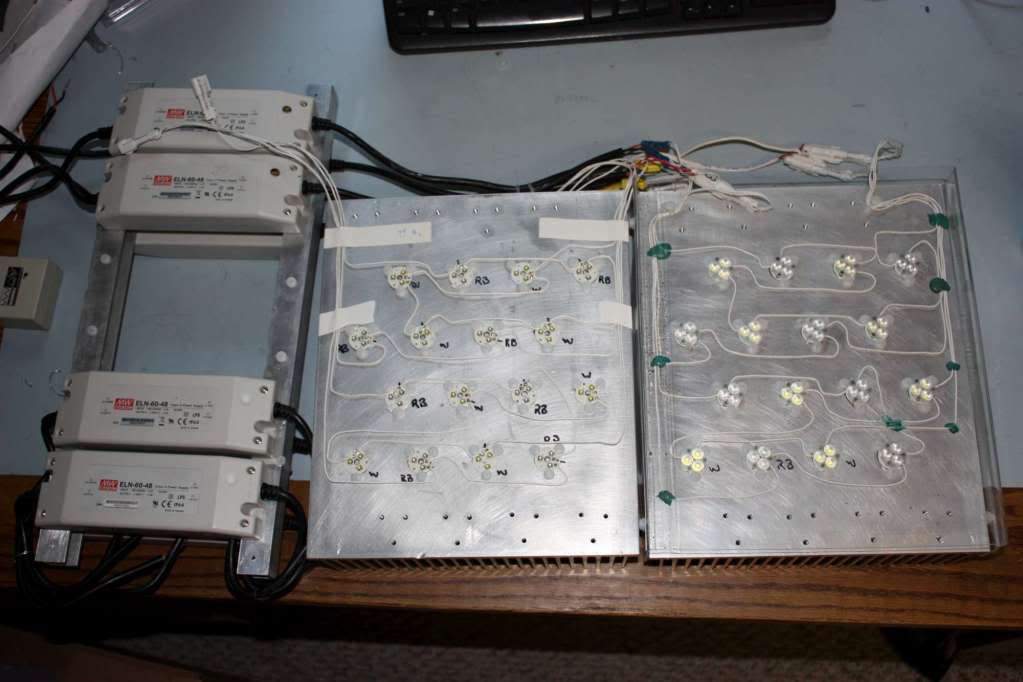

Or trying to match the Sun's spectrum in strips:
(IMG:http://www.914world.com/bbs2/uploads_offsite/i366.photobucket.com-10819-1387653737.2.jpg)

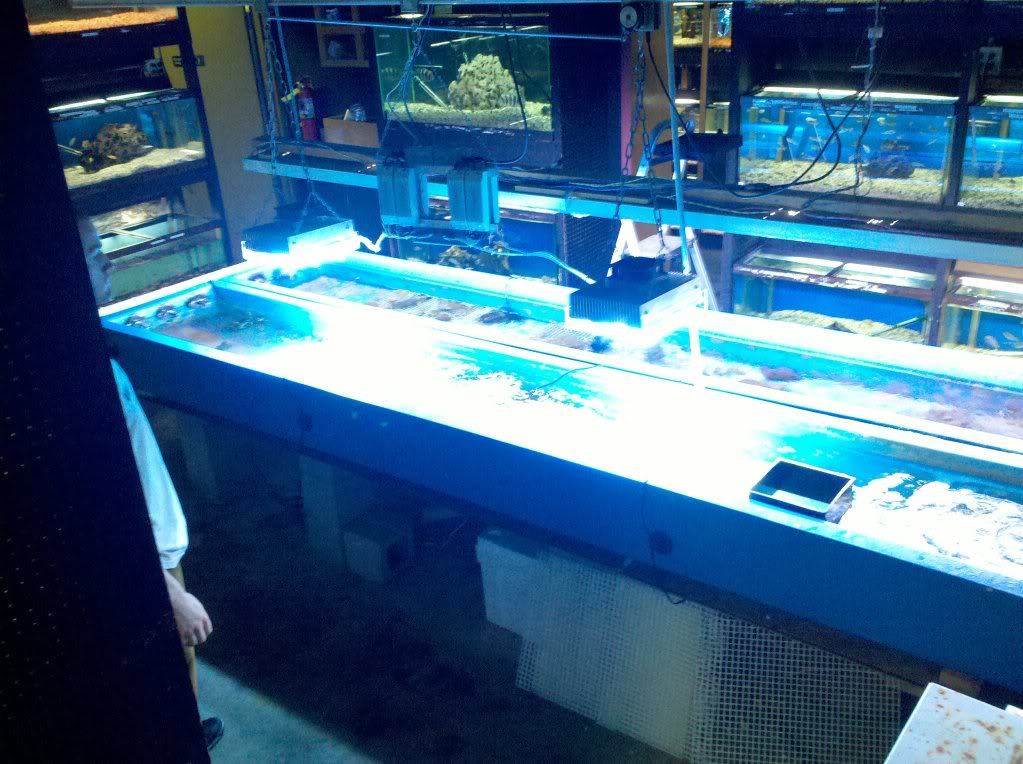

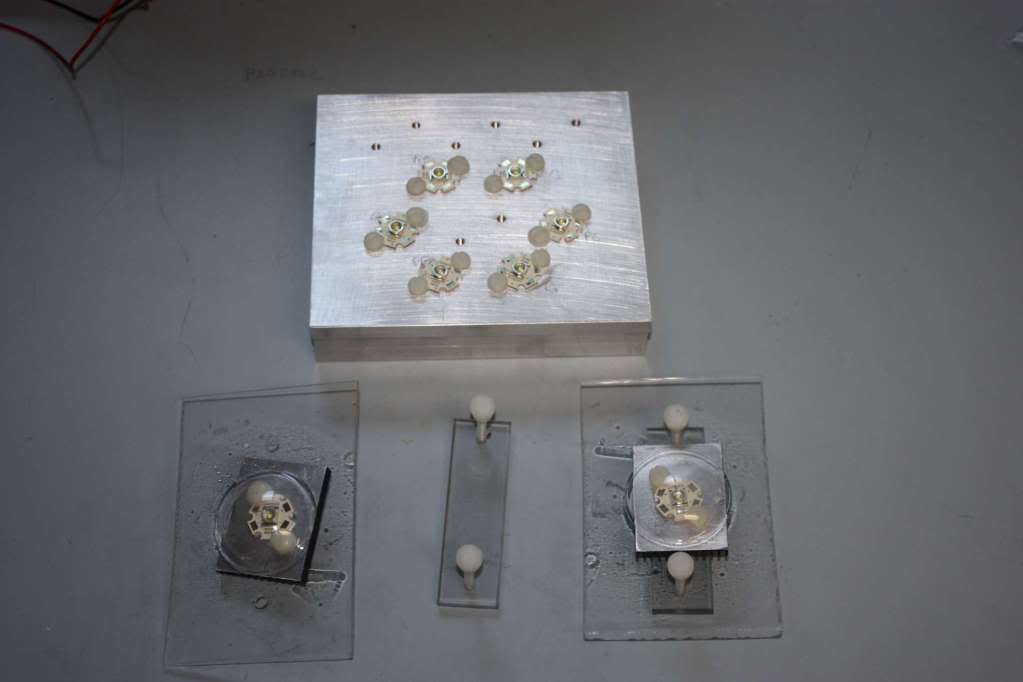

Or "spotlight" types:
(IMG:http://www.914world.com/bbs2/uploads_offsite/i366.photobucket.com-10819-1387653737.3.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/i366.photobucket.com-10819-1387653737.4.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/i366.photobucket.com-10819-1387653737.5.jpg)

The drivers I use are meanwell AC-DC constant current, but you could easily use the Buckpuck DC-DC versions.
