> LED Taillights, Custom Made for the 914
Spoke
post Mar 23 2014, 02:14 PM
Post #321


Jerry
*****

Group: Members
Posts: 7,113
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(r_towle @ Mar 23 2014, 03:23 PM) *

Will I need to modify the turn signal housing?
I never heard your conclusions on that....


The goal is to not make any modifications to the housing. I have a solution now but not real happy with it.

You can see below that the inside uses 2 clips on the divider and secures the board well to the divider like the brake light.

Unlike the brake light, there is nothing but open space on the outside of the turnsignal light. So I've got a clip going to the indentation in the reflector for the side light but the clip is long and does not give good up and down stability.

I've made the rev 2 board a bit taller so it may fit more snugly top-bottom than the rev 1 high power LED board shown here and maybe this type of clip will be ok. I'll know better when I get the rev 2 boards in hand.

If anyone has ideas on how to secure the outside of the turnsignal boards I'm all ears.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Mar 23 2014, 02:22 PM
Post #322


Custom Member
***************

Group: Members
Posts: 24,695
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Describe the problem with pics....you might get some ideas.
For me, I cannot figure out what you are talking about yet (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Mar 23 2014, 06:04 PM
Post #323


Jerry
*****

Group: Members
Posts: 7,113
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None

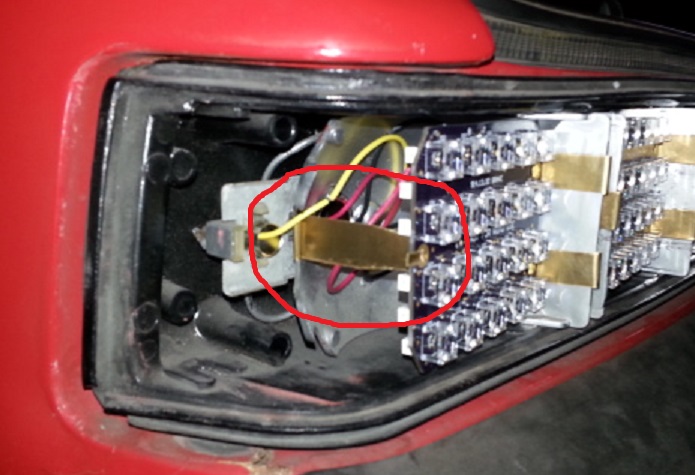

Here's more of a close-up of the clip.

The clip connects to the reflector and is about 1.5 inches to the PCB. OK support horizontal but allows quite a bit of movement up and down.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
db9146
post Mar 23 2014, 08:41 PM
Post #324


Senior Member
***

Group: Members
Posts: 953
Joined: 21-December 04
From: Atlanta, GA
Member No.: 3,315
Region Association: None
Would it be possible to use a couple of small "v"-shaped spring clips at the top and bottom of the boards to hold them in place vertically? If you lay the clips on their side like wedges, it seems that might do the trick and still not require permanent modification to the housing.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
7TPorsh
post Mar 24 2014, 12:05 PM
Post #325


7T Porsh
****

Group: Members
Posts: 2,691
Joined: 27-March 06
From: Glendale Ca
Member No.: 5,782
Region Association: Southern California
how about some small rubber pads or bumpers on the top and bottom...weather seal?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CptTripps
post Mar 24 2014, 12:17 PM
Post #326


:: Punch and Pie ::
****

Group: Members
Posts: 3,584
Joined: 26-December 04
From: Mentor, OH
Member No.: 3,342
Region Association: Upper MidWest
What about a triangle with 2 small bends. Two holes would mount to the bucket, the other to the board.

Like this...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Mar 24 2014, 02:13 PM
Post #327


914 Guru
*****

Group: Members
Posts: 5,519
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
Now you're talkin' I like that bracket idea.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Mar 24 2014, 08:20 PM
Post #328


Jerry
*****

Group: Members
Posts: 7,113
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(db9146 @ Mar 23 2014, 10:41 PM) *

Would it be possible to use a couple of small "v"-shaped spring clips at the top and bottom of the boards to hold them in place vertically? If you lay the clips on their side like wedges, it seems that might do the trick and still not require permanent modification to the housing.


Interesting idea. Something similar to this is used on recessed lighting rings. I didn't think about securing on the edges.

QUOTE(7TPorsh @ Mar 24 2014, 02:05 PM) *

how about some small rubber pads or bumpers on the top and bottom...weather seal?


A rubber dot with a slot to hold the board in it would work. Although I made the rev 2 boards with literally zero play on the top and bottom. Like db's above, I like the idea of edge securing.

QUOTE(CptTripps @ Mar 24 2014, 02:17 PM) *

What about a triangle with 2 small bends. Two holes would mount to the bucket, the other to the board.


This looks like it would work. One thing though, what about the side lens that is missing on my housing? Are those glued in or just sitting in the slot?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CptTripps
post Mar 25 2014, 07:23 AM
Post #329


:: Punch and Pie ::
****

Group: Members
Posts: 3,584
Joined: 26-December 04
From: Mentor, OH
Member No.: 3,342
Region Association: Upper MidWest
QUOTE(Spoke @ Mar 24 2014, 10:20 PM) *


QUOTE(CptTripps @ Mar 24 2014, 02:17 PM) *

What about a triangle with 2 small bends. Two holes would mount to the bucket, the other to the board.


This looks like it would work. One thing though, what about the side lens that is missing on my housing? Are those glued in or just sitting in the slot?


I'll look tonight, but you could likely make a shield with a small piece of plastic. Another thought would be to have a few LEDs on the triangle piece, so the side of the light would illuminate as well. Really there's no down-side to having extra lighting on the side to show that you're turning. (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Mar 25 2014, 09:06 PM
Post #330


Jerry
*****

Group: Members
Posts: 7,113
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
Waiting for the brake PCBs to be delivered..Tomorrow (IMG:style_emoticons/default/smile.gif)

Just can't stop drawing pictures. Wonder where this one goes?

The white LEDs will blank out when the Amber LEDs flash.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
CptTripps
post Mar 26 2014, 06:58 AM
Post #331


:: Punch and Pie ::
****

Group: Members
Posts: 3,584
Joined: 26-December 04
From: Mentor, OH
Member No.: 3,342
Region Association: Upper MidWest
Now you're talking....

Love it!

You could also do a version with the top half in yellow and the bottom in white. Like the "Euro" lenses...without the need for the lens.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Mar 26 2014, 06:59 AM
Post #332


Michael
**********

Group: Members
Posts: 10,165
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Excellent! I can see that my car will be all LED equipped when the time comes. On the fronts will you do a version for the euro lens too?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Mar 26 2014, 08:02 AM
Post #333


914 Guru
*****

Group: Members
Posts: 5,519
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
Re: Front turns...
Like the others said...if you make a euro style with the bottom running light white and on when parking lights and headlights are on...and the flasher above, it would be perfect!

I'm excited about the front/back LED lights, they are the way to go to be seen.

I still need to order some 356 ones, then I'll order your 914 ones when I put my car back together!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Chris H.
post Mar 26 2014, 08:33 AM
Post #334


Senior Member
****

Group: Members
Posts: 4,053
Joined: 2-January 03
From: Chicago 'burbs
Member No.: 73
Region Association: Upper MidWest
QUOTE(Spoke @ Mar 25 2014, 10:06 PM) *

Waiting for the brake PCBs to be delivered..Tomorrow (IMG:style_emoticons/default/smile.gif)

Just can't stop drawing pictures. Wonder where this one goes?

The white LEDs will blank out when the Amber LEDs flash.

Attached Image

Attached Image


Always on running lights in white around the outer part?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Mar 26 2014, 02:50 PM
Post #335


Jerry
*****

Group: Members
Posts: 7,113
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(Chris H. @ Mar 26 2014, 10:33 AM) *

Always on running lights in white around the outer part?


That's what I would like to do with the lights. This would give the 914 a cool oval running light signature.

When turn signals are on, these would blank out until the turnsignals go off.

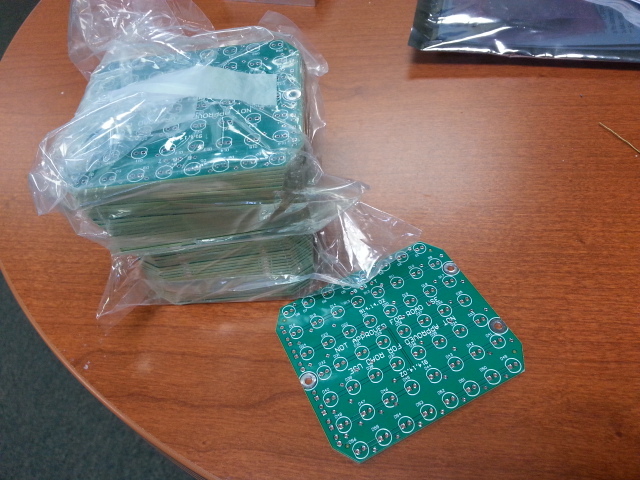

Boards are in. Let the fun begin. (IMG:style_emoticons/default/beerchug.gif)



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porsche_dreamer
post Mar 26 2014, 03:32 PM
Post #336


Member
**

Group: Members
Posts: 147
Joined: 21-December 10
From: Harrison, OH
Member No.: 12,505
Region Association: None
Cant wait to see these! WANT!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
timothy_nd28
post Mar 26 2014, 03:46 PM
Post #337


Advanced Member
****

Group: Members
Posts: 2,299
Joined: 25-September 07
From: IN
Member No.: 8,154
Region Association: Upper MidWest
Very impressive (IMG:style_emoticons/default/aktion035.gif) Which board factory did you use?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Mar 26 2014, 04:03 PM
Post #338


Jerry
*****

Group: Members
Posts: 7,113
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(timothy_nd28 @ Mar 26 2014, 05:46 PM) *

Very impressive (IMG:style_emoticons/default/aktion035.gif) Which board factory did you use?


Thanks.

We use Sierra Circuits quite a bit. Quick turns and longer at reasonable prices.

Had a chance to build one light tonight. I did an amber turnsignal to see how it looks. No pics right now.

Power dissipation is exactly what I expected. Temp rise is very manageable at about 25C.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ThePaintedMan
post Mar 26 2014, 04:25 PM
Post #339


Advanced Member
****

Group: Members
Posts: 3,886
Joined: 6-September 11
From: St. Petersburg, FL
Member No.: 13,527
Region Association: South East States
The 911 guys are going to start hating us when these puppies start rolling out. Very thankful to have someone as talented as you Spoke (and Tim, Rick, Scotty, Joe, Mark, Chris, etc... the list goes on and on) - this stuff boggles my mind.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
timothy_nd28
post Mar 26 2014, 06:06 PM
Post #340


Advanced Member
****

Group: Members
Posts: 2,299
Joined: 25-September 07
From: IN
Member No.: 8,154
Region Association: Upper MidWest
QUOTE(Spoke @ Mar 26 2014, 03:03 PM) *

QUOTE(timothy_nd28 @ Mar 26 2014, 05:46 PM) *

Very impressive (IMG:style_emoticons/default/aktion035.gif) Which board factory did you use?


Thanks.

We use Sierra Circuits quite a bit. Quick turns and longer at reasonable prices.

Had a chance to build one light tonight. I did an amber turnsignal to see how it looks. No pics right now.

Power dissipation is exactly what I expected. Temp rise is very manageable at about 25C.


Thanks, I might give Sierra Circuits a try. I've been messing around with a prototype tachometer board that will replace the old tired control.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
