> CV bolt, lock washers
Elliot Cannon
post Jan 28 2013, 08:05 PM
Post #1


914 Guru
*****

Group: Retired Members
Posts: 8,487
Joined: 29-December 06
From: Paso Robles Ca. (Central coast)
Member No.: 7,407
Region Association: None

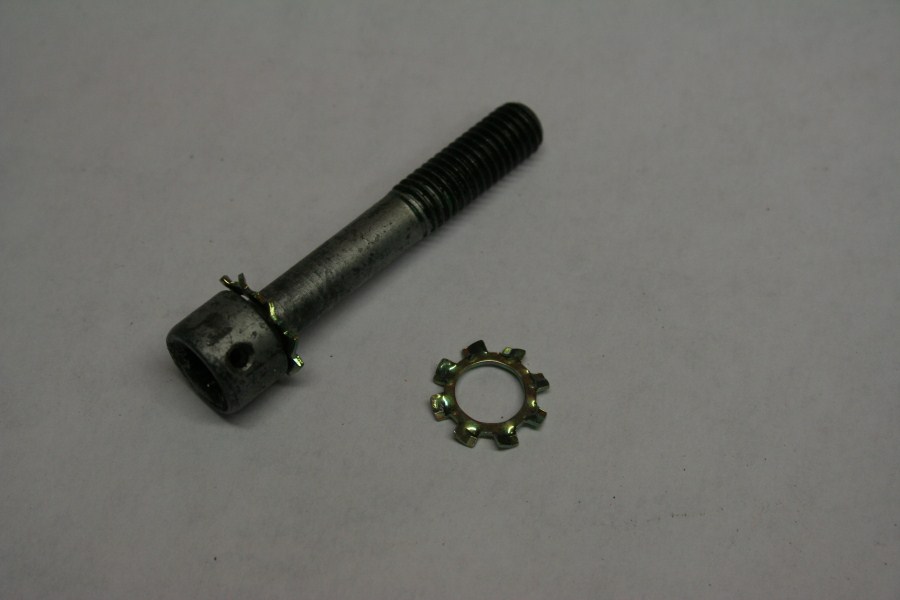

I sent to Pellican for CV bolt lock washers. I think I could have found these at the local hardware store. Are the others not available anymore. Should I trust these?


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Jan 28 2013, 08:13 PM
Post #2


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,835
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Actually, I found schnorr washers at my local Ace hardware store. I would not use those washers they sent but that's just me.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Elliot Cannon
post Jan 28 2013, 08:15 PM
Post #3


914 Guru
*****

Group: Retired Members
Posts: 8,487
Joined: 29-December 06
From: Paso Robles Ca. (Central coast)
Member No.: 7,407
Region Association: None
There is an Ace hardware in town. I'll check there tomorrow. Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Jan 28 2013, 08:21 PM
Post #4


I am Tangerine Racing
*****

Group: Members
Posts: 7,969
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
Bad on Pelican.
I buy Schnorr washers a hundred at a time.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bigkensteele
post Jan 28 2013, 08:25 PM
Post #5


Major Member
****

Group: Members
Posts: 2,197
Joined: 30-August 04
From: Cincinnati, OH
Member No.: 2,660
Region Association: South East States
Mr. Shea has them as well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlestep
post Jan 28 2013, 08:30 PM
Post #6


I am smilin'...
***

Group: Members
Posts: 890
Joined: 15-January 08
From: Sunrise Florida
Member No.: 8,573
Region Association: South East States
serrated, black oxide spring washer (Schnorr)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Elliot Cannon
post Jan 28 2013, 08:34 PM
Post #7


914 Guru
*****

Group: Retired Members
Posts: 8,487
Joined: 29-December 06
From: Paso Robles Ca. (Central coast)
Member No.: 7,407
Region Association: None
QUOTE(dlestep @ Jan 28 2013, 06:30 PM) *

serrated, black oxide spring washer (Schnorr)

That's what I thought I was getting. Looks like I'll be sending them back. (IMG:style_emoticons/default/happy11.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
LotusJoe
post Jan 29 2013, 04:48 PM
Post #8


Europa Twink Driver
**

Group: Members
Posts: 406
Joined: 30-November 09
From: Southern California
Member No.: 11,085
Region Association: Southern California
(IMG:http://www.914world.com/bbs2/uploads_offsite/www.schnorr.com-11085-1359499734.1.jpg)
I would use the proper washer.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
toadman
post Jan 29 2013, 04:53 PM
Post #9


Member
**

Group: Members
Posts: 168
Joined: 26-December 05
From: Cincinnati, OH
Member No.: 5,316
I got mine from Brad Mayeur at 914 LTD.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Jan 29 2013, 06:33 PM
Post #10


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
If no luck locally, McMaster Carr is your friend.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jan 29 2013, 07:07 PM
Post #11


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
PM me your address. I'll send some out tomorrow.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Jan 30 2013, 09:23 AM
Post #12


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,198
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
elliot, i have a washer bag that came from mcmaster (iirc) for the washers.

100 pack
#93501A030
hardened steel serrated BELLEVILLE washers
5/16" screw sz, .331"id, .512"od, .0280" min thk.

k
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
A&PGirl
post Jan 30 2013, 10:14 AM
Post #13


Senior Member
***

Group: Members
Posts: 1,019
Joined: 4-January 06
From: Oklahoma
Member No.: 5,367
Region Association: None
Belleville and Schnorr are actually (2) different washers.

The Schnorr Safety Washer S (registered) is the correct washer to use. They come black, yellow, clear zinc and stainless steel. M8 is 1000/box.

I've contacted Schnorr before and gotten a quote from them.

I am willing buy the washers from Schnorr as business in your choice to get the best pricing.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Jan 30 2013, 10:18 AM
Post #14


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,198
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
whats the dif between the belleville and the schnorr carrie? metric vs sae? they seem to fit the same and have the 'cupping'.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Phoenix-MN
post Jan 30 2013, 10:28 AM
Post #15


Senior Member
***

Group: Members
Posts: 927
Joined: 23-January 04
From: ST. Bonifacius,MN
Member No.: 1,590
From the Schnorr handbook

The benefi ts
of SCHNORR® Disc Springs
also known as Belleville Springs result in
design engineers continually increasing
preference for them:
1. Load/defl ection curve of straight,
progressive or regressive character,
according to the design requirements.
2. Alteration of spring performance as
desired by the addition or removal of
single discs.
3. Space saving.
4. Largely self-damping, particularly
with parallel stacking, giving good
shock absorption and energy dissipation.
5. No deformation or fatigue under
normal loads.
6. Long service life.
7. The large range of possible applications
for individual spring sizes simplifi
es stock-keeping.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jeffdon
post Jan 30 2013, 10:36 AM
Post #16


Senior Member
***

Group: Members
Posts: 1,094
Joined: 24-October 06
From: oakland, ca
Member No.: 7,087
Region Association: None
QUOTE(Elliot Cannon @ Jan 28 2013, 06:05 PM) *

I sent to Pellican for CV bolt lock washers. I think I could have found these at the local hardware store. Are the others not available anymore. Should I trust these?


Same thing happened to me. Been debating using them. I also safety wire mine, so I would think its ok.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Jan 30 2013, 11:08 AM
Post #17


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,198
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
so...pelican lists them as superseded to 999 523 102 OB OEM @ a buck a pop or 100 of them for $.1025 each from mcmaster. (IMG:style_emoticons/default/dry.gif) interesting...pelican lists 8 required per car. that should read per 8 axle or 16 per car. get on that dave. (IMG:style_emoticons/default/biggrin.gif)

k
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Elliot Cannon
post Jan 30 2013, 05:05 PM
Post #18


914 Guru
*****

Group: Retired Members
Posts: 8,487
Joined: 29-December 06
From: Paso Robles Ca. (Central coast)
Member No.: 7,407
Region Association: None
QUOTE(jeffdon @ Jan 30 2013, 08:36 AM) *

QUOTE(Elliot Cannon @ Jan 28 2013, 06:05 PM) *

I sent to Pellican for CV bolt lock washers. I think I could have found these at the local hardware store. Are the others not available anymore. Should I trust these?


Same thing happened to me. Been debating using them. I also safety wire mine, so I would think its ok.

I safety wire mine as well but I will NOT be using these washers. I've got some on the way. Thanks Mark.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jan 30 2013, 05:21 PM
Post #19


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
McMaster washers come in a bag labelled SCHNORR in big letters. I'm content. (IMG:style_emoticons/default/cool_shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
913B
post Jan 30 2013, 05:38 PM
Post #20


Senior Member
***

Group: Members
Posts: 855
Joined: 25-April 05
From: South Bay/SoCal
Member No.: 3,983
Region Association: None
Since we are talking about these little washers. Is there a correct way they should face or it doesn't matter. Know what I mean ?? :-)
