> Porsche 914 - 8 GTT, November '24 Update
RoadGlue
post Feb 26 2018, 09:05 PM
Post #281


Sonoma County Gear Head
****

Group: Admin
Posts: 2,033
Joined: 8-January 03
From: Santa Rosa, CA
Member No.: 108
Region Association: Northern California
(IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve
post Feb 26 2018, 09:07 PM
Post #282


914 Guru
*****

Group: Members
Posts: 5,728
Joined: 14-June 03
From: Orange County, CA
Member No.: 822
Region Association: Southern California
HP to weight, this reminds me more of a motorcycle. Can’t wait to see some track videos from Willow Springs when this is done. Be safe!!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Larmo63
post Feb 26 2018, 09:24 PM
Post #283


Advanced Member
****

Group: Members
Posts: 4,267
Joined: 3-March 14
From: San Clemente, Ca
Member No.: 17,068
Region Association: Southern California
WOW. Just wow, Marty. This is coming along nicely!!!! (IMG:style_emoticons/default/smilie_pokal.gif)

By the way, my MSDS headers are a work of art under my car too.

I also used the Tangerine struts when I did my welding. I'm glad I did.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Feb 26 2018, 09:52 PM
Post #284


Advanced Member
****

Group: Members
Posts: 4,849
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(MJHanna @ Feb 17 2018, 04:24 PM) *

Are you going to have it done by rennsport reunion? So we can come bum a beer and get googly eyed look at all your great worK.


Beers, bench racing, MSDS products and should be a wicked white 914 in our tent as well (IMG:style_emoticons/default/driving.gif)
Someone needs to bring the 914 World banner, it looked real good hanging in the tent at Renn5 (IMG:style_emoticons/default/biggrin.gif)
Marty
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Feb 26 2018, 11:19 PM
Post #285


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
Wow, the wife was wondering why I was just using so much foul language right now, that is just so ##$@,-%@#$@%. amazing.

All business, I shall be sending your rear tires early condolence letters.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Feb 27 2018, 12:17 AM
Post #286


Advanced Member
****

Group: Members
Posts: 4,849
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(Mueller @ Feb 26 2018, 09:19 PM) *

Wow, the wife was wondering why I was just using so much foul language right now, that is just so ##$@,-%@#$@%. amazing.

All business, I shall be sending your rear tires early condolence letters.


No cussing in front of the Girls (IMG:style_emoticons/default/biggrin.gif) ...do you think the rears will chirp from 5th to 6th ? (IMG:style_emoticons/default/thumb3d.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
horizontally-opposed
post Feb 27 2018, 02:14 AM
Post #287


Advanced Member
****

Group: Members
Posts: 3,445
Joined: 12-May 04
From: San Francisco
Member No.: 2,058
Region Association: None
This build is beyond cool. And it will sound NUTS through the gears.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
My 914
post Feb 27 2018, 10:16 AM
Post #288


Casual Member
***

Group: Members
Posts: 560
Joined: 23-April 16
From: Massachusetts
Member No.: 19,928
Region Association: North East States
Wow, beautiful engine! Looks great inside that white frame.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Feb 27 2018, 11:42 AM
Post #289


Advanced Member
****

Group: Members
Posts: 4,849
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(horizontally-opposed @ Feb 27 2018, 12:14 AM) *

This build is beyond cool. And it will sound NUTS through the gears.


Thank you Pete for the kind words....going through the gears will need to wait ...as we press on with 9148-gtt's build (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Feb 27 2018, 11:50 AM
Post #290


Advanced Member
****

Group: Members
Posts: 4,849
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
...really appreciate your interest in our build ! Randy, Steve, Lawrence Van and all you guys here for pushing this project along (IMG:style_emoticons/default/driving.gif)
Marty + Matt
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Feb 27 2018, 11:52 AM
Post #291


914 Guru
*****

Group: Members
Posts: 7,253
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
That looks awesome.. Very cool
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
siverson
post Feb 27 2018, 11:59 AM
Post #292


Advanced Member
****

Group: Benefactors
Posts: 2,451
Joined: 5-May 03
From: San Diego, CA
Member No.: 654
Region Association: Southern California
Awesome!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Mar 11 2018, 11:36 PM
Post #293


Advanced Member
****

Group: Members
Posts: 4,849
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(siverson @ Jul 15 2013, 10:44 PM) *

Awesome project!

> Porsche 996 GT2 Transmission

Do you have the basic dimensions of this transmission? Or anyone know where to find them?

- Overall length and width?
- Distance from bell housing to center of axle output flanges?
- Distance between output flanges?

Thanks - I have a new project I'm working on too...

-Steve


Attached Image

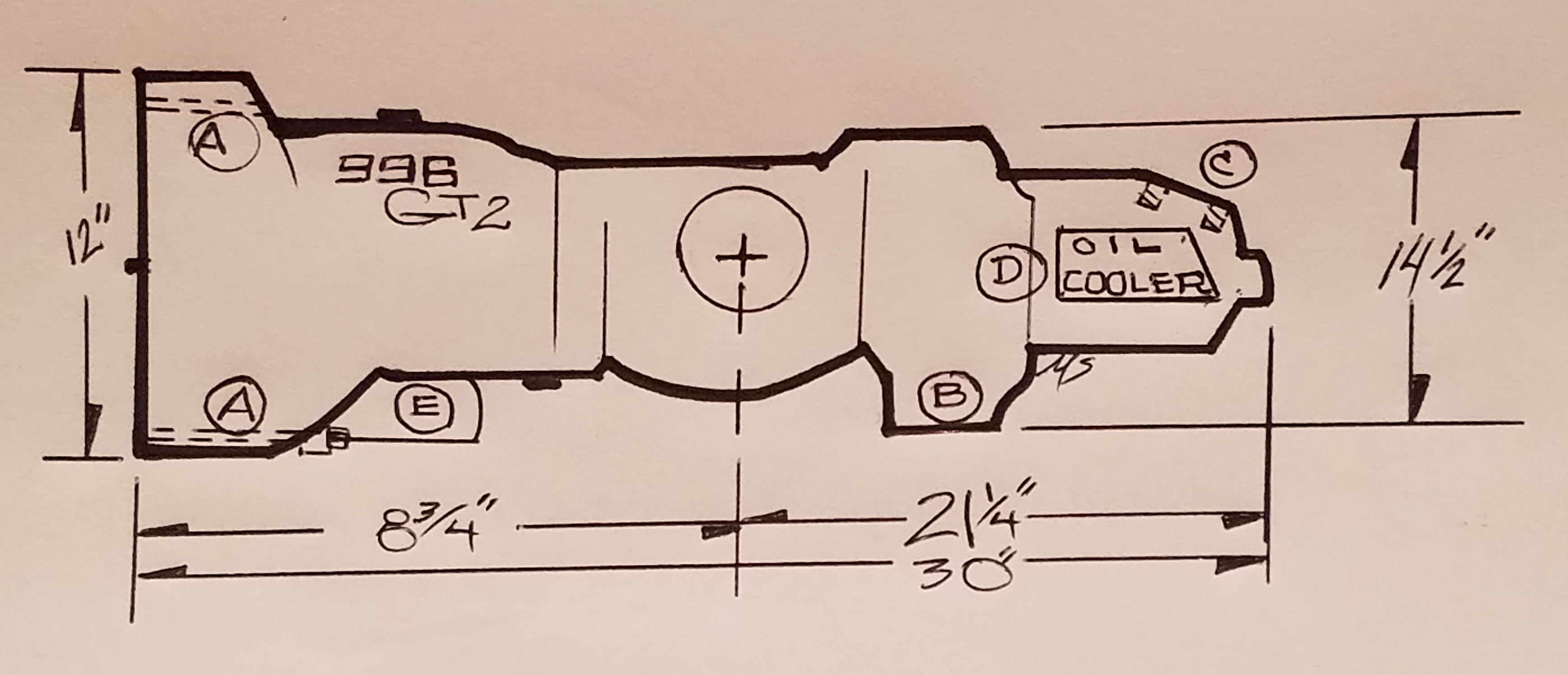

Note that this view is showing the 996gt2 trans Inverted, drain plug is now vent, and vent is now drain plug. There are also internal mods for proper oiling due to inverted operation...
Sketched this up for you today (not to scale, but good measurements) ...some notes:
A) the 4 bellhousing bolt locations are not the same as on air cooled
transaxles...there are a couple machine shops that can mod the 996 gt2 (bolt locations) for use on an air cooled 6.
B) This large rectangular aluminum area of the trans serves some purpose when in its original position, but I might machine most of it away for better clearence.
C) these threaded 8 x 1.25mm (4 total) bores make for a good start point for the rear trans mount.
D) Oil cooler adds + 3" to side-to-side dimensions...which is approx 8" wide...to 12" dia. at the bellhousing.
E) Starter motor resides on the lower right (pass) side.
Measurement of the outer distance for the drive flanges; Left to Right is 10" (distance between output flanges).
Hope this is of use to you Steve (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Mar 12 2018, 03:18 PM
Post #294


914 Idiot
***************

Group: Members
Posts: 15,060
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
I hope you're going to be doing some extra bracing of those rear suspension pickup points....

It looks like they're gonna need all of the help they can get!!!

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Mar 12 2018, 04:03 PM
Post #295


Advanced Member
****

Group: Members
Posts: 4,849
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE(Dave_Darling @ Mar 12 2018, 02:18 PM) *

I hope you're going to be doing some extra bracing of those rear suspension pickup points....

It looks like they're gonna need all of the help they can get!!!

--DD

Dave,
Big catch-net under the drivetrain (IMG:style_emoticons/default/blink.gif) !¡!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lucky9146
post Apr 16 2018, 08:43 PM
Post #296


Always Wanted A Bigger Go Cart
***

Group: Members
Posts: 1,663
Joined: 22-September 14
From: Poway California
Member No.: 17,942
Region Association: Southern California

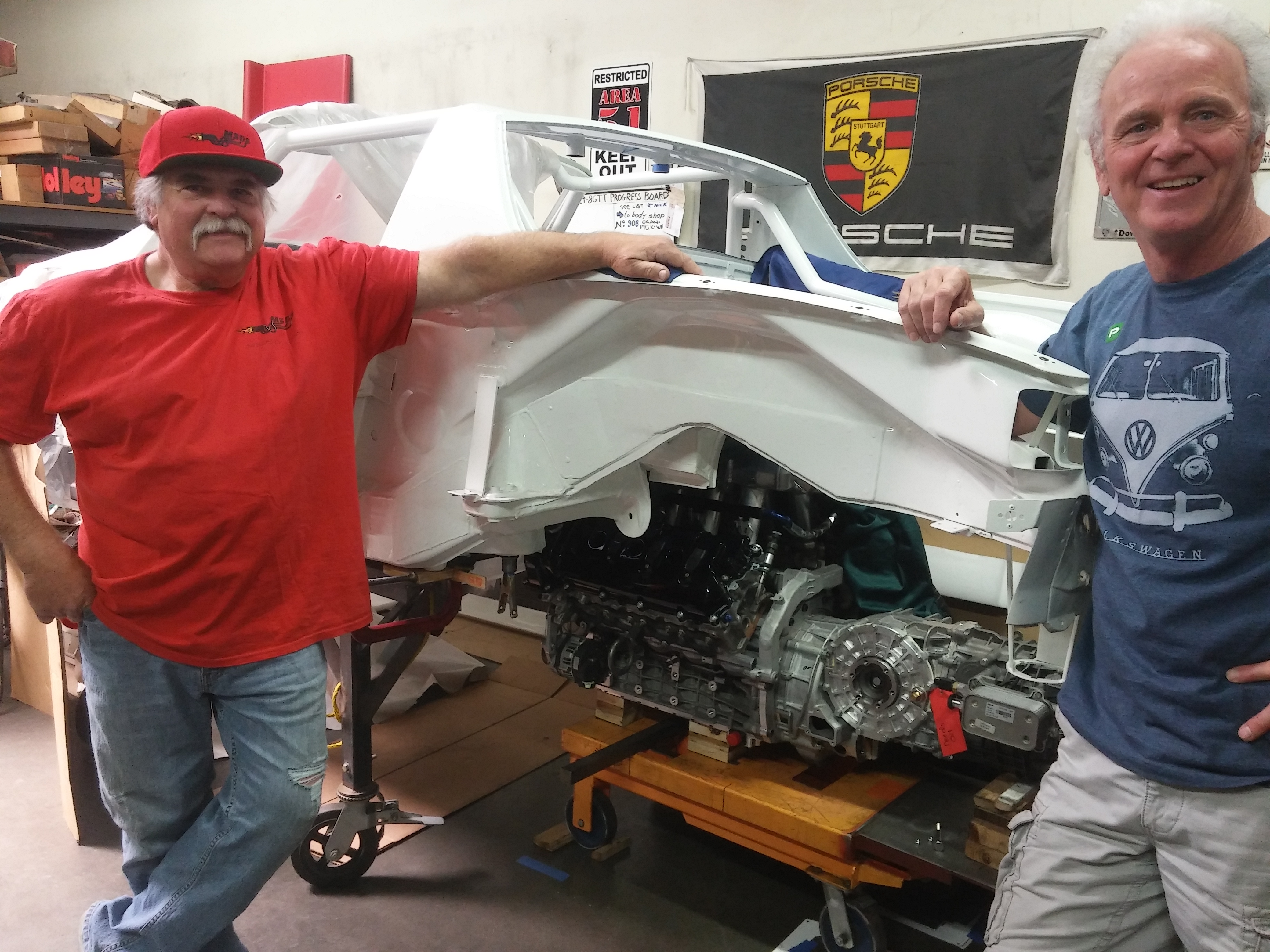

Had a chance to see this beast in person over the weekend and it is quite the build.
Nice work Marty! and great thread! WOW (IMG:style_emoticons/default/beerchug.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 30 2018, 03:02 PM
Post #297


Advanced Member
****

Group: Members
Posts: 4,849
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

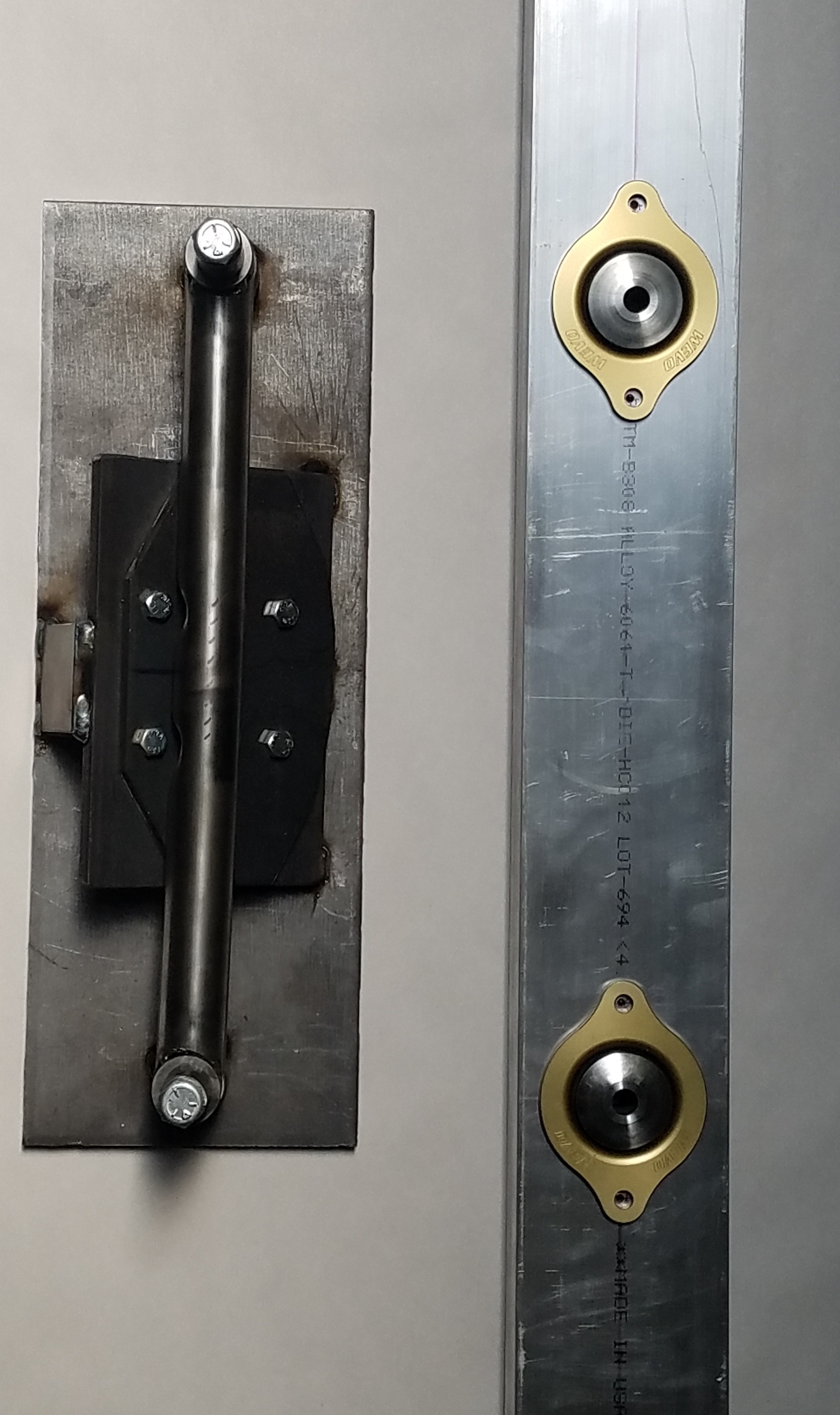

Engine mount assemblies in welding jigsAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Jun 30 2018, 03:05 PM
Post #298


Resident Electrician
*****

Group: Members
Posts: 8,346
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
I love jigs. Looks great. Burn 'em in!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 30 2018, 03:06 PM
Post #299


Advanced Member
****

Group: Members
Posts: 4,849
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

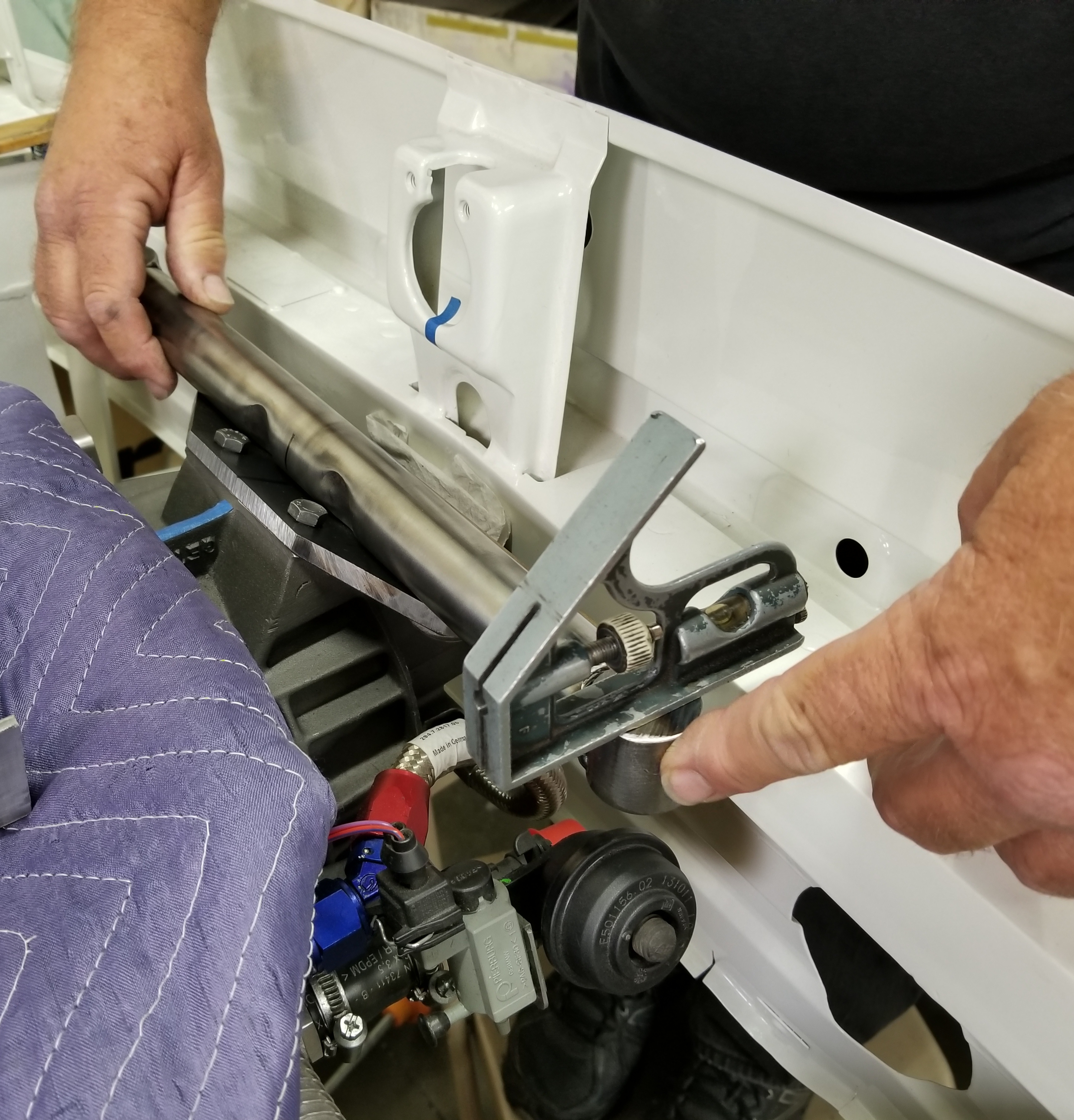

Rear transaxle mounting / 2 part system
Left bracket (in fixture) attaches to the inverted trans
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Jun 30 2018, 03:09 PM
Post #300


Advanced Member
****

Group: Members
Posts: 4,849
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Mount system
Attached Image
User is offlineProfile CardPM
